Haier L32B1120a User manual

L32B1120

-1-
Contents
Safety and warnings.......................................................................................2-3
Introduction..................................................................................................4
Installation...................................................................................................5-8
Remote Control............................................................................................9
Operation.....................................................................................................10-14
Trouble Shooting..........................................................................................15
Warranty......................................................................................................16

-2-
SAFETY ANDWARNINGS
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literaturaccompanying this
unit.
To reducethe risk offire or electricshock, do
not expose thisapparatus to rain or moisture.
WARNING:
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this apparatusnear water.
6) Clean onlywith dry cloth.
7) Do notblock any ventilationopenings, install in
accordance with theinstructions.
8) Do notinstall near anyheat sources suchas
radiations, heat registers,stoves, or otherapparatus
(including amplifiers) thatproduce heat.
9) Do notdefeat the safetypurpose of thepolarized
plug. If theprovided plug doesnot fit intoyour
outlet, consult anelectrician for replacementof the
obsolete outlet.
10) Protected thepower cord frombeing walked on
or pinched particularlyat plugs, convenience
receptacles, and thepoint where theyexit from the
apparatus.
11) Onlyuse attachments/accessories specifiedby
the manufacturer.
12) Unplug thisapparatus during lightingstorms or
when unused forlong periods oftime.
13) Refer allservicing to qualifiedservice
personnel. Servicing isrequired when the
apparatus has beendamaged in anyway, suchas
power-supply cord orplug is damaged,liquid has
been spilled orobjects have falleninto the
apparatus, the apparatushas been exposedto rain or
moisture, does notoperate normally,or has been
dropped.
14) Mains plugis used asthe disconnect device,the
disconnect device shallremain readily operable.
15) The ventilationshould not beimpeded by
covering the ventilationopenings with items,such
as newspapers, table-cloth,curtains, etc.
16) No nakedflame sources, suchas lighted
candles, should beplaced on theapparatus.
17) Attentionshould be drawnto the environmental
aspects of batterydisposal.
18) The useof apparatus inmoderate climate.
19) The apparatusshall not beexposed to dripping
or splashing andthat no objectsfilled with liquids,
such as vases,shall be placedon the apparatus.
This symbol indicates thatthis product
incorporates double insulation between
hazardous mains voltage anduser accessible
parts. When servicing useonly
identical replacement parts.
This marking indicatesthat this product should
not be disposedwith other household wastes
throughout the EU.To prevent possible harmto
the environment orhuman health from
uncontrolled waste disposal,recycle it
responsibly to promotethe sustainable reuse of
material resources. To return yourused device,
please use thereturn and collection systems or
contact the retailerwhere the product was
purchased. They cantake this productfor
environmental safe recycling.
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or the
like.
WARNING:
The excessive soundpressure from earphones
and headphones cancause hearing loss.
WARNING:
Haier is committedto safely recycling
electronic products andproduct materials.
Please check fora local recycling location in
the United Statesat: 1800RECYCLING.COM
or call 1.800.RECYCLING.

-3-
High voltages are used in the operation of this television
receiver. Do not the cabinet.
Refer servicing to qualified service personnel.
open
SAFETY ANDWARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes on the back cover .
Adequate ventilation is essential to prevent failure of
electrical components.
of the TV
Do not trap the power supply cord under the television
receiver s .' stand
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual and damage
to the television may result if it falls.
/or
When the televisionreceiver is not used for an
extended period of time, it is advisable to disconnect
the ACpower cord fromthe ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.or near
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the life of your television, and can also
be dangerous.

-4-
INTRODUCTION
Main features Accessories
Infrared Remote Control.................... 1
User s Manual ................................. 1
Battery(AAA)................................... 2
Accessories
Resolution:
Aspect Ratio:
TV System:
Video Signal System:
Receiving Channel:
Input Power Voltage:
Power consumption:
Main parameter
YCb(Pb)Cr(Pr) Input
Horizontal definition(TV line)
Viewing Picture Size(diagonal)
1366x768
16:9
135W
Audio Output Power (THD 7%): 2x8W
NTSC
Cable :1-135/ Air: 2-69 (ATV&DTV)
Analog RGB(VGA) Input x 1
High-Definition Multimedia Interface(HDMI) Input x 3
Audio Input x 3
Composite Video Input >=350
x 1
YCb(Pb)Cr(Pr) >=400
Video Input >=400
32 inches
Composite Video Input x 2
AC 100V-240V 50/60Hz
ATSC Digital system and NTSC Analog system
Headphone Output
x 1
x 1
Coaxial Output
Power Cable..................................... 1
1366 x 768 native resolution for HD performance
Integrated ATSC TV tuner for HDTV broadcast reception
High brightness provides a vivid and brilliant picture
Deeper blacks and brighter whites with high contrast
Wide Screen aspect ratio (16:9) for a complete home
theater experience
HDMI input for true digital connection
VGA port for connection to PC
Built-in stereo speaker system
Full-function Remote Control
x 1
USB Input

-5-
INSTALLATION

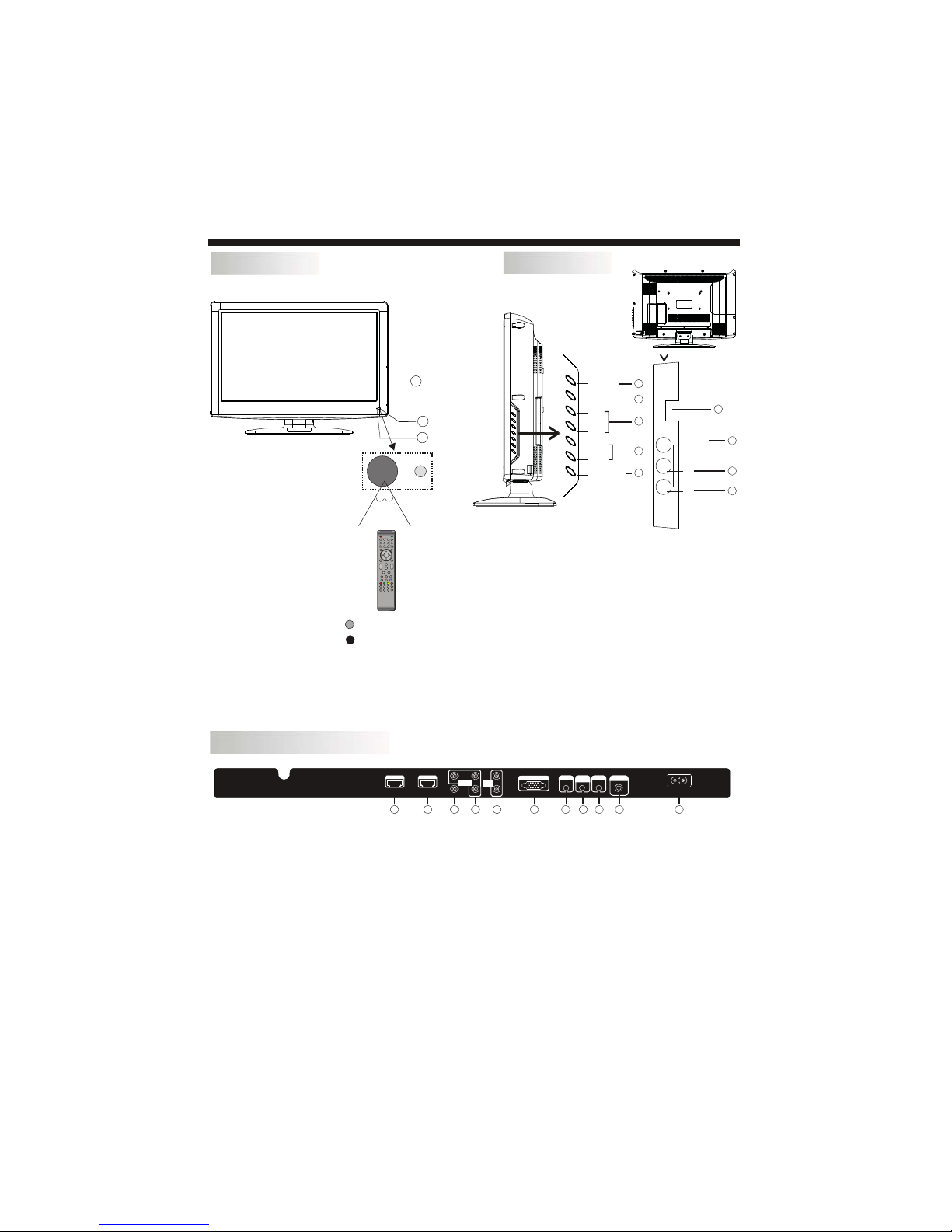

Front panel
REAR AV INPUT/OUTPUT
1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
6. USB INPUT
7. VIDEO INPUT
8. AUDIO INPUT-L
9. AUDIO INPUT-R
Side panel
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1 2 3
4 5 6
7 8 9 0
+
CH
_
+
_
VOL
30 30
3
1
2
VIDEO
L
R
AV2
USB
R
L
VIDEO
Note: 1. Composite video input and component video input share the audio input.
2. When DVI connect is used on HDMI 1 Input, use "PC Audio" for the audio signal input.
3. When a DVI connection is used on the HDMI 2 Input, use "YPbPr Audio" for the audio signal input.
a ion the
7. Headphone Output
8. PC Audio Input
9. Coaxial
10. Antenna Socket
11. AC Power Socket
1. HDMI1 Input
2. HDMI2 Input
3. Composite Video Input
4. Component Video (YPbPr) Input
5. Audio Input
6. VGA Port (PC Input)
HDMI1 INPUT HDMI2 INPUT
AC INPUT
100-240V~50/60Hz
L
R
AV1
Pr
Y
Pb
HEADPHONE
PCAUDIO
INPUT
COAXIAL RF INPUT
AUDIO
INPUT
VGAINPUT
Component
input
1 2 34 5 6 7 8 910 11
1
2
3
4
5
6
7
8
9

-6-
INSTALLATION
STEPS:
PC
Be sure boththe TV and computer arepowered off.
1. Connect a VGA and audio cable.
2. Connect the power cord.
3. switch to VGAmode.
4.
Turn on the TV and
Turn on the PC.
PRESET MODE
1
2
3
4
5
6
7
8
9
10
720*400
640*480
640*480
800*600
800*600
1024*768
1024*768
1024*768
1280*1024
1280*1024
70
60
75
60
75
60
70
75
60
75
31.47
31.47
37.50
37.88
46.88
48.36
56.48
60.02
63.98
80.00
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
HDMI1 INPUT HDMI2 INPUT
ACINPUT
100-240V~50/60Hz
L
R
AV1
Pr
Y
Pb
HEADPHONE
PCAUDIO
INPUT
COAXIAL RF INPUT
AUDIO
INPUT
VGAINPUT
Component
input

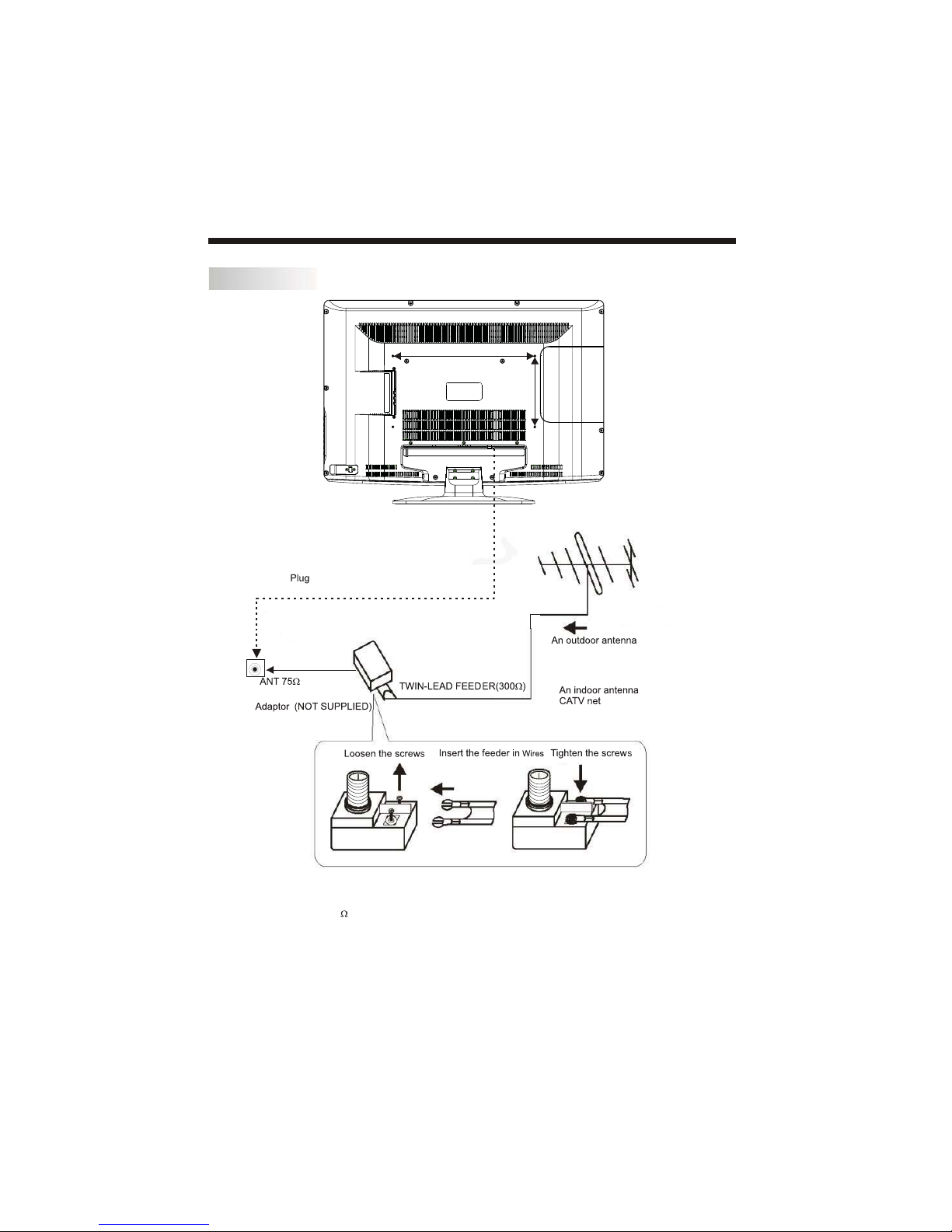

ANTENNA
Note:
Aerial connections:IEC(female).
Input impendance:75 unbalanced.
INSTALLATION
-7-
400mm
200mm

-8-
INSTALLATION

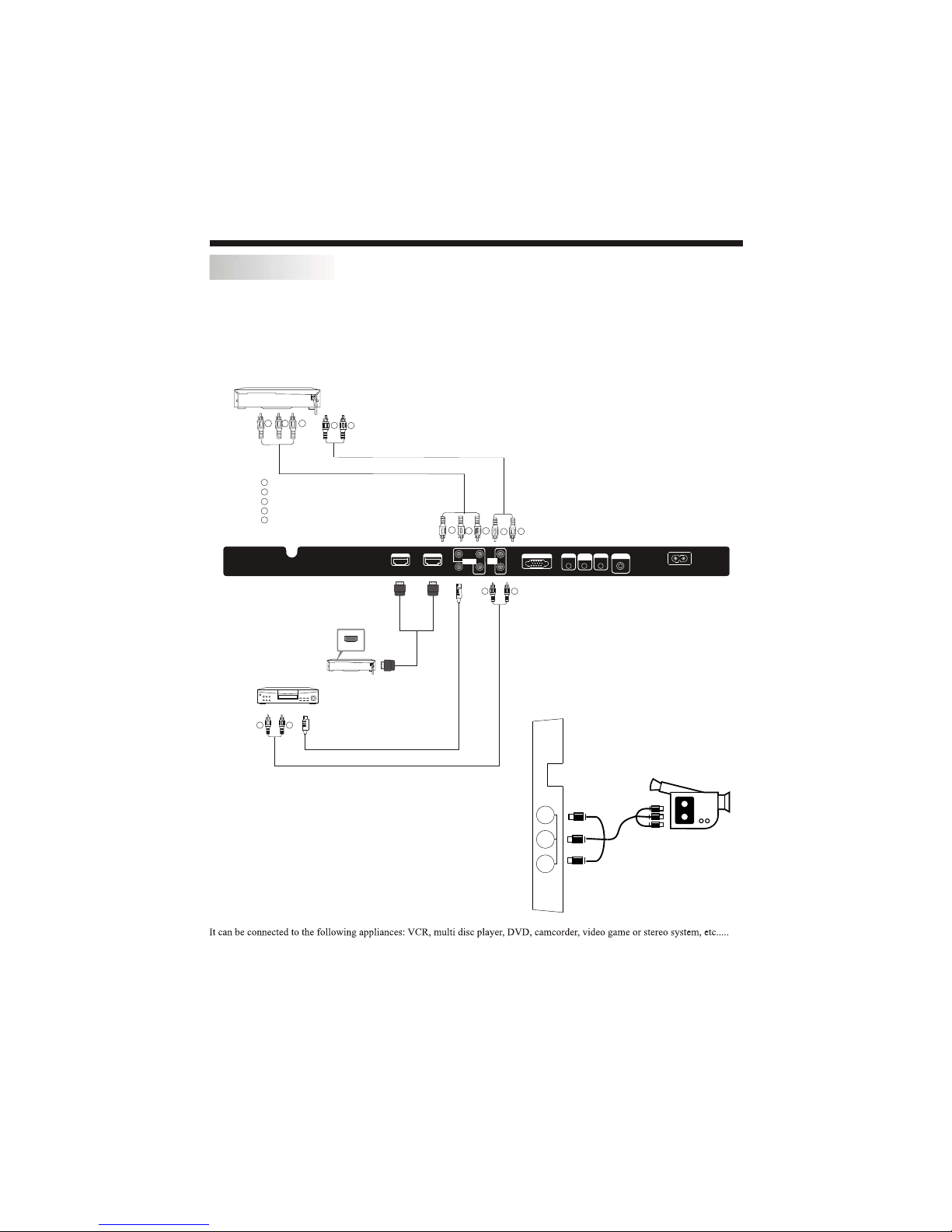

AV EQUIPMENT
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
There is a composite (AV) video input and a USB port located on the side of theTV. You can use thisAV input to conveniently
connect devices that you may frequently connect and disconnect, such as a camcorder.
There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video
equipment through these ports.
There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect
a VCR, cable box, or other video equipment to these jacks.
Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect.
VIDEO
L
R
AV2
USB
To audio outputs
VIDEO EQUIPMENT
TO VIDEO
output
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
WR
W R
W R
GBR
GR
B
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
WR
HDMI
HDMI1 INPUT HDMI2 INPUT
AC INPUT
100-240V~50/60Hz
L
R
AV1
Pr
Y
Pb
HEADPHONE
PCAUDIO
INPUT
COAXIAL RF INPUT
AUDIO
INPUT
VGAINPUT
Component
input

-9-
1
ENTER
23
456
7 8 9 0
+
CH
_
+
_
VOL
SLEEP P.G
CC
S.M
EXIT
P.M
TV DISPLAY
SOURCE
MENU
MTS/SAP
MUTE
POWER
ASPECT
RECALL
CH LIST FAVEPG

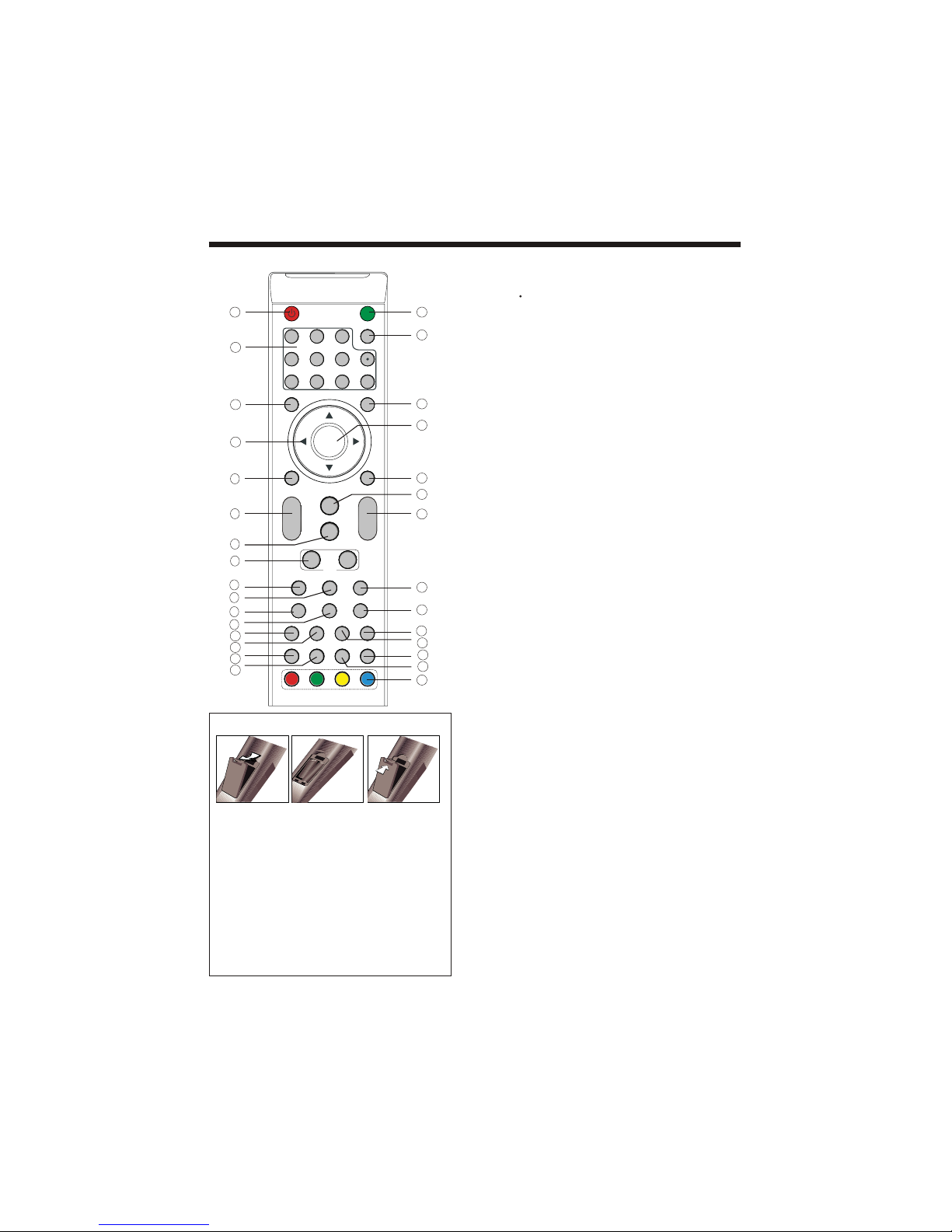

REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
19
20
11
12
13
14
15
16
17
18
30
21
Insert Batteries Into the Remote Control
123
Remark:
1. Remove the battery cover.
2. Insert the 2 AAA 1.5V batteries making sure the
polarity (+ or -) of the batteries matches the polarity
marks inside the unit.
3. Close the battery cover.
Replace with new batteries when the TV set begins
to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV
set does not function with the Remote Control.
1) Alkaline Batteries Recommended.
2) Remove batteries when they are exhausted or if the
remote control is not to be used for a long time.
AV HDMI
YPbPr VGA
PAGE UP PAGE DOWN
24 22
25 23
26
27
28
TV
DTV
STRENGTH
EPG
29
1: POWER
2: NUMBER KEY
3: MENU
4: CURSOR
5: EXIT
6: VOL+/-
7: P.M
8: PAGE DOWN/PAGE UP
In EPG mode, usethis key to pageup/down the EPG
information.
9: SLEEP
10: P.G
11: MUTE
12: RECALL
13: SOURCE
o display or exitthe TV inputsource menu.
14: ENTER
confirm a selection.
15: TV DISPLAY
16: S.M
17: CH+/CH-
18: ASPECT
19: CH LIST
20: EPG
21: FAV
22: HDMI
23: AV
24: DTV STRENGTH
25: TV
26: YPbPr
27: CC
28: VGA
30: COLOR KEYS
Reserved keys
Press to power ON/OFF(standby) the TV.
Press to enter theTV channel numberand select a channel
(Press " " tochoose the sub-channel).
Press to open theon screen display (OSD)menu or return
to the previous menu.
When the OSD menuis displayed on-screen,use these
buttons as the up,down, left, right andENTER buttons to
adjust the various optionsin the OSD menu.
Press to exit theOSD menu.
Press VOL+ or VOL- to adjust the volume.
Press repeatedly to select a picture mode:Vivid, Standard,
Sports, Theater,or Custom.
Press repeatedly to setthe sleep timer (off / 5 /10 / 15 /30 / 45 /
60 / 90 /120 / 180 /240minutes). The TVwill automatically turn
off after theselected amount oftime passes.
Press to go theParental Control settings menu.
Press to switch thesound ON/OFF.
Press to switch betweenthe current and previouslyviewed
channel.
Press t
Press to
Press to show theinformation about the currentinput source.
Press repeatedly to switch audio modes: Standard, News,
Music,Movie, Sports or Custom.
Press CH+ or CH- to browse through theTV channels.
Press to change thepicture aspect ratio.
Press to display thechannel list.
Press to display theDTV Electronic ProgramGuide.
Press to display thefavorite channels list.
Press to directly switchto HDMI input mode.
Press to directly switchto AV (composite) inputmode.
Press to display theDTV signal strength.
Press to directly switchto TV mode.
Press to directly switchto component input mode.
Press to turn onor off theclosed captions.
Press to directly switchto VGA(PC input) mode
Press to activate theNTSC TV sounds,such as Stereo,
SAP or Monotone, and audio languagesof DTV.
29: MTS/SAP

OPERATION
-10-

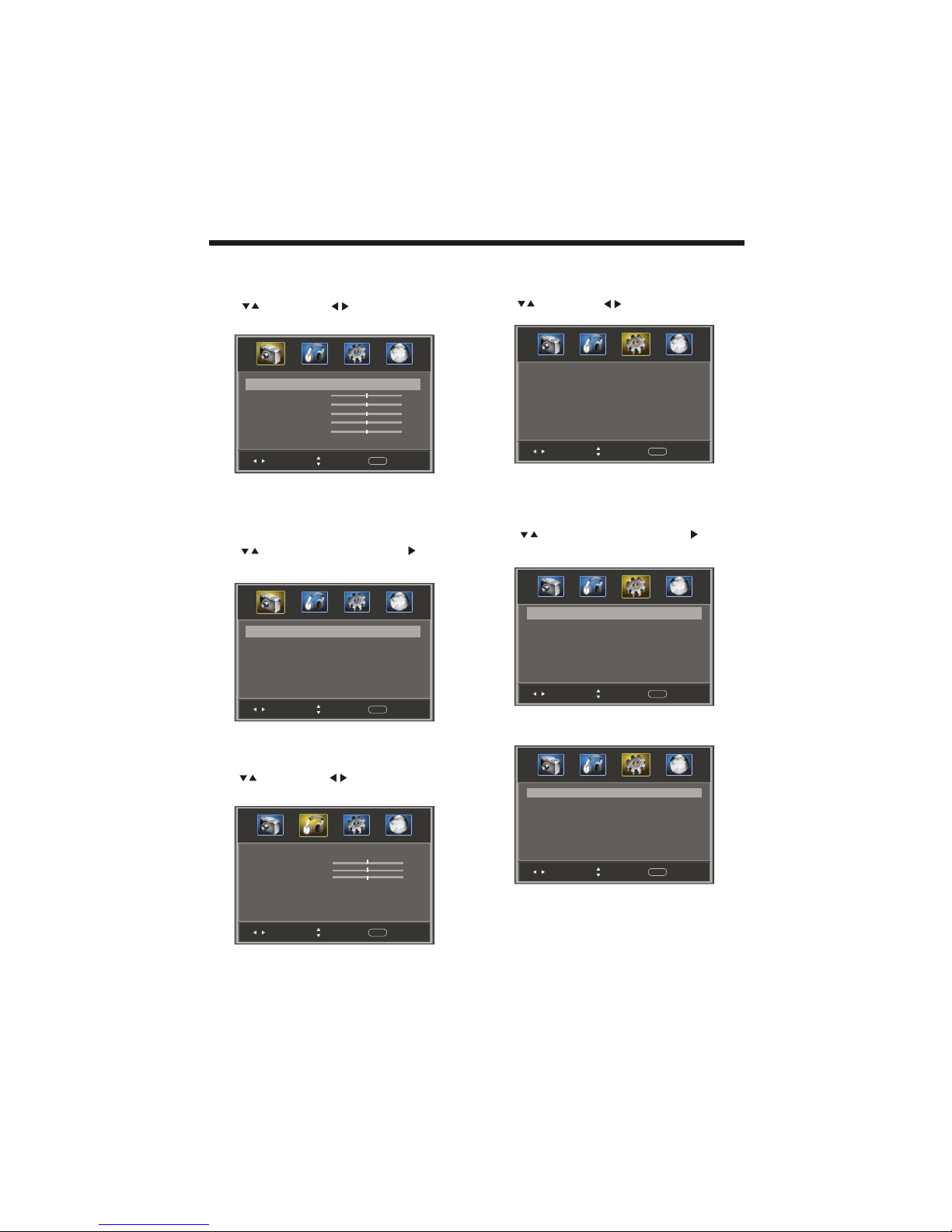

The first item of the MENU is PICTURE MENU.
Press to select, press to adjust, press MENU
to exit.
the
This menu provides several video adjustment options
for fine tuning the video display.
Picture Mode Standard
Contrast 50
Brightness 50
Color 50
Tint 0
Sharpness
Advanced Video
50
Select
Adjust Menu Exit
1. PICTURE MENU
2.AUDIO menu
The second item of the MENU is the AUDIO MENU.
You can adjust sound here.
Press to select, press to adjust, press MENU
to exit.
options
3. SETUP MENU
The third item of the MENU is the SETUP MENU.
You can here.
Press to select, press to adjust, press MENU
to exit.
set system settings
Note:
Restore Default: Resetall settings to
default value.
the factory
Note:
The Audio language is available for
ATSC (DTV) programs.
option only
< >
>
Color Temp. Normal
Select
Adjust Menu Exit
< >
Aspect Wide
Noise Reduction Middle
< >
< >
Press to select Advanced Video, press ,and
the screen shown below willbe displayed.
Advanced Video:
Select
Adjust Menu Exit
Sound Mode Standard
Bass 50
Treble 50
Balance 0
Surround
AVC
Digital Output PCM
Off
Off
< >
< >
< >
< >
Select
Adjust Menu Exit
Parental Controls
Timer
Closed Caption
Menu Settings
VGA Settings
Restore Default
>
>
>
>
>
>
3.1. Parental Controls:
Press to select , press ,and the
screen
Parental Controls
shown below willbe displayed.
Select
Adjust Menu Exit
Enter Password ----
Select
Adjust Menu Exit
Input the password,and you will
menu. The factorydefault password is 6666.
enter the Parental
Control
Change password
P.G switch Off
US
Canada
RRT setting
Reset RRT
< >
< >
< >
< >
< >
>
Note:
If you want to adjust contrast, brightness, color,
and sharpness, the picture mode must to
"Custom".
be set
Audio Language English
< >

OPERATION
-11-
Change Password:
Press , andthe screen
shown below willbe
displayed.
2). New password:Input the newpassword
3). Confirm password: Input the newpassword again
Select
Adjust Menu Exit
New password
Confirm password
----
----
Old password ----
1). Old password:Input the oldpassword
P.G switch:
When the is ON, theoptions
can be adjusted.
Parental Control shown
below
US: Press ,and the screen shown below willbe
displayed.
Select
Adjust Menu Exit
TV
MPAA N/A
>
>
< >
< >
1): TV:Press , and the screen
shown below willbe
displayed.
Press the ENTER key tolock/unlock .Parental Controls
Rating Content
FV
(Fantasy
violence)
V
(Violence)
S
(Sexual
situation)
L
(Adult
language)
D
(Sexually
suggestive
dialog)
Suggested
age
TV-Y (All
children)
TV-Y7(Direct to
order children)
TV-G(General
audience)
TV-PG(Parental
Guidance
suggested)
TV-14(Parents
strongly
cautioned)
TV-MA(Mature
audience only)
X
X
X
X
X
X
X
X
X
X
X
X
Content
2). MPAA: switch the movie-rating control level: N/A,
G, PG, PG-13, R, NC-17, X.
Rating Description
Age
G General audiences, All Ages admitted
PG
Parental Guidance suggested. Somematerial may not be
Suitable for children.
PG-13 Parents strongly cautioned. Somematerial .may be
Inappropriate for children under13.
R
NC-17
X
Restrict. Under 17 requires accompanyingparent or adult
guardian (age varies insome jurisdictions).
No one 17 andunder admitted.
X is an orderrating that is unifiedwith NC-17 but maybe
encoded in the dataof order movies.
Canada: Press ,and the screen shown below willbe
displayed.
1): Canada English:switch the English-ratingcontrol
level: EXEMPT,C, C8+, G, PG, 14+, 18+.
Select
Adjust Menu Exit
Canada English
Canada French
EXEMPT
< >
< >
EXEMPT
< >
< >
Select
Adjust Menu Exit
ALL
FV
V
S
L
D

OPERATION
-12-

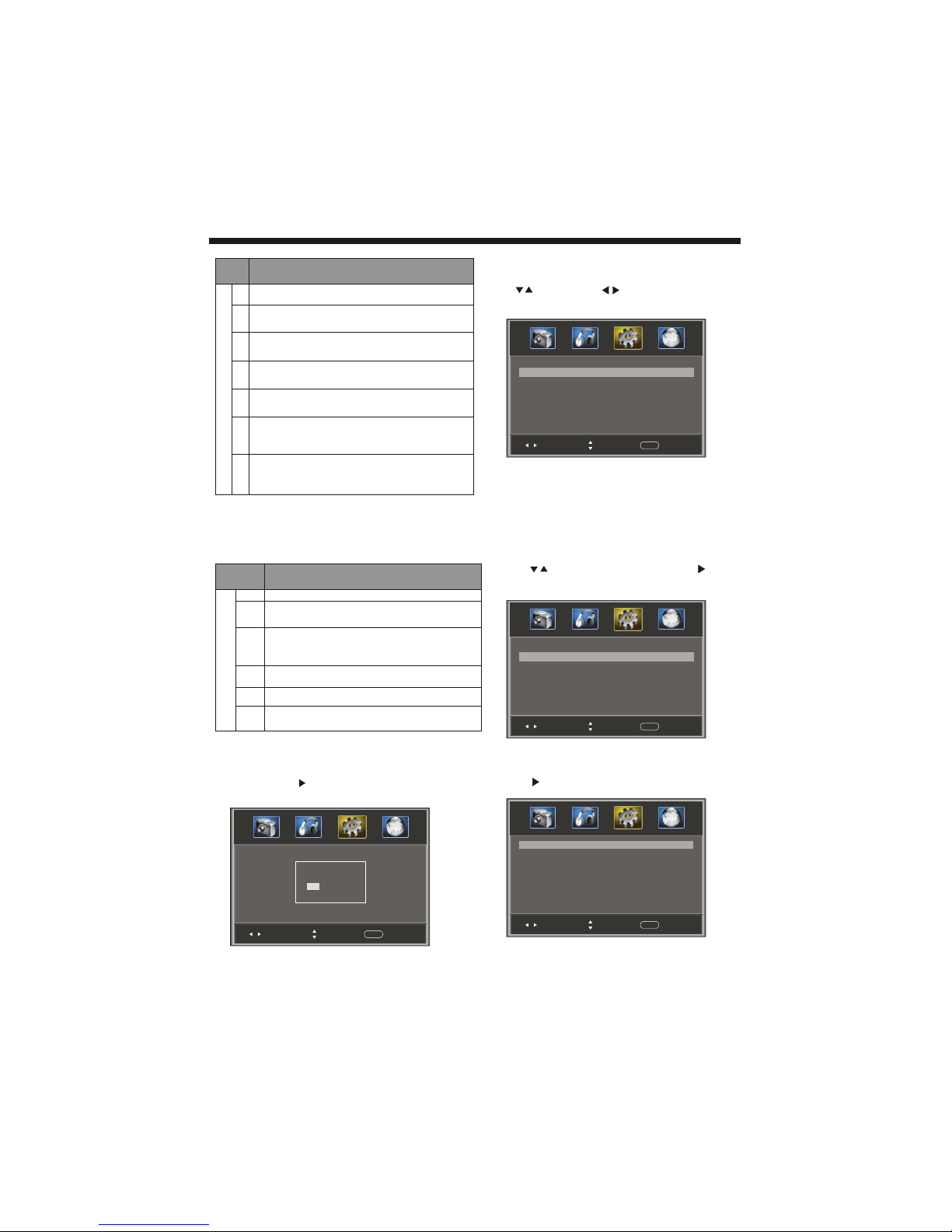

Rating Description
Age
E Exempt: Includes news,sports, documents and otherinformation
programming: talk shows, musicvideos, and variety programming.
C Children: Intended foryounger children under theage of 8 years.
Pays careful attention tothemes that could threatentheir sense of
securityand well-being.
C8+ Children over 8years old: Contains noportrayal of violence asthe
preferred, acceptable, or onlyway to resolve conflict;nor encourage
children to imitate dangerous actswhich they may see onthe screen .
G General: Considered acceptable forall age groups,Appropriate
viewing for the entire family, contains very little violence,physical,
verbal or emotional.
PG Parental Guidance: Intendedfor a general audience,but may not be
suitable for younger children (underthe age of 8) becauseit could
contain controversial themes orissues.
14+ Over 14 Years: Could contain themeswhere violence is oneof the
dominant elements of thestoryline, but it mustbe integral to the
development of plot orcharacter. Language usagecould be profane
and nudity, presentwithin the context of thetheme.
18+ Adults: Intendedfor viewers 18 years and olderand might contain
depictions of violence, which while related tothe development of
plot, character or themes, are intended foradult viewing. Could
contain graphic language and portrayals of nudity.
2).Canada French: switchthe French-rating control
level: E, G,8ANS+,13 ANS+,16ANS+,18ANS+.
Rating Description
Age
E Exempt programming
G General: Allages and children, contains minimaldirect violence,
but may be integrated intothe plot in a humorousor unrealistic
manner .
8ans+ General but inadvisablefor young children: Maybe viewed by a
wide public audience, but couldcontain scenes disturbing to
children under 8 whocannot distinguish between imaginaryand
real situations. Recommended for viewingwith paren .tal guidance
13ans+ Over 13 years: Couldcontain scenes of frequent violentscenes
and intense violence.
16ans+ Over 16 years: Couldcontain frequent violent scenes andviolence.
18ans+ Over 18 years:Only for adult viewing.Could contain frequent
violent scenes and extreme violence.
Reset RRT: Press ,and the screen
shown below willbe
displayed.
RRT setting:in ATSC digital TVmode, it could be
adjusted
Select
Adjust Menu Exit
Are you sure?
NO YES
Press ENTER Key To Select
3.2 Timer
You can adjust timers here.
Press to select, press to adjust, press MENU
to exit.
Sleep Timer:Youcan set the sleep timer.
Note:
Time zone, DSTand Clock areavailable in ATSC ,
and the Clockcan't be adjust .
mode
ed
Select
Adjust Menu Exit
Sleep timer
Time zone
DST
Clock 1999/12/31 04:03PM
Pacific
Off
Off
< >
< >
< >
< >
< >
< >
2): Option:You can edit the closed caption options.
Press , andthe screen shown below will be displayed.
NOTE: Only availablein ATSC mode.
1): Advancedselection: only ATSCmode.available in
3.3 Closed Caption:switch the closedcaption mode.
Press to select Closed Caption, press , and
the screen shown below willbe displayed.
Select
Adjust Menu Exit
CC Mode
Basic Selection
Advanced Selection
Option
Off
CC1
Service 1
< >
< >
< >
< >
< >
< >
>
>
Select
Adjust Menu Exit
Mode
Font style
Custom
Default
Font size Default
Font Edge style Default
Font Edge color Default
FG color Default
BG color Default
FG opacity Default
BG opacity Default
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >

OPERATION
-13-
1). Air/Cable: Select Air TV signal or Cable TV signal.
2). Auto Scan:
, and the screen
If it's the first time you use the TV, you
should scan all the TV channels first.
Press the to confirm shown below
will be displayed.
Select "YES" and
and the screen
press the ENTER to confirm,
shown below will be displayed,
which indicates that the auto search is progressing.
3). Favorite: Press to /delete favorite channels.add
4). Show/Hide: Press the ENTER button to display or
hide channels.
5). Channel NO. : Display the current channel number.
Press to change the channel.
6). Channel label: Press to edit the current channel
name.
7). DTV signal: Display DTV signal strength.
It can't be selected and adjusted.
Menu Language English
Select
Adjust Menu Exit
< >
3.5 VGASettings: O nly available inVGA (PCinput)
mode.
1). H-Pos: Adjust the horizontal position of the screen.
2). V-Pos: Adjust the vertical position of the screen.
3). Clock: Fine tune the screen width.
4). Phase: Fine tune the phase of the screen. Usually
don't adjust this item .
5). Auto: Auto adjust to fit the screen.
you need to option
Press to selectVGA Settings,press , and
the screen shown below willbe displayed.
Select
Adjust Menu Exit
H-pos
V-pos
Clock
Phase
50
Auto
50
50
50
>
4. Channel MENU
The fourth item of the MENU is the Channel MENU.
You can adjust digital and analog TV Channel.
Press to select, press to adjust.
Select
Adjust Menu Exit
Air/cable
Auto Scan
Air
Favorite
Show/Hide
Channel NO.
Channel Lable.
DTV signal: Good
2-1
< >
< >
>
>
>
>
Select
Adjust Menu Exit
Are you sure?
NO YES
Press ENTER Key To Select
Select
Adjust Menu Exit
R F CH: 4
Found: 4
Analog: 1
Digital: 3
3.4 Menu Settings
You can adjust Menu Settings here.
Press to select, press to adjust, press MENU
to exit.

OPERATION
5. Multimedia MENU

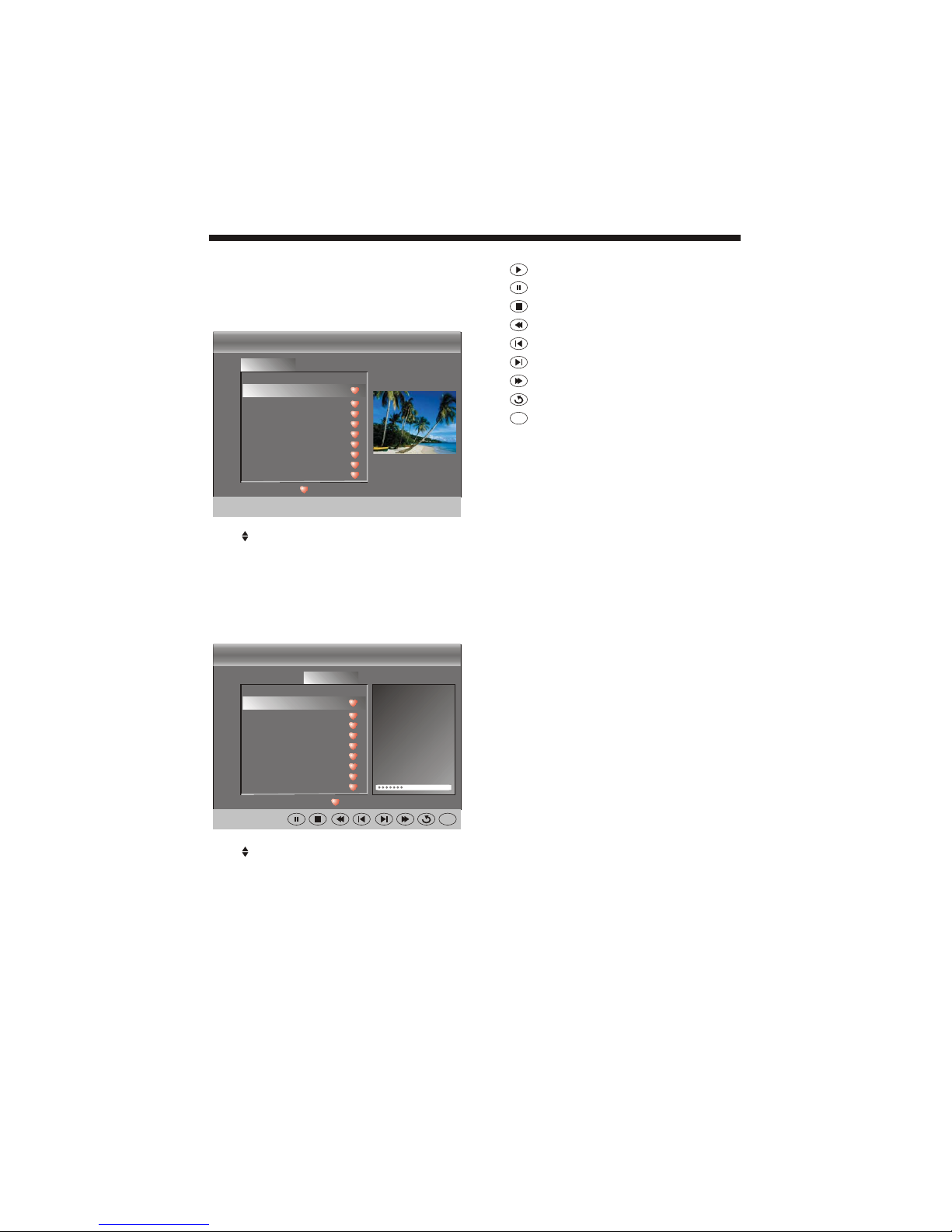

If you select the storage source. You can use the Multimedia
Menu to display JPEG pictures and play MP3 music.
1. Select a Photo
The screen shown below will be displayed.
Use select the. Jpg files or folders,
to play, EXIT to stop playing or go to the
menu.
press ENTER
press previous
2. Select Music
The screen shown below will be displayed.
Use select the. MP3 files or folders, to
play, EXIT to go to menu.
press ENTER
press the previous
USB
C:
Photo Music
..
Everything I do.mp3
C:\laoge\
:17 001/018
Total size:3.7 GB
Unused size: 3.7 GB
Sealed With AKiss.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
Everything I do.mp3
Title:
Artist:
Album:
Year:
Bit Rate: 128kbps
Play
05:49 06:33
Random
: pause
: stop
: fast backward
: previous
: next
: fast forward
: repeat all
: random play
Random
USB
C:
Photo Music
..
C:\photo\
:17 001/018
Total size:3.7GB 1024 x 768 372.72KB
Unused size: 3.7 GB 2006:07:14 15:37:42
: play
-14-

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection Check
Interference Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume (check if mute is
activated or ifthe audio system
connections are not correct)
No picture Mute
Power cord isnot inserted
Power switch isnot opened
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No color Normal audio Color control
breaking up
Normal audio
or weak
Retune channel
No color Noise TVsystem
Normal audio
antenna position, direction
or connection
TROUBLE SHOOTING
Trouble phenomenonSymptom
Ghost
-15-
The LCD TV panel is built with very high precision technology giving you fine picture details
in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed
point of red, green, blue, black or white. Please note this does not affect theperformance of
the product.

WARRANTY
-16-
