Haier L32R3 User manual

Please READ this manual carefully before
operating your TV, and retain it for future
reference.
OWNER’S MANUAL
TFT-LED/LCD TELEVISION
L32R3/L42R3

Warning
EN-1 TV LCD-TFT Owner’s Manual
Warning/Safety
WARNING
!
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as there is no any
accessory inside the casing.
*lf necessary, please contact authorized after-sales services.
*A lighting ash mark in a triangle: A potentially hazardous situation, which, if not avoided, could result in
serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specications must be followed if
it is to be replaced.
RISK ELECTRIC SHOCK
DO NOT OPEN
WARNING: To avoid fire or electric hazards, never place your television receiver in an area with heavy moisture.
Attention should be paid to avoid accidental scratches or impacts onto the screen.
CAUTION:
Please read this manual carefully before using your television and keep this manual in a good place for futureq
reference.
To achieve the best performance of your television, read this User’s Manual carefully and properly store it for futureq
reference.
Information of screen displays and figures in the User’s Manual may vary due to technical innovations.q
Unauthorized disassembly of this product is prohibited.q
Important Safety Instructions
1.The product should be tightly xed to avoid drop damages and even re.
2.To avoid re hazards, do not use this product under direct sunlight or closely to heat sources.
3.Do not locate the product close to water or oil, which may cause re hazards.
4.Unplug the power supply and antenna of the product when there is a rainstorm, especially thunderstorm.
5.Do not use damaged or worn electric plugs, and keep electric cord away from heat sources to avoid electric shocks or
re hazards.
6.Do not connect excessive sockets in parallel or share the same socket by multiple plugs to avoid re hazards.
7.The product must be placed on a solid and stable surface to avoid collapse.
8.Unanthorized disassembly of the television is prohibited to avoid electric shocks or re hazards, contact authorized
aftersales serivce if technical serivce is needed.
9.Keep the product away from a transformer or heat source to avoid re hazards.
10.Disconnect the product from power supply and contact authorized after-sales service if abnormal sound is heard in
the product.
11.Do not use or store inammable materials near the product to avoid explosion or re hazards.
12.Do not place the product in a humid area to avoid re hazards.
13.The antenna of the product should be away from electric cable to avoid electric shocks.
14.Never touch the plug when your hand is wet as this might cause electric shocks.
15.Always make sure that the television is well plugged as poor electric connection might cause re.
16.When antenna is used, measures should be taken to prevent water from owing down along the cable into the
television.
17.Unplug the television, use soft fabric, never chemicals, if you are going to make cleaning of the product, Make sure
that no water drops in the product.
18.The plug and electric cable must be kept clean to avoid electric shocks or re hazards.
19.Disconnect the television from power supply and antenna when there is a rainstorm or thunderstorm to avoid
electric shocks or re hazards.
20.Disconnect the television from power supply to avoid electric shocks or re hazards in a long vocation.

Contents
TV LCD-TFT Owner’s Manual EN-2
Contents
How to customize your own picture status.............. 11
Sound menu.......................................................12
How to select sound mode............................................. 12
How to Customize your own sound status............... 12
Channel menu....................................................12
Auto Tuning.......................................................................... 13
DTV Manual Tuning........................................................... 13
ATV Manual Tuning............................................................ 13
Programme Edit.................................................................. 14
Singnal Information .......................................................... 14
Programme Guide.............................................................. 14
Time menu..........................................................14
Option menu......................................................14
Lock menu..........................................................15
Tuning Lock .......................................................................... 15
Set Password........................................................................ 15
Block Program ..................................................................... 15
Parental Guideance ........................................................... 15
Clear Lock.............................................................................. 15
PC Set..................................................................15
USB Mode...........................................................16
Maintenance 18
Specification 19
Format 19
Troubleshooting 19
Warning 1
Important Safety Instructions 1
Introduction 3
Controls ................................................................3
Connection Options ............................................4
Remote control ....................................................5
Installation 6
External Equipment Connections ...................... 6
Accessories ..............................................................................6
Antenna Connection............................................................6
Choose Your Connection....................................................7
Connecting a VCR..................................................................7
External AV Source Setup...................................................7
Connecting a DVD player...................................................7
Connecting a DTV (digital TV) ..........................................8
Connecting a digital audio output .................................8
Connecting a computer......................................................9
HDMI and DVI input .......................................................... 10
Operation 10
Switching On/O the TV set........................................... 10
Choose the Menu Language.......................................... 10
Choose the Input source ................................................. 11
Picture menu......................................................11
How to select picture mode........................................... 11

Introduction
EN-3 TV LCD-TFT Owner’s Manual
Introduction
Controls
This is a simplied representation of the TV front panel, side panel control buttons and side inputs.
TV Side panel controls and connections
VIDEO L-AUDIO-R
TV/AV MENU VOL+ VOL- CH+ CH- POWER
1TV/AV
Press to access the input source mode. Press
repeatedly to change the source to the one you
want to watch. In the MENU screen, the TV/
AV button serves as the OK button.
2MENU Menu display. Press to access the on-screen
menu display.
3VOL +/-
Press to adjust the volume. In the MENU screen,
these buttons serve as right/left buttons.
4CH +/-
Press to scan through channels.To scan quickly
through channels, press and hold down either
+/- . In the MENU screen, these buttons serve
as up/down buttons.
5POWER Press to turn on and o the TV.
6HDMI IN Connect a HDMI device to receive digital audio
and uncompressed digital video signals.
7Headphone jack Headphone audio output terminal.
8AV1 VIDEO IN Connect the composite video cable from an
external signal source to this jack.
9AV1 AUDIO IN Connect the audio L/R cables from the video
signal source to these jacks.
0USB
Connect the USB Flash to play the
Movies,Music,Text and Photos, and updata the
software(USB1)
ARemote Sensor
Receivers IR signals from the remote control.
Do not put anything near the sensor, which
may block the remote control signal.
BS- VIDEO Connect the S-Video cable from an external
signal source to this jacks.

Introduction
TV LCD-TFT Owner’s Manual EN-4
AV
1Digital Audio
Output
Connect various types of digital audio equipment.
2Antenna
Input
Connect cable or antenna signals to theTV,
either directly or through your cable box.
3HDMI In Connect a HDMI device to receive digital audio
and uncompressed digital video.
4VGA Video In Connect a video cable from a computer to this
jack.
5VIDEO In Connect the video signal from a video device to
this jack.
6Component
Video In
Connect a component video device to these
jacks.
7AUDIO In Connect the audio L/R cables from the video signal
source to these jacks.
8S-VIDEO In Connect the S-Video cable from an external signal
source to this jack.
9COMPONENT
AUDIO In
Connect the audio L/R cables from the component
video signal source to these jacks.
0Video Out Connect the
video
L/R cables
to your other video
equipment
.
AVGA/DVI
Audio In
Connect the audio L/R cables from a computer to
this jack.
BAUDIO Out
Connect the audio L/R cables to your audio equipment.
Connection Options
Back panel connections

Introduction
EN-5 TV LCD-TFT Owner’s Manual

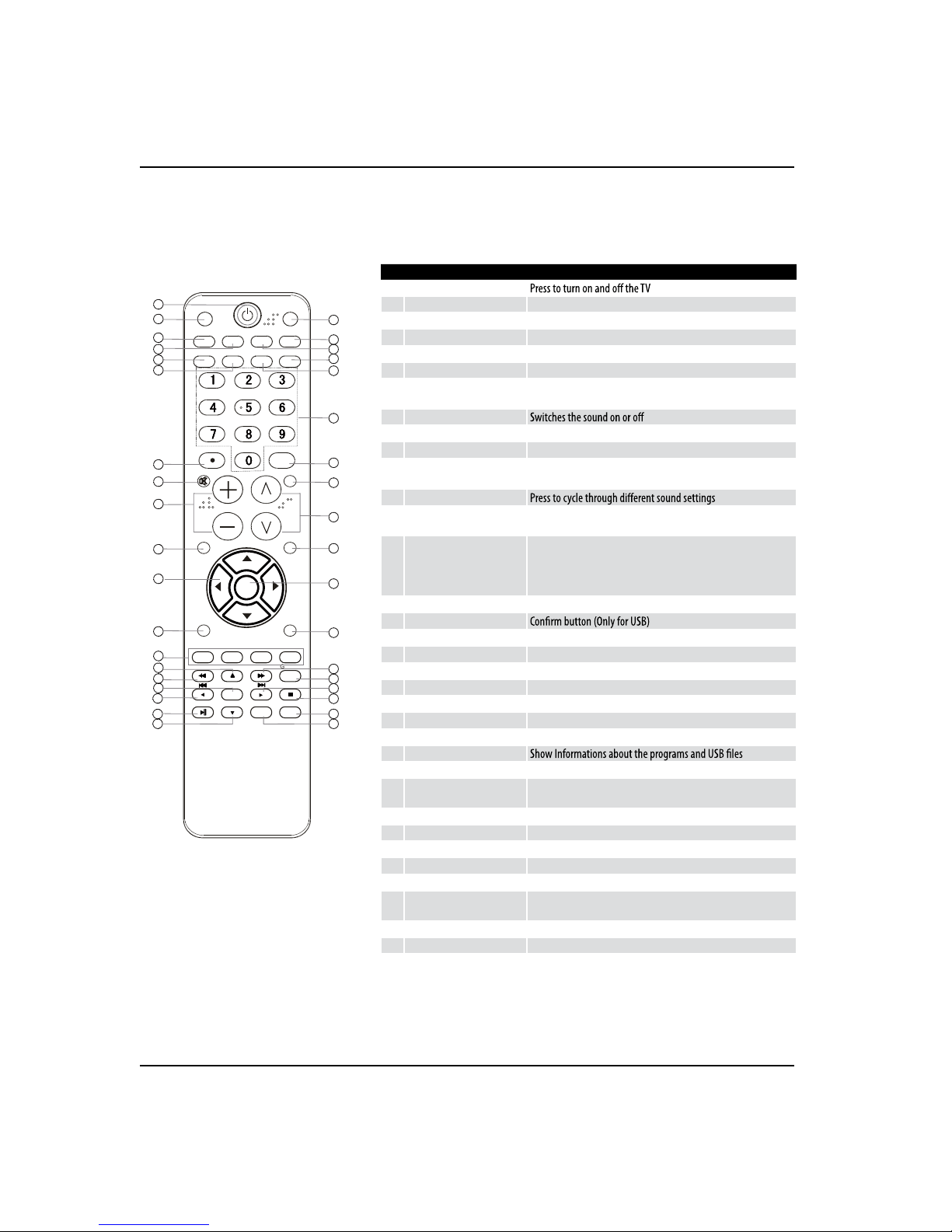

Remote control
The remote control cannot be operated unless the batteries are properly loaded.
When using the remote control, aim it at the remote sensor on the TV.
1Power
2INPUT Show the input source
3MTS/SAP Select MONO, STEREO, SAP
4CCD (closed caption) Select a closed caption option
5P.SIZE
Select the aspect ratio
6H.LOCK Hotel Lock button
7• button Press to select digital channels. For example, to enter “54-3”,
press“54”,“• ”and“3”
8MUTE
9VOLUME UP/DOWN Press to adjust the volume
0MENU Press to open the on-screen menu
AThumbstick (Up/Down/
Left/Right)
Allows you to navigate the on-screen menus and adjust the
system settings to your preference
BSOUND
CColor button
Press to operate the Functions in GUIDE/Program Edit/Block
Program/USB
D
G
I
X
Thunbstick(USB) Allows you to navigate the on-screen menus in USB function,and
17 for Previous, 34 for Next;
EREV Fast Reverse (Only for USB)
FENTER
HPlay/Pause button (Only for USB)
JUSB Press to switch input source to USB in
KDNR Digital Noise Reduction
LSLEEP button Press to display the sleep timer option
MCH.LIST Open the channel list in TV
NFAVORITE Open the favourite channel list inTV
ONumber buttons Press to change a channel
PINFO
QQ.VIEW Press to jump back and forth between two channels
RCHANNEL UP/DOWN Channel selection(up/down)
SQ.MENU Adjust some functions in common use
TOK
Accesses the highlighted item in the on-screen menu
UPICTURE Press repeatedly to cycle through the available picture modes
VFWD
Fast forward(Only for USB)
WGUIDE
Display the guide when you are watching analog or digital channels
YEXIT Clears all on-screen displays and returns toTV viewing from any
menu
ZREPEAT Replay a music or movie
[ZOOM
Press to magnify/minify an image
ENTER
ZOOM
OK
GUIDE
EXIT
REPEAT
INPUT
MTS/SAP
INFO
MUTE
VOL CH
MENU
Q.MENU
SOUND
Q.VIEW
P.SIZE H.L OCK
FAVORITE
CH.LIST
CC DNRSLEEP
USB
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Installation
TV LCD-TFT Owner’s Manual EN-6
Installation
External Equipment Connections
Accessories
Remote control Owner’s manual Alkaline battery (AAA) x2
Antenna Connection
Over-the-air TV reception quality will depend on your antenna type, antenna location and antenna positioning.
ANT IN
VHF Antenna
UHF Antenna
Turn clockwise to tighten
Bronze Wire
Be careful not to bend the bronze wire
when connecting the antenna.
Bronze Wire
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Wall Antenna
Socket
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
To improve the picture quality in a poor signal
area, please purchase a signal amplifier and install
properly.
If the antenna needs to be split for two TV’s, install a
“2-Way Signal Splitter”in the connections.
To install the antenna properly please contact a
professional in your area.
Note
All cables shown are not included with the TV.R
PLAY/PAUSE
REV
REPEAT
GUIDE
MTS/SAP
CCD ARC
FREEZE
ENTER
STOPUSB REC
PREV NEXT
CH.LIST
FAVORITE
TV
STB
INPUT
MUTE
VOL CH
MENU
SLEEP DISPLAY
EXIT
RECALL
PICTURE AUDIO PC HDMI
CABLE VCR AUD
DVD
ANT IN

Installation
EN-7 TV LCD-TFT Owner’s Manual
Choose Your Connection
There are several ways to connect your television,
depending on the components you want to connect
and the quality of the signal you want to achieve. The
following are examples of some dierent ways to
connect your TV with dierent input sources.
Connecting a VCR
To avoid picture noise (interference), leave an adequate
distance between the VCR and TV.
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune
the TV to the same channel number.
Connection Option 2
Connect the audio and video cables from the VCR’sA
output jacks to the TV input jacks, as shown in the
figure. When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white, and
Audio Right = red). If you connect a S-VIDEO output
from VCR to the S-VIDEO input, the picture quality is
improved; compared to connecting a regular VCR to
the Video input.
Insert a video tape into the VCR and press
BPLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select the input source with using theCINPUT button
on the remote control, and then press
/
button
to select the source, press OK button to confirm.
External AV Source Setup
How to connect
Connect the audio and video cables from theq
external equipment’s output jacks to the TV input
jacks, as shown in the figure.
When connecting the TV to external equipment,q
match the jack colors (Video = yellow, Audio Left =
white, and Audio Right = red).
Video Game Set
Camcorder
How to use
Select the input source with using theAINPUT button
on the remote control.
Press
BCH+/- button to select the desired source.
Press
COK button to confirm.
Operate the corresponding external equipment.
D

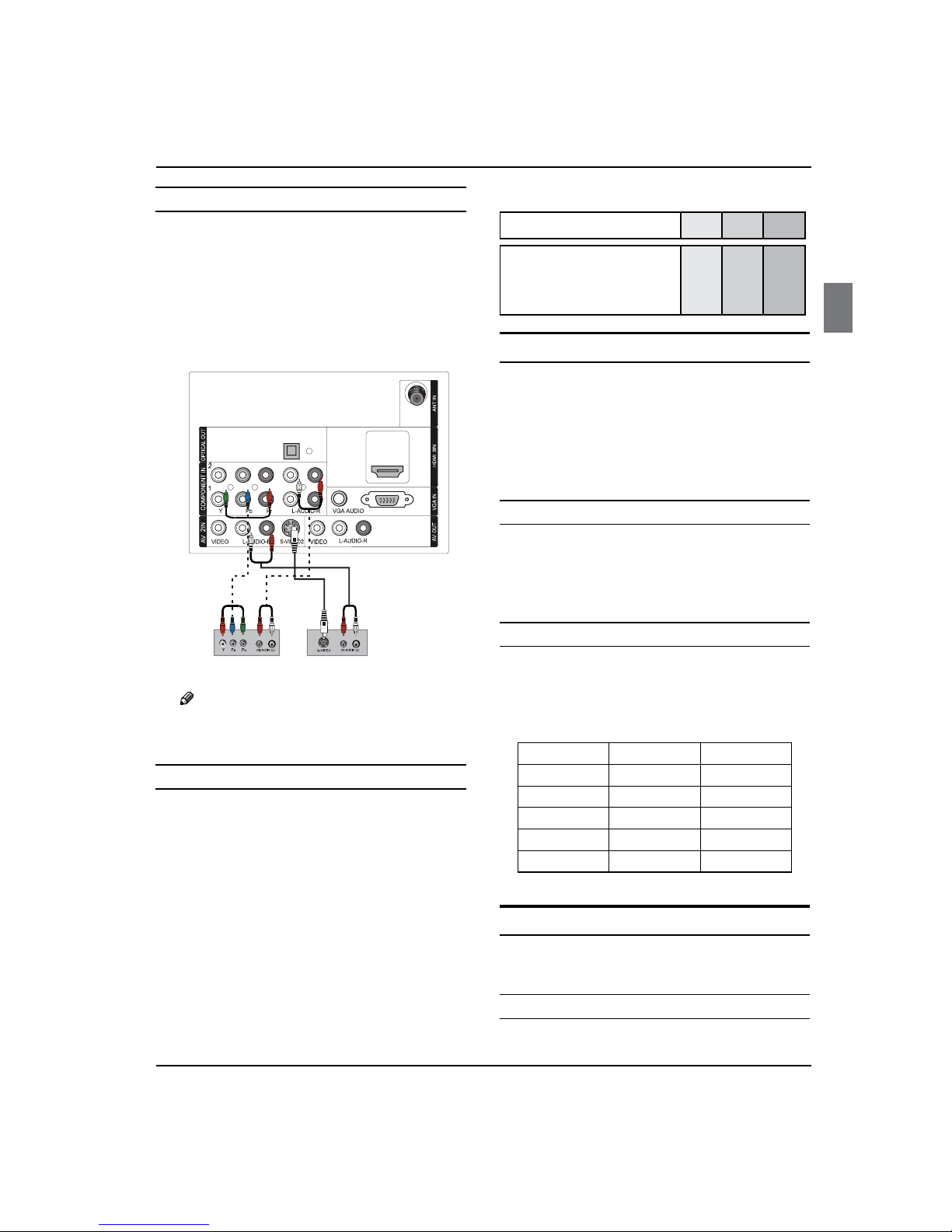

Connecting a DVD player

Installation
TV LCD-TFT Owner’s Manual EN-8
How to connect
Connect the DVD video outputs (COMPONENT) toA
the Y Pb Pr jacks on the TV and connect the DVD
audio outputs to the YPbPr Audio IN jacks on the TV,
as shown in the figure.
If your DVD only has an S-VIDEO output jack, connectB
this to the S-VIDEO input on the TV, as shown in the
figure.
DVD
or
Note
If your DVD player does not have componentR
video output, use S-Video.
How to use
Turn on the DVD player, insert a DVD disc.A
UseBINPUT button on the remote control to select
component mode.
Press
CPLAY button on external equipment for
program play.
Refer to the DVD player’s manual for operating
D
instructions.
Component Input portsQ
To get better picture quality, connect a DVD player to
the component input ports as shown below.
Component ports on the TV Y Pb Pr
Video output ports on DVD
player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Connecting a DTV (digital TV)
This TV can receive Digital Over-the-air/Cable signals
without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other
digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital
Contents Protection) protocol for Digital Contents
(480p,720p,1080i).
How to connect
Use the TV’s COMPONENT, VGA or HDMI jack forq
video connections, depending on your set-top box
connector. Then, make the corresponding audio
connections.
How to use
Turn on the digital set-top box. (Refer to the owner’sA
manual for the digital set-top box.)
Use INPUT on the remote control to select
B
COMPONENT, VGA or HDMI source.
Signal COMPONENT HDMI
480i Yes Yes
480p Yes Yes
720p Yes Yes
1080i Yes Yes
1080p Yes Yes
Connecting a digital audio output
Send the TV’s audio to external audio equipment (stereo
system) via the Digital Audio Output (Optical) port.
How to connect
Connect one end of an optical cable to the TV DigitalA

Installation
EN-9 TV LCD-TFT Owner’s Manual
Audio (Optical) Output port.
Connect the other end of the optical cable to the
B
digital audio (optical) input on the audio equipment.
See the external audio equipment instruction
manual for operation.
Digit al Set-to p Box
+'0,
Note
When connecting with external audio equipments,R
such as amplifers or speakers, please turn the TV
speakers o.
!
Caution:
Do not look into the optical output port. Lookingq
at the laser beam may damage your vision.
Connecting a computer
How to connect
To get the best picture quality, adjust the VGAA
graphics card to 1280s1024.
Use the TV’s VGA or DVI (Digital Visual Interface)B
Audio IN port for audio connections, depending on
your computer connector.
If the graphic card on the computer does notq
output analog and digital RGB simultaneously,
connect only one of either VGA IN or HDMI IN to
display the VGA on the TV.
If the graphic card on the computer does outputq
analog and digital RGB simultaneously, set the TV
to either VGA or HDMI; (the other mode is set to
Plug and Play automatically by the TV.)
Then, make the corresponding audio connection.
C
If using a sound card, adjust the VGA sound as
required.
How to use
Turn on the computer and the TV.A
Use INPUT on the remote control to select VGA orB
HDMI source.
Check the image on your TV. There may be noise
C
associated with the resolution, vertical pattern,
contrast or brightness in VGA mode. If noise
is present, change the VGA mode to another
resolution, change the refresh rate to another rate
or adjust the brightness and contrast on the menu
until the picture is clear. If the refresh rate of the VGA
graphic card can not be changed, change the VGA
graphic card or consult the manufacturer of the VGA
graphic card.
Note
Use a DVI cable.R

Installation/Operation
TV LCD-TFT Owner’s Manual EN-10
Avoid keeping a fixed image on the TV’s screenR
for a long period of time. The fixed image may
become permanently imprinted on the screen.
The synchronization input form for Horizontal andR
Vertical frequencies is separate.
HDMI and DVI input
When the source device (DVD player or Set Top Box)
supports HDMI
How To Connect
Connect the source device to HDMI port of this TVA
with an HDMI cable (not supplied with this product).
No separated audio connection is necessary.
B
How To Use
If the source device supports Auto HDMI function,q
the output resolution of the source device will be
automatically set to 1280s720p.
If the source device does not support Auto HDMI,q
you need to set the output resolution appropriately.
To get the best picture quality, adjust the output
resolution of the source device to 1280s720p.
Select HDMI input source in input source option ofq
Select Main source menu.
When the source device (DVD player or Set Top Box)
supports DVI
How To Connect
Connect the source device to HDMI port of this TVA
with a HDMI-to-DVI cable (not supplied with this
product).
A separated audio connection is necessary.
B
If the source device has an analog audio outputC
connector, connect the source device audio output to
DVI Audio In port located on the left side of HDMI port.
How To Use
If the source device supports Auto DVI function,q
the output resolution of the source device will be
automatically set to 1280s720p.
If the source device does not support Auto DVI, youq
need to set the output resolution appropriately.
To get the best picture quality, adjust the output
resolution of the source device to 1280s720p.
Press theqINPUT button to select HDMI input source
in input source option of Select Main source menu.
Operation
In the manual, the OSD (on screen display) may be
dierent from your TV’s, because it is just an example to
help you with the TV operation.
There are several options you might need to set up in
order for your TV to work properly. Read the instructions
that follow.
Switching On/O the TV set
First, connect power cord correctly.A
Select the viewing source by usingBINPUT button on
the remote control.
When finished using the TV, press
CPOWER button on
the remote control. The TV reverts to standby mode.
If you intend to be away on vacation, disconnect the
D
power plug from the wall power outlet.
Note
If the TV in power on , the screen show informationR
according the type of input signal, the information
will disappear. If there is no signal, “No Signal” will
display on the screen.
Choose the Menu Language
When you start using your set for the first time, you must
select the language which will be used for displaying
menus and indications.
Choose
ATV Input and then press MENU button.
Press
B
/
button to select Option menu.
PressC
/OK button and then use
/
button to
select Language.

Operation
EN-11 TV LCD-TFT Owner’s Manual
PressD
/
button to select language.
(English or Portugues)
Choose the Input source
Change the picture source so you can watch your TV,
VCR, Cable , or any other devices that are connected to
your TV.
PressAINPUT button to enter the Input Source menu
and then use
/
button to select the desired
items (Air, Cable, AV1, AV2, S-Video1, S-Video2,
Component1, Component2, PC, HDMI1, HDMI2,
HDMI3, USB).
PressBOK button to confirm .
Picture Menu
The TV menu gives you an overview of the menus you
can select.
Note
Depending on the input signal, one or more menuR
items may not be selectable.
How to select picture mode
The picture mode provides the pre-defined images
settings:
Standard, Mild, Dynamic and User
.
Press
AMENU button and then use
/
button to
select Picture menu.
Press
B
/
OK
button and then use
/
button to
select Picture Mode.
Press
C
/
button to select the option
Standard,
Mild, Dynamic and User
.
You can also press PICTURE button on the remote control
to select the option Standard, Mild, Dynamic and User.
How to customize your own picture status
PressAMENU button and then use
/
button to
select Picture menu.
Press
B
/OK
button and then use
/
button to
select the desired items.
Press
C
/OK
button and then use
/
button to
adjust the setting.
Picture ModeY
Select the mode of picture:
Standard, Mild, Dynamic
and User
.
ContrastY
This will adjust the intensity of bright parts in the
picture but keep the dark parts unchanged.
BrightnessY
This will adjust the light output of the complete
picture, which will mainly aect the darker areas of
the picture.
ColorY
This will adjust the saturation level of the colors to suit
your personal preference.
SharpnessY
This will adjust the sharpness of fine details in the
picture.
Note
The picture options can only be adjusted in theR
User mode. The other picture modes are preset.
TintY
Allows you to select the color mix (Tint) of the picture.

Operation
TV LCD-TFT Owner’s Manual EN-12
How to Customize your own sound
status
PressAMENU button and then use
/
button to
select Audio menu.
Press
B
/OK
button and then use
/
button to
select desired items.
Press
C
/OK
button and then use
/
button to
adjust the setting.
Sound Mode:YTo adjust the audio mode:
Standard, Music, Movie and User.
Equalizer:YTo adjust the equalizer.
Balance:YAdjust to emphasize left or right speaker
balance.
SPDIF Mode:Y
To adjust the SPDIF output: On or O.
AVLY
To adjust the audio volume
On or O.
SRS TS XTY
To turn the simulated surround sound
On or O.
MTS/SAP : This TV can receive MTS stereo programs
and SAP (Secondary Audio Program) that accompanies
the stereo program; if the station transmits an additional
sound signal as well as the original one.
When having selected MTS/SAP button on the remote
control, this TV can only receive the signal when the TV
station transmits the proper signals.
Mono sound is automatically received if the broadcast is only
in Mono; even though Stereo or SAP has been selected.
Select Mono if you want to listen to mono sound during
stereo/ SAP broadcasting. Stereo or SAP can be received
in a Analog channel.
Use
AMTS/SAP button to select your desired MTS
mode in a analog signal.
Each time you pressq
MTS/SAP
button, Mono,
Stereo or SAP appear. If other languages are
available on the digital signal, select them with the
MTS/SAP
button.
PressBEXIT button to save and return to TV viewing.
Channel menu
Display channel menu by pressing INPUT button then
Color temperatureY
This will increase or decrease Warm (red) and Cool
(blue) colors to suit personal preferences.
Select Cool to give the white colors a blue tint,
Standard to give the white colors a neutral tint, Warm
to give the white colors a red tint.
Aspect RatioY
To change the aspect ratio: Full Screen, 4:3, Auto,
Cinema, Zoom and just scan.
You can also press P.SIZE button on the remote control to
select the option.
DNRY
Automatically lters out and reduces the image
noise and improves picture quality when receiving
weak video signals: On or O.
BacklightY
To adjust the brightness of Backlight.
Sound menu
How to select sound mode
PressAMENU button and then use
/
button to
select Sound menu.
Press
B
/OK
button and then use
/
button to
select Sound Mode.
Equalizer
L
PressC
/
button to select the option Standard,
Music, Movie and User.
You can also pressqSOUND button on the remote
control to select the Audio Mode: Standard, Music,
Movie and User.

Operation
EN-13 TV LCD-TFT Owner’s Manual
use
/
button to select the source of Air or Cable
item.
Press
AMENU button and then use
/
button to
select Channel menu.
Press
B
/OK button to enter the menu and then use
/
button to select the desired option.
Auto Tuning
PressAMENU button and then use
/
button to
select Channel menu.
Press
B
/OK button and then use
/
button to
select Auto Tuning, then press OK the menu opens.
PressC
/
button to select Start, press
OK
button
to start to scan. Press MENU button to return to the
previous menu, press EXIT button to EXIT the menu
screen.
All channels now available will be automatically preset in
order .After the search has nished, the rst program
number will display on the screen. This search
automatically adds only the active channels in your area
to the TV's memory.
It deletes any channels on which there is no broadcast or
a poor signal.
The channels found are automatically saved.
DTV Manual Tuning
PressA
/OK button and then use
/
button to
select DTV Manual Tuning, then press OK the menu
opens.
Press
B
/
button to select the channel , press OK
to search.
ATV Manual Tuning
PressA
/OK button and then use
/
button to
select ATV Manual Tuning, then press OK the menu
opens.
Press
B
/
button to select the channel , press
/
button to adjust, and then press OK button
to conrm.

Operation
TV LCD-TFT Owner’s Manual EN-14
Programme Edit
You can add a label to a channel to make it easier to nd.
Press
A
/OK button and then use
/
button to
Programme Edit , then press OK the menu opens.
Press
B
/
button to select the channel, press
the green FAV button on the remote control, the
channel with a check icon is a favorited channel.
Press the red SKIP button on the remote control, the
channel with a check icon is a skipped channel.
Singnal Infomation
Press to display the singnal infomation.
Programme Guide
Press to display the programme infomation.
You can also press GUIDE button on the remote control
to select the Programme Guide option.
Software Update(USB)
Use this function, you can update the Newest software
through the USB port by yourself.
Time Menu
PressAMENU button and then use
/
button to
select Time menu.
Press
B
/OK button the following menu appears
on the screen.
Clock: To set the correct time.
O Time: Set a time for the TV to turn o.
On Time:Set a time for the TV to turn on.
Sleep Timer: Set a time for the TV to turn o
automatically. You can select: O, 5 Minutes, 10 Minutes,
15 Minutes, 30 Minutes, 45 Minutes, 60 Minutes, 90
Minutes, 120 Minutes, 180 Minutes and 240 Minutes.
Time Zone: Press
/
to select your Time Zone: Acre,
M.Grosso, North, Brasilia, Northeast, F.Noronha and
AM(west).
Option Menu
Language: To select the menu language.
Audio Languages: To select the audio language.
Press
/
button to select Primary, Secondary item, and
press
/
button to select the languages you needed.
Note
The Audio Language function is only available inR
DTV mode.
Caption: You can select O, CC1, CC2, CC3, CC4,Text1,
Text2, Text3, Text4.
Restore Factory Default: To restore to the factory
default.

Operation
EN-15 TV LCD-TFT Owner’s Manual
Lock Menu
Parental Control can be used to block specic channels,
ratings and other viewing soure.
Press MENU button and then use
/
button to
selcet Lock menu.
Press
/OK
button and then press digits button to
input the digits( The initial password is 0000) . The
menu will display as follows:
Tuning Lock
Press
/OK
button to select Tuning Lock and
press
/
operation will be not available. When enter the Tuning
menu, Tuning Lock will be on the screen. If you want to
operate Tuning menu, you need to enter the Lock menu
Set Password
Press OK to enter the submenu , press digits button to
input the number of 0-9 twice in the New Password and
when you input the same number twice.
Block Program
Press
OK
button to enter the submenu, then press
/
button to select a channel you want to blocked,
press the yellow buttonon the remote control the
channel will blocked, press the yellow button again to
cancel.
Parental Guideance
Press
/OK
button to selcet Parental Guideance. Press
/
children who will watch TV.
Clear Lock
Press
/OK
buttonto selcet Clear Lock , all lock options
wil be cleared.
PC Set
Adjustment for screen Position, Clock, Phase
Display adjust menu by pressing INPUT button then use
/
button to select the source of PC item.
Press MENU button and then use
/
button to
select the Adjust menu.
Press
/OK
button and then use
/
button to
adjust the options.
Adjust
Auto Adjust
Horizontal Pos.
Vertical Pos.
Clock
Phase
Auto Adjust: This is used to reset the default setting
parameters (After the operation, Auto Adjusting will be
display on the screen).
Horizontal Pos. : Horizontal position of picture can be
adjusted in this item.

Operation
TV LCD-TFT Owner’s Manual EN-16
Vertical Pos.: Vertical position of picture can be
adjusted in this item.
Clock: This is used for adjusting H Position and V
Position as well as relative parameters in PC modes.
Phase : This is used for adjusting the phase of pixel clock
in PC mode.
Quick Menu
This function includes some usual oprations about
PICTURE,SOUND,SAP,SLEEP TIME,Aspect Ratio and
BACKLIGHT.
SOUND
SAP
SLEEP
ASPECT RATIO
BACKLIGHT
Standard
Standard
Mono
Off
Full Screen
100
Q.MENU
Close
USB MODE
Note
The diagrams in the following section areR
schematic and only for your reference. Please see
the actual product if necessary.
TO USE THE USB DEVICE
Supported le formats:
Photo: *.jpg,*.bmp, ect;•
Music: *.mp3,*.wma, ect;•
Movie: *.AVI,*.mpg,*.DAT,*.TS,*.MOV,*.mp4,*.VOB;•
TEXT: *.txt•
Note
Due to the particularity of le coding, some lesR
may be unable to read.
The USB Movie player can surpport codes asR
MPEG2, MPEG2_HD,MPEG4,MPEG4_HD,H.264.
when its coding doesn't include in the codes
upwards.
Supported equipment:
Support the equipment that supports Mass
Storage Protocol and whose le system is FAT32,
such as some USB disks and mobile harddisks.
If USB equipment could not be identied due
to unsupported le system, please format the
equipment to the above-mentioned le system.
To achieve smooth playing, ensure the following:
The le code rate should be lower than 300KB/S;•
Due to the limitation of USB signal transmission•
distance, it is recommended not to use USB patch
cord, in case of using the cord, make sure that its
length is not over 1m;
Use high-speed USB equipment in conformity•
with USB2.0 full speed Interface Standard; If USB
equipment in conformity with USB1.1 full speed
Interface Standard is used, the playing may be
unsmooth.
When connecting/removing the USB
device
Press INPUT on the remote control unit to select
USB option.
Insert USB equipment into corresponding USB
interface 2s after starting the system.
After entering the system menu, press /on the
remote control unit to select the require USB les,
press OK button to conrm the selection and enter
the le list relative to the selection.
Press /on the remote control unit to select the
required le, press ENTER button to enter the selected
le.
To exit the streaming media playing system and
watch a TV program, you must press EXIT button to
return to the streaming media main menu at rst (to
protect equipment), and then press INPUT to select
AIR or Cable to return to the TV mode.
Note

Operation
EN-17 TV LCD-TFT Owner’s Manual
Under source of USB, when"press button MENU,
screen goes black, except when images or movies
are being played.
While playing the USB, press"EXIT button repeatly,
the screen picture will return to USB main
interface, and only at this time you can switch
corresponding signal sources by pressing INPUT
again.
Please do not unplug the USB device when the"
connected USB storage device is working. When such
device is suddenly separated or unplugged, the stored
les or the USB storage device may be damaged.
Operating the USB device
Press/to scroll through main menu or submenu
and select your desired option.
Press OK to conrm your selection.
Press /to achieve the FWD (fast forward) and
REV (fast back) of the option being played.
Press to play, and press it again to pause playing.
Press ZOOM to magnify pictures; when the picture is
enlarged, press /and /to move the picture.
Press EXIT repeatedly to return to the main menu.
Note
R
les to play together.
Playing a Picture
After entering USB main interface, press /to
select PHOTO item.
Press ENTER to conrm the selection and enter the
picture le list.
Press /to select the picture you want to play,
press ENTER to conrm, and then press button to
play the pictures.
If you want to pause the picture which is being
palyed, press the button again.
Press ZOOM to magnify the picture. When the
picture is enlarged, press /and /to move
the picture.
Press / to select the last or next picture.
To exit playing, just press EXIT repeatedly.
Note
The menu display varies with the photo name andR
pixel in your equipment.
Playing Music
After entering USB main interface, press /to
select MUSIC item.
Press ENTER to conrm the selection and enter the
music le list.
Press /and ENTER button to select the music
you want to play, then press button to play the
music.
Press /to achieve the REV (fast back) and FWD
(fast forward) of the music being played.
and

Operation/Maintenance
TV LCD-TFT Owner’s Manual EN-18
Press / to select the last or next music.
Press the red button on the remote control to stop
the music being played, when the current interface
is the music being played.
To return to the main menu, just press
DEXIT
repeatedly.
Note
You can enjoy the music and the picture at theR
same time.
Playing a Movie
Atter entering USB main interface, pressA/to
select Movie item.
Press
BENTER to confirm the selection and enter the
movie file list.
PressC/and ENTER button to select the movie
you want to play, and then press button to play
the movie.
Press / to select the last or next movie.
To exit playing, just press
DEXIT repeatedly.
Text
After entering USB main interface, pressA/to
select Text item.
Press
BENTER to confirm the selection and enter the
text file list.
Press /and ENTER button to select the text you
want to play, and then press button to play the
text.
Press / to select the last or next text.
To exit the Text mode, just press
CEXIT repeatedly.
Note
You can enjoy the music and the text at the sameR
time.
Maintenance
Maintenance
Early malfunctions can be prevented. Careful and regular
cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power o and unplug
the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust o your screenA
for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing
detergent. Wring the cloth until it’s almost dry, and
then use it to wipe the screen.
Make sure the excess water is o the screen, and
B
then let it air-dry before you turn on your TV.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry,
lint-free cloth. Please be sure not to use a wet cloth.
Extended Absence

Specication/Format/Troubleshooting
EN-19 TV LCD-TFT Owner’s Manual
If you expect to leave your TV dormant for a long time
(such as a vacation), it’s a good idea to unplug the power
cord to protect against possible damage from lightning
or power surges.
Specification
%DVLFVSHFL¿FDWLRQDQGSDUDPHWHU
Resolution
(Dot)
32'' 42''
1366 s768 1920 s1080
Power ~100-240V , 50/60Hz
Color System PAL, NTSC, ISDB-T
Sound system N, M
Video input USB, AV(CVBS), S-VIDEO, YPbPr/
YCbCr, HDMI or DVI, VGA
Environmental
condition
Operating temperature
range: +5°C - +35°C
Operating humidity range:
20%-80%
Storage Temperature:
-15°C~+45°C
Storage Humidity: 5%-90%,
non-condensing
If the storage temperature is
lower than 0 °C, please first
lays the machine aside after
in the operating temperature
environment carries on
restores 2 hours, then
electrifies the use again,
protects your television not
to receive the damage.
Accessories
Owner's manual x1
Remote control x1
Alkaline battery x2
MODEL Power
Consumption
Net Size(LxWxH) Net Weight
32" 130W
796x230x590mm
11.8Kg
42'' 180W
1020x290x724mm
25.5Kg
Note
Design and specifications are subject to changeR
without notice. The dimension in this manual is a
approximation.
Format
Input Format Fefresh
Frequency(Hz)
HDTV/SDTV
(YPbPr)
480i/480p
60
576i/576p
50
720p
50/60
1080i/1080p
50/60
HDMI
480i/480p
60
576i/576p
50
720p
50/60
1080i/1080p
50/60
PC
640x480/800x600/
1024x768
60/75
1280x960
60
1280x1024
60/75
1360x768
60
DVI
640x480/800x600/
1024x768
60/75
1280x960
60
1280x1024
60/75
1360x768
60
Troubleshooting
Troubleshooting
For the sake of time and cost, it is strongly
recommended that you check out the problem by
yourself according to the instructions listed hereunder
before contacting the after-sales service for technical
assistance.
This manual suits for next models
1
Table of contents
Other Haier TV manuals

Haier
Haier HT-3768 User manual

Haier
Haier HL19KN1 User manual

Haier
Haier HT-2180 User manual

Haier
Haier TV-8888-35 User manual

Haier
Haier L26F6 User manual

Haier
Haier LE43B7000 User manual

Haier
Haier 29F9B User manual

Haier
Haier HLTDC15 - 15" LCD TV User manual

Haier
Haier HTARC21 User manual

Haier
Haier 21FA11-AM User manual

Haier
Haier HT-3718 User manual

Haier
Haier LET39C800HF User manual

Haier
Haier L32F1120 Assembly instructions

Haier
Haier 29F9D User manual

Haier
Haier 29FV6 User manual

Haier
Haier 21F8A User manual

Haier
Haier 25FV6H User manual

Haier
Haier HLC26 User manual

Haier
Haier 29FV6H User manual

Haier
Haier HT-3499 User manual
