Haier HW80-BP16636 User manual

GB
HW80-BP16636
User manual
Washing machine

GB
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
offi ce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suff ocation!
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

GB
3
1-Safety information......................................................................................................................... 4
2-Product description ...................................................................................................................... 7
3-Control panel .................................................................................................................................. 8
4-Programmes .................................................................................................................................11
5-Consumption................................................................................................................................12
6-Daily use.........................................................................................................................................13
7-Eco-friendly washing ..................................................................................................................18
8-Care and cleaning........................................................................................................................19
9-Troubleshooting ...........................................................................................................................22
10-Installation...................................................................................................................................25
11-Technical data.............................................................................................................................29
12-Customer service......................................................................................................................31

1-Safety information GB
4
Before switching on the appliance for the fi rst time read the follow-
ing safety hints!:
WARNING!
Before fi rst use
▶Make sure there is no transport damage.
▶Make sure all transport bolts are removed.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶Do not let children or pets come close to the appliance when the
door is open.
▶Store washing agents out of reach of children.
▶Pull up zips, fi x loose threads and take care for small items to
prevent laundry from being entangled. If necessary, use an ap-
propriate bag or net.
▶Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶Do not use or store flammable detergent or dry cleaning agent
in close vicinity to the appliance.
▶Do not use any flammable sprays in close vicinity to the appli-
ance.
▶Do not wash any garments treated with solvents in the appli-
ance without having dried them previously in the air.

GB 1-Safety information
5
WARNING!
Daily use
▶Do not remove or insert the plug in the presence of flammable
gas
▶Do not hot wash foam rubber or sponge-like materials.
▶Do not wash any laundry which is polluted with fl our.
▶Do not open detergent drawer during any wash cycle.
▶Do not touch the door during the washing process, it gets hot.
▶Do not open the door if the water level is visibly over the port-
hole.
▶Do not force the door to open. The door is fitted with a self-
lock device and will open shortly after the washing procedure is
ended.
▶Switch off the appliance after each wash programme and before
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶Keep the lower part of the porthole clean and open door and
detergent drawer if appliance is not in use to prevent odours.
▶Do not use water spray or steam to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its
service agent or similarly qualifi ed persons in order to avoid a
hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶Never install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak cut power supply and allow
the machine to dry naturally.

1-Safety information GB
6
Intended use
This appliance is intended for washing machine-washable laundry
only. Anytime follow the instructions given on the label of each gar-
ment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
Changes or modifi cations to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not install the appliance in direct sunlight or in the near of
heat sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶Do not use multi-plug adapters and extension cables.
▶Make sure only the delivered electric cable and hose set are
used.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which
is easy accessible after installation. The appliance must be
earthed.
Only for UK: The appliance’s power cable is fi tted with 3-cord
(grounding) plug that fi ts a standard 3-cord (grounded) socket.
Never cut off or dismount the third pin (grounding). After the
appliance is installed, the plug should be accessible.
▶Make sure the hose joints and connections are fi rm and there is
no leakage.

GB 2-Product description
7

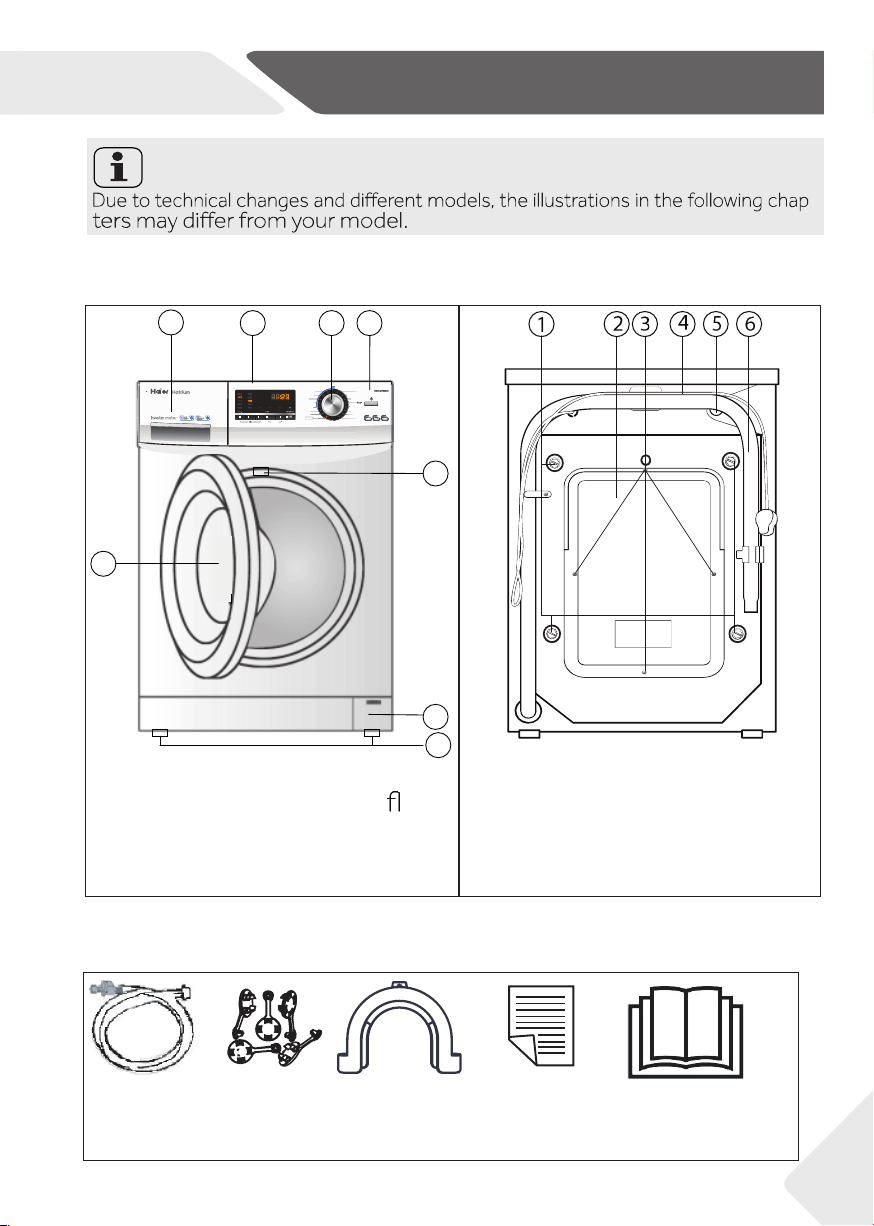

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
6
7
5
8
Temp.Speed Intense Delay Start/Pause
Extra rinse
HW80-BP14636
BLDC motor
+++
A
AutoweightCapacityEnergy
8kg
Self Clean
Temp.
+++
A
9kg 1400
HW90-BP14636
Schleudern Dampf Extra Spülen Zeitvorwahl Start/Pause
Schleudern
Baumwolle
Synthetik
Mix
Sport
Jeans
Hygiene
Express 15 min
Schnell
Tägliche
Wäsche
Feinwäsche
/Seide
Handwäsche
Schleudern
Steppdecken
Baby Care R
Wolle
Baumwolle+
Kurz
.
Speed Steam rinse Delay
Cotton
Cotton
Synthetic
Hygienic
Fast
Daily Wash
Delicate/Silk
Hand Wash
Bedding
Spin
Speedup
Energy Capacity Speed
Express 15 min
Baby Care
Sport
Jeans
Mix
1 3 42
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2-3):
Note:
T1 T2
T3 S1
S2 S4
S3
T4
S5 S6
1 Detergent /
Softener drawer
2 Worktop
3 Programme selector
4 Panel
5 Rating plater
6 Service ap
7 Adjustable feet
8 Door handle
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S6)Panel
4 Power cord
5 Water inlet valve
6 Drain hose
Inlet hose-
assembly 5 Blanking
plugs
Drain hose
bracket User manual
Warranty-card
2-3
-

3-Control panel GB
8
1 “On/Off “ button
2 Programme selector
3 Display
4 Detergent /Softener drawer
3.1 “On/Off “ button
Press this button (Fig. 3-2) gently to switch on, the dis-
playis shining, theindicatorofthe“Start/Pause”button
is fl ashing. Press it again for about 2 seconds to switch
off . If no panel element or programme is activated af-
ter a while machine will shut down automatically.
3.2 Programme selector
By turning the knob (Fig. 3-3) one of 16 programmes
can be selected, related LED will light up, its default
settings will be displayed.
3.3 Display
The display (Fig. 3-4) shows following information:
▶Washing time
▶End time delay
▶Error codes and service information
3-4
5 Function buttons
6 “Delay” button
7 “Start/Pause“ button
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶when pressing a button
▶when turning the programme selector
▶at the end of programme
▶in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE.
Cotton+
Cotton
Synthetic
Hygienic
Fast
Daily Wash
Delicate/Silk
Hand Wash
Bedding
Spin
Express 15 min
Baby Care
Sport
Jeans
Mix
3-2
3-3
Speed Steam rinse Delay
Cotton+
Cotton
Synthetic
Hygienic
Fast
Daily Wash
Delicate/Silk
Hand Wash
Bedding
Spin
Speed up
Energy Capacity Speed
Express 15 min
Baby Care
Sport
Jeans
Mix
4
1
2
5 6 7
3

GB 3-Control panel
9

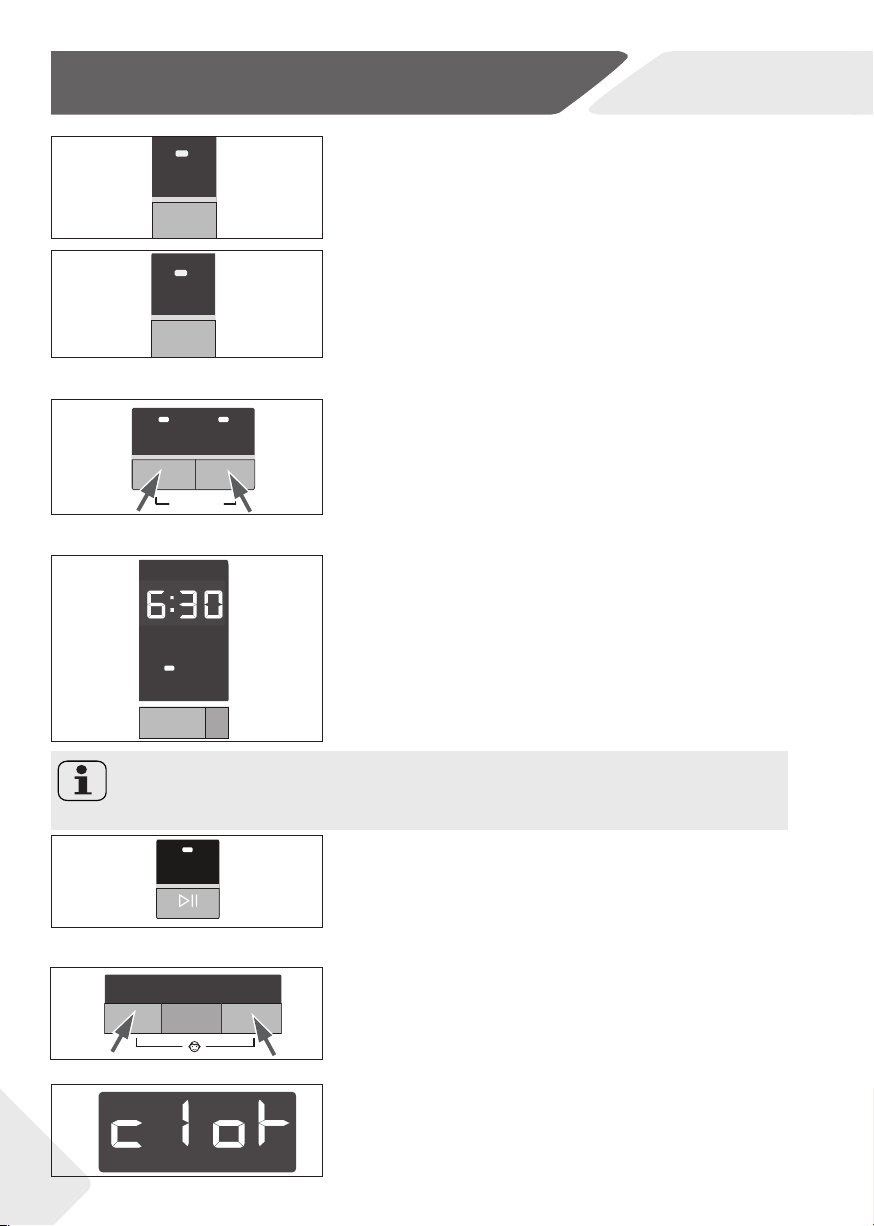

3.5 Function buttons
The function buttons (Fig. 3-6) enables additional op-
tions in the selected programme before programme
starts. The related indicators are displayed.
By switching off the appliance or setting a new pro-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
or -in case of only one option- the LED switches off .
3.5.1-Function button „Temp.“
Press this button (Fig. 3-7) to change the washing
temperature of the programme. If no value is illumi-
nated the water will not heated.
In conjunction with the “Steam” button, the child lock
function can be switch on/off (see CHILD LOCK).
3.5.2-Function button “Speed”
Press this button (Fig. 3-8) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
Note: Factory settings
To get best results in each programme Haier has well defi ned specifi c default settings.
If there is no special requirement default settings are recommended.

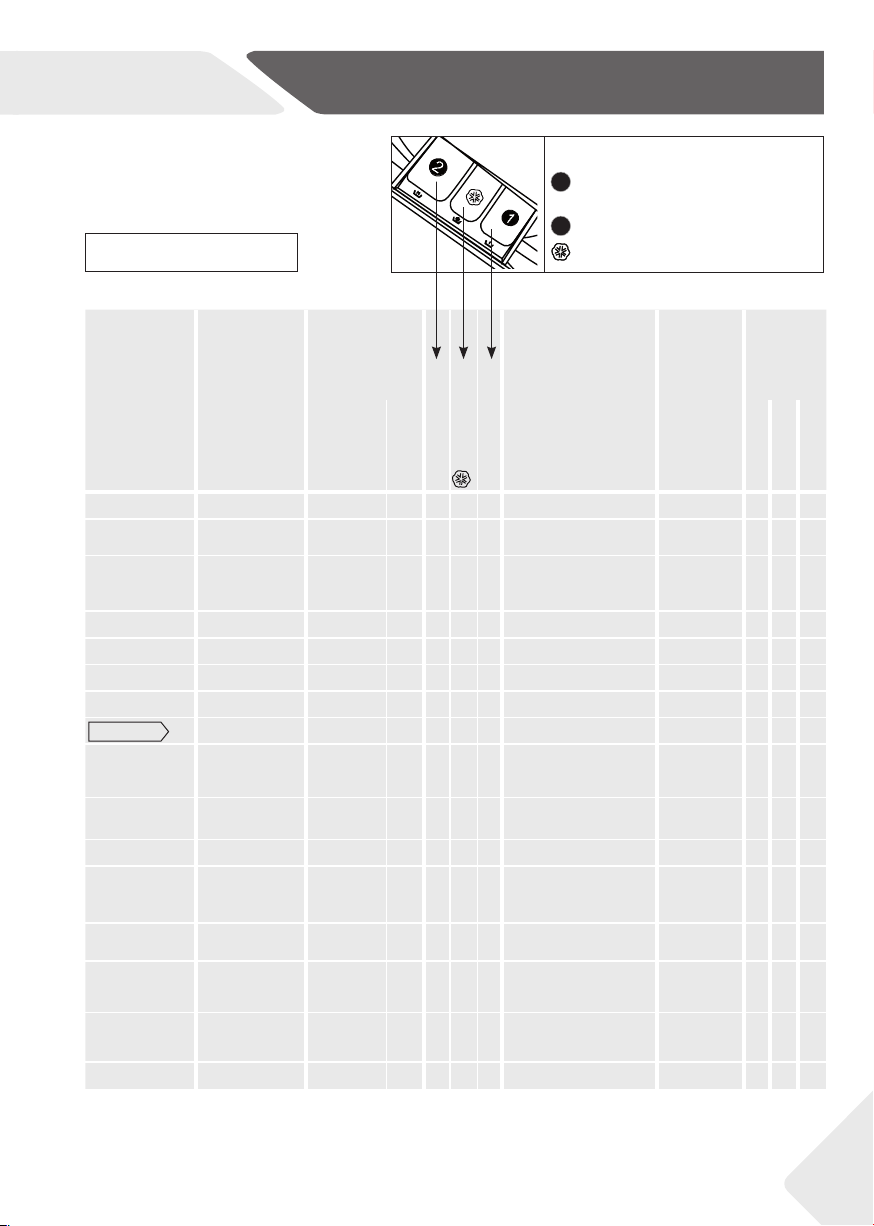

3.4 Detergent drawer
Open the drawer, three compartments can be
seen (Fig. 3-5):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment : Softener, Conditioning agent etc.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-5
3.5.3-Function button “Steam“
Press this button (Fig. 3-9) to activate the steam function.When this function is activated
the default temperature is the maximum temperature of the programme selected.This
function can be activated only with the following programmes: Hygienic, Baby clothes,
Mix, Synthetics, Cotton.When the function is activated the led above the button will light
up. Pushing again this button the function can be deactivated and the led above the
button will turn off .When the function is activated the temperature of the programme
cannot be changed.
3-7 3-8
Speed
Temp.Speed Steam Delay
Start/Pause
Extra rinse
3.5.1
3.5.2 3.5.3 3.5.4 3.5.5
3-6

3-Control panel GB
10
3.5.4 Function button“Extra rinse“
Press this button (Fig. 3-10) to rinse the laundry more
intense with fresh water. This is recommended for
people with sensitive skin.
By pressing the button several times one to three ad-
ditional cycles can be selected. They appear in the dis-
play with //.
3.5.5 Function “Speed up“
This function saves time and energy. Preferable if laun-
dry is slightly soiled. Press simultaneously button „Ex-
tra rinse.“ and ”Delay” (Fig. 3-11) for about 3 seconds
to activate the “Speed up” function;  uis dis-
played. This function is not available in all programmes
(see PROGRAMMES).
If “Temp.” button is pushed the “Steam” function will
be deactivated.You can activate “Steam” function only
before to start any programme. You cannot activate
“Steam” function while the appliance is already ex-
ecuting a programme.
3.7 „Start/Pause“ button
Press this button (Fig. 3-13) gently to start or inter-
rupt the currently displayed programme. During pro-
gramme setting and during programme run the LED
above the button is shining, or if interrupted blinking.
3.6 “Delay” button
Press this button (Fig. 3-12) to start the programme
with a delay. End time delay could be increased in steps
of 30 minutes from 0,5-24h. For example display off
: means end of programme cycle will be in 6 hours
and 30 minutes. Press “Start/Pause” button to activate
the time delay. It is not applicable to programme SPIN.
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.8 Child lock
Press button „Temp.“ and ”Steam” (Fig. 3-14) for 3
seconds simultaneously to block all panel elements
against activation. For unlocking please press again
the two buttons.
The display shows  (Fig. 3-15) if a button will be
pressed, when the child lock is activated. The change
is not running.
3-15
Extra rinse
3-10
Delay
3-12
Start/Pause
3-13
DelayExtra rinse
Speed up
3-11
3-14
Temp.Speed Steam
Steam
3-9

GB 4-Programmes
11
1) Relating to dry laundry.
2) Choose 90 °C wash temperature only for special hygienic requirements. *: water will not heated (no
value is iluminated).
3) Reduce detergent amount because programme duration is short.
Max. load
1)
Temperature Preset
spin speed
in rpm
Function
in kg in °C
Preset
Steam Extra rinse Speed up
Programme HW80
selectable
range 2 1 Fibre type
Cotton 8.0 * to 90 40 •º/Cotton 1400 • • •
Synthetic 8.0 * to 60 40 •º/Synthetic or
mixed fabric 1000 • • •
Mix 8.0 * to 60 30 •º/Lightly soiled mixed- laundry of cotton
and synthetic 1000 • • •
Baby Care 4.0 * to 90 40 •º/Cotton/Synthetics 1000 • • •
Hygienic 4.0 * to 90 90 •º/Cotton 1000 • • •
Sport 4.0 * to 40 20 •º/Sports wear 800 • • /
Jeans 8.0 * to 60 30 •º/Jeans 1000 • • •
Cotton 8.0 * to 90 2) 30 •º/Cotton 1400 • • •
Fast 3) 4.0 * to 40 40 •º/Lightly soiled laun-
dry made of cotton
or synthetic 1000 /•/
Express
15 min 3) 2.0 * to 40 * •º/Cotton / Synthetic 1000 /•/
Daily Wash 4.0 * to 60 30 •º/Cotton fabrics 1000 • • •
Wool 2.0 *to 40 2) * •º/Machine-washable fabricmade ofwool
orwithwoolcontent 800 /•/
Delicate/
Silk 2.0 *to 30 30 •º/Delicatelaundry
andSilk 800 /•/
Hand Wash 2.0 * to 30 30 •º/Laundry marked
with symbol for
handwash 400 /•/
Bedding 5.0 * to 60 40 •/ / Cleaning of the
drum with special
detergent 1000 / / /
Spin 8.0 / / / / / All fabrics 1000 / / /
2)
Detergent compartment for:
1Water inlet only, no deter-
gent
2Detergent
Softener or care product
•
Yes, º Optional, / No
+

5-Consumption GB
12
Programme
Temper-
ature
in °C
Max. load
in kg
HW80
Energy
in kWh
HW80
Water
in L
HW80
Washing time
in h:min
HW80
Spin
drying
perfor-
mance
in %
Cotton *
40°C
40°C
40°C
40°C
40°C
40°C
40°C
60°C
60°C
60°C
60°C
60°C
60°C
60°C
60°C
60°C
40°C 4.0 0.46 34 4:31 44
60°C 4.0 0,56 34 4:34 45
60°C 8.0 0,54 47 4:34 44
60°C
60°C
60°C
60°C
The indicated consumption values may accordingly diff er to local conditions.
* Standard programme for the Energy Labelling according to 2010/30 EU:
Cotton 60°C / 40°C with max. spin speed setting .
The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled
cotton laundry. They are the most effi cient programmes in terms of combined energy and
water consumption for cotton laundry. Used water temperature may diff er from declared
cycle temperature.
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programmes.
+
+

GB 6-Daily use
13
6.3 Preparing laundry
▶Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk) and to how dirty they are (Fig.
6-3). Pay attention to the care labelling of wash-
ing labels.
▶Separate white clothes from coloured ones.
Wash coloured textiles fi rst by hand to check if
they fade or run.
▶Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶Garments without hems, delicates and fi nely wo-
ven textile such as fi ne curtains are to be put into
a wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
▶Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶Place sensitive items like laundry without fi rm
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash
bag.
▶Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
▶Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
6-3

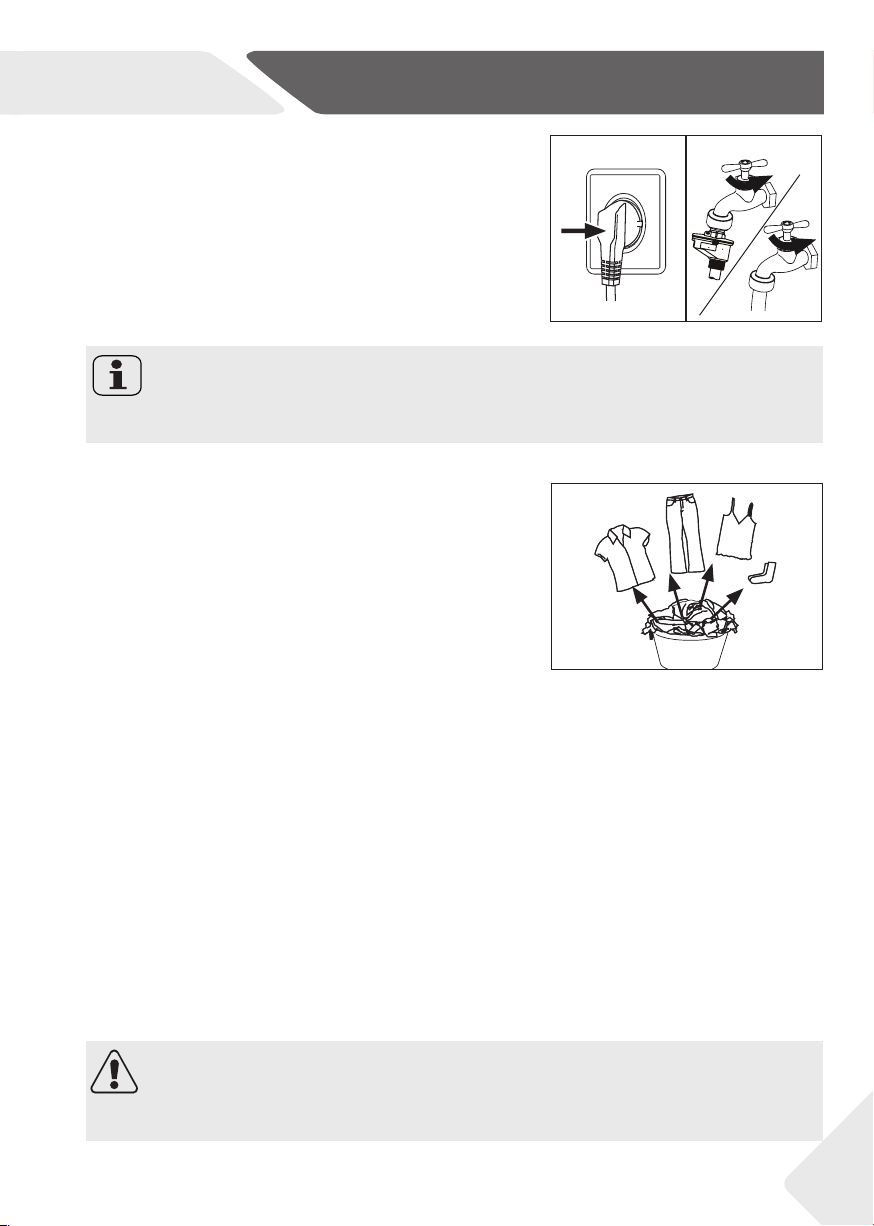

6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section INSTALLATION.
6.2 Water connection
▶Before connecting check the cleanliness and clar-
ity of the water inlet.
▶Tun on the tap (Fig.6-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
6-1 6-2

6-Daily use GB
14
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble dryingpossible
normal temperature Tumble dryingpossible lower temperature Do not tumble dryr
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.4 Loading the appliance
▶Put in the laundry piece by piece
▶Don‘t overload. Note the diff erent maximum load according to programmes! Rule of
thumb for maximum load: Keep six inches between load and drum top.
▶Close the door carefully. Make sure that no pieces of laundry are pinched.

GB 6-Daily use
15
6.5 Selecting detergent
▶Washing effi ciency and performance is determined by used detergent quality.
▶Use only machine wash approved detergent.
▶If needed use specifi c detergents, e.g. for synthetic and woolen fabric.
▶Mind always detergent manufacturer recommendations.
▶Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - - o
Synthetic L/P L/P L - o
Mix L/P L/P - - o
Wool - - - L o
Bedding L/P L/P - - o
Sport - - - L o
Jeans L/P L/P L - o
Hygienic L/P L/P L - o
Fast L L - - o
Express 15 min L L - - o
Daily Wash L/P L/P L - o
Baby Care L/P L/P - - o
Delicate/Silk - - L - o
Handwash - - - L o
Spin L/P - - L -
L = gel-/liquid detergent P = powder detergent O = optional _= no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
▶Laundry powder: 20°C to 90°C* (best use:: 40-60°C)
▶Color detergent: 20°C to 60°C (best use: 30-60°C)
▶Wool/delicate detergent: 20°C to 30°C (= best use:)
* Choose 90 °C wash temperature only for special hygienic requirements.
+

6-Daily use GB
16
6.7 Switch on the appliance
Press the „on/off “- button to switch on the appliance
(Fig. 6-5). The LED of the „Start/Pause“ button is
fl ashing.
6.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 6-4)
3. Push back the drawer gently.
Note:
▶Remove detergent residues before next wash cycle from the detergent drawer.
▶Do not overuse detergent or softener.
▶Please follow the instruction on the detergent package.
▶Always fi ll the detergent just before the beginning of the wash cycle.
▶Concentrated liquid detergent should be diluted before adding into compartment 2.
▶The best use of liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
▶Do not use liquid detergent if „end time delay“ is selected.
▶Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Select a programme
To get the best washing results, select a programme
which fi ts the degree of soiling and sort of laundry
type.
Turn the programme knob (Fig. 6-6) to select the
right programme. Related programme LED lights up
and the default settings are displayed.
6.9 Add individual selections
Select required options and settings (Fig. 6-7); refer to
CONTROL PANEL.
Temp.Speed Steam Delay
Start/Pause
Extra rinse
6-7
6-4
Note: Odour removal
Before fi rst use we recommended to run programme SELF CLEAN with no load and
small amount of detergent in washing agent compartment (2) or special machine
cleaner to remove possibly corruptive residues.
6-4 6-6
6-5

GB 6-Daily use
17
1. At programme cycle end  is displayed.
2. The appliance switches off automatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn off the water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.
6.13 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the SPIN programme.
3. Press the “Delay “button and “Extra rinse” button at the same time for about 3 sec-
onds. “ ” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again. “ ” will
be displayed.
To interrupt a running programme press gently “Start/Pause“. The LED above the button
is fl ashing. Press it again to resume operation.
To cancel a running programme and all its individual settings
1. Press “Start/Pause” button to interrupt the running programme.
2. Press „On/Off “ button for about 2 seconds to switch the appliance off .
3. Select ‘’no Speed’’ and run programme SPIN(all lights are on) to drain the water.
4. Shut down and start up, then select a new programme and start it.
Note: Door lock
▶For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
▶In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door;  is displayed
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby-mode if it will not be activated within 2
minutes before starting the program or at the end of program. The display switsches
off . This saves energy. To interrupt the standby mode push “Start/Pause“ button.
6.10 Start wash programme
Press “Start/Pause“ button (Fig. 6-8) to start. The
LED of the „Start/Pause“ button stops fl ashing and
lights up continuously
Appliance operates according to present settings.
Changes are only possible by cancelling the programme.
6.11 Interrupt - cancel wash programme
Start/Pause
6-8
6.12 After washing

7-Eco-friendly washing GB
18
Environmentally responsible use
▶To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶Do not overload (hand width clearance above laundry).
▶For slightly soiled laundry select the Quick Wash programme.
▶Apply exact dosages of each washing agent.
▶Choose the lowest adequate washing temperature - modern detergents are ef-
fi ciently cleaning below 60°C.
▶Raise default settings only due to heavy staining.
▶Select max. spinning speed if a domestic dryer is used.

GB 8-Care and cleaning
19
8.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 8-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
8.2 Cleaning the machine
▶Unplug the machine during cleaning and mainte-
nance.
▶Use a soft cloth with soap liquid to clean the ma-
chine case (Fig. 8-2) and rubber components.
▶Do not use organic chemicals or corrosive sol-
vents.
Note: Hygiene
For regular maintenance we recommend to run programme SELF CLEAN with no load
in order to remove possible corruptive residues quarterly. Add a small amount of deter-
gent in washing agent compartment (2) - or use a special machine cleaner.
8.3 Water inlet valve and inlet valve fi lter
To prevent blockage of water supply by solid substanc-
es like lime clean regularly the inlet valve fi lter.
▶Unplug the power cord and turn off the water
supply.
▶Unscrew the water inlet hose at the back (Fig.
8-3) of the appliance as well as on the tap.
▶Flush the fi lters with water and a brush (Fig. 8-4).
▶Insert the fi lter and install the inlet hose.
8.4 Cleaning the drum
▶Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig. 8-5) because
they cause rust stains and damage.
▶Use a non-chloride cleaner for removing rust
stains. Observe the warning hints of the cleaning
agent manufacturer.
▶Do not use any hard objects or steel wool for
cleaning.
8-3 8-4
8-5
8-1
1
2
8-2
Temp.Speed Steam Delay Start/Pause
Extrarinse
+++
A
Energy Capacity
9kg
rpm
1400
HW90-BP14636
Bedding
Cotton+
Babyclothes
Hygienic
Sportwear

8-Care and cleaning GB
20
1. Turn off and unplug the machine (Fig. 8-8).
2. Open service fl ap. You can either use a coin or a
screwdriver (Fig. 8-9).
3. Provide a fl at container to catch leach water
(Fig. 8-10). There could be bigger amounts!
4. Pull the drainhose out and hold its end above the
container (Fig. 8-10).
5. Take the sealing plug out of the drainhose (Fig.
8-10).
6. After complete drainage close drainhose (Fig.
8-11). and push it back into the machine.
7. Unscrew and remove counter clockwise the
pump fi lter (Fig. 8-12).
8. Remove contaminants and dirt (Fig. 8-13).
8.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig. 8-6).
2. Turn off water supply (Fig. 8-7).
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and without leackage.
WARNING!
Scalding Risk! Water in the pump fi lter can be very
hot! Before any action please ensure water has
cooled down.
Note: Hygiene
After long periods of disuse we recommended to run programme SELF CLEAN with
noload and small amount of detergent in washing agent compartment (2) or special
machine cleaner to remove possibly corruptive residues..
8.6 Pump fi lter
Clean the fi lter once a month and check the pump fi lter
for instance if the appliance:
▶doesn´t drain the water.
▶doesn´t spin.
▶cause unusual noise while running.
8-8 8-9
8-6 8-7
8-10 8-11
8-12 8-13
