Haier HW55-1010 User manual

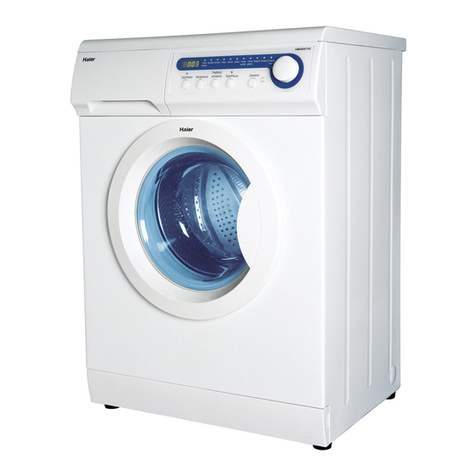

AUTOMATIC DRUM WASHING MACHINE
USER MANUAL
HW55-1010
HW55-1010ME

TABLE OF CONTENTS
The symbol on the product or on its packing indicates that this product may not be treated as household
waste.Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.By ensuring this product is disposed of correctly,you will help prevent potential negative
consequences for the environment and human health,Which could otherwise be caused by inappropriate
waste handling of this product.For more detailed information about recycling of this product,please contact
your local city office,your household waste disposal service or the shop where you purchased the product.
LEGEND
DISPOSAL
For your safety, any instructions in this manual with this "Warning" sign must be followed strictly.
Yes
No
Optional
03 - 09
8
- 1
5
1
6- 2
0
COMPONENTS>............................... 03
PREPARATION>................................ 04
SAFETY INSTRUCTIONS>................... 05
INSTALLATION>................................ 06
ECNAILPPAEHTGNISUESUEROFEB MAINTENANCE
CONTROL PANEL>............................ 08
PROGRAM SELECTION>..................... 10
CONSUMPTION AND TECHNICAL DATA>.. 11
WASHING METHODS>...................... 12
SETUP>.......................................... 14
CLEANING & CARE>.......................... 16
DISPLAY CODES>............................. 18
TROUBLESHOOTING>........................ 19

03
BEFORE US
E
1x Bottom Cover
COMPONENTS
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you
get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the
new owner can become familiar with the appliance and safety warnings.
ACCESSORIES
Check the accessories and literature
in accordance with this list:
1x Inlet hose assembly
1x Drain hose bracket
1x User manual
3x Blanking plugs

Pre-Wash
Wool
Power
Cotton RemainingTime
Quick
C
。
90
C
。
60
C
。
40
C
。
40
C
。
30
60’
30’
15’
1000
800
600
400
Synthetic
Spin
Cold
Speed
Stop
Strong Start/Pause
5.5kg
HW55-1010
04
BEFORE USE
PREPARING THE MACHINE
Remove all the packing materials to prevent unsteadiness, including the polystyrene base. Upon opening the
package, water drops may be seen on the plastic bag and the porthole. This is normal phenomenon resulting
from water tests in the factory.
DESCRIPTION
This diagram may be slightly different from the layout of the washing machine you have just purchased due to technical improvements.
PREPARATION
S1 S2
S3
T3
T2
T1
Drain hose
Water inlet value
Power cord
Back cover
Back cover screws
Transportation bolts

05
BEFORE US
E
SAFETY INSTRUCTIONS
DO ...
... Make sure that the transport bolt are removed.
... Use a separate earthed socket for the power supply.
... Make sure that the plug is accessible.
... Hold the plug and not the electric cable when
unplugging the power supply.
... Make sure that the fuses in the power circuit are rated
for 15A.
... Keep away from heat sources and direct sun light to
prevent plastic and rubber components from aging.
... Make sure that the power cord is not caught under or
in the appliance and avoid damage to the power cable.
... Check that hose joints and connections are firm and no
water can leak. If joints are loose or there is leakage, turn off the
water supply and refix. Do not use the washing machine until the
hoses are properly fixed.
DO ...
... Pull up zips and fix loose threads to prevent the items
from being entangled. If necessary, put small items into a net bag
or pillow.
... Turn off the machine after each wash program and
switch it off at the mains to save electricity and for safety. Wipe
clean the lower part of the porthole.
... Keep the door slightly open when the washing machine
is not in use to prevent formation of odours.
... Let the power cord be replaced by the manufacturer, his
service agent or other accordingly qualified persons, in case it is
damaged.
... Ensure that the appliance is not used by persons
with reduced physical, sensory or mental capabilities, lack of
experience and knowledge without supervision or instruction by a
person responsible for their safety.
... Supervise children to ensure that they do not play with
the appliance.
DO NOT ...
... Touch or use the appliance when barefoot or with wet
or damp hands or feet.
... Use flammable detergent or dry cleaning agent.
... Use any flammable sprays in close vicinity to the
appliance.
... Remove or insert the plug in the presence of flammable
gas.
... Allow children or infirm persons to play with the appliance
or packing materials.
... Install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak allow the machine to dry
naturally.
... Place the washing machine directly on a carpet, or close
to a wall or furniture.
DO NOT ...
... Touch the washer door during the washing process - it
gets hot!
...Place heavy objects or sources of heat or damp on top
of the appliance.
... Hot wash foam rubber or sponge-like materials.
... Open the detergent distribution drawer during the wash
cycle.
... Force the washer door open. The door is fitted with a
self-lock device and will open shortly after the washing procedure
is ended.
... Open the washer door if the water level is visibly over
the porthole.
... Cover the washing machine with plastic cover so that
inside dampness cannot be kept in.
BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME
DURING DAILY USE OF THE APPLIANCE

06
BEFORE USE
DISMANTLE THE TRANSPORTATION BOLTS
The transportation bolts are designed for clamping anti-vibration components inside
of the washing machine during the transportation process.
Remove the back cover.1.
Remove the three bolts on the rear side and take out the synthetic2.
stabilisers from within the machine.
Replace the back cover.3.
Fill the holes left by the bolts with blanking plugs.4.
Note:
2.When you replace the back cover,the convexity must face to
outside, and you have to insert the back cover from the two gaps
as shown in fig.3.
3.Keep the transportation bolts and synthetic stabilisers
in a safe place for later use.
INSTALLATION
ADJUSTING THE WASHING MACHINE
There are adjustable feet under the bottom of the washing machine. Before use, they should be
adjusted so that the machine is level. This will minimise vibrations and thus noise during use. It will
also reduce wear and tear. We recommend using a spirit level to level the appliance.The floor should be
as stable and flat as possible.
fig.3
ADJUSTING THE BOTTOM COVER
When open the carton package, you will find a metalline board
which is laid on the top of the washing machine as shown fig.1,
the board used for reducing noise and rat proof by install it under
the cabinet when setting as shown in fig.2.
3.
1. 2.
4.
1.Before removing the back panel for any reason. Isolate the
electric power from the washing machine by switching of the
supply and removing the plug.

0
7
BEFORE US
E
INLET HOSE
1. Connect the nut on the inlet hose to the connector on the water
valve.
2. Apply inlet hose to a water tap with cold, fresh water.
Note: Use the hose-set supplied with the appliance. Old
hose-sets should not be reused.
DRAIN HOSE
1. Use the drain hose bracket to keep the end of the drain hose
retained and prevent the outflow of water. Don't extend the length
of the drain hose; if an extended hose is required, please consult a
serviceman.
2. The height of the drainage outlet must be 80-100 cm. Fix the
drain hose to the clip at the back of the washing machine to prevent
it from dropping off.
Note: The drain hose should not be submerged in water and should be securely
fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at
a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).
CONNECTING TO THE POWER SUPPLY
Before connecting to the power supply, check:
¬ The socket is adequate for the maximum power of the washing machine
(For safety, fuses in the power circuit should be rated for no less than 15A).
¬ The voltage should meet the requirement.
¬ The power outlet should be capable of accepting the washing machine plug.
¬ Connect the machine to an earthed socket outlet.
1.
1.
80 - 100 cm
2.
2.
1. 2.

Pre-Wash
Wool
Power
Cotton Remaining Time
Quick
C
。
90
C
。
60
C
。
40
C
。
40
C
。
30
60’
30’
15’
1000
800
600
400
Synthetic
Spin
Cold
Speed
Stop
Strong Start/Pause
5.5kg
HW55-1010
08
APPLIANC
E
U
SING THE
OPERATIONAL FUNCTIONS
CONTROL PANEL
ADetergent distribution drawer
BPower Button
CProgram knob
DSpinning Speed Setting Button
EStrong button
FStart/Pause Button
A ¬Detergent
distribution drawer
_ The drawer contains three compartments:
1: Prewash detergent
2: Main wash detergent
3 :Fabric softener
B ¬ Power Button _ Press this button to switch on the washing machine. Press and hold 2s to switch it off.
C ¬ Program knob_ By turning the knob clockwise/counterclock- wise, the required program can be selected.
There are 9 programs available. After a pro- gram is selected, the corresponding light will go on.
A
E
CD
BF
2
1
3
G
G
Remianing Time

0
9
U
SING THE APPLIANC
E
D ¬ Spinning Speed
Setting Button
_ Touch this button lightly to select the desired speed. When a speed is set, the indicator light
will be light on
E ¬ Strong button _Touch this button lightly, the indicator light will be light on . you can increase the washing time,
rinsing times in main wash stage of the selected program, which is suitable for dirty clothes.
F ¬Start/Pause Button When the washing machine is connected to the power socket and a program is selected,
lightly touch this button to start operation. During a wash cycle, touch it lightly ,operation
will stop and the indicator light start blinking.Touch it again to resume operation. To cancel
a wash program during a wash cycle, touch his button, when the indicator light start blinking,
press the Power switch, the program will be cancelled.
G ¬ Remianing Time The column of ‘Time to end’ indicator lights shows the approximate time remaining before the wash
program ends.
If all the lights are off, there is more than 60 minutes before the program ends.
When the 60’ light is on, there is between 60 and 30 minutes to the end of the program.
When the 30’ light is on, it is between 30 and 15 minutes to the end of the program.
When the 15’ light is on, it is less than 15 minutes remaining to the end of the program.
The Stop light will illuminate at the end of the wash program.
Note If all 4 ‘Time to end’ lights flash during a wash program, please refer to the ‘To much foam’
explanation.

1
0APPLIANC
E
U
SING THE
PROGRAM SELECTION
PROGRAM MODES
PrProgramogramm Temperature 2 33 1 Recommended Laundryne
1
Cotton
¬ Prewash 60°C Very heavy soiling 1000 rpm
2¬ 90°C 90°C Heavy soiling 1000 rpm
3¬ 60°C 60°C Soiled cotton 1000 rpm
4¬ 40°C 40°C Non-fade and medium soiled 1000 rpm
5¬ Quick 40°C Medium soiled laundry 1000 rpm
6
Synthetic
¬ 30°C 30°C Non-fade heavily soiled synthetic
fibre
1000 rpm
7 ¬ Cold / Fade and medium soiled
synthetic fibre
1000 rpm
8 ¬ Wool 40°C 40°C Fade and medium soiled
synthetic fibre
600 rpm
9¬ Spin / / 1000 rpm
Yes No Optional
Preset spin
speed
2
1
3
1 Detergent compartment for prewash mode
2 Detergent compartment
3 Compartment for softener and other additives

1
1
U
SING THE APPLIANC
E
CONSUMPTION AND TECHNICAL DATA
TECHNICAL DATA
CONSUMPTION TABLE
The wash cycle times are intended as a guide only. The actual time used may vary due to different water pressure, initial water
temperature, etc.
*)
EN 60456 test program / Energy label program with Cotton 60°C ,max. spin speed and intense function.
HW55-1010 HW55-1010ME
Power source 220 - 240V~/50Hz 220 - 240V~/50Hz
Max. working current (A) 10 10
Water pressure (MPa) 0.03≤P ≤1 0.03≤P ≤1
Nominal load (kg)
Spinning speed (r/min) 1000 1000
Washing programs 9 9
Max power (W) 2000 2000
Dimensions (HxDxW mm) 850 x 520 x 595 850 x 520 x 595
Net weight (kg) 65 65
PROGRAM Max. LOAD ENERGY
CONSUMPTION
WATER CONSUMPTION TEMPERATURE WASHING TIME
Cotton
¬ Prewash 5.5 kg 1.16 kWh 52L 60°
¬ 90°C 5.5 kg 1.56 kWh 46L 90°C
¬ 60°C*)5.5 kg 0.95 kWh 49L 60°C
¬ 60°C 5.5 kg 1.14 kWh 45L 60°C
¬ 40°C 5.5 kg 0.43 kWh 45L 40°C
¬ Quick 2.5 kg 0.31 kWh 30L
Synthetic ¬ 30°C 3 kg 0.34 kWh 32L
¬ Cold 3 kg 0.10 kWh 32L /
¬ Wool 40°C 2kg 0.41 kWh 31L
5.5 5.5
around 2:16 h
around 2:08 h
around 2:59 h
around 1:59 h
around 1:47 h
around 0:29 h
around 1:10 h
around 1:00 h
around 0:50 h
40°C
30°C
40°C

1
2APPLIANC
E
U
SING THE
WASHING METHODS
POWER SUPPLY
Connect the washing machine to the power supply (220V to 240V~/50Hz).
WATER CONNECTION
Turn on the tap. The water must be clean and clear.
Note: Before use, check for leakage in the joints between the tap and the inlet
hose by turning on the tap.
PREPARING THE LAUNDRY
¬ Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.
¬ Separate white clothes from coloured ones. Wash them first by hand to check if they fade or run.
¬ Empty pockets (keys, coins, etc.) and remove the harder decorative objects (e.g. brooches).
Attention: Small parts (like buttons, etc) may lead to repair work which user has
to pay by themselves and can cause damage in the machine.
¬ Garments without hems, underwear, finely woven textile such as fine curtains are to be put into
wash bag (it is better not to wash them in a washing machine).
¬ Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as
socks, belts, bras, etc. in the wash bag.
¬
Unfold large pieces of fabric such as bed sheets, bedspreads, etc.
¬ Turn shirts inside out.
This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee
will not be valid anymore.Do not use it for purposes other than that for which it was designed. Follow the
instructions given on the label of each garment and wash only machine-washable garments.
PLEASE NOTE

1
3
U
SING THE APPLIANC
E
LOADING THE MACHINE
Open the washer door, put in the laundry piece by piece. Close the door tightly.
¬ When first using the washing machine, let it run unloaded for one program to prevent the laundry from
being tainted by oil or dirty water from the washing machine. Before washing you should run the machine
without laundry, but with detergent, with 60°C programm.
¬ Do not overload the washing machine.
SELECTING DETERGENT
The washing efficiency and the performance is determined by the quality of detergent used. Special
non-foaming detergent produces good washing results. Use specific detergents for synthetic and woollen
goods. Do not use dry cleaning agents such as trichloroethylene and similar products.
Note: Do not add more detergent than needed. Please follow the dosage
recommendation on the detergent package.
ADDING DETERGENT
Slide out the detergent drawer and put the required detergent and softening agent into the corresponding
compartments. Push back the drawer gently. (Refer to the instructions on the drawer)
Caution:
¬ For prewashing program, detergent should be added to both compartments 1 and
2. For other programs, do not add detergent to compartment 1.
¬ Use liquid detergent according to the instructions on its package. Do not use liquid
detergent if the prewash mode .
¬ Do not overuse softener; otherwise, it will damage the artificial fibers.
SELECTING PROGRAM
To get the best washing results, an appropriate washing program should be selected according to the
laundry type. Please turn the program knob to select the right program.
SELECTING FUNCTIONAL
Select the required options. (Refer to the "Control panel" pages 08 and 09)
2
1
3
C
••••
90
C
••••
60
C
••••
40
C
••••
40
C
••••
30

14
APPLIANC
E
U
SING THE
TIPS FOR SAVING ENERGY
Collect clothes for one full wash load.1.
Avoid overloading the washing machine.2.
Prewash only heavily soiled clothes.3.
Reduce the amount of detergent or choose standard or delicate wash programs for slightly soiled clothes.4.
Choose a proper washing temperature. Modern detergents can wash with very good result already in lower temperature than5.
60°C. Only use higher temperature than 60°C for heavily soiled laundry.
Follow the dosage recommendation on the detergent package to avoid using too much detergent.6.
SETTING SPIN SPEED
Touch this button lightly to select the desired speed. When a speed is set,
the indicator light will be light on.
STRONG BUTTON
Touch this button lightly, the indicator light will be light on . you can increase the washing
time,rinsing times in main wash stage of the selected program, which is suitable for dirty clothes
START WASHING
When the washing machine is connected to the power socket and a program is selected,lightly
touch this button to start operation. During a wash cycle, touch it lightly ,operation will stop and the
indicator light start blinking.Touch it again to resume operation. To cancel a wash program during
a wash cycle, touch this button, when the indicator light start blinking, press the Power switch, the
program will be cancelled.
AFTER WASHING
Turn off the water supply and unplug the power cord. Open the washer door to prevent formation of
moisture and odours. Let the door open while not used.
C
••••
90
C
••••
60
C
••••
40
C
••••
40
C
••••
30
speed
Remaining Time
stop
strong Start/Pause
speed
Remaining Time
strong Start/Pause
speed
Remaining Time
strong Start/Pause
After entire washing cycle finish, all indicate lights go out．7.

1
5
U
SING THE APPLIANC
E
Bed sheet (single) Cotton Approximately 800g
Blanket Wool Approximately 3000g
Blended fabric clothes / Approximately 800g
Jackets Cotton Approximately 800g
Jeans / Approximately 800g
Overalls Cotton Approximately 950g
Ladies Pyjamas / Approximately 200g
Shirts / Approximately 300g
Socks Blended fabrics Approximately 50g
T-Shirts Cotton Approximately 300g
Underwear Blended fabrics Approximately 70g
LOAD REFERENCE
CARE CHART
Resistant material
Delicate fabric
Washable at 95 °C
Washable at 60 °C
Washable at 40 °C
Washable at 30 °C
Hand wash
Dry clean only
Wool Seal
Bleachable in cold water
Do not bleach
Iron at 200 °C
Iron at 150 °C
Iron at 100 °C
Don't iron
Dry cleaning with any solvent
Dry cleaning with pericloride
Dry cleaning with aviation fuel
Don't dry clean
Dry flat
Hung to dry
Dry on clothes hanger
Tumble dry, normal heat
Tumble dry, reduced heat
Don't tumble dry

16
M
AINTENAN
CE
CLEANING & CARE
AFTER WASHING
Turn off the water supply and pull out electricity plug after each wash.
Open the washer door to prevent formation of moisture and odours. If
the washing machine is left idle for a long period, drain the water in the
machine and replace the drain hose.
CLEANING THE DETERGENT DRAWER
Clean the detergent distribution drawer regularly.
Swing out the drawer, flush it clean with water and then replace it.
CLEANING THE MACHINE
Unplug the machine during cleaning and maintenance. Use a soft cloth dampened with soap liquid to
clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.
CLEANING THE FILTER
Clean the filter once a month:
1. Open the bottom cover.
2.Remove the filter by turning counterclockwise.
3.Flush the filter clean with running water.
4.Replace the filter by turning clockwise and
remount the cover.
Caution:
1.The filter must be in place, or it may lead to leakage.
2.Place a container under the drain pump filter, to collect
any excess water that may come out of the drain pump
when the filter is removed.
3.
3.
2.
2.
4.
4.
1.
1.
1.
2.
2.
1.
2.

M
AINTENAN
CE
WATER INLET VALVE AND INLET VALVE FILTER
To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve
and inlet valve filter regularly.
MOVING THE MACHINE
If the machine is to be moved to a distant location, replace the
transportation bolts removed before installation to prevent damage as
shown below.
Remove the blanking plugs.1.
Remove the back cover2.
Insert the synthetic stabilisers and the transportation bolts.3.
Tighten the bolts with a spanner.4.
Replace the back cover.5.
LONG PERIODS OF DISUSE
If the washing machine is left idle for a long period, pull out the electrical plug and turn off the water
supply. Open the washer door to prevent formation of moisture and odours. Let the door open while
not used.
17
C
。
90
C
。
60
C
。
40
C
。
40
C
。
30
2.
4.
5.
1.
3.

18
M
AINTENAN
CE
DISPLAY CODES
DISPLAY CODES AND SPECIAL FUNCTIONS
¬ Foam test function: If the washing machine find much foam,the LED lamp of “time to end” will twinkle completely for 15 mins,then
the washing machine will go on washing. of course, you can touch “Start/pause” to cancel this function.But you had better to hold
this function for protecting motor.
¬ Power-off memory function: In case of abrupt power failure or the need to cut off the power during a program cycle, the present
settings will be saved and the preset operation will resume when the power is on again.
¬ To cancel a program
Press the "Start/Pause" button, then switch off the power and the program is automatically cancelled. Turn the program selector
again to choose another program.
ERROR MESSAGE CAUSES SOLUTIONS
Err1:The start/pause lamp off and the
buzzer beeping
¬ Door is not properly shut. _ Shut the door properly.
Err2:The start/pause lamp twinkles twice
in 4 seconds.
¬ Drainage error, water not
emptied within 4 minutes.
_ Clean the filter and check the drain hose for
blockage. If error still exists, please contact the
maintenance personnel.
Err3:The start/pause lamp twinkles 3
times in 4 seconds .
¬ Temperature sensor
not properly connected or
damaged.
_ Contact the maintenance personnel.
Err4:The start/pause lamp twinkles 4
times in 4 seconds .
¬ Heater error (Appears at
the end of a cycle).
_ Reduce load and then start washing again. If
problem still exists, please contact the maintenance
personnel.
Err5:The start/pause lamp twinkles 5
times in 4 seconds .
¬ The drain hose is in water. _ Make sure the drain hose is not in water.
Err7:The start/pause lamp twinkles 7
times in 4 seconds .
¬ Motor overheat protection
or damage.
_ Contact the maintenance personnel.
Err8:The start/pause lamp twinkles 8
times in 4 seconds .
¬ Water exceeds protective
level.
_ Contact the maintenance personnel.

M
AINTENAN
CE
TROUBLESHOOTING
TROUBLESHOOTING
The following circumstances do not constitute problems. Do not contact the Service Center until the problem has been confirmed.
PROBLEM CAUSES SOLUTIONS
Washing machine fails to
operate.
¬ Poor connection to the power supply.
¬ Power failure.
¬ The washer door is not properly closed.
¬ Machine has not been switched on.
_ Check connection to the power supply.
_ Check the power supply.
_ Close the washer door properly.
_ Make sure the machine is switched on.
Washing machine cannot be
filled with water.
¬ The "Start/Pause" button is not pressed.
¬ Water tap is not turned on.
¬ Water pressure is less than 0,03 MPa.
¬ The inlet hose is kinked.
¬ Water supply failure.
¬ The program knob is not properly set.
¬ The washer door is not properly closed.
¬ The inlet hose filter is blocked.
_ press the "Start/Pause" button.
_ Turn on the water tap.
_ Check water pressure.
_ Check the inlet hose.
_ Ensure the water supply.
_ Set the program knob properly.
_ Close the washer door properly.
_ Unblock the inlet hose filter.
Machine is draining while
being filled.
¬ The height of the drain hose is below 80 cm.
¬ The drain hose is in water.
_ Install drain hose within 80-100 cm of height.
_ Make sure the drain hose is not in water.
Drainage failure. ¬ Drain hose is blocked.
¬ Drain hose end is higher than 100 cm above
the floor level.
¬ The filter is blocked.
_ Unblock the drain hose.
_ Make sure the drain hose end is lower than
100 cm above floor level.
_ Unblock the filter.
Strong vibration while
spinning.
¬ Not all transportation bolts have been removed.
¬ Washing machine is located on an uneven
surface or is not level.
¬ Machine load is over 5 kg.
_ Remove all transportation bolts.
_ Make sure the washing machine is on
an even surface and levelled.
_ Reduce amount of laundry in the drum.
Operation stops before
completing wash cycle.
¬ Water or electricity failure. _ Check the power supply.
Operation stops for a period
of time. ¬ Washing machine gives an error message. _ Check display codes.
Excessive foam in the
drum, which is spilled to the
distribution drawer.
¬ The detergent is not a low-foaming type or for
manual wash.
¬ Excessive use of detergent.
_ Check if your detergent is appropriate.
_ Reduce amount of detergent in the distribution
drawer.
Automatic adjustment of the
washing time.
¬ The washing program duration will be adjusted
according to the initial water temperature.
_ This is normal and doesn't affect the
functionality.
19

2
0
M
AINTENAN
CE
