Haier HWT60AA1 User manual

Please read this manual carefully before
operating your washing machine and retain
it for future reference.
TOP LOAD FULL-AUTOMATIC
WASHING MACHINE
USER’S MANUAL
0030517190A
MODEL
HWT75AA1
HWT60AA1

CONTENTS
Product overview
Safety precautions
Installation & adjustment
Before washing
Operation
Cleaning and Maintenance
Packing list
Specification
Trouble-shooting
1
2
2
2
4
4
5
5
6
7
8
8
9
16
7
8
14
15
17
Description of symbols
Safety warnings
Installing the bottom plate
Balancing the washing machine
Installation of the drain hose
Installation of water inlet hoses
Check the following before washing
Loading detergent
Loading your laundry
Explanation of the display
Operation and Wash Cycles
12
Safety 2

Product overview
Outer tub cover
Top lid
Inner tub
Pulsator
Detergent tray
(Not applicable for HWT60AA1 model）
Base frame
Screw cover
Adjustable feet (2 pieces)
Top deck
Cabinet
Cold water inlet valve
Fixed
feet (2 pieces)
Handle
Power cord
Back cover
Please understand the shapes of the washing machine and accessories may be
different from the sketch figures in this manual due to product improvement.
Drain hose connector
Drain pump filter cap
Hot water inlet valve
(Not to be removed by
the customer)
Lint filter

Description of symbols
Warning sign
Forbidden sign
Contents marked with this symbol are related to the safe use of
the product and the personal safety of the user.
Please operate in accordance with the contents of this manual
to avoid harm to the user or damage to the machine.
Contents marked with this symbol indicate operations or
actions that should not be undertaken by the user.
Performing of such actions may result in an injury to the user or
damage to machine and void the warranty.
Safety precautions
Warning
A separate, earthed power socket is
required for the power supply.
Hold the plug, not the electric cable, when
unplugging the washing machine.
Do not insert or remove the power plug with
wet hands.
The power plug should be accessible after
machine installation.
Ensure the plug is removed and the taps
are turned off in the following cases.
Power failure, cleaning, moving,
installation of the machine and when not
in use.
If the Power cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified people in order to avoid a hazard.
2
CAUTION: If this appliance is supplied from a cord extension set or
electrical portable outlet device, the cord extension set or electrical
portable outlet device must be positioned so that it is not subject to
splashing or ingress of moisture.
Safety
This appliance is intended to be used in household and similar applications such as:
... staff kitchen areas in shops, offices and other working environments;
... farm houses;
... by clients in hotels, motels and other residential type environments;
... bed and breakfast type environments;
... areas for communal use in blocks of flats or in launderettes;
... max. capacity 6kg (HWT60AA1), max. capacity 7.5 kg (HWT75AA1),
water pressure 0.03-1MPa.

Safety precautions
Forbidden
60
If you are using an extension cord or
a portable electrical outlet device
(not recommended), ensure that it
is positioned so that it does not come
into contact with water or moisture.
Do not install this appliance in a
damp or wet environment. Do not
leave wet laundry on the Control
Panel or spray water directly onto
this appliance as this may cause the
washer to malfunction or cause an
electrical fault.
Do not wash
water-proof clothing
as this may affectload
balance during
spin cycle(s).
Do not connect to hot
water higer than
60°C temperature.
This appliance is not intended for useby
persons (including children) withreduced
physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or
instruction by a person responsible
for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not take apart,
repair or alter the
machine by
yourself.
Do not attempt to remove washing or place
hands inside the washing machine while in
operation. Please ensure children are
supervised around the machine to avoid
harm.
Do not leave hot or heavy items on the lid
or control panel as this may cause
damage to the washer or make the
washer unsafe to operate.
Do not wash laundry
with chemicals or other
volatile materials(such as
petrol, solvents or thinners)
as this may cause
damage to the
machine.
Keep washer away
from heat sources
such as heater,
stoves or direct sunlight.
3

If power cord or other parts of this machine become damaged or faulty, please
contact a technician to have it repaired.. Do not attempt repairs by yourself as this
may cause personal harm or void warranty.
Safety precautions
Please install and adjust the machine according to the directions contained in this
manual. It is very important to follow these directions for the safe operation of the
machine, and to ensure your machine operates correctly.
Installation & Adjustment
4
Back
Front
Screw
Bottom plate Carpet
Installing the bottom plate
The purpose of the bottom plate is to suppress noise
from the washing machine during operation.Steps:
2. Place the plate onto the bottom of the machine.
3. Use a screwdriver to tighten the screw ( in accessory
bag) securing the panel to the bottom of the washer.
4. Once the screw is tight and the panel is secure, return
the washer to its standing position.
1. Tilt the machine backwards against a wall. (ensure
that the machine is well supported)
The new hose-sets supplied with the appliance are to be used and the old hose-sets
should not be reused.
Note: The washing machine has ventilation openings in the base, the product must
not be placed on a carpeted surface.

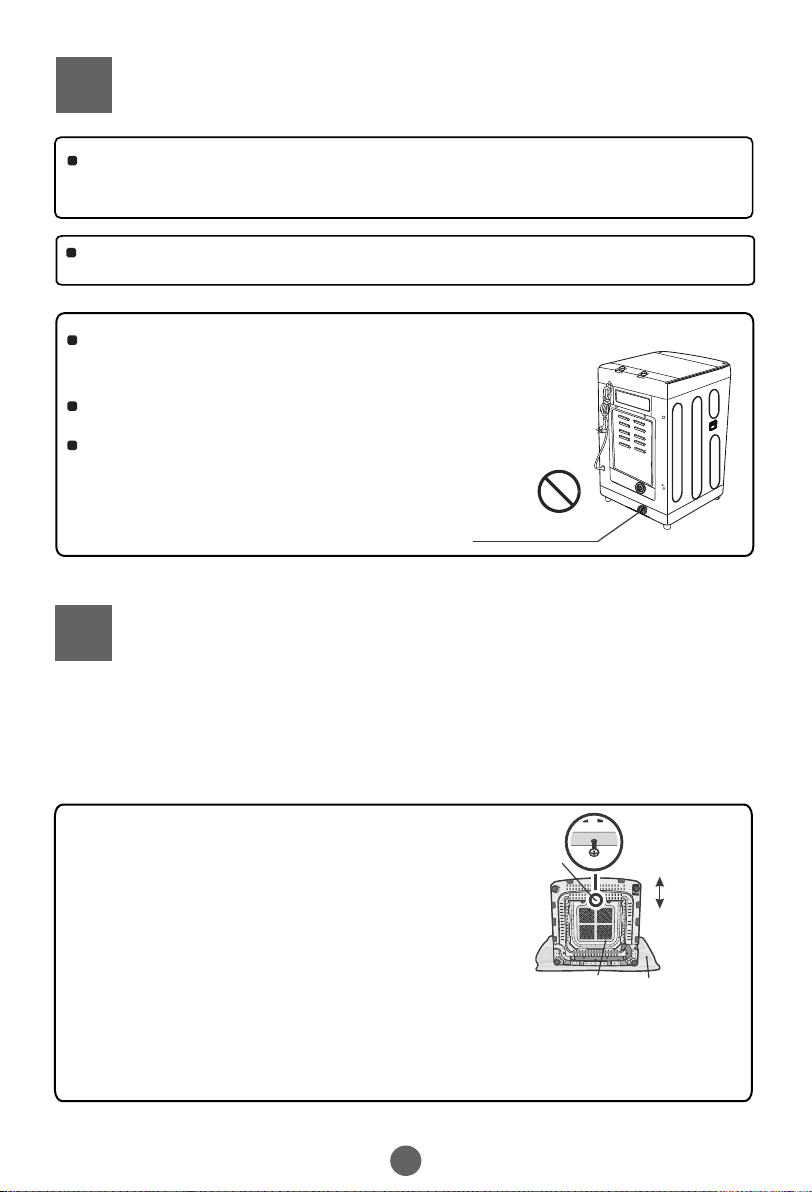

Please do not to remove the pump filter cap situated at the
bottom rear of the product in any situation as water remaining
in the product will flow directly out of the product.
In the event of a blockage or a failure to drain, please contact
the customer care centre for assistance.
The pump filter cap is only to be removed by a trained service
technician.
Pump filter cap

Installation & Adjustment
Drain hose
5
2. First connect the drain hose to the connection
point on the lower right side of the cabinet, and fasten
with drain hose clamp (provided).
3. Connect drain hose guide on to the outside of
drain hose. To guide the drain hose over the
tub or standpipe, the bracket MUST be fitted
to the drain hose.
Drain hose
clamp
Drain hose joint
1.The height of the standpipe or tub should be
between 0.8 - 1.2 m.
2.To avoid syphoning, the drain hose should not
extend more than 20 mm from the end of the guide.
Ensure drain hose is held in place to avoid
leaks or spills.
Bracket
0 . 8m
h
1.2m
1. Remove the cap of the drain hose outlet.
Note: A small amount of water may come out when the cap is removed. This is
normal as there maybe some water left in the pump as the
machine is tested during manufacture.
Installation on an uneven surface can lead to ‘out of balance’ events, instability in the
machine operation, or even failure to successfully complete a wash cycle.
Please refer to the following method for adjustment:
1.Confirm whether the machine is level.
2. Lift the lid and ensure that the bowl is central to the top deck opening.
Adjust the two front leveling feet as necessary.
Balancing the washing machine
Note： The distance between the washing machine
and the wall should be at least 20mm.
Not level level
20mm
20mm

Installation & Adjustment
Connection between the water inlet hose and
the washer
1.Do not take off the water absorption cushion.
Please check if the cushion has dropped off
or is damaged before attaching to the
washing machine. If this happens please
contact our after-sale department
2.Put the nut of the water inlet hose onto the
inlet valve thread.
3.Fasten the nut.
nut of the water inlet hose
Thread of the water inlet valve
Water absorption cushion
6
Check the inlet hose connections
Water inlet
1. Connect the cold hose (blue connector) to the cold
tap and the hot hose (red connector) to the hot tap.
You may have to use pliers to tighten the coupling.
Do not over tighten as this may cause damage to the
valve or hose fittings.
2. Connect the other end of the hose to the respective hot and
cold inlet valves, located at the rear of the washing machine.
3. We recommend replacing the inlet hoses every 5 years.
Hoses should be checked from time to time and replaced if any wear, damage
or leaks are found.
immediately.
1. Swing the hose gently to confiem that the hose is
securely fastened and can pivot as required
4. Periodically check the hose connections are firm
at both ends. This is to ensure the connections
remain water tight over time.
2. After installation, open the tap to check for leaks.
3. Do not bend the hose unduly.

Preparation before washing
1.Connect the water inlet hose. Open the water faucet.
2.Insert the power plug into the wall power socket.
3.Ensure the drain hose is mounted at the correct height.
4.When the water pressure in the user's
home is too low, it may not be able to
wash detergents and softeners
effectively (which may agglomerate).
5.Please clean the detergent box when
required to maintain a clean surface.
It is suggested to dilute the detergents
before putting laundry into the inner tub. It is suggested that the
softener be diluted and put into the inner tub directly after the last
rinse.
Check the following before washing
Before washing
Clear the pockets
and take out loose
items such as coi-
ns, sand, hairpins
a. Check if the laundry has any special washing instructions.
b. Divide the laundry into colour fast and non-colour fast items. When washing jeans
and other easily discolored clothes, please soak them with water first. After
soaking, put into the washing machine.
c. Separate items that do not absorb water easily and wash by hand. Make sure the
clothes are wet before washing, such as Wool
.
d. For heavily soiled items, please first remove loose dirt.
e.
f. Do not put laundry soiled with chemicals or solvents into the washing machine.
g. When washing cotton clothes with strong water absorption, such as bed
sheets and quilt covers, it is recommended to increase the water level manually
after the default water level is completed. Increasing the water level can improve
wash performance.
Tie any long
straps or strings,
fasten buttons
and close zippers
The weight of the laundry
shall not exceed the rated
capacity of your machine,
loosen the laundry before
placing it evenly in the tub
Make sure the clothes are
completely placed in the
inner tub.
When the machine is
running, buttons may
cause noise.
To reduce the noise,
turn clothes inside
out or place them in
a laundry bag.
7
For those items that may attract lint, please turn inside out before washing.
0.8m 1.2mH
6.Before washing we recommend that a “Drum Clean” cycle is run
without any clothing.
etc.

Adding washing power
The rated washing capacity refers to the largest dry
weight of a load that can be washed.
Before washing, please make sure that the water level covers the clothes. Adjust
the number of clothes according to the actual situation. The clothes load should
not exceed the height of the metal drum surface.
The thickness, size and type of clothes will influence
the actual capacity.
Do not select more than water level “Mid” for clothes
less than 2.0kg, to avoid splashing of water.
It is recommended that low suds/high efficiency
washing powder is used.
Operation
Loading your laundry
8
It is suggested to dissolve detergent before adding to
the tub, see as below:
1. Prepare warm water (<35 C) in a container.
2. Add washing powder, stirring to dissolve it completely.
Pause
。
When water pressure is too low, it is possible that washing powder
or washing liquid cannot be washed away effectively, and washing
powder or washing liquid would be agglomerated after a period of
time. Please clean the detergent box in time. It is recommended to
pour the washing powder or liquid into the basket directly
Close the lid
If you open the lid during all cycles the machine will stop and an audible alarm
will sound.
Note: The HWT60AA1 model
does not have a detergent box.
You need to pour the detergent
into the drum directly.
Express
Low

Operation
Push the Power button, set the desired washing program, after setting, press the
“Start/Pause” button, then hold the “Delay” button and “Cycle” button at the same
time for more than 1 second.The digital display “CL”, the child lock. All of the buttons
are locked, and will not function.
Key Lock function
To release the key lock function: press “Cycle” button and “Delay” button at the same
time for more than 1 seconds. After
one beep sounds, the child lock function is
released. The child lock light goes out.
Note: After the key lock is released, press the Start/Pause button to open the lid. If the lid is forced
open when washing, the machine will alarm E2 and stop running. The machine will automatically drain
after 10 seconds. If you confirm the safety, please close the lid and press "Start/Pause" button to
wash the clothes. The machine will continue to operate. If a separate washing or rinsing process is
selected, the washing machine will drain automatically after operation.
The function is intended for child safety and preventing the washing program from
accidental changes by children.
Indicator display
Off
On: Indicates the program is running and indcates the selected cycle and options
Flashing: When paused, indicates the progress status of the current washing cycle.
9
Explanation of buttons
Delay
Remaining(Minutes)
Delay(Hours)

Operation
After the power is switched on, press it to start the machine.
To pause the wash cycle, press the “start/pause” button.
To restart a wash cycle, press the “start/pause” button again .
Start
Pause
F "Start/Pause" button
10
Page 15
During the wash cycle, the digital display will show the
time remaining in minutes.
If an issue occurs, the display will show a user warning
or error code (see to page 15)
If a ‘Delay start’ is selected, the display will show the total time to cycle
completion including the delay period, in hours
Digital display
Push the " Power " button to switch on the power.
Under power-on mode, push it to switch off the power.
If the "Start/Pause" button is not pushed, the machine will switch off
the power automatically after 10 minutes.
A "Power" button
Power
Cotton
Eco
Express
Delicate
C3 Spin
C4 Drum Clean
Cycle
Warmer wash for cotton clothing
The water saving cycle
Cycle
E "Cycle" select
Application
Quick wash for smaller lightly soiled loads & brand new clothes
Gentle wash action with slow spin speed
Use this cycle to remove water from clean clothes
Cleaning the inner and outer tub to avoid the growth of mildew
Do not put any clothes in the inner tub
Sheets A cycle specifically designed to wash sheet loads
Use this cycle to relax wrinkles, remove excess detergent
and refresh clean clothes.
Heavy Use this cycle to wash durable,full load, suitable for towels,
children clothes, workwear
Memory This cycle setting remembers the last wash, rinse and spin
settings for a particular cycle
C1 Wash & Soak
Selection adds a soak period to the wash cycle. When the
washing is complete, the cycle will progress to rinse and spin
C2 Rinse & Spin

Operation
Press the water level button to select the water level you want to set.
When there is water or wet clothing in the tub, it can't automatically detect
the clothes quantity.
All of the cycles except Drum Clean cycle default to show “Auto” water
level, you can choose another water level manually. The Drum Clean cycle
defaults to show “High” water level.
During Wash and Rinse, press the water level button to adjust the water level.
Because of the different wet and dry degree of clothes, the water level judged
will be different. Please choose the water level according to the load.
11
Water
level
B "Water Level" button
C "Water Temp" button
Water
Temp
Press the “water Temp” button to select your wash temperature.
During ECO, Delicate cycles, “Warm hot” and “Hot” temperatures
cannot be chosen.
During Drum clean cycles, “cold”, “warm cold” and “warm” temperatures
If you choose “Auto”, the machine will detect the clothes quantity and auto-
matically select the suitable water level .
cannot be chosen.
Push the Delay button and the display will show the remaining time for the
cycle to finish (in hours).The indicator flashes to indicate that the delay fun-
ction is operating.
Delay start can be set for 2-12hr operation.
NOTE:The delay time displays the number of hours until the selected wash
program will finish (you need deduct wash time from this delay time to
calculate when the wash will start).
D "Delay" button
Delay
During C2 Rinse & Spin cycle , you can not choose Water Temp

Operation and Wash Cycles
12
After the power is turned on, the default is Cotton cycle. To select other fully-auto cycles,
For example, when you want to wash lightly soiled clothes quickly, use a Express cycle.
All of the cycles except Drum clean , Rinse & spin and spin cycles have fuzzy function
and the water level can be adjusted according to the texture and quantity of clothing.
After the detection is completed, the water level is set automatically.
When the washing machine is working, the water level cannot be changed. It is necess-
ary to press the "Start/Pause" button before pressing the water level.
Press the button to reset the water level and press the Start/Stop button to start running.
1Press the button to switch power on/off
2 Press the buttonto select automatic cycles
3Press the button to change the water level
4Press the button to change the water temp
Temp
Set the wash temperature in accordance to the requirements of each load.
5
press the “Cycle” button until the corresponding indicator is illuminated.
When the power is turned on, the washing machine Delay procedure is automatically set to
non-startup state.
The laundry process will begin immediately after pressing the Start/Pause button.
Before setting the required delay time, first set up the program and other options, and then
press the Delay button.
The program LED will be turned off and the reservation indicator will be turned on.
During the Delay process, press the "Delay" button, and display the
appointment time at the end of the cycle.
First selectable delay is + 2hours. Increasing in 1 hour
Reservation time is the end of the cycle.
Operating Method of Delay Procedure
increments - Maximum selectable is +12hours.
Press the button to select delay wash
The wash will finish
in about 10 hours

Operation and Wash Cycles
13
6Press the button to start the cycle
Name of program for energy efficiency labelling used in warm wash tests - Eco, Water Level High,
Please use low suds/high efficiency detergent.
Note:
This washer has a 2-step water fill to achieve the required water level and temperature
for the best cleaning result.
First Fill - Once options and cycle are selected and the Start/Pause Button is pressed,
both hot and cold water will flow into the inner tub. The warm water temperature helps to
dissolve detergent quickly. The washing operation starts at the end of the hot water fill
and is followed by a 5-minute (approximately) soak-agitation session to help the detergent
mix completely with the laundry.
Second Fill - The second fill is in order to reach the selected water level and make the
clothes completely soaked in water to achieve a better wash effect.
Water Temp Warm - is recommended for washing a normally soiled cotton load at rated capacity.
The rated capacity of HWT60AA1: 6kg
The rated capacity of HWT75AA1: 7.5kg

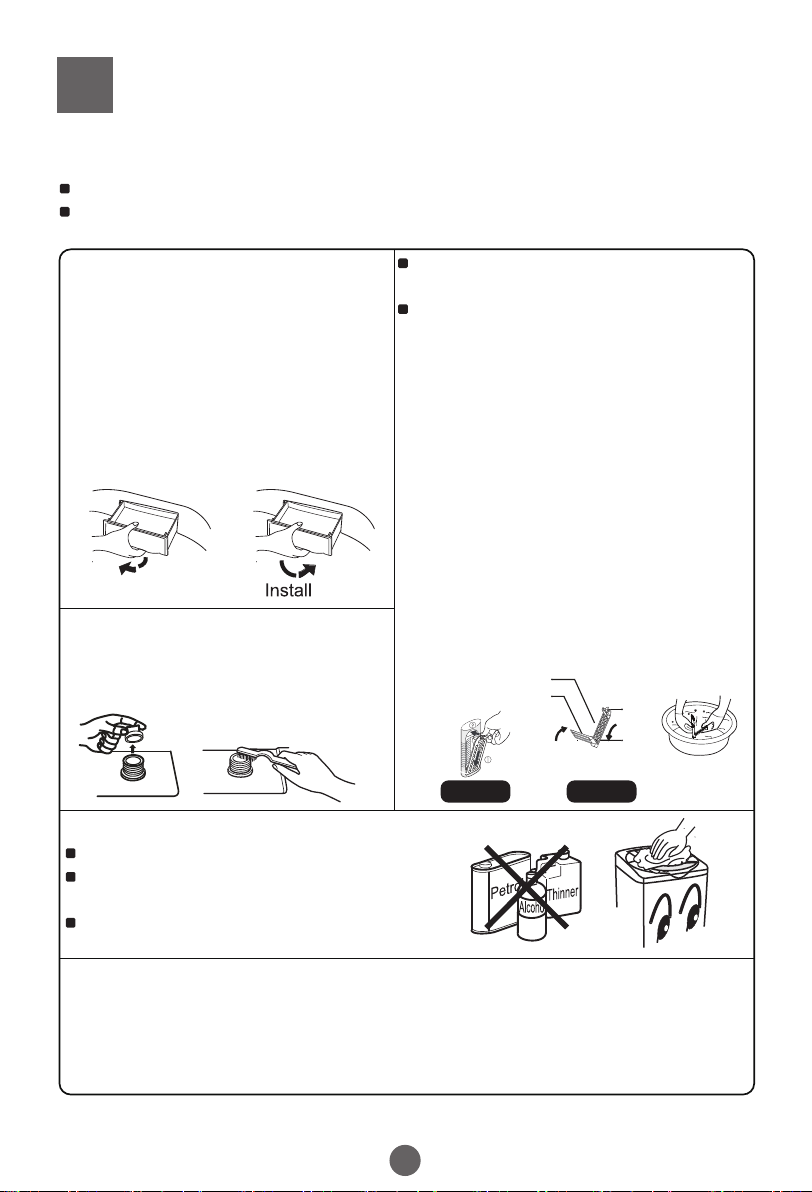

Remove
Both lint filters must be used during
washing.
Must be cleaned after each use.
Clean the detergent box and set it on the
control panel seat.
1.The method of dismantling: Tilt upward
pull out and gently.
2.The method of cleaning: Use a brush
and duster cloth to clean it, then flush
it with water.
3.Installation method: tilt upward and
push in.
Install
Dismantle
Down
Up
The front cover of the lint filter
The back cover of the lint filter
Remove and reinstall the lint filter as
follows：
Remove the power plug before carrying out any cleaning or maintenance.
Clean the lint filter(s) and detergent box after each wash, otherwise it may influence
you using the machine.
14
Cleaning and Maintenance
Maintenance
The filter at the water inlet valve may
become blocked by impurities in the
water supply. Clean it with a plastic
bristled brush every two months.
If the cabinet is dirty, wipe it with a damp cloth
Do not wash directly with water.
1.After the washing cycle has finshed, turn off the water faucet.
2.Do not store water in the washing machine for a long period without completing a
wash cycle. Drain the water completely after each wash.
3.Wipe up any drops of water on the surface of the machine and inside the tub. Leave
the lid open for about 1 hour after each wash to evaporate any residual water.
Wipe with a neutral detergent (please check
directions on detergent bottle first).
Do not wipe machine with thinners, petrol,
alcohol or other hash solvents.
Figure 1 Figure 2
1.Push down spring piece of the top lint
filter and pull out to remove (figure1)
2.Pull the back of the lint filter to open
(figure2)
3.Remove any lint in the lint filter.
4.Push the back of the lint filter back into
the front cover.
5.Put the lint filter into filter housing , and
make it tight.
6.Make sure the lint filter is well installed,
or it can influence performance of the
washer.
Down
Push
（Noted：Only HWT75AA1 model has a detergent box）

Is the water inlet hose loose? The water tap leaks.
Redistribute the load evenly.
Push the Start/Pause button once.
Level the machine. Push the
Start/Pause button once.
The display shows E4.
.
Is the water tap closed or
has the water supply been
interrupted?
Is the water inlet valve
blocked?
Is the water pressure too
low?
Open the water tap. Push
the Start/Pause button once.
Clean the water inlet valve
then push the Start/Pause
button once.
Use after the water
pressure is normal.
The machine
does not work.
Will not
wash
Will not
spin
There are abnormal
sounds inside the machine.
Is the machine levelled?
Has the laundry been placed
unevenly in the machine?
Are there any foreign objects
inside the tub?
Level the machine.
Redistribute the load evenly.
Close the top lid.
Remove the foreign object.
Is the power plug inserted
tightly?
Is the top lid closed?
Is the laundry distributed
unevenly in the machine?
Insert the power plug tightly.Close the top lid.Redistribute the laundry.
Close the top lid.Push the
Start/Pause button once.
Is there a power failure?
Is the power plug inserted
tightly?
Has the water level reached
preset position?
Wait for the power supply
to be restored.
Insert the power plug tightly.Wait for the water to fill to
the preset level
Fasten the inlet hose.
Trouble-shooting
15
If there is a fault or the machine does not operate correctly, remove the power plug
before checking the machine. Using diagnostic list below, please check if the machine
requires a repair. If a repair is required, please contact our customer care team, do not
try to fix it by yourself.
The machine does not drain
or drains slowly. The display
shows E1.
The machine stops running
The display shows E2.
The machine does not spin
The display shows Ob.
Has the laundry been placed
unevenly in the machine?
Is the machine level?
Is the drain hose blocked?
The top lid is not closed.
Remove the blockage. Push
the Start/Pause button once.
Close the top lid. Push the
Start/Pause button once.
Problem Possible causes What to do

The display shows F2. Overflow Error
Trouble-shooting
Common occurrences
The display shows FC2.
The spinning is intermittent after it starts.
16
Packing list
Problem Possible causes What to do
Redistribute the load evenly.Close the top lid.
Select spin program, but it does not
work.
There maybe water in the drain hose
when first used.
These maybe water residual after
performance inspection by the factory.
The program is setting the drain time,there
will be a pause before the spin program starts.
Please contact Customer Care.
The display shows FA The water level sensor has failed. Please contact Customer Care.
Please contact Customer Care.
Situation Cause
Components of the water
inlet hose
Two
Inside the document bag
Name Quantity Storage position
Automatic washing machine
Bottom plate
User manual
One
One
One
Inside the document bag
Screw
Warranty Card
Inside the accessory bag
Between the upper cushion of the
washing machine package and the
upper seal of the package carton
One
One
Inside the packing box
Communication failure
between display board and
Power board.
Drain Hose & Clamp One
Inside the packing box
Drain Hose hook One
On the drain hose

17
TOP LOAD FULL-AUTOMATIC WASHING MACHINE
Specification
Type
Model
Rated voltage/frequency
Rated washing power
Rated spinning power
Net weight
Gross weight
Dimensions(mm)
Water inlet pressure
Rated Washing capacity
220-240V/50Hz
385W
345W
32kg
38kg
6kg
W 520 D 540 H 905
0.03MPa-1.0MPa
HWT60AA1
220-240V/50Hz
400W
370W
40kg
46kg
7.5kg
W 550 D 570 H 940
0.03MPa-1.0MPa
HWT75AA1
