Haier HWM25-0623S User manual

This manual is for
HWM25-0623S
Please read this manual
carefully before using.
Retain it for future reference.
Twin-tub Washing Machine
User's manual

Contents

Names of the parts
Wash tub
Wash tub cover
Outer cover of the spin tub
Inner cover of
the spin tub
Spin timer
Wash timer
Wash selector
Water-filling entrance
Control panel
Spin tub
Cabinet
Power cord
Hook of fixing
the drain hose
Back cover
Drain hose
Cabinet handle
Filter cover
Bottom foot
Pulsator Base frame
Notes: All illustrations in this Manual are given for reference only. Your products and accessories
may show differences from these illustrations due to our continuous improvement.
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of he user.
Please check if the power receptacle has good earthing condition before
using to guarantee your safety.
1

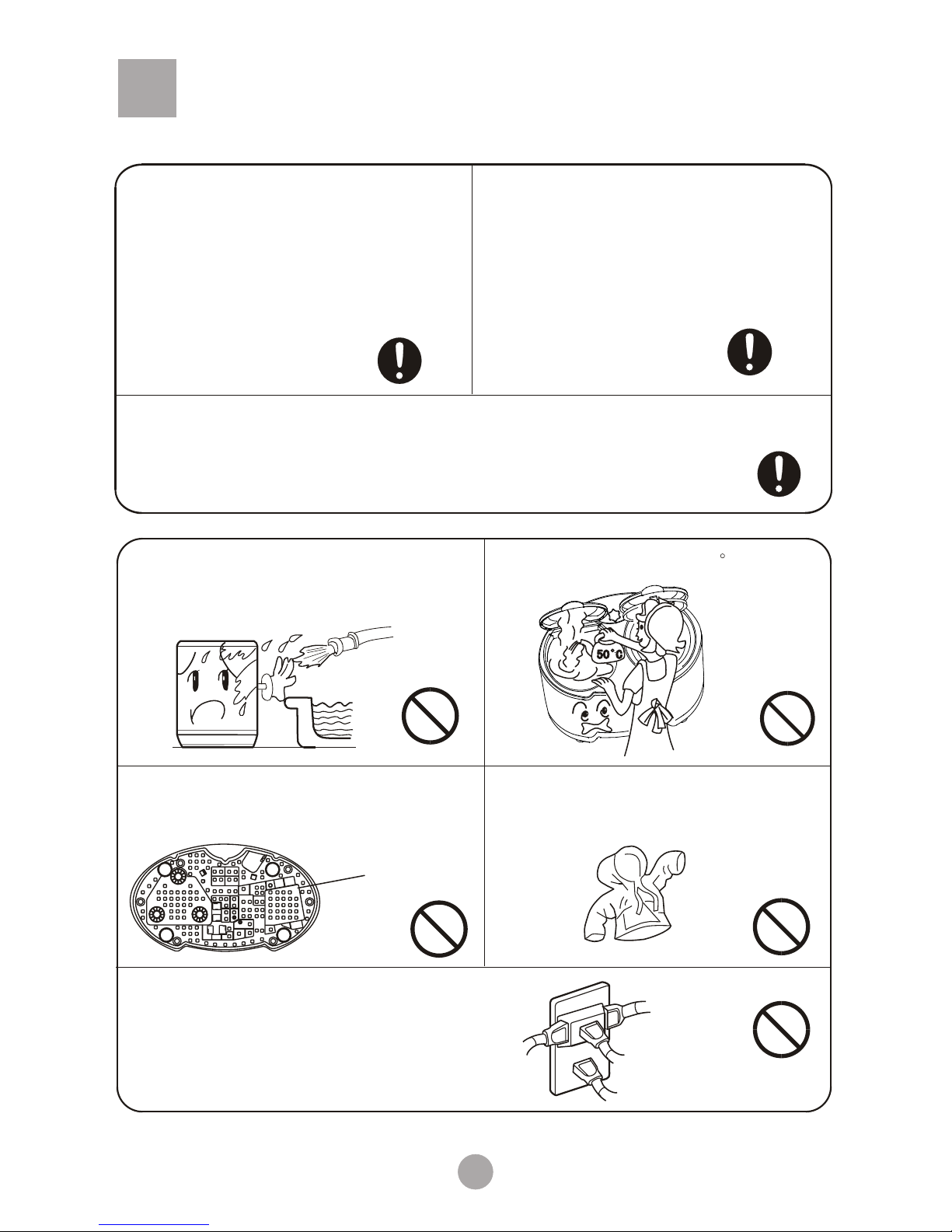

Safety precautions
Please insert the power cord into special
receptacle with rated voltage. Be sure to
use single-phasethree pins receptacle.
The earthing terminal of the receptacle
must be earthed reliably. If possible,
please adopt electric leakage protector.
When the machine is normally using,
please put the power plug at the location
easily to be inserted and extracted by hand.
Be sure to pull the plug off when there's
power failure, or the machine is being
moved, cleaned or when it is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the customer care department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
2

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
Keep the machine away from direct
sunlight and heat source like the
heater.
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
3

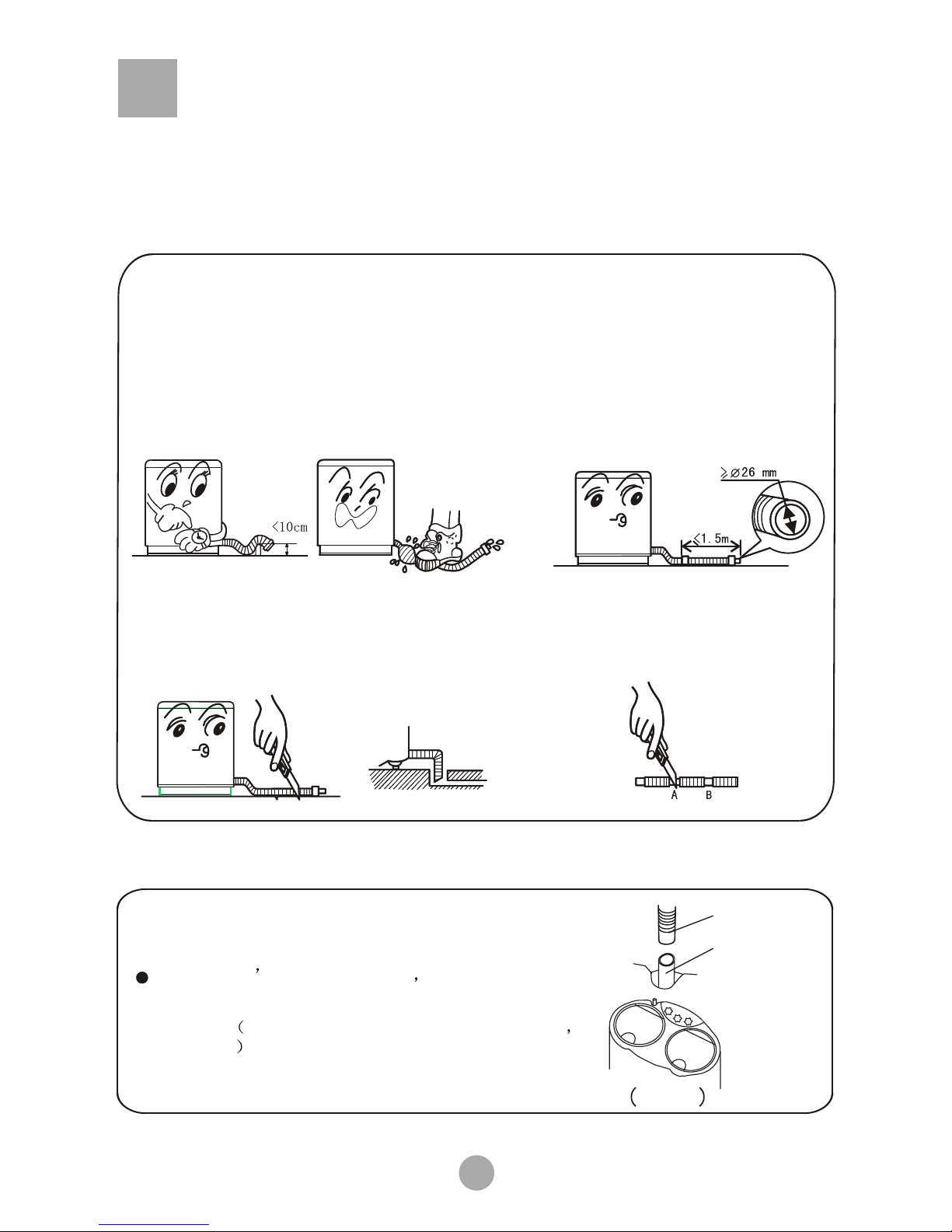

Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Usage of the drain hose
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not ramp or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 26mm, and the length shall
not exceed 1.5m.
The drain hoseshall drain smoothly
If the extrahose is toolong, cut it
either atA orat B point.
Install the water inlet hose
Water inlet pipe
Figure 1
Please install thewater inlet accordingto the machine.
Control panel s frame (Figure 1)
Insert the Water inlet pipe into the Water-filling
entrance If want to demount the water inlet pipe
pull it out .
Water-filling entrance
4

Preparation before washing
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
5

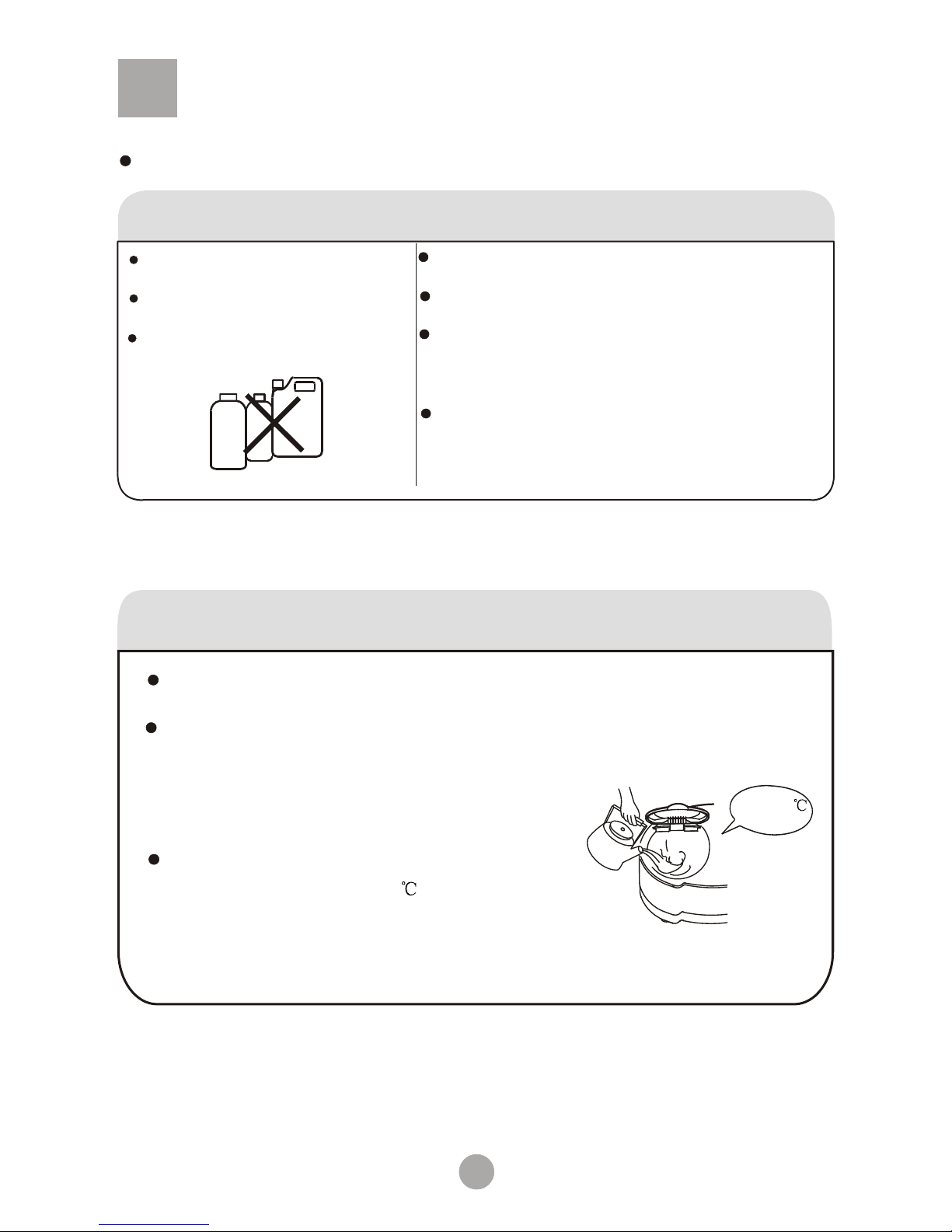

The musts in washing
The capacity of washing and spinning of the machine refer
to the largest weight of the standard laundries under dry
condition that can be washed or spinned in one time.
The thickness, size, type of the cloth will influence the actual
washing capacity. It is suitable to put in reasonable amount of
laundries and the laundries can be turned round in washing
for one time washing.
Do not select high water level for laundries less than 1.0kg,
so as to avoid splashing of water.
Usage of the detergent
How to use the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
How to use the washing powder
Washing sequence
Wash timer
(To set to below 2 minute,
first set to 6 minute then
turn it back. ).
Wash selector
(Wash program,
spin program)
Spin timer
(to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
6
OFF WASH
STANDARD
DRAIN
OFF
Water inlet

Figure 4
Figure 3
Figure 1
Figure 2
Washing sequence
Wash
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. Run washing program for some time to stir and
dissolve the powder completely.(Figure 1)
3.Put in the laundries. If the water quantity is
insufficient, please add water.
5.After washing, set the "WASH SELECTOR"
at "SPIN". (Figure 4).
1.Fill the water
Set the water-filling selector at the "WASH" side.
Set the water level adjusting lever to needed line.
4.Select the current.
Select the strength of the current according to
the laundries. Select the washing time according to the
laundries. (Figure 2)(Figure 3)
1.Put the laundries into the spin tub
evenly and smoothly.
Midway spinning
2.Spin
(1) Put the gland in properly.
Please put in the gland properly even
if the laundries quantity is small.
(2) Close the inner and outer cover of the
spin tub.
(3) Spin for 1-2 minutes.
Push Gland
Proper The laundries
are slanting No gland
Outer cover of
The spin tub
Inner cover of
The spin tub
Proper
Push
Rinsing
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Fill the water
Fill suitable water continuously according to
the laundries quantity.
3. Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.
Spinning
1.Put the laundries into the spin tub evenly and smoothly.
2.Press the gland in the tub properly. Close the inner and
outer cover of the spin tub.
3.Spin
Select suitable spin time according to the laundries and
do spinning. During spinning, if there is abnormal sound
it is generally owning to slanting placement of the laundries.
Please stop the machine and reorder the laundries.
4.In spinning it will pause the work if you open the outer
cover of the spin tub. Close it to resume the spinning.
7
WASH
STANDARD
DRAIN
OFF
OFF
3.If the water quantity filled is too large, the water
may flow out from the wash tub side. Please
twist the water tap to limit the water filling.

Please first pull off the power plug from the receptacle before cleaning.
Disposal after washing
Wipe the complete unit with soft
cloth twisted dry.
Wipe with neutral detergent if
too dirty.
Do not wash it directly by water.
After washing, dismount the water inlet hose.
Do not store water in the tub for long perio d.
Discharge the water immediately after each using.
Pull off the power plug and hang up the power
cord, Hang up the drain hose.
Wipe off the water drops on the surface and inside
the tub with clean soft cloth. Open the cover of the
wash tub and the inner/outer cover of the spin tub
for some time (about one hour), then close them.
Disposal of the complete unit
Thinner
Alcohol
Petrol
Trouble-shooting Answer to question
2~3L
Below 50
8
When the remained water is frozen
Prevent the freezing (be sure to discharge the water
completely after using)
After complete draining, set the "WASH SELECTOR"
at "STRONG" or "STANDARD". If it is set at "DRAIN",
it will be rather difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.

9
Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does
not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
The draining does not
work
Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some
water flowing out of
the drain hose in the
first use of the
machine.
There's abnormal
sound and violent
vibration during
spinning
There's abnormal
sound during washing

Water inlet hose
Gland
Packing list
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One set
Water level L
Maximum/17
Injection pressure(MPa)
Specification
0.02 0.2
10
