Haiyang Smart7 Series User manual

- 1 -
Important Notice
Manual
Handling Keep this manual in a safe place where you can access it quickly.
The Global Positioning System (GPS) consists of a total 24 GPS satellites that orbit the earth,
enabling you to determine your position anywhere in the world, 24 hours a day, if you can receive
satellite signals. During actual navigation, carefully compare the position data with all available
navigation sources such as Loran C, Decca, other navigators, charts, visual navigation, and others. It
is your responsibility to make navigation judgments.
The Electronic Chart :
Only official authorized charts and notices to mariners contain all the information needed for the safety
of navigation and, as always remember, the user is responsible for their prudent use.
Pictorials
This manual uses the following symbols for easy understanding safety instructions. Always follow
these instructions carefully.
WARNING Always follow this safety instruction to prevent death or injury.
CAUTION
Follow this safety instruction to avoid possible injury or damage to your
property.
Symbol “△” is a CAUTION or WARNING label indicating the safety
instruction.
WARNING This symbol is an Electrical Shock WARNING label.
Symbol is an instruction that you must not violate.
(This symbol instructs NOT to disassemble the system components)
Symbol is an operation instruction that you must follow.
(This symbol shows the main power OFF instruction.)

- 2 -
WARNING <For System Operators>
Always follow this instruction to prevent death or personal injury.
Turn power off
During
abnormality.
If smoke or a small of burning occurs, a fire or an electrical
short circuit may result. Turn the power switch OFF and shut
down the power supply immediately. Never try to repair the
system yourself. Call for service.
Do not open
Cabinet. High voltage exists in the instrument. Contact with voltage
may cause possible injury or death.
Do not touch back
side
of the equipment.
Harmful line voltage is present on back side of the
equipment. Never try to touch back side while power is
turned on.
Avoid excessive
shock
to display unit.
The LCD display module contains a liquid. Do not apply any
mechanical shock to the display. If the display broken, liquid
may leak and injure your skin and eyes.
Do not use with
poor
ventilation.
If you cover this unit or use in an enclosed place, it may
malfunction or become damaged as a result of overheating.
Use only where there is sufficient ventilation.
Installation Cautions <For service Personnel>
Follow installation instructions to avoid personal injury and system malfunction.
Installation in
rigid location. Mount your SMART7/8/10on a rigid frame or base to prevent your
unit from working loose.
Use correct
Installation materials.
Use the installation materials provided in the standard accessory
pack only. If you use hardware of insufficient strength, your system
may loosen causing damaged.
Keep away from direct
sunlight. Keep your system out of direct sunlight as it may become damaged
by overheating.
Keep away from
water. Take care not to get water on or in your unit as it may be damaged
and/or cause an electrical shock.
Keep away from heat
source. Keep your system away from other heat source as it may
malfunction, be damaged, or burn.

- 3 -
Use correct power
source. Operate your system within the specified power voltage. An incorrect
power supply may cause
Maintenance Cautions<For Maintenance Personnel>
Use the following safety precaution internal inspection.
Discharge capacitors. High voltage may be retained in the capacitors if the high-tension
circuit several minutes after you have turned the power switch off.
Check that power is
OFF
To prevent an electrical injury due to erroneous power switching, make
sure that the main power supply and the system power switch are both
in the off position. Additionally, attach a safety label showing that
service is in progress.
Avoid EMI. Take care not to damage the ESDs (Electrostatic Sensitive Devices) by
static electricity from carpet and cloths.
Avoid dust. Wear a safety mask so as not to breath in dust during inspection or
cleaning inside your system instruments.
Operation Notes <For operators>
Observe the following operation notes, otherwise the system failure or deterioration can result. And
periodical inspection and maintenance are required for keeping the system in an optimum condition.
Backup important data. The waypoint and other registered data may become unreadable
by unexpected failure. We recommend recording this data
separately.
Use correct transducer
only.
If you use incorrect transducer, the transmitter circuit may be
damaged due to a matching error. Consult is for system
information.
Check transducer
Connection before
power on
Do not turn the power switch ON if the transducer is disconnected
or if it is not inserted into the water. If done, the transducer or
transmitter circuit may be damaged.
Always clean
the transducer
Since transducer performance can drop due to accumulated
bottom growth, keep the transducer clean. Never paint transducer
surface.

- 4 -
Transducer must be
installed by authorized
personnel. Consult us for transducer installation by authorized personnel.
WARNING This product is designed to assist navigation.
When you are sailing, use the certified chart from the Government
or IMO.

- 5 -
SSmart7/8/10 System
Welcome
Smart7/8/10 opens a new chapter of performance and integration in vessel navigation system display
and management. Whether you are a Cruiser or Sport fisherman or both, SMART7/8/10gives you the
information you need.
CAUTION
Smart7/8/10 is Color LCD Charting Systems employs the latest in proven technology to provide
accurate navigation information. The Plotter functions of Smart7/8/10 are totally dependent upon the
capability of the navigation source to provide accurate position information. This device is only an aid
to navigation. It should be used in conjunction with all other navigation accuracy. For safety, always
resolve any uncertainty before continuing navigation.
CAUTION
The performance of LCD displays are degraded by continuous direct exposure to ultraviolet rays.
Locate your Smart7/8/10 Display away from direct sunlight. When not in use. Keep the display
covered.
DISPLAY BREAKAGE WARNING
The LCD display module contains a liquid. If the display is broken and the liquid contacts your skin,
wash it off immediately in running water for 15 minutes. If the liquid contacts your eyes, immediately
flush your eyes with running water for 15 minutes. Contact a physician if any abnormal symptom is
experienced.

- 6 -
Smart7/8/10 Series System
Welcome
The Color LCD Fishfider System opens a new chapter of performance and integration in vessel
navigation system display and management. Whether you are a Cruiser or Sport fisherman or both,
650 gives you the information you need.
CAUTION
The Smart7/8/10 series employs the latest in proven technology to provide accurate navigation
information. The Plotter functions of Smart7/8/10 are totally dependent upon the capability of the
navigation source to provide accurate position information. This device is only an aid to navigation. It
should be used in conjunction with all other navigation accuracy. For safety, always resolve any
uncertainty before continuing navigation.
There is no direct relationship between the color of water areas and their depth. The navigator shall
always query the area for depth information and use the official paper chart.
CAUTION
The performance of LCD displays is degraded by continuous direct exposure to ultraviolet rays. Locate
your Smart7/8/10 Display away from direct sunlight. When not in use. Keep the display covered.

- 7 -
Smart7/8/10 System
DISPLAY BREAKAGE WARNING
The LCD display module contains a liquid. If the display is broken and the liquid contacts your skin,
wash it off immediately in running water for 15 minutes. If the liquid contacts your eyes,
immediately flush your eyes with running water for 15 minutes. Contact a physician if any abnormal
symptom is experienced.
INDICATION NOTICE
*: It is important or warning notice on front of article
#: It is only functions for the HD-50A/HD-43A on front of article.
[ ]: Keyboard.

- 8 -

- 9 -
Getting Started

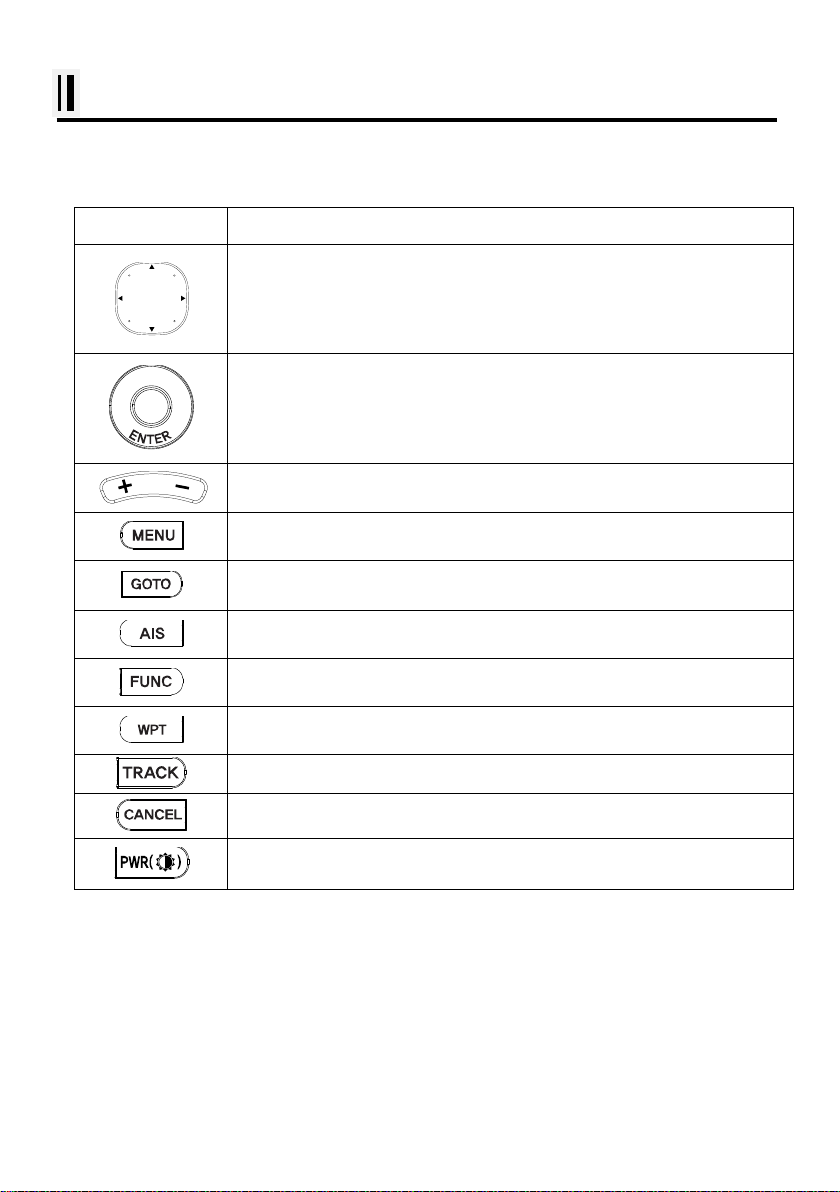

1. The Keyboard
KEY Description
use this to select menu items, move the on-screen cursor
Rotary: use this to select menu items.
Button: push the end of the everything to confirm a selection or entry.
Change the chart of scale.
Open the menu.
Select the Goto function
Selects AIS menus.
Setting up Using Frequently key function.
Press to place a waypoint and access the waypoint option.
Start and stop AIS tracks & Vessel tracks .
Cancel the setting or exists from the menu
Power “on/off”, brightness and day/night mode.

- 10 -

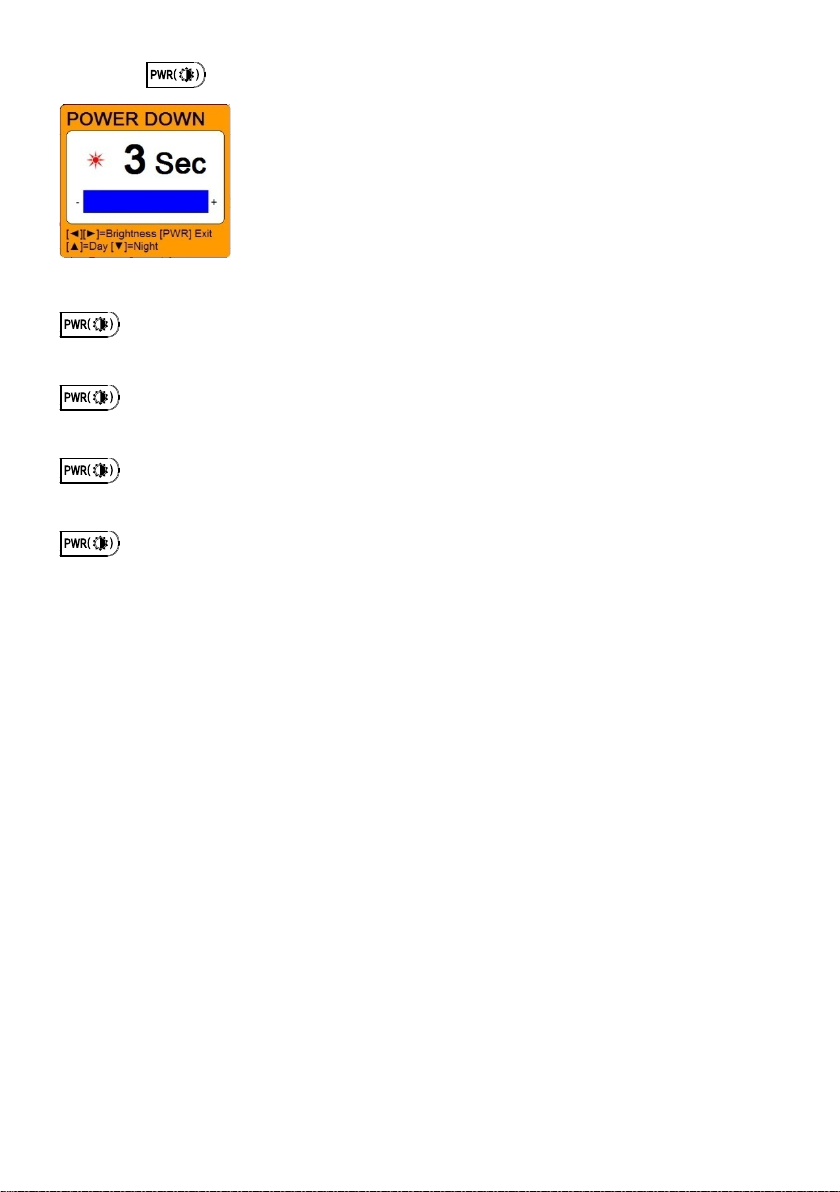

1.1. How to use
(Fig.1.1)
1.1.1. Turn on
Switch on.
1.1.2 Turn off
Keep pressing to switch off.
1.1.3. Adjust brightness
Pressing (Fig.1.1) and controlling the brightness with [◀] [▶].
1.1.4. Use day/night mode
Pressing (Fig.1.1) and changing the day and night with [▲][▼].

- 11 -

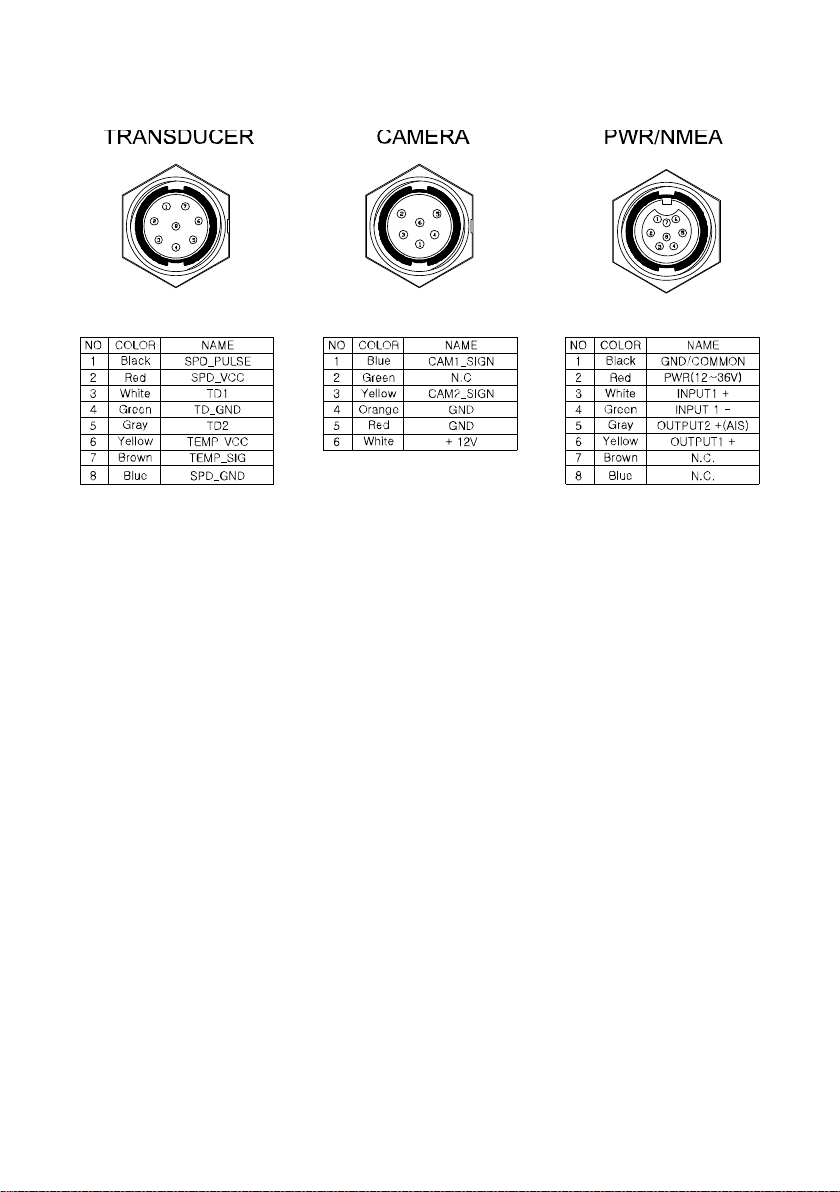

2. Specification of the connectors
2.1. Metal connectors

- 12 -
2.2. Plastic connectors

- 13 -
3. Screen Overview
3.1. Chartplotter Page
①Vessel icon The present position.
②Cursor Showing the cursor icon.
③AIS target Showing the received AIS target.
④Databar Showing various data on the top or bottom.
⑤Sidebar Showing various data on the right or left.
⑥Cursor INFO The information of the cursor.
⑦WPT INFO The information of WPT such as LAT/LOT, Range, etc.
①
④
⑤③
②
⑥
⑦

- 14 -
3.2. AIS Statusbar
▶[AIS]->Setup AIS outs ETC->AIS Statusbar
Showing “AIS ClassB”.
①RX Channel A Green when receiving to Channel A.
②RX Channel B Green when receiving to Channel B.
③GPS Showing the GPS status.
(Green: Receiving, Black: Out of service)
④TX Green when receiving Class-B.
①②③④

- 15 -
3.3. Navigation Data Page
3.3.1. Navigation Data Type1
3.3.2. Navigation Data Type2

- 16 -

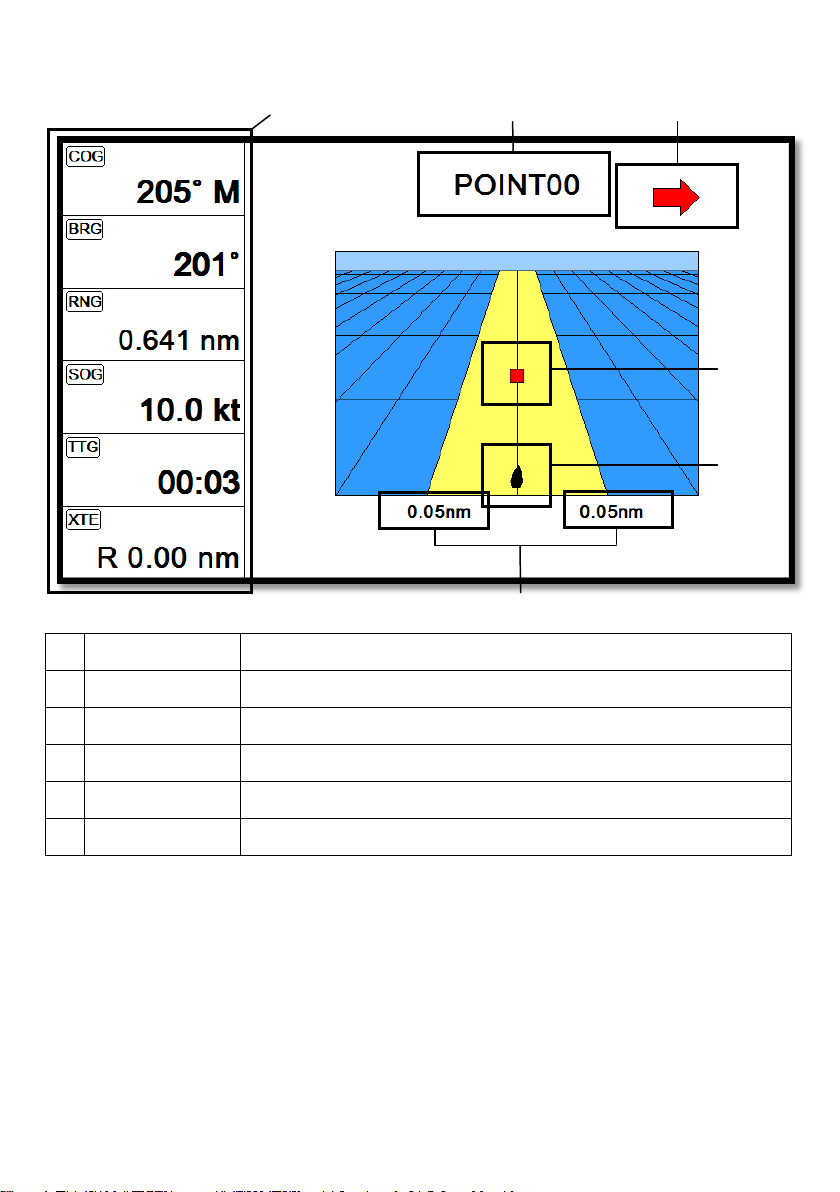

3.4. Highway Page
①WPT name The current WPT name.
②Direction of steer The best direction of the steering.
③WPT icon The remaining distance of the WPT.
④Vessel The out of the range from the best.
⑤XTE Range The range of the XTE alarm.
⑥Navigation Data The information of the various data.
①②
⑥
③
④
⑤

- 17 -
3.5. Steering Page
①WPT name Name of the WPT.
②Direction of steer The best direction of the steering.
③WPT icon Showing the WPT and the bearing
④Navigation Data Information of the various data.
①②
④
③

- 18 -

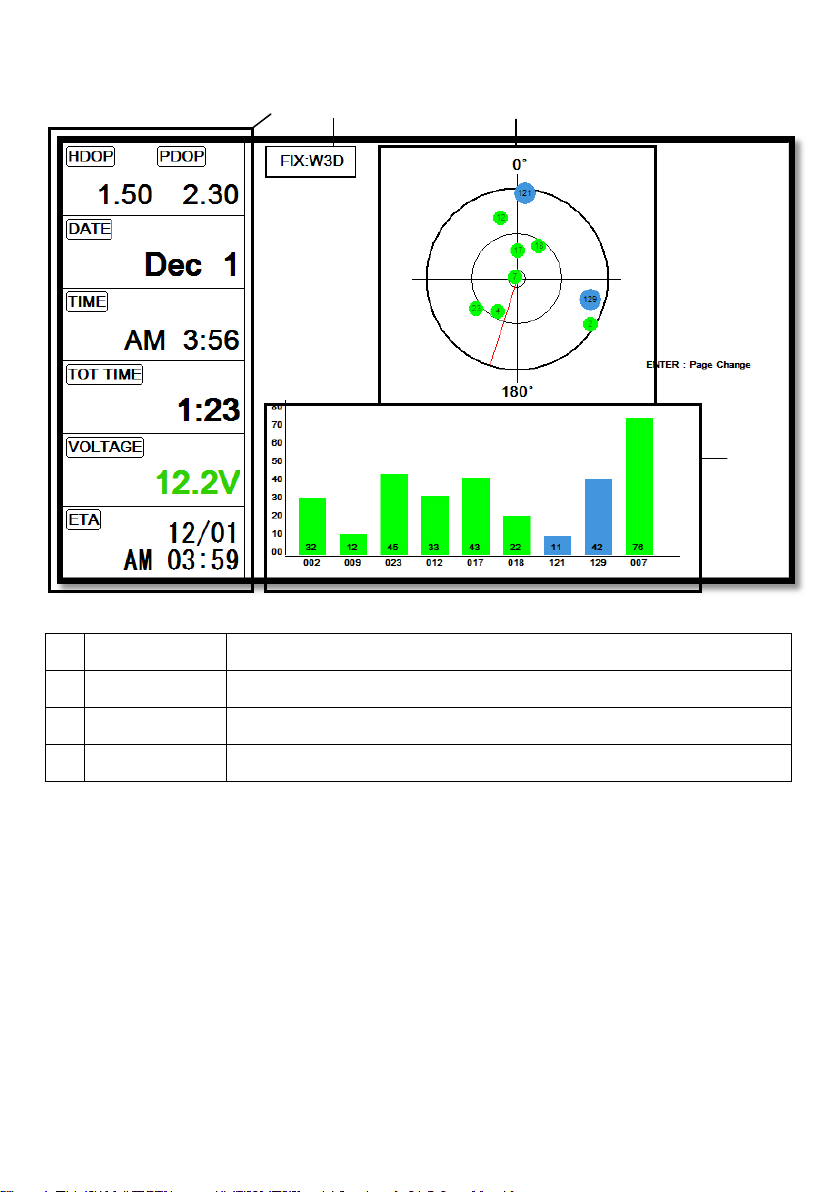

3.6. GPS Status Page
①Receiver status The current GPS status.
②Position of SAT. Position of the satellites.
③SNB Graph Showing the WPT and the bearing.
④Navigation Data Information of the various data.
* Color of the GPS status
Black: Tracked, but no signal
Blue: Tracked, but not used, Satellite
Green: Used Satellite
Light Blue: SBAS Satellite
④①②
③

- 19 -

- 20 -
4. Databar
Showing various data on the top or bottom.
4.1. Mode
▶[MENU]->Advance->Setup->Customizing->Databar->Mode
Databar has three meanings as below.
4.1.1. GPS
Showing the largest LAT/LOT.
4.1.2. HY
Showing the LAT/LOT, SOG, COG and userdata.
4.1.3. NAV
You can view detailed information about the of navigation.
4.1.4.Customizing
Showing various data as what the user wants.
▶[MENU]->Advance->Setup->Customizing->Databar->Edit
