Lowrance Elite FS User manual

*988-12758-002*

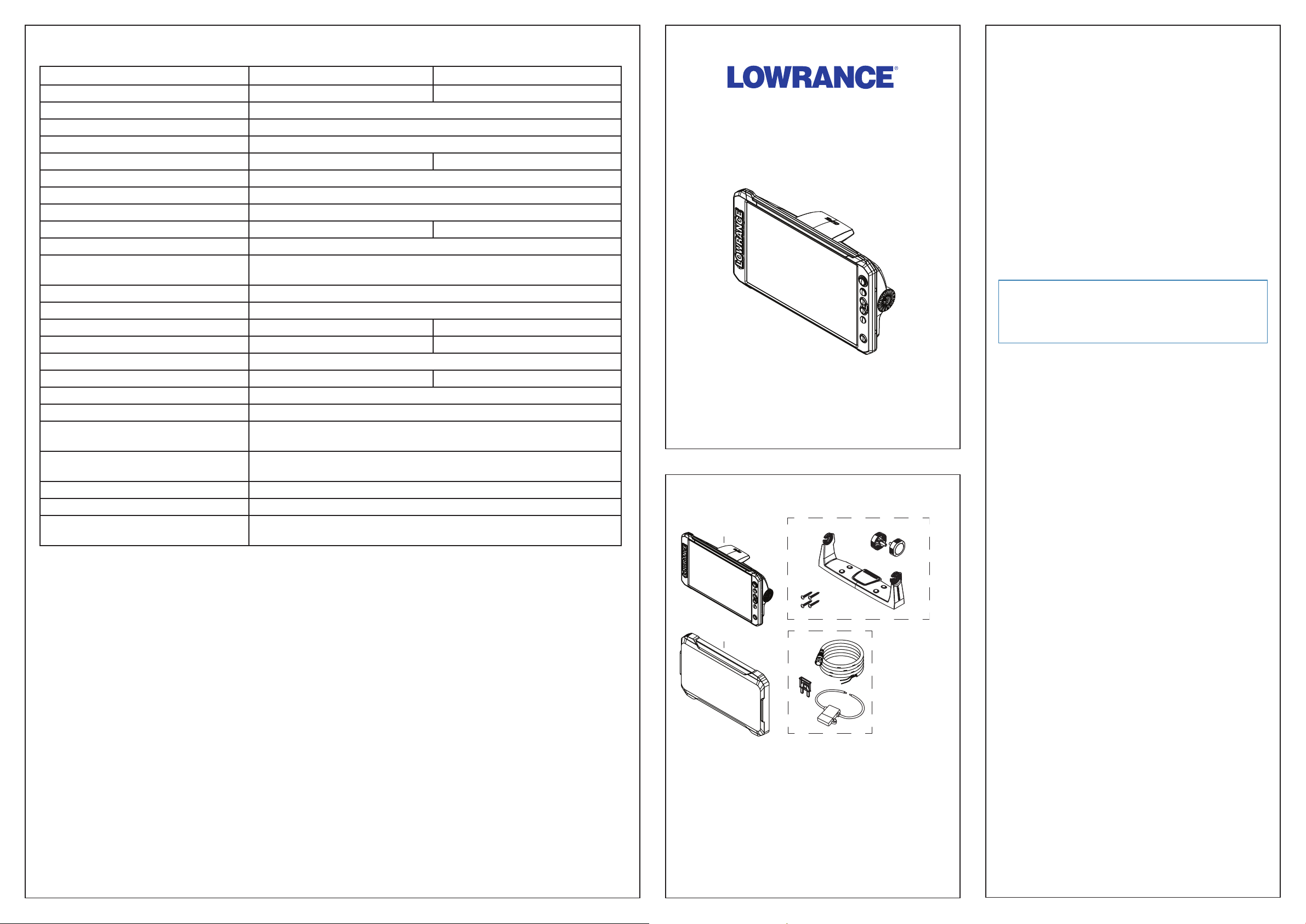

ELITE FS™
INSTALLATION GUIDE
Technical specication
Parts included
C
A
D
B
A Elite FS™unit
B Gimbal bracket kit
C Sun cover
D Power cable kit
7” 9”
Environmental
Operating temperature range -15°C to +55°C (5°F to 131°F)
Storage temperature -20°C to +60°C (4°F to 140°F)
Waterproof rating IPX6 and IPX7
Electrical
Supply voltage 12 V DC (10 - 17 V DC min - max)
Fuse rating 3 A
Power consumption (maximum) 28 W (2 A at 13.8 V DC)
Display
Resolution 800 x 480 pixels
Viewing angles in degrees 50° top, 60° bottom
70° left and right
Brightness > 1200 nits
Touch screen Multitouch
Physical
Weight (display only) 0.9 kg (1.9 lbs.) 1.2 kg (2.7 lbs.)
Compass Safe Distance 0.5 m (1.6 ft.)
Interface/Connectivity
NMEA 2000® 1 port (Micro-C connector)
Data card reader 1x slot (microSD, SDXC)
Ethernet 1 port
(5-pin Ethernet connector, 100Base-T)
Sonar 1 port
(9-pin connector)
WiFI Internal 802.11b/g/n
Bluetooth® 4.0 with support for Bluetooth® Classic
GPS 10Hz high speed update
WAAS, MSAS, EGNOS, GLONASS
Compliance statements
Declarations
The relevant declarations of conformity are available at:
www.lowrance.com
Europe
Navico declare under our sole responsibility that the product
conforms with the requirements of:
• CE under RED 2014/53/EU
United States of America
Navico declare under our sole responsibility that the product
conforms with the requirements of:
• Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation
!Warning: The user is cautioned that any changes
or modications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
¼Note: This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent
from that of the receiver is connected
• Consult the dealer or an experienced technician for help
ISED Canada
This device complies with ISED (Innovation, Science and
Economic Development) Canada’s license-exempt RSSs.
Operation is subject to the following two conditions: (1) This
device may not cause interference; and (2) This device must
accept any interference, including interference that may cause
undesired operation of the device.
La traduction française de ce document est disponible sur le site
Web du produit.
Australia and New Zealand
Navico declare under our sole responsibility that the product
conforms with the requirements of:
• level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
• radiocommunications (Short Range Devices) Standards
Trademarks
®Reg. U.S. Pat. & Tm. O, and ™ common law marks. Visit
www.navico.com/intellectual-property to review the global
trademark rights and accreditations for Navico Holding AS and
other entities.

Wiring
Dimensional drawings
Power (A)
The unit is designed to be powered by 12 V DC.
It is protected against reverse polarity, under voltage and
over voltage (for a limited duration).
A fuse or circuit breaker shall be tted to the positive
supply.
Wire color Purpose
Red + 12 V
Black DC negative
NMEA 2000® (B)
The NMEA 2000® data port allows receiving and sharing of
a multitude of data from various sources.
Ethernet (C)
Ethernet is used to interconnect high bandwidth devices
such as radar, sonar modules, and other displays.
Connection of network devices can be made directly to the
Ethernet port, or via a network expansion device.
Gimbal bracket Mounting
265.6 mm (10.45”)
237.8 mm (9.36”)
162.4 mm (6.39”)
147.4 mm (5.80”)
108.4 mm
(4.27”)
95.4 mm
(3.76”)
13.0 mm
(0.51”)
309.2 mm (12.2”)
289.0 mm (11.38”)
180.7 mm (7.11”)
170.5 mm (6.71”)
118.4 mm
(4.66”)
91.9 mm
(3.61”)
16.5 mm
(0.65”)
7” unit
9” unit
12 V DC
3 A fuse
A B C D
Sonar (D)
¼Note: A 7-pin transducer cable can be connected
to a 9-pin port using a 7-pin to 9-pin adapter cable.
However, if the transducer has a paddle wheel speed
sensor, the water-speed data will not be displayed on
the unit.
Supports:
• Sonar / CHIRP Sonar
• DownScan
• SideScan
• ActiveImaging™/ActiveImaging™ 3-in-1/TotalScan®/
StructureScan®
• LiveSight™ via PSI-1
¼Note: ActiveTarget™ transducers are supported via its
external module connected to the Ethernet network.
A Power, 10 pin-connector
B NMEA 2000®, Micro-C connector
C Ethernet, 5-pin connector
D Sonar, 9-pin connector
1 2
3
¼Note: The illustration shows connection examples. Accessories and additional devices are sold separately.
