Haiyang HIS-70R User manual

- 1 -
Important Notice
Manual
Handling
Keep this manual in a safe place where you can access it quickly.
This Manual must be passed to a new owner of the HIS-70R when it is
transferred.
The Global Positioning System (GPS) consists of a total 24 GPS satellites that orbit the earth,
enabling you to determine your position anywhere in the world, 24 hours a day, if you can receive
satellite signals. During actual navigation, carefully compare the position data with all available
navigation sources such as Loran C, Decca, other navigators, charts, visual navigation, depth, water
temperature and others. It is your responsibility to make navigation judgments.
DGPS Operation Note :
Your position can be improved by DGPS correction. However, when you are communicating with other
ships, you may use a DGPS corrected position but they may not. Make your position source known
during communication.
The Electronic Chart :
Only official authorized charts and notices to mariners contain all the information needed for the safety
of navigation and, as always remember, the user is responsible for their prudent use.
Pictorials
This manual uses the following symbols for easy understanding safety instructions. Always follow
these instructions carefully.
WARNING
Always follow this safety instruction to prevent death or injury.
CAUTION
Follow this safety instruction to avoid possible injury or damage to your
property.
Symbol “△” is a CAUTION or WARNING label indicating the safety
instruction.
WARNING
This symbol is an Electrical Shock WARNING label.
Symbol “ ” is an instruction that you must not violate.
(This symbol instructs NOT to disassemble the system components)
Symbol “ ” is an operation instruction that you must follow.
(This symbol shows the main power OFF instruction.)

- 2 -
WARNING <For System Operators>
Always follow this instruction to prevent death or personal injury.
Turn power off
During
abnormality.
If smoke or a small of burning occurs, a fire or an electrical
short circuit may result. Turn the power switch OFF and shut
down the power supply immediately. Never try to repair the
system yourself. Call for service.
Do not open
Cabinet.
High voltage exists in the instrument. Contact with voltage
may cause possible injury or death.
Do not touch
back
side of the
equipment.
Harmful line voltage is present on back side of the
equipment. Never try to touch back side while power is
turned on.
Avoid excessive
shock
to display unit.
The LCD display module contains a liquid. Do not apply any
mechanical shock to the display. If the display broken, liquid
may leak and injure your skin and eyes.
Do not use with
poor
ventilation.
If you cover this unit or use in an enclosed place, it may
malfunction or become damaged as a result of overheating.
Use only where there is sufficient ventilation.

- 3 -
Installation Cautions <For service Personnel>
Follow installation instructions to avoid personal injury and s ystem malfunction.
Installation in
rigid location.
Mount your AQUA on a rigid frame or base to prevent your unit from
working loose.
Use correct
Installation materials.
Use the installation materials provided in the standard accessory pack
only. If you use hardware of insufficient strength, your system may
loosen causing damaged.
Keep away from direct
sunlight.
Keep your system out of direct sunlight as it may become damaged by
overheating.
Keep away from
water.
Take care not to get water on or in your unit as it may be damaged
and/or cause an electrical shock.
Keep away from heat
source.
Keep your system away from other heat source as it may malfunction,
be damaged, or burn.
Use correct power
source.
Operate your system within the specified power voltage. An incorrect
power supply may cause
Maintenance Cautions<For Maintenance Personnel>
Use the following safety precaution internal inspection.
Discharge capacitors.
High voltage may be retained in the capacitors if the high-tension
circuit several minutes after you have turned the power switch off.
Check that power is
OFF
To prevent an electrical injury due to erroneous power switching, make
sure that the main power supply and the system power switch are both
in the off position. Additionally, attach a safety label showing that
service is in progress.
Avoid EMI.
Take care not to damage the ESDs (Electrostatic Sensitive Devices)
by static electricity from carpet and cloths.
Avoid dust.
Wear a safety mask so as not to breath in dust during inspection or
cleaning inside your system instruments.

- 4 -
Operation Notes <For operators>
Observe the following operation notes, otherwise the system failure or deterioration can result. And
periodical inspection and maintenance are required for keeping the system in an optimum condition.
Backup important data.
The waypoint and other registered data may become unreadable by
unexpected failure. We recommend recording this data separately.
Use correct transducer
only.
If you use incorrect transducer, the transmitter circuit may be
damaged due to a matching error. Consult is for system information.
Check transducer
Connection before
power on
Do not turn the power switch ON if the transducer is disconnected or
if it is not inserted into the water. If done, the transducer or
transmitter circuit may be damaged.
Always clean
the transducer
Since transducer performance can drop due to accumulated bottom
growth, keep the transducer clean. Never paint transducer surface.
Transducer must be
installed by authorized
personnel.
Consult us for transducer installation by authorized personnel.
WARNING
This product is designed to assist a navigation.
When you are sailing, use the certified chart from the Government or
IMO.

- 5 -
HIS -70R System
Welcome
The HIS-70R System opens a new chapter of performance and integration in vessel navigation system
display and management. Whether you are a Cruiser or Sport fisherman or both, HIS-70R gives you
the information you need.
CAUTION
The HIS-70R is Color LCD Charting Systems employs the latest in proven technology to provide
accurate navigation information. The Plotter functions of the HIS-70R are totally dependent upon the
capability of the navigation source to provide accurate position information. This device is only an aid
to navigation. It should be used in conjunction with all other navigation accuracy. For safety, always
resolve any uncertainty before continuing navigation.
CAUTION
Electronic charts in AUQA are derived from geographical data – including official government charts –
which we believe to be accurate. They are neither verified nor approved by Hydrographic Authorities.
Electronic charts in HIS-70R are designed only to ease and speed navigation calculations and so must
not be relied upon as a primary source of navigation information, but rather a backup to the use of
official government charts and prudent navigation habits.
There is no direct relationship between the color of water areas and their depth. The navigator shall
always query the area for depth information and use the official paper chart.
CAUTION
The performance of LCD displays are degraded by continuous direct exposure to ultraviolet rays.
Locate your HIS-70R Display away from direct sunlight. When not in use. Keep the display covered.
DISPLAY BREAKAGE WARNING
The LCD display module contains a liquid. If the display is broken and the liquid contacts your skin,
wash it off immediately in running water for 15 minutes. If the liquid contacts your eyes, immediately
flush your eyes with running water for 15 minutes. Contact a physician if any abnormal symptom is
experienced.

- 6 -
HIS -70R System
Introduction
The HIS-70R is a premium multifunction command and control center. HIS-70R front panel keyboard
and its wide screen with wide viewing area make placement easy. Although HIS-70R offers many
advanced features, operation is simplified through the use of popup menus similar to those found on
personal computers.
Standard Equipment Configuration List(Metal)
Display unit
GPS ANT.
Power cable
Protector
Mounting Bracket
Knobs
Manual

- 7 -
HIS -70R System
Standard Equipment Configuration List (Plastic)
Display unit
GPS ANT.
Power cable
Protector
Mounting Bracket
Knobs
Manual

- 8 -
HIS -70R System
GETTING STARTED
This getting Started section will help you become acquainted with the displays and the front panel
keyboard functions of your HIS-70R System. This section is intended to demonstrate the main
functions and basic operation of your HIS-70R System. More detailed procedures may be found in the
Operation section.
HIS-70R has built-in simulators which present realistic displays of cartography, GPS and Sounder.
Note: Sounder option is required is required to use the sounder simulator. Simulators are interactive so
the front panel keyboard can be used to browse through menus and change setting in the same
manner as actual operation. The internal simulators allow HIS-70R to operate without having
transducers or remote sensors connected. However, it is necessary to connect the power cable to 12
to 24 Vdc power source. Please refer to Power Connection in the installation section.
If HIS-70R is already installed on your vessel, simulators are still useful doe familiarity with displays
and practice with operating procedures.

- 9 -
HIS -70R System
SPECIFICATION
GENERAL SPECIFICATION
1. Display Screen
wide 7 inch color TFT LCD(480 X 800 pixels)
2. Operating Temperature
Display Unit: -15°C ~ 50°C
Antenna Unit: -25°C ~ 70°C
3. Performance Standard
IMO Resolution MSC.112(73)
4. Back-up
SD Card (Optional)
CHARTPLOTTER SPECIFICATION
1. Display Method
Mercado Projection
2. Display Mode
True motion / North up / Course up / Head up
3. Latitude Limits
Between 85° N to 85° S
4. Map Scale
0.05nm to 1000nm
5. Map Datum
WGS-84(Standard), 270 different Datums
6. Chart Data
C-MAP
7. Input/Output Data
NMEA-0183
GPS RECEIVER GENERAL SPECIFICATION
1. Receive Type
L1 frequency(1575.42MHz), C/A code
2. Number of Channel
50 channels

- 10 -
HIS -70R System
3. Accuracy
Position 2.5m CEP
DGPS/SBAS 2.0m CEP
4. Sensitivity
Acquisition -140 dBm
Tracking -149 dBm
5. Data Update Rate
1 Second
6. Support
DGPS, SBAS (WAAS, EGNOS,etc)
AIS SPECIFICATION
1. Electrical Interfaces
RS232 38.4kBaud bi-directional
RS422 NMEA 38.4kBaud bi-directional
2. VHF Transceiver:
Transmitter x 1
Receiver x 2
(One receiver time shared between AIS and DSC)
Frequency: 156.025 to 162.025 MHz in 25 kHz steps
3. Output Power:
33dBm ± 1.5 dB
Channel Bandwidth:
25kHz
4. Modulation Modes:
25kHz GMSK (AIS, TX and RX)
25kHz AFSK (DSC, RX only)
5. Bit rate
9600 b/s ± 50 ppm (GMSK)
1200 b/s ± 30 ppm (FSK)
6. VHF Receiver:
Sensitivity - 107dBm 25kHz (Message Error Rate 20%)
Co-Channel 10dB
Adjacent Channel 70dB
IMD 65dB
Blocking 84dB

- 11 -
HIS -70R System
Keypad
How to use [Power/Brightness]
▶ Press [PWR/BRT]
1.Use PWR:
To turn off the power, keep pressing the [BRT/PWR] until the end of counting.
2.Use BRT:
Press [BRT/PWR] shortly and the brightness can be controlled. Use the arrow keys [←][→]of the
cursor to control the brightness and the contrast.
3. Use day/night mode
Press [BRT/PWR] shortly and change mode. Use the arrow keys [↓][↑] of the cursor to change
mode.
KEY
Description
[Cursor
Key]
With MENU: Choosing the menu.
Without MENU: Cursor on.
[ENTER]
Button: Enter when menu table on the screen.
[+] &[-]
Change the chart of scale.
[MENU]
One step: Quick menu is displayed.
Two step: Main menu is displayed.
[FUNC]
Setting up Using Frequently key function.
[TRACK]
Start and stop AIS tracks & Vessel tracks .
[WPT]
Places a WPT on the plotter main screen
[AIS]
Selects AIS menus
[CANCEL]
Return to the previous display, or canceled the
set-up.

- 12 -
HIS -70R System
HIS-70R Metal
<Front>
<Rear>
Main Screen
Keypad
Knob
Mounting Bracket
Connector

- 13 -
HIS -70R System
HIS-70R Plastic
<Front>
<Rear>
Main Screen
Keypad
Knob
Mounting Bracket
Connector

- 14 -
HIS -70R System

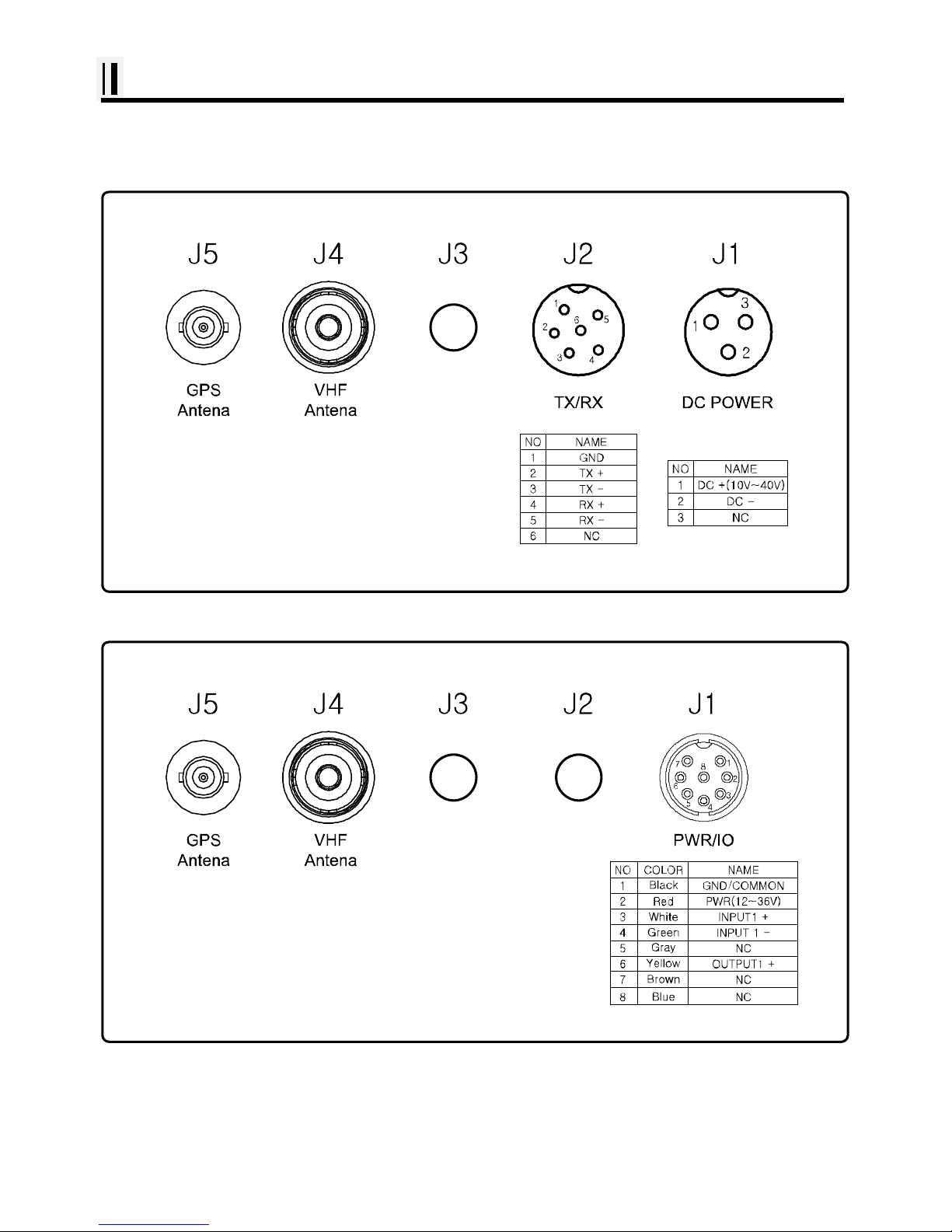

SPEC of the connectors
Metal
Plastic

- 15 -
Operations
AIS MENU
To obtain more information on AIS vessels or to configure the AIS
▶ Press [AIS]
1. List of Vessels.
Pressing the [ENTER] key will display a list of current AIS vessels inview. Initially these are sorted
by showing the nearest first, additional pages of vessels can be displayed by pressing the [►]
arrow key. The vessels Name, MMSI, Range and Bearing are shown.
To sort alphabetically by Name press the [ZOOM IN] button, alternate pressing of this button will
toggle between A to Z and Z to A order.
To sort numerically by MMSI press the [ZOOM OUT] button, alternate pressing of this button will
toggle between 0-9 and 9-0 order.
To sort by Range press the [MENU] button, alternate pressing of this button will toggle between
nearest and furthest.
Pressing the [▲] or [▼] arrow keys will move the highlight blue bar over different vessels. Pressing
[ENTER] when a vessel is highlighted will display another page showing all the details so far
received from this vessel. Details of other vessels in the list can be accessed directly by scrolling
through with the [◄] and [►] arrow keys. To return to the main list press the [CLEAR] button.
To GOTO a vessels position directly, scroll through the list to highlight the vessel you wish to go to
and press the [AIS] key. The screen will now return to the main chart display and be centred on the
vessel you have selected.
The display also has the ability to [TRACK] up to 5 different vessels at any one time, this feature
can be enabled by either selecting a vessel in the list or directly from the [TRACK] key. Select
vessel from the list and press the [TRACK] key, the selected vessel will now move to the top of
the list and be highlighted with a yellow background. Pressing the [CLEAR] key twice will return the
display to the main chart view and the vessel selected to be tracked will be highlighted in yellow. All
the time this vessel is selected for tracking it will leave a yellow track of its past history
of positions. Placing the cursor over the vessel that is being tracked and pressing the [ENTER]key
will display an additional window in the lower half of the screen showing more details of the vessel.
To deselect a vessel being tracked place the cursor over the vessel and press the [TRACK] key, the
vessel will now revert to its normal color, and move back down the AIS List to its original location.
Alternatively you can track a vessel directly from the main chart screen by placing the cursor over
the vessel and pressing the [TRACK] key, and if you require more detail pressing the [ENTER] key.

- 16 -
Operations
2. Display radius
Displays range rings centred on your current position.
☞ The default setting is OFF.
3.Display vessels by color.
You can choose to display certain types of vessels by different color to help in quickly identifying
what type of vessels are showing on the chart. Scroll down the list until the vessel type you want to
alter is highlighted in blue, pressing the [►] arrow key will scroll you through the choice of colors,
press the [◄] arrow key to go backwards, leave the color selection of your choice showing and
press the [CLEAR] key to exit.
4. Display vessels by type
Different types of AIS transmissions can be selected to display different types of icons on the chart
display. Scroll down the list until the type of AIS transmission you want to alter is highlighted in blue,
pressing the [►] arrow key will scroll you through the choice of icons, press the [◄] arrow key to go
backwards, leave your choice of icon showing and press the [CLEAR] key to exit.
5.Filter AIS types
This function allows you to turn on or off reception from different types of AIS transmissions, for
instance if you only wanted to view Class B vessels on the chart display then select Class B On and
all the others Off. Scroll down the list until the type of AIS transmission you want to switch
on or off is highlighted in blue, pressing the [◄] arrow key will turn the type OFF, pressing the [►]
arrow key will turn the type ON, leave your choice in the status you require and press the [CLEAR]
key to exit. If you do not want to show vessels that are stationary, then select the option of vessels
speed less than 0.2Kts to OFF

- 17 -
Operations
6. Alarm
The two alarm parameters can be changed to suit your particular circumstances. The CPA alarm is
the closest approach alarm, this allows you to set a distance when the alarm will sound if a vessel
comes within that distance. The alarm can be turned ON or OFF by use of the [◄] or[ ►] keys. The
range at which you want the alarm to sound can be adjusted by selecting CPA limit, pressing the
[►] key will increase the range, and pressing the [◄] key will decrease the range, pressing
[CLEAR] will exit the function. A red range ring will be drawn on the chart screen centred on your
own vessels position at the distance you have specified. The TCPA alarm is the time that a vessel
will take to be in the same position as you currently are, this alarm can be turned ON or OFF by use
of the [◄] or[ ►] keys. The time at which you want the alarm to sound can be adjusted by selecting
TCPA limit, pressing the [►] key will increase the time, and pressing the [◄] key will decrease the
time, pressing [CLEAR] will exit
the function. If you want the alarms to ignore vessels that are travelling at less than a particular
speed then switch the “Ignore vessels if speed less than” function ON, and adjust the speed control
by use of the [►] [◄] keys to the desired value.
7. Set up AIS time outs etc.
This menu controls certain specific AIS functions. If repeat transmissions are not received from a
vessel after 7 minutes then the target is marked with a X . This time can be altered by using the
[►][ ◄] keys. If repeat transmissions are not received from a vessel after 10 minutes then the
target is removed from the chart display. This time can be altered by using the [►] [◄] keys. The
AIS Status Bar shown at the bottom of the screen giving the reception of Channels A and B on the
AIS frequency, and the GPS reception can be removed by selecting NONE with the [◄] key. It is
possible to switch ON and OFF some AIS transponders transmitters connected to the display with
the Transmitter function, pressing the [►] key will turn the transmitter off, pressing the [◄] key will
turn the transmitter On.
8. Labels on vessels.
This menu controls what details are displayed alongside the vessels icons on the chart display, the
default is the MMSI number and Name of vessel. You can scroll up and down the list and turn ON
or OFF what details you would like to be displayed alongside each vessel by use of the [►] [◄]
keys.

- 18 -
Operations
9. Cursor Box info.
When you move the cursor in chart mode over an AIS target a box appears showing details of that
vessel. You can configure that box to show various details by turning ON or OFF the features in the
menu with the [►] [◄] keys.
10. Messages List.
This window displays lists of specific AIS messages, such as Safety Messages that the unit
has received. Scrolling down the list and highlighting a message allows you to see the
contents by pressing the ENTER key. Whilst in the main list pressing the MENU key when a
message is highlighted will erase that message, pressing the [►] [◄] keys will allow you to
view any other pages of messages.

- 19 -
Pages
Select Page
Press [Page] key and then go to “Pages” screen
Selectable Pages by red box and then press [ENTER] key.
red box

- 20 -
Customize
Customize of screen
Press [PAGE] key on the Pages which selected red box.(*Refer Fig. 1.1.1 as below)
Select the layout of the formation of screen.(*Refer Fig. 1.1.2 as below)
Select displays .(*Refer Fig. 1.1.3 & 1.1.4 as below)
<Fig. 1.1.1>
<Fig. 1.1.2>
<Fig. 1.1.3>
<Fig. 1.1.4>
