Haiyang Smart7 Series User manual

- 1 -
Important Notice
Manual
Handling
Keep this manual in a safe place where you can access it quickly.
The Global Positioning System (GPS) consists of a total 24 GPS satellites that orbit the earth,
enabling you to determine your position anywhere in the world, 24 hours a day, if you can receive
satellite signals. During actual navigation, carefully compare the position data with all available
navigation sources such as Loran C, Decca, other navigators, charts, visual navigation, depth, water
temperature and others. It is your responsibility to make navigation judgments.
DGPS Operation Note :
Your position can be improved by DGPS correction. However, when you are communicating with other
ships, you may use a DGPS corrected position but they may not. Make your position source known
during communication.
The Electronic Chart :
Only official authorized charts and notices to mariners contain all the information needed for the safety
of navigation and, as always remember, the user is responsible for their prudent use.

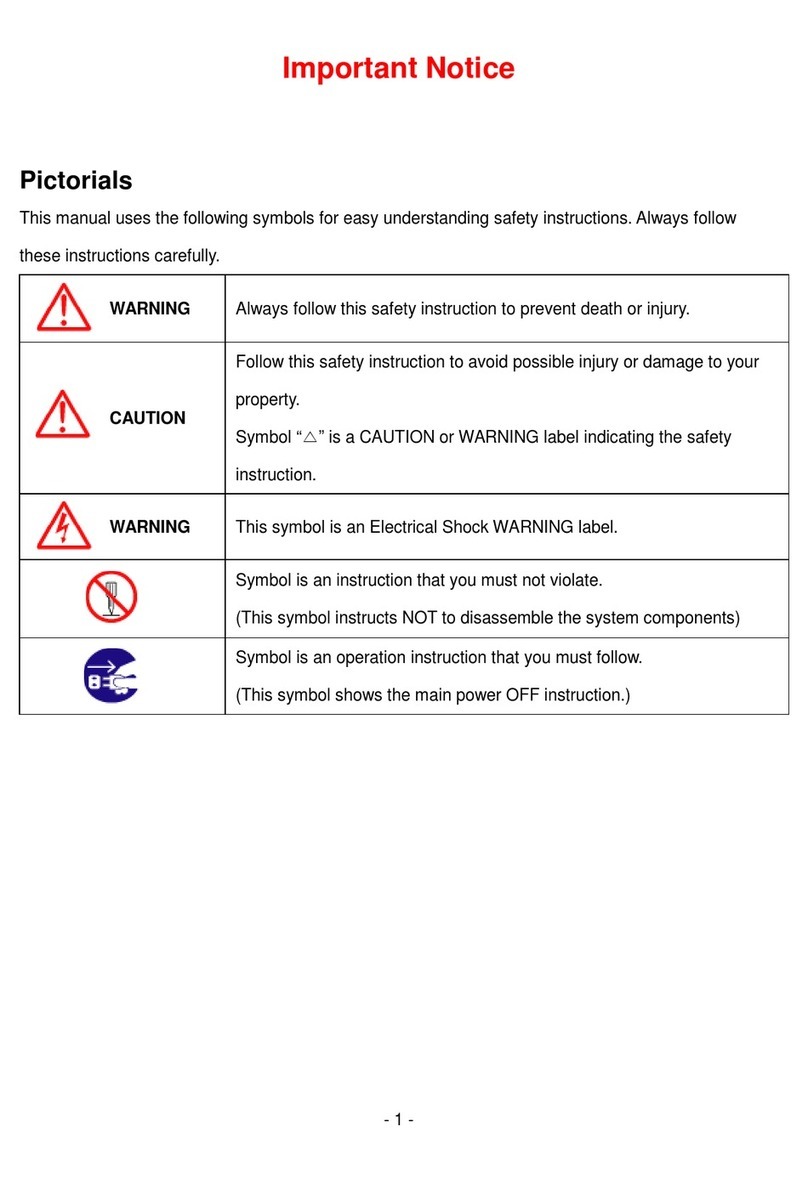

Pictorials
This manual uses the following symbols for easy understanding safety instructions. Always follow
these instructions carefully.
WARNING
Always follow this safety instruction to prevent death or injury.
CAUTION
Follow this safety instruction to avoid possible injury or damage to your
property.
Symbol “△” is a CAUTION or WARNING label indicating the safety
instruction.

- 2 -
WARNING
This symbol is an Electrical Shock WARNING label.
Symbol is an instruction that you must not violate.
(This symbol instructs NOT to disassemble the system components)
Symbol is an operation instruction that you must follow.
(This symbol shows the main power OFF instruction.)
WARNING <For System Operators>
Always follow this instruction to prevent death or personal injury.
Turn power off
During
abnormality.
If smoke or a small of burning occurs, a fire or an electrical
short circuit may result. Turn the power switch OFF and shut
down the power supply immediately. Never try to repair the
system yourself. Call for service.
Do not open
Cabinet.
High voltage exists in the instrument. Contact with voltage
may cause possible injury or death.
Do not touch
back side
of the
equipment.
Harmful line voltage is present on back side of the
equipment. Never try to touch back side while power is
turned on.
Avoid
excessive
shock
to display
unit.
The LCD display module contains a liquid. Do not apply any
mechanical shock to the display. If the display broken, liquid
may leak and injure your skin and eyes.
Do not use
with poor
ventilation.
If you cover this unit or use in an enclosed place, it may
malfunction or become damaged as a result of overheating.
Use only where there is sufficient ventilation.

- 3 -
Installation Cautions <For service Personnel>
Follow installation instructions to avoid personal injury and s ystem malfunction.
Installation in
rigid location.
Mount your HD-70 SERIES on a rigid frame or base to prevent your
unit from working loose.
Use correct
Installation materials.
Use the installation materials provided in the standard accessory
pack only. If you use hardware of insufficient strength, your system
may loosen causing damaged.
Keep away from direct
sunlight.
Keep your system out of direct sunlight as it may become damaged
by overheating.
Keep away from
water.
Take care not to get water on or in your unit as it may be damaged
and/or cause an electrical shock.
Keep away from heat
source.
Keep your system away from other heat source as it may
malfunction, be damaged, or burn.
Use correct power
source.
Operate your system within the specified power voltage. An incorrect
power supply may cause
Maintenance Cautions<For Maintenance Personnel>
Use the following safety precaution internal inspection.
Discharge
capacitors.
High voltage may be retained in the capacitors if the high-tension
circuit several minutes after you have turned the power switch off.
Check that power is
OFF
To prevent an electrical injury due to erroneous power switching, make
sure that the main power supply and the system power switch are both
in the off position. Additionally, attach a safety label showing that
service is in progress.
Avoid EMI.
Take care not to damage the ESDs (Electrostatic Sensitive Devices) by
static electricity from carpet and cloths.
Avoid dust.
Wear a safety mask so as not to breath in dust during inspection or
cleaning inside your system instruments.

- 4 -
Operation Notes <For operators>
Observe the following operation notes, otherwise the system failure or deterioration can result. And
periodical inspection and maintenance are required for keeping the system in an optimum condition.
Backup important
data.
The waypoint and other registered data may become unreadable
by unexpected failure. We recommend recording this data
separately.
Use correct
transducer
only.
If you use incorrect transducer, the transmitter circuit may be
damaged due to a matching error. Consult is for system
information.
Check transducer
Connection before
power on
Do not turn the power switch ON if the transducer is disconnected
or if it is not inserted into the water. If done, the transducer or
transmitter circuit may be damaged.
Always clean
the transducer
Since transducer performance can drop due to accumulated
bottom growth, keep the transducer clean. Never paint transducer
surface.
Transducer must be
installed by
authorized
personnel.
Consult us for transducer installation by authorized personnel.
WARNING
This product is designed to assist a navigation.
When you are sailing, use the certified chart from the Government
or IMO.

- 5 -
SSmart7 Series System
Welcome
HD-70 SERIES opens a new chapter of performance and integration in vessel navigation system
display and management. Whether you are a Cruiser or Sport fisherman or both, HD-70 SERIES gives
you the information you need.
CAUTION
HD-70 SERIES is Color LCD Charting Systems employs the latest in proven technology to provide
accurate navigation information. The Plotter functions of HD-70 SERIES are totally dependent upon
the capability of the navigation source to provide accurate position information. This device is only an
aid to navigation. It should be used in conjunction with all other navigation accuracy. For safety, always
resolve any uncertainty before continuing navigation.
CAUTION
The performance of LCD displays are degraded by continuous direct exposure to ultraviolet rays.
Locate your HD-70 SERIES Display away from direct sunlight. When not in use. Keep the display
covered.
DISPLAY BREAKAGE WARNING
The LCD display module contains a liquid. If the display is broken and the liquid contacts your skin,
wash it off immediately in running water for 15 minutes. If the liquid contacts your eyes, immediately
flush your eyes with running water for 15 minutes. Contact a physician if any abnormal symptom is
experienced.

- 6 -
Smart7 Series System
Welcome
The Color LCD Fishfider System opens a new chapter of performance and integration in vessel
navigation system display and management. Whether you are a Cruiser or Sport fisherman or both,
650 gives you the information you need.
CAUTION
The Color LCD Fishfider Systems employs the latest in proven technology to provide accurate
navigation information. The Plotter functions of HD-70 SERIES are totally dependent upon the
capability of the navigation source to provide accurate position information. This device is only an aid
to navigation. It should be used in conjunction with all other navigation accuracy. For safety, always
resolve any uncertainty before continuing navigation.
There is no direct relationship between the color of water areas and their depth. The navigator shall
always query the area for depth information and use the official paper chart.
CAUTION
The performance of LCD displays are degraded by continuous direct exposure to ultraviolet rays.
Locate your HD-70 SERIES Display away from direct sunlight. When not in use. Keep the display
covered.

- 7 -
Smart7 Series System
DISPLAY BREAKAGE WARNING
The LCD display module contains a liquid. If the display is broken and the liquid contacts your skin,
wash it off immediately in running water for 15 minutes. If the liquid contacts your eyes,
immediately flush your eyes with running water for 15 minutes. Contact a physician if any
abnormal symptom is experienced.
INDICATION NOTICE
*: It is important or warning notice on front of article
#: It is only functions for the HD-70CF on front of article.

- 8 -

- 9 -
Smart7 Series System
Introduction
The HD-70 SERIES is a premium multifunction command and control center. HD-70 SERIES front
panel keyboard and its wide screen with wide viewing area make placement easy. Although HD-70
SERIES offers many advanced features, operation is simplified through the use of popup menus
similar to those found on personal computers.
Standard Equipment Configuration List(Metal)
Display unit
#Transducer
GPS ANT.
Protector
Mounting Bracket
Knobs
Manual
Power cable

- 10 -
Smart7 Series System
Standard Equipment Configuration List (Plastic)
Display unit
#Transducer
GPS ANT.
Protector
Mounting Bracket
Knobs
Manual
Power cable

- 11 -
Smart7 Series System
Keypad
KEY
Description
[Cursor
Key]
With MENU: Choosing the menu
Without MENU: Cursor on & *Choosing the
frequency
[GAIN/STC]
&
[ENTER]
Button: Enter when menu table on the screen
#Rotary: Adjustment of gain & STC level with
turning.
[+] &[-]
Change the chart of scale & Setting up the depth
range
[MENU]
One step: Quick menu is displayed.
Two step: Main menu is displayed.
[GOTO]
Cursor display: Place the cursor and press
“GOTO’ to set WPT
No cursor/Pointed WPT: Save WPT and set free
the pointed WPT
No cursor/No pointed WPT: List for WPT, route
[PAGE]
Select the configuration & modification you wish.
[Active]
Select the activated section
[WPT/MOB]
WPT: Places a WPT on the plotter main screen.
MOB: Set MOB(Man OverBoard)
[CANCEL]
Return to the previous display, or canceled the
set-up.

- 12 -
Smart7 Series System
How to use [Power/Brightness]
▶ Press [PWR/BRT]
1.Use PWR:
To turn off the power, keep pressing the [BRT/PWR] until the end of counting.
2.Use BRT:
Press [BRT/PWR] shortly and the brightness can be controlled. Use the arrow keys [←][→]of the
cursor to control the brightness and the contrast.
3. Use day/night mode
Press [BRT/PWR] shortly and change mode. Use the arrow keys [↓][↑] of the cursor to change mode.
# Choosing the frequency on the dual
▶ Press [↑][↓]
You can see the red color is moving with the up and the down. In the active frequency in the red, it’s
on operation.
# Choose the Gain & STC
▶ Press [←][→]
You can see the red color is moving with the right and the left. In the active Gain & STC in the red, it’s
on operation.

- 13 -
Smart7 Series System
Metal
<Front>
<Rear>
Main Screen
Keypad
Knob
Mounting Bracket
Connector

- 14 -
Smart7 Series System
Plastic
<Front>
<Rear>
Main Screen
Keypad
Knob
Mounting Bracket
Connector

- 15 -
Smart7 Series System
SPEC of the connectors(Metal)
SPEC of the connectors(Plastic)

- 16 -
Pages
Select Page
Press [Page] key and then go to “Pages” screen
Selectable Pages by red box and then press [ENTER] key.
red box

- 17 -
Customize
Customize of screen
Press [PAGE] key on the Pages which selected red box.(*Refer Fig. 1.1.1 as below)
Select the layout of the formation of screen.(*Refer Fig. 1.1.2 as below)
Select displays .(*Refer Fig. 1.1.3 & 1.1.4 as below)
<Fig. 1.1.1>
<Fig. 1.1.2>
<Fig. 1.1.3>
<Fig. 1.1.4>

- 18 -
Customize
Customize of data bar
▶ [MENU]->Advance->Setup->Customizing->Data bar-> Edit
Select the section to edit by red box. .(*Refer Fig. 1.2.1 as below)
Press [ENTER] key and select the data as a user want.(*Refer Fig. 1.2.2 as below)
Finish the formation of data bar, press [CANCEL] key to complete.
<Fig. 1.2.1>
<Fig. 1.2.2>

- 19 -
Customize
Navigation data edit
▶ [MENU]->Advance->Setup->Customizing->Navigation Data-> Edit
Select the section to edit .(*Refer Fig. 1.3.1 as below)
Press [ENTER] key and select the data as a user want. .(*Refer Fig. 1.3.2 as below)
Finish the formation of data bar, press [CANCEL] key to complete
(* If no navigation data on present activated display, it is not available to edit)
<Fig. 1.3.1>
<Fig. 1.3.2>

- 20 -
Customize
Screen ratio
(* It is only available on plotter and fishfinder at the same screen)
▶ [MENU]-> Screen ratio
It is available to adjust the size of screen for plotter and fishfinder.
