WFH-KIT
Work-from-Home Kit : Auto Framing 4K WebCam & Smart Docking Speakerphone
User Manual
Version: 1.0

Hall Technologies November 22, 2022 Page 2 of 27
Important Safety Instructions
!
1. Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
2. Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure the unit is well
ventilated.
3. To prevent risk of electric shock or fire hazard due to
overheating, do not obstruct the unit’s ventilation openings
with newspapers, tablecloths, curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked flames, such as lighted
candles, on the unit.
6. Clean this apparatus only with dry cloth.
7. Unplug this apparatus during lightning storms or when
unused for long periods of time.
8. Protect the power cord from being walked on or pinched
particularly at plugs.
9. Only use attachments / accessories specified by the
manufacturer.
10. Refer all servicing to qualified service personnel.

Hall Technologies November 22, 2022 Page 3 of 27
Table of Contents
Introduction ........................................................................................................................................ 4
Overview ....................................................................................................................................... 4
Features ........................................................................................................................................ 5
Package Contents .............................................................................................................................. 6
Product Images with Views ............................................................................................................... 7
Connectors & Indicators .................................................................................................................... 8
HT-WebCam-4K-AI ....................................................................................................................... 8
HT-Satellite-Dock .......................................................................................................................... 9
Top View ................................................................................................................................ 9
Side View ............................................................................................................................ 10
LED Indicator Status .......................................................................................................... 11
Applications ..................................................................................................................................... 12
Application 1: Office Setup ...................................................................................................... 12
Application 2: Personal Setup .................................................................................................. 13
Setup ................................................................................................................................................ 14
Installation on a Monitor .......................................................................................................... 14
Installation on a Tripod ............................................................................................................. 14
WebCam Manager Software ........................................................................................................... 15
Main Page - Controls ................................................................................................................ 15
AI Tracking: OFF ........................................................................................................................ 16
AI Tracking: Auto Framing ........................................................................................................ 17
AI Tracking: Presenter Tracking ............................................................................................... 17
Support ...................................................................................................................................... 18
Soft Codec Support ......................................................................................................................... 19

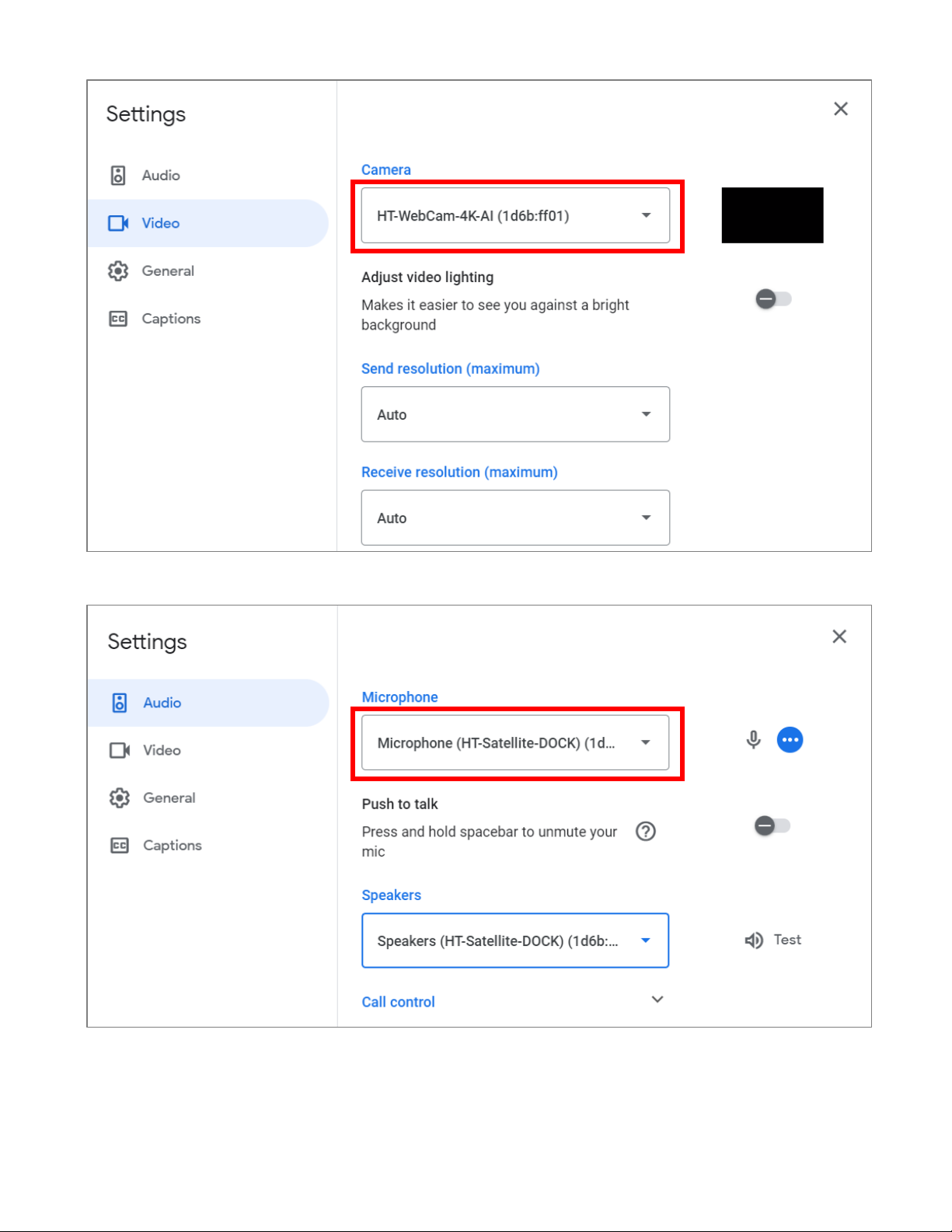

Google Meet .............................................................................................................................. 19
Microsoft Teams ....................................................................................................................... 21
Zoom ......................................................................................................................................... 22
Troubleshooting .............................................................................................................................. 24
Specifications .................................................................................................................................. 25
HT-WebCam-4K-AI .................................................................................................................... 25
HT-Satellite-Dock ....................................................................................................................... 26

Hall Technologies November 22, 2022 Page 4 of 27
Introduction
OVERVIEW
The Work-from-Home Kit includes the HT-WebCam-4K-AI and the HT-Satellite-Dock.
The HT-WebCam-4K-AI camera is a 4K ultra-HD USB webcam with high quality video at 30fps.
The lens is an ultra-wide angle lens with auto color-correction and white balance to help improve
the image in dimly lit areas. The AI technology includes the ability to turn on auto framing or
presenter tracking along with microphone noise reduction.
The HT-Satellite-DOCK is a smart docking station with built-in speakerphone. The docking
station supports up to two USB 3.2 devices such as the HT-WebCam-4K-AI camera as well as a
monitor using HDMI, and can charge most laptops using a single USB 3.0 Type-C cable. And,
with four microphone elements the omnidirectional speakerphone can clearly pick up 360° audio
up to 5 meters (16.4ft) away. The speakerphone also includes AEC (automatic noise
cancellation) and noise reduction to reduce echo to the far end and local background noise.
Both are fully compatible with most operating systems, including Windows 7/8/10/11, macOS,
Android, Linus and Chrome OS.

Hall Technologies November 22, 2022 Page 5 of 27
FEATURES
HT-WEBCAM-4K-AI
• Video resolution up to 4K@30fps
• 106° ultra wide angle lens
• Advanced CMOS image sensor provides crystal-clear video
• ePTZ for digital pan, tilt, and zoom up to 8x
• Compatible with USB 3.0 and USB 2.0
• AI technology providing auto framing and presenter tracking
• WebCam Manager app provides for AI control, ePTZ, and image settings
• The included privacy shutter cap provides privacy when not in use
• Multiple easy mounting options - setting it on the laptop’s monitor or installing it on a tripod
• Plug-and-play – no driver installation required – and compatible with Google Meet, Microsoft
Teams, ZOOM, and other soft codecs
HT-SATELLITE-DOCK
• Four built-in omnidirectional microphone elements providing 360° up to 5 meters away
• Audio digital signal processing with AEC (acoustic echo cancellation) and noise reduction
• HDMI 4K@60Hz UHD video output
• Two USB 3.2 10Gbps ports to connect the HT-WebCam-4K-AI
• Supports laptop charging up to 85W (dock requires dedicated local charging, not included)
• Plug-and-play – no driver installation required – and compatible with Google Meet, Microsoft
Teams, ZOOM, and other soft codecs

Hall Technologies November 22, 2022 Page 6 of 27
Package Contents
• 1 x HT-WebCam-4K-AI camera with privacy cover
• 1 x HT-Satellite-DOCK speakerphone
• 1 x USB 3.0 Type-C to Type-A cable, 1.5m (4.9ft)
• 1 x USB 3.0 Type-C to Type-C cable, 0.7m (2.3ft)

Hall Technologies November 22, 2022 Page 7 of 27
Product Images with Views
HT-WEBCAM-4K-AI
Front Rear
Angle
HT-SATELLITE-DOCK
Front Top

Hall Technologies November 22, 2022 Page 8 of 27
Connectors & Indicators
HT-WEBCAM-4K-AI
No.
Name
Description
1
Microphones
Omnidirectional microphones with a pickup distance up to 3m (approx. 10ft)
NOTE: these microphones are disabled by default but can be enabled using the
WebCam Manager software.
2
Camera Lens
Auto Framing with 106° wide FoV lens
3
LED
Solid green LED when the camera is on.
NOTE: this LED does not illuminate util an application (i.e. camera, Google Meet,
Microsoft Teams, Zoom, etc.) is using the camera.
4
USB 3.0
USB 3.0 Type-C output connector

Hall Technologies November 22, 2022 Page 9 of 27
HT-SATELLITE-DOCK – TOP VIEW
No.
Name
Description
1
Loudspeaker
Outputs audio from the connected laptop
2
LEDs
LEDs illuminate depending on the button presses
3
Volume +
Press button: the volume increases one step at a time.
Hold button: the volume increases continuously.
The level of the audio is shown with the LEDs, increasing clockwise and
decreasing counterclockwise.
4
Mute/Unmute
Press to mute/unmute the microphones. When muted all LEDs turn red.
5
Volume -
Press button: the volume decreases one step at a time.
Hold button: the volume decreases continuously.
The level of the audio is shown with the LEDs, increasing clockwise and
decreasing counterclockwise.

Hall Technologies November 22, 2022 Page 10 of 27
HT-SATELLITE-DOCK – SIDE VIEW
6
USB-A
USB 3.0 for connecting with peripheral USB devices, such as the HT-
WebCam-4K-AI
7
HDMI
HDMI 2.0 output for connecting into a display
8
Microphone
4 x Omnidirectional mics array for picking up sound. The LEDs turn blue
when picking up audio through the respective microphone.
9
USB-C (laptop)
USB Type-C for connecting to a laptop
10
USB-C (Power)
USB Type-C for connecting to a power adapter or a display
NOTE: Power adapter not needed if there is not a need to charge the laptop
from the HT-Satellite-DOCK. (power adapter sold separately)

Hall Technologies November 22, 2022 Page 11 of 27

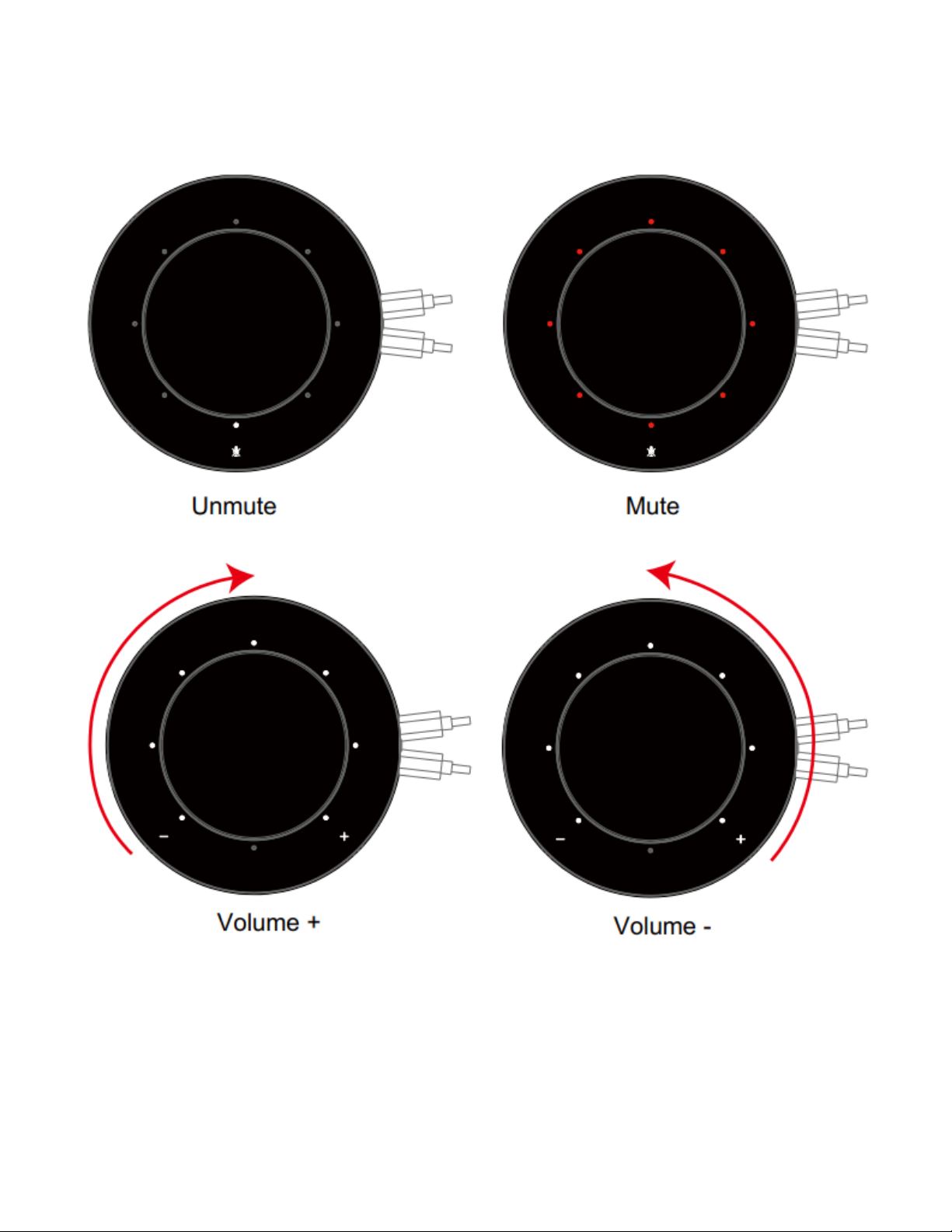

LED INDICATOR STATUS

Hall Technologies November 22, 2022 Page 12 of 27
Applications
APPLICATION 1: OFFICE SETUP
This is the most advanced setup for fully taking advantage of the features of the docking
station. Only one USB-C cable is needed between the laptop and the docking station which will
provide video out to the display, video in from the camera, microphones in from the dock,
audio out to the dock speaker, and power to charge the laptop.
1. Step One
Connect the included USB Type-C to Type-A cable to from the HT-WebCam-4K-AI (Type-C) to
the HT-Satellite-Dock (Type-A).
2. Step Two
Connect the included USB Type-C to Type-C cable from the HT-Satellite-Dock to the laptop
3. Step Three
Connect an HDMI cable from the HDMI output on the HT-Satellite-Dock to the HDMI input on
the display (HDMI cable not included)
4. Step Four
Connect a USB-C power adapter (not included)

Hall Technologies November 22, 2022 Page 13 of 27
APPLICATION 2: PERSONAL SETUP
This is the most basic setup for a quick plug-and-play connection. This application does not
take advantage of the features of the dock and takes up two USB ports on the laptop.
1. Step One
Connect the included
USB Type-C to Type-A cable to
from the HT-WebCam-4K-AI
(Type-C) to the laptop (Type-A).
2. Step Two
Connect the included USB Type-C to Type-C
cable from the HT-Satellite-Dock to the laptop

Hall Technologies November 22, 2022 Page 14 of 27
Setup
INSTALLATION ON A MONITOR
1. Step One
Place the webcam on a computer, laptop or monitor at a position or angle you desire.
2. Step Two
Adjust the webcam to make sure the foot on the universal mounting clip is flush with the
back of the device
3. Step Three
Manually adjust the webcam up/down to the best position to frame yourself.
INSTALLATION ON A TRIPOD
1. Step One
Locate the M12 tripod thread on the bottom of the webcam
2. Step Two
Secure the webcam on the tripod by twisting it into the M12 thread

Hall Technologies November 22, 2022 Page 15 of 27
WebCam Manager Software
To access all available settings of the HT-WebCam-4K-AI camera, download and install the
WebCam Manager application.
MAIN PAGE - CONTROLS
UI Element
Description
Lists all connected WebCams.

Hall Technologies November 22, 2022 Page 16 of 27
UI Element
Description
Click this icon in the middle of the screen to see a preview of the camera.
NOTE: only one application at a time can view the camera’s video. If the
camera is not viewable in this window check to see that the camera isn’t
being used in another application.
Changes the application from light mode to dark mode and vice versa.
Shows the camera is connected.
AI TRACKING: OFF
UI Element
Description
Controls the ePT portion of the ePTZ camera.
• Arrows up/down: tilts the camera up or down
• Arrows left/right: pans the camera left or right
Controls the eZ portion of the ePTZ camera. Sliding the slider to the right zooms

Hall Technologies November 22, 2022 Page 17 of 27
UI Element
Description
the camera in; sliding back to the left zooms the camera back out.
Powerline Frequency
To prevent flicker, match the camera’s frequency with the electrical frequency of
the environment.
• 50Hz: Africa, Asia, Australia, Europe, South America (mix)
• 60Hz: North America, Central America, South America (mix)
Mic
Turns on/off camera’s built-in microphones.
Note: Default is set to off.
HD
Maximizes the resolution of the camera if enabled; compresses the signal to a
non-HD resolution when disabled.
Note: Default is set to HD.
AI TRACKING: AUTO FRAMING
UI Element
Description
Auto Framing
With Auto Framing enabled, the camera will automatically frame all participants in
the view of the camera.
Tracking Effect
Sets the motion of the tracking effect: smooth or immediate.
Tracking Speed
Sets the speed of the tracking: slow, medium, or fast.
Note: tracking speed cannot be set if the tracking effect is set to immediate.
AI TRACKING: PRESENTER TRACKING

Hall Technologies November 22, 2022 Page 18 of 27
UI Element
Description
Presenter Tracking
With Presenter Tracking enabled, the camera’s view will automatically track a
single person (presenter).
SUPPORT
UI Element
Description
About
Gives information about the model of the camera and the version of the firmware.
Upgrade
To upgrade the firmware, click on “Upgrade” and select the .zip file to be loaded.
Restore
Restores the camera to the factory defaults.
Support
Clicking on the “Contact Support” will link to Hall Technologies’ support page.

Hall Technologies November 22, 2022 Page 19 of 27
Soft Codec Support
The following are instructions to utilizing the HT-WebCam-4K-AI camera and HT-Satellite-DOCK
in the Google Meet, Microsoft Teams, and Zoom soft codec applications. The HT-WebCam-4K-
AI and HT-Satellite-DOCK are not limited to these three. (For soft codec applications outside of
these three please refer to their user manual.)
GOOGLE MEET
To use the devices in Google Meet, open “More
Options” and then click on “Settings.” In the video
settings, select the “HT-WebCam-4K-AI” for the
camera and in the audio settings select “HT-Satellite-
DOCK” for both microphone and speaker.

Hall Technologies November 22, 2022 Page 20 of 27
