HALNy HL-1G Quick Installation Guide
1
1 Safety Guidance
1.1 Safety Check
Before installing the device, you must check the following items.
1.1.1 Electric Safety
Ensure that there are no inflammable, conductive or moist objects around.
Check whether the cables are aged and whether other electrical appliances
are placed stably,
Check whether the alternating or direct input current is within the allowed
range of the device, whether the polarity of the direct current is correct, and
whether the earth line is properly connected.
1.1.2 Device Position
Because the running electric device easily generates heat, please ensure to
place the device in a well-ventilated environment,
Avoid direct sunshine, and do not place the device on a PC case,
Keep the device away from heat and water,
Check whether power supply is available. The input voltage fluctuation range
must be smaller than 10%. The power plug should not share one socket with
a hair drier, an iron or a refrigerator.
1.2 Safety Caution
Read the quick installation guide carefully before using the device,
Note all Cautions in the quick installation guide,
Do not use any accessory that does not belong to the device without prior
consent of the manufacture, as it may cause fire or product damage,
Use the power adapter accompanied in the package,
Do not place any object on the device,
Keep the device dry, ventilated, rainproof, and clean,
During lightning weather, unplug the power plug and all connection cables, to
protect the device against lightning,

HALNy HL-1G Quick Installation Guide
2
Clean the device using a soft and dry cloth rather than liquid or atomizers.
Power off the device before cleansing it,
Power off the idle device,
Keep the ventilation hole clean and prevent any object from dropping into the
device through it. Otherwise, it may cause short circuit and further cause
device damage or fire. Do not spray liquid on the surface of the device,
Do not open the case of the device, especially during device power-on,
Before plugging or unplugging the power, ensure that the power is off, thus
avoiding surge,
Be careful when unplugging the power, as the transformer may be very hot,
Cover the optical interface with fiber interface cap when it is not in use. Avoid
direct eye exposure to the laser emitted from the optical interface.Wear safety
glasses if possible, to protect your eyes.
Caution:
Please read the above safety guidance carefully before device use.
Users should assume responsibilities for any accidents due to
incompliance with the above instructions.
2 Overview
This chapter mainly describes functions and the structure of the HALNy HL-1G.
2.1 Features and Function
Fast rate. Support up to 1.25Gbps uplink and 2.5Gbps downlink data
transmission rates,
Strong maintainability. Provide various statuses of LED indicators, to help
troubleshooting,
Long transmission distance, up to 20 km.

HALNy HL-1G Quick Installation Guide
3
2.2 Front Panel and Rear Panel
The description of the front panel and the rear panel of the GPON ONU as follows.
2.2.1 Front Panel
Figure 1 - Front Panel
LED
Status
Description
Power
On
The power works normally.
Off
Powered off or the power supply is abnormal.
PON
On
ONU registers successfully.
Blink
ONU is trying to establish connection.
Off
ONU fails to register.
LOS
Blink
The receiving optical power of the ONU is lower than the
sensitivity of the optical receiver.
Off
The receiving optical power of the ONU is normal.
On
ONU fails to receive optical.
LAN
On
The connection of Ethernet interface is normal.
Blink
Data is being transmitted through the Ethernet interface.
Off
The connection of the Ethernet interface fails to establish.
Table 1 - ONU LED Indication Table

HALNy HL-1G Quick Installation Guide
4
2.2.2 Rear Panel
Fig 2 Rear Panel
ONU Rear Panel Description：
Interface /
Button
Function
GPON
SC/APC connecting to the fiber.
LAN
Ethernet interface, for connecting to a computer or an Ethernet
interface of a switch.
Reset
Press the button for 5 seconds to reboot ONU and restore the factory
default configurations.
Power
Connect power cable.
ON/OFF
Turn on/off the power supply.

HALNy HL-1G Quick Installation Guide
5
3 ONU Installation
The chapter describes the required installationoperations beforeyou usethe device
for the first time.

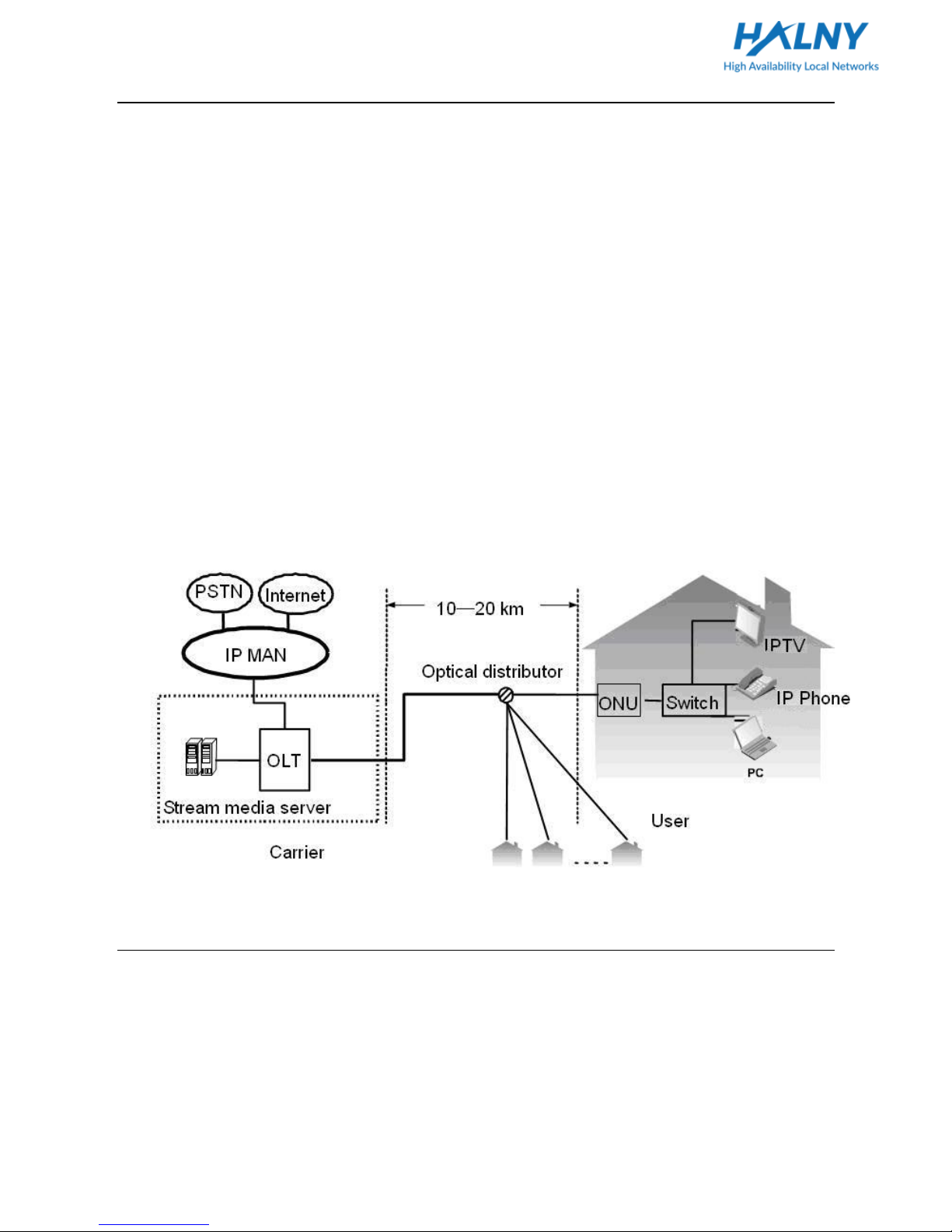

3.1 Product Networking Application - FTTH
Fiber to the Home (FTTH) means to install the ONU to residences or enterprise
buildings. The optical line terminal (OLT) is placed in the central equipment room.
The ONU can be placed in the home of a user, or it can provide connection for the
user through the Ethernet interface, according to the user requirement. The OLT
connects to the ONU with an optical distributor in the point-to-multipoint way. See
the following figure.
FTTH
Note：
The ONU applies to installation at home or in the corridor. Because installation and
cabling in the corridor are relatively complex, let the professional engineers deploy
according to the actual situation. This manual describes the procedure for installing the
device at home, and is for reference only.

HALNy HL-1G Quick Installation Guide
6
3.2 Installation Preparations
The Ethernet interface of your computer connects to the Ethernet interface of the
ONU. Before installing it, ensure that an Ethernet adapter is already installed in your
computer.
3.3 Connecting ONU
1
PC
2
Fiber
3
Power
3.3.1 Connecting the Network Cable
Step 1 Use the one end of the network cable to connect the Ethernet interface of
the computer.
Step 2 Use other end of a network cable to connect the Ethernet interface on the
rear panel of the HALNy HL-1G.

HALNy HL-1G Quick Installation Guide
7
3.3.2 Connecting the Fiber
Caution:
When a fiber is not in use, ensure to cover the optical interface of the ONU and
the dust cap of the optical fiber. Prevent dust pollution or water immersion, which
may lead to unavailable fiber and optical interface of the device.
If fibers need to be fixed during parallel cabling, do not fasten the fibers too tight.
Avoid fiber extrusion, which may lead to increase of fiber material or unavailable
fiber.
3.2.3 Connecting the Power Adapter and Power Cord
Connect the output end of the power adapter included in the device package to
the input end of the power supply of the ONU ,
Insert one end of the power cord attached with the device into the input end of
the power adapter. Insert the other end of the power cord into the power socket,
Check whether the Power indicator is on. If it is on, the power supply is normal.
Otherwise, check whether the power cord and the power adapter are correctly
connected.

HALNy HL-1G Quick Installation Guide
8
4 Troubleshooting
Symptom
Solution
The POWER
indicator is not on
Check whether the power connection is correct,
Check whether the power adapter matches the
device.
The PON indicator is
not on
Check whether the SN of ONU matches OLT,
Check whether the optical attenuation is in the normal
range.
The LOS indicator is
not on
Check whether the optical fiber cable is properly
inserted,
Check whether the optical fiber connector is clean.
The LAN indicators
are not on
Check whether the device is authorized by the carrier,
Check whether the network cables included in the
device package are used,
Check whether the network cable connection is
normal,
Check whether the indicator of the network adapter is
on,
Check whether the network adapter works in the
normal state.

HALNy HL-1G Quick Installation Guide
9
5 Technical Specification
Main Technical Specifications
Standard
GPON Standard
ITU-T G.984
Rate
Uplink
1.25Gbps
Downlink
2.5Gbps
Interface
One optical interface
Single Mode
One LAN port
RJ-45、10/100/1000Mbps、MDI/MDIX Self
adaption
Physical Characteristics and Environment Requirements
Power adapter
input
100V～240V AC，50Hz～60Hz
Whole-device
power supply
12V DC，0.5A
Standard power
consumption
<5W
Operating
temperature
-5˚C～45˚C
Operating
humidity
5%~95% (non-condensing）
Dimension
L x W x H：146mm x 109mm x 31mm
Weight
<500g
Appendix A Acronyms and Abbreviations
GPON
Gigabit Passive Optical Network
FTTB
Fiber to the Building
FTTH
Fiber to the Home
OLT
Optical Line Terminal
ONU
Optical Network Unit
PON
Passive Optical Network

HALNy HL-1G Quick Installation Guide
10
Additional information:
Declaration of Conformity (CE)
This device has been tested and found to comply with the stated standards
which are required by the Council Directive of 2014/30/EU. The device
complies with this CE Declaration when the installation is done in
accordance with the instruction and documentation. The importer and
manufacturer don’t take responsibility for any issues caused by improper use
of the device.
The full document is on below web page and it is available in importer and
manufacturer:
CE / warranty terms and conditions:
www.halny.com
Manufacturer / Importer:
FIBRAIN Sp. z o.o
36-062 Zaczernie 190F (POLAND)
[email protected]
