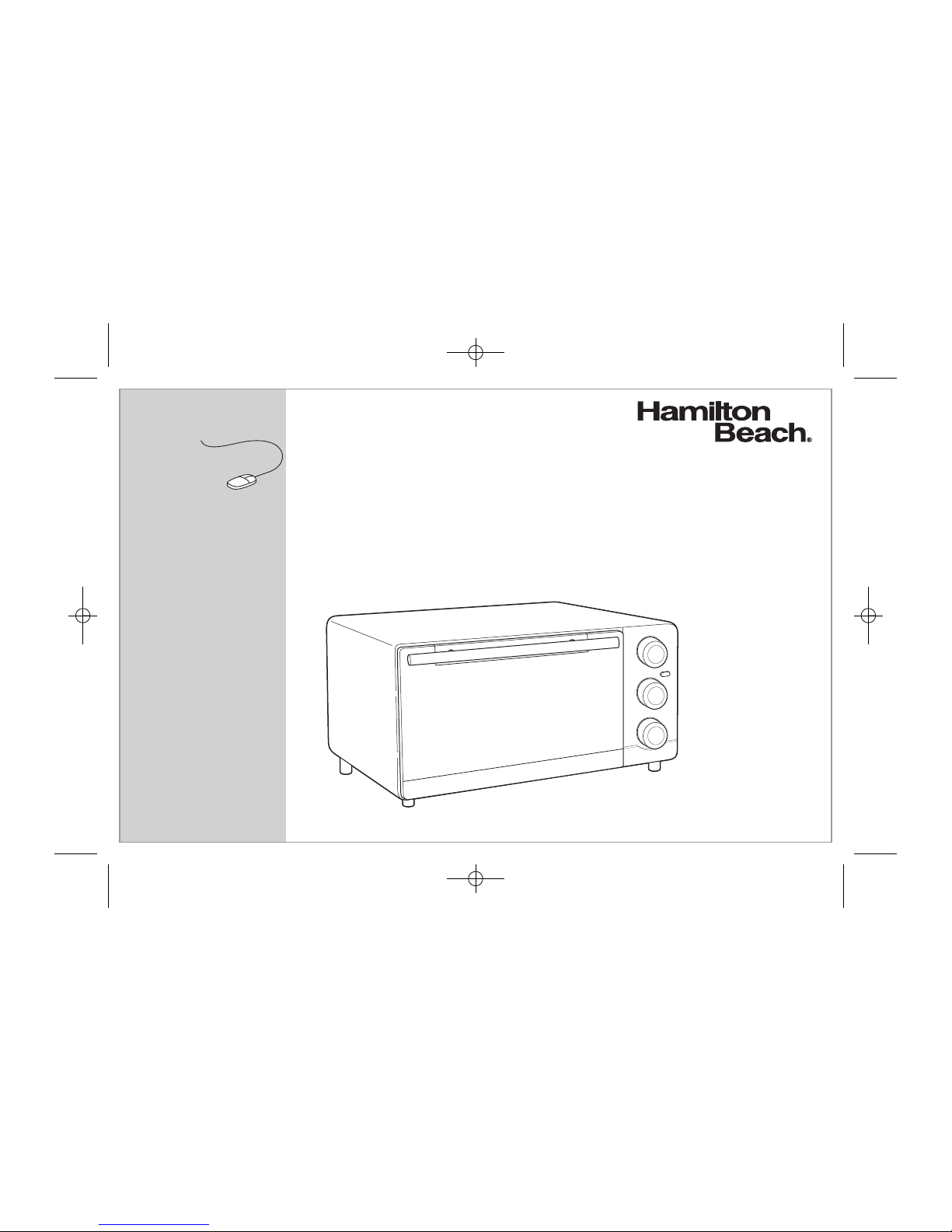

Hamilton Beach 31407 Owner's manual

Toaster Oven
Four grille-pain
Horno de la tostadora
English ...................... 2
Français .................. 12
Español .................. 22
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as
delicious recipes, tips, and
to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes, nos conseils et pour
enregistrer votre produit en ligne !
¡Visite www.hamiltonbeach.com.mx para
obtener nuestra línea completa de productos
y las Guías de Uso y Cuidado, además de
deliciosas recetas, consejos y para registrar
su producto en línea!
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 1

2
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug,
or toaster oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to
cool before cleaning appliance and putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter or touch
hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a
heated oven.
11. Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids.
12. To disconnect, turn all controls to OFF; then remove plug from
wall outlet.
13. Use extreme caution when removing pan or disposing of hot
grease.
14. Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts, creating a risk of electrical shock.
15. Oversize foods or metal utensils must not be inserted in a
toaster oven as they may create a fire or risk of electric shock.
16. A fire may occur if the toaster oven is covered, touching, or near
flammable material, including curtains, draperies, walls, and the
like, when in operation. Do not store any item on top of the
appliance when in operation or before the appliance cools down.
17. Extreme caution should be exercised when using containers
constructed of materials other than metal or glass.
18. Do not store any materials, other than manufacturer-recommended
accessories, in this oven when not in use.
When using electrical appliances, basic safety precautions should always be followed, including the following:
wWARNING
Fire Hazard.
• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before
opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
• Always allow at least one inch between food and heating element.
• Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 2

3
SAVE THESE INSTRUCTIONS!
OTHER CONSUMER SAFETY INFORMATION
This appliance is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug
(one wide blade) that reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or by using
an adapter. If the plug does not fit, reverse the plug. If it still does
not fit, have an electrician replace the outlet.
The length of the cord used on this appliance was selected to reduce
the hazards of becoming tangled in or tripping over a longer cord.
If a longer cord is necessary, an approved extension cord may be
used. The electrical rating of the extension cord must be equal to
or greater than the rating of the appliance. Care must be taken to
arrange the extension cord so that it will not drape over the counter-
top or tabletop where it can be pulled on by children or accidentally
tripped over.
This appliance is equipped with a fully tempered safety glass door.
The tempered glass is four times stronger than ordinary glass and
more resistant to breakage. Tempered glass can break; however, it
breaks into pieces with no sharp edges. Care must be taken to avoid
scratching door surface or nicking edges. If the door has a scratch or
nick, call our toll-free customer service number.
Always unplug your toaster oven from the outlet when not in use.
Before First Use
Most heating appliances produce an odor and/or smoke when used
the first time. Plug the toaster oven into an outlet. Turn Temperature
Dial to 450°F (230°C). Heat at this temperature for 10 minutes. The
odor should not be present after this initial preheating. Wash baking
pan, broil rack*, and oven rack before using.
NOTE: *Broil rack is an optional accessory on select models.
19. Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.
20. Do not cover crumb tray or any part of the oven with metal foil.
This will cause overheating of the oven.
21. To turn oven off, turn Timer to OFF position. See any of the “How
To” sections for specifics.
22. Do not place eyes or face in close proximity with tempered
safety glass door, in the event that the safety glass breaks.
23. Always use appliance with crumb tray securely in place.
24. Do not use appliance for other than intended use.
25. Clean oven interior carefully. Do not scratch or damage heating
element tube.
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 3

4
Parts and Features
Baking Pan
Temperature
Dial
Function Dial
ON Indicator
Light
Slide-Out
Crumb Tray Oven Rack
Timer
Broil Rack
(optional accessory
on select models)
Broil Rack* in Baking Pan
(*optional accessory
on select models)
HIGH RACK POSITION:
baking, broiling, and toasting
LOW RACK POSITION:
baking
NOTE: DO NOT place oven rack
on very top support ledge.
(see allowed positions in diagrams
at right)
ON SELECT MODELS:
Nonstick Oven Interior
Broil Rack
Rack/Toasting Area
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 4

5
How to Toast
24
13
Place oven rack in HIGH RACK
POSITION (shown) for toast, English
muffins, bagels, and waffles.
Turn Temperature Dial to
BROIL/TOAST.
Rotate Timer past 10 and then back to
desired toast color. A bell will sound
when the toast cycle is complete.
• When toasting only two
slices of bread, place bread
in center of toasting area on
high rack position to get
even toasting on top and
bottom.
• Toasting area does not
extend beyond rear cross
wire on oven rack. For best results, always
position bread, bagels, etc., within toasting area.
• To toast bagels, English muffins, and waffles,
place oven rack in HIGH RACK POSITION and
place food cut/split side facing up. This will toast
the cut/split side more than the outside food. Set
Timer to desired setting.
• To toast regular toaster pastries or frozen pastries,
place oven rack in the HIGH RACK POSITION.
Select a color lighter than Medium and toast directly
on the oven rack. If pastry has a glaze or frosting,
use baking pan.
• When toasting, condensation may form on the
oven door. The moisture will slowly escape from
the enclosed oven.
• The number of slices of bread and the bread
freshness will affect toast color. For example,
toasting 4 slices of bread will require a darker
toast color setting than 2 slices of bread.
Adjust the Timer based on desired color and
number of slices.
• If you are not satisfied with the color balance
between the two sides of your food in the
recommended rack position, select a different
rack position.
Fire Hazard.
• If contents ignite, do not open oven door.
Unplug oven and allow contents to stop
burning and cool before opening door.
• Do not leave appliance unattended when
in operation.
• Always unplug toaster oven when not in use.
wWARNING
5
Place food in oven. Turn Function
Dial to TOAST. NOTE: Convection
available on select models only.
Medium Dark
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 5

6
How to Bake
2
5
13
Place oven rack on HIGH RACK
POSITION or LOW RACK POSITION
(depending on food to be cooked).
LOW RACK POSITION shown.
Turn Temperature Dial to desired
temperature. Turn Function Dial to BAKE.
NOTE: Convection available
on select models only.
• Do not totally enclose foods in
aluminum foil. Foil can insulate
foods and slow down heating.
• To reheat rolls or biscuits, place
on baking pan and heat at 300ºF
for 10 minutes.
• Reheat leftover roasts or
casseroles at 350ºF for 20 to
30 minutes or until heated
through.
• Bake foods, such as pizza, on the
HIGH RACK POSITION. Place food
directly on oven rack or in baking
pan.
• Bake foods, such as a whole
chicken, on the LOW RACK POSI-
TION. Place food in baking pan.
• Ovens with convection mode:
When baking pizza, use convec-
tion setting and reduce cooking
time by 25%.
4
Rotate Timer past 10 and then back
to “dark toast” to preheat oven
for 5 minutes before beginning to
bake.
After oven is preheated, set Timer
to desired time by rotating Timer
past 10 and then to desired baking
time or rotate Timer to STAY ON.
Fire Hazard.
• If contents ignite, do not open
oven door. Unplug oven and
allow contents to stop burning
and cool before opening door.
• Do not use oven cooking bags.
• Always allow at least 1 inch
between food and heating element.
• Always unplug toaster oven when
not in use.
wWARNING
APPROX. BAKE TIMES
30 minutes
15 minutes
Turn foods halfway through
cooking time.
Visit foodsafety.gov for more
safe cooking temperature
information.
F
170°
145°
C
77°
63°
FOOD
Fresh Chicken Breast
Fish Fillet
INTERNAL
TEMPERATURES
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 6

7
Convection Bake
(on select models)
2
5
13
Place oven rack on HIGH RACK
POSITION or LOW RACK POSITION
(depending on food to be
cooked). LOW RACK POSITION
shown.
Turn Temperature Dial to desired
temperature. Turn Function Dial to CONVECTION.
NOTE: Convection available
on select models only.
TIPS FOR USING
CONVECTION BAKE
NOTE: Convection Bake forces
more air to circulate in the oven,
so food will cook faster than the
conventional Bake setting.
• Ovens with convection mode:
When baking pizza, use convec-
tion setting and reduce cooking
time by 25%.
• Bake at the same oven temper-
ature but for a shorter period
of time.
OR
• Bake for the same length of
time as the conventional Bake
setting, but reduce the temper-
ature by about 25 degrees.
OR
• Bake for a slightly shorter period
of time AND at a reduced
temperature.
4
Rotate Timer past 10 and then back
to “dark toast” to preheat oven
for 5 minutes before beginning to
bake.
After oven is preheated, set Timer
to desired time by rotating Timer
past 10 and then to desired baking
time or rotate Timer to STAY ON.
Fire Hazard.
• If contents ignite, do not open
oven door. Unplug oven and
allow contents to stop burning
and cool before opening door.
• Do not use oven cooking bags.
• Always allow at least 1 inch
between food and heating element.
• Always unplug toaster oven when
not in use.
wWARNING
Turn foods halfway through
cooking time.
Visit foodsafety.gov for more
safe cooking temperature
information.
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 7

8
Fire Hazard.
• If contents ignite, do not open oven door. Unplug
oven and allow contents to stop burning and cool
before opening door.
• Do not leave oven unattended during operation.
• Keep 1 inch between food and heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.
• Follow food manufacturer’s instructions.
wWARNING
How to Broil
2
5
13
Place oven rack in oven. HIGH RACK
POSITION is for faster broiling times.
LOW RACK POSITION is for foods
needing longer broiling times, like
chicken breasts. Place food on broil
rack (optional accessory on select
models) or directly onto baking pan.
Place in oven. DO NOT PREHEAT OVEN.
Turn Temperature Dial to
BROIL/TOAST.Turn Function Dial to BROIL.
NOTE: Convection available on
select models only.
4
Rotate Timer past 10 and then to
the desired broiling time or rotate
Timer to STAY ON. Turn foods
when browned or halfway
through cooking time.
APPROX. BROIL TIMES
25 minutes
30 minutes
35 minutes
40 minutes
Turn foods halfway
through cooking time.
Visit foodsafety.gov
for more safe cooking
temperature information.
F
165°
140° rare
160° med
170° well
C
73°
60°
71°
77°
FOOD
1/4-lb. Hamburger
Steak – 1" thick
INTERNAL
TEMPERATURES
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 8

9
Cleaning
Your toaster oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.
14
23
Electrical Shock Hazard.
Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.
wWARNING
Wipe outside of oven with a damp
cloth. Do not use abrasive
cleansers or metal scouring pads.
5
To clean inside of oven, wipe oven
walls, bottom of oven, and glass
door with a damp, soapy cloth.
Repeat with a damp, clean cloth.
For stubborn stains, use a plastic
scouring pad.
Visit www.hamiltonbeach.com for our
complete line of products and Use and Care
Guides – as well as delicious
recipes, tips, and to register
your product online!
NOTE: Broil rack is an optional
accessory on select models.
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 9

10
Troubleshooting
PROBLEM
Oven will not heat.
Moisture forms on
inside of oven door
when toasting.
An odor and smoke
come from oven.
Oven will not toast.
Some foods burn
and some are not
done.
PROBABLE CAUSE
• Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to
350°F (180°C). Turn Function Dial to BAKE; then turn Timer to STAY ON.
• This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than
from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
•Smoke and odor are normal during first use of most heating appliances. These will not be present after
initial heating period.
•Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to TOAST/BROIL.
Turn Function Dial to TOAST; then rotate Timer past 10 and then back to desired toast color.
•Adjust oven rack position to center food in oven.
• Adjust oven temperature or cooking time for best results with your recipes.
840192301 ENv04.qxd:Layout 1 7/1/10 6:50 PM Page 10
