Hamilton/Buhl MV-9700 User manual

MV9700
Portable DVD with USB/SD/MMC
INSTRUCTION MANUAL

Componentsormanufacturingprocessmaybesubject
tochangewithinthespecificationforimprovingpurpose.
Thank you for buying this product.

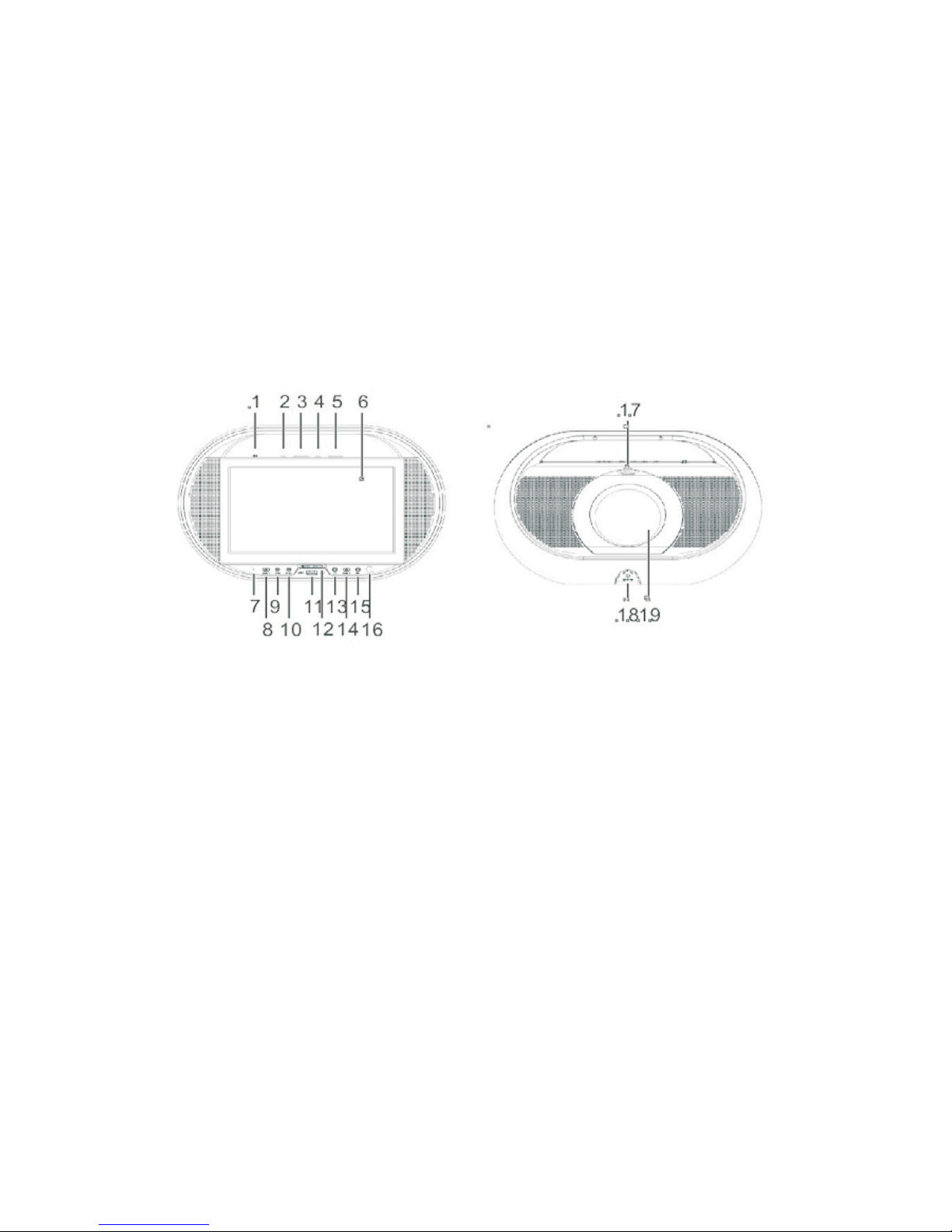

1 Head unit
1) ON/OFF: Turns on/off DVDplayer .
2) MODE: Press to switch between the following mode.
3) VOLUME: Increase or decrease the volume.
4) PLAY / PAUSE: Press to switch sequentially between playback and pause.
5) PREVIOUS : Press to return to the previous tracker (chapter).
NEXT : Press to go to the next tracker (chapter).
6) LCD Display
7) Power LED
8) GAME 1: Game 1 jack.
9) AV IN: Audio/video input jack.
10) AV OUT : Audio/video output jack.
11) USB: USB jack.
12) SD/MMC: SD/MMC jack.
13) PHONE: Headphone jack.
14) GAME 2: Game 2 jack.
15) IR
16) ANT :* Ant jack*.
17) OPEN: Opens/closes the disc cover .
18) DC IN: Power supply socket, DC 12 V .

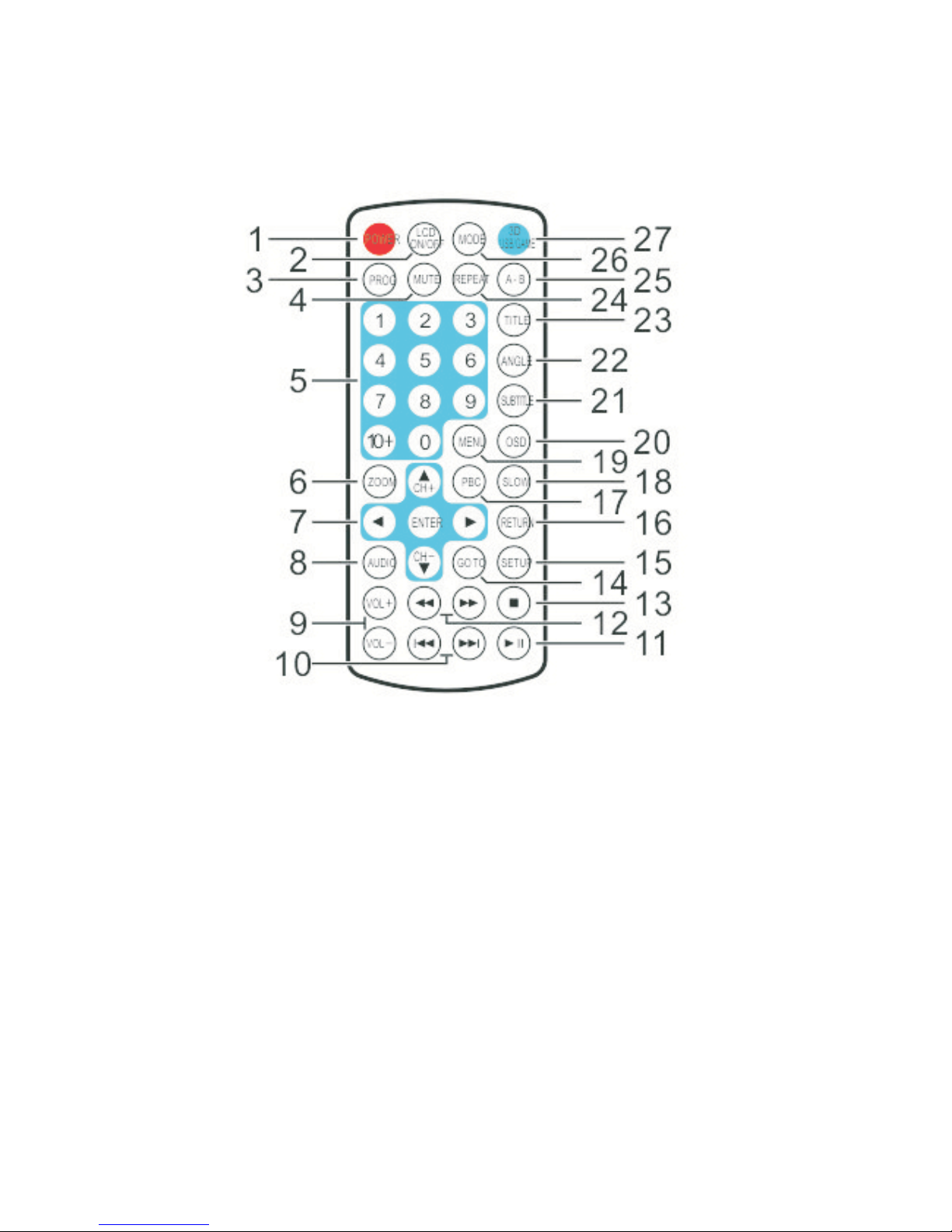

2.Remote control
1) POWER : Power on or power off.
2) LCD ON/OFF : Turns on/off LCD monitor .
3) PROG
4) MUTE : Switch between mute on or mute off.
5) 0-10 buttons : Press to directly select the desired track, preset tuning or disc.
6)ZOOM: 1/4,1/3,1/2, 2,3,4
7) Direction & Enter : Navigates menus.
8) AUDIO : Press to change the audio language during DVD playback.
9) VOLUME : Press to increase or decrease the volume.
10) PREVIOUS : Press to return to the previous tr acker (chapter).
NEXT : Press to go to the next tracker (chapter).
11) PLAY / PAUSE : Press to switch sequentially between playback and pause.
12) REVERSE : Press to perform fast reverse..
FORWARD : Press to perform fast forward.
13) STOP : Press to stop playback.
15)SETUP: For DVD,enters DVD menu
16) RETURN : Press to display the PBC menu during PBC playback..

17) PBC : During Playing SVCD,VCD 2.0 with PBC function .you can enjoy a simple PBC
interactive function.
18) SLOW : Each time you press, it changes the speed in four steps in the following
order: 1/2--1/4--1/8--1/16.
19) MENU : Enter the menu display
20) OSD : Show the title and chapter currently playing.
Show the elapsed playing time of the current chapter .
21) SUBTITLE : Press to change the subtitle language during DVD playback.
Press to copy the music from CD to USB flash disk.
22) ANGLE : Select DVD camera angle.
23) TITLE : Show the title currently playing.
24) REPEAT :
There are three repeat play ranges for the DVD playback: all, chapter and title .
For TV , press to return to the previous display.
25) A-B button
26) MODE : Press to switch between the following mode.
27) USB/GAME : Press to switch between DVD, USB and SD card.
3 Source
DVD USB1
Media SD

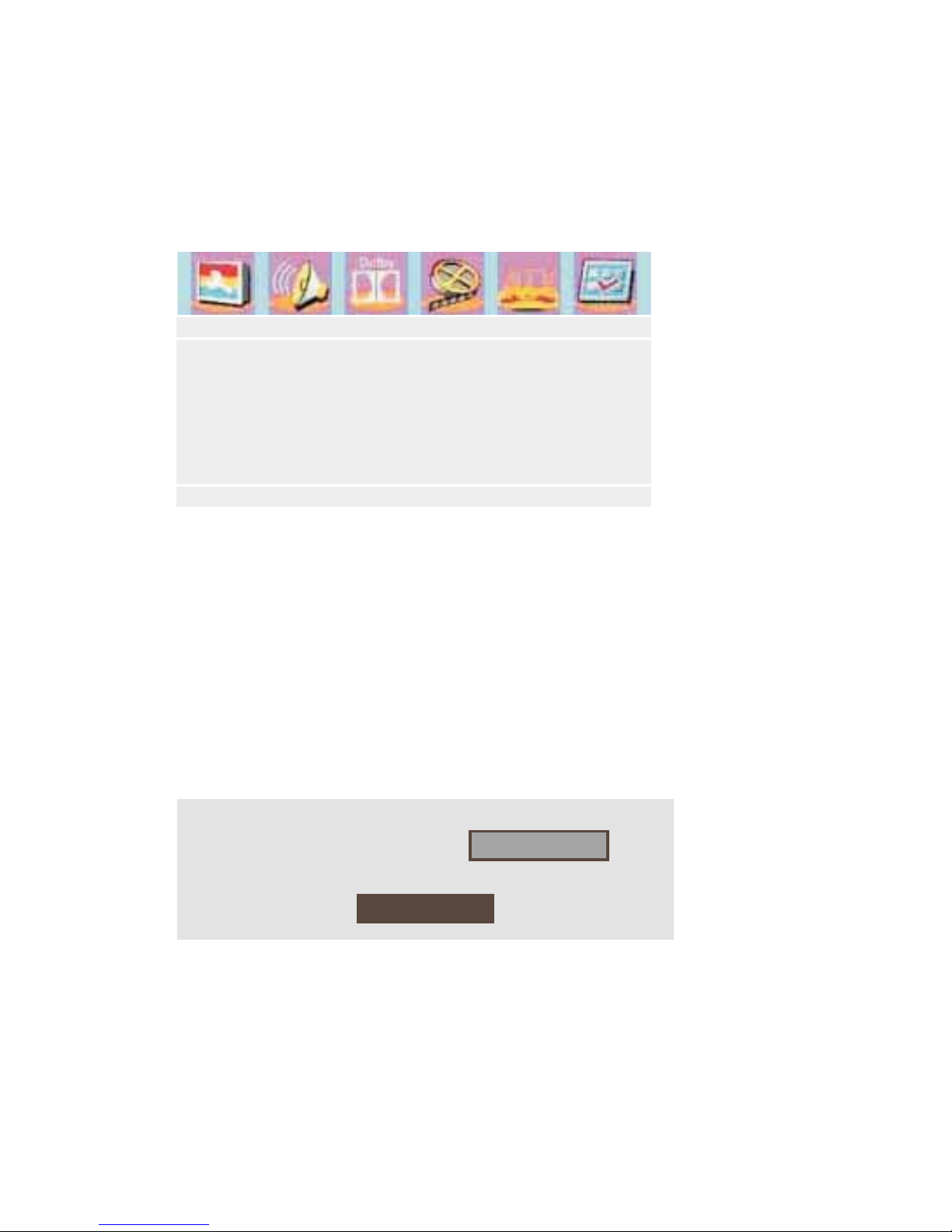

4.1 General Setup Page
Press SETUP button to General Setup Page when dvd is playing.
TV Display
For TV display mode, you can choose Normal / Ps, Norma l / Lb or Wide mode.
Angle Mark
Select on or off.
Each time you press the angle button on the remote control it switch between angles
Press USB/GAME button to switch between the following sources:DVD--USB--SD

General Set up Page
Go to general set up page
TV Di splay
Angl e Mark
Osd Lang
Capti ons
Screen Saver
Last Memory
Ps
Off
Eng
On
On
On
OSD menu languages
For OSD menu languages, you can choose English, Chinese, French, German, Spanish,
Italian, Portuguese or Russian.
Captions
Select on or off.
Screen Saver
Select on or off.
Last Memory
Select the last memory state on or off.
4.2 Audio Setup Page
Speaker Setup Page
Set downmi x mode
Downmi x Str Lt / Rt
Stereo
VSurr
Speaker Setup
Downmix
For downmix, you can choose Lt / Rt, Stereo or V Surr mode.

Equal i zer Page
Set equal i zer type
Eq Type None None
Rock
Pop
Li ve
Dance
Techno
Cl assi c
Soft
Equalizer
Eq Type
For equalizer type, you can choose rock, pop, live, dance, techno, classic or soft mode.
4.3 Dolby Digital Setup
Dolby DigitalSetup
Dual mono (1+ 1) setup
Dual Mono
Dynami c
Stereo
L-Mono
R-Mono
Mix-Mono
Dual Mono
For dual mono, you can choose Stereo, L -Mono, R-Mono or Mix-Mono mode.

Dolby DigitalSetup
Set drc to ful l
Dual Mono
Dynami c
FULL
3/4
1/2
1/4
OFF
Dynamic
There are eight levels of dynamic for choose.
FULL--7 / 8--3 / 4--1 / 2-- 3 / 8--1 / 4 -- 1 / 8 -- OFF
4.4 Panel Quality Setup
Panel Q ual i t y Set up
Sharpness
Sharpness
Bri ght ness
Contrast
Hue
Saturation
Mid
00
00
00
00
Hi gh
Medi um
Low
Sharpness : You can choose high, medium or low mode.
Brightness : Adjust screen brightness from -16 to +16.
Contrast : Adjust screen contrast from-16 to +16
Hue : Adjust screen hue from-9 to +9
Saturation : Adjust screen saturation from-9 to +9

4.5 Preference Page
Press SETUP button to Preference Page when disc cover is open.
Preference Page
G o t o pref erence page
Tv Type
Audi o
Subtitle
Disc Menu
Parent al
Password
Defaul t
PA L
Eng
Eng
Eng
TV Type : Select TV standard.
PAL,AUTO,NTSC.
Audio : Select audio language.
Subtitle : Select subtitle language.
Disc Menu : Select menu language.
Parental : Select parental control.
1 Kid Saf đ2 G đ3 Pg đ4 Pg_13 đ5 Pgr đ6 R đ7 Nc17 đ8 Adult .
Password
Password Mode : Select on or off.
Input the password and press OK button if you want to change it.
The default password is 0000.
Password
OK
Password
Input the old password and new password, then press OK button if you want to change the
password.

New Password
Old Password
Confirm
OK
Default
Reset the system and load the factory setting.
5 Game
1) Press USB/GAME button on remote controller to switch game mode.
2) Insert the game controller into the plugs.
6 CD RIP
Press SUBTITLE button on remote controller to switch CD RIP mode.
CDRIP
OPTIONS TRACK
SUMMARY
Speed Normal
Bitrate 128kbps
Create ID3 Yes
Device USB1
track 01 03:40
track 02 04:19
track 03 03:44
track 04 05:13
track 05 03:59
track 06 03:51
track 07 04:20
Selected Track 1
Selected Time 03:40
Start Exit SelectAll SelectNone

7 Product information
Powersupply
Powerconsumption
Operatingtemperaturerange
Laserwavelength
Videooutput
Format
Outputlevel
Load im pedance
Audiolineout
Audioout(analogaudio)
Load im pedance
Audiodistortion+noise
Frequency response
Signal/noiseratio
Channelseparation
Dynamic range
Input:100-240V~50/60Hz
Output:DC12V 1.5A
<15W
0-45 C
650 nm
PAL,NTSC,AUTO
1Vp - p
75Ω
Outputlevel:2V
20%
10%
-80 (1KHz)
20Hz-20KHz 1dB
80 dB
80 dB
80 dB
10KΩ
