Hammerhead 900SX Specification sheet
2016-08
This manual was expressly conceived to allow you to fully appreciate the technical advantages and
the stylistic research of your new machine.
The following pages contain indications concerning its correct use and maintenance, as well as
suggestions and warnings for its practical and safe use.
HAMMERHEAD
2016-08
CHAPTER
INTRODUCTION - WARNINGS
(Introduction - General warnings - Machine delivery - Expected use of the machine - Unex-
pected use of the machine - Use restrictions - Checks - Safety rules - Maintenance instruc-
tions - Fire standards - Scrapping the machine)
CHAPTER
SAFETY DEVICES - HANDLING
(Warning plates - Safety devices - Residual risk areas - Handling and transport)
CHAPTER
TECHNICAL DATA - IDENTIFICATION
(Technical data - Machine noise emission - Information about vibrations - Identification of
the machine)
CHAPTER
KNOWLEDGE - USE
(General views - Instruments and controls - Preliminary checks - Machine start - Cleaning
work - Battery charging OPT)
CHAPTER
MAINTENANCE
(Maintenance operations - Daily maintenance - Weekly maintenance - Periodical mainte-
nance - Extraordinary maintenance)
CHAPTERS INDEX
12016-08
22016-08
32016-08
42016-08
52016-08
12016-08
2016-08 1/ 12
--1
--1
1
1.1 - INTRODUCTION.......................................................................................3
1.1.a - Purpose of the manual ..................................................................3
1.1.b - Reading the manual ......................................................................3
1.1.c - Legend of the symbols ..................................................................3
1.1.d - Terminology used in the manual....................................................4
1.2 - GENERAL WARNINGS ............................................................................ 5
1.2.a - Operators’instructions....................................................................5
1.2.b - Operator’s position ........................................................................ 5
1.2.c - Manufacturer’s responsibility......................................................... 5
1.2.d - Servicing .......................................................................................5
1.2.e - Spare parts....................................................................................6
1.3 - MACHINE DELIVERY...............................................................................6
1.4 - EXPECTED USE OF THE MACHINE.......................................................6
1.5 - UNEXPECTED USE OF THE MACHINE .................................................6
1.5.a - Areas with explosion hazard..........................................................7
1.6 - USE RESTRICTIONS ...............................................................................7
1.7 - CHECKS ...................................................................................................7
INTRODUCTION - WARNINGS
INDEX
CHAPTER
2016-082/ 12
--1
--1
1.8 - SAFETY RULES .......................................................................................8
1.8.a - Authorized people..........................................................................8
1.8.b - Accident prevention clothing and personal protective equipment .8
1.8.c - General warnings ..........................................................................8
1.8.d - Before starting the machine...........................................................9
1.8.e - During use .....................................................................................9
1.8.f - Machine stop ...............................................................................10
1.8.g - Safety instructions for supplies....................................................10
1.9 - MAINTENANCE INSTRUCTIONS ........................................................10
1.10 - FIRE STANDARDS ............................................................................... 11
1.10.a - Machine fire ............................................................................... 11
1.11 - SCRAPPING THE MACHINE ............................................................... 11
INDICE - INDEX
2016-08 3/ 12
--1
--1
1.1 - INTRODUCTION
This manual has been prepared by the manufacturer and constitutes an integral part of the
vehicle; it must therefore be kept with care and in a safe place easily accessible to all users
(operators and service personnel) for the vehicle’s entire life time up to its demolition.
If the vehicle should be sold, make sure to give this manual, as well as all the enclosed
technical documents, to the new owner.
Copies of this manual and of the documents accompanying the vehicle may be requested
to the manufacturer by specifying the type of vehicle and its serial number.
1.1.a - PURPOSE OF THE MANUAL
The purpose of this manual is to provide all the instructions necessary for the vehicle’s op-
eration, use and maintenance.
By carefully reading the instructions and by scrupulously observing the safety rules contained
herein it is possible to obtain the best possible results in terms of performance, safety, ef-
ficiency, operational management and duration of the vehicle.
Non-observance of such instructions could cause damage or harm to the vehicle, to people
and to the environment which cannot, in any case, be blamed on the manufacturer.
The indications and instructions of this manual are not meant to substitute, integrate or modify
any REGULATION, DIRECTIVE, DECREE or LAW of a general or a specific nature in force
in the country where the machine is to operate regarding safety, use and maintenance of
mechanical, electric, chemical, oil-pressure, pneumatic or other types of devices.
1.1.b - READING THE MANUAL
The manual is subdivided in chapters according to a logical sequence of knowledge and
use of the machine.
To easily search for the topics of interest, first look at the CHAPTER SUMMARY at the
beginning of this manual and then look for the specific information in the summary of the
identified chapter.
1.1.c - LEGEND OF THE SYMBOLS
To emphasize information and procedures regarding safety of use, maintenance, etc... the
following symbols are used throughout the manual:
DANGER:
Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
2016-084/ 12
--1
--1
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
CAUTION:
Used without the safety alert symbol indicates potentially hazardous situation, which,
if not avoided, may result in property damage.
NOTICE:
Indicates important information relevant to the sweeper, the sweeper’s use or to sec-
tions of this manual to which particular attention must be paid.
REMEMBER:
Descriptions preceded by this symbol contain information, or procedures recommen-
ded by Dulevo for optimum use of the sweeper.
1.1.d - TERMINOLOGY USED IN THE MANUAL
The following terminology has been used in this manual:
The term Machine is used instead of the commercial name to which this manual refers.
The terms front, back, right, left, lower, upper refer to the machine as seen by the operator
sitting on the driver’s seat.
The term OPT (optional) indicates the accessories that may be applied on request and which
are therefore not always present on the machine.
2016-08 5/ 12
--1
--1
1.2 - GENERAL WARNINGS
1.2.a - OPERATORS’INSTRUCTIONS
Before operating, using or servicing the vehicle, its operators and/or users must be knowledge-
able about the operating procedures, directions and safety standards listed in the present
manual and in the other enclosed documents relative to engine, batteries, etc...
Furthermore, they must have been practically trained to operate the vehicle.
1.2.b - OPERATOR’S POSITION
When working, the operator leads the machine manually.
1.2.c - MANUFACTURER’S RESPONSIBILITY
The manufacturer declines any responsibility arising from breaks, accidents, etc... due to the
lack of knowledge (or to the lack of application)of the warnings and instructions contained
in this manual, or for any misuse, abuse or for any change, variation and/or installation of
accessories that has not been previously authorized in writing by the manufacturer.
In particular, the manufacturer declines any responsibility for any damage caused by:
- Acts of God
- Wrong maneuvers
- Lack of maintenance
The manufacturer cannot be held responsible for damages of any type (including but not
limited to property damage, damage to the machine, personal injury or death) caused by
the operations performed on or modifications to the machine (servicing, repair, etc...) if they
were not carried out by AUTHORIZED PERSONNEL by the manufacturer.
1.2.d - SERVICING
The manufacturer offers its customer its own Technical Assistance Service to solve any
problem concerning machine use and maintenance. Any request for technical assistance
must be made after a careful analysis of the problems and their causes.
In case of a written request, please specify the following:
- Machine model
- Serial number
- Detail of the problems encountered
- Inspections that have been performed
- Adjustments made and their outcome
- Any other useful information
2016-086/ 12
--1
--1
1.2.e - SPARE PARTS
Exclusively use ORIGINAL SPARE PARTS supplied by the manufacturer.
The use of unoriginal spare parts voids the warranty conditions and makes the user respon-
sible for any incident due to the inappropriateness of the unoriginal components.
1.3 - MACHINE DELIVERY
The machine is inspected and tested by the manufacturer before it leaves the factory.
The sales network must run further inspections before delivery.
When the machine is delivered, check that it is complete with all the requested accessories
and the tool kit, and that it is accompanied by the following documents:
- Machine use and maintenance manual;
- Spare parts manual;
- Warranty;
- Other documents related to electrical motor, batteries, accessories, wiring diagram, etc...
1.4 - EXPECTED USE OF THE MACHINE
The machine may only be used for industrial cleaning operations and to collect dust, debris,
paper, leaves, etc…
WARNING:
Any other use makes the user the only one responsible for damages to people and/
or things and voids all warranty conditions.
1.5 - UNEXPECTED USE OF THE MACHINE
WARNING:
Sweeping and/or sucking any type of material set on fire, incandescent or having a
temperature higher than 50°C (122°F) is forbidden.
Do not sweep and/or suck any type of inflammable, explosive, toxic, carcinogenic
material/waste (solid, liquid, gaseous, powders) (gasoline, fuel oil, acids, solvents,
thinners for varnishes, acetone, even if diluted) and/or other substances that are
harmful for people’s health.
2016-08 7/ 12
--1
--1

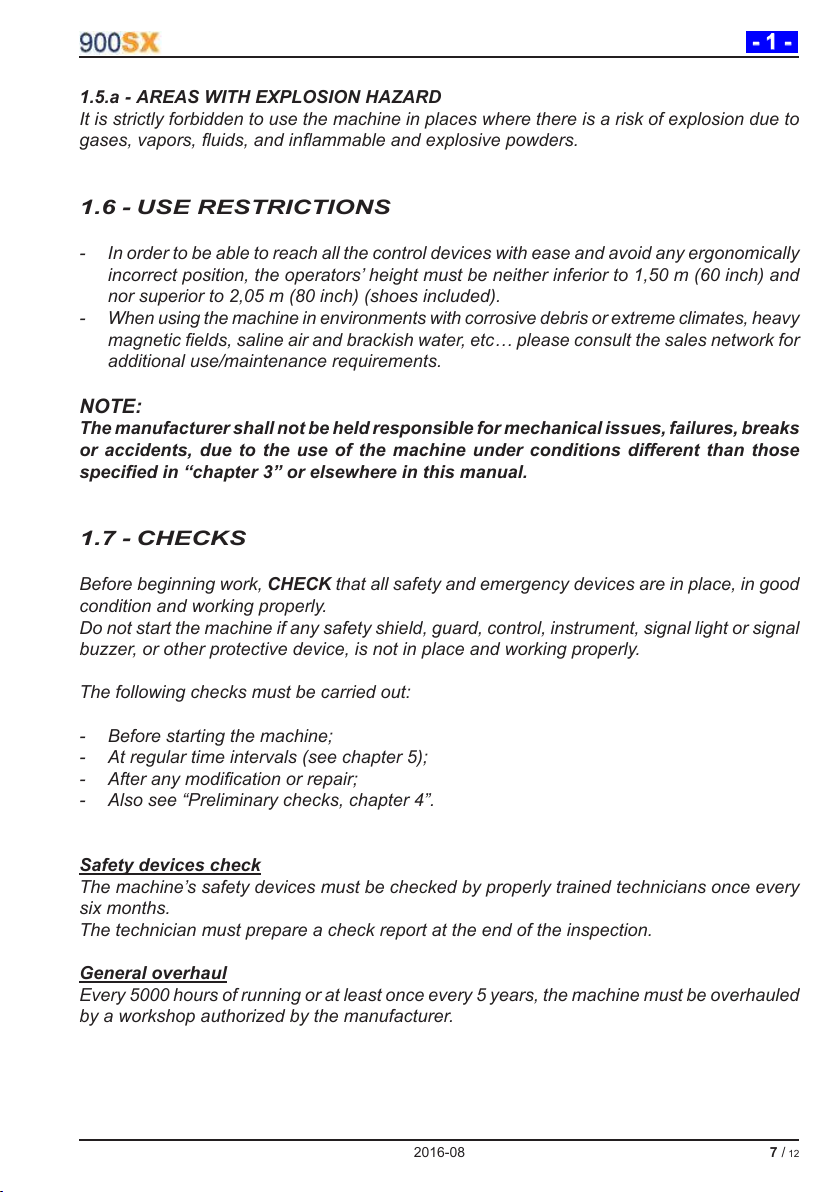

1.5.a - AREAS WITH EXPLOSION HAZARD
It is strictly forbidden to use the machine in places where there is a risk of explosion due to
gases, vapors, fluids, and inflammable and explosive powders.
1.6 - USE RESTRICTIONS
- In order to be able to reach all the control devices with ease and avoid any ergonomically
incorrect position, the operators’ height must be neither inferior to 1,50 m (60 inch) and
nor superior to 2,05 m (80 inch) (shoes included).
- When using the machine in environments with corrosive debris or extreme climates, heavy
magnetic fields, saline air and brackish water, etc… please consult the sales network for
additional use/maintenance requirements.
NOTE:
The manufacturer shall not be held responsible for mechanical issues, failures, breaks
or accidents, due to the use of the machine under conditions different than those
specified in “chapter 3” or elsewhere in this manual.
1.7 - CHECKS
Before beginning work, CHECK that all safety and emergency devices are in place, in good
condition and working properly.
Do not start the machine if any safety shield, guard, control, instrument, signal light or signal
buzzer, or other protective device, is not in place and working properly.
The following checks must be carried out:
- Before starting the machine;
- At regular time intervals (see chapter 5);
- After any modification or repair;
-Also see “Preliminary checks, chapter 4”.
Safety devices check
The machine’s safety devices must be checked by properly trained technicians once every
six months.
The technician must prepare a check report at the end of the inspection.
General overhaul
Every 5000 hours of running or at least once every 5 years, the machine must be overhauled
by a workshop authorized by the manufacturer.
2016-088/ 12
--1
--1
1.8 - SAFETY RULES
WARNING:
Please comply with the following instructions:
1.8.a - AUTHORIZED PEOPLE
- Only professional and physically fit operators are allowed to use this machine.
People with reduced physical, sensorial or mental capacities like physically han-
dicapped people suffering impairment of sight, hearing or limbs are not allowed
to use this machine.
- Only the operators having been trained during an appropriate period of time, both
theoretically and practically, on how to use the vehicle are allowed to use, main-
tain and repair the vehicle. The operators will be authorized to operate the vehicle
(users) or maintain it (maintenance men) only after having been properly trained.
- These operators must be physically and intellectually fit. Furthermore, they must
not be under the effects of alcohol, medicaments and/or drugs.
- Do not allow unauthorized people to get close to the machine.
1.8.b - ACCIDENT PREVENTION CLOTHING AND PERSONAL PROTECTIVE EQUIPMENT
- Do not wear fluttering clothing and/or objects which might get caught (rings, brace-
lets, necklaces, etc...), but always do wear accident prevention clothing according
to the regulations in force.
- People with long hair must gather their hair before starting to use the machine.
- Always wear safety work shoes with anti-slip soles. If the environmental and ope-
ration conditions require it, also wear gloves, masks, glasses and hearing protec-
tion devices.
- Wear additional PPE as needed or when required by your employer, local codes,
or the nature of the work.
1.8.c - GENERAL WARNINGS
- Never modify any component of the machine, or the settings or calibrations set by
the manufacturer.
- Do not cause short circuits.
- Do not invert polarity of battery pole connections.
- Do not rest tools or metal objects on the batteries; danger of short-circuits.
2016-08 9/ 12
--1
--1

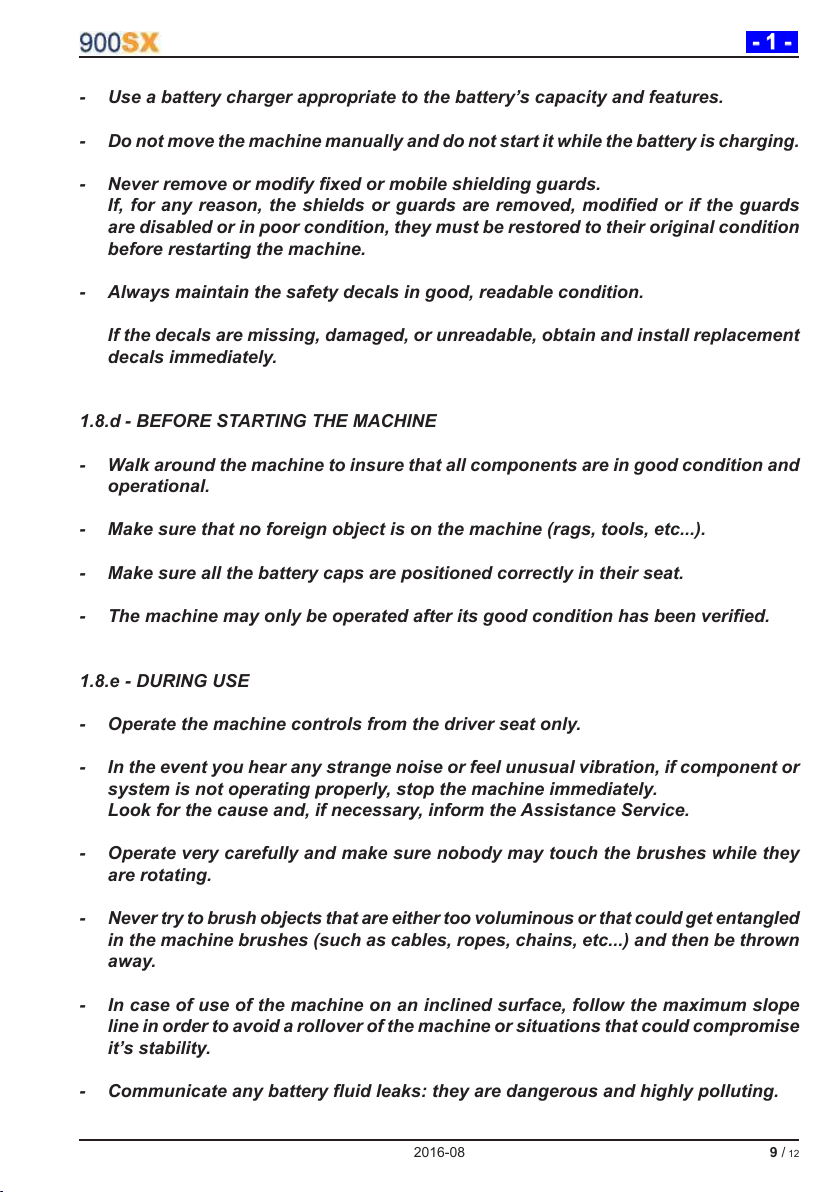

- Use a battery charger appropriate to the battery’s capacity and features.
- Do not move the machine manually and do not start it while the battery is charging.
- Never remove or modify fixed or mobile shielding guards.
If, for any reason, the shields or guards are removed, modified or if the guards
are disabled or in poor condition, they must be restored to their original condition
before restarting the machine.
- Always maintain the safety decals in good, readable condition.
If the decals are missing, damaged, or unreadable, obtain and install replacement
decals immediately.
1.8.d - BEFORE STARTING THE MACHINE
- Walk around the machine to insure that all components are in good condition and
operational.
- Make sure that no foreign object is on the machine (rags, tools, etc...).
- Make sure all the battery caps are positioned correctly in their seat.
- The machine may only be operated after its good condition has been verified.
1.8.e - DURING USE
- Operate the machine controls from the driver seat only.
- In the event you hear any strange noise or feel unusual vibration, if component or
system is not operating properly, stop the machine immediately.
Look for the cause and, if necessary, inform the Assistance Service.
- Operate very carefully and make sure nobody may touch the brushes while they
are rotating.
- Never try to brush objects that are either too voluminous or that could get entangled
in the machine brushes (such as cables, ropes, chains, etc...) and then be thrown
away.
- In case of use of the machine on an inclined surface, follow the maximum slope
line in order to avoid a rollover of the machine or situations that could compromise
it’s stability.
- Communicate any battery fluid leaks: they are dangerous and highly polluting.
2016-0810 / 12
--1
--1

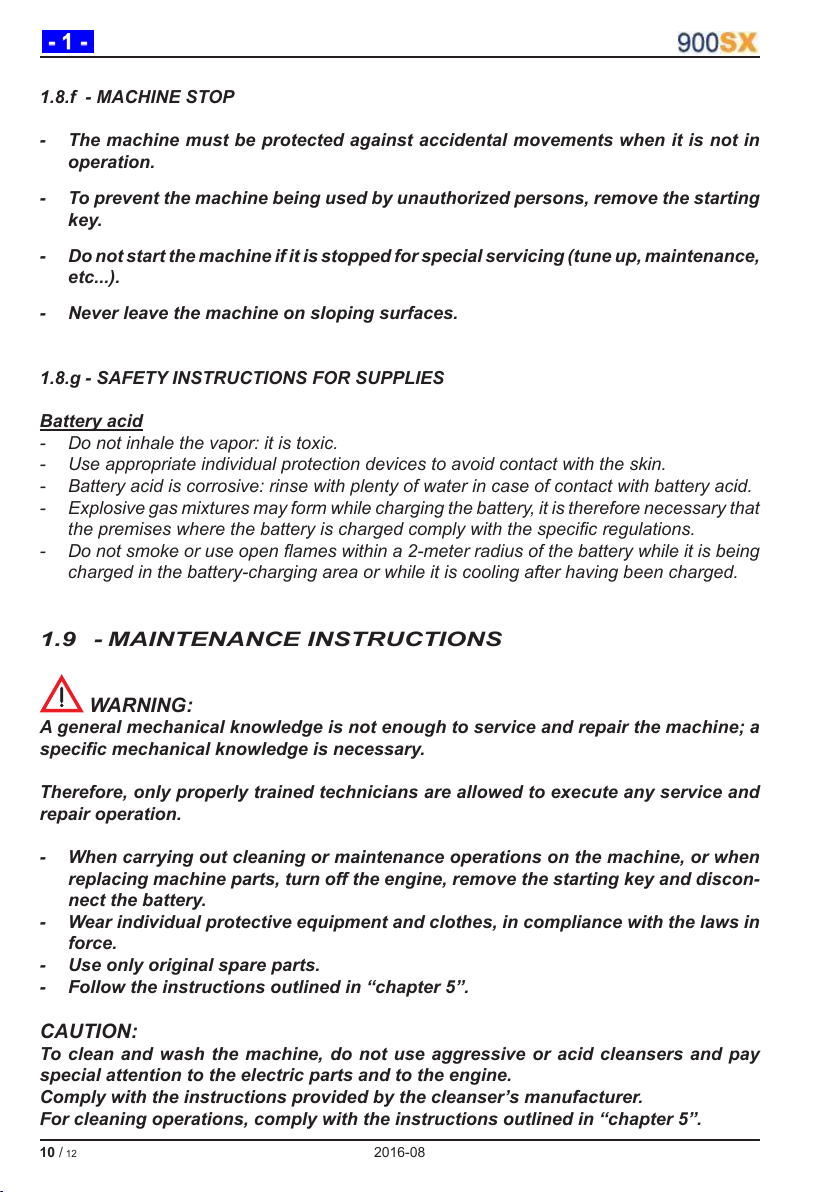

1.8.f - MACHINE STOP
- The machine must be protected against accidental movements when it is not in
operation.
- To prevent the machine being used by unauthorized persons, remove the starting
key.
- Do not start the machine if it is stopped for special servicing (tune up, maintenance,
etc...).
- Never leave the machine on sloping surfaces.
1.8.g - SAFETY INSTRUCTIONS FOR SUPPLIES
Battery acid
- Do not inhale the vapor: it is toxic.
- Use appropriate individual protection devices to avoid contact with the skin.
- Battery acid is corrosive: rinse with plenty of water in case of contact with battery acid.
- Explosive gas mixtures may form while charging the battery, it is therefore necessary that
the premises where the battery is charged comply with the specific regulations.
- Do not smoke or use open flames within a 2-meter radius of the battery while it is being
charged in the battery-charging area or while it is cooling after having been charged.
1.9 - MAINTENANCE INSTRUCTIONS
WARNING:
A general mechanical knowledge is not enough to service and repair the machine; a
specific mechanical knowledge is necessary.
Therefore, only properly trained technicians are allowed to execute any service and
repair operation.
- When carrying out cleaning or maintenance operations on the machine, or when
replacing machine parts, turn off the engine, remove the starting key and discon-
nect the battery.
- Wear individual protective equipment and clothes, in compliance with the laws in
force.
- Use only original spare parts.
- Follow the instructions outlined in “chapter 5”.
CAUTION:
To clean and wash the machine, do not use aggressive or acid cleansers and pay
special attention to the electric parts and to the engine.
Comply with the instructions provided by the cleanser’s manufacturer.
For cleaning operations, comply with the instructions outlined in “chapter 5”.
2016-08 11 / 12
--1
--1
1.10 - FIRE STANDARDS
WARNING:
An appropriate fire extinguisher must be available close to the machine.
1.10.a - MACHINE FIRE
- Stop the engine.
- Keep strangers away.
- Call the personnel in charge of fire prevention and, if necessary, the Fire Department.
1.11 - SCRAPPING THE MACHINE
The machine is composed of differents parts. Dismantle it and prepare the wastes for dispo-
sal in accordance to their type.
WARNING:
Machine disassembly must be carried out by specialized technicians (mechanics,
electricians, etc...).
For the disposal of noxious substances (such as batteries, etc...), please comply with all
applicable rules and regulations.
NOTICE:
Any irregularity committed by the customer before, during or after scrapping and dis-
posal of the machine components, or in the interpretation and application of current
regulations, is his own exclusive responsibility.
Adequate waste disposal of equipment no longer being used and the consequent recycling,
treatment and environment compatible disposal avoids possible negative effects on the
environment and on health, and favors reutilization and/or recycling of the materials making
up the equipment.
Abusive product disposal by the user results in the financial penalties contemplated by
current regulations.
2016-0812 / 12
--1
--1
2016-08 1/ 6
- 2 -
2
2.1 - WARNING PLATES ..................................................................................2
2.2 - SAFETY DEVICES....................................................................................4
2.3 - RESIDUAL RISK AREAS .........................................................................5
2.4 - HANDLING AND TRANSPORT ...............................................................5
2.4.a - Lifting and transport.......................................................................5
2.4.b - Assembling the handlebar............................................................. 6
2.4.c - Assembling the side brushes.........................................................6
SAFETY DEVICES - HANDLING
INDEX
CHAPTER
2016-082/ 6
- 2 -
2.1 - WARNING PLATES
1) General notices
Plate placed near the dashboard; it forbids the use of the machine by persons not autho-
rized to do so or not adequately trained in its proper operation or in the safety devices
and regulations.
The manufacturer declines any responsibility deriving from wrong operations and from
non-compliance with general work place safety rules.
2) Warning: It is forbidden to smoke or use open flames
Plate placed near the battery; it indicates that it is strictly forbidden to smoke or to use
open flames near the tank or battery, so as to avoid any explosion or fire hazard.
3) Warning: Keep the cover open while charging the battery
Plate placed near the battery; it indicates that the inspection cover must always be open
while charging the battery.
4) Danger: Risk of hands being dragged by moving parts
Plate placed near the dust suction turbine and driving belts; it indicates that the moving
parts are dangerous.
5) Warning: avoid contact with water
Plate placed in the engine compartment; it indicates to pay attention that the motor and
the electrical components are not in contact with water.
2016-08 3/ 6
- 2 -
12
4
3
5
2016-084/ 6
- 2 -
1
2
3

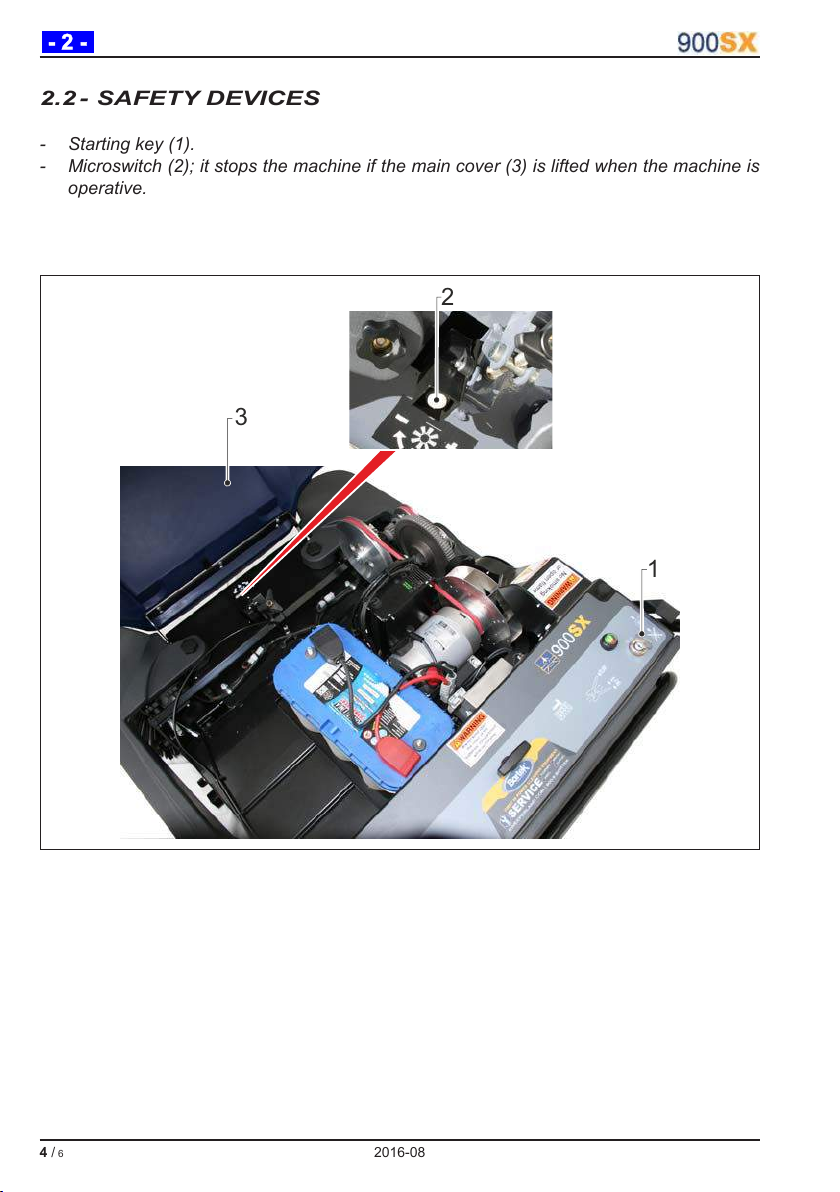

2.2 - SAFETY DEVICES
- Starting key (1).
- Microswitch (2); it stops the machine if the main cover (3) is lifted when the machine is
operative.
2016-08 5/ 6
- 2 -

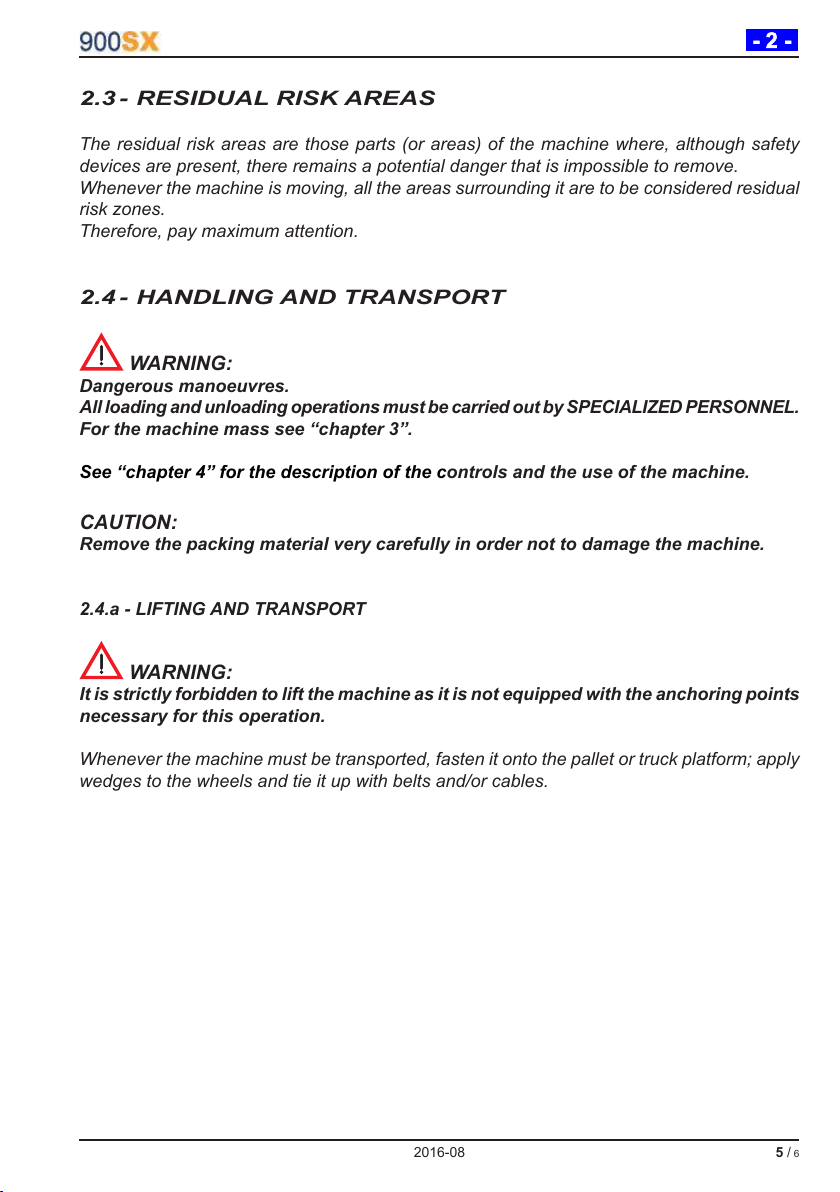

2.3 - RESIDUAL RISK AREAS
The residual risk areas are those parts (or areas) of the machine where, although safety
devices are present, there remains a potential danger that is impossible to remove.
Whenever the machine is moving, all the areas surrounding it are to be considered residual
risk zones.
Therefore, pay maximum attention.
2.4 - HANDLING AND TRANSPORT
WARNING:
Dangerous manoeuvres.
All loading and unloading operations must be carried out by SPECIALIZED PERSONNEL.
For the machine mass see “chapter 3”.
See “chapter 4” for the description of the controls and the use of the machine.
CAUTION:
Remove the packing material very carefully in order not to damage the machine.
2.4.a - LIFTING AND TRANSPORT
WARNING:
It is strictly forbidden to lift the machine as it is not equipped with the anchoring points
necessary for this operation.
Whenever the machine must be transported, fasten it onto the pallet or truck platform; apply
wedges to the wheels and tie it up with belts and/or cables.
Other manuals for 900SX
1
Table of contents
Other Hammerhead Floor Machine manuals
