H&S 24/26 User manual

Manufactured By
H&S MANUFACTURING CO.,INC.
P.O. BOX 768 [phone] FAX [phone]
MARSHFIELD, WISCONSIN 54449
HSMFG1216 Part #76938
Revision #01
StartingSerial#112030
24/26 CHASSIS24/26 CHASSIS
24/26 CHASSIS24/26 CHASSIS
24/26 CHASSIS
OPERAOPERA
OPERAOPERA
OPERATT
TT
TOR’S MANUOR’S MANU
OR’S MANUOR’S MANU
OR’S MANUALAL
ALAL
AL
WARNING
READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.

CONTENTS

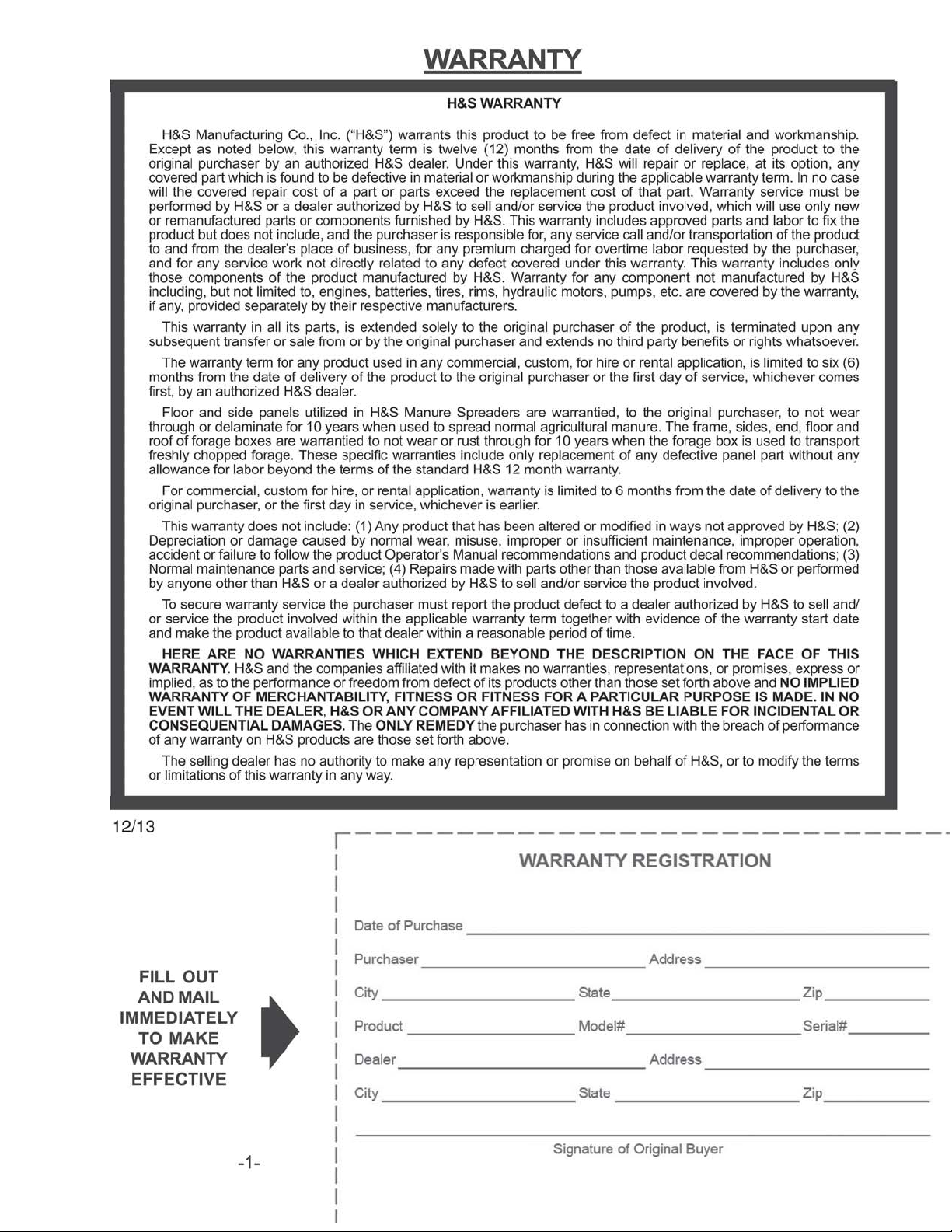

Warranty &WarrantyRegistrationCard. .. ..... .. .. .. .. .. .. .. .. .. .. .. ..... .. .. .. .. .....1-2

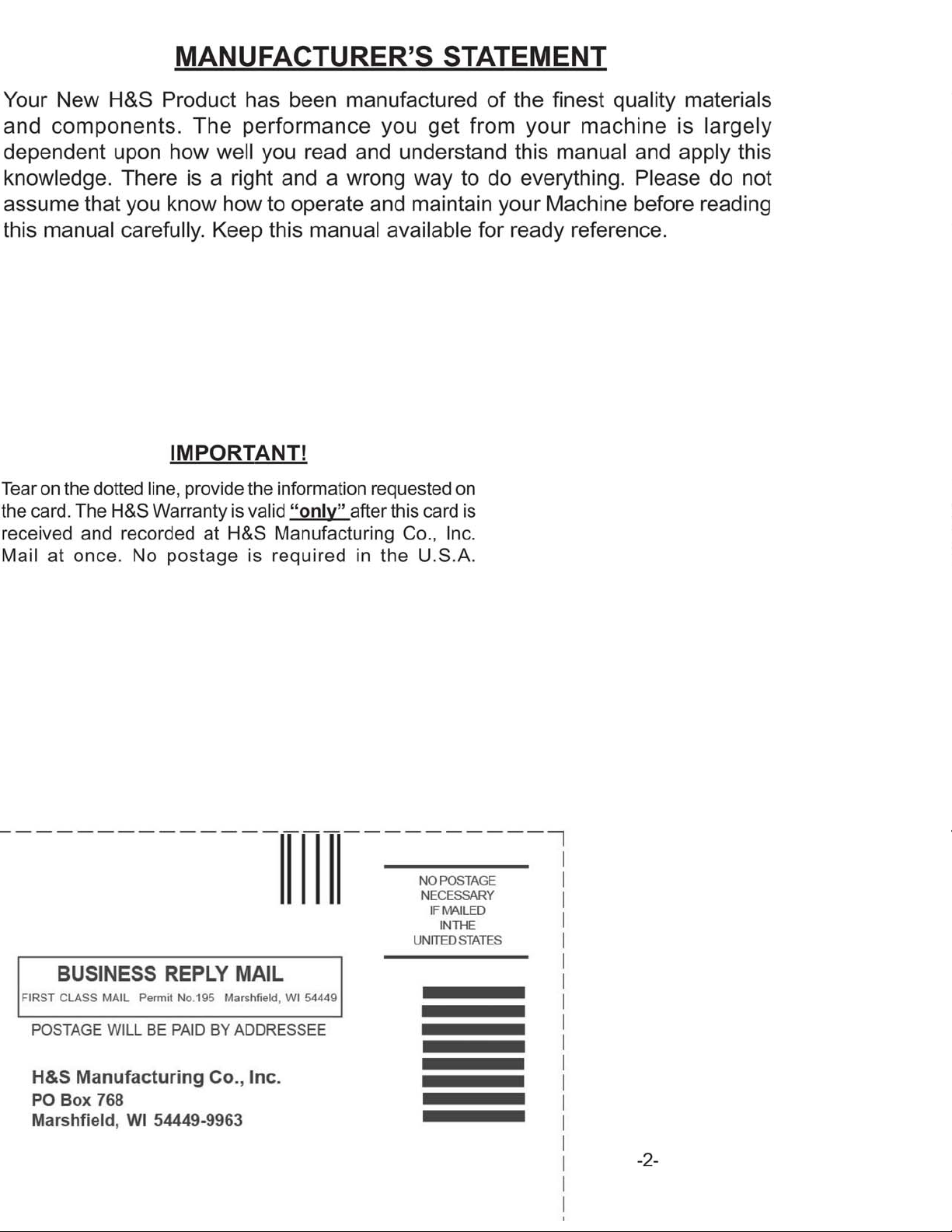

ManufacturersStatement. . .. .. ... .. .. ... .. .. . .. .. ... .. .. . .. .. ... .. .. . .. .. .... ... .. .. . 2
DealerPre-Delivery Checklist ..... .. .. .. .. .. .. .. .. ..... .. .. .. .. .. .. .. .. ..... .. .. .. .. .. 3
DealerDeliveryChecklist .. ... .. ... .. ... .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .5
BeAlert Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Explanation of Safety Signs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Instructions. . . .. . . . .. . . . .. . . . .. . . . . .. . . . .. . . . .. . . . .. . . . .. . . . .. . . . . .. . . . . .. . . . .. 9
MountAttachmentsSafely.............. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ... .. .. .. .10
SafetyDecals .. ....... .. .. .. .. .. .. .. .. .. .. .. .. ....... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .11
Warning -OwnerMust ReadandUnderstand.. ... ... ..... ... ..... ... ... ..... ... ... ..... .. 12
BoltTorque Chart.. . .. . .. ... ... .. . .. . .. . .. . .. . .. ... ... .. . .. . .. . .. . .. . .. ... .. . .. . .. . .13
Set-Up&Assembly. .. . .. . .. . .. . .. ... ... ... .. . .. . .. . . .. . .. . .. . .. ... ... ... .. ... ... ... 14
BoxMounting &AxleLocation .. .. ......... .. .. .. .. .. .. .. .. .. ....... .. .. .. .. .. .. .. .....15
Transporting.. .. .. .. ..... .. .. .. .. ..... .. .. .. .. ..... .. .. .. .. ..... .. .. .. .. ..... .. .. .. .. 16
Operation. ... .. .. .. .. ... .. .. .. .. ... .. .. .. ... .. .. .. .. ... .. .. .. .. ... .. .. .. .. .. ... .. .. 17
Adjustment.. .. .. .. .. .. .. ..... .. .. .. .. .. .. .. ....... .. .. .. .. .. .. .. ...... .. ..... .. .. .. .18
Service.. .. ......... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....... .. .. .. .. .. .. .. .. .. .. .. .. .. .19
Options. ... .. .. .. .. ..... .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. ..... .. .. .. ... .. .. .. .. .. ... 20
Lubrication Guide. . .. . . .. . . .. . . .. . . .. . . .. . . .. . . .. . . .. . . . .. . . .. . . .. . . .. . . .............21
Decal Location . . . . .. . . . . . . . .. . . . . . . . .. . . . . . . .. . . . . . . . .. . . . . . . .. . . . . . . . . .. . . . . . . . 22-23
ServiceNotes .. .. .. ..... .. .. .. ..... .. .. .. .. ..... .. .. .. .. ..... .. .. .. ..... .. .. .. ...... 24

Chassis was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
Chassis has been correctly assembled according to instructions in this manual.
Wheel nuts are tightly secured.
Tires are equally inflated to proper pressure.
All bolts and fasteners are tight.
All components are operating trouble free.
All grease fittings have been lubricated and wheel bearings properly packed and
adjusted. (See lubrication guide in this manual).
Hoses and fittings are properly attached and there are no visible leaks. (Brakes)
All decals are in place and legible.
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
H&S DEALER PRE-DELIVERYCHECK LIST
After the Chassis has been completely set-up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check off each item as you
have made the proper adjustments and found the item operating satisfactorily.
-3-
ModelNumber ___________________________________________________
SerialNumber___________________________________________________
DealerName________________________________________________________________
InspectionDate____________________________
SignatureofPre-DeliveryInspector_______________________________________________
(Remove Dealers File Copy At Perforation)

-4-
Intentionally Left Blank

Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.
DEALER DELIVERYCHECK LIST
This check list that follows is an important reminder of valuable information that should be
passed on to the customer at the time this Chassis is delivered.
Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the
Pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must excercise when operating
this unit.
Explain recommended loads for different types of materials.
Explain to customer that regular lubrication is required for proper operation and long life
of machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Operator’s Manual and make sure they read and understand all
operating and service instructions.
Have customer sign a completed “Warranty Registration,” and mail it promptly.
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
DateDelivered__________________________________
Dealer’sName________________________________________________________________
By__________________________________________________________________________
SignatureofOriginal Buyer ______________________________________________________
-5-

Intentionally Left Blank
-6-

BE
ALERT! YOUR SAFETY IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY
IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS
THE BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN
PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR
DAMAGE.
-7-
H & S MANUFACTURING CO. INC.
SAFETYINFORMATION

-8-
RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
Asignalword; DANGER, WARNING,or CAUTION -is used
with the safety-alert symbol. DANGER identifies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETYINFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 m.p.h.).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implements maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual and all safety signs on the machine. Follow
recommended safety precautions and safety operating practices.
Keep safety signs in good condition. Replace missing or damaged safety signs.
RUN-AWAY / BREAK AWAY
WARNING: TO PREVENT SERIOUS INJURY OR DEATH
Shift to lower gear before going down steep grades.
Keep towing vehicle in gear at all times.
Never exceed safe travel speed.
Always use safety pin with locking device and safety chain when attaching towing vehicle.
LOAD WAGON SAFELY
WARNING: Help prevent chassis and tractor rollover due to uneven load distribution.
Distribute load evenly between front and rear, and side to side.
Distribute load evenly. Poor distribution can cause improper trailing of chassis.
-9-

MOUNT ATTACHMENTS SAFELY
CAUTION: When mounting equipment to the chassis, refer to the manufacturer’s
mounting recommendations for that particular equipment.

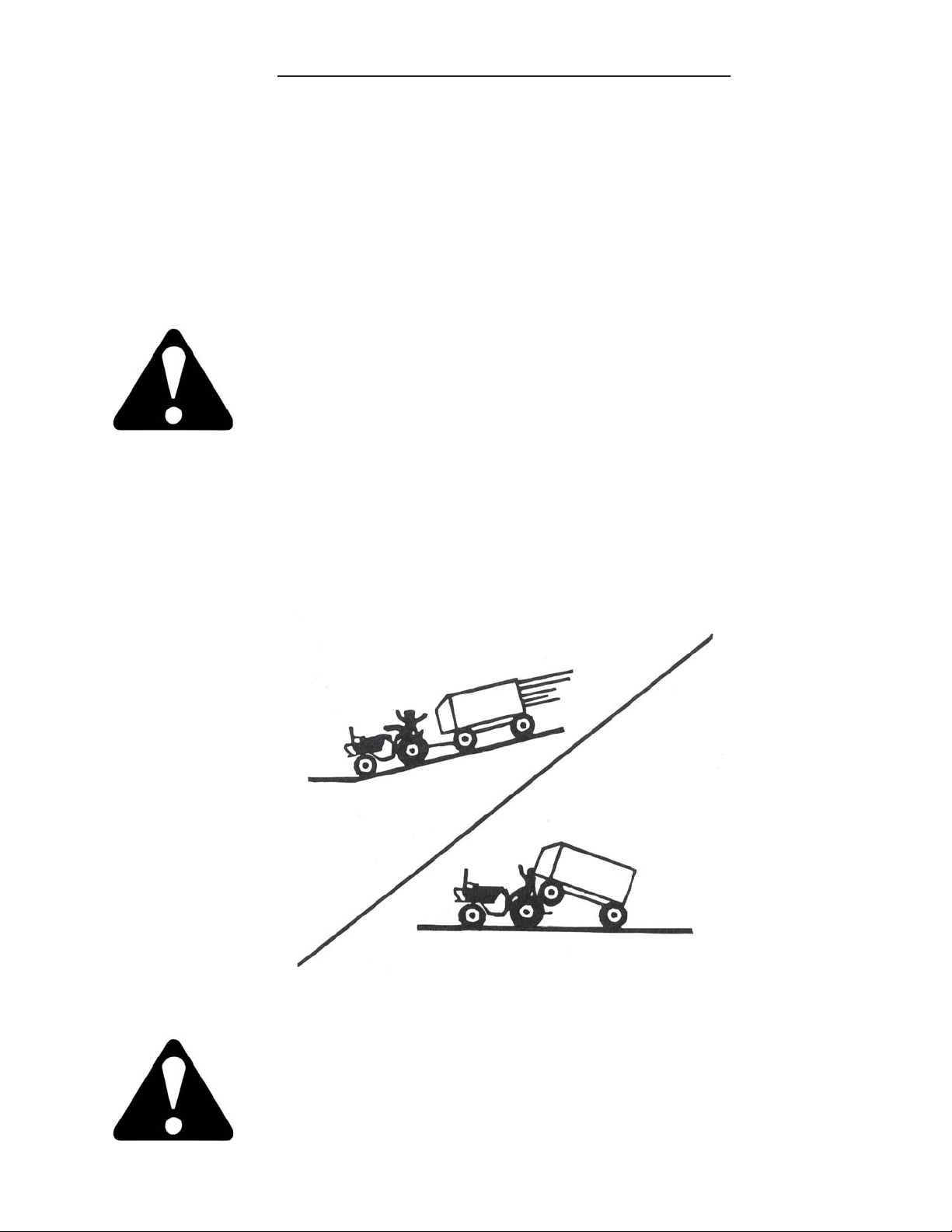

WARNING: Help prevent serious injury of death resulting from tractor or chassis
rollover. Travel uphill or downhill when working on inclines or slopes,
avoid traveling across the grade.
BE AWARE OF LOW TIRES
Be aware of load height and height of electrical wires in the area.
MAINTAIN SAFE CLEARANCE
FROM ELECTRIC POWER LINES
AND AVOID CONTACT WITH ANY
ELECTRICALLY CHARGED
CONDUCTOR
CONTACT WITH ELECTRIC
POWER SOURCES CAN RESULT
IN ELECTRICAL SHOCK OR
ELECTROCUTION
FAILURE TO HEED THIS
WARNING MAY RESULT IN
SERIOUS INJURY OR DEATH
-10-

-11-
SAFETYINFORMATION

-12-
TRACTOR;
This operators manual uses the term “Tractor” when identifying the the power source.
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETYPRECAUTIONS.
Stop the tractor engine, remove ignition key, and allow all mechanisms to stopbefore cleaning, working, or
adjusting on machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
DO NOT allow riders on machine at any time.
ALWAYS use a safety pin with locking device.
DO NOT step up on machine at any time.
NEVER exceed safe travel speed.
DO NOT allow minors to operate or be near the machine.
STAY CLEAR of hydraulic lines, they may be under extreme pressure or heat.
Loose or floppy clothing should not be worn by the operator.
H&S Mfg. Co. always takes the operator and his safety into consideration and guards exposed moving
parts for their protection. However, some areas cannot be guarded or shielded in order to assure proper
operation. In addition, the Operators Manual and decals on the machine itself warn you of further danger
and should be read and observed closely.
WARNING

-13-

1. Check the Chassis for proper assembly and adjustment.
2. Make sure that all bolts are tightened.
3. Lubricate the Chassis completely. (See Lubrication Chapter in this manual).
4. Check the tires for proper air pressure. Refer to the manufacturers recommended PSI rating.
5. Check wheel bolts upon delivery, and periodically thereafter. Follow the reccomended torque chart
below for your model of Chassis.
TIRE INFLATION
Inflate tires to manufacture’s recommended pressure, making sure all tires have equal pressure.
Inadequate or unequal tire pressure can cause improper trailing and premature tire failure.
WHEEL BOLTS
Tighten wheel bolts to specifications below and again after chassis has been in use for a short period of
time. Check periodically thereafter.
-14-
SET-UP & ASSEMBLY- DEALER
NOTE: Determine right or left side of the Chassis by viewing it from the rear. If instructions or parts
lists call for hardened bolts, refer to bolt torque chart.
CHASSIS TORQUE
24/26 400 ft. lbs.
CHASSIS TIRE SIZE PRESSURE
24/26 425/65R22.5 85
24/26 600/50x22.5 38

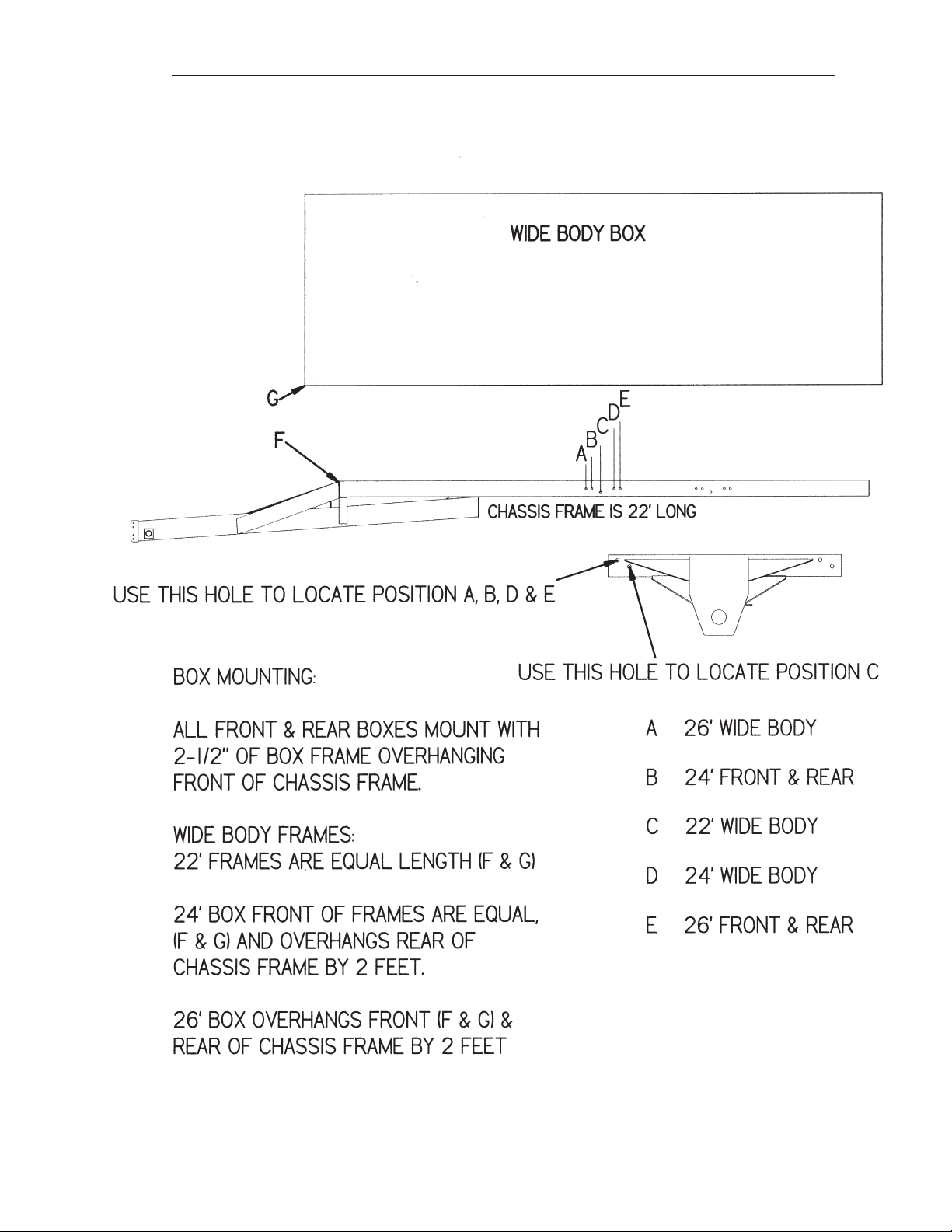

MODEL 24/26 BOX MOUNTING & AXLE LOCATION
-15-

SAFETY CHAIN
To prevent break-away, always use a safety chain when attaching to the towing vehicle.The safety chain
shall have a minimum tensile strength equal to, or greater than the ultimate gross weight of the towed
machine. It must be replaced if one or more links are broken, stretched or otherwise damaged.
-16-
TOWING ON HIGHWAY
Follow state and local regulations when towing farm equipment on public highways. Never tow the
chassis on a public highway at a speed greater than 20 mph (32 kph).
TRANSPORTING

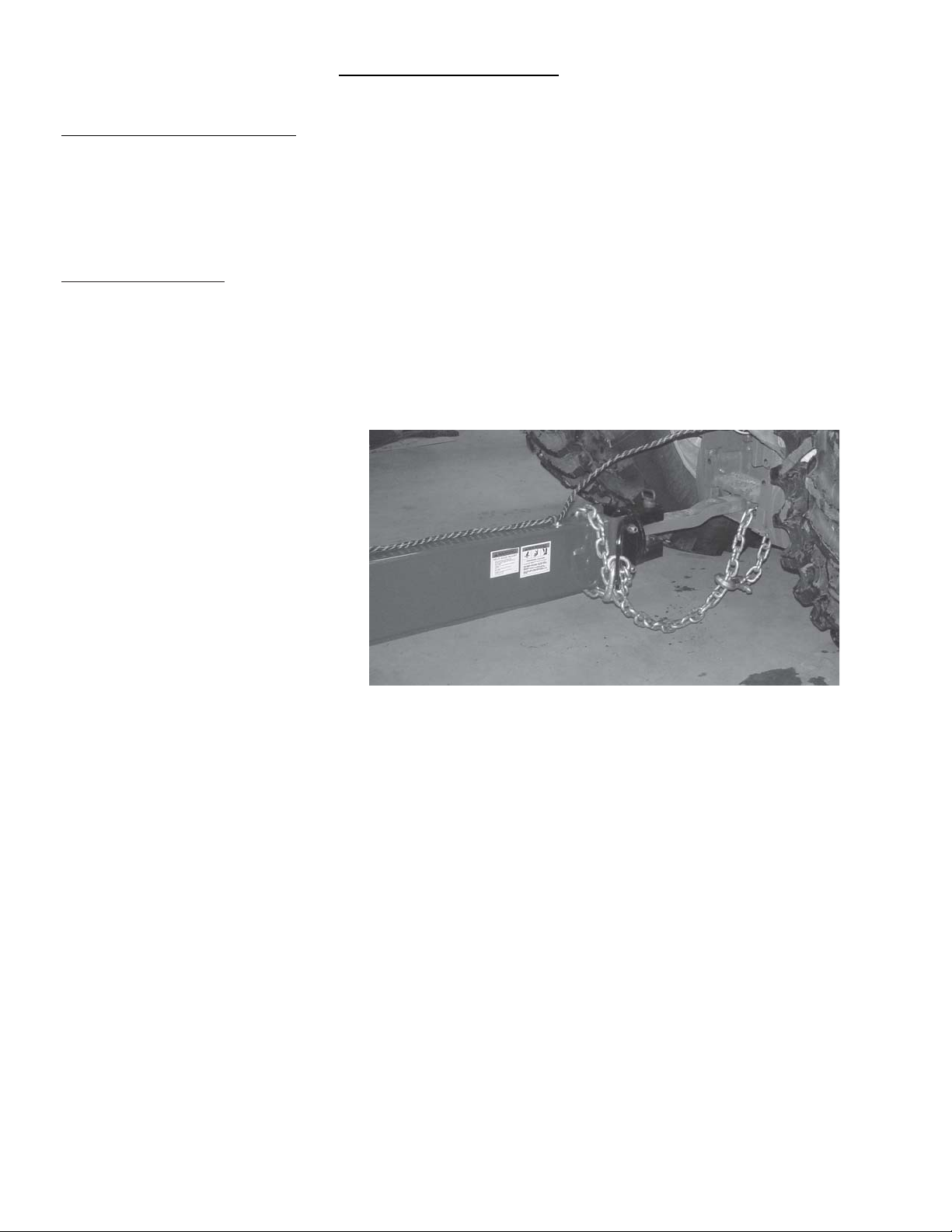

Seephotoat right for proper routing of
the safety chain on 24/26 chassis.

OPERATION
GENERAL INFORMATION
After receiving your chassis, check entire unit carefully before first operation. Tighten bolts and set
screws that might have come loose. Lubricate as explained in the Lubrication Chapter in this manual.
TIRE INFLATION
Inflate tires to manufacture’s recommended pressure, making sure all tires have equal pressure.
Inadequate or unequal tire pressure can cause improper trailing and premature tire failure.

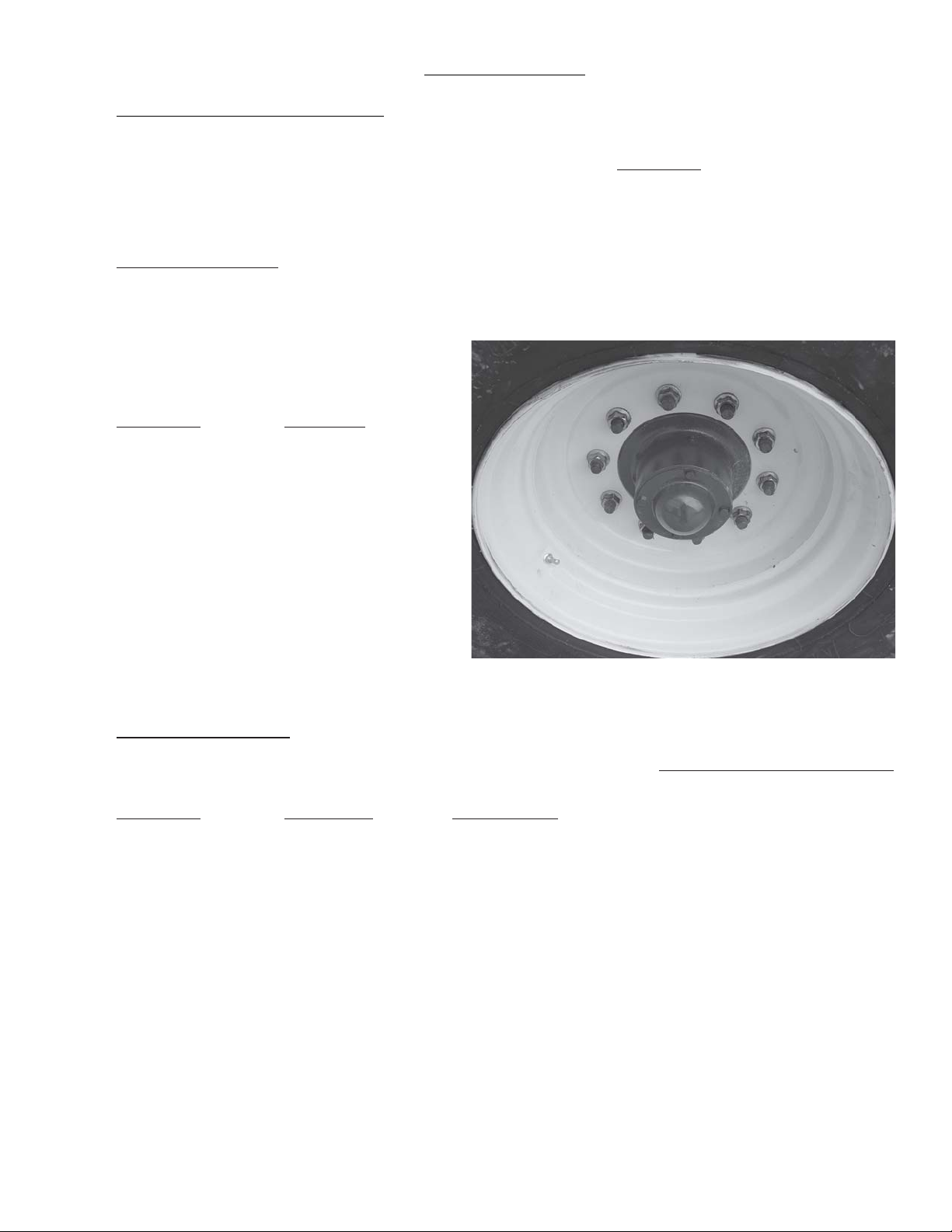

WHEEL BOLTS
Tighten wheel bolts to specifications below after chassis has been in use for a short period of time.
Check periodically thereafter.
CHASSIS TORQUE
24/26 400 ft. lbs.
CHASSIS TIRE SIZE PRESSURE
24/26 425/65R22.5 85
24/26 600/50x22.5 38
-17-

ADJUSTMENTS
CLEAN AND RE-PACK WHEEL BEARINGS
Annually disassemble and clean parts in a solvent. Pack bearings (D & H) with a high grade grease.
Reassemble, and tighten hub nut (A) until there is a slight drag on hub when wheel is turning. Check
cotter pin hole location on spindle, back nut off one notch on nut, re-insert cotter pin

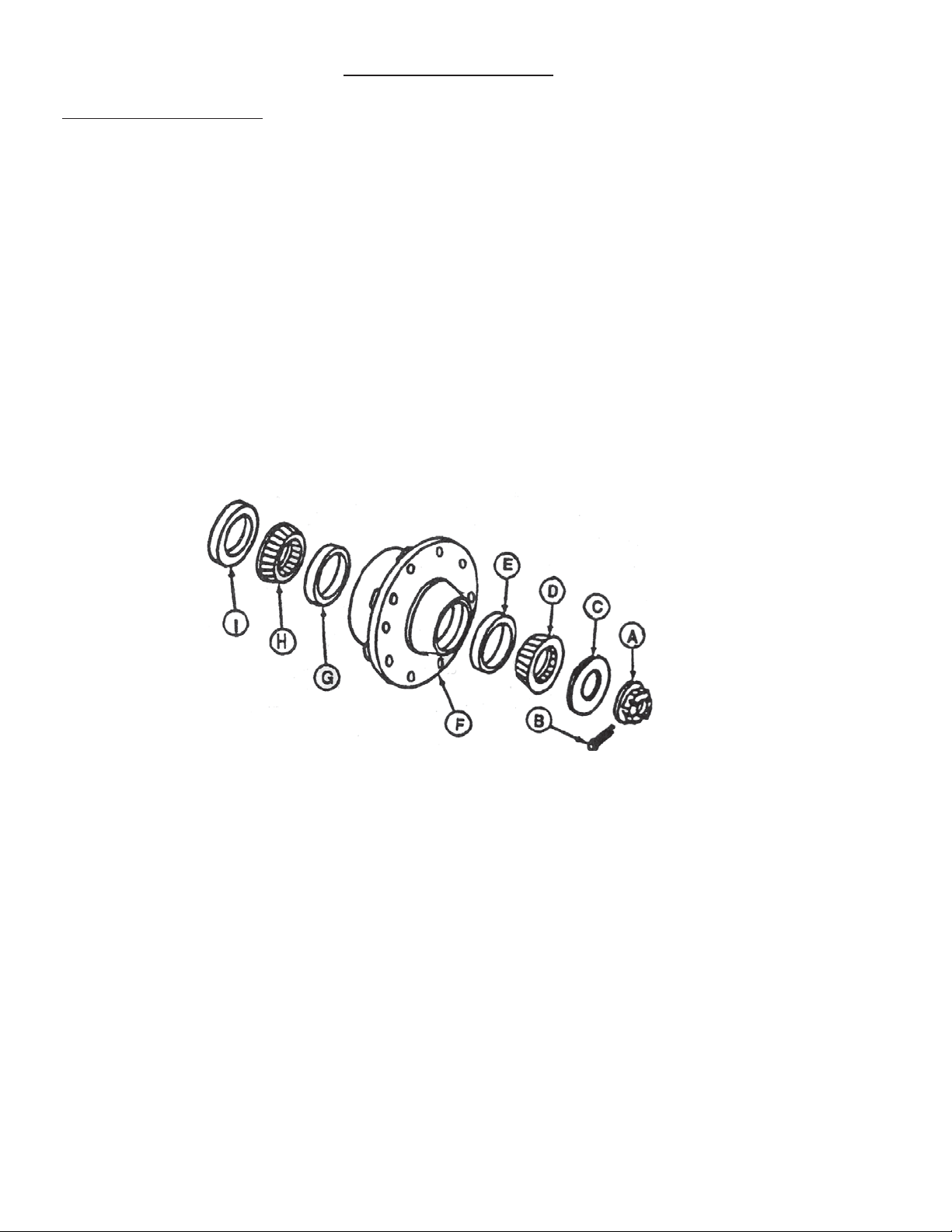

A.Slotted nut F.Hub
B. Cotter Pin G. Inner Race
C. Washer H.InnerBearing
D. Outer Bearing I. Seal
E. Outer Race
-18-
WHEEL BEARINGS
IF WHEEL BEARINGS BECOME LOOSE, ADJUST THEM IMMEDIATELY.
1. Block wheels to prevent rolling, jack up chassis until wheels turn freely.
2. Remove hub cap
3. Remove cotter pin (B) from adjusting nut and spindle.
4. Tighten hub nut (A) until there is a slight drag on hub when wheel is turning.
5. Check cotter pin hole location on spindle, back nut off one notch on nut, re-insert cotter pin
6. Replace hub cap, and lower to the ground.
