H&S 3210 User manual

3210/32123210/3212
ActionAction
RAKERAKE
MM
AA
NN
UU
AA
LL
OO
PP
EE
RR
AA
TT
OO
RR
SS
Part #91297 Rev. #00 HSMFG01022Part #91297 Rev. #00 HSMFG01022
READ AND UNDERSTAND THIS MANUAL BEFOREREAD AND UNDERSTAND THIS MANUAL BEFORE
OPERATING THIS EQUIPMENT. UNSAFE OPERATIONOPERATING THIS EQUIPMENT. UNSAFE OPERATION
OR MAINTENANCE OF THIS EQUIPMENT CAN RESULTOR MAINTENANCE OF THIS EQUIPMENT CAN RESULT
IN SERIOUS INJURY OR DEATH.IN SERIOUS INJURY OR DEATH.
WARNINGWARNING
3210 Starting w/Serial #222AR100013210 Starting w/Serial #222AR10001
3212 Starting w/Serial #222AR120013212 Starting w/Serial #222AR12001

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

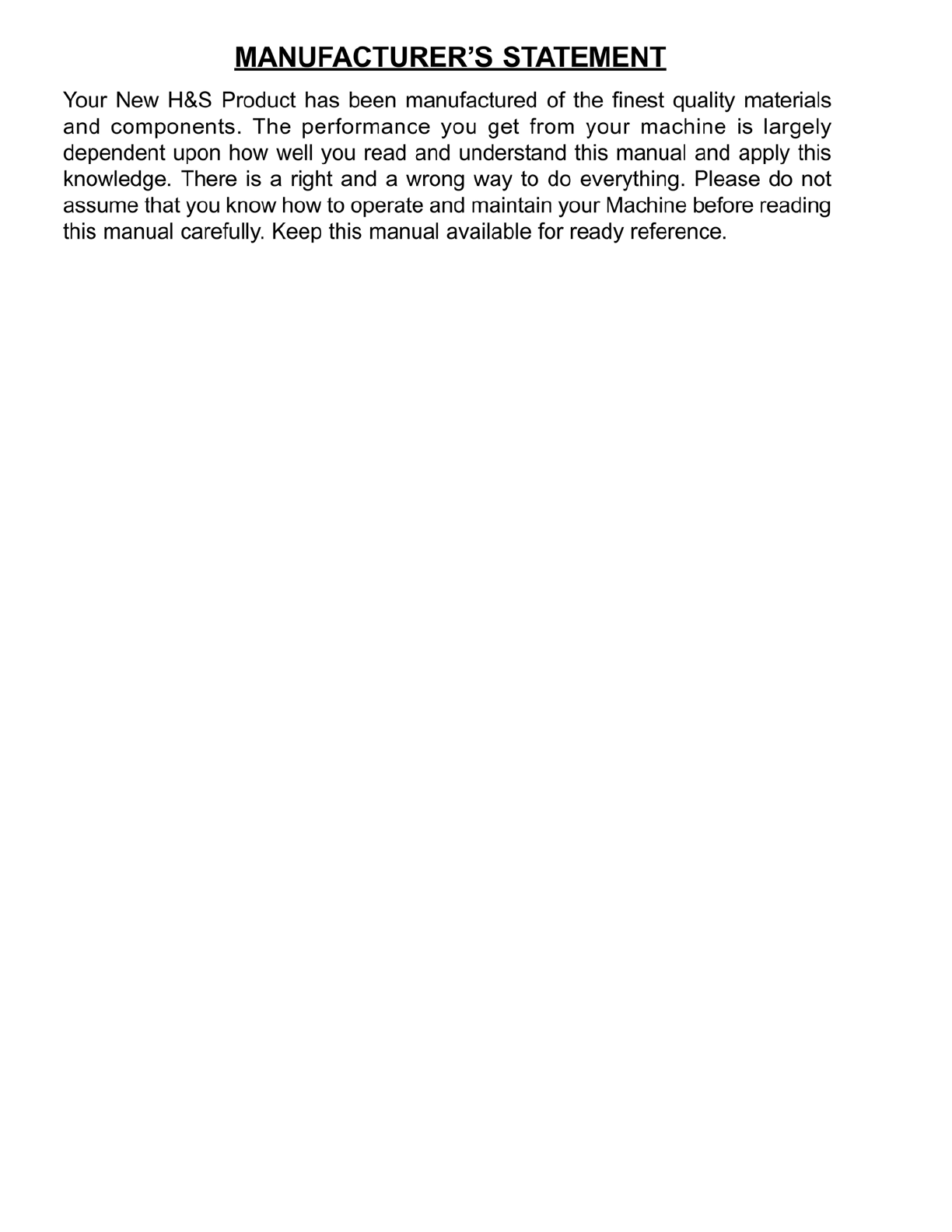

Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . 12
Cap Screw Torque Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Set-Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation & Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28
CONTENTS

-1-
H&S WARRANTY
H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and
workmanship. Except as noted below, this warranty term is twelve (12) months on labor, and twenty-four
(24) months on parts from the date of delivery of the product to the original purchaser by an authorized
H&S dealer. Under this warranty, H&S will repair or replace, at its option, any covered part which is
found to be defective in material or workmanship during the applicable warranty term. In no case will the
covered repair cost of a part or parts exceed the replacement cost of that part. Warranty service must
be performed by H&S or a dealer authorized by H&S to sell and/or service the product involved, which
will use only new or remanufactured parts or components furnished by H&S. This warranty includes
approved parts and labor to x the product but does not include, and the purchaser is responsible for,
any service call and/or transportation of the product to and from the dealer’s place of business, for any
premium charged for overtime labor requested by the purchaser, and for any service work not directly
related to any defect covered under this warranty. This warranty includes only those components of the
product manufactured by H&S. Warranty for any component not manufactured by H&S including, but not
limited to, engines, batteries, tires, rims, hydraulic motors, pumps, etc. are covered by the warranty, if
any, provided separately by their respective manufacturers.
This warranty in all its parts, is extended solely to the original purchaser of the product, is terminated
upon any subsequent transfer or sale from or by the original purchaser and extends no third party ben-
ets or rights whatsoever.
The warranty term for any product used in any commercial, custom, for hire or rental application, is
limited to six (6) months from the date of delivery of the product to the original purchaser or the rst day
of service, whichever comes rst, by an authorized H&S dealer.
For commercial, custom for hire, or rental application, warranty is limited to 6 months from the date of
delivery to the original purchaser, or the rst day in service, whichever is earlier.
This warranty does not include:
(1) Any product that has been altered or modied in ways not approved by H&S;
(2) Depreciation or damage caused by normal wear, use for which the product was not designed, misuse,
improper or insu󰀩cient maintenance, improper operation, accident or failure to follow the product Opera-
tor’s Manual recommendations and product decal recommendations;
(3) Normal maintenance parts and service;
(4) Repairs made with parts other than those available from H&S or performed by anyone other than H&S
or a dealer authorized by H&S to sell and/or service the product involved.
To secure warranty service the purchaser must report the product defect to a dealer authorized by H&S
to sell and/or service the product involved within the applicable warranty term together with evidence of
the warranty start date and make the product available to that dealer within a reasonable period of time.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF
THIS WARRANTY. H&S and the companies a󰀩liated with it makes no warranties, representations, or
promises, express or implied, as to the performance or freedom from defect of its products other than
those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS OR FITNESS
FORA PARTICULAR PURPOSE IS MADE. IN NO EVENT WILL THE DEALER, H&S OR ANY COM-
PANY AFFILIATED WITH H&S BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
The ONLY REMEDY the purchaser has in connection with the breach of performance of any warranty on
H&S products are those set forth above.
The selling dealer has no authority to make any representation or promise on behalf of H&S, or to modify
the terms or limitations of this warranty in any way.
11/14/18

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.

-3-
(Remove Copy At Perforation)
WARRANTY REGISTRATION
• Date of Purchase: __________________________
• Purchaser Name: ________________________________________________
• Street Address: _________________________________________________
• City: __________________________________________________________
• State:__________________________________ Zip:____________________
• Phone Number: _________________________________________________
• E-mail Address: _________________________________________________
• Product: _______________________________________________________
• Model Number: _________________________________________________
• Serial Number: __________________________________________________
• You have received the Operator’s Manual for this product. Yes _____ No _____
• Interested in receiving the H&S E-mail Newsletter? Yes ____ No _____
------------------------------------------------------------------------------------------------------------
• Dealer Name: ___________________________________________________
• Street Address: _________________________________________________
• City: __________________________________________________________
• State: _____________________________________ Zip: _________________
• Signature: _____________________________________________________
• All elds must be lled out to ensure prompt notication of product and/or
warranty updates.
Please mail the completed WARRANTY REGISTRATION FORM to:
H&S Manufacturing Co., Inc.
2608 S. Hume Ave.
Marsheld, WI 54449

-4-
Intentionally Left Blank

-5-
 Rake was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
 Rake has been correctly assembled according to instructions in this manual or the
set-up instruction manual.
 Wheel nuts and all other fasteners are tightly secured.
 All bolts and fasteners are tight.
 All grease ttings have been lubricated. See Lubrication Chapter of this manual for
details.
 Hoses and ttings are properly attached and there are no visible leaks.
 All mechanisms are operating trouble free.
 Wheels are properly mounted.
 Tires are inated to correct pressure.
 Decals are in place and legible.
After the Rake has been completely set up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item as you
have made the proper adjustments and found the item operating satisfactorily.
Serial Number
Dealer’s Name
Signature of Pre-Delivery Inspector
(Remove Dealers File Copy At Perforation)
DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
Inspection Date
Model Number

-6-
Intentionally Left Blank

-7-
This checklist that follows is an important reminder of valuable information that should be passed
on to the customer at the time this rake is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed, assures the customer that the
pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating
this unit.
Explain raking and windrow width adjustments.
Explain to customer that regular lubrication is required for proper operation and long life
of machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer the Owner’s Manual and make sure they read and understand all
operating and service instructions.
 Have the customer sign a completed “Warranty Registration” and mail it.
DEALER DELIVERY CHECKLIST

(Remove Dealer File Copy At Perforation)
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS





Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

-8-
Intentionally Left Blank

-9-
YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST
BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
SAFETY INFORMATION
H&S MANUFACTURING CO., INC.
BE
ALERT!

-10-
RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A single word - DANGER, WARNING, or CAUTION - is
used with the safety alert symbol. DANGER identies the
most serious hazards.
Safety signs with a single word DANGER or WARNING are
typically near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

-11-
SAFETY INFORMATION

-12-
TRACTOR:
This operator’s manual uses the term “Tractor” when identifying the power source.
WARNING
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.
H&S Manufacturing always takes the operator and their safety into consideration and guards exposed
moving parts for their protection. However, some areas cannot be guarded or shielded in order to ensure
proper operation. In addition, the operator’s manual and decals on the machine itself warn you of further
danger and should be read and observed closely.
If the machine becomes clogged or for servicing, stop the tractor engine, remove ignition key and
allow all mechanisms to stop.
Before cleaning or working on the machine, completely disengage the tractor hydraulics.
DO NOT attempt to perform maintenance or repair with tractor running and hydraulic hoses connected
to the tractor.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE RAKE.
DO NOT step up on machine at any time.
DO NOT allow minors to operate or be near the machine.
Stay clear of rake when raising or lowering main rake beams.
Stay clear of hydraulic lines as they may be under extreme pressure or heat.
For transport and storage, always make sure that the transport lock valves are in the closed position.
TO PREVENT SERIOUS INJURY OR DEATH

-13-
CAP SCREW TORQUE VALUES
The specications below are the torque values for fasteners as it adheres to the SAE torque value
standards. All fasteners should be torqued to the proper values found in the gures below unless
otherwise specied by the engineering drawing.
• Lubed torque would be any fastener that has grease, liquid Loctite, oil, etc. on the threads.
• Dry torque would be any fastener which has threads that are clean and dry and do not have any liquid
Loctite or grease on them.
Hex Head Fasteners
The gure shown below shows how to determine what SAE grade a fastener is.
0, 1 & 2 3 5 6 7 8
SUGGESTED ASSEMBLY TORQUE VALUES WORKING TORQUE
SAE GR. 2-6” SAE GR. 5 SAE GR. 8 18-8
SS
316
SS
Brass Silicon
Bronze
Dia. &
Thrds.
per
inch
Dry
Ft.
Lbs.
Lube
Ft.
Lbs.
Dry
Ft.
Lbs.
Lube
Ft.
Lbs.
Dry
Ft.
Lbs.
Lube
Ft.
Lbs.
Inch
Lbs.
Inch
Lbs.
Inch
Lbs.
Inch
Lbs.
1/4-20
1/4-28
5.5
6.3
4.2
4.7
8
10
6.3
7.2
12
14
9
10
75.2
94.0
78.8
99.0
61.5
77.0
68.6
87.0
5/16-20
5/16-28
11
12
8
9
17
19
13
14
24
27
18
20
132
142
138
147
107
116
123
131
3/8-16
3/8-24
20
23
15
17
30
35
23
25
45
50
35
35
236
259
247
271
192
212
219
240
7/16-14
7/16-20
32
36
24
27
50
55
35
40
70
80
50
60
376
400
393
418
317
327
349
371
1/2-13
1/2-20
50
55
35
40
75
85
55
65
110
120
80
90
517
541
542
565
422
443
480
502
9/16-12
9/16-18
70
80
55
60
110
120
80
90
150
170
110
130
682
752
713
787
558
615
632
697
5/8-11
5/8-18
100
110
75
85
150
170
110
130
210
240
160
180
1110
1244
1160
1301
907
1016
1030
1154
3/4-10
3/4-16
175
200
130
140
260
300
200
220
380
420
280
310
1530
1490
1582
1558
1249
1220
1416
1382
7/8-9
7/8-14
170
180
125
140
430
470
320
350
600
670
450
500
2328
2318
2430
2420
1905
1895
2140
2130
1-8
1-14
250
280
190
210
640
720
480
540
910
1020
680
760
3440
3110
3595
3250
2815
2545
3185
2885

-14-
1. Assemble the Rake or check the Rake for proper assembly and adjustment. Make sure that all
bolts are tightened.
2. Attach the wheels with tires if they are not attached using the lug nuts furnished, and torque the
mounting hardware to 85-95 ft./lbs. of torque. Check wheel bolts periodically thereafter.
3. Check tires and inate to the recommended pressure for eld use (205/75D15 - 25-30 PSI).
4. Lubricate the rake completely. (See Lubrication Chapter in this Manual.)
5. Rake tooth bolts must be torqued to 40 ft./lbs. to help prevent excessive tooth breakage. See the set-
up instructions for mounting procedure.
NOTE: Re-torque rake tooth bolts after the rst 100 acres. Check periodically thereafter.
NOTE: Determine right or left side of the Rake by viewing it from the rear. If instructions or parts
lists call for hardened bolts, refer to the Cap Screw Torque Values page to identify.
SET-UP & ASSEMBLY

-15-
TRANSPORTING
TOWING ON HIGHWAY
Follow state and local regulations when towing farm equipment on public highways. Never tow the rake
on a public highway at a speed greater than 20 mph (32 kph).
REFLECTORS
Reective decals are on the outer edges and sides of the rake for safety.
Side facing amber
Rear red reective
Front facing amber

-16-
PREPARING FOR OPERATION
1. Adjust the tractor hitch (if possible) so that it is 13 to 17 inches
above ground.
2. Attach the rake to tractor with a 1” hitch pin that has a safety
locking device.
3. The rake clevis hitch should be adjusted so the main rake beams
are level or parallel to the ground when in the raking position.
4. After adjusting, pull the rake forward and hydraulically lower the
rake beams to check for levelness.
5. Remove the weight from the lift jack and place the jack in the
storage position on the top of the pole.
ADJUSTMENTS
There are multiple settings available for adjusting the hitch as shown
in the picture.
6. Connect the 2 hydraulic hoses to the tractor for
raising and lowering the rake arms. Operate the
tractor valve to ll the hydraulic lines and operate
the cylinders. Add hydraulic uid to the tractor
system as required.
NOTE: The tractor must have a minimum of
1,875 p.s.i. and 8 gallons of ow per minute to
operate the rake properly.

-17-
OPERATION & ADJUSTMENTS
EMERGENCY SHUTDOWN
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before
cleaning or working on the machine.
IMPORTANT:
Retighten all bolts on the rake after 100 acres as bolts can loosen up on new machinery.
Re-torque rake tooth bolts after rst 100 acres. Check periodically thereafter.
WINDROW WIDTH ADJUSTMENT
There are (2) holes in each rake arm available to
set the windrow width adjustment for the rake arm
distance. Follow the steps below:
1. Raise the rake beam so that the rake wheels
are slightly o󰀨 the ground.
2. Remove the pin and hair pin clip from the
rake arm.
3. Manually slide the round beam to the desired
position.
4. Reinsert the pin in the desired hole and replace
the hair pin clip.
RAKING WIDTH
ADJUSTMENT
There are multiple width adjust-
ments on the wheel rake beam
for setting the nish windrow
width. Place the pin in the hole
to the windrow size after you
have manually swung the rake
arms to a finish rake wheel
opening that you would like.
Each rake beam angle can
be adjusted independently.
Keep in mind that the shallower
of an angle that the raking width
is, the less stress and wear
there is on the rake wheels,
easier over the ground.
Try to keep the front rake
wheels no wider than the crop
if possible while keeping the
desired rear windrow width.
USE THE FOLLOWING STEPS BELOW TO SET YOUR RAKING WIDTH

-18-
Rake Wheel
Rake wheel oatation pressure on each rake wheel is factory set for the correct spring pressure with the
Hex/Jam nut. If more or less rake wheel pressure is needed other than what is available on the lock ring,
adjust the Hex/Jam nut combination.
OPERATION & ADJUSTMENTS
FLOATATION
Rake Arm/Wheels
Floatation pressure of the rake wheels can be adjusted by adjusting the pressure rod assembly.
• Hydraulically raise the rake beams so they are o󰀨 the ground approximately 6”.
• Loosen the lock ring and turn the rod collar to show more threads. This increases the down pressure
of the rake wheels.
• Showing fewer showing decreases the down pressure of the rake wheels.
• Hand-tighten the lock ring once the proper adjustment has been made.
NOTE: Re-torque rake tooth bolts/nuts after the rst 100 acres to 40 ft./lbs.
Check periodically thereafter.
