H&S 4112 User manual

-1-
4112/41144112/4114
Hi-CapacityHi-Capacity
RAKERAKE
MM
AA
NN
UU
AA
LL
OO
PP
EE
RR
AA
TT
OO
RR
SS
Part #76348 Rev. #02 HSMFG0522Part #76348 Rev. #02 HSMFG0522
READ AND UNDERSTAND THIS MANUAL BEFOREREAD AND UNDERSTAND THIS MANUAL BEFORE
OPERATING THIS EQUIPMENT. UNSAFE OPERATIONOPERATING THIS EQUIPMENT. UNSAFE OPERATION
OR MAINTENANCE OF THIS EQUIPMENT CAN RESULTOR MAINTENANCE OF THIS EQUIPMENT CAN RESULT
IN SERIOUS INJURY OR DEATH.IN SERIOUS INJURY OR DEATH.
WARNINGWARNING
4112 Starting Serial #221HC120224112 Starting Serial #221HC12022
4114 Starting Serial #221HC140354114 Starting Serial #221HC14035

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dealer Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - BeAlert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Information - Warning -Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . . . 12

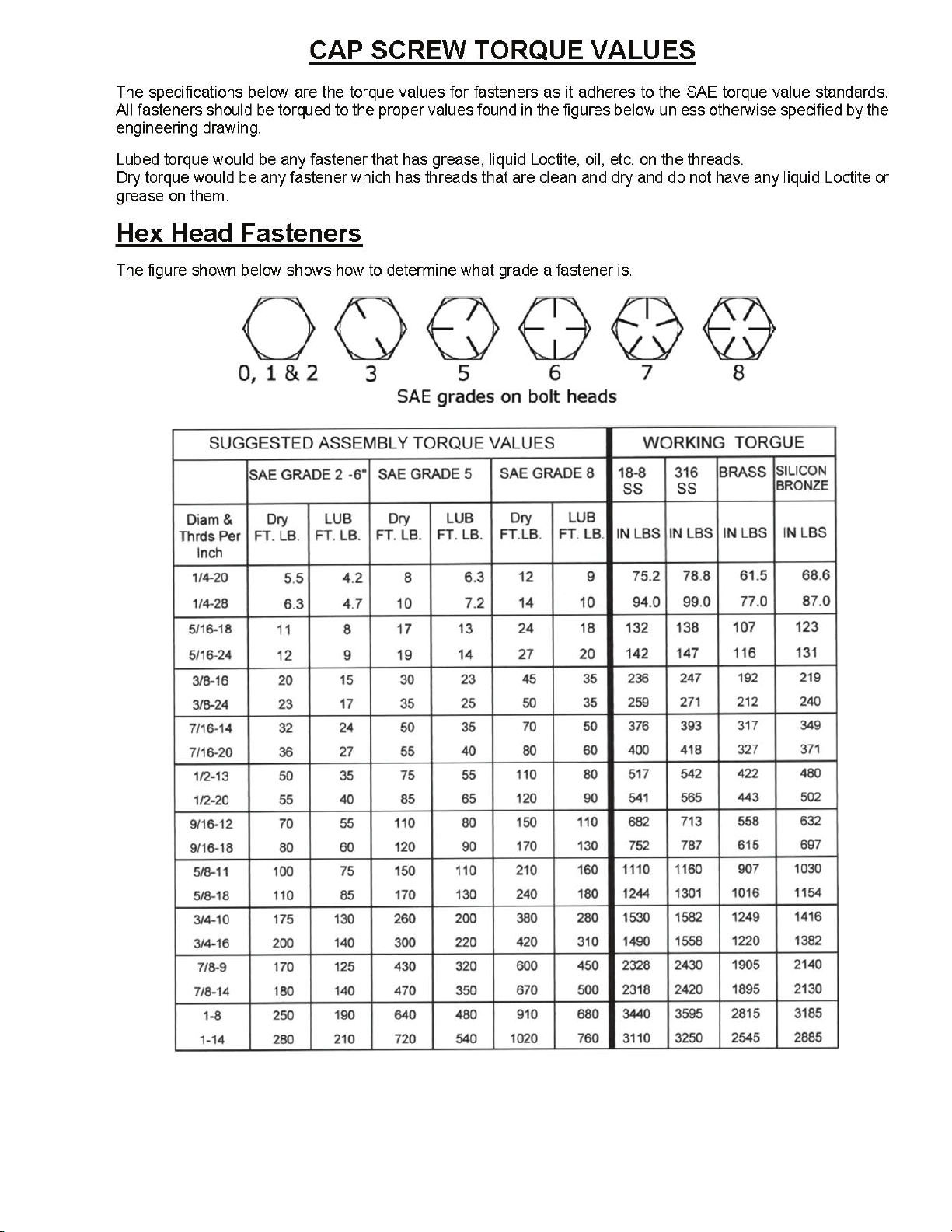

Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Set-Up &Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation &Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover
CONTENTS

-1-

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.

-3-
(Remove Copy At Perforation)

-4-
Intentionally Left Blank

-5-
(Remove Dealers File Copy At Perforation)
DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
After the rake has been completely set up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item as you
have made the proper adjustments and found the item operating satisfactorily.
 Rake was not damaged in shipment. Check for dents and loose or missing parts. Report
damage immediately to H&S Manufacturing Co., Inc..
 Rake has been correctly assembled according to instructions in this manual. Wheel nuts
and all other fasteners are tightly secured.
 All bolts and fasteners are tight.
 All grease ttings have been lubricated. See Lubrication Chapter of this manual for details.
 Hoses and ttings are properly attached and there are no visible leaks.
 All mechanisms are operating trouble free.
 Rake wheels touch ground in unison when lowered into position (Rake setting level).
 Wheels are properly mounted.
 Tires are inated to correct pressure.
 Decals are in place and legible.
Model Number
Serial Number
Dealer’s Name
Inspection Date
Signature of Pre-Delivery Inspector

-6-
INTENTIONALLY LEFT BLANK

-7-
DEALER DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
Date Delivered
Dealer’s Name
By
Signature of Original Buyer
(Remove Dealers File Copy At Perforation)
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.
This checklist that follows is an important reminder of valuable information that should be passed
on to the customer at the time this rake is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed, assures the customer that the
pre-delivery service was satisfactorily performed.
 Explain to the customer that the pre-delivery inspection was made.
 Explain to the customer all the safety precautions they must exercise when operating
this unit.
 Explain raking and windrow width adjustments.
 Explain to customer that regular lubrication is required for proper operation and long life
of machine.
 Show customer the lubrication section of Owner’s Manual.
 Give the customer Owner’s Manual and make sure they read and understand all
operating and service instructions.
 Have the customer sign a completed “Warranty Registration” and mail it.

-8-
INTENTIONALLY LEFT BLANK

-9-
SAFETY INFORMATION
BE
ALERT! YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOSTACCIDENTSARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST
BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
H&S MANUFACTURING CO., INC.

-10-
RECOGNIZE SAFETY INFORMATION
Thisis thesafety-alert symbol.When yousee this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING, or CAUTION - is used
with the safety-alert symbol. DANGER identies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
Keep signs in good condition. Immediately replace any missing or damaged signs.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.

-11-
SAFETY INFORMATION

-12-
WARNING
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before cleaning,
working, or adjusting on machine.
DO NOT attempt to perform maintenance or repair with tractor running.
DO NOT step up on machine at any time.
DO NOT allow minors to operate or be near the machine.
Loose or oppy clothing should not be worn by the operator.
Stay clear of hydraulic lines, they may be under extreme pressure or heat.
Stay clear of rake when opening or closing main rake arm beams, or raising or lowering rake
wheels.
For transport, always make sure that the hair pin at the rear of the lift pipes, and the transport lock bars
with safety clip pins for main rake beam, are securely locked in place.
To reduce stress on rake arms, lift pipe, springs and spring brackets, reduce oil ow from tractor to lift
cylinders whenever possible.
Be sure to raise rake wheels before opening or closing main rake beams.
TRACTOR:
This operator’s manual uses the term “Tractor” when identifying the power source.
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.
H&SManufacturing Co. always takes the operator and their safety into consideration and guards exposed
moving parts for their protection. However, some areas cannot be guarded or shielded in order to assure
proper operation. In addition, the operators manual and decals on the machine itself warn you of further
danger and should be read and observed closely.

-13-

-14-
SET-UP & ASSEMBLY
NOTE: Determine right or left side of the wheel rake by viewing it from the rear. If instructions or
parts lists call for hardened bolts, refer to Cap Screw Torque Values chart.
1. Assemble the rake or check the rake for proper assembly and adjustment. Make sure that all
bolts are tightened.
2. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
95 ft./lbs. of torque. Check wheel bolts periodically thereafter.
3. Check tires and inate to the recommended pressure. (6.70 x 15 to 36 pounds.)
4. Lubricate the rake completely (See Lubrication Chapter in this Manual).
5. Tooth bolts must be torqued to 40 ft./lbs. to help prevent excessive tooth breakage.
 Re-torqueraketoothboltsaftertherst100acres.Checkperiodicallythereafter.
BF12HC ONLY

-15-
TRANSPORT LOCKS
Rake Beam Locks
Transport locks are mounted to the front of the pole. (A) Shows the rake locked into transport position.
(B) Shows the transport locks in the convenient storage position, to be used when in the raking mode.
Rake Wheel Locks
Located at the rear of the lift pipe, is a hair pin which is used to secure the rake wheels in the up position
for transport (C). When in the down, or raking position, place the locking hair pin in the convenient
storage position as shown (D).
B
D
TRANSPORTING
TOWING ON HIGHWAY
Follow state and local regulations when towing farm equipment on public highways. Never tow the rake
on a public highway at a speed greater than 20 mph (32 kph).
REFLECTORS
Red and Amber reective safety decals are on the rake for safety. Refer to the Decal Placement Chapter
for location.
A
C

-16-
1.Adjust the tractor hitch (13 to 17 inches above ground) and
attach rake to tractor with a hitch pin with a safety locking
device.
2. There are ten di󰀨erent positions to adjust the hitch on your
newrake.Hitch shouldbeadjusted so mainframe of therake
is level or parallel to the ground.
3. Remove weight from lift jack. Remove jack from pipe and
place on convenient storage mount located on the front top
of pole.
PREPARING FOR OPERATION
4. Connect hydraulic hose for raising and lowering rake wheels from rake to a double acting valve on the
tractor.
5. Connect hydraulic hoses for opening and closing the rake to a double acting valve on the tractor.
6. Connect 7-pin electrical connector to tractor (If equipped with optional lighting).

-17-
OPERATION & ADJUSTMENTS
RAKING WIDTH
Rakingwidth isdeterminedbysettingthespring
loaded stop, located above the rear pole section
as shown.
WINDROW WIDTH
Windrow width is adjustable from 38″ to
58″. Adjustment is made by turning crank,
located on the left of the rear of the rake as
shown.
GROUND PRESSURE
Rake wheel to ground pressure is adjusted by
turning the threaded rod while the rake wheels
are in the raised position. This allows the tab nut
to stay stationary while the threaded rod rotates,
thus decreasing pressure, or increasing pressure.
The further forward that the nut is on the threaded
rod, the lesser the amount of rake wheel ground
pressure. The further back that the nut is on the
threaded rod, the greater the amount of rake wheel
ground pressure.
EMERGENCY SHUTDOWN
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before
cleaning or working on the machine.

-18-
OPERATION & ADJUSTMENTS
GAUGE WHEELS
Outboardgauge wheelsarelocatedonthe forwardsection ofeachrakebeam.Thesegauge wheelssupport
the rake beams to allow the rake wheels to better follow the contour of the ground. Located on the gauge
wheel pivot spindle is an adjustable brake assembly. Adjust brake by tightening bolt. The brake should
have enough tension to prevent zig-zag motion, but still allow the wheel to pivot when making corners.
Adjustable
Brake
Assembly
