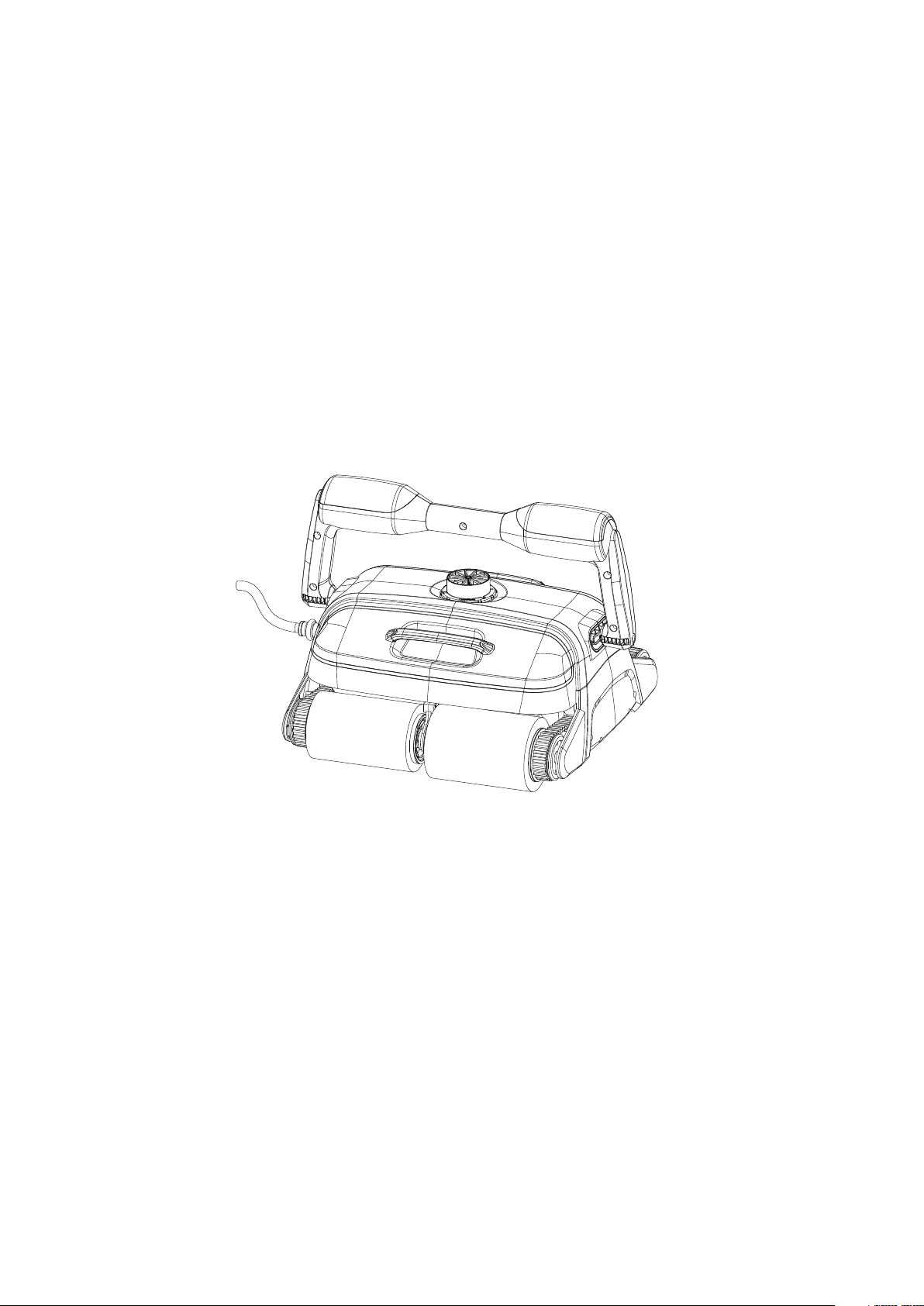

Hangzhou Gaoyue Technology ICH Roboter iCleaner-300/TSX User manual

Pool Cleaner
User Manual
For warranty and service, please contact your place of purchase

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Catalogue
1 Safety warning...................................................
2 Product overview.............................................
2.1 Functions...................................................................
2.2 Product parameters.....................................................
2.3 Parts list.................................................................... .
3 Packing List.......................................................
4 Product operation..............................................
4.1 Power connection..............................................................................
4.2 Start up procedure..............................................................................
4.3 How to order the time and timing.........................................................
4.4 Proper shut down and care.................................................................
4.5 Remote control.................................................................................
5 Maintenance......................................................
5.1 Impeller............................................................................................
5.2 Sponge wheel...................................................................................
5.3 Filter cartridge.... ..............................................................................
6 Trouble shooting and warning lights..................
7 Safety checklist..................................................
1
6
2
7
2
7
2
17
8
3
15
9
5
14
10
6
11
10

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Before performing maintenance or service on the Pool Cleaner please ensure the power is
disconnected to avoid personal injury or property loss.
The Pool Cleaner is designed for use in swimming pools only. Any other use is prohibited and will
void manufacturers' warranty.
Do not swim in the pool whilst the Pool Cleaner is in use in order to avoid personal injury.
Do not allow the Power Box to come in contact with water, and it is recommended to be placed in
a shady, dry and ventilated area.
When in use, the Power Supply and Caddy Cart must remain 3 meters away from the edge of the
pool.
Do not use the Pool Cleaner if there is a chance of thunder storm to avoid personal injury.
Users are only permitted to perform maintenance described in this manual. Any tampering with
the Motor Box or Power Supply will void the warranty.
Ensure the Pool Cleaner is fully submerged before turning the Power Box on.
If the Pool Cleaner is not going be used for a long time, make sure to disconnect the power, keep
it clean and put it in a safe, dry, shaded and well-Ventilated area.
If the Pool Cleaner stops working, please refer to
local distributor.
The optimum working temperature for the Pool Cleaner is between10℃and 32℃, avoid direct
sunlight when not in use.
The Pool Cleaner is suitable for the swimming pools no deeper than 3 meters or 2.5 meters
when used with Floating Battery.
Lift the Pool Cleaner out of the water using the robot handles, do not lift the iCleaner using the
Floating Cable. Lifting via the cable voids warranty.
This appliance is not a toy, and must only be used by people who have read this manual and can
operate the product safely.
The pool cleaner should be regularly inspected for debris around drive motors, wheels, and pump
motor shaft.
If the power supply cable is damaged, it must be replaced by the manufacturer, or its service
agents to preserve the warranty.
section 6 “ ”. If you cannot find
the root cause, please contact your
Troubleshooting
1 Safety Warnings
Please read this manual carefully before using the Pool Cleaner.
-1-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
2 Product Overview
Model
iCleaner-300/TSX
Input Voltage
100-240VAC,50-60Hz
Rated Power
200W
Cycle Time
0.5-2hrs(30 min increments)
Floating Cable Standard Length
15m/20m/25m
Filter Cartridge
Water Pump Capacity
Moving speed
15m/min
Grade of Waterproof
Optimum Storge Temperature
Optimum Working Temperature
Dimension(L*W*H)
Packing Measurement(L*W*H)
Gross Weight
-2-
Automatic Cleaning: the default mode is automatic, however, this can be overridden using the
Remote Control. When the Remote Control is not being used, the pool cleaner will return to
automatic mode.
Overall Cleaning: the pool cleaner not only cleans the floor of your pool, it also cleans the wall,
at the same time, the pool cleaner will filter water, and the dirt will be collected into filter cartridge.
Timing Cleaning: you can select cleaning time with remote control, the pool cleaner will shut
down automatically when the selected cycle time is over.
Manual Cleaning: the remote control can be used to clean specific areas immediately.
Self Protection(out of water): impeller decelerates to a stop in twenty five seconds if the
pool cleaner senses it is no longer in water, to prevent personal injury and to protect the water pump.
Stop Protection: the pool cleaner will stop if foreign matter retards the impeller.
◇
◇
◇
◇
◇
◇
75 /105Micron
18 3 m /h
Host:IP68/Powe Box:IP56
Remote Control:IP23
0~40℃
10~32℃
462*529*386mm
578*575*403mm
2.1 Functions
2.2 Product Parameters
18kg

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
2.3 Parts List
Main Body Parts
Handle
Guide Vane
Top Cover
Sponge Wheel
Drive Belt
Side Cover
Floating Cable
Filter cartridge
Motor Box
Impeller
-3-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
2.4 Power Box Parts
Power Wire
Keyboard
Display interface
Cable Socket
Bottom Cover
Top Cover
Power Enter
Direction Timer Order
Climb
Trouble light
Display interface
-4-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
3 Packing List
Pool Cleaner
User Manual
Warranty Card
1234
5678
1
2
3
4
5
6
7
8
Part Name
Serial Number Quantity
Unit Body
Power Box
Remote Control
Guide Vane
User Manual
Warranty Card
Certificate of Quality
Filter cartridge
1
1
1
1
1
1
1
1
-5-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
4 Product Operation
4.1 Power Connection
Please connect the Floating Cable to the Cable Socket
of Power Box (see Pic. 4.1.1), then connect the Power Box
to an outside AC power of 100v/240v 50/60Hz (see Pic.4.1.2).
For the complete connection guide please refer Pic.4.1.3
Notices:Do not allow the Power Box to come in contact with water
Please ensure the Power Box is kept in a shady, dry&well ventilated
area.(Refer Page 1. Safety Warning)
Outside AC
power
Power line
Cable
(Pic.4.1.1) (Pic.4.1.2) (Pic.4.1.1) (Pic.4.1.2)
1
2
1Power Box
2Power Cable
3
3Cable Socket
5
6
Power Socket
RCD
5
6
Host
-6-
51
6

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
- 7 -
（Pic.4.2.2）
5
6
6
T
E
S
E
R
T
S
E
T

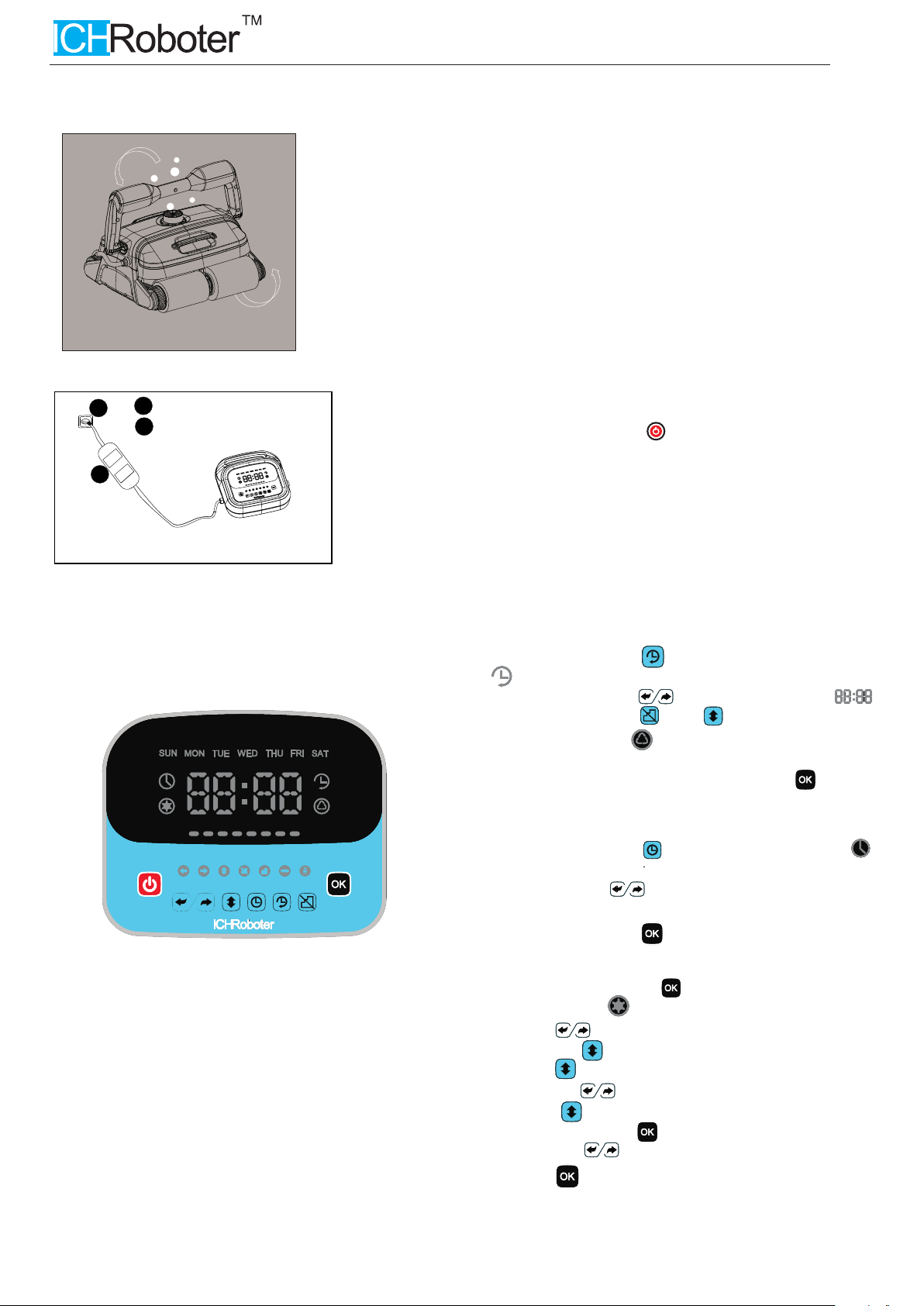

4.2 Start Up Procedure
(1) When placing the Pool Cleaner in the pool: you must
wobble the Pool Cleaner according Pic.4.2.1 to make
sure the air inside is released to enable it to sink to the
bottom of pool. (ensure sufficient time to allow the
sponge wheels to completely soften.)
（Pic.4.2.1）
(2)Start : press “ RESET ”button on the RCD,
and then press the “ ” button on the
power box.
Power Socket
RCD
5
6
（Pic.4.2.2）
4.3 How to set the time,date and shedule
the cleaning cycle.
（Pic.4.3.1）
4.3.1 Setting the time
1.Press the button “ ”, then indicator light
“ ” will flash.
2. Press the button “ ” to select the time:
Press the button “ ” or “ ” to select the date.
(when the light “ ” flashing, mean the robot
will work everyday in the week.)
To confirm the setting in the button “ ” .
4.3.2 Timer
1. Press the button “ ”, then indicator light “ ”
will flash.
2.Press button “ ” to select the robot working
time (the max time subject to the actual robot).
3.Press the button “ ” to confirm after setting.
4.3.3 Setting the date
1. Press and hold the “ ” button for 20 sec until the
indicator light“ ” starts flashing.
2. ress “ ” to set the year.
3. ress the “ ” to enter the month.
4. ress “ ” to change the month.
5. ress the “ ” to enter the date
6. ress “ ” to change the date .
7. Fourth press the“ ” to enter the time.
8. ress the “ ” to change the time.
9. ress “ ” to confirm the settings.
P
P
P
P
P
P
P
-7-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.

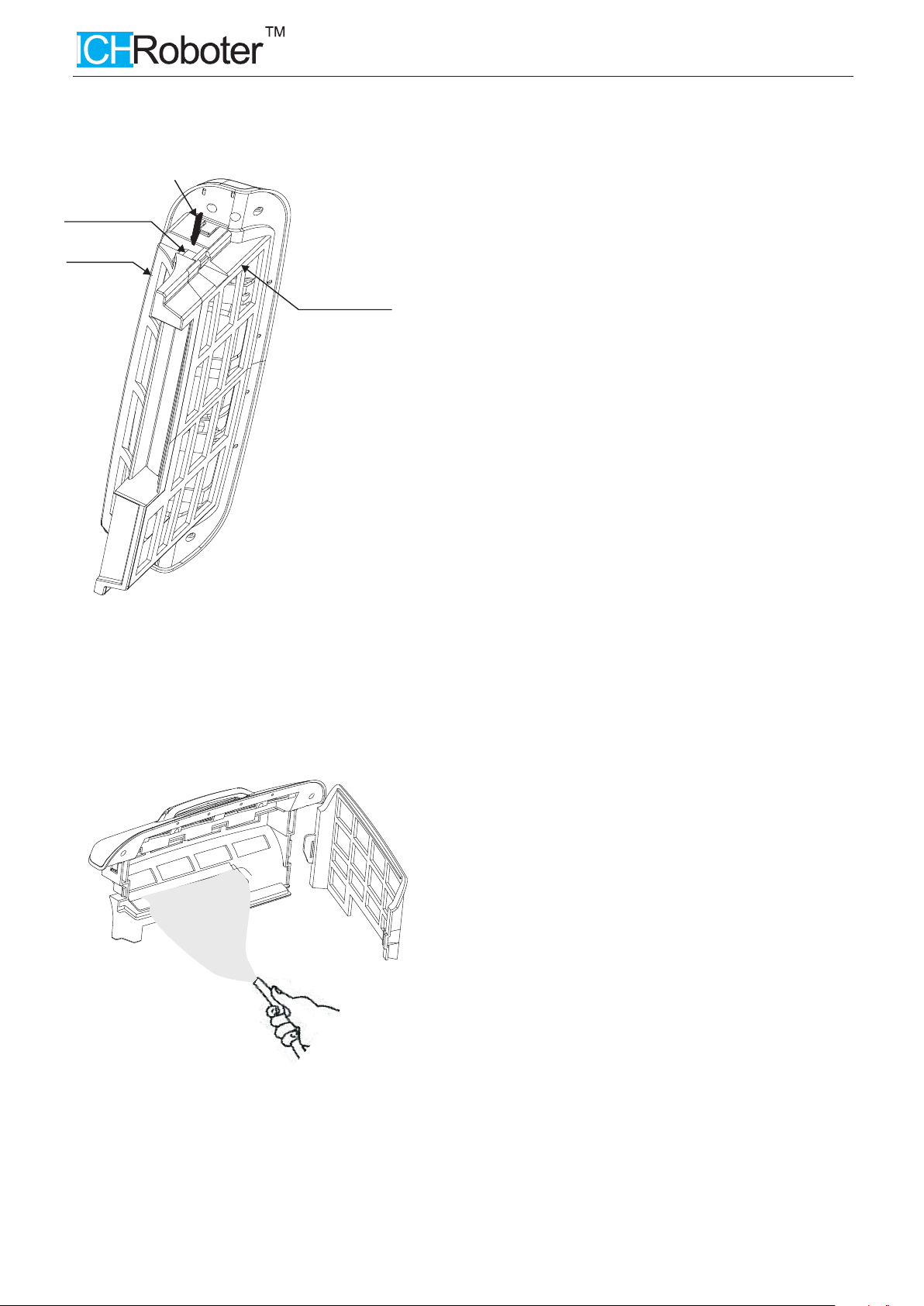

4.4 Proper Shut Down and Care
(PIC.4.4.1)
(2) To Clean Pool Cleaner:
Remove the Filter Cartridges from the robot, and open, then clean the Filter cartridges thoroughly
(Be careful not to damage the filter mesh), finally reassemble the Filter cartridges and place back into
the Pool Cleaner.
(Note: When re-fitting the Fliter cartridges, please ensure the Filter cartridges fit securely into the base
of the pool cleaner.)
-8-
(PIC.4.4.2)
(1)The iCleaner will shut down at the
end of the cycle.Turn power off at the
wall socket, and disconnect the power lead.
Remove the floating cable from the side of
the power box.
Pull the Floating Cable slowly until the Handle emerges
from the water (Pic.4.4.1 ), and then pull the Pool
Cleaner out of the pool by its Handle.
To stop the iCleaner before the end of the cleaning
cycle. press “ ” on the remote or the power box.

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.

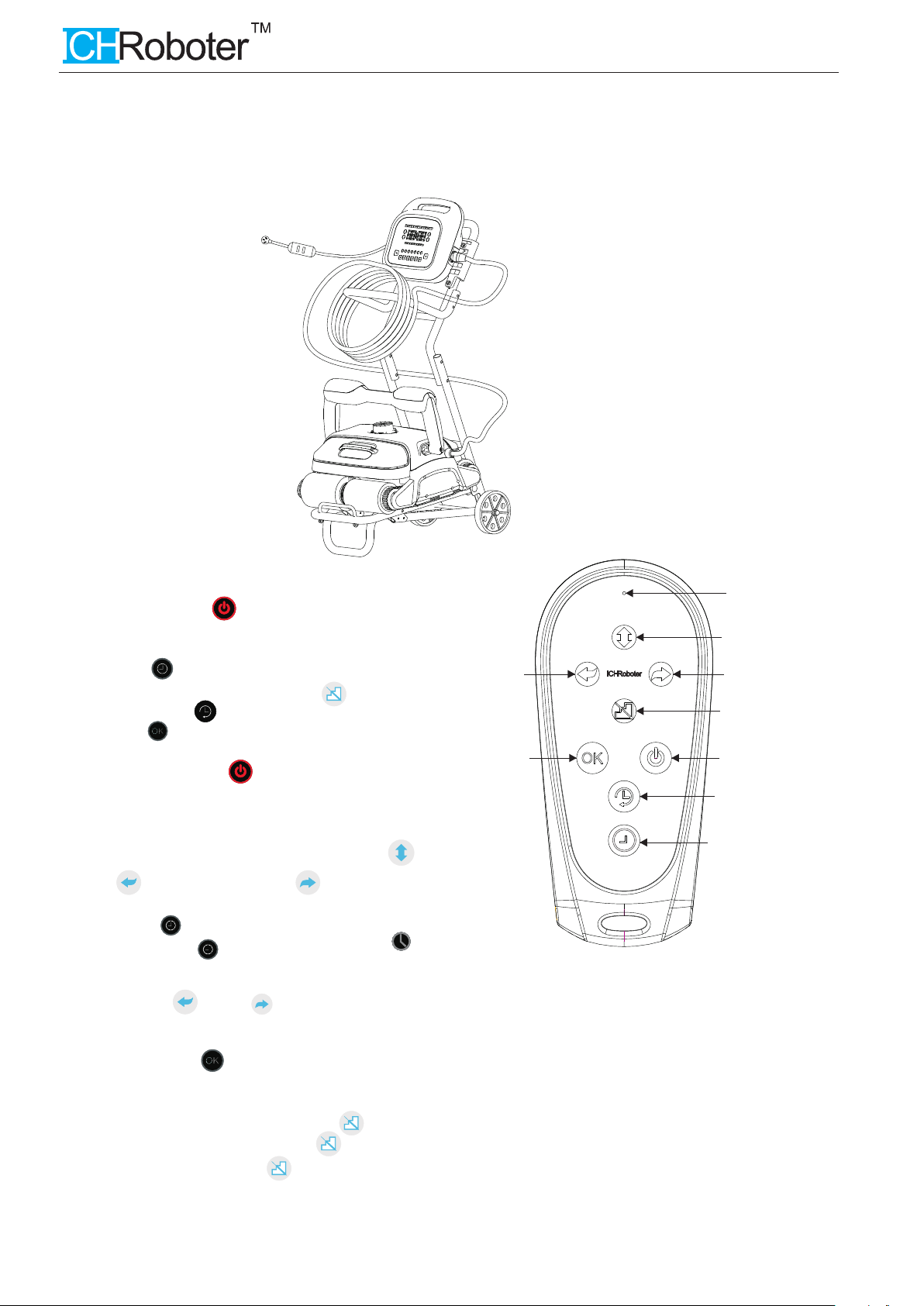

The Remote Control (Pic.4.5.1) includes:
On/Off Power Button
LED Light Indicator
Direction Button
Timer Button
Floor and Wall/Floor Only Cleaning
Order Time Button
Enter Button
On/Off Power Button:
Turn on or turn off Pool Cleaner
Direction Button:
Control Pool Cleaner's movement Backward , Left
Rotation and Right Rotation
Timer Button :
Floor and wall/ Floor Only Cleaning :
To clean the “Floor and Wall” press . To return to
“Floor Only Cleaning” press .
1. Press the button “ ”, then indicator light “ ”
flashing(on the power box).
2.Press button “ ” and “ ”to select the robot working
time (the max time subject to the actual robot).
3.Press the button “ ” to confirm after setting.
(3) Pool Cleaner Storage:
When the Pool Cleaner is clean, disconnect the floating cable reel it in hand-over-hand and place on
the Pool Cleaner, then store the Pool Cleaner in a dry, well-ventilated area. If you have the Caddy,
please put the Pool Cleaner & Floating Cable on to the Caddy Cart, details please refer Pic.4.4.3
4.5 Remote control
Direction
Direction
Direction
Floor And Wall/
Floor Only Cleaning
Power
Enter
Order Time
Timer
Light
(pic.4.5.1)
(pic.4.4.3)
-9-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Order time button
1.Pressing the button “ ”, then indicator light “ ” flassing(on the power box).
2. Press the button “ ”or “ ” to select the time: . Press the button “ ” or “ ” to select the date.
(when the light “ ” flashing(on the power box), mean the robot working everyday in the week.)
in the end press the button “ ” to enter your selecting.
Setting the date：
1. Holding the button “ ” (after 20s)when the indicator light“ ”flashing(on the power box).
first press “ ” or “ ” to setting year; second press the “ ” to entering month setting and
press “ ” or “ ”to change the month; Third press the “ ” to entering date setting and
press “ ” or “ ”to change the date .Fourth press the“ ” to entering time setting and
press “ ” or “ ” to change the time, finally press “ ” to confirm the setting.

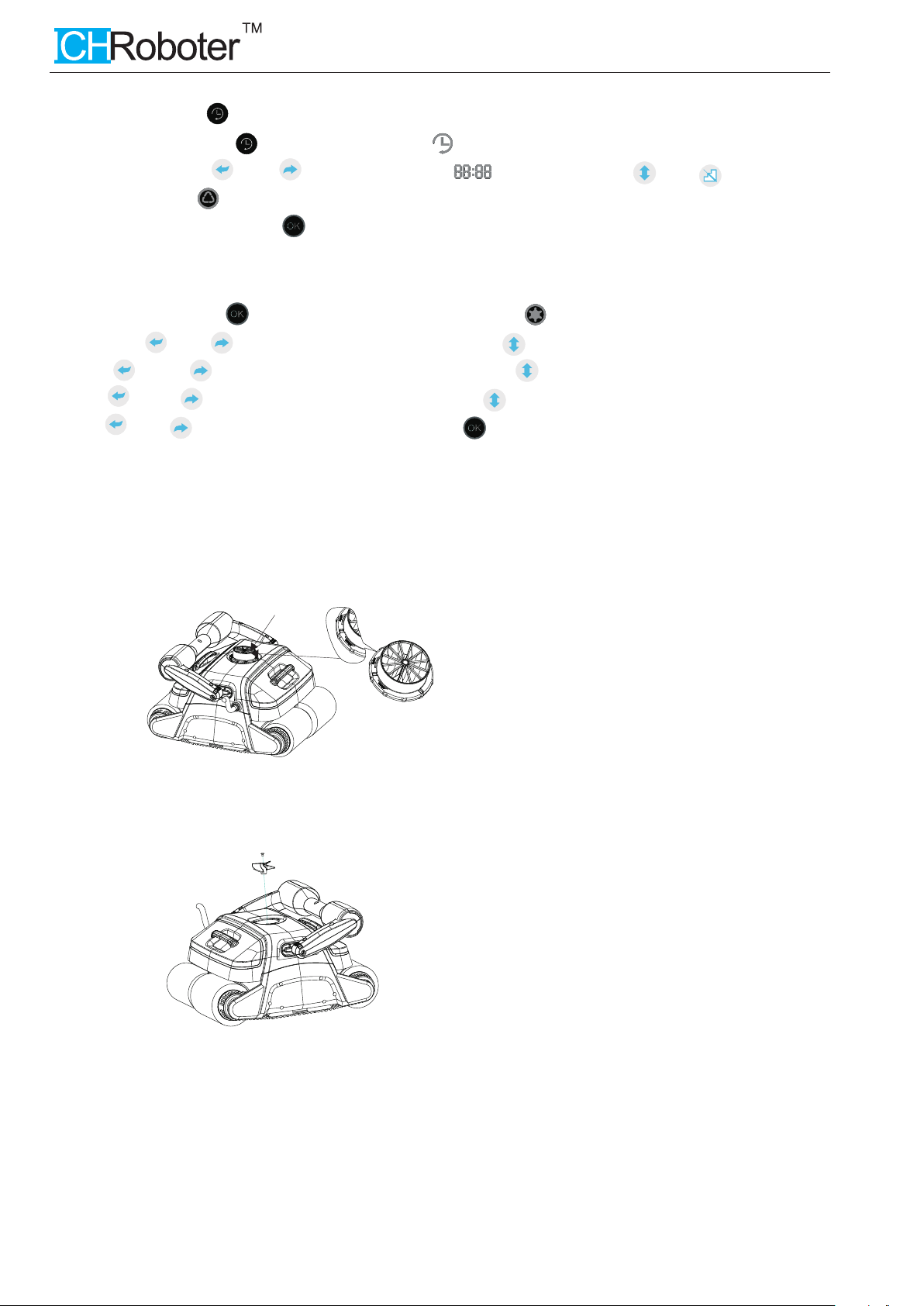

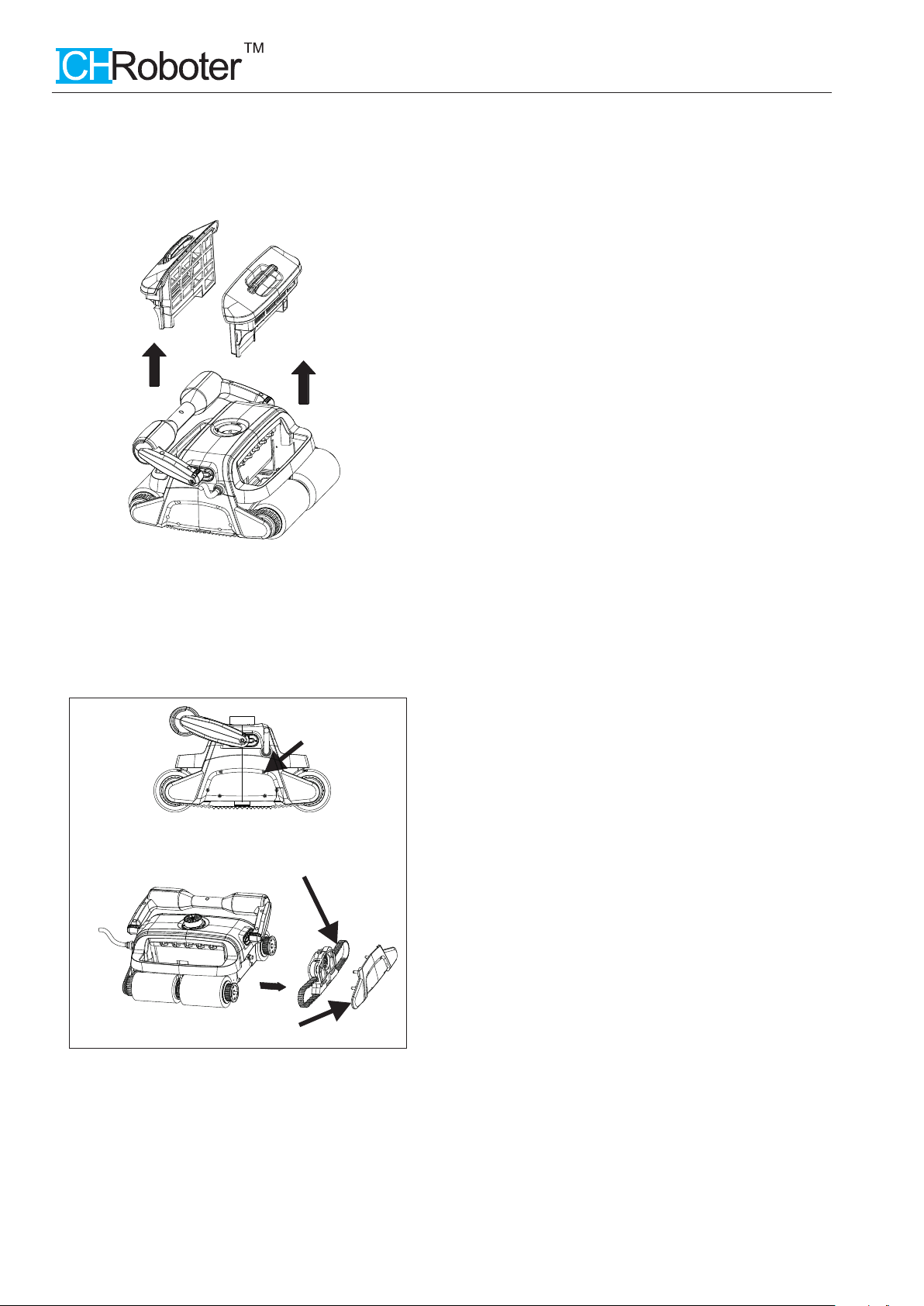

5 Maintenance
5.1 Impeller Change the Impeller if the old one gets worn or damage
Step 1:
Rotate Guide Vane clockwise to remove
from the pool cleaner.(Pic.5.1.1)
Guide Vane
(pic.5.1.1)
Step 2
Use a Phillips head screw to remove the bolt in
the Impeller according the diagram(Pic.5.1.2)
-10-
(pic.5.1.2)
Step 4
Replace the new impeller and assemble impeller and
guide vane.
Step 3
Inspect the entire pump shaft and remove any debris.
(Note:Debris around the impeller shaft may cause the
pump seals to wear out.)

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
5.2 Sponge Wheel
Replace the Sponge Wheels if they are badly worn or broken
Step 1
Remove the Filter cartriages from the pool cleaner(pic.5.2.1).
（Pic.5.2.2）
Transmission Components
Side cover
Screw & Nuts
Step 2
Using a Phillips head screwdriver and 7mm
ring spanner, undo the six bolts and nuts on the
Side Cover, to remove the Side Cover and
Transmission Components.(pic.5.2.2).
(pic.5.2.1)
-11-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Step 3
Remove the Rolling Brush. (Pic.5.2.3)
Rolling Brush
(pic.5.2.3)
Step 4
Slide the old sponge wheels off, and replace with new
sponge wheels(Pic.5.2.4)
（Pic.5.2.4）
Step 5
Assemble the Rolling Brush to the axle
(Pic.5.2.5) .
Axle
（Pic.5.2.5）
-12-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
(PIC.5.2.6)
Step 6
Reassemble the Transmission components and
Side Covers to the body of the unit.(Pic.5.2.6)
(PIC.5.2.7)
Step 7
Fasten the transmission components and side covers
to the body of the unit using the nuts and
bolts.(Pic.5.2.7)
-13-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
5.3 Filter cartridge
Press
Button Lock
Prefilter
Post-filter
Step 1:
Press the Buttom Lock of the Post-filter and rotate a
Prefilter certain Angle and take it out.
Step 2:
Washing the filter Cartridge use the water spray or
firm brush.
(pic.5.3.1)
(pic.5.3.2)
-14-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
6 Troubleshooting and Warning Lights
1.The Robot
out of water
2.The Motor Pump
have over heated.
4.The robot is upside down.
5.The walking motors
are over loaded. 6.The power box have over heated.
7.Signal connection problem.
8.The Motor Pump is
over loaded.
3.Abnormal voltage.
Indicator
light Failure
Blue light
flashing
The roboter
turned over
Walking motor
overload
light flashing Solution
Failure
1The robot out of water Return the robot to deeper water and restart
The Motor Pump have
over heated Contact the supplier for support
4The robot is
upside down
Turn the iCleaner over, and restart using
the remote control or power swich
The walking motors are
over loaded
1.Check the walking motors, Drive tracks and
tacking belts for debris or damge.
2.Clear bebris or replace parts and restart
the Robot.
The water pump is over
loaded
1.Turn the robot off, check the impeller for
debris, or damage.
2.Clear or replace impeller, then restart the iCleaner.
2
3Abnormal voltage Restart , please contact the supplier
for support if there is any problem.
5
6The power box have over heated Contact the supplier for support
7
8
Signal connection problem Reconnect the floating cable or
contact the supplier for support
-15-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Robot is turning
to one side when it
moves
Commonfault Reason Solution Remarks
The robot
doesn't work
Weak pumping
Robot will not
climbs wall
Pool Cleaner
will not sink to the
bottom of the pool
Dirt is coming
through the
guide vane.
The socket is
not plugged in
Connection is wrong
Impeller is
jammed or dirty
Impeller is damage
Filter cartridge is full
Drive Belt is loosen
or broken at one side
Filter cartridge is full
Filter cartridge is full
Drive Belt is
loosen or broken
Sponge wheel wear
Axis sleeves wear
The sponge wheel
don't soak enough
It has air inside
the machine
Filter Cartridge is
loosen or broken.
Dirt is too fine for
the filter Cartridge
Plug in the power lead
Check the connection
Clean the Impeller
Replace the Impeller
Clean the Filter cartridge
Clean the Filter cartridge
Clean the Filter cartridge
Replace the Sponge wheel
Replace axis sleeves
You must hold cleaner
in water and make sure
sponge wheel soak enough,
normal time is about 5-15
minutes
Wobble iCleaner-300 and
make sure air released
Replace the broken
Filter Cartridge
Note: The Power Box MUST BE DISCONNECTED from the power supply prior to
conducting any maintenance on the Robot. Contact your local distributor, or place of
purchase for problems not covered in Trouble Shooting Guide.
Replace the Drive Belt
Replace the Drive Belt
-16-
Please turn off the
power before you
perform any
maintance on the
pool cleaner
Broken Coupling block Replace Coupling block
Purchase a finer grade of
Filter cartridge if available.

HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
-17-
7 Safty Checklist
◇Please shut down the pool cleaner according to chapter 4.4 when you
have finished cleaning the pool.
◇Please inspect and clean the impeller & Guide Vane according to
chapter 5.1, after use.
◇If you are not going to use the pool cleaner for an extended period of
time, make sure pool cleaner & Power Box is turned off, and store it in
a dry, shady & well ventilated area, with a temperature range between 0-
40℃.
◇If you want to reuse pool cleaner after it has been stored for an
extended period of time, please check the pool cleaner for visual
damage (cracks & rust) prior to use. Once you are sure pool cleaner is
free from damage, test run it, and if it performs as expected, then allow
it to run automatically.
◇If the pool cleaner requires repair, please contact your local distributor,
or contact [e-mail].
-17-

HANGZHOU GAOYUE TECHNOLOGY CO., LTD
WWW.ICHROBOTER.COM
LIANGZHU UNIVERSITY SCIENCE PARK, HANGZHOU, CHINA
T: 86-571-88759508 F: 86-571-88759501
E:[e-mail]
