Dolphin S Series User manual

 Dolphin S300i

MyDolphin™  

 
  MyDolphin™ 
 4  iOS 6   Android 4.4   
MyDolphin™ is an easy-to-use app for controlling your Dolphin robotic pool cleaner remotely using Bluetooth®. You can
activate cleaning programs and the weekly timer, navigate manually, and much more.*You can install and operate the
MyDolphin™ app on all the most common mobile devices and operating systems, specifically iPhone 4 with iOS 6 (and
above), and Android 4.4 (and above), including tablets.
1. Make sure the Dolphin's power supply is connected to the Dolphin pool cleaner and an electrical outlet, and that the
Dolphin robot is in the pool. Upon initial operation, it will perform the self-system diagnostic sequence.
2. Make sure Bluetooth® is active on your smartphone and download and activate the MyDolphin™ app. Once
downloaded, the app searches for and displays the serial number of the nearest Dolphin robot.
3. Click on the Dolphin serial number displayed on your screen.
4. Register by entering your email address and creating a password.
Your smartphone will then finalize the Bluetooth® pairing sequence.
1. 
   

2.  MyDolphin™ 
  

3.  


Dolphin S300i
MYDOLPHIN™SMARTPHONEAPP
WithFCCID:WCH99956035
InitialOperation 

DashboardScreen 
•Get a quick glimpse of your Dolphin's operational stats, and easily set
up each of the MyDolphin™ app features.
•The top indicator bar shows functional information, including on-o
status, signal strength and error notifications.
•The main screen window shows the operational status and
information, including the remaining cycle time and selected cleaning
mode.
•The buttons on the lower half of the screen show the available
operation modes: cleaning mode, manual drive, cycle time, weekly
timer, info/links, and delay mode.
• Dolphin 
 MyDolphin™
• - ,

•

•
   
, , , 
, 
ApplicationFeatures 
Weekly timer
You can use the MyDolphin™ app to set the weekly timer on your Dolphin robotic
pool cleaner. This unique planning system enables you to create a personalized
cleaning schedule for your Dolphin (per day and hour). Set it for just one week or
to repeat on a weekly basis.

 MyDolphin™ 

 1 


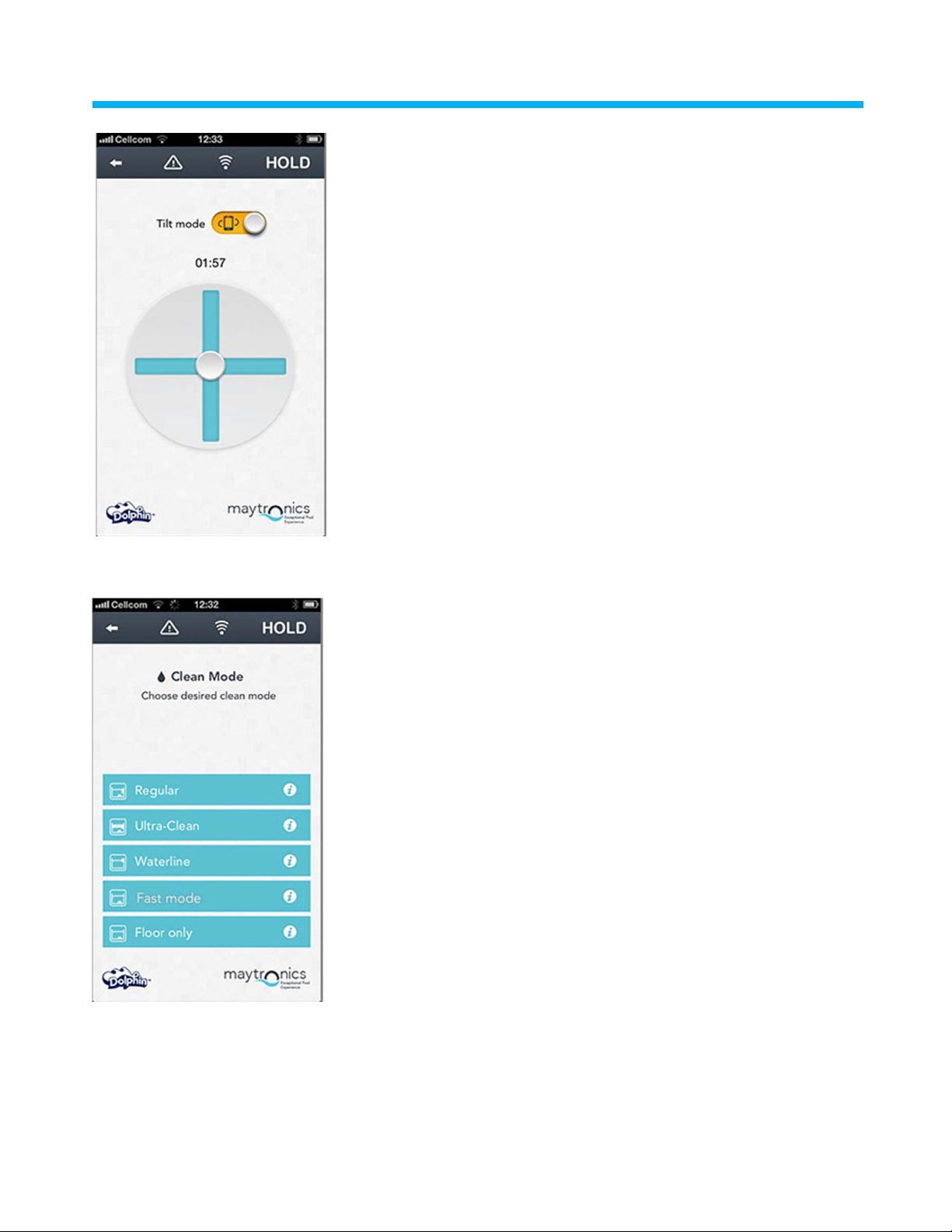

Manual navigation
You can use the MyDolphin™ app to manually maneuver your Dolphin into
specific areas and corners of your pool, by dragging the handle in the desired
directions. In this way, you can quickly and e_ciently clean hard-to-reach spots.
You can also switch to Tilt mode for a more playful and realistic experience, and
maneuver your Dolphin by tilting the smartphone in various angles.

MyDolphin™  
   
 
 -

Clean modes
In addition to the automatic clean mode, the MyDolphin™ app also includes
additional clean modes to suit your specific needs. For example, the Floor Only
clean mode focuses on the floor of your pool, removing more dirt from the
bottom, without taking time to scrub the walls.

  MyDolphin™ 
   
 
  

Cycle time
This determines the cleaning cycle time. The MyDolphin™ app allows you to
choose between the following options: 1.5 hour, 2 hours, 2.5 hours.

 1    MyDolphin™ 
  3   1.5 . 2.  2.5 .
Operation delay
The Delay feature enables you to delay the cleaning start time for 1-6 hours.
This delay allows the dirt to settle at the bottom of the pool. Note that this is a
one-time operation. You need to reactivate the Delay feature every time it is
required.

1- 6   
 (
  
)

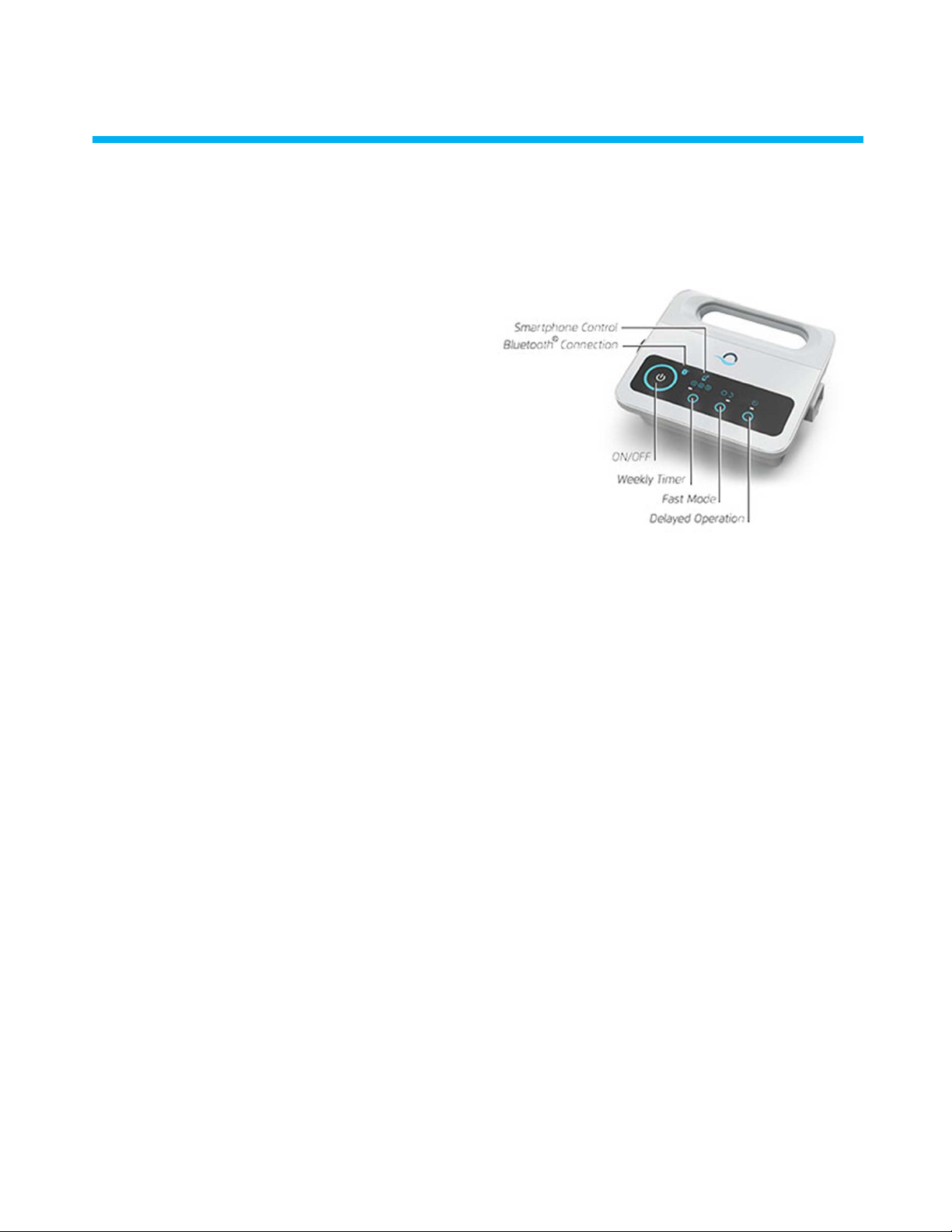

POWERSUPPLY
INPUT - 100-125 AC Volts/200-
230 AC Volts
50-60 Hertz
Output - <30 VDC
IP 54
Basic Operation:
1. Plug the Power supply into an electrical outlet.
2. Press the ON button
The LEDs will turn on and the robot will start to operate.
If no program is selected, the robot will perform a single cleaning cycle.
3. You can program the power supply at any time. See the relevant section
below for more details on each program.

1.  
2.    ON 
 LEDs 
 
3. 


WeeklyTimer(Optional)
Your robot has a Weekly Timer feature that enables you to set an automatic cleaning schedule for the week ahead
One click – The robot will automatically work every day for a full
cycle,that is, once a day for 7 days.
When the power supply is switched on, you can press the Weekly Timer button to select
one of the following cleaning schedule options for the week ahead:
Two clicks –The robot will automatically work every alternate
day for a full cycle,that is, 4 times in a week.
Three clicks – The robot will automatically work every 3 days,
that is, 3 times in a week.
After selecting one of the above options, the robot will start to operate at the next occurrence of the programmed start time.
Note: A fourth click will cancel the cleaning schedule program (without a visible indication).
If the robot is working in Weekly Timer mode, the Weekly Timer button constantly blinks between cycles. At the end of the
week, the power supply automatically switches off and you need to reschedule the robot.

  

   1  –  1 
   2  –   1 4 
   3  –   3   3 
 
:  4   ()
 Weekly Timer mode  
  Weekly Timer 


Regular/FastMode(Optional)  / 
Your robot has a Fast Mode feature that enables you to select a fast cleaning cycle instead of a
standard cleaning cycle.
 

When the LED under the Full Cycle icon is lit: The robot will work in the
regular manner.
 LED  : 
When the LED under the Fast mode icon is lit: The robot will
work in fast mode.
 LED  : 
  1   1 . 

Note: Once Fast Mode is selected, the robot will continue to work in Fast Mode every time. To revert to the standard
cleaning method, press the button. The LED under the Full Cycle icon will light up.
:   

 LED 
DelayedOperation(Optional)
Your robot has a Delay feature that enables you to delay the cleaning start time. This delay allows the dirt to settle
at the bottom of the pool.
When the Power supply is switched on, you can press the Delayed Operation to delay the cleaning start time.
When the LED under the Delayed Operation icon is lit:
The robot will automatically start working after a two-hour delay.
During that time, the ON button continuously blinks, waiting to start.
Once started, the ON button blinks continuously until the robot starts working.
This is a one-time operation. Delayed Operation needs to be activated each time it is required.
  

  
 LED 
2 .
    
 Delay operation  1  

BluetoothConnection(Optional)  Bluetooth)
Your robot has a Bluetooth® Connection indicator. When the LED indicator is on, it indicates that the
smartphone paired with the robot is identified nearby. This only works if the phone’s Bluetooth® is activated.
Refer to the Smartphone Control section for more information about smartphone connectivity.
 LED  
 MyDolphin     

:  Smartphone control section
SmartphoneControl(Optional)
The Smartphone Control feature is available only with specific robot models. To activate it, download and activate the
MyDolphin™ application.
When this LED indicator is on, it indicates one of the following:
•The robot is being programmed or was programmed using a smartphone.
•The robot is currently being operated using a smartphone.
Note: If you are programming the robot using a smartphone, it cannot be manually programmed using the Power supply.

 MyDolphin™ 
   smartphone control  :
•
•
: 
