Hanlong Unicorn 600 Series User manual
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 2 of 37
Firmware 1.0.0.29 Last Updated 8/2010
Table of Content
1WELCOME................................................................................................................ 4
1.1 Gateway Unicorn 600x Overview................................................................. 4
1.2 Safety Compliances..................................................................................... 4
1.3 Warranty ...................................................................................................... 5
2CONFIGURE YOUR UNICORN 600X....................................................................... 5
2.1 Equipment Packaging.................................................................................. 5
2.2 Connect The Unicorn 600x .......................................................................... 5
2.3 Diagram of Unicorn 600x Back Panel .......................................................... 6
2.4 Diagram Of Unicorn 600x Display Panel ..................................................... 6
3APPLICATION DESCRIPTION ................................................................................. 7
3.1 Examples Of Unicorn 600x Configurations .................................................. 7
3.1.1 Application One: Unicorn 600x FXS Gateway Configuration / PBX
Scenario, VoIP .................................................................................................... 7
3.1.2 Application Two: Unicorn 600x & Unicorn 60x0 Scenario / Toll- Free
Calling Between Locations.................................................................................. 8
4UNICORN 600X FEATURES..................................................................................... 8
4.1 Software Features Overview ....................................................................... 9
4.2 Hardware specification .............................................................................. 10
5BASIC OPERATIONS ..............................................................................................11
5.1 Understanding Unicorn Voice Prompts .......................................................11
5.2 Placing A Phone Call ................................................................................. 12
5.2.1 Phone or Extension Numbers............................................................. 12
5.2.2 Direct IP Calls..................................................................................... 13
5.3 Call Hold .................................................................................................... 13
5.4 Call Waiting................................................................................................ 14
5.5 Call Transfer .............................................................................................. 14
5.6 3-Way Conferencing .................................................................................. 15
5.7 Hunting Group ........................................................................................... 15
5.8 Inter-port Calling ........................................................................................ 17
5.9 PSTN Pass Through/Life Line ................................................................... 17
5.10 Sending And Receiving Fax....................................................................... 17
6CALL FEATURES ................................................................................................... 17
7CONFIGURATION GUIDE....................................................................................... 19
7.1 Configuring Unicorn 600x Via Voice Prompt.............................................. 19
7.2 Configuring Unicorn 600x With Web Browser............................................ 20
7.2.1 Access The Web Configuration Menu ................................................ 20
7.3 Important Settings...................................................................................... 21
7.3.1 NAT Settings....................................................................................... 22
7.3.2 DTMF Methods................................................................................... 22
7.3.3 Preferred VOCODER (Codec)............................................................ 22
7.4 End User Configuration ............................................................................. 22
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 3 of 37
Firmware 1.0.0.29 Last Updated 8/2010
7.4.1 Status Page Definitions ...................................................................... 23
7.4.2 Basic Settings Page Definitions.......................................................... 24
7.5 Super User Configuration .......................................................................... 25
7.5.1 Super Configuration Page Definitions................................................. 25
7.5.2 Profile Page Definitions ...................................................................... 27
7.5.3 FXS Ports Configuration Definitions ................................................... 34
7.6 Saving The Configuration Changes ........................................................... 35
7.7 Screen-Shot Of Save Configuration Page ................................................. 35
7.8 Rebooting From Remote ........................................................................... 35
7.9 Screen-Shot Of Rebooting Page ............................................................... 36
8SOFTWARE UPGRADE.......................................................................................... 36
9RESTORE FACTORY DEFAULT SETTINGS.......................................................... 37
10 TECHNICAL SUPPORT CONTACT........................................................................ 37
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 4 of 37
Firmware 1.0.0.29 Last Updated 8/2010
1 WELCOME
Thank you for purchasing the Hanlong Unicorn 600x Analog FXS IP Gateway. The
Unicorn 600x offers an easy to manage, easy to configure IP communications solution for
any business with virtual and/or branch locations. The Unicorn 600x supports popular
voice codecs and is designed for full SIP compatibility and interoperability with 3rd party
SIP providers, thus enabling you to fully leverage the benefits of VoIP technology,
integrate a traditional phone system into a VoIP network, and efficiently manage
communication costs.
This manual will help you learn how to operate and manage your Unicorn FXS Analog IP
Gateway and make the best use of its many upgraded features including simple and quick
installation, multi-party conferencing, This IP Analog Gateway is very easy to manage and
scalable, specifically designed to be an easy to use and affordable VoIP solution for the
small – medium business or enterprise.
1.1 Gateway Unicorn 600x Overview
The new Unicorn 600x series has a compact and quiet design (no fans) and offers superb
audio quality, rich feature functionality, strong security protection, and good manageability.
It is auto-configurable, remotely manageable and scalable.
The Unicorn 600x features 4 or 8-port FXS interface for analog telephones, dual
10M/100Mbps network ports with integrated router, PSTN life line in case of power failure,.
In addition, it supports the option of 2 SIP Server profiles, caller ID for various
countries/regions, T.38 fax, flexible dialing plans, security protection (SIPS/TLS),
comprehensive voice codecs including G.711 (a/u-law), G.723.1, G.726(32K bit rates),
G.729A/B/E.
Caution: Changes or modifications to this product not expressly approved by Hanlong
Technology, or operation of this product in any way other than as detailed by this User
Manual, could void your manufacturer warranty.
Information in this document is subject to change without notice. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical,
for any purpose without the express written permission of Hanlong Technology.
1.2 Safety Compliances
The Unicorn 600x is compliant with various safety standards including FCC/CE. Its power
adaptor is compliant with UL standard.
Warning: use only the power adapter included in the Unicorn 600x package. Using
an alternative power adapter may permanently damage the unit.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 5 of 37
Firmware 1.0.0.29 Last Updated 8/2010
1.3 Warranty
Hanlong has a reseller agreement with our reseller customer. End users should contact
the company from whom you purchased the product for replacement, repair or refund.
If you purchased the product directly from Hanlong, contact your Hanlong Sales and
Service Representative for a RMA (Return Materials Authorization) number. Hanlong
reserves the right to remedy warranty policy without prior notification.
2 CONFIGURE YOUR UNICORN 600X
Connecting your Unicorn 600x is easy. Before you begin, please verify the contents of the
Unicorn 600x package.
2.1 Equipment Packaging
Unpack and check all accessories. The Unicorn 600x package contains:
zOne Unicorn 600x VoIP adapter
zOne universal power supply
zOne Ethernet cable
2.2 Connect The Unicorn 600x
Managing the Unicorn 600x gateway and connecting the unit to the VoIP network is very
simple. Follow these four (4) steps to connect your Unicorn 600x gateway to the Internet
and access the unit’s configuration pages.
1. Connect standard touch-tone analog phones to the FXS1-FXS8 ports.
2. Insert the Ethernet cable into the WAN port of Unicorn 600x and connect the other end
of the Ethernet cable to an uplink port (a router or a modem, etc.)
3. Connect a PC to the LAN port of Unicorn 600x for initial configuration or if it is being
used as a router.
4. Plug the power adapter into the Unicorn 600x and into a power outlet.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 6 of 37
Firmware 1.0.0.29 Last Updated 8/2010
2.3 Diagram of Unicorn 600x Back Panel
TABLE 1: Definitions Of The Unicorn Connectors
LAN Connect the LAN port with an Ethernet cable to your
PC.
WAN Connect to the internal LAN network or router.
PSTN Line 1 port
RESET Factory Reset button. Press for 8 seconds to reset
factory default settings.
DC 9V 2A Power adapter connection
FXS1 - FXS8 FXS port to be connected to analog phones / fax
machines
Note:Unicorn6004 has the ports from FXS1-FXS4.
Once the Unicorn is turned on and configured, the front display panel indicates the status
of the unit.
2.4 Diagram Of Unicorn 600x Display Panel
TABLE 2: Definitions Of The Unicorn Display Panel
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 7 of 37
Firmware 1.0.0.29 Last Updated 8/2010
Power LED Indicates Power. Remains ON when Power is connected
and turned ON.
RUN LED blinking after boot-up.
LAN LED Indicates LAN port activity
WAN LED Indicates WAN port activity
LEDs 1 - 8
Indicate status of the respective FXS Ports on the back
panel
Busy - ON (Solid Green)
Available - OFF
Slow blinking FXS LEDs indicates Voice Mail for that port.
NOTE:
zFlast blinking of RUN, WAN LED together indicates a firmware upgrade or
provisioning state.
zLEDs POWER, and WAN are ON and READY blinking when device is up and running
and successfully registered to the SIP Server.
3 APPLICATION DESCRIPTION
There are two scenarios where the Unicorn 600x series can be effectively used to enable
any business to leverage the benefits of VoIP and the Internet.
3.1 Examples Of Unicorn 600x Configurations
3.1.1 Application One: Unicorn 600x FXS Gateway
Configuration / PBX Scenario, VoIP
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 8 of 37
Firmware 1.0.0.29 Last Updated 8/2010

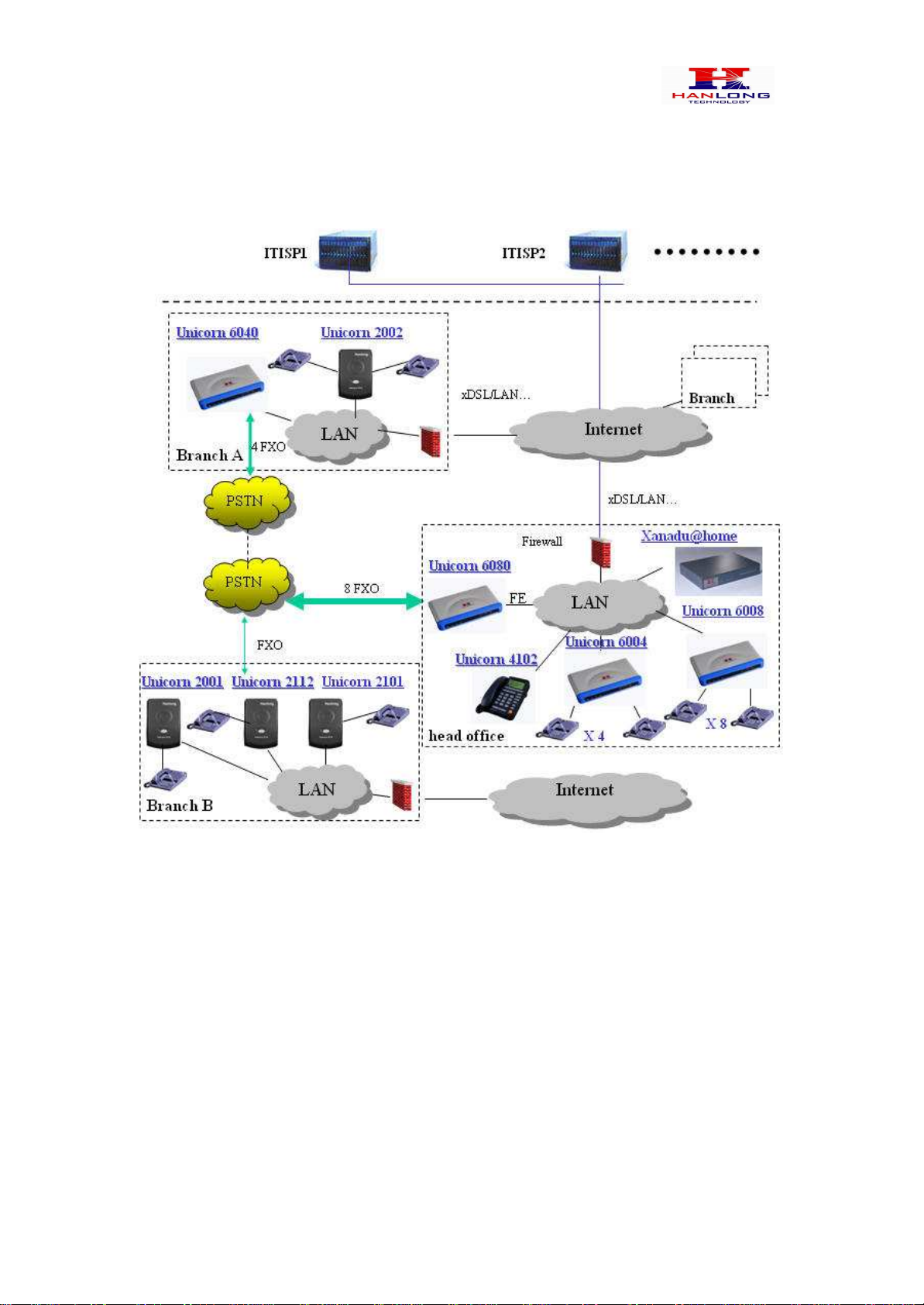

3.1.2 Application Two: Unicorn 600x & Unicorn 60x0 Scenario
/ Toll- Free Calling Between Locations
4 UNICORN 600X FEATURES
The Unicorn 600x is a next generation IP voice gateway that is interoperable and
compatible with leading IP-PBXs, SoftSwitches and SIP platforms. The Unicorn 600x FXS
series is auto-configurable, remotely manageable and scalable. There are two FXS
models, the Unicorn 6004 and Unicorn 6008, each offering superb voice quality, traditional
telephony functionality, easy deployment, and 4 or 8 FXS ports respectively. Each model
features flexible dialing plans, PSTN failover, integrated call routing to support a pure IP
network call and an external power supply.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 9 of 37
Firmware 1.0.0.29 Last Updated 8/2010
4.1 Software Features Overview
z4 or 8 FXS ports
zTwo RJ-45 ports (switched or routed)
zMultiple SIP accounts & profiles (4 or 8 accounts / choice of 2 profiles per account)
zSupports Voice Codecs: G711(a/, Annex I & II), G723.1A, G726 (ADPCM with
16/24/32/40 bit rates), G729 A/B/E.
zfax pass through and T.38 Fax
zComprehensive Dial Plan support for Outgoing calls.
zG.168 Echo Cancellation
zVoice Activation Detection (VAD), Comfort Noise Generation (CNG), and Packet
Loss Concealment (PLC)
zSupports PSTN/PBX analog telephone sets or analog trunks
TABLE 3: Unicorn 600x SOFTWARE FEATURES
Unicorn 600x FXS Analog Gateway Series
Telephone Interfaces
Unicorn 6004: 4 ports, 4 SIP accounts & choice of 2
profiles
Unicorn 6008: 8 ports, 8 SIP accounts & choice of 2
profiles
FXS, RJ-11
Network Interface Two (2) 10M/100 Mbps, RJ-45
LED Indicators Power and Line LEDs
Voice over Packet
Capabilities
Voice Activity Detection (VAD) with CNG (comfort noise
generation) and PLC (packet loss concealment), AEC
with NLP, Packetized Voice Protocol Unit (supports
RTP/RTCP and AAL2 protocol), G.168 compliant Echo
Cancellation, Dynamic Jitter Buffer, Modem detection &
auto-switch to G.711
PSTN Fail-over PSTN failover port on power failure
Voice Compression
G.711 + Annex I (PLC), Annex II (VAD/CNG format)
encoder and decoder, G.723.1A, G.726(ADPCM with
16/24/32/40 bit rates), G.729A/B/E, iLBC G.726 provides
proprietary VAD, CNG, and signal power estimation
Voice Play Out unit (reordering, fixed and adaptive jitter
buffer, clock synchronization), AGC (automatic gain
control), Status output, Decoder controlling via voice
packet header
DHCP Server/Client Yes, NAT Router or Switched Mode
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and
auto-switch to G.711 for Fax Pass-through, Fax
Datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 10 of 37
Firmware 1.0.0.29 Last Updated 8/2010
QoS Diffserve, TOS, 802.1 P/Q VLAN tagging
IP Transport RTP/RTCP
DTMF Method flexible DTMF transmission method, User interface of
In-audio, RFC2833, and/or SIP Info
IP Signaling SIP (RFC 3261)
Provisioning TFTP, HTTP, HTTPS (pending)
Management Syslog support, HTTPS (pending), Telnet, remote
management using Web browser
Dial Plan Yes
UPnP Support Yes
Power Output: 9VDC / Input: 100–240 VAC/50-60 Hz
Mounting Rack mount, Wall mount, Desktop
Short and long haul REN3: Up to150 ft on 24 AWG line
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based
CID
Polarity Reversal / Wink Yes
EMC EN55022/EN55024 and FCC part15 Class B
Safety UL
4.2 Hardware specification
The hardware specifications of the Unicorn FXS series are detailed in Table 4.
TABLE 4: Hardware Specification Of Unicorn 600x
Ports 4 or 8 FXS Ports
LAN interface
2 x RJ45 10/100Mbps (switched or routed)
PSTN Port
PSTN fail-over port
LED
4 or 8 LEDs (GREEN)
Universal Switching
Power Adaptor
Input: 100-240V AC, 50/60Hz, 0.5A Max
Output: 9V DC, 2A
UL certified
Dimension
225mm (L) x 135mm (W) x 35mm (H)
Weight
0.29 lbs (3.5 oz)
Temperature
32~104°F / 0~40°C
Humidity
10% - 90% (non-condensing)
Compliance
FCC, CE
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 11 of 37
Firmware 1.0.0.29 Last Updated 8/2010
5 BASIC OPERATIONS
5.1 Understanding Unicorn Voice Prompts
Unicorn 600x has a stored voice prompt menu for quick browsing and simple configuration.
To enter the voice prompt menu, press *** on the standard analog phone connected to
any FXS port.
TABLE 5: Definitions Of The Unicorn Voice Prompts
Menu Voice Will Say the Following:
Main
Menu “Enter a Menu Option”
Enter “*” for the next menu option
Enter “#” to return to the main menu
Enter 01 – 07,12 - 17, 47, 86 or 99 Menu
option
01 “DHCP Mode”, “Static IP Mode”
Enter ‘9’ to toggle the selection
If user selects “Static IP Mode”, user need
configure all the IP address information
through menu 02 to 05.
If user selects “Dynamic IP Mode”, the
device will retrieve all IP address
information from DHCP server
automatically when user reboots the
device.
02 “IP Address “ + IP address
The current WAN IP address is
announced Enter 12-digit new IP address
if in Static IP Mode.
03 “Subnet “ + IP address Same as Menu option 02
04 “Gateway “ + IP address Same as Menu option 02
05 “DNS Server “ + IP address Same as Menu option 02
06 “MAC Address” Announces the Mac address of the unit.
07 Preferred Vocoder
Enter “9” to go to the next selection in the
list:
zPCM U
zPCM A
zG-726
zG-723
zG-729
12 WAN Port Web Access Enter “9” to toggle between enable and
disable
13 Firmware Server IP Announces current Firmware Server IP
address. Enter 12 digit new IP address.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 12 of 37
Firmware 1.0.0.29 Last Updated 8/2010
Address
14 Configuration Server IP
Address
Announces current Config Server Path IP
address. Enter 12 digit new IP address.
15 Upgrade Protocol
Upgrade protocol for firmware and
configuration update.
Enter “9” to toggle between TFTP and
HTTP
16 Firmware Version Firmware version information.
17 Firmware Upgrade
Firmware upgrade mode. Enter “9” to
rotate among the following three options:
1. always check
2. check when pre/suffix changes
3. never upgrade
47 “Direct IP Calling”
Enter the target IP address to make a
direct IP call, after dial tone. (See “Make
a Direct IP Call”.)
99 “RESET”
Enter “9” to reboot the device; or
Enter MAC address to restore factory
default setting (See Restore Factory
Default Setting section)
“Invalid Entry” Automatically returns to Main Menu
Five Success Tips when using the Voice Prompt
1. “*” shifts down to the next menu option
2. “#” returns to the main menu
3. “9” functions as the ENTER key in many cases to confirm an option
4. All entered digit sequences have known lengths - 2 digits for menu option and 12 digits
for IP address. For IP address, add 0 before the digits if the digits are less than 3 (i.e. -
192.168.0.26 should be key in like 192168000026. No decimal is needed).
5. Key entry can not be deleted but the phone may prompt error once it is detected
5.2 Placing A Phone Call
5.2.1 Phone or Extension Numbers
1. Dial the number directly and wait for 4 seconds (Default “No Key Entry Timeout”); or
2. Dial the number directly and press # (Use # as dial key” must be configured in web
configuration).
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 13 of 37
Firmware 1.0.0.29 Last Updated 8/2010
Examples:
1. Dial an extension directly on the same proxy, and then press the # or wait for 4 seconds.
2. Dial an outside number, first enter the prefix number (usually 1+ or international code)
followed by the phone number. Press # or wait for 4 seconds. Check with your VoIP
service provider for further details on prefix numbers.
5.2.2 Direct IP Calls
Direct IP calling allows two parties, that is, a FXS Port with an analog phone and another
VoIP Device, to talk to each other in an ad hoc fashion without a SIP proxy.
Elements necessary to completing a Direct IP Call:
1. Both Unicorn600x and other VoIP Device, have public IP addresses, or
2. Both Unicorn600x and other VoIP Device are on the same LAN using private IP
addresses, or
3. Both Unicorn600x and other VoIP Device can be connected through a router using
public or private IP addresses (with necessary port forwarding or DMZ).
Unicorn600x supports two ways to make Direct IP Calling:
Using IVR
1. Pick up the analog phone then access the voice menu prompt by dial “***”
2. Dial “47” to access the direct IP call menu
3. Enter the IP address using format ex. 192*168*0*160 after the dial tone.
Using Star Code
1. Pick up the analog phone then dial “*47”
2. Enter the target IP address using same format as above.
Note: NO dial tone will be played between step 1 and 2.
Destination ports can be specified by using “*” (encoding for “:”) followed by the port
number.
Examples:
a) If the target IP address is 192.168.0.160, the dialing convention is
*47 or Voice Prompt with option 47, then 192*168*0*160.
followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this
case,the default destination port 5060 is used if no port is specified.
b) If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be:
*47 or Voice Prompt with option 47, then 192*168*0*160*5062 followed by pressing the
“#” key,if it is configured as a send key or wait for 4 seconds.
NOTE: When completing direct IP call, the “Use Random Port” should set to “NO”. You
can not make direct IP calls between FXS1 to FXS2 since they are using same IP.
5.3 Call Hold
Place a call on hold by pressing the “flash” button on the analog phone (if the phone has
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 14 of 37
Firmware 1.0.0.29 Last Updated 8/2010
that button).Press the “flash” button again to release the previously held Caller and
resume conversation. If no “flash” button is available, use “hook flash” (toggle on-off hook
quickly). You may drop a call using hook flash.
5.4 Call Waiting
Call waiting tone (3 short beeps) indicates an incoming call, if the call waiting feature is
enabled. Toggle between incoming call and current call by pressing the “flash” button.
First call is placed on hold. Press the “flash” button to toggle between two active calls.
5.5 Call Transfer
Blind Transfer
Assume that call Caller A and B are in conversation. A wants to Blind Transfer B to C:
3. Caller A presses FLASH on the analog phone to hear the dial tone.
4. Caller A dials *87 then dials caller C’s number, and then # (or wait for 4 seconds)
5. Caller A will hear the confirm tone. Then, A can hang up.
NOTE: “Enable Call Feature” must be set to “Yes” in web configuration page.
Caller A can place a call on hold and wait for one of three situations:
1. A quick confirmation tone (similar to call waiting tone) followed by a dial tone. This
indicates the transfer is successful (transferee has received a 200 OK from transfer target).
At this point, Caller A can either hang up or make another call.
2. A quick busy tone followed by a restored call (on supported platforms only). This means
the transferee has received a 4xx response for the INVITE and we will try to recover the
call. The busy tone is just to indicate to the transferor that the transfer has failed.
3. Continuous busy tone. The phone has timed out. Note: continuous busy tone does not
indicate the transfer has been successful, nor does it indicate the transfer has failed. It
often means there was a failure to receive second NOTIFY – check firmware for most
recent release.
Attended Transfer
Assume that Caller A and B are in conversation. Caller A wants to Attend Transfer B to C:
1. Caller A presses FLASH on the analog phone for dial tone.
2. Caller A then dials Caller C’s number followed by # (or wait for 4 seconds).
3. If Caller C answers the call, Caller A and Caller C are in conversation. Then A can hang
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 15 of 37
Firmware 1.0.0.29 Last Updated 8/2010
up to complete transfer.
4. If Caller C does not answer the call, Caller A can press “flash” to resume call with Caller
B.
NOTE: When Attended Transfer fails and A hangs up, the Unicorn 600x will ring back user
A to remind A that B is still on the call. A can pick up the phone to resume conversation
with B.
5.6 3-Way Conferencing
The Unicorn 600x supports Bellcore style 3-way Conference.
Instructions for 3-way conference:
Assuming that call party A and B are in conversation. A (Unicorn 600x) wants to bring C in
a conference:
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a
dial tone.
2. A dials *23+C’s number then # (or wait for 4 seconds).
3. If C answers the call, then A presses FLASH to bring B, C in the conference.
4. If C does not answer the call, A can press FLASH back to talk to B.
5. Conference end after A hangs up.
5.7 Hunting Group
This feature allows user to setup a single SIP account on the gateway and have the ability
to use all FXS ports to make/receive calls. Using this feature, all ports active in same hunt
group will have the same phone number and incoming calls will be distributed in a round
robin manner among the ports active in that hunt group. The number of hunting groups is
limited by the number of ports each Unicorn gateway model has -i.e. each port can be its
own hunt group. The most practical and efficient way to use hunt groups is to assign 2 or 3
ports to separate hunt groups.
One additional and popular way to use the Hunting Group feature is called “multiplexed
analog lines”. In this configuration, a legacy PBX system with 8 FXO trunks can be
connected to 8 Unicorn 6008 ports configured as a hunt group. The Unicorn 6008 can be
registered to a SIP server provider using only one phone number. If the SIP service
provider allows multiple calls to the same number, the Unicorn 6008 will allow 8
concurrent calls to the same SIP number. All office members can be reached remotely
using the same phone number in round robin fashion.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 16 of 37
Firmware 1.0.0.29 Last Updated 8/2010
Example Configuration of a typical Hunting Group:
1. Configure the SIP account from your VoIP Service Provider on FXS port 1 under FXS
Ports webpage.
2. Select Active under the Hunting Group drop box for FXS port 1.
3. For the remaining ports (say 2, 3 and 4) select 1 for Hunting Group. Ports 2, 3 and 4
are now active members of the hunting group associated with port 1.
This configuration will route all calls directed to FXS port 1 to ports 2, 3 and/or 4 in round
robin fashion respectively if port 1 is busy. You can configure the ring timeout on the
Profile page.
Example configuration of a multiple hunt group:
FXS Port #1: SIP UserID and Authenticate ID entered, Hunting group set to "Active"
FXS Port #2: SIP UserID and Authenticate ID left blank, Hunting Group set to "1"
FXS Port #3: SIP UserID and Authenticate ID left blank, Hunting Group set to "1"
FXS Port #4: SIP UserID and Authenticate ID entered, Hunting group set to "Active"
FXS Port #5: SIP UserID and Authenticate ID left blank, Hunting Group set to "4"
FXS Port #6: SIP UserID and Authenticate ID left blank, Hunting Group set to "4"
FXS Port #7: SIP UserID and Authenticate ID entered, Hunting group set to "Active"
FXS Port #8: SIP UserID and Authenticate ID left blank, Hunting Group set to "7"
Hunt Group 1 contains ports 1, 2, 3. Hunt Group 4 contains ports 4, 5, 6. Hunt Group 7
contains ports 7, 8.
Please be aware, the choice of 1 for ports 2 and 3, the choice of 4 for ports 5 and 6, the
choice 7 for port 8 is required to indicate that the SIP account tied to port market as
“Active” will be used for all members of the same Hunting group. Needless to say, those
members of the same Hunting group may not be sequential ports. In following example
ports 3, 5 and 7 tied to SIP Account configured in Port #1 marked as “Active”, and ports
4,6,8 tied to SIP Account configured in Port #2 marked as “Active” as well.
Example of not sequential configuration of a multiple hunt group:
FXS Port #1: SIP UserID and Authenticate ID entered, Hunting group set to "Active"
FXS Port #2: SIP UserID and Authenticate ID entered, Hunting Group set to "Active"
FXS Port #3: SIP UserID and Authenticate ID left blank, Hunting Group set to "1"
FXS Port #4: SIP UserID and Authenticate ID left blank, Hunting group set to "2"
FXS Port #5: SIP UserID and Authenticate ID left blank, Hunting Group set to "1"
FXS Port #6: SIP UserID and Authenticate ID left blank, Hunting Group set to "2"
FXS Port #7: SIP UserID and Authenticate ID left blank, Hunting group set to "1"
FXS Port #8: SIP UserID and Authenticate ID left blank, Hunting Group set to "2"
Note: A single call directed to the SIP account will NOT result in all ports ringing at the
same time. They will ring in the hunting group only. This feature is applicable to incoming
calls only.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 17 of 37
Firmware 1.0.0.29 Last Updated 8/2010
5.8 Inter-port Calling
In some cases a user may want to make phone calls between Unicorn gateway ports
when the gateway will be used as stand alone unit, without any SIP server. This feature
will also be applicable when the gateway is used in mode Hunting Groups and will be
registered to SIP server only with one master number. In such cases users still will be able
to make inter-port calls by using the IVR feature. For example the user connected to port 1
can reach the user connected to port 3 by dialing *** and 73. Digit 7 indicated using
inter-port calling feature, digit 3 indicates port number which should be reached. At the
same manner the user connected to port 4 can reach the user connected to port 8 by
dialing *** and 78.
Note: The Unicorn 600x support fast mode for inter-port calling by using “*48x”. For
example PORT 1 call PORT 2, just dail “*482”, PORT 2 call PORT 1, just need to dail
“*481”.
5.9 PSTN Pass Through/Life Line
The RJ-11 line jack on the Unicorn 600x side functions as a pass through jack when the
Unicorn 600x is out of power. The pass through/life line enables the user to use the analog
phone for PSTN calls directly without using an access code.
5.10 Sending And Receiving Fax
Unicorn 600x supports fax in two modes:
1) Fax Pass through. If the service provider does not support T.38, pass-through mode
may be used. If you have problems with sending or receiving Fax, toggle the Fax Tone
Detection Mode setting.
2) T.38 (Fax over IP)
6 CALL FEATURES
The Unicorn 600x supports the traditional telephony features available in a PBX as well as
additional advanced telephony features.
TABLE 6: Call Features Table (Star Code)
Key Call Features
*30
Block
CallerID
(for
all-config
change)
*31
Send
CallerID
(for
all-config
change)
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 18 of 37
Firmware 1.0.0.29 Last Updated 8/2010
*67
Block
CallerID
(per
call)
*82
Send
CallerID
(per
call)
*47
Direct
IP
Calling.
Dial
“*47”
+
“IP
address”.
No
dial
tone
will
be
played
in
the
middle.
Detail
see
Direct
IP
Calling
section
on
page
12.
*50
Disable
Call
Waiting
(for
all-config
change)
*51
Enable
Call
Waiting
(for
all-config
change)
*69
Call
Return
Service:
Dial
*69
and
the
phone
will
dial
the
last
incoming
phone
number received.
*70
Disable
Call
Waiting
(Per
Call)
*71
Enable
Call
Waiting
(Per
Call)
*72
Unconditional
Call
Forward:
Dial
“*72”
and
then
the
forwarding
number
followed
by “#”.
Wait
for
dial
tone
and
hang
up.
(dial
tone
indicates
successful
forward)
*73
Cancel
Unconditional
Call
Forward:
Dial
“*73”
and
wait
for
dial
tone,
then
hang
up.
*74
Enable Paging Call:
Dial “*74” and then the destination phone
number you want to activate in Paging mode.
*78
Enable
Do
Not
Disturb
(DND):
When
enabled
all
incoming
calls
will
be
rejected.
*79
Disable
Do
Not
Disturb
(DND):
When
disabled,
incoming
calls
will
be
accepted.
*87
Blind
Transfer
*90
Busy
Call
Forward:
Dial
“*90”
and
then
the
forwarding
number
followed
by
“#”.
Wait for
dial
tone
then
hang
up.
*91
Cancel
Busy
Call
Forward
:
dial
“*91”.
Wait
for
dial
tone.
Hang
up.
*92
Delayed
Call
Forward:
Dial
“*92”
and
then
the
forwarding
number
followed
by
“#”. Wait
for
dial
tone
then
hang
up.
*93
Cancel
Delayed
Call
Forward:
Dial
“*93”
for
a
dial
tone,
then
hang
up.
Flash/Hook
If
user
hears
call
waiting
beep,
flash/hook
will
switch
to
the
new
incoming
call.
Also used
to
switch
to
a
new
channel
for
a
new
call.
#
Pressing
pound
sign
will
serve
as
Re-Dial
key.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 19 of 37
Firmware 1.0.0.29 Last Updated 8/2010
7 CONFIGURATION GUIDE
7.1 Configuring Unicorn 600x Via Voice Prompt
DHCP MODE
Select voice menu option 01 to enable Unicorn 600x to use DHCP.
STATIC IP MODE
Select voice menu option 01 to enable Unicorn 600x to use STATIC IP mode, then use
option 02, 03, 04, 05 to set up IP address, Subnet Mask, Gateway and DNS server
respectively.
FIRMWARE SERVER IP ADDRESS
Select voice menu option 13 to configure the IP address of the firmware server.
CONFIGURATION SERVER IP ADDRESS
Select voice menu option 14 to configure the IP address of the configuration server.
UPGRADE PROTOCOL
Select voice menu option 15 to choose firmware and configuration upgrade protocol. User
can choose between TFTP and HTTP.
FIRMWARE UPGRADE MODE
Select voice menu option 17 to choose firmware upgrade mode among the following three
options:
1) always check,
2) check when pre/suffix changes, and
3) never upgrade
WAN PORT WEB ACCESS
Select voice menu option 12 to enable WAN Port Wed Access of the device configuration
pages.
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
Hanlong Technology Co., Ltd Unicorn 600x User Manual Page 20 of 37
Firmware 1.0.0.29 Last Updated 8/2010
7.2 Configuring Unicorn 600x With Web Browser
Unicorn 600x has an embedded Web server that will respond to HTTP GET/POST
requests. It also has embedded HTML pages that allow users to configure the Unicorn
600x through a Web browser such as Microsoft’s IE and AOL’s Netscape.
The GUI interface can be download at bellow:
http://www.hanlongtek.com/books/6008_gui.rar
This gui include bellow pages:
1. SCREENSHOT OF DEVICE STATUS PAGE
2. SCREENSHOT OF BASIC OPTIONS PAGE
3. SCREENSHOT OF SUPPER OPTIONS PAGE
4. SCREENSHOT OF PROFILE 1 PAGE
5. SCREENSHOT OF PROFILE 2 PAGE
6. SCREENSHOT OF FXS PORTS PAGE
7.2.1 Access The Web Configuration Menu
The Unicorn 600x HTML configuration menu can be accessed via LAN or WAN port:
From the LAN port:
1. Directly connect a computer to the LAN port.
2. Open a command window on the computer
3. Type in “ipconfig /release”, the IP address etc. becomes 0.
4. Type in “ipconfig /renew”, the computer gets an IP address in 192.168.22.x segment by
default
5. Open a web browser, type in the default gateway IP address. http://192.168.22.1.
You will see the login page of the device.
From the WAN port:
The WAN port HTML configuration option is disabled by default from factory. To access
the HTML configuration menu from the WAN port:
1. Enable the “WAN Port Web Access” option via IVR option 12.
2. Find the WAN IP address of the Unicorn 600x using voice prompt menu option 02.
3. Access the Unicorn 600x Web Configuration page by the following URI via WAN port:
http:// Unicorn 600x -IP-Address (the Unicorn 600x IP-Address is the WAN IP address for
http://arttel.ru
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-hanlong-unicorn-6004
This manual suits for next models
2
Table of contents
Other Hanlong Gateway manuals
