Harbor Freight Tools Bauer 1916C-B Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
For Best Results,
Use 3.0 Amp Hour Battery
(Sold Separately)
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21i
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 56416
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety ........................................................................2
Specifications ............................................................5
Setup .........................................................................6
Operation...................................................................8
Maintenance..............................................................9
Parts List and Diagram.............................................10
Warranty ...................................................................12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INSTRUCTIONS
When using electric gardening appliances, basic safety precautions should always be followed
to reduce the risk of fire, electric shock, and personal injury, including the following:
READ ALL INSTRUCTIONS
Gardening Appliance Safety
1. Avoid Dangerous Environment -
Do not use appliances in damp or wet locations.
2. Do Not Use In Rain.
3. Keep Children Away - All visitors should
be kept at a distance from work area.
4. Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors.
Wear protective hair covering to contain long hair.
5. Wear ANSI-approved safety goggles,
hard hat and heavy-duty rubber work
gloves. Use face or dust mask if
operation is dusty.
6. Use Right Appliance - Do not use appliance
for any job except that for which it is intended.
7. Avoid Unintentional Starting -
Do not carry appliance with finger on switch.
8. Do Not Force Appliance - It will do the
job better and with less likelihood of injury
at the rate for which it was designed.
9. Do not Overreach -
Keep proper footing and balance at all times.
10. Stay Alert - Watch what you are doing. Use
common sense. Do not operate appliance when
you are tired.
11. Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in dry, and
high or locked-up place - out of reach of children.
12. Maintain Appliance With Care - Keep cutting
edge sharp and clean for best performance and
to reduce the risk of injury. Follow instructions
for lubricating and changing accessories. Keep
handles dry, clean, and free from oil and grease.

Page 3For technical questions, please call 1-888-866-5797.Item 56416
SAFETYOPERATIONMAINTENANCE SETUP
13. Check Damaged Parts - Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other condition that may affect its operation. A guard
or other part that is damaged should be properly
repaired or replaced by a qualified technician
unless indicated elsewhere in this manual.
14. Wear full eye protection and protective clothing.
15. If electrolyte contacts the skin, wash
it off immediately with water.
16. If electrolyte contacts the eyes, flush thoroughly and
immediately with water. Seek medical attention.
Blower Safety
1. Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air flow.
2. Keep hair, loose clothing, fingers, and all parts of
body away from openings and moving parts.
3. Use extra care when cleaning on stairs.
4. Do not use to pick up flammable or
combustible liquids, such as gasoline, or
use in areas where they may be present.
5. Do not pick up anything that is burning
or smoking, such as cigarettes,
matches, or hot ashes.
6. Remove all hard objects from work
area. Do not blow debris in the direction
of people, animals or property.
7. Use only accessories provided. Keep
guards in place and in working order.
8. Maintain labels and nameplates
on the appliance. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
9. The battery Charger gets hot during
use. The Charger’s heat can build up to
unsafe levels and create a fire hazard if
it does not receive adequate ventilation, due to an
electrical fault, or if it is used in a hot environment.
Do not place the Charger on a flammable surface.
Do not obstruct any vents on the Charger.
Especially avoid placing the Charger on carpets
and rugs; they are not only flammable, but they
also obstruct vents under the Charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench
or concrete floor) at least 1 foot away from
all flammable objects, such as drapes or
walls. Keep a fire extinguisher and a smoke
detector in the area. Frequently monitor the
Charger and Battery Pack while charging.
10. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
11. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.

Page 4 For technical questions, please call 1-888-866-5797. Item 56416
SAFETY OPERATION MAINTENANCESETUP
Lithium Battery Safety Warnings
LITHIUM BATTERIES STORE
A LARGE AMOUNT OF ENERGY AND
WILL VENT FIRE OR EXPLODE IF MISTREATED:
1. Keep Battery Pack dry.
2. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
a. Open,
b. Drop,
c. Short-circuit,
d. Puncture,
e. Incinerate, or
f. Expose to temperatures greater than 104°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
Battery Charger Safety
1. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating
instruction for battery charger Model 56416.
2. Before using battery charger, read all instructions
and cautionary markings on battery charger,
battery, and product using battery.
3. CAUTION - To reduce risk of injury, charge only li-ion
type rechargeable batteries. Other types of batteries
may burst causing personal injury and damage.
4. Do not charge or use appliance in
rain, or in wet locations.
5. Do not use battery-operated appliance in rain.
6. Remove or disconnect battery after use,
before servicing, cleaning or removing
material from the gardening appliance.
7. Do not dispose of battery in a fire. The
cell may explode. Check with local codes
for possible disposal instructions.
8. Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
9. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
Vibration Safety
This tool vibrates during use.
Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check-ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool.
If you feel any symptoms related to vibration (such
as tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUCTIONS

Page 5For technical questions, please call 1-888-866-5797.Item 56416
SAFETYOPERATIONMAINTENANCE SETUP
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the charger. Do not use the charger
if the power cord or plug is damaged. If damaged, have it repaired by a service facility before
use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Extension Cords
Note: Extension cords must not be
used with this item’s Charger.
Symbology
Double Insulated
VVolts
~Alternating Current
AAmperes
n0xxxx/min. No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Specifications
Electrical Rating 20VDC / 60Hz / 18A
Battery 20 V Bauer Li-Ion 3.0Ah, Items 63631 or 64816
20V Bauer Li-Ion 5.0Ah, Item 57007
Charger Bauer Li-Ion, Item 63529 or 63947

Page 6 For technical questions, please call 1-888-866-5797. Item 56416
SAFETY OPERATION MAINTENANCESETUP
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.

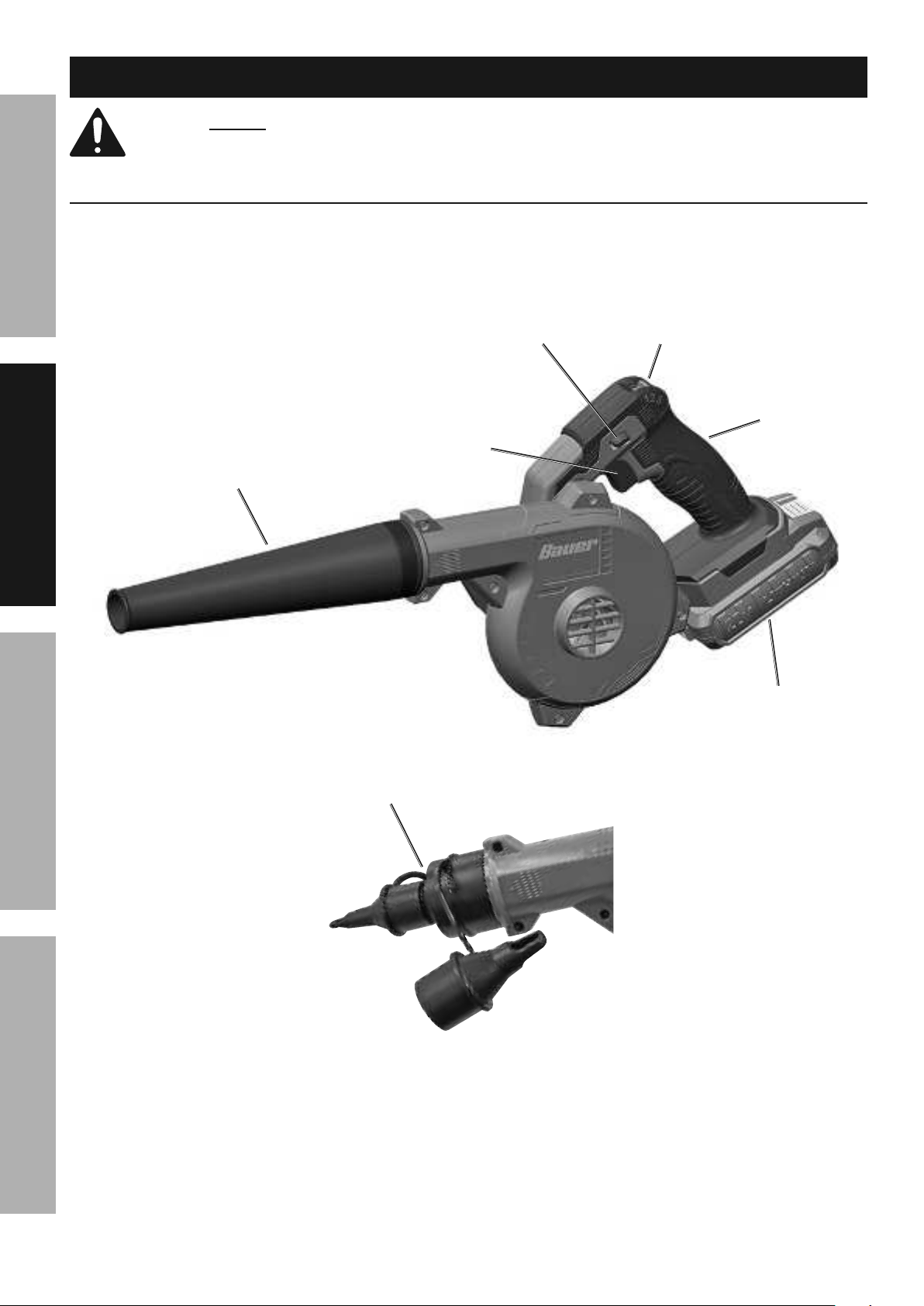

Functions

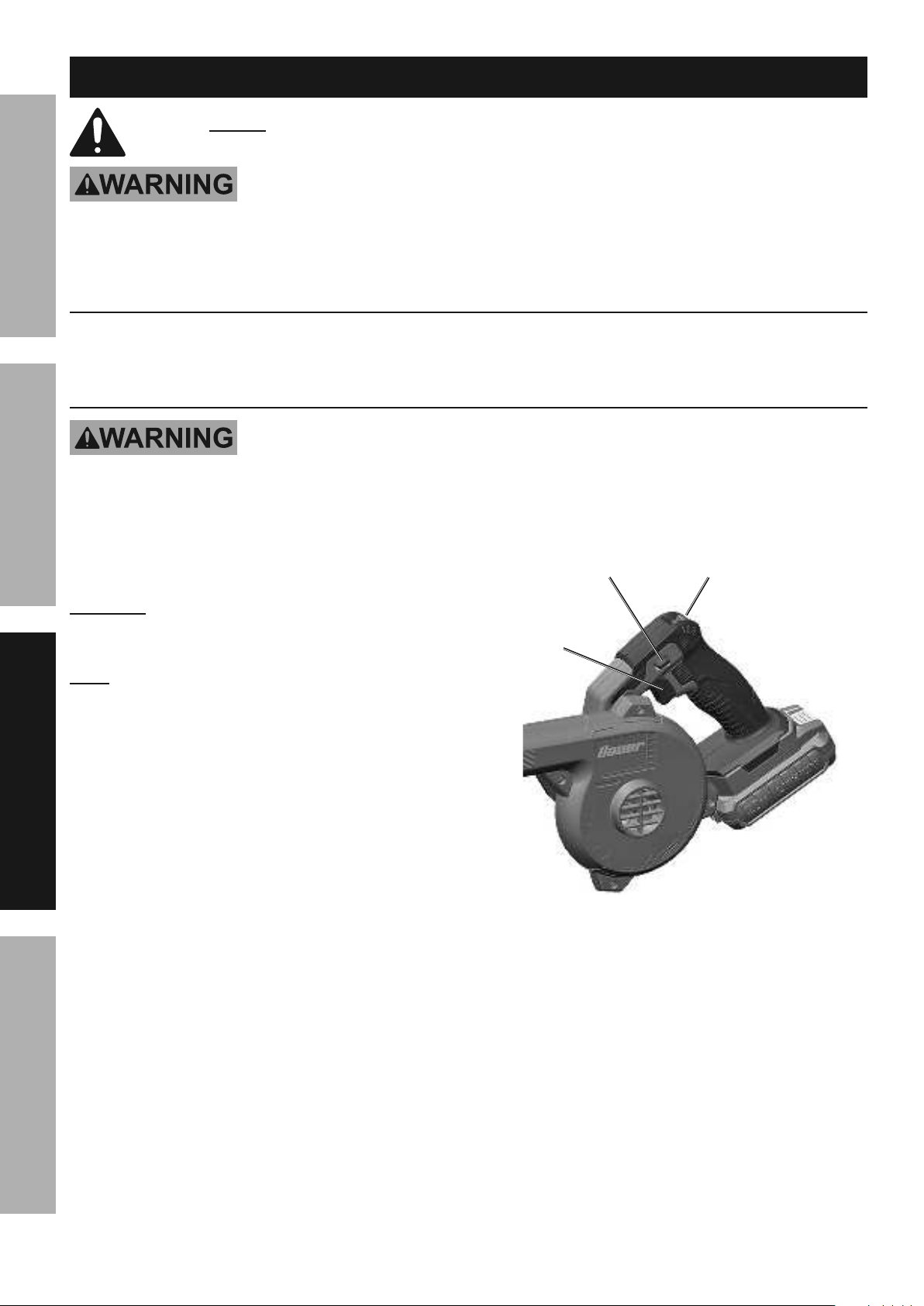

Trigger
Trigger
Lock
Speed Control
Switch
Battery
(sold separately)
Blower
Tube
Handle
3-in-1 Nozzle

Page 7For technical questions, please call 1-888-866-5797.Item 56416
SAFETYOPERATIONMAINTENANCE SETUP
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Release Trigger of the appliance and remove Battery Pack before performing any procedure in this section.

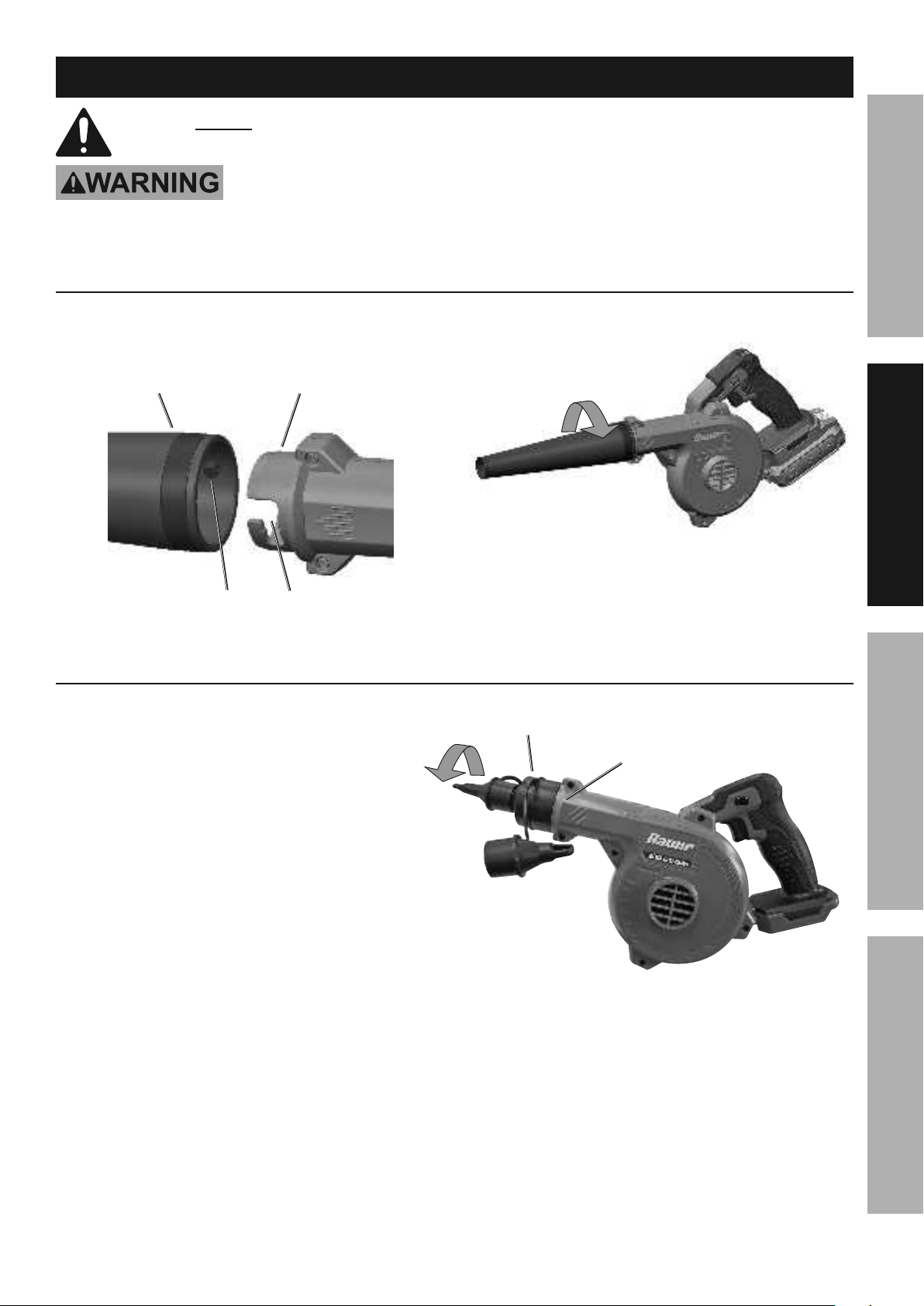

Attaching Blower Tube
1. Slide Blower Tube over Blower Outlet, lining up
Blower Tube′s Tab over Blower Outlet′s Slot.
Blower
Outlet
Blower
Tube
Tab Slot
2. Rotate Blower Tube clockwise to lock in place.
Attaching 3-in-1 Nozzle
1. Slide 3-in-1 Nozzle over Blower Outlet, lining
up Tab on Nozzle over Blower Outlet′s Slot.
2. Rotate Nozzle clockwise to lock in place.
Blower
Outlet
3-in-1
Nozzle

Page 8 For technical questions, please call 1-888-866-5797. Item 56416
SAFETY OPERATION MAINTENANCESETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM FLYING DEBRIS:
Wear long pants, long sleeves and protective footwear. Wear ANSI-approved
safety goggles, dust mask, hearing protectors, and gloves.
Charging Battery Pack
Charge Battery Pack according to the instructions included with the
20 V Bauer Battery Charger (both sold separately).
Operation
TO AVOID SERIOUS INJURY AND PROPERTY DAMAGE:
Inspect the area before using the Blower. Remove all hard objects from work area.
Do not blow debris in the direction of people, animals or property.
Use both hands when operating Blower.
1. Assemble Blower according to
Assembly Instructions on page 7.
CAUTION! The Blower Tube helps prevent contact
with internal moving parts. To prevent injury, do
not use the Blower without the Tube attached.
Note: Rake or sweep to loosen debris if necessary.
2. Make sure that the Trigger is in the off-position,
then slide the Battery Pack into slot on bottom
of Blower Handle until it clicks into place.
3. Hold Blower with both hands, with the
Tube several inches off the ground.
4. Adjust Speed Control Switch to desired
setting, then press and hold Trigger.
5. To lock Blower on for continuous operation,
press Trigger fully and hold, then press and
hold the Trigger Lock. Release the Trigger
first and then the Trigger Lock. To release the
lock-on function, press the Trigger again.
6. Sweep from side to side.
7. Release Trigger when done.
Trigger
Trigger
Lock
Speed Control
Switch
8. When finished, to prevent accidents:
• Remove battery pack.
• Wipe external surfaces of the appliance
with clean cloth. Store in a dry, indoor
area out of reach of children.

Page 9For technical questions, please call 1-888-866-5797.Item 56416
SAFETYOPERATIONMAINTENANCE SETUP
User-maintenance and Storage
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the appliance off and remove Battery Pack
before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM APPLIANCE FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the
general condition of the appliance. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of
the appliance with clean cloth. Store in an
indoor dry area out of reach of children.
3. Li-Ion BATTERY MUST BE RECYCLED OR
DISPOSED OF PROPERLY.
Do not short, incinerate or open battery.
4. All parts are permanently lubricated.
Do not use additional lubrication.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 10 For technical questions, please call 1-888-866-5797. Item 56416
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1 Screw, M3 x 12mm 13
2 Fan Cover 1
3 Screw, 5 x 8mm 1
4 Spring Washer, Ø5.3 x Ø8mm 1
5 Flat Washer 1
6 Fan 1
7 Handle 1
8 Screw, 2.6 x 8mm 2
9 Wire 1
10 Contact Plate Holder 1
11 Wire 1
12 Wire 1
13 PCBA 1
14 Trigger 1
15 Screw, 2.0 x 8mm 2
16 Slide Switch Bar 1
17 Screw, Ø4.0 x 16mm 3
Part Description Qty
18 Ferrite Bead 1
19 Trigger Lock 1
20 Torsion Spring 1
21 Speed Control Switch 1
22 Ball Pin 2
23 Spring, Ø2.3 x 12L mm x 13mm 1
24 Blower Tube 1
25 Jointer 1
26 Fan Housing 1
27 Motor Rubber Ring A 1
28 Spindle 1
29 18 VDC Motor 1
30 Motor Rubber Ring B 1
31 Motor Housing 1
32 Screw, 3.0 x 14mm 1
33 Shrinkable Tube 2
34 3-in-1 Nozzle (not shown) 1
Parts List and Diagram
Parts List
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175419446 when ordering parts.

Page 11For technical questions, please call 1-888-866-5797.Item 56416
SAFETYOPERATIONMAINTENANCE SETUP

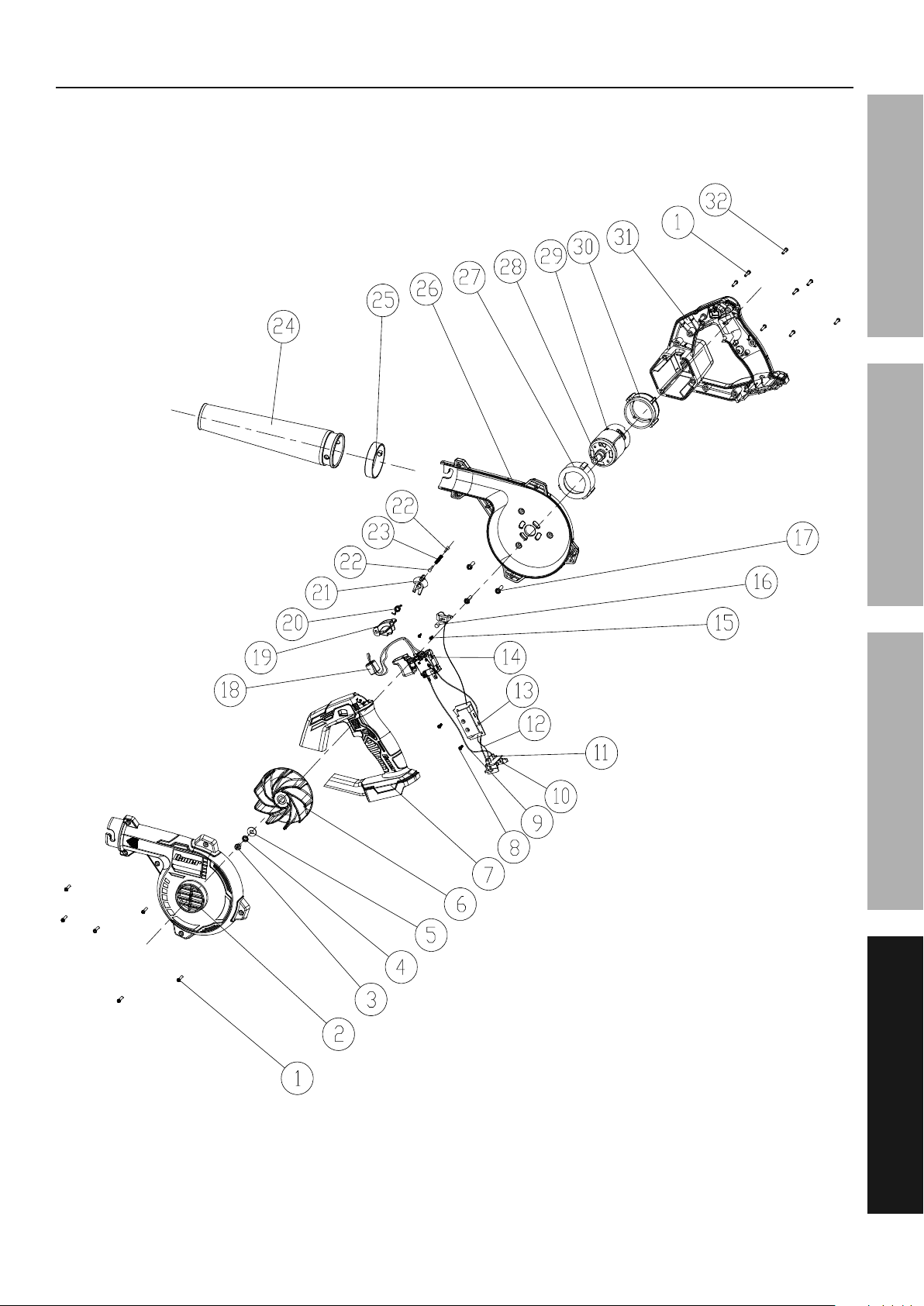

Assembly Diagram

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
