Harbor Freight Tools 44716 Installation manual

AIR DIE GRINDER KIT
Model 44716
SET UP AND OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2000 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 11h

Page 2SKU 44716 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Trigger Lever, with safety latch
Tool Exhaust Rear
Air Inlet Size 1/4-18 NPT
Air Hose Required 3/8”
Working Pressure 90 PSI
Max Rated RPM 22,000
Save This Manual
You will need the manual for the safety warnings and precautions, assembly
instructions, operating and maintenance procedures, parts list and diagram. Keep your
invoice with this manual. Write the invoice number on the inside of the front cover.
Keep the manual and invoice in a safe and dry place for future reference.
SAFETY WARNINGS AND PRECAUTIONS
WARNING: When using tool, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power
tools in damp or wet locations. Don’t expose to rain. Keep work area
well lighted. Do not use electrically powered tools in the presence of
ammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area.
Do not let them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry
location to inhibit rust. Always lock up tools and keep out of reach of
children.
5. Do not force tool. It will do the job better and more safely at the rate
for which it was intended. Do not use inappropriate attachments in an
attempt to exceed the tool capacity.
6. Use the right tool for the job. Do not attempt to force a small tool or
attachment to do the work of a larger industrial tool. There are certain
applications for which this tool was designed. Do not modify this tool and
do not use this tool for a purpose for which it was not intended.

Page 3SKU 44716 For technical questions, please call 1-800-444-3353.
7. Dress properly. Do not wear loose clothing or jewelry as they can be
caught in moving parts. Protective, electrically non-conductive clothes
and non-skid footwear are recommended when working. Wear restrictive
hair covering to contain long hair.
8. Use eye and ear protection. Always wear ANSI approved impact safety
goggles. Wear a full face shield if you are producing metal lings or wood
chips. Wear an ANSI approved dust mask or respirator when working
around metal, wood, and chemical dusts and mists.
9. Do not overreach. Keep proper footing and balance at all times. Do not
reach over or across running machines.
10. Maintain tools with care. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing
accessories. Inspect tool cords periodically and, if damaged, have them
repaired by an authorized technician. The handles must be kept clean,
dry, and free from oil and grease at all times.
11. Disconnect power. Unplug tool from power source when not in use.
12. Remove adjusting keys and wrenches. Check that keys and adjusting
wrenches are removed from the tool or machine work surface before
plugging it in.
13. Avoid unintentional starting. Be sure the switch is in the Off position
when not in use and before plugging in or hooking up. Do not carry any
tool with your nger on the trigger, whether it is plugged in or not.
14. Stay alert. Watch what you are doing, use common sense. Do not
operate any tool when you are tired.
15. Take caution as some woods contain preservatives such as copper
chromium arsenate (CCA) which can be toxic. When cutting these
materials extra care should be taken to avoid inhalation and minimize
skin contact.
16. Check for damaged parts. Before using any tool, any part that appears
damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for alignment and
binding of moving parts; any broken parts or mounting xtures; and any
other condition that may affect proper operation. Any part that is damaged
should be properly repaired or replaced by a qualied technician. Do not
use the tool if any switch does not turn On and Off properly.
17. Guard against electric shock. Prevent body contact with grounded
surfaces such as pipes, radiators, ranges, and refrigerator enclosures.

Page 4SKU 44716 For technical questions, please call 1-800-444-3353.
18. Replacement parts and accessories. When servicing, use only
identical replacement parts. Use of any other parts will void the
warranty. Only use accessories intended for use with this tool. Approved
accessories are available from Harbor Freight Tools.
19. Do not operate if under the inuence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgment or reexes
are impaired while taking drugs. If there is any doubt, do not operate tool.
20. Maintenance. For your safety, service and maintenance should be
performed regularly by a qualied technician.
21. WARNING: This product contains or, when used, produces a
chemical known to the State of California to cause cancer and birth
defects or other reproductive harm. (California Health & Safety
Code § 25249.5, et seq.)
Warning: The warnings, cautions, and instructions discussed in this in-
struction manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be
supplied by the operator.
VIBRATION HAZARD
This tool vibrates during use. Repeated or long-term exposure to vibra-
tion may cause temporary or permanent physical injury, particularly to
the hands, arms and shoulders. To reduce the risk of vibration-related
injury:
1. Anyone using vibrating tools regularly or for an extended period should
rst be examined by a doctor and then have regular medical check-ups
to ensure medical problems are not being caused or worsened from
use. Pregnant women or people who have impaired blood circulation
to the hand, past hand injuries, nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool. If you feel any medical or
physical symptoms related to vibration (such as tingling, numbness, and
white or blue ngers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood supply to the
hands and ngers, increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest vibration when there is a choice between dif-
ferent processes.
Rev 07i

Page 5SKU 44716 For technical questions, please call 1-800-444-3353.
AIR CONNECTION
Note: Air Compressor is not supplied.
1. Acquire a Union tting (not supplied) and screw into the Air Inlet tting.
Tighten with the wrench.
2. Attach a quick-coupler (not supplied) to the Union tting if desired. This
allows quick exchange of the Air Hose to other air tools.
3. Connect the Air Hose to the Air Inlet Coupling.
Warning: Follow all air compressor warnings before using tool.
This air tool requires lubrication during operation. For best results, it is recom-
mended to have an oiler and water lter in line with the air supply as shown on
Page 6. This will extend the life of the tool.
UNPACKING
When unpacking, check to make sure all parts listed on Page 8 are included.
If any parts are missing or broken, please call Harbor Freight Tools at the
number on the cover of this manual.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping safe control of it). Let
the tool do the work.
7. To reduce vibration, maintain the tool as explained in this manual. If any
abnormal vibration occurs, stop use immediately.
Rev 07i

Page 6SKU 44716 For technical questions, please call 1-800-444-3353.
AIR CONNECTION
Note: Air Compressor is not supplied.
1. Acquire a Union tting (not supplied) and screw into the Air Inlet tting.
Tighten with the wrench.
2. Attach a quick-coupler (not supplied) to the Union tting if desired. This
allows quick exchange of the Air Hose to other air tools.
3. Connect the Air Hose to the Air Inlet Coupling.
Warning: Follow all air compressor warnings before using tool.
This air tool requires lubrication during operation. For best results, it is recom-
mended to have an oiler and water lter in line with the air supply as shown on
Page 5. This will extend the life of the tool.
AIR COMPRESSOR ASSEMBLY DIAGRAM
OPERATION
Warning: Before installing the attachment, make sure Grinder is not
attached to the air supply and make sure no built up air pressure
remains in the Air Die Grinder.
1. Select the desired grinding attachment.
2. As shown in the diagram on Page 7, use the Wrenches (28) to hold the
Retainer [24] while removing the Collet Nut (27).
3. Insert the shaft of the grinding attachment into the Collet (26).
4. Reassemble the Collet and Collet Nut. Tighten with both Wrenches.
5. Set the Air Compressor’s pressure regulator to 90 PSI.
6. Connect the Die Grinder to the Air Compressor’s hose.
7. Secure the stock you will be grinding. Warning: Do not hold the stock
with your hand.
8. Wear safety glasses or a full face mask.
9. Grip the Die Grinder rmly with your hand, then squeeze the Safety
Throttle Lever (13) to turn it on. The speed of the Die Grinder depends on
how far down you press the Lever.
Warning: Allow the grinding attachment to do the work. Do not use
excessive force to press the attachment into the stock surface that is
being ground. If the Die Grinder stalls while being operated, immediately
release the Lever and pull the Die Grinder away from the surface. Rev 07i

Page 7SKU 44716 For technical questions, please call 1-800-444-3353.
NOTE: Some parts are listed and shown for illustration purposes only and are not
available individually as replacement parts.
MAINTENANCE
1. If an in-line oiler is not used, disconnect the air hose and apply a few
drops of pneumatic tool oil through the air inlet coupling before each use.
Do this for every hour of continuous use.
2. Apply a few drops of oil to the Lever mechanism and work the Lever a
few times to lubricate.
Note: Do not use detergent, oil or additives; these will cause accelerated
wear to the tool’s air seals.
3. Wipe the Die Grinder clean of oil and grease with a clean cloth.
4. Do not allow the attachments to come in contact with oil or grease.
5. Replace the Die Grinder and attachments to the case and store in a
clean and dry location.
ASSEMBLY DIAGRAM
Rev 07i

Page 8SKU 44716 For technical questions, please call 1-800-444-3353.

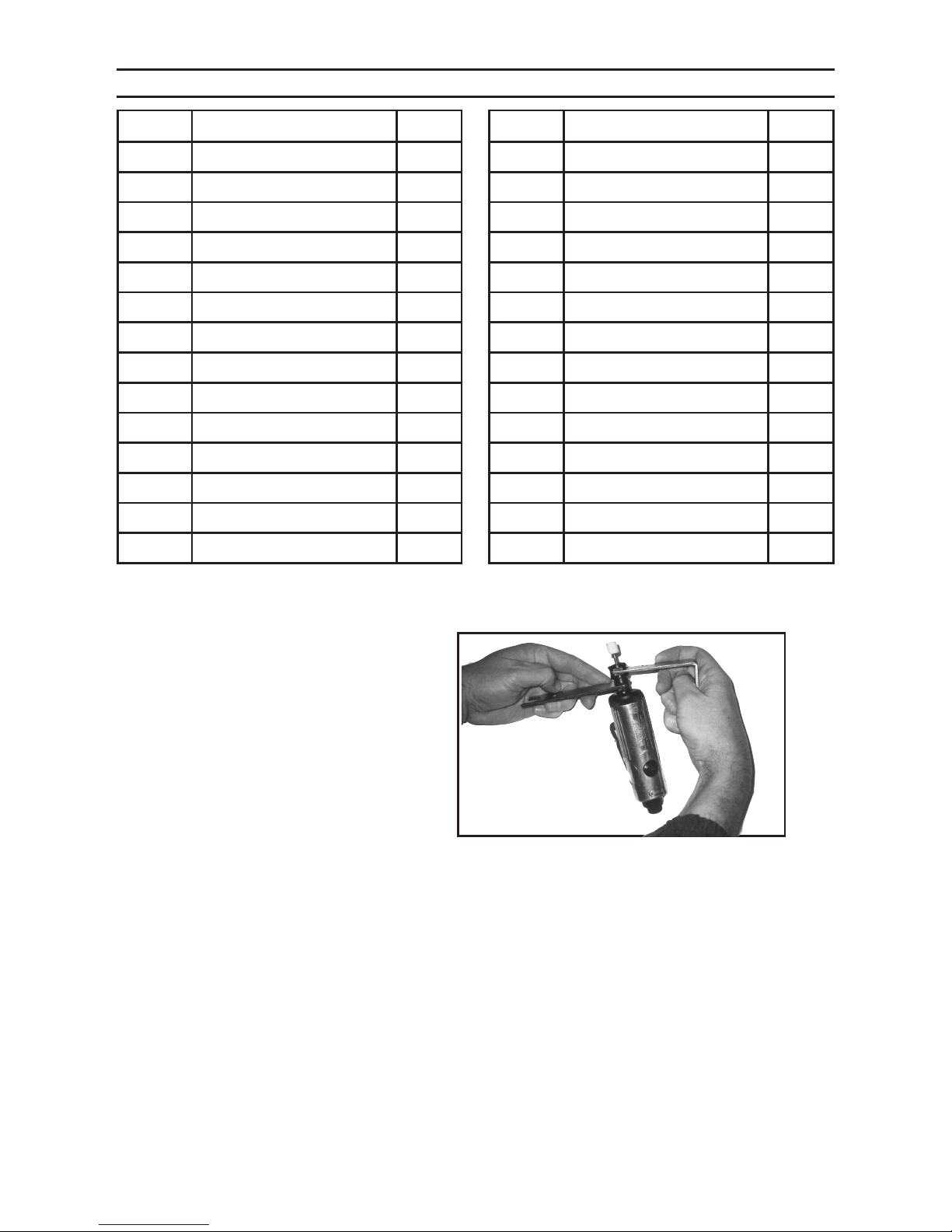

PART DESCRIPTION QTY
1 Inlet Bushing 1
2Exhaust Deector 1
3 Motor Housing 1
4 Valve Screw 1
5 “O” Ring 1
6 “O” Ring 1
7 Air Regulator 1
8 Spring 1
9 “O” Ring 1
10 Throttle Valve 1
11 Valve 1
12 Throttle Lever Rivet 1
13 Safety Throttle Lever 1
14 Ball Bearing 1
PART DESCRIPTION QTY
15 Rear Plate 1
16 Ball 3
17 Rotor Blades 4
18 Rotor 1
19 Cylinder 1
20 Front End Plate 1
21 Ball Bearing 1
22 Washer 1
23 Spindle 1
24 Retainer 1
25 Housing Cap 1
26 Collet - 1/4” 1
27 Collet Nut 1
28 Wrenches 2
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN
THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DIS-
TRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE
OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANU-
FACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS
REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT
OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERE-
TO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
ATTACHMENTS
Diag. Using Wrenches
Rev 07i

Page 9SKU 44716 For technical questions, please call 1-800-444-3353.
90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet
high quality and durability standards, and warrants to the original purchaser
that this product is free from defects in materials and workmanship for
the period of 90 days from the date of purchase. This warranty does not
apply to damage due directly or indirectly, to misuse, abuse, negligence or
accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no
event be liable for death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of our
product. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation of exclusion may not
apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned
to us with transportation charges prepaid. Proof of purchase date and an
explanation of the complaint must accompany the merchandise. If our
inspection veries the defect, we will either repair or replace the product at our
election or we may elect to refund the purchase price if we cannot readily and
quickly provide you with a replacement. We will return repaired products at
our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other
rights which vary from state to state.
