Harbor Freight Tools 47901 User manual

POWDER COAT OVEN
Model 47901
OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright 2002 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®

 
 
 
 
 
 
 
SPECIFICATIONS TABLE
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, operating,
inspection, maintenance and cleaning procedures, parts list and assembly
diagram. Keep your invoice with this manual. Write the invoice number on the
inside of the front cover. Keep this manual and invoice in a safe and dry place for
future reference.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas
invite injuries.
2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to use this
product or be in the vicinity of this product when it is in use.
3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be
stored in a dry location to inhibit rust. Always lock up tools and equipment, and
keep out of reach of children.
4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR
DRUGS. Read warning labels on prescriptions to determine if your judgement or
reflexes are impaired while taking drugs. If there is any doubt, do not attempt to
use this product.
5. USE EYE, BODY, HAND PROTECTION. Wear ANSI approved shatterproof/fire
retardant full face shield, fire retardant full length apron, and fire retardant hand
mitts when using this product.
6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become
caught in moving parts. Wear a protective hair covering to prevent long hair from
becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up
above elbows.
SKU 47901 PAGE 2

7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etcetera.
8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENT.
9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do
not use this product when you are tired or distracted from the job at hand.
10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that
it will operate properly and perform its intended function. Check for damaged
parts and any other conditions that may affect the operation of this product.
Replace or repair damaged or worn parts immediately.
11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only
identical replacement parts. Only use accessories intended for use with this
product. Approved accessories are available from Harbor Freight Tools.
12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for
better and safer performance.
13. MAINTENANCE: For your safety, service and maintenance should be performed
regularly by a qualified technician.
14. USE THE RIGHT EQUIPMENT FOR THE JOB. Do not attempt to force small
equipment to do the work of larger industrial equipment. There are certain
applications for which this product was designed. It will do the job better and
more safely at the rate for which it was intended. Do not modify this equipment,
and do not use this equipment for a purpose for which it was not intended.
15. WARNING: The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The operator
must understand that common sense and caution are factors, which cannot be
built into this product, but must be supplied by the operator.
SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. MAINTAIN A SAFE WORKING ENVIRONMENT. Make sure the Oven is
positioned on a sturdy, flat, level, work surface capable of supporting the weight
of the Oven and powder coated objects. Make sure the work surface is made of
metal, brick, or concrete. Do not position the Oven on wooden work surfaces.
Keep the work area well lit. Allow adequate surrounding workspace. Use the
Oven only in a well ventilated area. Do not position the Oven close to walls.
Avoid high traffic areas. Do not allow anyone to conduct any activities near the
Oven while it is in use, or following its use while it is still hot.
SKU 47901 PAGE 3

Always keep the work area free of obstructions, grease, oil, trash, and other
debris. Do not use the Oven in a damp or wet location. Do not allow water
within the Oven compartment. Do not use the Oven near flammable gasses or
liquids.
2. NEVER ATTEMPT TO MOVE THE OVEN WHILE IT IS HOT.
3. DRESS SAFELY. To avoid accidental burns, wear an ANSI approved
shatterproof/fire retardant full face shield, fire retardant full length apron, and fire
retardant hand mitts when using the Oven.
4. KEEP A FIRE EXTINGUISHER CLOSE AT HAND. Always keep a fully charged,
commercial grade fire extinguisher nearby the Oven in case of accidental fire.
5. NEVER LEAVE THE OVEN UNATTENDED ONCE IT IS TURNED ON. Turn off
the Oven, and wait until it has completely cooled before leaving.
6. PRIOR TO TURNING ON THE OVEN, MAKE SURE TO REMOVE ALL TOOLS
AND EQUIPMENT FROM INSIDE THE OVEN.
7. DO NOT CLEAN THE OVEN WITH CLEANERS THAT ARE COMBUSTIBLE
OR CORROSIVE.
8. ALWAYS UNPLUG THE OVEN FROM ITS ELECTRICAL SUPPLY SOURCE
BEFORE PERFORMING ANY INSPECTION, MAINTENANCE, OR CLEANING
PROCEDURES.
9. GROUND THIS PRODUCT. The electrical Power Cord for this product is
equipped with a grounded, 3-prong Plug (part #9). Never remove the grounding
prong or modify the Plug in any way. Do not use adapter plugs with this product.
To comply with the National Electric Code, and to provide additional protection
from the risk of electrical shock, this product should only be connected to a 120
Volt, 3-hole electrical outlet that is protected by a Ground Fault Circuit Interrupter
(GFCI).
10. IF AN EXTENSION CORD (not provided) IS USED, MAKE SURE TO USE
ONLY UL APPROVED CORDS HAVING THE CORRECT GAUGE AND
LENGTH. (See Figure A, next page.)
11. MAKE SURE TO READ AND UNDERSTAND ALL INSTRUCTIONS AND
SAFETY PRECAUTIONS AS OUTLINED IN THE POWDER COATING
MANUFACTURER’S MANUAL.
12. DO NOT OVERLOAD THE OVEN TRAYS (part #10).
SKU 47901 PAGE 4

EXTENSION CORD AWG RATING CHART - 120 VOLT
13. DO NOT USE THE OVEN FOR ANY OTHER PURPOSE THAN POWDER
COATING CURING.
14. WARNING: People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
15. WARNING: This product contains or when used produces a chemical known to
the State of California to cause cancer and birth defects (or other reproductive
harm). (California Health & Safety Code 25249.5 et seq.)
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 9 are
included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
PRODUCT OVERVIEW

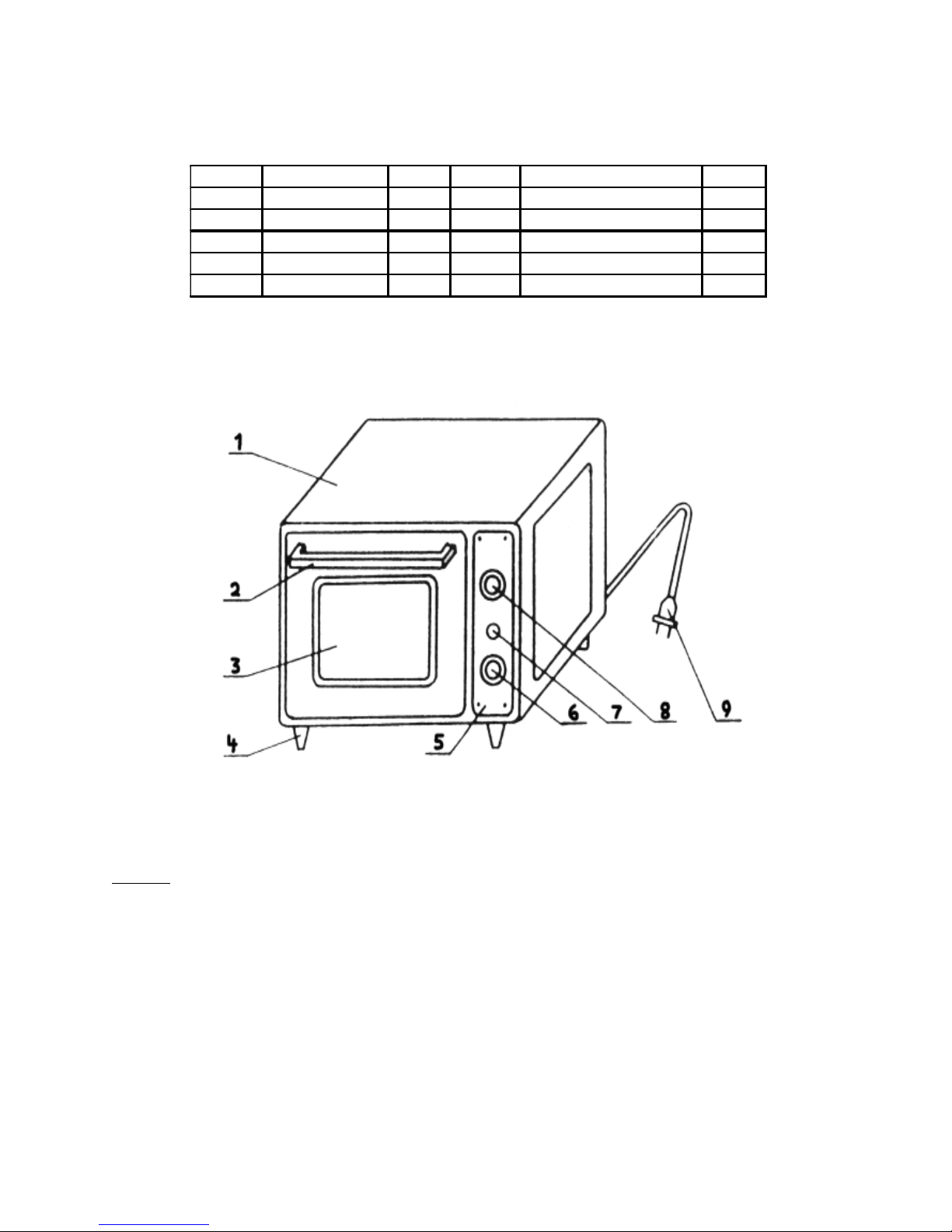

NOTE: For additional references to the parts listed below, refer to the Assembly
Diagram on page 9.
The Power Switch: (See Figure B.)
1. Depending on your specific powder coating requirements, the Power Switch (part
#6) features five separate settings:
“0” Turns the Oven off.
“1” Allows only the extreme top and bottom portions of the inner Oven to heat
up.
SKU 47901 PAGE 5

“2” Allows only the top half portion of the inner Oven to heat up.
“3” Allows only the bottom half portion of the inner Oven to heat up.
“4” Allows the entire inner portion of the Oven to heat up.

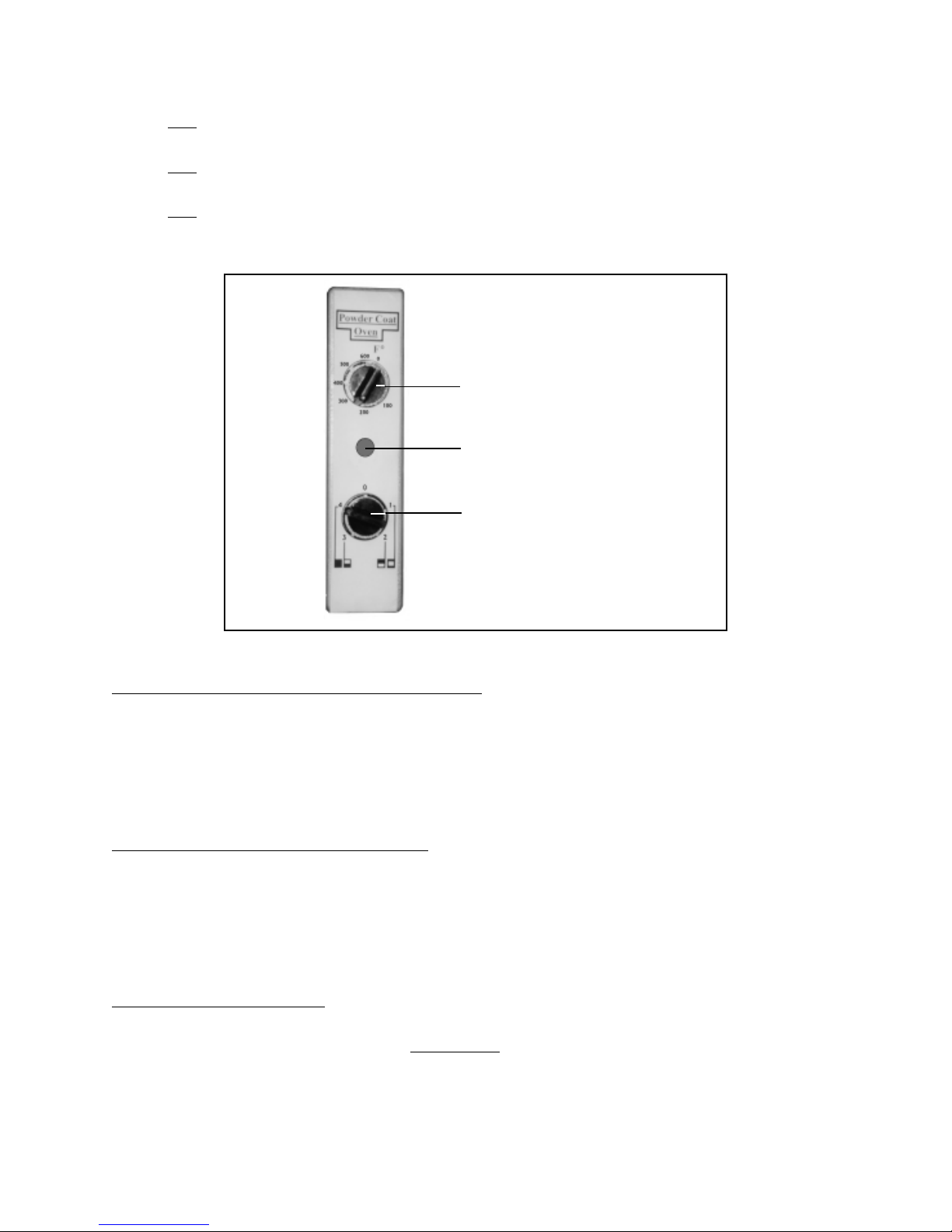

TEMPERATURE CONTROL (#8)
INDICATOR LIGHT (#7)
POWER SWITCH (#6)
FIGURE B
The Temperature Control: (See Figure B.)
1. The Temperature Control (part #8) has a temperature range of 100 degree
Fahrenheit to 600 degree Fahrenheit, and may be adjusted in 50 degree
Fahrenheit increments. Note: Always make sure you have the proper
temperature setting for the kind of powder coating you are curing.
The Indicator Light: (See Figure B.)
1. The Indicator Light (part #7) automatically illuminates, and stays lit, when the
Power Switch (part #6) is turned to either the “1”, “2”, “3”, or “4” setting, indicating
that the Oven is on. The Indicator Light will automatically turn off when the Power
Switch is turned to its “0” (off) position.
The Oven “Cycle Time:”
1. Typically, the complete Oven cycle time for a powder coated object is obtained
by adding the “heating up” time and the “dwell” time. The heating up time is the
time it takes for the powder coated object to reach the desired temperature. The
dwell time is the time required for the powder to cure properly.
SKU 47901 PAGE 6

To obtain the complete Oven cycle time, consult with the manufacturer’s manual
of the powder coating and, if necessary, the manufacturer’s manual of the object
being powder coated.
OPERATION INSTRUCTIONS
1. CAUTION: To avoid accidental burns, make sure to wear an ANSI approved
shatterproof/fire retardant full face shield, fire retardant full length apron, and fire
retardant hand mitts when using the Oven.
2. Remove one or both of the Trays (part #10) from the inner Oven, and place them
on a workbench. Then place the powder coated objects into the Trays, and
temporarily leave the Trays on the workbench.
3. Connect the Power Plug (part #9) to a grounded, 120 volt, 3-prong electrical
outlet. (See Assy. Diagram.)
4. Turn the Power Switch (part #6) to the desired setting (either “1,” “2,” “3,” or “4,”
depending on the specific area(s) of the inner Oven you wish to heat).
(See Figure B.)
5. At this time, the Indicator Light (part #7) will illuminate. (See Figure B.)
6. Turn the Temperature Control (part #8) to the desired setting. (See Figure B.)
7. Allow sufficient time (at least 30 minutes) for the inner Oven temperature to reach
the desired temperature setting on the Temperature Control (part #8).
(See Figure B.)
8. Open the Oven Door (part #3), and carefully set the Trays (part #10), with the
powder coated objects, on the Racks of the inner Oven. (See Assy. Diagram.)
9. Observe a stopwatch (not provided) until the Oven cycle time is completed. Then
turn the Temperature Control (part #8) to its lowest setting, and turn the Power
Switch (part #6) to its “0” (off) position. (See Figure B.)
10. Open the Oven Door (part #3), and carefully remove the powder coated objects
from the Oven. (See Assy. Diagram.) Always wear fire retardant hand mitts
when working with the oven.
11. To insure a safe cool down of the Oven, and avoid having the hot open door as a
possible obstacle, it is best to close the Oven Door (part #3), and allow the Oven
to completely cool.
SKU 47901 PAGE 7

INSPECTION, MAINTENANCE, AND CLEANING
1. CAUTION: Always turn the Power Switch (part #6) to its “OFF” position, and
unplug the Oven from its electrical outlet before performing any inspection,
maintenance, or cleaning.
2. BEFORE EACH USE, inspect the general condition of the Oven. Check for
misalignment or binding of moving parts, cracked or broken parts, damaged
electrical wiring, and any other condition that may affect its safe operation. If
abnormal noise or vibration occurs, have the problem corrected before further
use. Do not use damaged equipment.
3. TO TEST THE OVEN TEMPERATURE CONTROL (part #8): Periodically, a
commercial grade, previously tested and approved, thermometer (not provided)
should be placed on the upper Tray (part #10) within the Oven. Close the Oven
Door (part #3). Turn the Power Switch (part #6) to any one of the four settings,
and set the Temperature Control (part #8) at 200 degrees Fahrenheit. Allow at
least a 30 minute warm up time. Then check the temperature reading on the
thermometer. If the thermometer reading is 10 degrees above or below the
preset 200 degree mark on the Temperature Control, the Temperature Control
should be adjusted. Only a qualified technician should perform adjustments
to the Temperature Control.
4. DAILY: With a soft brush or cloth, remove all dirt and debris from the Oven. Do
not immerse the Oven in any liquids.
SKU 47901 PAGE 8
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE
IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTUER AND/
OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.

  

   
     
     
     
     
     
PARTS LIST AND ASSEMBLY DIAGRAM
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
SKU 47901 PAGE 9
