Hardstone HS B-PE02 User manual

HSB-PE02-MultimediaGPSInterface
8
Multmedia
ManualedÕInstallazione
LeggereattentamenteilmanualeprimadiinstallarelÕunit.Lanonosservanza
ditaliregolecomportaladecadenzadellagaranzia.
Distribuitoda:
HARDSTONEITALIA-MILANOITALY
Web:www.hardstone.it-Email:[email protected]
InterfacciaVideoGPSSistemaoriginale
conschermocapacitivoda7"-8"Canbus
IngressoRetrocameraconIPAS-3AV
USBAudio-Video1080P-Touchscreen
CITROEN C3/C6
PEUGEOT 308/3008/4008
HSB-PE02

HSB-PE02-MultimediaGPSInterface
3
—————————————————————————————————————————————————————————
1 .Applicable car model as below:
Car Model: PEUGEOT/Citroen (308,4008,C6)
Year: 2016.10-2017
Original System: PEUGEOT/Citroen with capacitor touch monitor, 308 7" monitor, 4008/C6 8" monitor
2 .How to Install the interface
Noted ：please detach the parts cautiously for avoiding original accessories in damage.

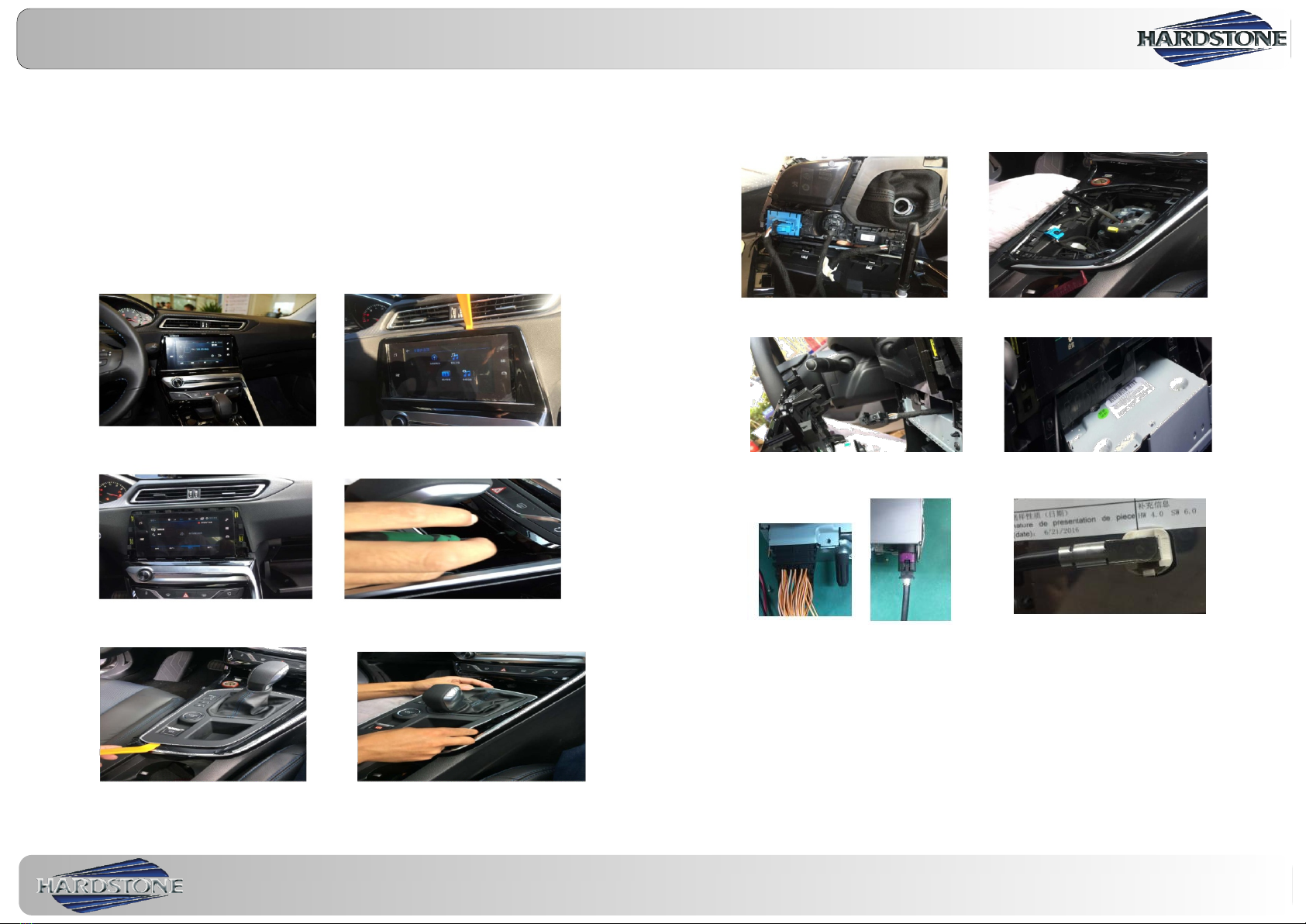

1.Peugeot 308 Head unit 2 .Take out the screen frame as above picture
3. Take out the screen frame, and remove the screws 4. Take out the rubber mat beneath air condition button
at the right corner and left corner of the screen
5. Detach the decoration panel around the gear 6. take out the panel carefully, and pay attention to the
shift lever cables
7. Take out the handle of the gear shift lever , and 8 .remover the screws
unplug the cable
9. Take out the panel beneath gear shift lever, 10. Take out the OEM head unit and OEM screen
and detach the screw of DVD
11. connect the power cable to the head unit, and use our LVDS cable to connect the original head unit and
original screen
( Noted: please replace the original LVDS cable by our LVDS cable, the while LVDS connector connect to original
screen,
the black LVDS connector connect to OEM head unit, the pink &blue LVDS connector connect to our video
interface modul
HSB-PE02-MultimediaGPSInterface
2

HSB-PE02-MultimediaGPSInterface
4
HSB-PE02-MultimediaGPSInterface
5
12 .Put the video interface module in a proper place 13. Enter the original radio interface to set AUX
14. press the audio frequency setting 15 .Enter the audin frequency setting, then
(the icon showing on red arrow) sound icon(showing on the red arrow)
16 .Tick off the volume adjustment and Aux input 17 .Back to radio interface, and touch "AUX" icorn
submenu (like showing on the picture)
18. While the AUX input setting completes, press " LIST" on steering wheel button for 3 seconds to enter our navigation
interface
4. DIP Switch Description
“1”UP “2” UP for 7inch monitor
“1” UP “2” Down for 8inch monitor
5. Product connector description

HSB-PE02-MultimediaGPSInterface
6
HSB-PE02-MultimediaGPSInterface
7
5.1.AUX IN Cable
1.Aux in for DVD player
2.AUX IN for digital TV box
3.RXD (No need connect)
4.ACC
5.TXD (No need connect)
6.IR (No need connect)
7.360 detection cable
8.Battery
9.GND
10. Connect DVR
5.2 Power cable
1.Connect car original screen
2.Connect car original CD unit
3. Reverse detection
4.+12V for camera
5.Video in for rear camera
6. Connect interface “AUX in”
