OPERATION
MANUAL
VOD102
10.2" OVERHEAD LCD
MONITOR WITH
DVD PLAYER
128-7638
®

Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator
of the motor vehicle.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 and 5,927,784
Warnings
•Do not use any solvents or cleaning materials when cleaning the video monitor.
•Do not use any abrasive cleaners, they may scratch the screen.
•Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
•Lock the LCD screen in the fully closed position when not in use.
•Before putting on headphones always adjust the volume setting to the lowest position.
•Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle’s battery.
•Do not put pressure on the screen.
•Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Television Reception
This entertainment system is designed primarily for viewing prerecorded movies or playing video games. If this system has the optional TV
Tuner (PODTVT2) installed: Television reception in a moving vehicle will be limited and in some areas will not be possible due to weak and
variable signal strength. Television viewing in a stationary vehicle will result in an improvement, but may still be marginal due to signal
strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by weather and distance from
TV station. A weak signal may cause the picture to roll, be snowy, or cause some color loss.

3
FEATURES
Congratulations on your purchase of the AUDIOVOX
VOD102 DVD Player with Drop-Down Video / Monitor. The
VOD102 has been designed to give you and your family
many years of video entertainment in the mobile
environment. Please read the directions that follow to
familiarize yourself with the product to ensure that you obtain
the best results from your equipment.
Please note: Installation options vary, see the individual
owner’s manuals for each component in your system to
obtain a full understanding of each component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you
do not allow children to unfasten seat-belts to change video
media or make any adjustments to the system. System
adjustments can be accomplished using the remote control,
while seat-belts remain fastened. Enjoy your AUDIOVOX
entertainment system but remember the safety of all
passengers remains the number one priority.
•10.2" TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
• Built-in DVD Player
* Auto On with Disc insertion
•Selectable (M1 and M2) IR Receive and Transmit
Codes
•Multi-Lingual OSD (On Screen Display) for Control of
Picture Quality and Functions
•Switchable Channel Infrared Transmitter for use with
IR Wireless Headphones
• Four Audio / Video Source Inputs (DVD, AUX/Game,
AV1, AV2/TV*)
•Dome Lights with Built-in Three Way Switch
•Built-in Five Frequency Wireless FM Modulator
•Last Position Memory for DVD
•Headphone Jack
• Screen Mode Selection (16:9, 4:3)
• Wireless Game Controller
•Full Function Remote Control
•Backlit Controls
•Day / Night Picture Modes
• AV Output
* Optional TV tuner (P/N PODTVT2)

4

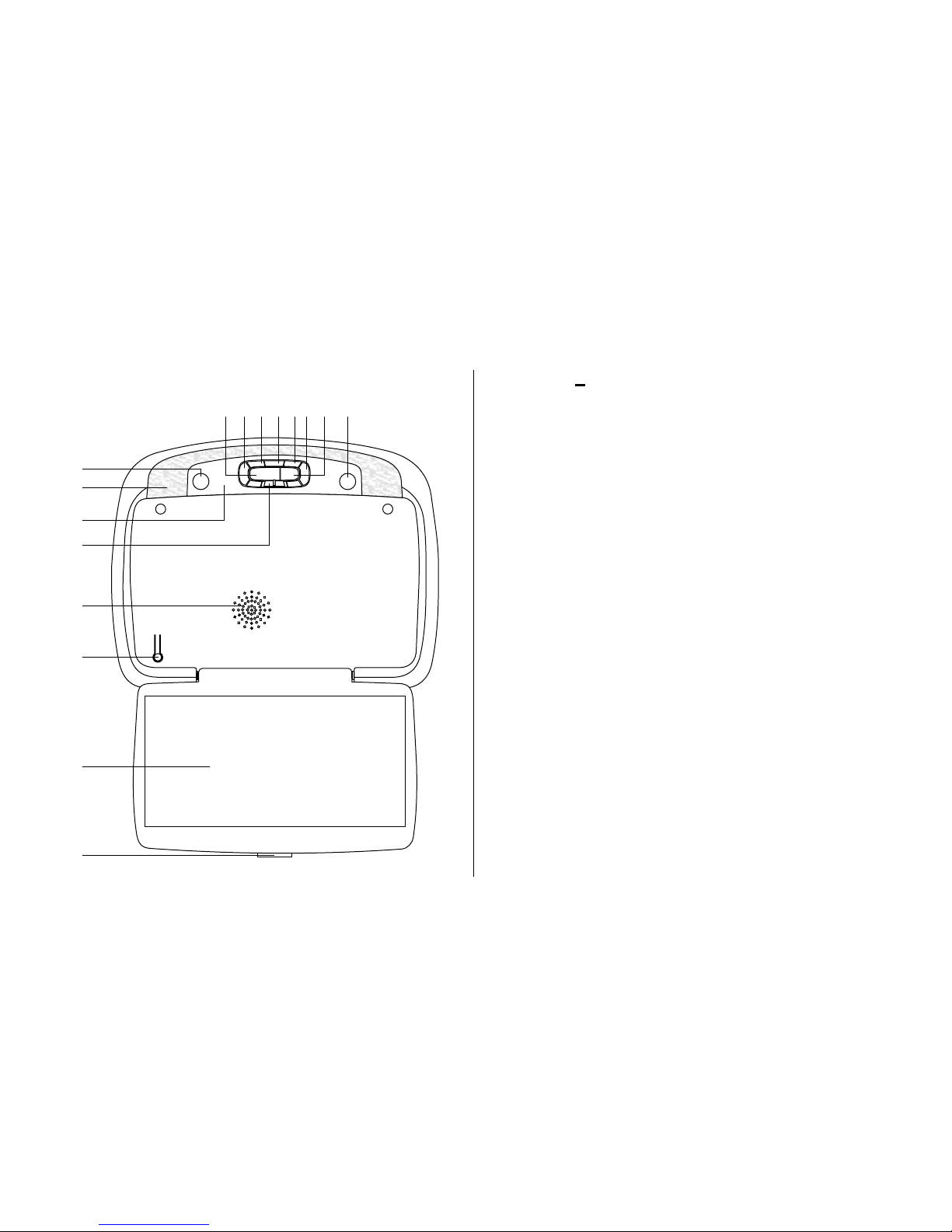

CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)
9
12345678
10
11
12
13
14
15
16
1. EJECT () Button
This Button is used for ejecting discs from the disc
Compartment. (Note: Disc can be ejected with the unit turned
Off. Vehicle has to running or in ACC position). After the Disc
is removed the unit will turn Off after 15-20 seconds.
2. STOP (n) Button
This button is used to stop playback.
3. Source Select
Use to select one of the four sources: DVD, AV1, AUX / GAME,
AV2 / *TV (Optional).
4. Volume (+)
To increase the volume of wired headphones and increase
the level of selected picture controls.
5. Picture Select Button
Allows the user to enter the picture adjustment mode.
6. Volume (–)
To decrease the volume of wired headphones and decrease
the level of selected picture controls.
7. FMM Source Select Switch
Used to select the frequency in sequence rotation: FM OFF,
88.3MHz, 88.7MHz, 89.1MHz, 89.5MHz or 89.9MHz.
8. PLAY (u) Button
This button is used to start playback of a disc.

5
CONTROL FUNCTION DESCRIPTION (FRONT VIEW)
9. POWER ( ) Button
Used to turn the system on/off. Bright red when the system is
on, dim when off.
10. Dome Lights
Provide additional interior illumination.
11. Infrared Transmitter and Sensor
Use to transmit audio the wireless headphone. Also allows the
remote control to operate the VOD102 and to control other
accessories in the system.
12. Three Position Dome Light Switch
ON – Turns on the dome lights.
OFF – The dome lights will not turn on in this position.
AUTO – Automatically switches on the dome lights in
conjunction with the vehicle's interior illumination.
13. Ventilation Openings
14. LCD Cut Off Switch
Used to turn off the LCD panel monitor when in the closed
position.
15. LCD Panel
16. Screen Release
Press to release the screen.
The VOD102 has an option that allows the user to select from two
IR transmit and receive codes (M1 or M2). This feature can be
used when using two VOD102s in the same installation or if the
vehicle has an RSA (Rear Seat Audio) that uses an “A” channel
headset. The VOD102 comes factory set to M1. When in the M1
mode the unit will respond to remote commands when M1 is
selected on the remote and will transmit audio on the A channel.
When in the M2 mode the unit will respond to remote commands
when M2 is selected on the remote and will transmit audio on the
B channel.
Selecting a Monitor Code (M1 or M2)
1. Press and hold the SOURCE and FMM buttons on the unit
for 3 seconds and the unit will switch from M1 to M2
or M2 to M1.
2. The selected mode (M1 or M2) will be retained in memory
until changed by the user.
Note: 2-channel IR headphones will need to be used when
monitor is set to M2 mode.
Note:
OSD will appear on the screen for 4~5 seconds
FMM OFF
M2
DVD
IRT OFF
FMM 88.3MHz
M1
AUX/GAME
IRT ON

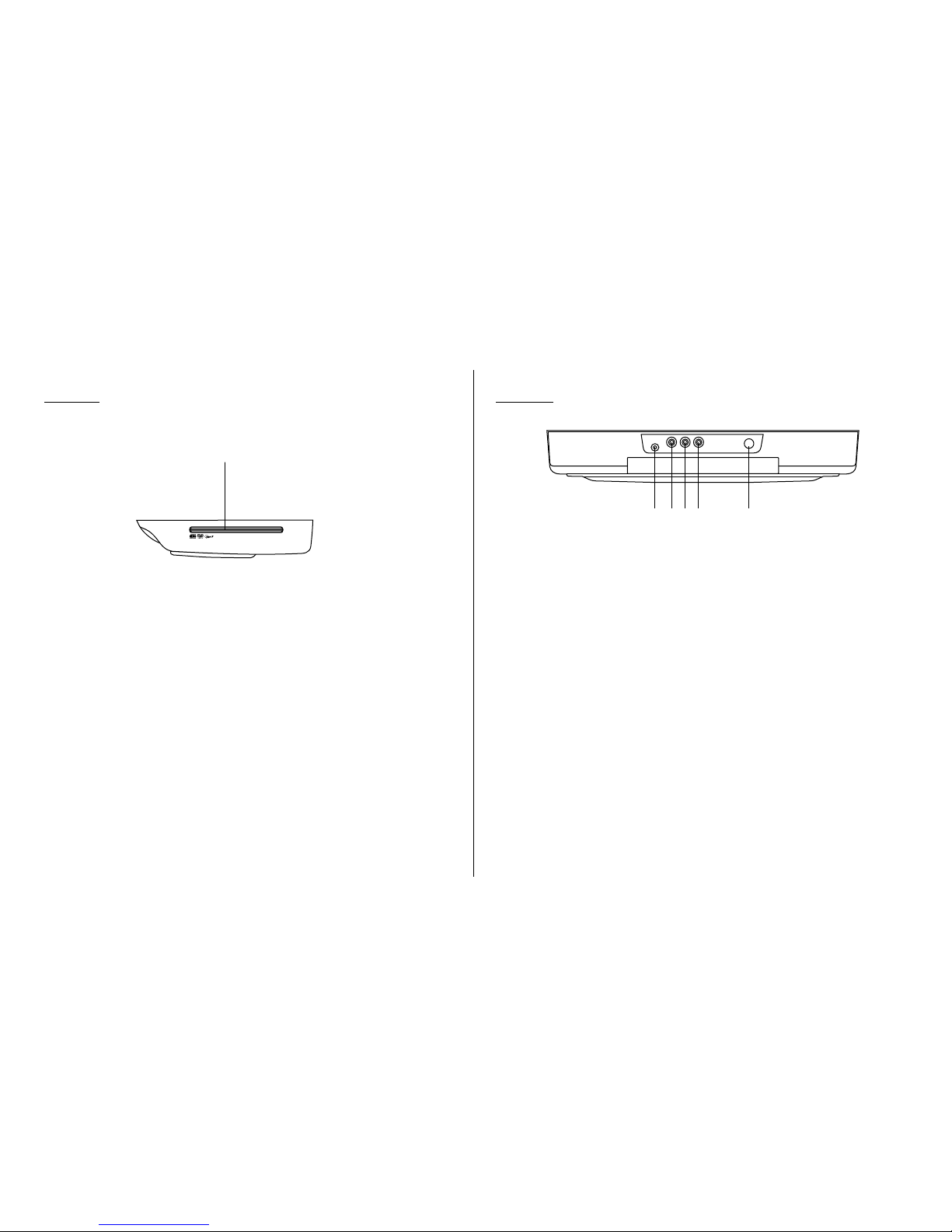

CONTROL FUNCTION DESCRIPTION (SIDE VIEW & BACK VIEW)
6
Side View Back View
1
1. DVD Disc insertion Slot
For loading and removing discs. Unit will turn On and load
disc when disc is inserted.
Note: Disc slot will be lit when unit is turned Off for easy
loading at night.
Back View
1 2 3 4 5
1. Headphone Jack
Allow the use of wired headphones with a 1/8" (3.5mm) plug
for listening to the video program audio.
2. Auxiliary Video Input
3. Auxiliary Audio Left Input
4. Auxiliary Audio Right Input
5. PAUSE (;) Button
Allows the front seat passenger to pause the playback.
Pressing PAUSE again or pressing the PLAY button will
resume normal playback.

7
REMOTE CONTROL OPERATION MAIN FUNCTION DESCRIPTION
POWER
SOURCE
VOLUME
AUTO
MEMORY
SKIP/
SEARCH
ERASE/
WRITE
FMM
ON/OFF
RETURN DISPLAY
IRT
ON/OFF MUTE
CHANNEL
SELECT
DAY/
NIGHT PIX
MONITOR SELECT
M1
1 2
5
8
4
7
0
3
6
9
TV
M2
DVD
OK
MENU
REPEAT
SETUP
ZOOMAUDIO
SUBTITLE A-B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
EJECT
Battery Installation
Before attempting to operate your Remote Control, install the
batteries as described below.
1) Turn the Remote Control face down. Using your finger, slide
the battery cover off in the direction of the arrow.
2) Install Two “AAA” batteries. Make sure that proper polarity
(+ or -) is observed.
3) Align the cover tabs with the remote control and slide the
cover until it locks.
The remote control will operate the VOD102. It is not a universal
remote control and will not control equipment from other
manufacturers.

8
1. POWER Button*
Press this button to turn the VOD102 ON and OFF.
2. MONITOR SELECT
M1 Button – Change the remote control code to enable to control of the VOD102 when set to the M1 mode.
M2 Button – Change the remote control code to enable to control of the VOD102 when set to the M2 mode.
3. TV Mode Select Button**
Switches certain function keys on the remote control for TV functions.
4. DVD Mode Select Button
Switches certain function keys on the remote control for DVD functions.
5. SOURCE Button*
Each time the button is pressed, the audio / video source will change in the following sequence: DVD > AUX/GAME > AV1 > AV2/TV**.
6. AUTO MEMORY Button (AUTO PROGRAM Button)**
When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of sufficient
levels are automatically stored in memory.
7. SKIP / SEARCH Button**
This button selects between SKIP and SEARCH mode. In "SKIP mode" the TV tuner will tune and stop on channels that are
programmed into memory when the CHANNEL UP / DOWN buttons are used. When the SKIP mode is disable, the TV will stop on all
active channels.
8. ERASE / WRITE Button**
While tuned to a channel, pressing this button will alternately store or erase the channel from memory.
* Function control is available on the unit and the remote control.
** The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT2) is installed.

9
9. FMM ON / OFF Button*
Turns the wireless FM Modulator on or off.
10. CHANNEL SELECT Button*
Selects the wireless FM Modulator Frequency (Frequency 1: 88.3MHz, Frequency 2: 88.7MHz, Frequency 3: 89.1MHz, Frequency 4:
89.5MHz, Frequency 5: 89.9MHz)
11. RETURN Button
Not used on this model.
12. DISPLAY Button
Press to display the current disc information while the disc is playing. Press the cursor (pqtu) buttons to highlight the desired
option. For title and chapter selection use the number buttons to enter the desired title or chapter number. For angle, audio, and subtitle,
press the ENTER button repeatedly to change the selected item.
Title
Chapter
Angle
Audio
Subtitle
13. CURSOR / CHANNEL UP DOWN (pqtu) **
Use these buttons to navigate the menu selections on the screen.
Use the CHp to increase the channel number and use CHq to decrease the channel number. **
14. OK Button (ENTER)
Used to implement a selected setting or menu option.
15. MENU Button
Allows the user to access the DVD (DVD MODE) root menu and system menu (TV mode).
DVD
Title
Audio
Subtitle
-/- Chapter Angle 1/1
00:00:14
Ch ENG
Stop
5.1
Off
1/1
1/1

10
16. REPEAT Button
Allows the user to repeat a selected title, chapter, or track.
17. AUDIO Button
Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes.
Note: The languages for audio vary from disc to disc.
18. SUBTITLE Button
Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language
changes.
Note: The type and number of languages for subtitle vary from disc to disc.
19. STOP (<) Button*
Press to stop playback.
20. PREVIOUS (9) Button
Press to return to the previous chapter or track.
21. SCAN BACKWARD (7) Button
Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, and 20 times the normal speed.
22. PAUSE (II) Button*
Allows the user to pause the playback.
Pressing pause again or pressing the Play Button will resume normal playback.
23. PLAY Button*
Press to activate the play mode when a disc is loaded in the disc compartment.
24. SCAN FORWARD (8) Button
Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, and 20 times the normal speed.

11
25. NEXT (:) Button
Press to skip to the next chapter or track.
26. A-B Button
Allow user to repeat the playback from point A to point B.
Press A-B button On-Screen Display DVD player
Once Repeat A- Mark the beginning of the section to repeat (Set point A)
Twice Repeat AB Mark the end of the section to repeat (Set point B)
3 times AB Off Cancel the A-B repeat function
27. ZOOM Button
Press this button to enlarge the picture when playing a DVD disc.
Press ZOOM button DVD player perform
Once Enlarge the picture 2 times of the original size
Twice Enlarge the picture 3 times of the original size
3 times Enlarge the picture 4 times of the original size
4 times Picture is returned to original size
28. SETUP Button
Press to display the Setup Menu which allows the user to change the DVD player options such as TV DISPLAY, OSD LANGUAGE,
PARENTAL CONTROL etc.
Refer to the settings and Adjustments section for more information.
29. IRT ON/OFF Button
Turns the Infrared Transmitter IRT ON or OFF for IR Wireless Headphones. Pressing M1 then IRT ON/OFF will control the IR
Transmitter for M1. Pressing M2 then IRT ON/OFF will control the IR Transmitter for M2.
30. MUTE Button
Press this button to mute the audio for wireless FMM and wired headphones.
Pressing the button again restores the sound to the previously set level.

12
31. DAY / NIGHT Mode Button
This control toggles the unit between “Day” and “Night” LCD illumination modes. In the “Day” mode, the LCD backlit intensity is at
maximum. In “Night” mode, the LCD backlit is dimmed to a preset level that is more suitable for low light operation.
32. PIX Button (Picture Select)*
Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST,
COLOR, TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(–) button to adjust the setting.
The display will automatically turn off if no adjustments are made within 6 seconds, or is any other button is pressed.
33. VOLUME DOWN (–) or UP (+)*
Press to decrease or increase the volume level of the wired headphone jack.
It is also used to make picture adjustments in the picture select mode.
Note: The volume control will not affect the volume of wireless headphones or the FM modulator. When using these devices, the
volume must be adjusted with the wireless headphone volume control or with your radio’s volume control.
34. NUMBER Buttons
Allow the user to enter numbers 0 to 9 for selection of selection of CD tracks, DVD chapters, password setting and direct access of
TV channels if the optional TV tuner (P/N PODTVT2) is installed.
35. EJECT () Button*
This button is used to eject the disc.

13
BRIGHTNESS16
VOLUME23
SETTINGS AND ADJUSTMENTS
PICTURE ADJUSTMENTS
When watching a program, the picture quality can be adjusted to suit your taste.
PIX (P) Button
1) Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST,
COLOR, TINT or RESET.
2) Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(–) button to adjust the setting.
The display will automatically turn off if no adjustments are made within 6 seconds, or is any other button is pressed.
3) Press the PIX button five times to select RESET, then press either Volume (–) or the Volume (+) button on the remote or the main unit
and all of the picture settings (BRIGHTNESS, CONTRAST, COLOR and TINT) will return to the factory setting.
VOLUME
Use the Volume (–) or Volume (+) button on the unit or the remote control to decrease or increase the volume level of the wired
headphones.

SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
4:3
16:9
14
MENU ADJUSTMENT
SYSTEM (MAIN) MENU and On Screen Display (OSD)
1) In TV mode, Press the MENU button on the remote, the main page of the system menu will appear on screen.
2) Use the cursor buttons p or q to select the desired item in the main page and press the OK button to select.
3) The sub menu will appear on screen.
4) Use the cursor buttons p or q to select an item in the sub menu and then press the OK button to select.
5) Press the Menu button to exit System Menu.
Note: System Menu can be control via Remote Control only.
(Items selected in the menu will have a green background)
SCREEN MODE SELECT
This allows the user to change the screen format (aspect ratio 16:9, 4:3).
1) To select the screen aspect ratio format highlight SCREEN MODE and then press the OK button to enter the sub menu. Then use the
cursor buttons p or q to select from either 4:3 or 16:9. Press the OK button to confirm the setting.

OSD LANGUAGE
This allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German for
the OSD language.
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
SOURCE DEFAULT DVD
ON
OFF
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
OSD LANGUAGE
ENGLISH
SPANISH
FRENCH
GERMAN
15
SOURCE DEFAULT DVD
This allows the user to select from:
DVD default on- When ever the unit is turned on it will return to DVD mode.
DVD default off- When ever the unit is turned on it will return to the last source selected.

16
DVD SETUP MENU
The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-
screen display, limit playback for children.
Using the Setup Menu
1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.
Language Video Rating
French
Spanish
German
Italian
OSD Menu English English
Video
Language
Rating
Language Setup
Video Setup
Rating Setup
2. In order to Go to the desired page, move the highlight using the cursor button t or u to the icon indicated.
3. After entering the desired page, highlight the desired item using the cursor button p or q.
4. Press u to move the highlight to the different options for the selected item.
Press p or q to select the desired options, and then press ENTER to confirm the selection.
5. Repeat steps 3~4 to continue setting the items in the same Setup Page.
6. To change to another Setup page, press t until the highlight moves back to the icon on the top part of the Setup Menu. Then, repeat steps
2~5.
Exiting the Setup Menu
Press the SETUP button again to exit the setup menu.

17
LANGUAGE SETUP
Language for On-Screen Display
OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.
The user can either select English, French, Spanish, German or Italian for the OSD language.
VIDEO SETUP
TV Display
The TV DISPLAY setup allows you to adjust screen setting (aspect ratio).
4:3 PS
This displays the wide picture on the screen with a portion of the left & right side removed.
4:3 LB
This displays the wide picture with black bands on the upper and lower portions of the screen.
16:9
This displays a wide picture with black bands on the upper and lower portion of the screen.
The bandwidth will vary, depending on the aspect ratio of the disc.
TV Type
The TV TYPE setup allows you to select the system to fit to the color system of the TV to
be connected.
NTSC - Select this type for NTSC TV
PAL - Select this type for PAL TV
AUTO - Select this type for multi-system TV
Language Video Rating
French
Spanish
German
Italian
OSD Menu English English
Language Video Rating
4:3 LB
TV Display 16:9 4:3 PS
TV Type NTSC
16:9
Language Video Rating
PAL
TV Display 16:9
TV Type NTSC NTSC
AUTO

18
Language Video Rating
Password ----
Rating Adult
Load Factory Reset
Language Video Rating
Password ----
Rating Adult
Load Factory Reset
Language Video Rating
Password
Rating Adult
Load Factory Reset
****
RATING SETUP
Rating
This item allows you to limit the content of movie playback from G to Adult. The lower the value,
the more strict the control.
G
PG
PG – 13
R
NC – 17
Adult
The rating level can only be changed when the displayed lock is open. For first time use, key in the
default password (3308) and press enter. To set a new password, key in a new four-digit password
and press enter
Load Factory
The Load Factory — Reset allows you to reset all options to factory settings.
* This function will not affect the Rating control settings.
Note: The Default Password is 3308. This password is always effective even after you
have selected your own password and changed it. To avoid the possibility of others
using the default password to set the parental level and change the password, you can
record this default password in another area and delete it from this manual. Some discs
can be limited depending on the age of users while some discs cannot.

19
Playing Audio DVDs
1. When playing an audio CD, the DISPLAY banner appears automatically. It displays the track and amount of time for the track playing,
the total amount of time on the disc and the elapsed time of the disc.
2. Selecting a Track
You can skip to a specific track by using the numbers keys. After choosing the track, press ENTER to implement the selection.
3. Using the REPEAT feature
The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options:
• SINGLE – repeat the track that is playing.
• ALL – repeat the entire disc that is playing.
As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The
selected repeat option loops repeatedly until you turn it off.

20
Playing MP3 Discs
MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality,
while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player
plays the songs in the order they were burned on to the disc.
Press DISPLAY button on the remote to display the time counter display elapsed only.
• Time elapsed is the time that the song has played
• Time remaining is the amount of time left for the song being played.
Selecting Folders and Songs
When an MP3 is loaded in the player, the navigation menu appears automatically.
1. Press p or q to move the highlight to the desired folder and press ENTER to display the
songs in the folder.
2. Press p or q to move the highlight to the desired song and press ENTER to begin playback
of the highlighted song.
Skipping Songs
Use the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.
Selecting a Play Mode
You can choose what order the songs will play on a disc temporarily. The default play mode is FOLDER. Press REPEAT consecutively to
choose the desired play mode. The play mode options are:
• FOLDER Plays the songs in a folder in the order they were recorded.
• SHUFFLE Plays the songs in a folder in random order (from within the selected folder).
• RANDOM Plays the songs in a folder in random order.
• SINGLE Plays a selected song.
• REPEAT ONE Repeat the song that is playing.
• REPEAT FOLDER Repeat the folder that is playing.
Stop1
CD-R MENU
CE_sho
Plant
Scenery
Shangha
879069
879093
894041
7
8
9
Mode Folder Normal
894044 10
ROOT
Animal
