Axis Car Audio BA 1909 User manual
BA 1909
19” HD MOTORISED FLIP DOWN BUS MONITOR
INSTRUCTION MANUAL
SPECIFICATIONS
GENERAL
- Screen: 19” (49cm)
- Format: 16:9 Widescreen
- Resolution: 1440 x 900 HD
Supports 1080p
- Viewing Angle: 170° (L/R) 160° (U/D)
- Video System: PAL/NTSC Auto Switchable
- Inputs: HDMI , USB, RCA Video
- Mounting: Roof with Metal Mounting Plate
- Motorized Angle 0-160°
- Housing: ABS- UV Resistant
- Power Supply: 12/24 Volt DC (9-36V)
- Dimensions: 464(L) x 320(W) x 65(H)
- Included: Remote Control
BA1909
12/24V
19”
Motorised Flip Down HD
Monitor
Please read the user manual carefully before installation and operation.
This product is specially designed for Bus, Coach, Marine, Truck, Caravan and Train use. Please
read the user manual carefully before installation and keep for future reference.
1.Safety Use Instructions and Precautions:
ŸOpen the screen using the remote control.
ŸWorking Voltage is DC9V-35V.Do not connect to AC 240V.
ŸPosition the monitor away from damp and humid locations.
ŸInstallation position must be strong enough to support the unit’s weight
and vibration while driving.
ŸPosition the monitor away from direct sunlight or other heat sources.
526
60
94.3 416.7
94.3
220
583.3
220
MOUNTING DIMENSIONS
Front
Top
110°
Side
Red
Black
Blue
Red
Black
Red
(Open)
White
(Close)
Common
Red
Black
Video input
Audio output
HDMI input
Power Connection: This product can function in 24V DC.
onnect the red cable to the positive pole and the black one to the negative pole.
Inversion of control switch

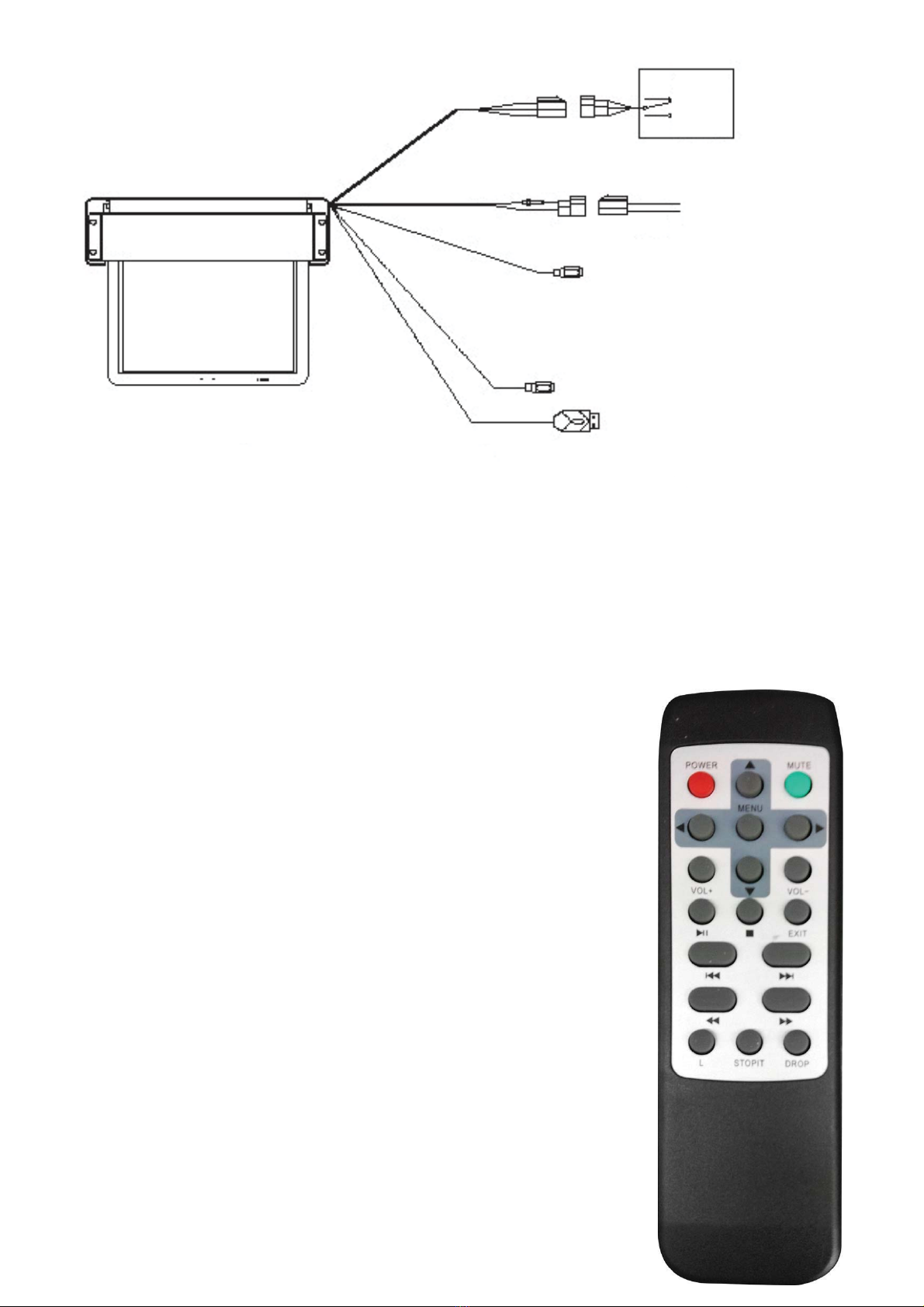

WIRING INSTRUCTION
1)Power Connection: This product can function in 24V DC.
Connect the red cable to the positive pole and the black one to the negative pole.
ŸDo not plug the power cable into 240V AC or the product will burn.
Video signal line connection: Connect the video signal cable.Make sure the plug LVILUPO\LQVHUWHG
3RZHU212))7XUQWKHXQLWRQRIIE\SUHVVLQJWKHSRZHUEXWWRQRQWKHUHPRWH
&RQWUROFDEOHFRQQHFWLRQ,QWKHFRQWUROFDEOHWKHVKLHOGHGZLUHLVFRPPRQ
7KH5('FRQWUROFDEOHLVIRUORZHULQJWKHPRQLWRU
7KH:+,7(FRQWUROFDEOHLVIRUUDLVLQJWKHPRQLWRU
7KHFRQWUROFDEOHLVOLQNHGWRWKHZD\VZLWFKWKDWLVWREHLQVWDOOHGRQWKHGDVKERDUGRUQHDUE\
127(0RQLWRUZLOOQRWORZHURUUDLVHXQOHVVWKHXQLWLVWXUQHGRQ
Run the cables of desired length to switch. Note: Cables not included.
*If USB Drive is in use, you will not be able to select another source.
REMOTE CONTROL
Used for power ON/OFF, audio control and selecting input sources.
NOTE: Not all functions apply to this model.
1. Power Button (doesnt open/close panel)
2. Source / Up Button (doesn’t change source if USB drive is in use)
3. Mute
4. Left Button
5. Menu (picture settings)
6. Right Button
7. Volume Up
8. Down Button
9. Volume Down
3OD\3DXVHFXUUHQW¿OH
or “Select”
11. Stop
12. Exit / Back
13. Previous
14. Next
15. Fast Forward
16. Fast Rewind
/LIW6FUHHQGRHVQWSRZHURႇ
18. N/A
'URS6FUHHQGRHVQWGURSLISRZHULVRႇ
1
4
7
10
17
13
15
11
18
12
19
14
16
2
5
8
3
6
9
WARRANTY
Congratulations on your purchase of a quality Mobile EntertDLnment System! You’re joining
thousands of satisfied customers who enjoy & experience the benefits of the products we
distribute. In the unlikely event that some technical difficulty arises with your purchase, be
assured that we are most anxious to see that the problem is quickly rectified to your
satisfaction. Please familiarise yourself with the following simple conditions of our warranty.
This warranty covers faults through component failure or failure of the product to operate in
accordance with published specifications. Product failure as a result of unreasonable
environmental conditions, accident, misuse, improper installation, unauthorised repair, vehicle
electrical or wiring faults or neglect etc, will not be covered by this warranty. Removal and
installation costs, if any, would be paid by the owner as well as any freight or postage costs of
transporting the product to AudioXtra. AudioXtra shall not be liable or responsible for any loss
of use of this product or any form of consequential loss.
CONSUMER WARRANTY
This product is warranted by AudioXtra International Pty Ltd to be free from defects in
materials and workmanship under NORMAL USE for a period of TWENTY FOUR MONTHS
from the date of purchase.
WITHIN 30 DAYS OF PURCHASE DATE: Please return the unit for replacement to our
National Service Centre or the Retailer from where you made the purchase. All accessories
must be included. Proof of purchase date
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
must accompany the products.
AFTER 30 DAYS OF PURCHASE DATE: Warranty repair and service is carried out by our
National Service Centre. Repair and service will be carried out at no cost to the owner if proof
of ownership and the date of purchase can be verified to the satisfaction of the authorised
centre concerned with this repair. This proof should take the form of either:
a) The warranty card accompanying this product, stamped and dated by the dealer.
b) A Tax Invoice or Receipt showing full details of original vendor, purchaser, model
number and serial number.
COMMERCIAL WARRANTY: A product used in or associated with a commercial
application will carry a limited SIX MONTH warranty. An abnormal commercial application is
one where usage, dust, vibration, heat/cold and other environmental conditions exist at an
extreme level.
Model Number: Serial Number:
Dealer Name: Date of Purchase: / /
Dealer Address:
www.audioxtra.com.au
Purchaser’s Name:
Invoice/Sales Docket no:
Purchaser’s Address:
National Service Centre:
10 STODDART ROAD, PROSPECT, SYDNEY NSW 2148Australia
Telephone:(02) 8841 9000 Fax: (02)9636 1204
email:[email protected]
Please complete details below in the event of warranty service being required.
General Hints: To expedite service and prompt return of the equipment, please:
a) Clearly describe the fault in detail c) Include your return address
b) Safety and security pack the unit for transport d) Provide proof of purchase date as outlined above
