Valor NVG-606W User manual

- M U L TI MEDIA -------- _
Contents
Thank you for your choosing our product. We hope you will find the instructions in this user
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to use
all the
features of your new unit for maximum enjoyment.
After you have finished reading the instructions, please keep this manual in a safe place for
future reference.
Preparation' ..
Features ...
Tools and Supplies
WARNING· ....
Disconnecting the Battery
Controls and Indicators ..
Button Operation· .....
The Key Areas Of Touch Screen·
Remote Control .....
Front Remote Control
TFT Monitor Operation .
Disc Insertion/Ejection
Rear Camera Mode .
Image Settings· ....
Parking Brake Inhibit .
Operating Instructions·
Power On / Off· ....
Playing Source Selection·
Volume Adjustment .
Audio Control Menu·
Rear Output· ..
System Reset
Mute· .
Standby· .
System Setup Menu·

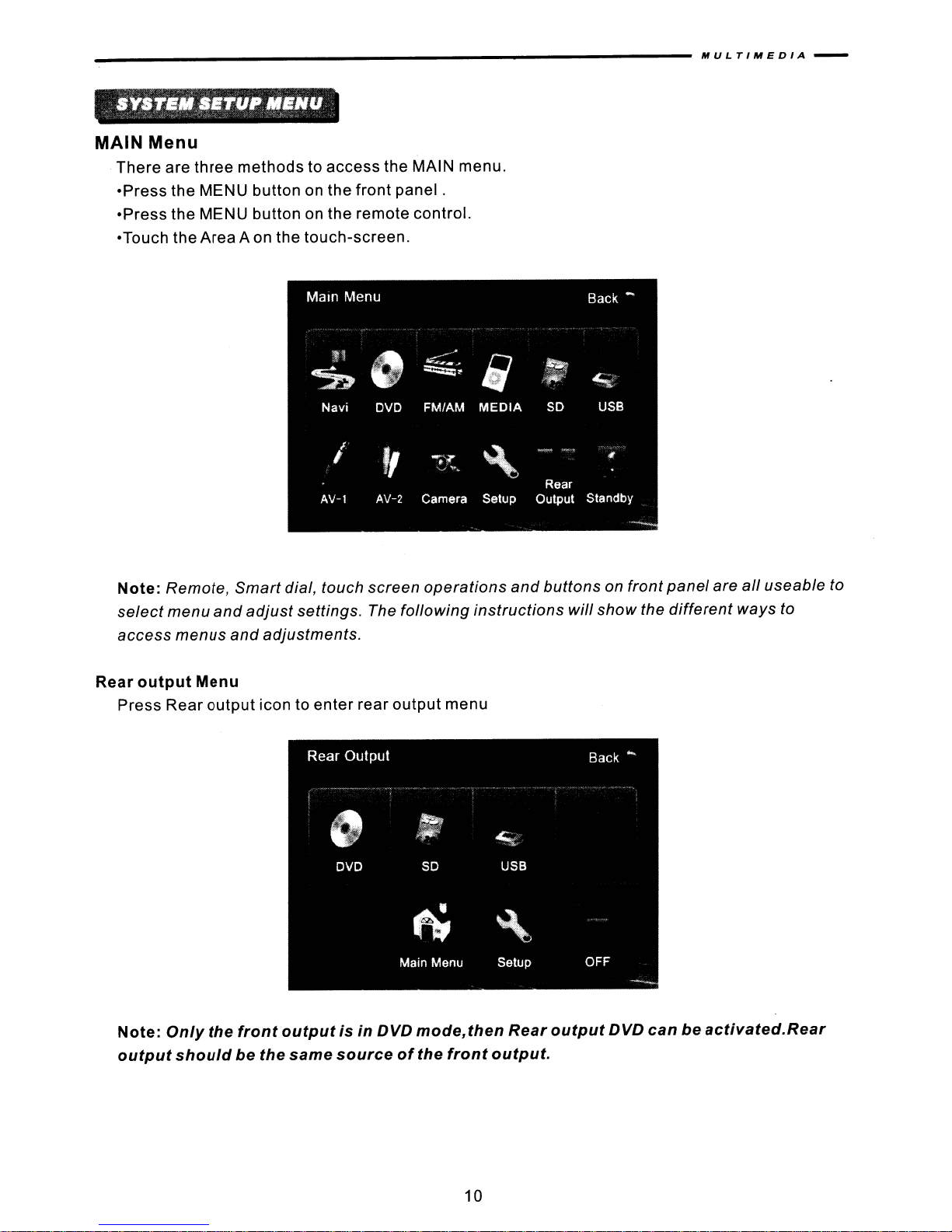

MAIN Menu· ....
Rear Output menu·

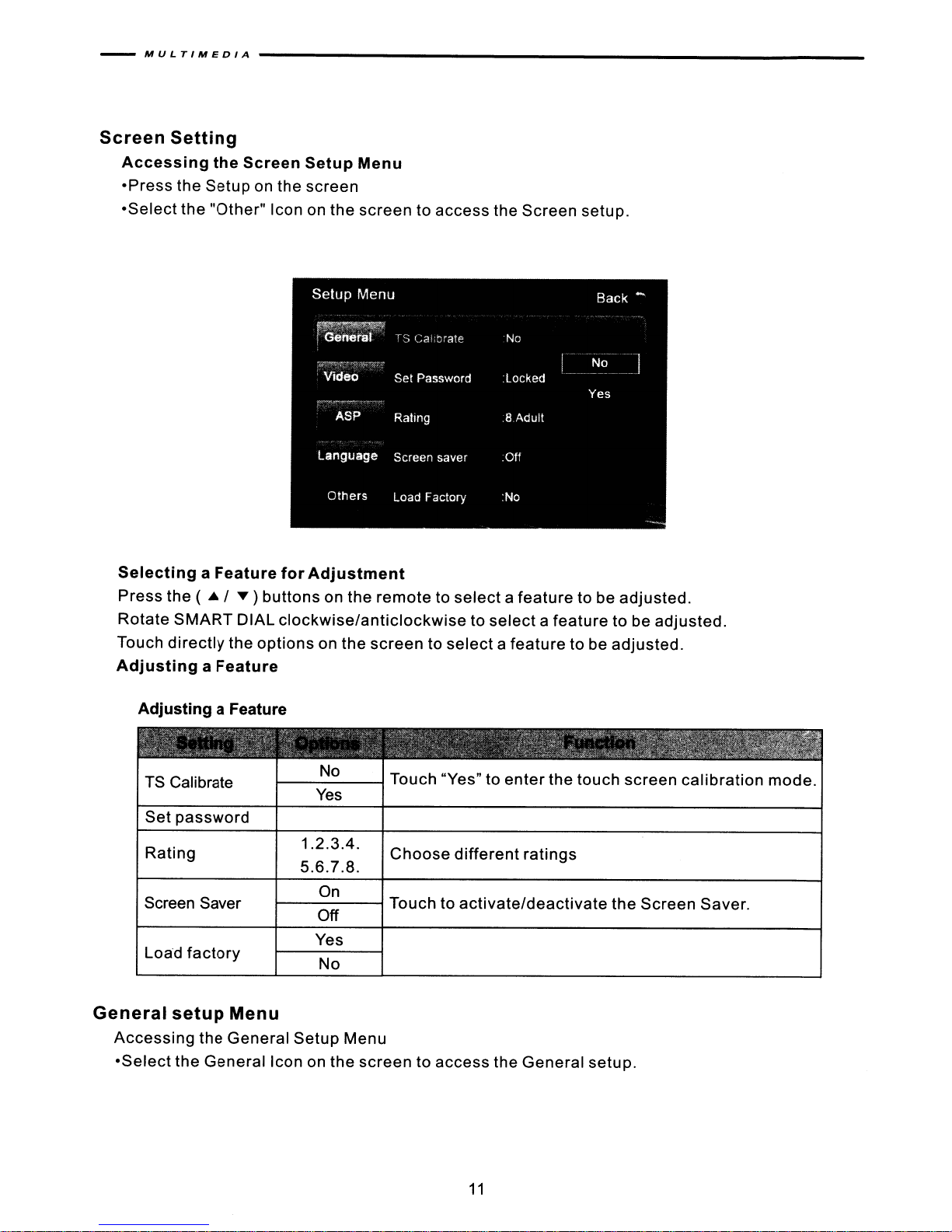

Screen Setting· ..
General Setup Menu
Video· .
ASP(Audio Signal Processing) Configuration Menu·
Language menu· ...
Tuner(FM/AM)Operation .
Tuner TFT Display· .
Switch to Radio Tuner Source
Select FM/AM Band·
Auto Tuning· ..
Manual Tuning· ...
·1
. 1
. 1
·1
·2
·3
·3
·4
·5
·5
·7
·7
·7
·7
·7
·8
·8
·8
·8
·8
·9
·9
·9
·9
·10
·10
·10
. 11
. 11
·13
·14
·15
·17
·17
·17
·17
·17
·17

______________________________ MU L TIMEDIA -
Using Preset Stations' . . . . . • . . •......... 18
Auto Store (AS) . • . . . .
·18
Program Scan (PS) . . . . ·18
DX and Loc Stations Seeking (LOC)' . . . . . . . . . . . . ·18
DVO Player Operation' . . . . . . . . . . . . . . 19
Insert/Eject
Disc· . . . . . . . . . . . . . . . . ·19
Reset the Loading Mechanism' . . . . . . . . . . . . .. ·19
Accessing DVD Mode· . . . . • . . ...•. 19
Using the Touch Screen Controls 19
Controlling Playback . . . . . . . . .
·20
Accessing the DVD Menu· . . . . . . . . . . . . . . . . . . . . . . . . . . ·20
Moving Through Chapters . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ·21
Fast Forward/Fast Reverse . . . . . . . . . . . . . . . . • . . . . . . .
•.... ·21
Selecting 2-Channel or 5-ChannelAudio
Playback' ........ . ·21
GOTO Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
·22
Direct Chapter/Track Selection' ................... . ·23
Viewing an Alternate PictureAngle (DVD Only) . . . . . . ·23
Zooming' ................................ . ·23
Multi-Language Discs (DVD Only)' ............•.................... ·23
Playback Information' . . . . . . • . • . . . . . . . . . . . . . . . . ·23
General Disc Information' . . . . . . . . . . . . . . . . . • . . .. . ·24
CO/MP3/WMA/JPEG Operation' . . . . . . . . . . . ·26
CD Player User Interface' . . . . . . . . . . . ·26
MP3/WMA Discs· . . . . . . . .. . ·27
JPEG Discs' ....... ...... . ·28
USB Operation' ...... ....... . ·29
Accessing USB Mode· . . . . . . . . . . • . . . . . ·29
USB Instructions' .... .................. . ·29
SO Operation· . . . . . . . . ·30
Accessing SD Mode' . . . . . . . ·30
SD Instructions . . . . . . . . . . . . . . ·30
Navigation Operation' .. ....... . ·31
Accessing
Navigation· ...... ............. . ·31
Navigation Operation . . . . . . . . . . . . . . . . . . . . . . . • . . . . . ·31
Listening to
an Audio program while using/viewing the Navigation . . . . . . . ·31
Troubleshooting' . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ·32
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ·37
Enclosed Accessories list· .................... ·39
NOTE:
1. certain description in the book may differ from the actualunit.
2. Some pictures or icons in the book may differ from actualdisplay.
3. Specifications subject to change without notice.

- M UL TIMEOIA ------------- _
PREPARATION
Please read all of the instructions below before beginning your installation. We recommend that
you have your unit installed by an experienced car navigation system installer.
Features
-Double DIN size, all-in-one highly integrated entertainment system
-Built-in DVD Player, automotive specification slot loading mechanism
-Built-in ISS FM/AM Tuner,
-High resolution 6.5"(16:9)
1FT color monitor, contrast and brightness adjustment
-Built-in 45W X 4 output amplifier.
-Front and rear output function with easyoperation.
-Smart Touch-screen operation
-All
functions can be operated by Remote Controls.
-Powerful Graphic User Interface and software update ability.
Tools and Supplies
We suggest using these tools and supplies to install the unit.
-Torx type, flat-head and Philips screwdrivers
-Wire cutters and strippers
-Tools to remove existing radio (screwdriver, socket wrench set or other tools)
-Electrical tape
-Crimping tool
-Volt meter/test light
-
Crimp connections
-18
gauge wire for powerconnections
-16-18 gauge speakerwire
-
Heatshrink tubing
-Soldering iron and solder
WARNING
1. Onlyconnect the unit to a12-voltnegative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving conditions.
3. To reduce the risk of atraffic accident(except when using forrear view video camera) never
use the video display function while driving the vehicle. This maybe in violation of local laws.
4. Never disassemble or adjustthe unitwithout the assistance of aprofessional. For details,
please consult your local car stereo specialtyshop.
5. To prevent injury from shock or fire, never expose this unitto moisture or water.
6. Never use irregular discs, the only recommended disc size is a12cm round disc.
7. To prevent damage to the mechanism inside this unit, avoid impact to the TFTmonitor.
8. Do not change the fuse on the power wire without professional guidance. Using an improper
fuse may cause damage to the unitandresult in afire.
1

______________________________ MUL riMEOIA -
Disconnecting the Battery
To prevent ashort circuit, turn offthe ignition and remove the negative (-) battery cable priorto
starting the installation.
NOTE: If the unitis to be installedin a car equipped with an on-boarddrive or navigation
computer, do notdisconnect the batterycable.
If the cable is disconnected, the computer
memorymaybe lost. Underthese conditions, use extra caution during installation to avoid
causing ashortcircuit.
NOTE: It is especiallyimportantthatyou read the WARNINGS in this manual.
2

- III U L TIME DIA ------------------ _
CONTROLS AND INDICATORS
Button Operation
12
11 10;
9
1.EJECT
Press once for disc insertion/ejection.
2.S0 SLOT
3.USB PORT
4.POWER OFFIVOLlSmart dial
Rotary encoder volume control.
Press to power on when the machine is in power off estate.
Press and hold to
power off while unit is on.
Short press while unit offto enter EO setting
Rotary encoder to browse mode while in main menu,and press to enter chosed mode
Rotary
encoder to browse mode while in NAVI mode,and press to enter chosed mode
5.Menu
Press to enter main menu,press again back to previous mode
6.Navi
Press to
enter navigation mode,Press again back to previous mode while in Navi mode
7.Front AUX-IN Jack
a.RESET
9.Touch screen TFT
10.Remote sensor
11.0isc indicative LED
Red is with disc
Light green is without disc
12.0isc slot
3

_______________________________ MU L TIM ED IA -
The Key Areas of Touch Screen
The touch key areas are outlined below, for DVD, VCD playback mode and so forth.
Area E
A- Return to MAIN MENU
B -
Display playing information
C - Select previous chapter
D - Select next chapter
E - Display the on-screen controls, and different mode displays different menu.
F
-On DVDIVCD mode, display the GOTO search menu on the screen directly.
4

- M U L TIM E D IA --------------------- _

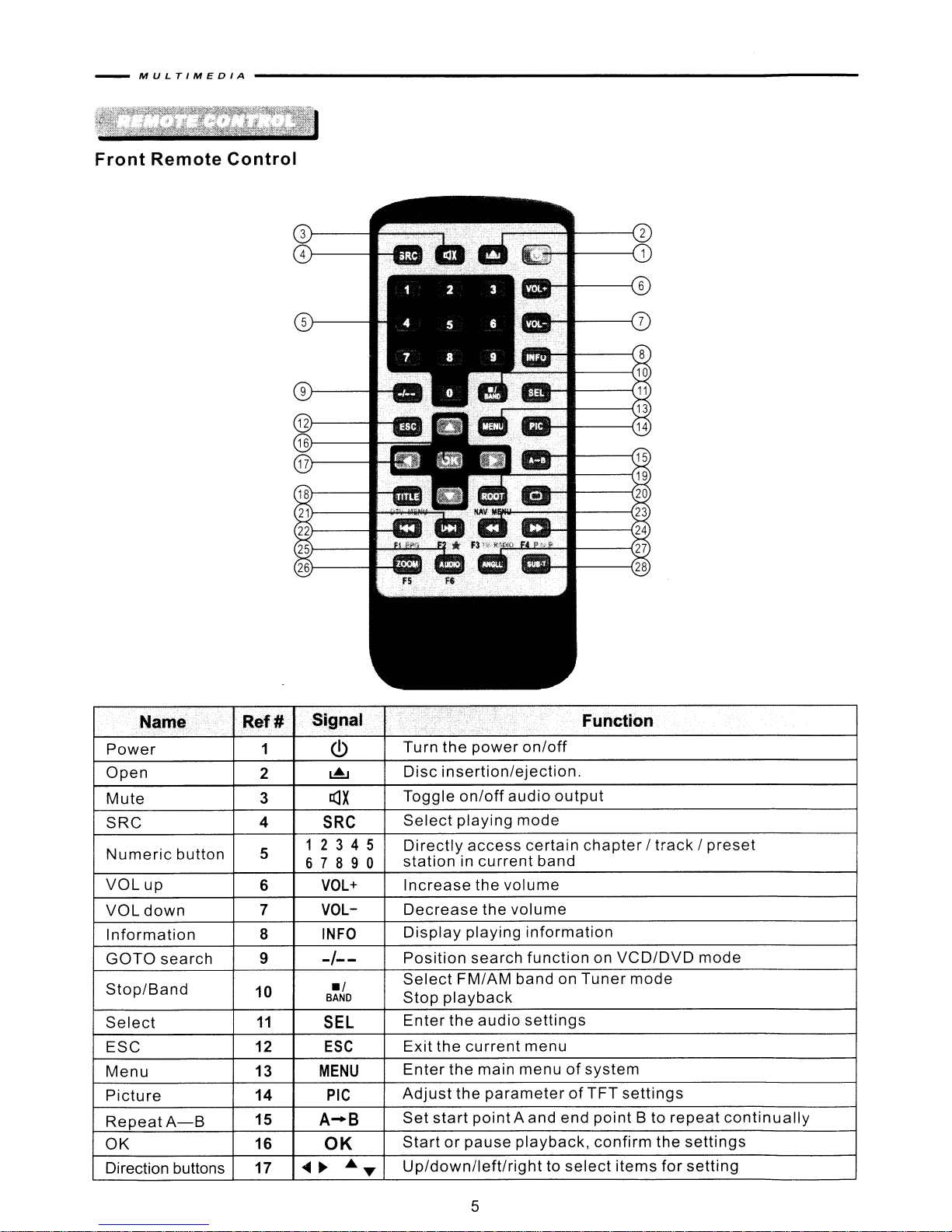

Front Remote Control
Name ,Ref#' .
Sj9r1~1
··":;u·';:E·'.,.·~:,:;:, ...• ". Function
Power
1(!)
Turn the power on/off
Open
2
~
Disc insertion/ejection.
Mute 3
l(JX
Toggle on/off audio output
SRC
4
SRC
Select playing mode
Numeric button
51
234 5
Directly access certain chapter / track / preset
6 7 890
station in current band
VOLup
6
VOL+
Increase the volume
VOL down
7 VOL- Decrease the volume
Information 8 INFO
Display playing information
GOTO search 9
-I--
Position search function on VCDIDVD mode
Stop/Band
-,
Select FM/AM band on Tuner mode
10
BAND
Stop playback
Select 11
SEL
Enter the audio settings
ESC
12
ESC
Exit the current menu
Menu 13 MENU
Enter the main menu of system
14
PIC
Adjust the parameter of TFT settings
RepeatA-B
15
A-B
Set start point A and end point Bto repeat continually
OK
16
OK
Start or pause playback, confirm the settings
Direction buttons 17
.....
.... T Up/down/left/right to select items for setting
5

MULTIMEDIA -
Title 18
TITLE
Also can activate and disable SCAN mode while playing CD
Root
19
ROOT
Enter the main menu of the disc
Turn on PSC while playing VCD
Repeat
20
CJ
Repeat playback for current chapter
Select the next chapter/track for playback
Next 21
~
Search an available radio station by increasing tuning
frequency on tuner mode
Select the previous chapter/track forllayback
Previous
22
Search an available radio station by ecreasing tuning
frequency on tuner mode
Fast Reverse
23 .. Fast reverse the disc content
Fast Forward 24
~
Fast forward the disc content
Audio
·25
AUDIO
Change the audio language for disc playback
Zoom
26
ZOOM
Zooming in/out on an image
Angle
27
ANGLE
Play in different angle for ascene (if it is applicable)
SUB Title
28
SUS-T
Language selection for subtitle
6

- M UL TI ME D IA --------------- _

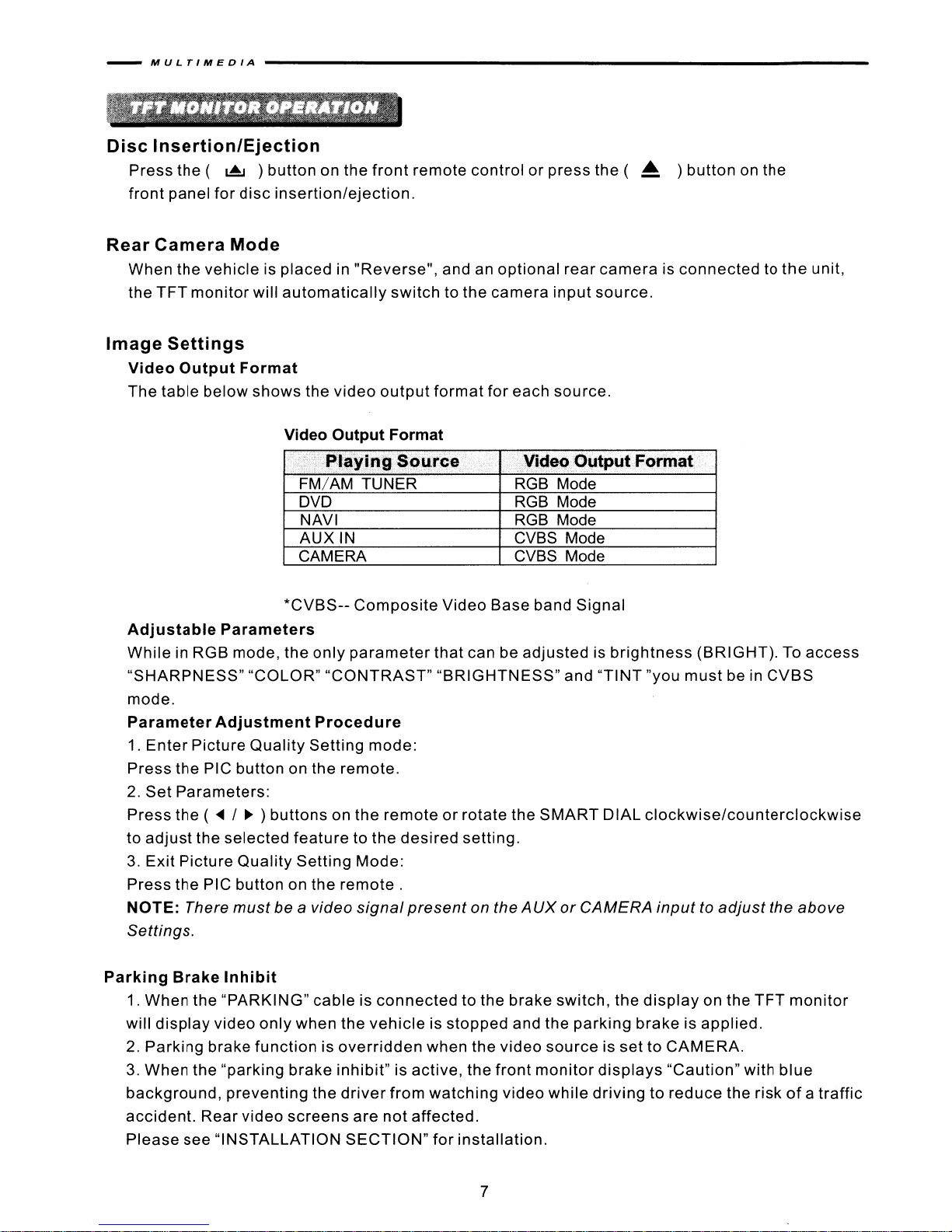

Disc Insertion/Ejection
Press the (IAI )button on the front remote control or press the ( ... )button on the
front panel for disc insertion/ejection.
Rear Camera Mode
When the vehicle is placed in "Reverse", and an optional rear camera is connected to the unit,
the
TFT monitor will automatically switch to the camera input source.
Image Settings
Video Output Format
The table below shows the video output format for each source.
Video Output Format
;,;;
....... ~ ...
FM/AM TUNER
DVD
NAVI
AUXIN
CAMERA
...• Video Output Format
RGB Mode
RGB Mode
RGB Mode
CVBS Mode
CVBS Mode
*CVBS-- Composite Video Base band Signal
Adjustable Parameters
While in RGB mode, the only parameter that can be adjusted is brightness (BRIGHT). To access
"SHARPNESS" "COLOR" "CONTRAST" "BRIGHTNESS" and "TINT "you must be in CVBS
mode.
Parameter Adjustment Procedure
1. Enter Picture Quality Setting mode:
Press the PIC button on the remote.
2.
Set Parameters:
Press the (
<4 / ~ ) buttons on the remote or rotate the SMART DIAL clockwise/counterclockwise
to adjust the selected feature to the desired setting.
3.
Exit Picture Quality Setting Mode:
Press the PIC button on the remote.
NOTE: There must be avideo signal present on the AUX or CAMERA input to adjust the above
Settings.
Parking Brake Inhibit
1. When the "PARKING" cable is connected to the brake switch, the display on the TFT monitor
will display video only when the vehicle is stopped and the parking brake is applied.
2.
Parking brake function is overridden when the video source is set to CAMERA.
3. When the "parking brake inhibit" is active, the front monitor displays "Caution" with blue
background, preventing the driver from watching video while driving to reduce the risk of atraffic
accident. Rear video screens are not affected.
Please see "INSTALLATION SECTION" for installation.
7

______________________________ MU L TIMED IA -
Power On I Off
Press the POWER IVOL button to turn the unit on. You can also turn on the unit by pressing the
button ( <!) )on the remote.
Press and hold the POWERIVOL button on the front panel or press the POWER button ( <!) )
on the remote to power off the unit.
Playing Source Selection
Press the MENU Button on the front panel and use Smart dial to select; or the (SRC) button on
the remote to change among available playing sources: TUNER, Disc, AUX IN 1, AUX-IN
2,CAMERA(rear view video camera), NAVI,USB and SD Card. The playing mode is displayed on
the TFT display.
AUXIN Mode
An external audio/video device can be connected to this unit via RCA cables(Front jack or rear
RCA connector) to the "AUX-IN".
CAMERA Mode
"CAMERA" mode is only available when the camera is connected and when backing up. To
install arear view video camera, connect the CAMERA video input cable to the rear view camera
output cable.
NOTE: If you have not connected adevice to the unit, the source can not be selected. Example:
If you have not inserted aSO into to the unit, SO will not be available.
Volume Adjustment
To increase or decrease the volume level, turn the POWERIVOL on the front panel or press
the VOL+/ VOL- buttons on the remote control. The volume ranges from "0" to "40".
Audio Control Menu
TheAudio Control feature allows you to easily adjust your audio system to meet the acoustical
characteristics of your vehicle, which vary depending on the type of vehicle and its
measurements. To get the best possible sound quality from your new system, be sure to adjust
the settings for the speakers as well. Proper setting of the Fader and Balance boosts the effects
of the cabin equalizer.
Accessing the Audio Control Menu
Press the POWERIVOL button on the front panel or press the (SEL) button on the remote
control to display the "Audio" menu.
Selecting an Audio Feature for Adjustment
Press the ( .... / ~ ) buttons on the remote or press the POWERIVOL button on the front
panel once to select a audio feature to be adjusted.
Adjusting an Audio Feature
Press the ( ~ / • ) buttons on the remote or rotate the POWERIVOL
clockwise/counterclockwise to adjust the selected feature to the desired setting.
8

- MULTIMEDIA

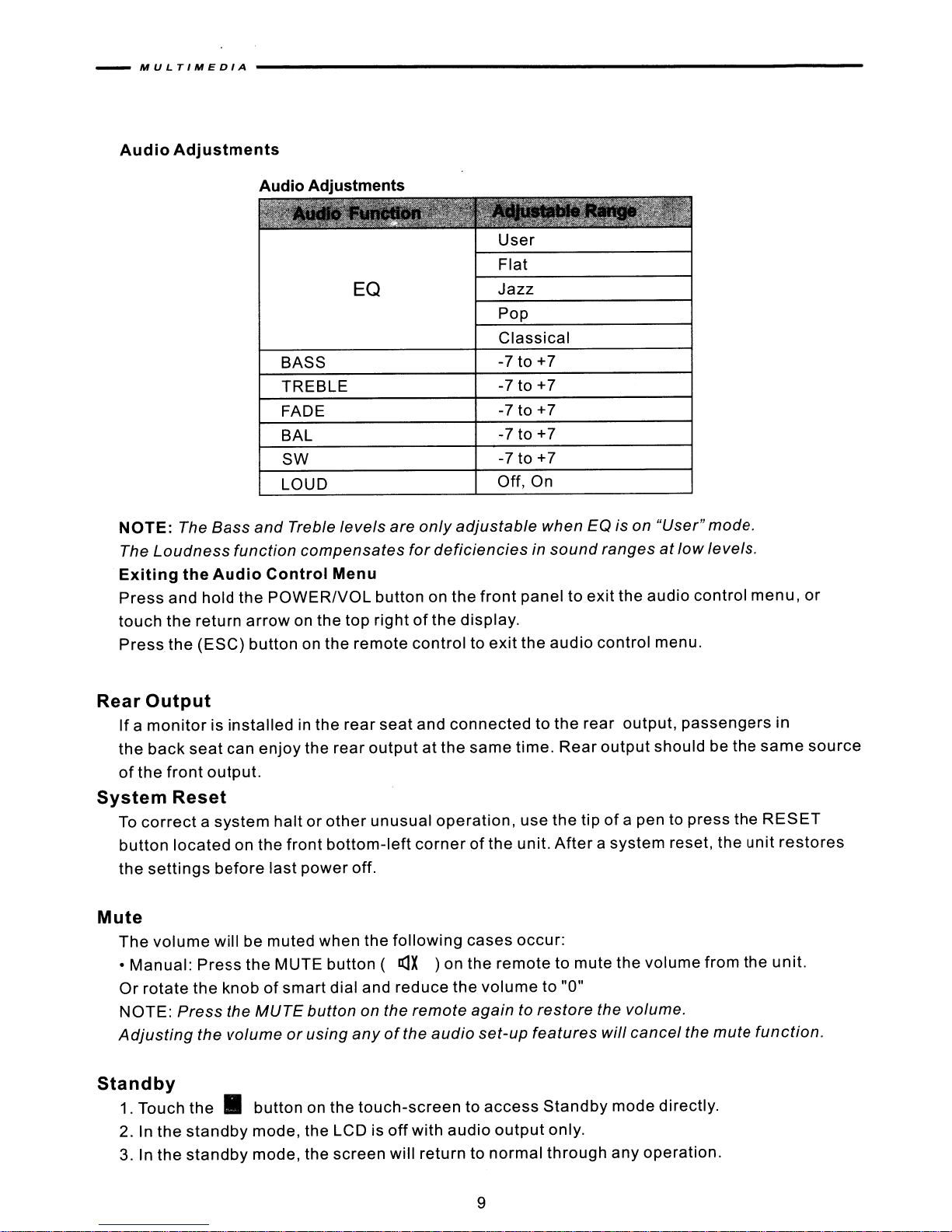

Audio Adjustments
Audio Adjustments
User
Flat
BASS
TREBLE
FADE
BAL
SW
LOUD
EO
Jazz
Pop
Classical
-7 to +7
-7 to +7
-7 to +7
-7 to +7
-7 to +7
Off, On
NOTE: The Bass and Treble levels are only adjustable when EQ is on "User" mode.
The
Loudness function compensates for deficiencies in sound ranges at low levels.
Exiting the Audio Control Menu
Press and hold the POWERIVOL button on the front panel to exit the audio control menu, or
touch the return arrow on the top right of the display.
Press the (ESC) button on the remote control to exit the audio control menu.
Rear Output
If a monitor is installed in the rear seat and connected to the rear output, passengers in
the back seat can enjoy the rear output at the same time. Rear output should be the same source
of the front output.
System Reset
To correct a system halt or other unusual operation, use the tip of apen to press the RESET
button located on the front bottom-left corner of the unit. After a system reset, the unit restores
the settings before last power off.
Mute
The volume will be muted when the following cases occur:
• Manual: Press the MUTE button ( a:JX )on the remote to mute the volume from the unit.
Or rotate the knob of smart dial and reduce the volume to "0"
NOTE: Press the MUTE button on the remote again to restore the volume.
Adjusting the volume or using any of the audio set-up features will cancel the mute function.
Standby
1. Touch the • button on the touch-screen to access Standby mode directly.
2. In
the standby mode, the LCD is off with audio output only.
3. In the
standby mode, the screen will return to normal through any operation.
9

_______________________________ MU L TIME D IA -
S'YSTBIf,'SBTUP MeNU
"'
MAIN Menu
There are three methods to access the MAIN menu.
'Press the MENU button on the front panel.
·Press the MENU button on the remote control.
·Touch the Area Aon the touch-screen.
Mam Menu Back
...
11
0"
a;::;::., ~
Iii
~
==:,.
,,,
..
Navi
OVO FMfAM MEDIA
SO USB
I"
~
I
-;'r
"
-../ ~.
Rear
AV-l AV-2 Camera Setup Output Standby
Note: Remote, Smart dial, touch screen operations and buttons on front panel are aI/ useable to
select menu and adjust settings. The fol/owing instructions will show the different ways to
access menus and adjustments.
Rear output Menu
Press Rear output icon to enter rear output menu
Rear Output Back
...
0
~
,"
rF
~
DVD
SO USB
~
"
Main Menu Setup OFF
Note: Only the front output is in DVD mode,then Rear output DVD can be activated. Rear
output should be the same source of the front output.
10

- M U L TfM E D fA ------- _
Screen Setting
Accessing the Screen Setup Menu
·Press the Setup on the screen
·Select the "Other" Icon on the screen to access the Screen setup.
Selecting a Feature for Adjustment
Press the ( • / ... ) buttons on the remote to select a feature to be adjusted.
Rotate SMART DIAL clockwise/anticlockwise to select a feature to be adjusted.
Touch directly the options on the screen to select a feature to be adjusted.
Adjusting a Feature
Adjusting aFeature
TS Calibrate
Set password
1-- __
N
_o
__ --1 Touch "Yes" to enter the touch screen calibration mode.
Yes
Rating
1.2.3.4.
5.6.7.8.
Choose different ratings
Screen Saver
Load
factory
On
1--------1 Touch to activate/deactivate the Screen Saver.
Off
Yes
No
General setup Menu
Accessing the General Setup Menu
·Select the General Icon on the screen to access the General setup.
11

MULTIMEDIA -
Setup Menu Back -
General
Radio USA
I
ClocK
0203
I.
USA
S-Amer1
Clock Mode 24Hr S-Amer2
Language Antenna
Off
Europe
Others Ver: ¥
Selecting aFeature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select the feature to be adjusted.
Adjusting aFeature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote
or by pressing the SMART DIAL button. Asubmenu appears in asecond row with the
selected option.
2. Select anew value by pressing the direction button.
3. Confirm your selection by pressing (OK) button or pressing the SMART DIAL button. The new
value setup is complete.
Adjusting the Clock
1. Access the "Clock" setting underthe General Setup menu.
2. Press the direction button on the remote to move the cursor to the "Hour" or "Min" position,
and press the (OK) button. you also can touch the "Hour" or "Min" position directly.
3. The numeric keypad will pop up.
4. Press the numeric button on the remote control or touch the
numeric keypad on the screen to
adjust the hour or minutes.
5. Press the (OK) button on the remote control oron the keypad of the screen to confirm setup.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds
after the last operation.
12

- MULTIMEDIA
-;:.-- ~
..... ~>'.,- ..... <"" .
,;:: ....... ~'>".' ":,' " oi':,~,,;~,'z"i;;J}''''''c~~~.~~
r:··~ ~:.:
:'''.~;;~; : -.,: .
""zPi~~~' ":4:.'.';"-:;"':.,';.,;.:: :: ... ~:~':t~; ... :.A ..... ~r.,-<:r""; Y_ ~;(~~~ ~~,~ ~ ~
."
;c. ',-'.,<'}i., _ :,'·n.:"',- ":;'.,..;: .... '-,f ••• ~<.~ •• it.~"""~ ~~~~~'t.~
USA
S-America1
S-America2 Select the appropriate setting based on
Radio Europe
Korea the country
in which you reside,
China
Arabia
Clock (HH:MM) See "Adjusting the clock" to learn how to set the clock.
12Hr Clock displays 12 hour time using
AM and PM
Clock Mode Clock displays 24 hour time up to 23:59
24Hr
On
Antenna
Off
Version Version display
Video
Accessing the Video Setup Menu
·Select the video Icon on the screen to access the video setup.
Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select a feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing the SMART DIAL. A submenu appears in a second row with the selected
option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button on the remote control or pressing the SMART
DIAL on the front panel. The new setup is complete.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds after the last operation.
13

______________________________ MU L TIM E D IA -
TV Shape
Video format
16:9
4:3
Auto
NTSC
PAL
The video
output is switched automatically based on
the
current disc.
The video output is
in the standard NTSC format
The video output is in the standard PAL format
ASP(Audio Signal Processing) Configuration Menu
The ASP Configuration menu allows you to make fine audio adjustment.
Accessing the ASP Configuration Menu
·Press the MENU on the front panel or press the (MENU) button on the remote control to access
MAIN menu.
·Select the SETUP icon on the bottom of the screen to access the ASP setup.
Selecting aFeature for Adjustment
Press the direction buttons on the remote control
or touch the option directly on the screen to
select afeature to be adjusted.
Adjusting aFeature
1. Enter the option field for the feature you want to
adjust by pressing the (OK) button on the
remote
or by pressing the SMART DIAL. Asubmenu appears in asecond row with the selected
option.
2. Select anew value by pressing the
direction button.
3. Confirm
your selection by pressing (OK) button on the remote control or pressing the SMART
DIAL on the
front panel. The new setup is complete.
Return to normal playback
The system will
automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds
after the last operation.
14

- MULTIMEDIA
Depending on the audio source, select the Bass
1---------1
Center Frequency to achieve the best Bass effect.
Depending on the audio source, select the Treble
1---------1 Center Frequency to achieve the best Treble effect.
Language Menu
Accessing the ASP Configuration Menu
'Press the MENU on the front panel or press the (MENU) button on the remote control to access
MAIN menu.
'Select the SETUP icon on the bottom of the screen to access the ASP setup
Selecting aFeature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select a feature to be adjusted.
15

_______________________________ M U L rl MED IA -
Adjusting aFeature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing the SMART DIAL. Asubmenu appears in asecond row with the selected
option.
2. Select anew value by pressing the direction button.
3. Confirm your selection by pressing (OK) button on the remote control or pressing the SMART
DIAL on the front panel. The new setup is complete.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds after the last operation.
Language
OSD language
Subtitle
Audio
English
English
Spanish
Chinese
Auto
English
16

- MULTIMEDIA
TUNER(FMIAM} OPERATION
Tuner TFT Display
TUNER
09:30 AM
I4i4
..
(lt
l)
..
...
ST
FM-1 101.6 MHz
EQ
P·C1
875 MHz
A
r};\ P-C2
888 MHz
P-03 97 1 MHz
':]
t/r .
DISP
'07
AS PS SCAN
ld
OX LOC
-
1.1m: Touch to change among the following bands: FM-1, FM-2, FM-3 and AM.
2.11:1: Touch to seek down.
3.1:11 :Touch to seek up.
4. a: Touch to tune down once astep.
5.1:1 :Touch to tune up once astep.
6. m: Touch to activate/deactivate Scan Mode
7. m: Auto store
8. m :Program scan
9.11!!I!I1 :Touch to display the numeric keypad on the screen
Switch to Radio Tuner source
Press SRC on remote control or FM/AM icon on TFT to switch to the Tuner source.
Select FM/AM Band
Touch the W button on the screen, or press the BAND button ( B~~D )on the remote control to
change among the following bands: FM-1, FM-2, FM-3 and AM.
Auto Tuning
Press the button ( ~ )on remote control or touch the 1:11 button on the screen to seek the
next available channel by increasing the tuning frequency. Press the button again to stop
searching.
Press the button ( ~ )on the remote control or touch the l1:li button on the screen to seek
the next available channel by decreasing the tuning frequency. Press the button again to stop
searching.
Manual Tuning
Press the .. button on the remote control or touch the 1:1 button to increase the tuning
frequency one step at atime.
Press the ... button on the remote control or touch the_ a button to decrease the tuning
frequency one step at atime.
17
