Hardy Ultralite DD Series User manual

is reel has been made by craftsmen using the best
materials available to ensure its reliability. Its high
quality components are precision machined with the
absolute minimum susceptibility to wear or the need
for future readjustment.
Given care and periodic cleaning,
your reel will be a faithful servant and
give you years of superb performance.
www.hardyshing.com
Ultralite DD
Reel Series

Care and maintenance
The same method of cleaning is valid for all reels in the
freshwater Ultralite DD Reel range.
1. Remove line and backing.
2. Remove the spool.
3. Flush away dirt by placing the spool and frame
under a stream of fresh water.
4. Dry carefully with a lint free cloth.
5. Lubricate with a good quality oil at the points
illustrated on the diagrams.
6. Always ensure the spindle is adequately greased.
7. Always turn the disc-drag to the minimum setting to
avoid compression of the system.
8. Always ensure the reel and line are dry before
storing in the case or pouch.
Change your reel from left to right hand wind
All Ultralite DD Reels are designed to work in right or left hand
wind. When you receive your reel, it will be set for left hand wind.
To convert your reel to right hand wind:
1. Remove the spool out of the frame by turning the captive
spool securing nut anti-clockwise until it disengages from the
spindle thread. Note: the nut will stay attached to the spool.
2. Pick up the spool so that the clutch securing nut is visible.
3. Usingyourthumb&forenger,removetheclutchsecuring
nut by turning anti clockwise. Use the ears as a lever.
4. The one way clutch holder is now visible, remove this from
the drum by rotating the drum 180 degrees. Place your palm
underneath the clutch as you tilt the spool in order to catch
the clutch.
5. Turn the clutch holder through 180 degrees and replace it back
in the spool housing. The end of the clutch unit with the stainless
steel showing should now be upright and visible.
6. Usingyourthumb&forenger,replacetheclutchsecuring
nut by turning clockwise.
7. Replace the spool into the frame – your reel should now be
right hand wind.

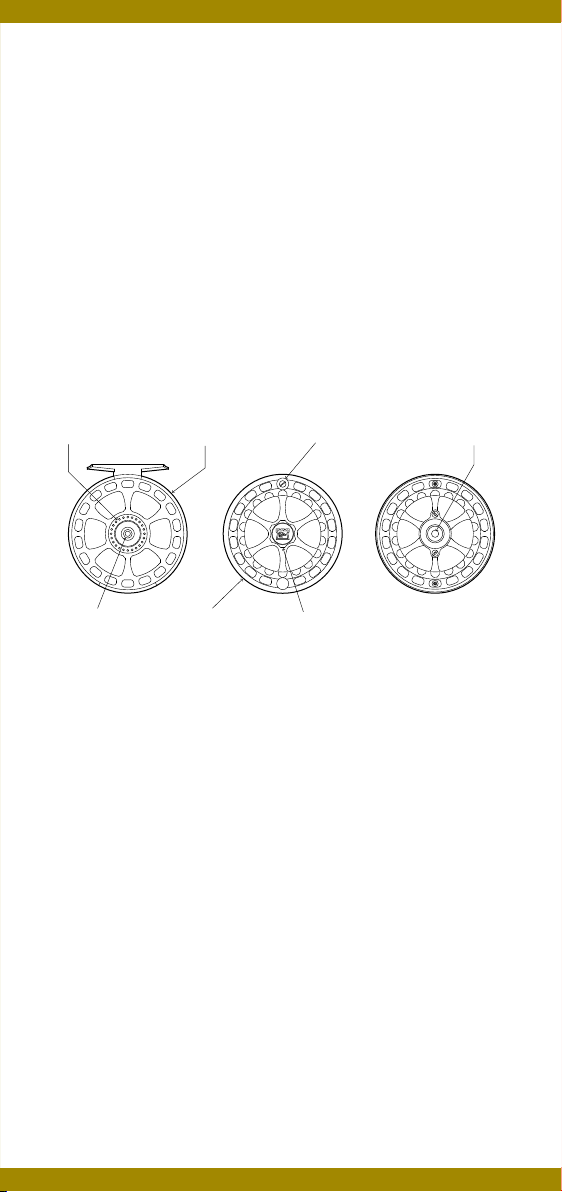

Grease spindle
Oil handle post Grease hole
Spool Captive Spool Securing nut
Oil clicker indents Frame

Ultralite Disc-Drag
The disc-drag mechanism can be adjusted by simply turning the
regulator button on the face of the frame — clockwise to increase the
drag, anti-clockwise to decrease the drag. When the reel is not in use,
the drag should be turned to the minimum setting.
Hardy Reel Warranty
All Hardy Ultralite Reels carry a limited 5 year warranty on the terms set
out below.
• We warrant that the Product will be free from material defects in
design, material and workmanship for a period of 5 years from the
date on which it was originally purchased.
• This warranty is in addition to your statutory rights in relation to
products which are faulty or mis-described.
• It is important that you register your Reel within 60 days of
purchaseonourwebsitewww.hardyshing.com.Youwillreceive
anemailconrmingyourregistration.Customersarerequestedto
retain a proof of purchase in order to aid with the claims process.
• For full details on this warranty, the claims process and any
exclusions,pleasevisitwww.hardyshing.comorcontactyour
nearest customer services centre.
We may be able to offer a repair service if your product falls outside the
warrantyperiod.PleasecontactyournearestCustomerServicesCentre
for further details.
White inner sleeve visible Stainless Steel sleeve visible
Clutch in LH wind Clutch in RH windClutch securing nut
Rear of spool
Ear
