HARISON INDUSTRIAL DEHUMIDIFIER - USER'S MANUAL - Model HD-Series
CONTENTS
1. General
1.1. Introduction
1.2. Warranty
1.3. Responsibility for safety
2. Product description
2.1. Outer component identification
2.2. Working principle
a. Working principle, b. Dehumidifying cycle,
c. Defrosting cycle, d. Safety & function
2.3. Technical parameters

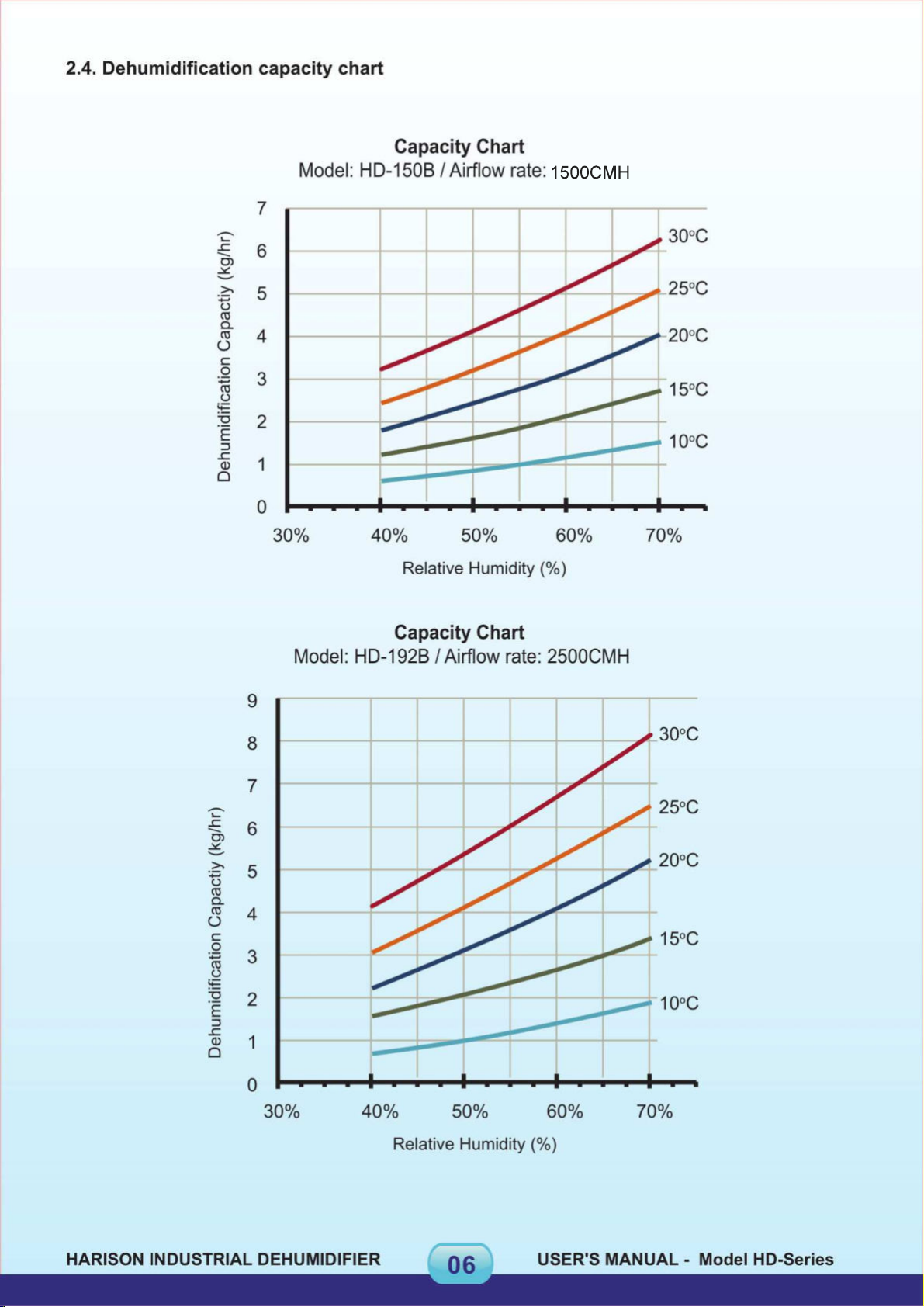

2.4. Dehumidification capacity chart
3. Installation
3.1. Delivery and storage
3.2. Installation environment
3.3. Power sources
3.4. Installation
4. Operation
5. Maintenance
6. Troubles and Countermeasures
Appendix
Dimension Drawing
Parts Drawing and List
1
1
2
2
4
4
5
5
6
7
7
8
8
8
9
10

01
HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
1. GENERAL
1.1. Introduction
Harison dehumidifiers provide an effective and efficient solution to humidity control. Harison
HD-series dehumidifier are designed for large airflow as 900, 2,500 and 4,500m3/h.
Model HD-series computer-control dehumidifier, meticulously designed by our company, is the
most advanced one in the range. They are used to remove water content from the air and
decrease the humidity automatically. They have elegant appearance, compact structure and
complete functions. They are widely used in scientific research, industry, communication, medical
health centers, commodity storage, underground engineering and reference room, archive
establishment, warehouses, etc. For preventing instruments, meters, communication equipment,
commodity, reference materials from getting damp, rusty, mildew, rot and causing damage.
The equipment has a computer-control, it is sensitive to the relative humidity, can controls the
humidity accurately. User can select as the requirement to the relative humidity by which the
power consumption is minimised. Besides, it can defrost automatically thus can be used normally
in low temperature environment, and can be operated easily.
Suitable environment-temperature : 5oC a 42oC, relative humidity ≤90%
1.2 Warranty
The warranty period is 12 months from the date of equipment commissioning.
The warranty is limited to free replacement and shipping of any faulty part, or subassembly which
has failed due to poor quality or manufacturing errors. All claims must be supported by evidence
that the failure has occurred within the warranty period, and that unit has been operated within the
designed parameters specified.
All warranty claims must specify the unit/type number and the serial number. These details are
printed on the unit identification plate.
Thanks for your purchasing our dehumidifier
* Please read the manual carefully before using and keep it in a suitable storage for
reference.
* Please entrust professionals to install the unit in order to guarantee the correctness
anh safety for operation
* The unit must be earthed reliably




d. Safety devices and function
In order to protect the unit from serious damage during operation the unit is equipped with safety
features such as: low pressure cut-off, compressor overload protection, defrost cycle, main
short-circuit fuse.
e. Technical parameters
Model
Unit
HD150B
HD192B
HD504B
Dehumidification
Kg/h
6.25
8
21
Capacity
Rated Airflow
CMH
1,500
2,500
4,500
Power source
V
1Ph/220V/50Hz
3Ph/380V/50Hz
Nominal rated power
kW
1.6
4.12
8.5
Rated current
A
7.5
7.6
15.4
Noise level
dB( A )
57
59
65
Overall dimensions
mm
600 x 365 x 973
777 x 480 x 1632
1232 x 460 x 1732
(W x D x H)
Weight
Kg
60
150
235
Note :
Nominal working condition : 30.0oC, 70%
Notice :
Please use this unit under the specified environment and temperature condition strictly.
The unit’s longevity will be shorten if exceeding the working condition for a long time.
HARISON INDUSTRIAL DEHUMIDIFIER 05 USER'S MANUAL - Model HD-Series


HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
07
3. INSTALLATION
3.1. Delivery and storage
To ensure consistent quality and maximum reliability, each dehumidifier is inspected before
leaving the factory. If the dehumidifier is put into storage, it will be prioritized to install, the
following precautions should be observed:
□The dehumidifier must be protected from physical damage
□The dehumidifier must be stored under cover and protected from dust, frost and rain.
Inspect the packing and shipment process to ensure that no damage has occurred during trans-
portation and storage. Any visible damage must be reported to nearest Harison representative.
3.2 Installation Environment
(1) The unit should be installed stably. There should be one meter of space in front of the inflow
and outflow. There should be no large obstacle around it.
(2) The machine should be set far from heat source and inflammable gas.
(3) The condensed water could be drained out of the room or into a pail.
( 4 ) It is advisable not to install in a place of heavy dust or serious pollution.
Capacity Chart
Model: HD-504B / Airflow rate: 4500CMH
22.5
20
17.5
15
12.5
10
7.5
5
2.5
0
Dehumidification Capactiy (kg/hr)
Relative Humidity (%)
30% 40% 50% 60% 70%
30oC
25oC
20oC
15oC
10oC

Instruction of keys
1.ON/OFF: Press ON/OFF, the unit runs in a circulation "ON-OFF-ON”.
2.Humidity up and down: Press "humidity up and down" for once, the set humidity increase or
decrease for 1%. Press the key for 1.5 seconds and the setting value increase or decrease by
1% continuously with the speed 5 points per second.
3.Memory Key: Press the memory key and the memory indicator light on to start the function of
memory when power cuts off. Press the memory key again; the memory indicator dies to shut
off the function of memory when power cut off.
Start on
1. Plug on, the unit gives off "di".
2. Press ON/OFF", the running indicator lights on, and the humidity display window lights on to
display the previous set humidity. The initial humidity setting is 60% and 3 seconds later the
humidity display window light on to display current humidity.
Indicator: Opertion
RH display Memory Sctting (Humidity Up) Sct (Humidity Down)
Defrost Memory Main ON/OFF button
HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
08
3.3. Power source
(1) The power should be supplied with special wire.
( 2 ) Provide automatic air-break switch.
(3) There should be reliable electrical grounding.
3.4. Installation
(1) Professional personnel should perform maintenance this unit.
( 2 ) Parking inclination of the unit should not exceed 10o.
4. OPERATION

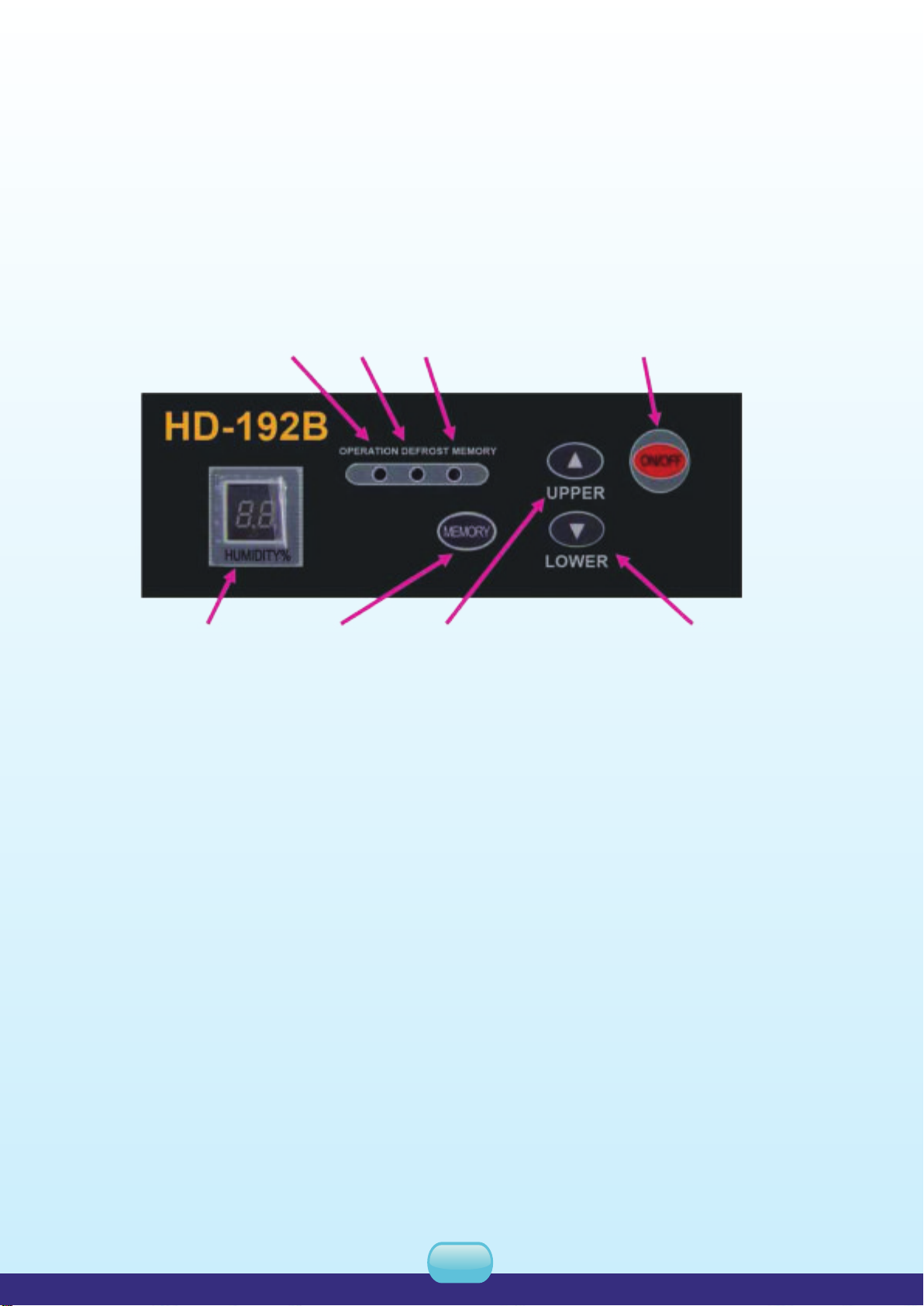

Control panel (same for three models)

HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
09
3. Press humidity up or down key to adjust the humidity needed. If the setting humidity is 3% less
than current humidity, the unit runs; if the set humidity is 3% more than current humidity, the
unit stops running.
4. When humidity setting is less than 30%, the unit dehumidify continuously, and the humidity
display window displays“CO”.
Shut off Press "ON/OFF'when the unit is running, the unit stops running and all indicators die.
Notice:
1. When humidity setting is higher than current humidity, the unit will not run.
2. When dehumidifying, the fan motor and compressor must run at least 3 minutes, once the
compressor start on. Forbid restarting the compressor again within 3 minutes after shutting off.
3. When working in low temperature, the unit judges the temperature system automatically to
defrost. When defrosting, the defrosting indicator lights on, the fan motor runs but compressor
shuts off automatically.
4. When pressing the memory key, the controller will record current humidity even if power off.
And the unit will run under previous mode after power supplied again. 5. The humidity display
window displays the humidity from 30% to 90%.
6. Keep unplug if do not use the unit for long time.
7. Power supplies for HD-192B; HD504B have phase and phase protecting function, when out of
connecting 3-phases are not connected rightly with machine's enactment, all the buttons on
control panel are dead, moisture window shows "E5", please exchange the phase or check
power, then operate the unit again.
8.When switch on three phases power source,zero line first,live line second or zero and live
line together.
5. MAINTENANCE
Switch off the power source before maintenance. Pull out the plug from the socket.
Due to the accumulation of dust, the air filter should be cleaned to avoid effecting dehu-
midifying and going wrong periodically, at least once a month. If the dust is more in the
environment, it should be cleaned every week, even every day.
Clean the air filter
When cleaning, gently tap the air filter or remove the dust with a vacuum cleaner, or you can put
the air filter in warm water ( < 40°C, add a little neutral detergent ) to wash or brush it, then clear
again with fresh water.
Attention
a. The air filter should not be exposed directly under the sunshine, to avoid deforming.
b. The air filter should be fixed before starting the dehumidifier.
Warning:
The unit’s longevity will be prolonged if gets checking and maintenance periodically. Please send
professional to fix.
