Harison HD Series User manual

HARISON INDUSTRIAL DEHUMIDIFIER - USER'S MANUAL - Model HD-Series
CONTENTS
1. General
1.1. Introduction
1.2. Warranty
1.3. Responsibility for safety
1
1
2
2. Product description

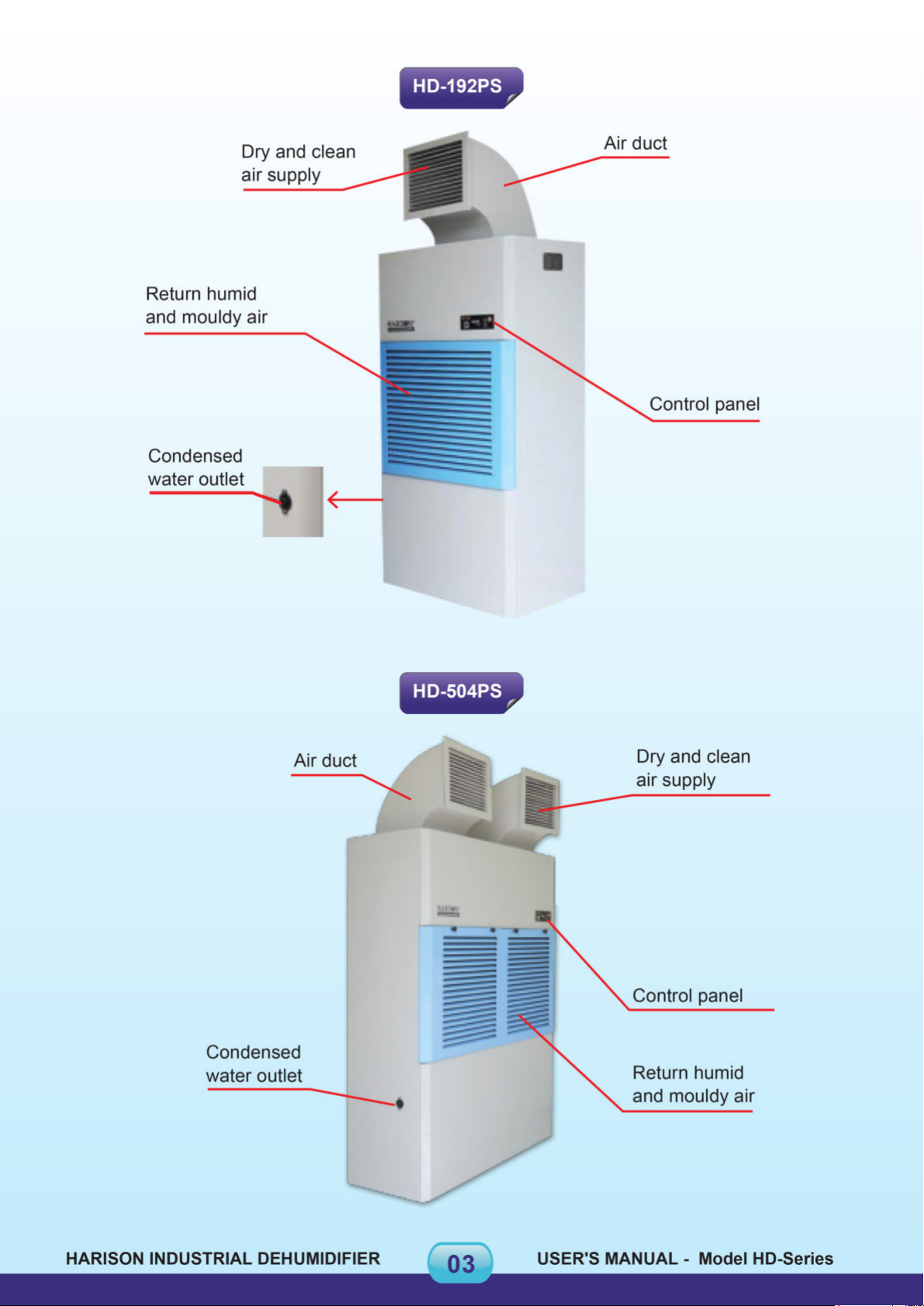

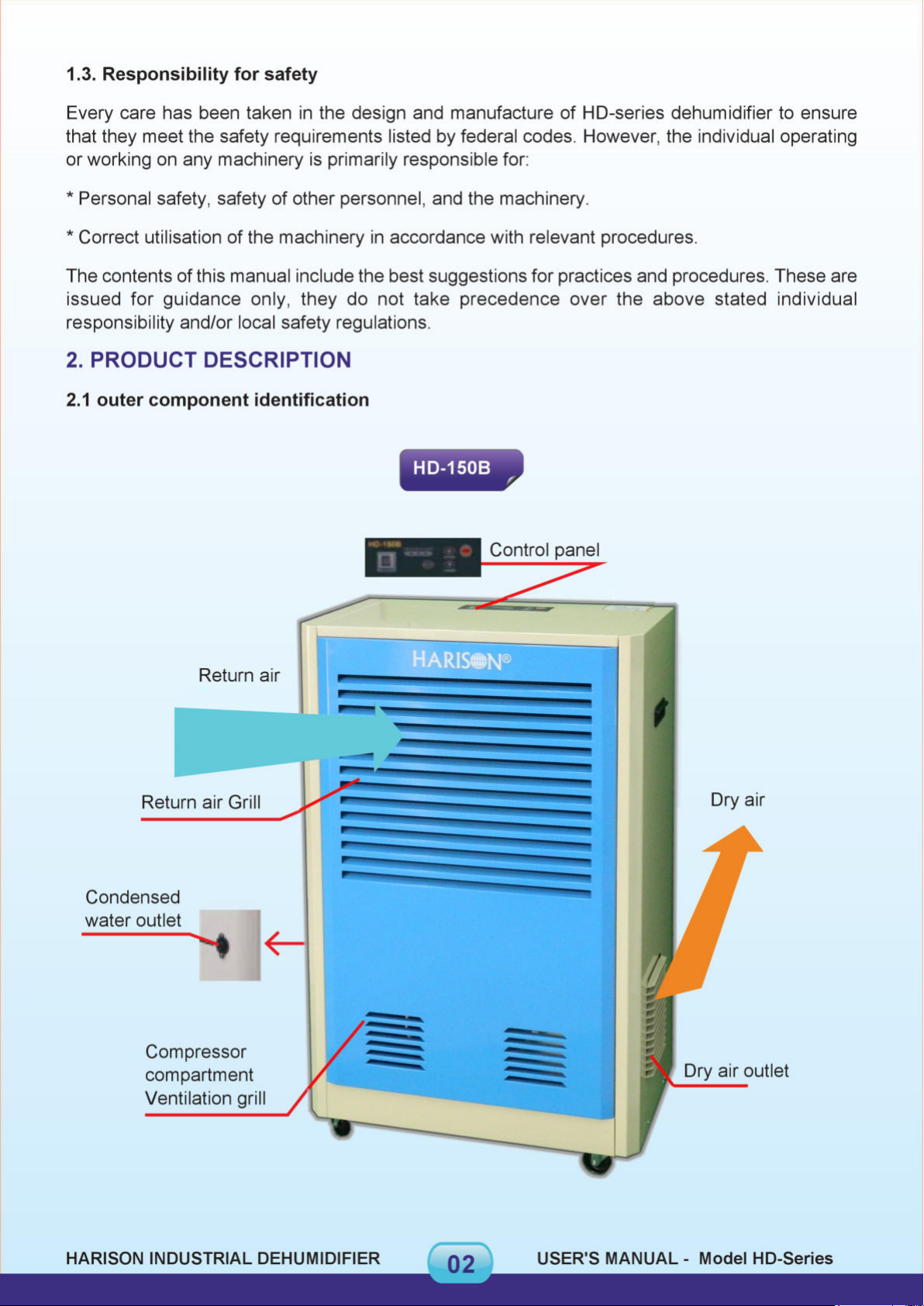

2.1. Outer component identification
2.2. Inner component identification and working principle
a. Main working principle, b. Dehumidifying cycle, c. Defrosting cycle
d. Safety & function, e. Technical parameters, f. Capacity chart
2
4
4
5-6
3. Installation
3.1. Delivery and storage
3.2. Installation environment
3.3. Power sources
3.4. Installation
7
7
7
7
4. Operation 7
5. Maintenance 8
6. Troubles and Countermeasures 9

01
HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
1. GENERAL
1.1. Introduction
Harison PS dehumidifiers provide an effective and efficient solution to humidity control, air steril-
ization and designed to work at higher ambient temperature to meet with non-airconditioned stor-
age requirement in hot and humid tropical climate. Harison HD-PS series dehumidifier are
designed for large airflow as 900, 2,500 and 4,500m3/h and high pressure fan to ensure better air
circulation.
Model HD-PS series dehumidifier, meticulously designed by our company, is the most advanced
one in the range. They are used to remove water content from the air and decrease the humidity
automatically. They have elegant appearance, compact structure and complete functions. They
are widely used in scientific research, industry, communication, medical health centers, commodi-
ty storage, underground engineering and reference room, archive establishment, warehouses,
etc. For preventing instruments, meters, communication equipment, commodity, reference mate-
rials from getting damp, rusty, mildew, rot and causing damage.
The equipment has a computer-control, it is sensitive to the relative humidity, can controls the
humidity accurately. User can select as the requirement to the relative humidity by which the
power consumption is minimised. Besides, it can defrost automatically thus can be used normally
in low temperature environment, and can be operated easily.
Suitable environment-temperature : 5oC a 42oC, relative humidity ≤90%
1.2 Warranty
The warranty period is 12 months from the date of equipment commissioning.
The warranty is limited to free replacement and shipping of any faulty part, or subassembly which
has failed due to poor quality or manufacturing errors. All claims must be supported by evidence
that the failure has occurred within the warranty period, and that unit has been operated within the
designed parameters specified.
All warranty claims must specify the unit/type number and the serial number. These details are
printed on the unit identification plate.
Thanks for your purchasing our dehumidifier
* Please read the manual carefully before using and keep it in a suitable storage for
reference.
* Please entrust professionals to install the unit in order to guarantee the corretness
and safely for operation
* The unit must be earthed reliably

HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
04
2.2. Inner component identification and working principle
Other main working components are: high efficient compressor, accumulator, magnetic flow
control valve, evaporator coil, condenser coil, capillary tube, centrifugal fan, temperature sensor,
humidity sensor and electrical wiring.
a. Main working principle
When dehumidifier is switched on, the compressor starts to work. The compressor draws in
low-pressure and low-temperature refrigerant stream from evaporator, and compresses it into
high-temperature and high-pressure gas. The gas enters into condenser and is condensed into
liquid, giving out heat. Then through capillary, the liquid is throttled into the evaporator, absorbs
heat from the air and is evaporated into gas. The gas is drawn into the compressor through air
intake pipe. Just in this way the refrigeration cycle is completed. Such a cycle repeats many times,
and refrigeration is achieved.
b. Dehumidifying cycle
The centrifugal fan makes wet air entering into the evaporator through air filter, then the air is
cooled down. When the surface temperature of the evaporator is lower than the dew-point
temperature of the air, the water content in the air is condensed and drained from the machine.
Then the dehumidified air is heated by the condenser and discharged into the room by the
centrifugal fan. Thus, the air goes through the cycle and the water in the air gets condensed so
as to achieve dehumidification.
c. Defrosting cycle
When the environment temperature is lower ( 5oC - 18oC ) during running, the surface of the
evaporator will be frosted. The computer will judge and send the defrosting command automatically
as the situation. After defrosting, the dehumidifier will turn back to run normally. In the way of "
dehumidifying-defrosting-dehumidifying ", the machine can work normally in lower temperature
environment.
condenser evaporator
filter filter
capillary
air strainer
valve
compressor
accumulator
the flowing direction of refrigerant in defrosting cycle
the flowing direction of refrigerant in dehumidifying cycle
the flowing direction of air

d. Safety devices and function
In order to protect the unit from serious damage during operation the unit is equipped with safety
features such as: low pressure cut-off, compressor overload protection, defrost cycle, main
short-circuit fuse.
e. Technical parameters
Model
Unit
HD150B
HD192PS
HD504PS
Dehumidification
Kg/h
6.25
8
21
Capacity
Rated Airflow
CMH
1,500
2,500
4,500
Power source
V
1Ph/220V/50Hz
3Ph/380V/50Hz
Nominal rated power
kW
1.6
4.53
9.35
Rated current
A
7.5
8.4
16.9
Noise level
dB( A )
57
59
70
Overall dimensions
mm
600 x 365 x 973
777 x 480 x 1632
1232 x 460 x 1732
(W x D x H)
Weight
Kg
60
160
252
Note :
Nominal working condition : 27.0oC, 70%
Notice :
Please use this unit under the specified environment and temperature condition strictly.
The unit’s longevity will be shorten if exceeding the working condition for a long time.
HARISON INDUSTRIAL DEHUMIDIFIER 05 USER'S MANUAL - Model HD-Series

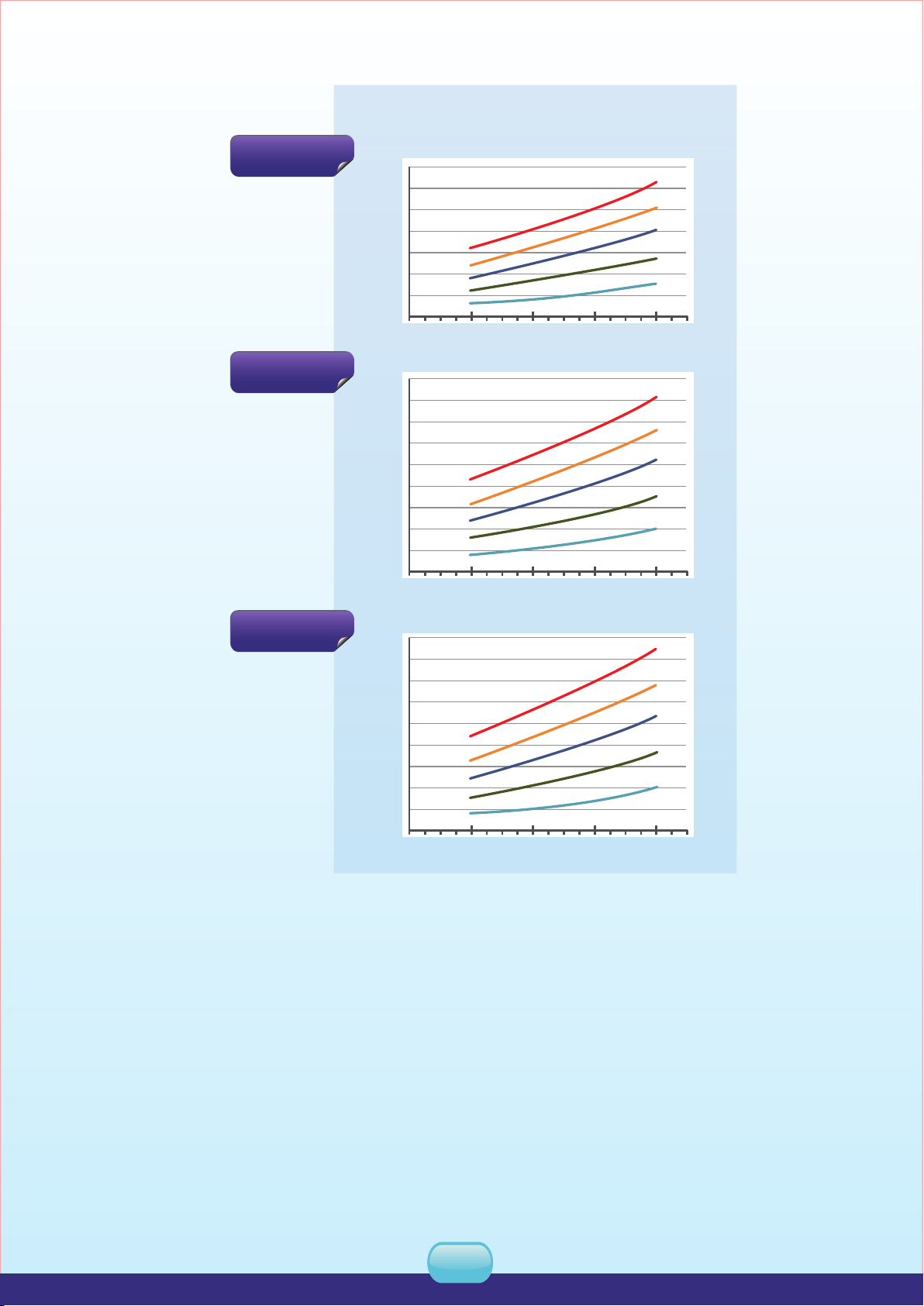

f. Dehumidifying capacity chart
HD-150B
HD-192PS
HD-504PS
HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
06
3. INSTALLATION
3.1. Delivery and storage
To ensure consistent quality and maximum reliability, each dehumidifier is inspected before
leaving the factory. If the dehumidifier is to be put into storage, it will be prioritized to install, the
following precautions should be observed:
□The dehumidifier must be protected from physical damage
□The dehumidifier must be stored under cover and protected from dust, frost and rain.
Inspection
Inspect the packing and shipment process to ensure that no damage has occurredduring transpor-
tation and storage. Any visible damage must be reported to nearest Harison representative.
30%
0
1
2
3
4
5
6
7
40% 50% 60% 70%
10
o
C
15
o
C
20
o
C
25
o
C
30
o
C
(kg/h)
30%
0
1
2
3
4
5
6
7
8
9
40% 50% 60% 70%
10
o
C
15
o
C
20
o
C
25
o
C
30
o
C
(kg/h)
30%
0
2.5
5
7.5
10
12.5
15
17.5
20
22.5
40% 50% 60% 70%
10
o
C
15
o
C
20
o
C
25
o
C
30
o
C
(kg/h)
Dehumidification Capacity Chart

HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
07
3.2 Installation Environment
(1 ) The unit should be installed stably. There should be one meter of space in front of the inflow
and outflow. There should be no large obstacle around it.
( 2 ) The machine should be set far from heat source and inflammable gas.
( 3 ) The condensed water could be drained out of the room or into a pail.
( 4 ) It is advisable not to install in a place of heavy dust or serious pollution.
3.3. Power source
( 1 ) The power should be supplied with a special wire.
( 2 ) Provide automatic air-break switch.
( 3 ) There should be reliable electrical grounding.
3.4. Installation
( 1 ) Professional personnel should perform maintenance this unit.
( 2 ) Parking inclination of the unit should not exceed 10o.
4. OPERATION
Instruction of keys
1.ON/OFF: Press ON/OFF, the unit runs in a circulation “ON-OFF-ON”.
2.Humidity up and down: Press “humidity up and down” for once, the set humidity increase or
decrease for 1%. Press the key for 1.5 seconds and the setting value increase or decrease by 1%
continuously with the speed 5 points per second.
3.Memory Key: Press the memory key and the memory indicator light on to start the function of
memory when power cuts off. Press the memory key again; the memory indicator dies to shut off
the function of memory when power cut off.
Control panel (same for HD-150B & HD-504PS)
Indicator: Opertion
RH display Memory Sctting (Humidity Up) Sct (Humidity Down)
Defrost Memory Main ON/OFF button

HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
08
Start on
1. Plug on, the unit gives off “di”.
2. Press“ON/OFF”, the running indicator lights on, and the humidity display window lightson to
display the previous set humidity. The initial humidity setting is 60% and 3 seconds later the
humidity display window light on to display current humidity.
3. Press humidity up or down key to adjust the humidity needed. If the humidity setting is 3% less
than current humidity, the unit runs; if the humidity setting is 3% more than current humidity, the
unit stops running.
4. When humidity setting is less than 30%, the unit dehumidify continuously, and the humidity
display window displays“CO”.
Shut off
Press “ON/OFF”when the unit is running, the unit stops running and all indicators die.
Notice:
1. When set RH is higher than current room humidity, the unit will not run.
2. When dehumidifying, the fan motor and compressor must run at least 3 minutes, once the
compressor start on. Do not restart the compressor again within 3 minutes after shutting off.
3. When working in low temperature, the unit judges the temperature system automatically to
defrost. When defrosting, the defrosting indicator lights on, the fan motor runs but compressor
shuts off automatically.
4. When pressing the memory key, the controller will record current humidity even if power off.
And the unit will run under previous mode after power supplied again.
5. The humidity display window displays the humidity from 30% to 90%.
6. Keep unplug if do not use the unit for long time.
7. Power supplies for HD-192B; HD504B have phase and phase protecting function, when out off
connecting 3-phases are not connected rightly with machine's enactment, all the buttons on
control panel are dead, moisture window shows “E5”, please exchange the phase or check
power,then operate the unit again.
9.When switch on three phases power source,zero line first,live line second or zero and live lines
together.
5. MAINTENANCE
Switch off the power source before maintenance. Pull out the plug from the socket.
Due to the accumulation of dust, the air filter should be cleaned to avoid effecting dehu-
midifying and going wrong periodically, at least once a month. If the dust is more in the
environment, it should be cleaned every week, even every day.
Clean the air filter
When cleaning, gently tap the air filter or remove the dust with a vacuum cleaner, or you can put
the air filter in warm water ( d 40oC, add a little neutral detergent ) to wash or brush it, and then
clear again with fresh water.

HARISON INDUSTRIAL DEHUMIDIFIER USER'S MANUAL - Model HD-Series
09
Attention
a. The air filter should not be exposed directly under the sunshine, to avoid deforming.
b. The air filter should be fixed before starting the dehumidifier.
Warning :
The unit’s longevity will be prolonged if gets checking and maintenance periodically. Please send
professional to fix.
6. TROUBLES AND COUNTERMEASURES
Attention
If the troubles have not been removed yet, please contact the dealer.
When the dehumidifier is starting or stopping, it appears the sound of refrigerant but it not
mean trouble.
It is normal that hot wind is discharged the air outlet.
Notice
Please switch off the power source after stopping.
Must be grounded reliably when installing.
Please keep this manual in a suitable storage for reference.
PLEASE CONTACT YOUR NEAREST HARISON SUPPLIER FOR ANY
TECHNICAL ASSISTANCE !
Phenomenon analysis of causes Countermeasures
Machine does not run. Power failure
Power source is not switched
on not well plugged
Fuse is broken
Switch on the power source
plug in
Replace the fuse after
removing troubles
Machine can not dehumidify Air filter dusted
Air inlet and outlet obstructed
door or window is open
Refrigerant leakage
Clean the air filter
Remove the obstacle
Close the door and the
window, shade the sun with
curtains, etc.
Contact dealer and repair it
or the effect is bad.
Water leakage Machine inclined backward
Drain pipe is blocked
The temperature sensor is
open circuit or short circuit
Replace the temperature
sensor
Level the unit
Remove the front panel and
wipe off dirt from the pipe
"POWER/PROTECTION"
light flashes.
Machine can not defrostThe temperature sensor is
loosening.
The valve is damaged.
Fix the temperature sensor
well
Replace the valve

Assembled in Thailand (ไทย!)
