Razorback MaxxAir ZE AAM User manual

Razorback MaxxAir ZE AAM
Installation and Operations Manual
READ AND SAVE THESE INSTRUCTIONS
Razorback Cleaning & Restoration Equipment
194D Zillmere Road, Boondall, QLD 4034
Tel:[phone]
E-mail:[e-mail]

1
The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instruction.
Children being supervised not to play with
the appliance.Cleaning and user
maintenance shall not be made by children
without supervision.
Ensure that the fan is switched off from the
supply mainsbefore removing the guard.
If the supply cord is damaged, it must be replaced by
themanufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

2
Safety Notes
WARNING:
•Do not adjust or alter the unit in any way. Only use the parts approved by Razorback
Cleaning & Restoration Equipment. Any adjustments or use of unauthorized parts will void
your warranty. For further assistance, contact your dealer or distributor.
•Do not let children play with unit. Always keep the unit out of reach of children.
•Do not restrict airflow to unit
•Do not use unit with extension cords.
•Do not use an external speed control device.
•Do not drop or throw the unit This could damage the inner parts and wiring.
•Do not use the unit in standing water.
•Do not use the unit outside as the internal components may get damp.
•Do not use air mover with a malfunctioning outlet or plug.
•Do not run power cord under carpet, runners, or other coverings.
While Operating the Razorback MaxxAir ZE AAM:
•Always use a grounding plug and grounded electric outlet to reduce risk of fire and shock.
•Always use caution when stacking units to prevent them from falling. Avoid stacking units
in crowded areas.
•Always secure units during transportation to prevent them from moving.
•Always maintain a reasonable distance between the air inlet and carpets or other materials.
Failure to do so may clog the inlet or cause overheating.
•Always keep the motor free of dirt, dust, and other particles that could cause the motor to
overheat. Clean the motor with a vacuum if it gets dirty.
•Always unplug the machine before performing any maintenance.
•Always contact an authorized technician for help repairing your machine.
•Always use the unit on a level, steady surface.
Specifications
Drive Motor 1/4 hp 1-phase 220/240 VAC 2-speed 4-pole, PSC Electric Motor
Voltage 220 VAC
Current 2.1 Amps (High Speed)
Power Cord 7m
Air Flow Approx. 3000 CFM
Sound Level <70dBa
Weight 15 kg
Dimensions (WxHxD) 520*510*410mm

3
Getting Started
The Razorback MaxxAir ZE AAM air mover blows high velocity air over wet surfaces to
shorten the drying time. In addition to accelerating evaporation, the Razorback MaxxAir ZE
AAM also helps prevent mold and mildew. To use the air mover, simply direct the air outlet to
the targeted area.
Identification
Congratulations on purchasing a Razorback MaxxAir ZE AAM air mover. In order to take
advantage of the warranty plan, be sure to note the serial number and date of purchase.
Serial Number:
Date of Purchase:
Electrical Connection
•Only connect the machine to 220V/50Hz outlet.
•Ensure the electrical outlet is grounded.
Linking Multiple Machines
NOTE: GFCI is not available for 220V.
Each Razorback MaxxAir ZE AAM air mover draws 2.1 amps and is equipped
with a 12 amp circuit board. This means that you can link up to 4 units to run on
the same circuit. When daisy chaining the units, always turn on one unit at a time
rather than starting all units simultaneously, which could cause the circuit to short.

4
Humidity Control
While using an air mover to dry the air, you may find out that the humidity is rising. To avoid
this, it is useful to pair the air mover with a dehumidifier. A dehumidifier can effectively control
the humidity level, while also reducing the drying time. For mold control, the ideal humidity
level is below 60% RH.
Temperature & Air Circulation
To cool down a warm room, place the Razorback MaxxAir ZE AAM at the doors or in a cooler
spot with air directed at the hot area. If set up properly, the high velocity air from the machine
can cool a room down quite effectively.
Set Up
The Razorback MaxxAir ZE AAM can be operated in multiple positions, depending on what
direction you need to target the airflow.
Tilt Back 一This position will create laminar airflow to the floor.
< Tilt Forward 一This position will direct air upwards.
< Face Down - This position will send air directly to the floor.

5

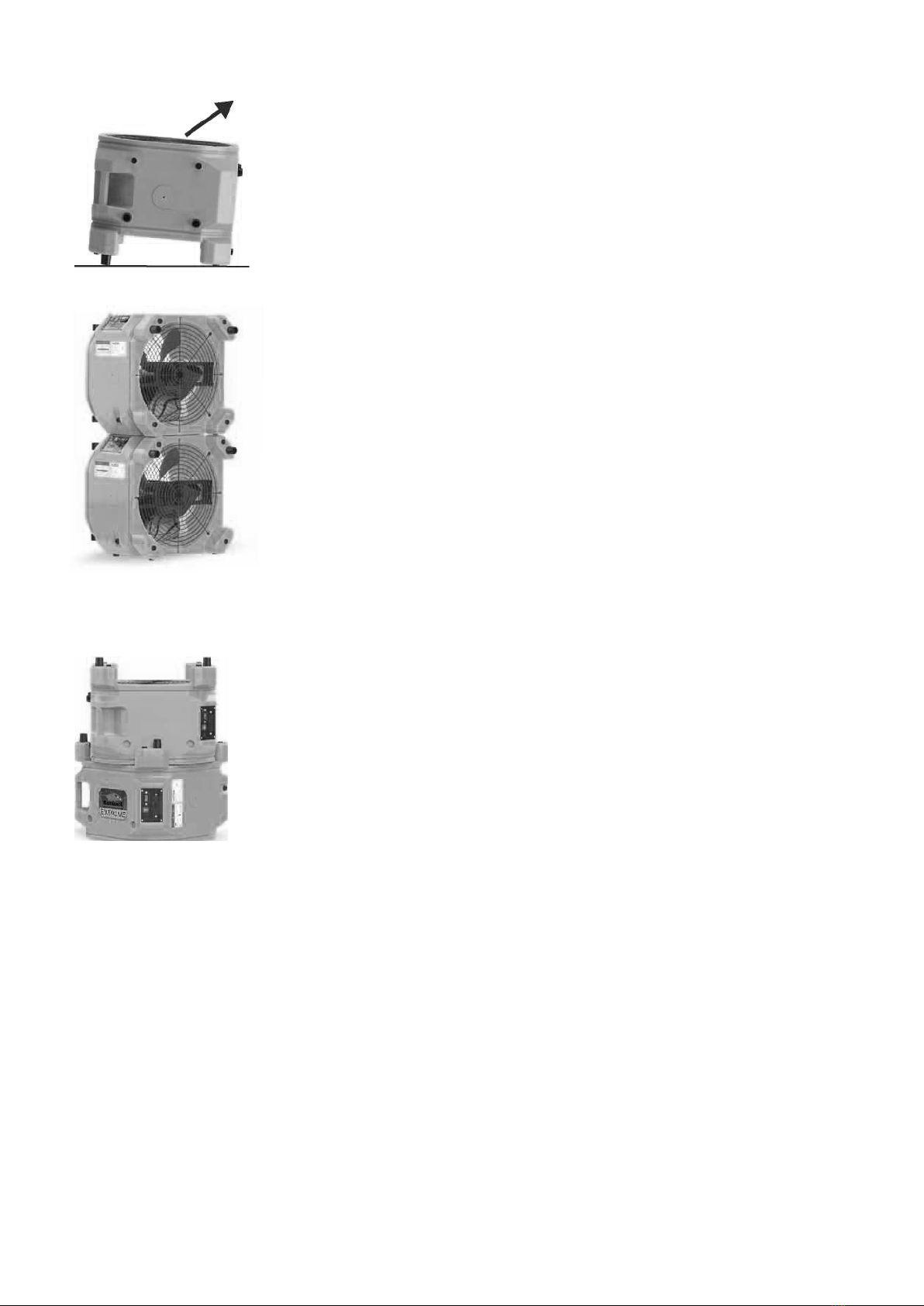

< Face Up - This position will direct air straight to the ceiling.
< Stacked for Operation 一This gives you the opportunity to run two
units simultaneously.
NOTE: Always ensure units are stable and on a level surface when stacking them.
< Stacked for Storage 一The units can also be stacked sideways for storage if
space is limited.
NOTE: Units can not be operated in this position.
Operating Instructions
1.Connect the air mover to a standard 220V/50Hz outlet
2.Place the unit in the desired position.
3.Use the switch on the control panel to select your speed (high or low).
4.Refrain from moving the unit during operation.

6
Maintenance
NOTE：All maintenance procedures should be performed with the unit unplugged.
Check Electrical Components
Remove the housing and check for issues such as power cord damage, bare wires, insecure
fasteners, and discoloration.
NOTE: Repair any damaged wiring as soon as possible to avoid a fire hazard or risk of
electrical shock.
Check External Components
Evaluate the the exterior of the machine and ensure all parts are in place. Repair or replace any
parts as needed.
Clean the Grills
Wipe off any dust or particulate accumulation on the grill. If there is an accumulation of dust on
the grill, it will restrict the air flow, which may cause the electric motor to overheat.
Clean the Exterior
Clean the outside with a gentle cleanser and water.
Warranty
All warranty benefits apply to the original owner only. Warranty cannot be transferred or assigned.
10 YEARS (FROM DATE OF PURCHASE): Razorback Cleaning & Restoration Equipment warrants the air
scrubber befreeof defects in thepolyethylenebody. At its discretion, Razorback Cleaning & Restoration Equipment
will repair or replace the unit body, free of charge. (excluding transportation costs).
1 Year (from date of purchase): Razorback Cleaning & Restoration Equipment warrants the machine will operate
free of defects in workmanship and materials. At ifs discretion, Razorback Cleaning & Restoration Equipment will
repair or replace any malfunctioning components, free of charge (excluding transportation costs).
Customer Responsibilities: In order to take advantage of the warranty service, the customer must do the following:
1. Customer must provide normal care and maintenance (including, but not limited to cleaning filters).
2. Removal and re-installation of unit is the sole responsibility of owner.
3. 3.If the customer cannot return the unit to the certified repair center, all costs associated with shipment are borne
by the customer. In addition, all ancillary charges related to freight shipments, including but not limited to
palletizing, wrapping, labeling, and pickup are associated with the customer.
4. If shipped, customer is responsible for all risk of loss or damage.

7
Razorback Cleaning & Restoration Equipment Warranty Steps:
1. Once receive the goods, customers must log in www.ccwonline.com.au to fill out the warranty registration form and
submit to Razorback Cleaning & Restoration Equipment company. We will receive your purchasing and installation
information and save it. If no warranty registration is sent to us, warranty period will begin the day the shipment left the
warehouse. Please be sure to record serial # and date of installation. You will need this information to receive the RA
number.
2. If warranty service is necessary, customers must contact Razorback Cleaning & Restoration Equipment Tech Support
by [e-mail] or local technical service phone to receive a Return Authorization (RA number). Once an
RA has been issued, customers should bring the unit to a certified repair center. Razorback Cleaning & Restoration
Equipment will arrange the shipping to bring the unit back to the Razorback Cleaning & Restoration Equipment warehouse
(at the expense of the customers) if customers are not available.
3. After the unit has been received by Razorback Cleaning & Restoration Equipment (whether at a repair center or the
warehouse), Razorback Cleaning & Restoration Equipment will have an initial inspection. If it is determined to be invalid
warranty claim (see exclusions below), customers have to pay for all associated repair costs and shipping costs for units
repair.
4. Customers can pick up the unit after repair at their own expense for shipping. Units will have a rigorous testing before
sending it back to customers.
5. If the unit can no longer be fixed , and it is in the warranty period and determined to be valid claim, we will ship the
customer a new unit within the same year warranty from the date of replacement.
6. After parts are repaired or replaced by Razorback Cleaning & Restoration Equipment, the original warranty period
continues to applies until meet its deadline. No extensions to the original warranty period.
Warranty Exclusions:
DAMAGE DUE TO THE FOLLOWING IS NOT covered under warranty
1. Acts of Nature- including but not limited to:
flooding
fire
water damage
hurricane/storm damage
2. IMPROPER USAGE- Including but not limited to:
misuse, abuse, or tampering whether intentional or accidental
improper installation or design
improper voltage
lack of normal care
failure to follow instructions
3. Corrosion
4. Freezing
5. any additional costs due to changes in laws or building codes
6. freight charges
7. any costs due to lost profit or delay
8. damage to property

8
9. cause beyond control
10. consumable parts, including but not limited to:
filters
batteries
power cords
valves
switches
rubber parts
11. Direct, indirect, collateral or inconsequential damages of any kind
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED, IN LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. Razorback Cleaning & Restoration
Equipment's total liability, regardless of nature of claim shall not exceed original purchase price of the product. If a
product or component is replaced while under warranty, the applicable warranty period shall not be extendedbeyond
the original warranty time period.
The foregoing shall constitute the total liability of seller in the case of defective performance of all or any of
the equipment or services provided to Buyer. Buyer agrees to accept and hereby accepts the foregoing as the sole and
exclusive remedy for any breach or alleged breach of warranty by Seller.
Any dishonesty or fraud in connection with Razorback Cleaning & Restoration Equipment warranty thoroughly
voids all warranty policies. Razorback Cleaning & Restoration Equipment expressly reserves the right to pursue
legal action in the event of dishonesty, fraud, or attempted fraud.

9
Wiring Diagram

NameNo. Quantity
14
15
13
12
11
10
9
8
7
6
5
4
3
2
1
Material
LLDPE
Universal wheel
Air-out protect bracket
Axial motor
Motor bracket
Rubber foot pad
Foot pad
Main board
Control panel
Terrace socket
Overload protector
Power switch
Timer
Air-inlet protect bracket
Foot pad
Rubber foot pad
Component
Component
φ3 steel wire
Galvanized sheet
Rubber
Rubber
Stainless steel plate
220V 50Hz 10A
220V 50Hz 12A
220V 50Hz 16A
220V 50HZ
φ3 steel wire
Rubber
Rubber
4
1
1
1
2
6
1
1
1
1
1
1
1
2
2
MaxxAir ZE AAM
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15

Power Supply: 230VAC, 50Hz, 450W
With Fan Off: 12.0 Amps
With Fan On: 10.0 Amps
Fan Draws: High: 2.1 Amps Low: 1.4 Amps
Model#: MaxxAir ZE AAM
Air Mover
Razorback MaxxAir ZE AAM
Serial Number: R0001 Made in China
Manufactured Date: 2021-08-02
194D Zillmere Road, Boondall, QLD 4034 P: 1-800-68-6869
Razorback Cleaning & Restoration Equipment INC
