Harley Benton HB-40R User manual

HB-40R
Guitar Combo
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
18.08.2022, ID: 147168 (V6)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and controls................................................................................................................... 14
6 Technical specications....................................................................................................................... 17
7 Plug and connection assignment.................................................................................................... 19
8 Cleaning....................................................................................................................................................... 21
9 Protecting the environment.............................................................................................................. 22
Table of contents
HB-40R 3
Guitar Combo

4HB-40R
Guitar Combo

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
HB-40R 5
Guitar Combo

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
6HB-40R
Guitar Combo

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
General information
HB-40R 7
Guitar Combo

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
8HB-40R
Guitar Combo

2 Safety instructions
This device is intended to be used for amplication and playback of signals from musical
instruments with electromagnetic pickups. Any other use or use under other operating condi‐
tions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
HB-40R 9
Guitar Combo

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a
registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
CAUTION!
Possible hearing damage
Using headphones for a prolonged period and at high volume can cause hearing damage. Avoid using the device at high volume,
especially when using headphones.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
Safety instructions
10 HB-40R
Guitar Combo

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
HB-40R 11
Guitar Combo

3 Features
Special features of the device
nOutput power 40 watt
n10" speaker
nOverdrive switch
n3-band equalizer
nBuilt-in reverb eect
nInputs
– Input
– Aux
– Footswitch
nOutputs
– Headphones
– Line
– Ext. Speaker
nStandby function
Features
12 HB-40R
Guitar Combo

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
HB-40R 13
Guitar Combo

5 Connections and controls
ö #$ % & ( )' * + , - 10/.
2 3
Connections and controls
14 HB-40R
Guitar Combo

1[INPUT] | 1/4" jack socket to connect your instrument
2[CHANNEL SELECT] | switch to toggle between clean and overdrive channel
3 Channel indicator. Lights up green when the overdrive channel is active.
4[GAIN] | control to adjust the signals preamp gain
5[VOLUME] | control to adjust the volume of the overdrive channel
6[VOLUME] | control to adjust the volume of the clean channel
7[TREBLE] | control to adjust the treble
8[MIDDLE] | control to adjust the mids
9[BASS] | control to adjust the bass
10 [REVERB] | control to adjust the intensity of the reverb eect
11 Aux input for connecting an MP3 or CD player (3.5 mm mini phone socket).
12 Headphones output (3.5 mm mini phone socket). When you connect headphones, the internal speaker is automati‐
cally muted.
13 [LINE OUT] | output to connect an additional amplier or recording device (3.5 mm mini phone socket)
14 [FOOT SWITCH] | input for an optional foot switch (1/4" phone socket). Use a foot switch to toggle between the chan‐
nels of the amplier.
Connections and controls
HB-40R 15
Guitar Combo

15 Standby indicator | If there is no signal at the instruments input [INPUT] for 30 minutes, the device will automatically
enter standby mode (LED green). As soon as the device receives a signal again at the instruments input [INPUT], the
device automatically switches back to normal mode (LED red).
16 [POWER] | main switch. Turns the device on and o.
17 Power cord
18 [EXTERNAL SPEAKER] | output to connect an external speaker box (1/4" jack socket). The impedance of the external
speaker must be at least 4 Ω. When you connect an external speaker box, the internal speaker is automatically muted.
Connections and controls
16 HB-40R
Guitar Combo

6 Technical specications
Speaker 1 × 10" speaker
Input connections Instruments 1/4" jack socket
AUX 3.5 mm phone socket
Optional foot switch 1/4" jack socket
Output connections Headphones 3.5 mm phone socket
Amplier or recording device 3.5 mm phone socket
External speakers (impedance min. 4 Ω) 1/4" jack socket
Input impedance 220 kΩ
Output power 40 W (RMS) @ 4 Ω
Frequency range 60 Hz to12 kHz
Signal-to-noise ratio 75 dB
Total harmonic distortion (THD) 0.5% (Clean-Sound)
Power consumption max. 80 W
Supply voltage 230 V 50 Hz
Dimensions (W × H × D) 425 mm × 420 mm × 220 mm
Technical specications
HB-40R 17
Guitar Combo

Weight 10 kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20 %…80 % (non-condensing)
Channels 2
Reverb yes
Eects processor no
External eects loop no
Line input no
Recording output yes
MIDI port no
External speaker connector yes
Headphone connection yes
Foot switch connector yes
Incl. foot switch no
Further information
Technical specications
18 HB-40R
Guitar Combo

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Since the interference aects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.
Introduction
Balanced and unbalanced trans‐
mission
Plug and connection assignment
HB-40R 19
Guitar Combo

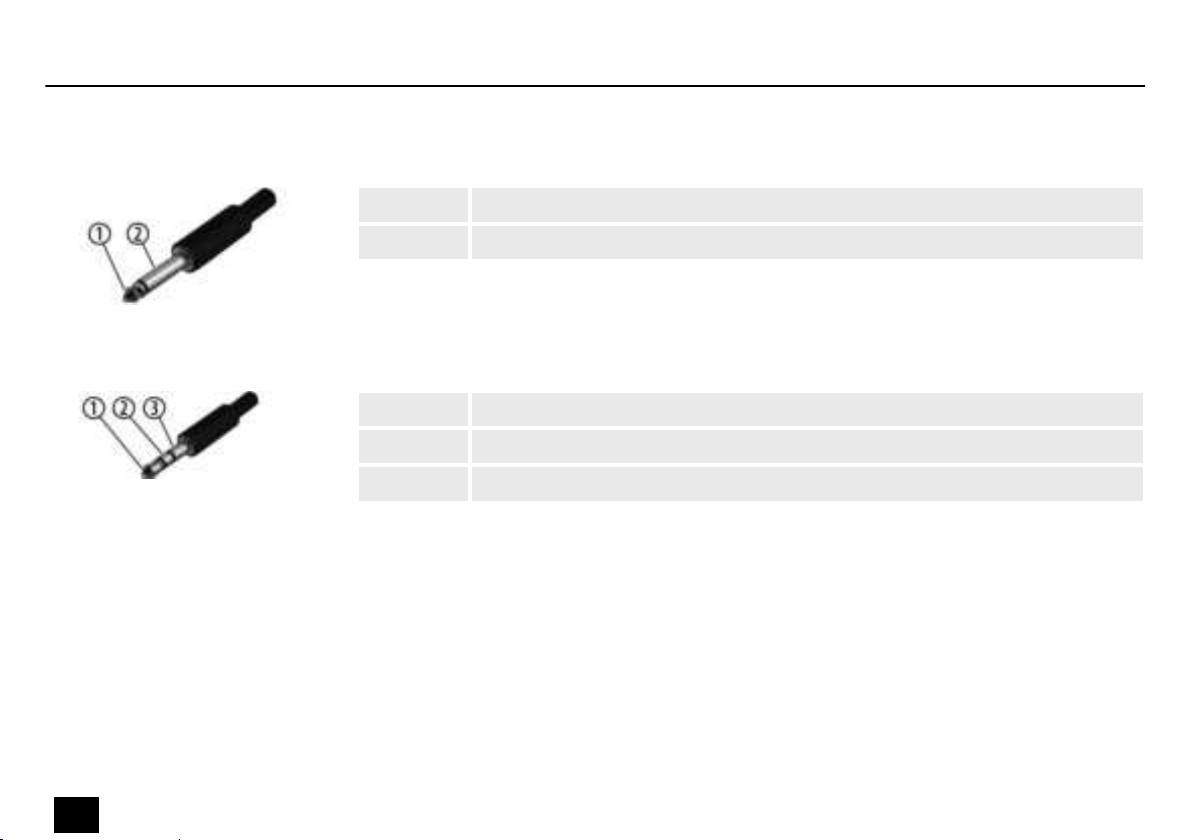

1 Signal
2 Ground, shielding
1 Signal (left)
2 Signal (right)
3 Ground, shielding
1/4" TS phone plug (mono,
unbalanced)
Three-pole 1/8" mini phone jack
(stereo, unbalanced)
Plug and connection assignment
20 HB-40R
Guitar Combo
