Harley Benton TableAmp V2 BlueTooth User manual

TableAmp V2 BlueTooth
Guitar Combo
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
29.08.2022, ID: 508996 (V2)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and controls................................................................................................................... 14
6 Technical specications....................................................................................................................... 17
7 Plug and connection assignment.................................................................................................... 19
8 Protecting the environment.............................................................................................................. 22
Table of contents
TableAmp V2 BlueTooth 3
Guitar Combo

4TableAmp V2 BlueTooth
Guitar Combo

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
TableAmp V2 BlueTooth 5
Guitar Combo

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
6TableAmp V2 BlueTooth
Guitar Combo

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
General information
TableAmp V2 BlueTooth 7
Guitar Combo

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
8TableAmp V2 BlueTooth
Guitar Combo

2 Safety instructions
This device is intended to be used for amplication and playback of signals from musical
instruments with electromagnetic pickups. Any other use or use under other operating condi‐
tions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
TableAmp V2 BlueTooth 9
Guitar Combo

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC
outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do
so could result in damage to the device and possibly the user. Unplug the external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce the risk of electric shock or re.
Safety instructions
10 TableAmp V2 BlueTooth
Guitar Combo

NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate distance to devices that can be adversely aected
or damaged by an external magnetic eld.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
TableAmp V2 BlueTooth 11
Guitar Combo

3 Features
Special features of the device:
nBuilt-in Bluetooth function
n30 watt RMS
n5" woofer
n1" tweeter
nConnections:
– Mic / Line input, designed as XLR / 1/4" combo socket
– AUX input, designed as 3.5 mm phone socket
– Headphones output, designed as 3.5 mm phone socket
nGuitar / Microphone, Bass, Treble, Reverb and Master Volume controls
nStandby function
nIdeal for singing and playing along
Features
12 TableAmp V2 BlueTooth
Guitar Combo

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
TableAmp V2 BlueTooth 13
Guitar Combo

5 Connections and controls
ö # $ % & ' (
)*
Top side
Connections and controls
14 TableAmp V2 BlueTooth
Guitar Combo

1 Bluetooth button | to establish a Bluetooth connection, press and hold the Bluetooth button for 2 seconds to search for
Bluetooth-enabled devices ready for pairing. The Bluetooth button ashes blue. The Bluetooth list of the device to be
paired displays ‘TableAmp’ . Accept the connection. A short beep will sound when the connection was established success‐
fully and the Bluetooth button will turn solid blue.
2[GUITAR/MIC] | volume control for guitar / microphone input
3[BASS] | bass control
4[TREBLE] | treble control
5[EFFECT] | eects control
The settings made with the eects control only aect the input [GUITAR/MIC] (see item 11).
6[MASTER] | master volume control
7[EQ] | equalizer selector switch
Press the selector switch to activate the EQ for electric guitars. The selector switch lights up blue.
8 Headphones output, designed as 3.5 mm phone socket
9[AUX] | AUX input, designed as 3.5 mm phone socket
If you connect an audio source to the AUX input with an existing Bluetooth connection, the Bluetooth connection will be
interrupted. As soon as you disconnect the jack plug from the AUX input, the Bluetooth connection is automatically
restored.
Connections and controls
TableAmp V2 BlueTooth 15
Guitar Combo

+ -., /
10 [GUITAR/MIC] / [SENSITIVITY] | signal source selector switch (guitar or microphone)
11 [XLR - AUX INPUT] / [GUITAR/MIC] | Mic / Line input, designed as XLR / ¼" jack combo
12 Socket for connecting the supplied plug-in power supply
13 [STATUS] | Control LED for power supply. This LED lights up when the device is turned on or in Standby mode.
14 [POWER] | main switch. Turns the device on and o.
The power-saving Auto Power OFF function shuts o the device after about 20 minutes without input signal and the Blue‐
tooth button stops lighting. Press the Bluetooth button or turn the main power switch o and on again to turn the power
back on.
Rear panel
Connections and controls
16 TableAmp V2 BlueTooth
Guitar Combo

6 Technical specications
Speaker 1 × 5" woofer
1 × 1" tweeter
Input connections Power supply External power adapter
AUX in 1 × 3.5 mm phone socket
Mic/Line 1 × XLR / ¼" jack combo socket
Output connections Headphones 1 × 3.5 mm phone socket
Output power 30 W (RMS)
Frequency range 60 Hz to 20 kHz
Signal-to-noise ratio ≥70 dB
Bluetooth® Frequency range 2.402 GHz … 2.480 GHz
Max. transmission power –90.5 dBm
Standard Version 5.0
Power supply External power adapter, 100 - 240 V 50/60 Hz
Operating voltage 15 V / 2.4 A, centre positive
Dimensions (W × H × D) 320 mm × 200 mm × 160 mm
Technical specications
TableAmp V2 BlueTooth 17
Guitar Combo

Weight 3.1 kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20 %…80 % (non-condensing)
Reverb yes
External eects loop no
Eects processor no
Recording output no
MIDI port no
IR remote control no
External speaker connector no
Foot switch connector no
Line Out no
Channels 1
Cover no
Further information
Technical specications
18 TableAmp V2 BlueTooth
Guitar Combo

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Since the interference aects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.
Introduction
Balanced and unbalanced trans‐
mission
Plug and connection assignment
TableAmp V2 BlueTooth 19
Guitar Combo

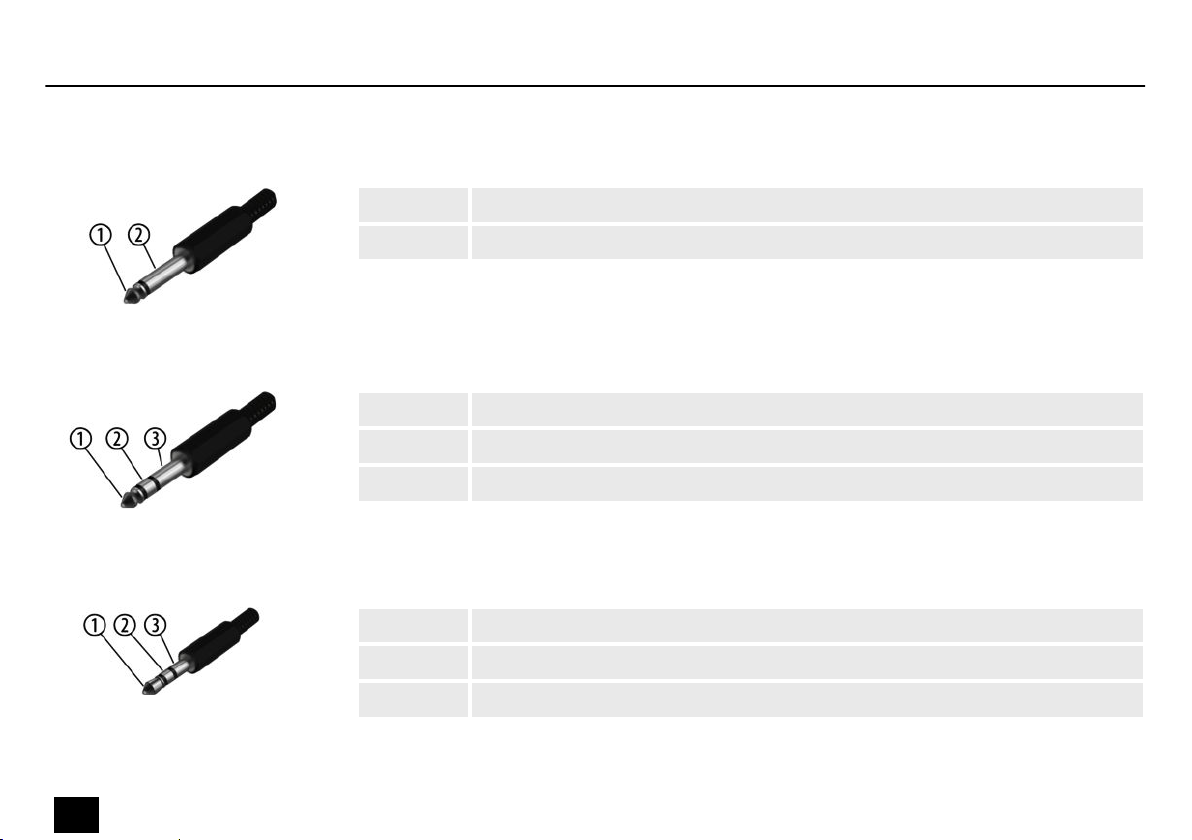

1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
1 Signal (left)
2 Signal (right)
3 Ground, shielding
1/4" TS phone plug (mono,
unbalanced)
1/4" TRS phone plug (mono, bal‐
anced)
Three-pole 1/8" mini phone jack
(stereo, unbalanced)
Plug and connection assignment
20 TableAmp V2 BlueTooth
Guitar Combo
