Hasler HJOG 100 User manual

8704798Q 8/4/10
HJOG 100
Paper Jogger

INTRODUCTION:
Thank you for selecting the Hasler HJOG 100 Paper Jogger.
The Hasler HJOG 100 Paper Jogger has been developed for
ease of operation and maintenance, however, we recommend
that you familiarize yourself with the machine by carefully read-
ing these instructions.
WARNING: THIS MACHINE CONTAINS MOVING
PARTS THAT CAN CATCH HAIR OR LOOSE CLOTH-
ING AND PINCH FINGERS. DURING OPERATION
AND MAINTENANCE, KEEP HANDS, HAIR, AND
LOOSE CLOTHING CLEAR OF MOVING PARTS.
SERVICE OR DISASSEMBLY SHOULD BE DONE
WITH POWER CORD DISCONNECTED.
INSTALLATION:
Remove jogger from carton. Remove 2 bolts at bottom which
secure packing material to jogger.
Plug unit into any 115V 60 Hz/A.C. outlet. Turn Jogger ‘ON’ by
depressing the ‘I’ side of the off/on rocker switch. Load paper.
MAINTENANCE:
Lubricate bearings with light oil every 6 months. Occasionally, if
necessary, remove any debris from bearings with a brush or an
air jet stream. ee parts list for bearing locations.

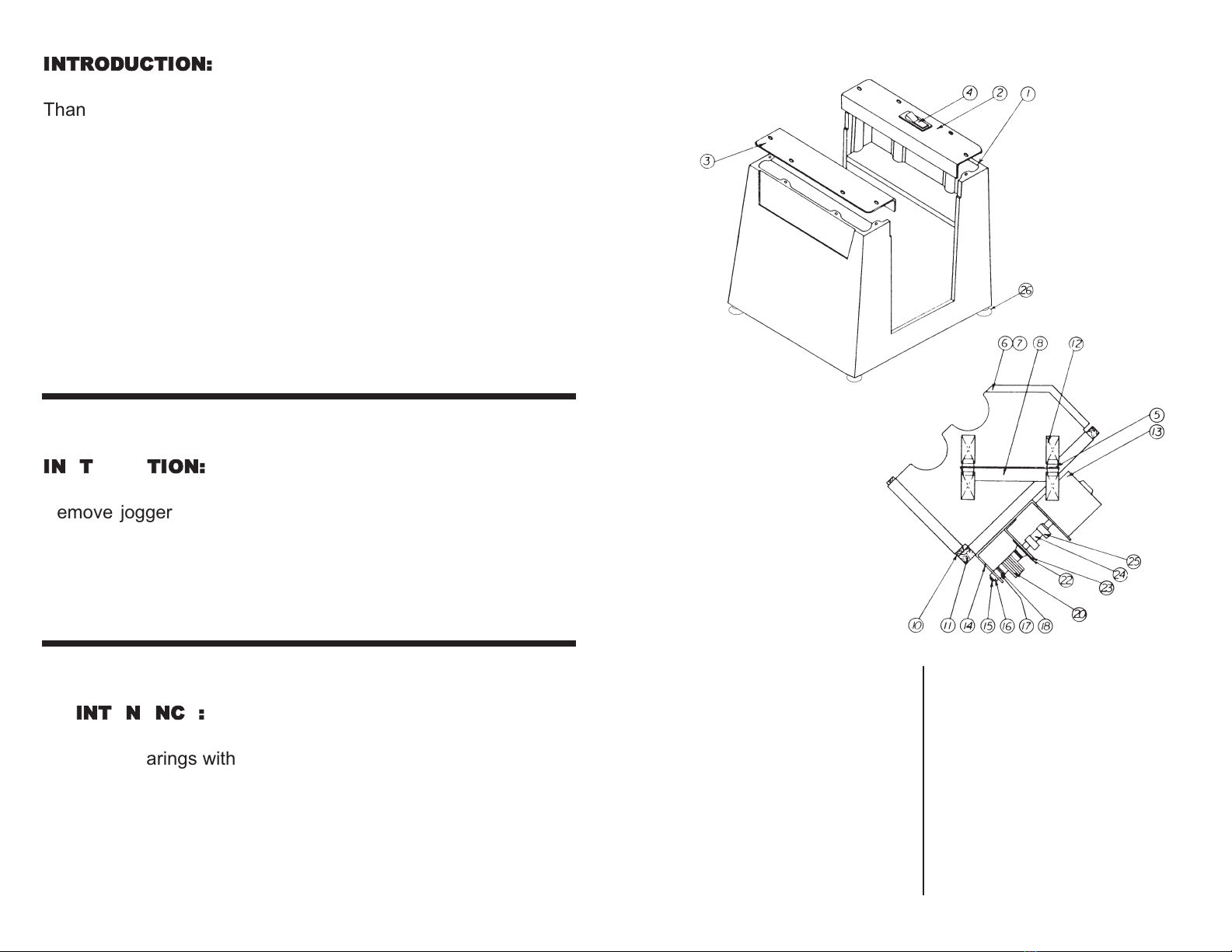

KEY DESCRIPTION PART NO. QTY
1 Base MO400001 1
2 Top Cover RH WO400002 1
3 Top Cover LH WO400003 1
4 witch M 033053 1
5 Bumpers M 030045 12
6 ide Panel RH WO400008 1
7 ide Panel LH WO400009 1
8 ide Bracket RH WO400010 2
10 Wood Tray Bottom MO400006 1
11 Wood Tray Back MO400007 1
12 prings M 031074 8
13 Motor (110V) M 021064 1
14 Motor Base WO400014 1
KEY DESCRIPTION PART NO. QTY
15 Counter haft MO400016 1
16 Bearing Flange M 013010 1
17 et Collar M 037302 2
18 Washer Nylon M 019054 1
20 Counterweights WO400004 15
22 Bearing M 013093 1
23 Motor Base Bracket WO400013 1
24 Motor Coupling WO400012 1
25 Clamps M 037314 2
26 uction Cup M 030003 4
Not hown
115V Line Cord M 037020 1
Hasler HJOG 100 Paper Jogger
