Havis DS-DA-704 User manual

Instructions for
Havis Protective Case
For Apple iPad
DS-DA-700-SERIES_OMN_11-19
www.havis.com
1-800-524-9900
DS-DA-701 for iPad 2/3
DS-DA-702 for iPad 4
DS-DA-704 for iPad Air / Air 2
DS-DA-705 for iPad 5/6 / Air / Air2 / Pro 9.7
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
www.havis.com 1-800-524-9900
Specications
• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
Power Supply Input 5V (10 Watt)
Dimensions 11.4” ( 28.9 cm) W x 8.7” ( 22.1 cm ) D x 0.87” ( 2.2 cm ) H
Weight 0.8 lbs ( 0.36 kg )
Operating Environment 0° C to 35° C ( 32° F to 95° F )
Storage Environment -20° C to 45° C ( -4° F to 113° F )
FCC Statement / Declaration of Conformity
This device complies with the requirements of the Code of Federal Regulations listed below:
FCC Title 47 CFR, Part 15 Class foBr a digital device.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Related Product
Havis offers a Docking Station specically for use with the DS-DA-700
Series Protective Case. For more information or to order, please visit
www.havis.com.
DS-APP-100 Series
Docking Station
Docking Station for Apple iPad for in vehicle
computing.

www.havis.com • 1-800-524-9900
2 7
Charging Your TabletCompatibility Matrix
NOTE: The Havis iPad Protective Case is designed to be charged
using a designated Havis Docking Station.
(See the Compatibility Matrix on Page 2)
If you have the need to charge your tablet when not docked, use the supplied
Micro-USB cable. Simply connect the Micro-USB cable to the Protective Case,
then insert the other end of the cable into a 5V (10Watt) power source.
• #1 Phillips Screwdriver
• Protective Case
(Back and Front pieces)
• Micro-USB Power Cable (1)• #4-20 x 3/8” Plastite Screws (12)
• Rubber Corners/Edge (5)
Parts Included
Tools Required
(Original Instructions)
Micro-USB into
Protective Case
USB into
5V (10 Watt)
Power Source
• Hand Strap (1)
NOTE: The Hand Strap comes pre-attached to the
back of the Protective Case. If the Hand Strap will
not be utilized, remove prior to assembly.
Havis Product Apple iPad Model(s) Compatible
Havis Products
DS-APP-102 All
(2, 3, 4, 5, 6, Air, Air 2, & Pro 9.7)
DS-DA-701
DS-DA-702
DS-DA-704
DS-DA-705
DS-APP-112 Air, Air 2, Pro 9.7, & iPad 5 & 6 DS-DA-705
DS-DA-701 iPad 2 & 3 DS-APP-102
DS-DA-702 iPad 4 DS-APP-102
DS-DA-704 Air & Air 2 DS-APP-102
DS-DA-705** Air, Air 2, Pro 9.7, iPad 5 & 6 DS-APP-102
DS-APP-112
PKG-DS-APP-102
(includes DS-APP-102* & DS-DA-701) iPad 2 & 3 n/a
PKG-DS-APP-112
(includes DS-APP-102* & DS-DA-702) iPad 4 n/a
PKG-DS-APP-142
(includes DS-APP-112 & DS-DA-705**) Air, Air 2, Pro 9.7, iPad 5 & 6 n/a
* Compatible with all Havis Protective Cases
** Apple Pencil is not compatible due to pairing requirements. The Apple Pencil 1st Generation requires
direct access to the Lighting Connector on the iPad and will not pair via Bluetooth Connection.

www.havis.com • 1-800-524-9900
6 3
Installation

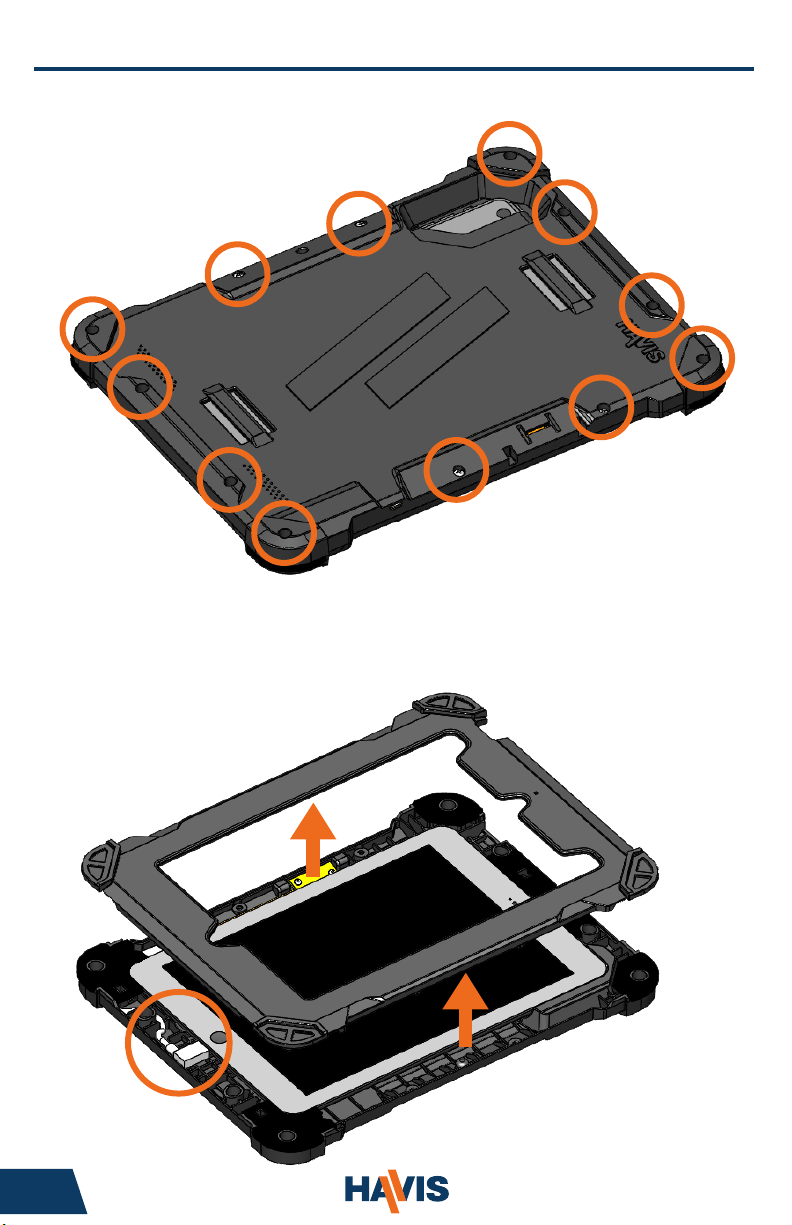

7. Insert all twelve (12) screws and then tighten with #1 phillips screwdriver.
Torque screws to 10 in-lbs (1.1Nm) ± 10%.
8. To remove your Apple iPad from the Havis Protective Case, simply remove
the twelve screws, turn the case over, and lift the Front piece of Protective
Case off the Back piece. Unplug the connector, and remove tablet.
Installation (continued)
1. Remove Protective Case from packaging and seperate the Back piece
from the Front piece.
2. Insert the connector from the Protective Case into the Apple iPad.

www.havis.com • 1-800-524-9900
4 5
5. Place the Front piece of Protective Case on the Back piece. Ensure
a proper t by looking for gaps along the seam between the two pieces.
6. Holding the two pieces together, carefully turn the Protective Case over.
Installation (continued) Installation (continued)
3. Place the iPad into the Back piece of Protective Case, ensuring the
connector cable is routed as shown.
4. Place the ve (5) Rubber Corners & Edge onto the Back piece of
Protective Case, ensuring each one aligned properly or they will
not t securely in place. Insert Rubber Edge piece (#5 below) with
short edge along outside edge of Protective Case.
Some slight warping
will be evident if
inserted incorrectly
Align the
Headphone Port
location to ensure
proper orientation
of two pieces

www.havis.com • 1-800-524-9900
4 5
5. Place the Front piece of Protective Case on the Back piece. Ensure
a proper t by looking for gaps along the seam between the two pieces.
6. Holding the two pieces together, carefully turn the Protective Case over.
Installation (continued) Installation (continued)
3. Place the iPad into the Back piece of Protective Case, ensuring the
connector cable is routed as shown.
4. Place the ve (5) Rubber Corners & Edge onto the Back piece of
Protective Case, ensuring each one aligned properly or they will
not t securely in place. Insert Rubber Edge piece (#5 below) with
short edge along outside edge of Protective Case.
Some slight warping
will be evident if
inserted incorrectly
Align the
Headphone Port
location to ensure
proper orientation
of two pieces

www.havis.com • 1-800-524-9900
6 3
Installation
7. Insert all twelve (12) screws and then tighten with #1 phillips screwdriver.
Torque screws to 10 in-lbs (1.1Nm) ± 10%.
8. To remove your Apple iPad from the Havis Protective Case, simply remove
the twelve screws, turn the case over, and lift the Front piece of Protective
Case off the Back piece. Unplug the connector, and remove tablet.
Installation (continued)
1. Remove Protective Case from packaging and seperate the Back piece
from the Front piece.
2. Insert the connector from the Protective Case into the Apple iPad.

www.havis.com • 1-800-524-9900
2 7
Charging Your TabletCompatibility Matrix
NOTE: The Havis iPad Protective Case is designed to be charged
using a designated Havis Docking Station.
(See the Compatibility Matrix on Page 2)
If you have the need to charge your tablet when not docked, use the supplied
Micro-USB cable. Simply connect the Micro-USB cable to the Protective Case,
then insert the other end of the cable into a 5V (10Watt) power source.
• #1 Phillips Screwdriver
• Protective Case
(Back and Front pieces)
• Micro-USB Power Cable (1)• #4-20 x 3/8” Plastite Screws (12)
• Rubber Corners/Edge (5)
Parts Included
Tools Required
(Original Instructions)
Micro-USB into
Protective Case
USB into
5V (10 Watt)
Power Source
• Hand Strap (1)
NOTE: The Hand Strap comes pre-attached to the
back of the Protective Case. If the Hand Strap will
not be utilized, remove prior to assembly.
Havis Product Apple iPad Model(s) Compatible
Havis Products
DS-APP-102 All
(2, 3, 4, 5, 6, Air, Air 2, & Pro 9.7)
DS-DA-701
DS-DA-702
DS-DA-704
DS-DA-705
DS-APP-112 Air, Air 2, Pro 9.7, & iPad 5 & 6 DS-DA-705
DS-DA-701 iPad 2 & 3 DS-APP-102
DS-DA-702 iPad 4 DS-APP-102
DS-DA-704 Air & Air 2 DS-APP-102
DS-DA-705** Air, Air 2, Pro 9.7, iPad 5 & 6 DS-APP-102
DS-APP-112
PKG-DS-APP-102
(includes DS-APP-102* & DS-DA-701) iPad 2 & 3 n/a
PKG-DS-APP-112
(includes DS-APP-102* & DS-DA-702) iPad 4 n/a
PKG-DS-APP-142
(includes DS-APP-112 & DS-DA-705**) Air, Air 2, Pro 9.7, iPad 5 & 6 n/a
* Compatible with all Havis Protective Cases
** Apple Pencil is not compatible due to pairing requirements. The Apple Pencil 1st Generation requires
direct access to the Lighting Connector on the iPad and will not pair via Bluetooth Connection.
