Hawksmoor TOOLSTATION ASYPHT1510 User manual

SKU: 86566
18V 46cm Cordless Long Reach
Hedge Trimmer
Original User’s Instructions
READ BEFORE USE
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

2
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
CONTENT
∫WHAT’S IN THE BOX ---------------------------------------------------------- 3
∫SPECIFICATIONS -------------------------------------------------------------- 4
∫EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5
∫IMPORTANT SAFETY WARNINGS -------------------------------------------- 8
∫PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 18
∫ASSEMBLY AND OPERATING INSTRUCTIONS ----------------------------19
∫CARE AND CLEANING ------------------------------------------------------- 24
∫TROUBLE SHOOTING -------------------------------------------------------- 25
∫DECLARATION OF CONFORMITY / PERFORMANCE -------------------- 26
∫ENVIRONMENTAL INFORMATION ------------------------------------------27
∫GUARANTEE -------------------------------------------------------------------28
∫CUSTOMER SUPPORT ------------------------------------------------------- 28

3
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]

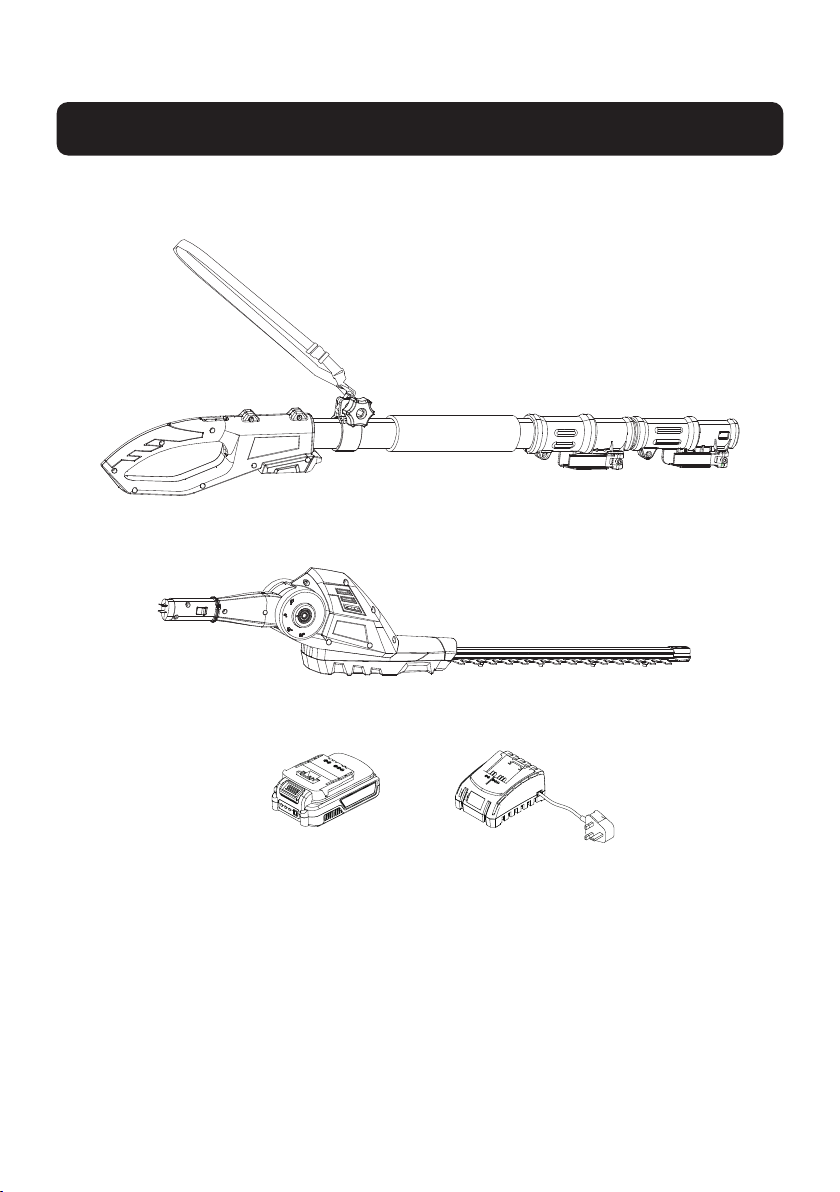

WHAT'S IN THE BOX
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
ChargerBattery pack
Telescopic extension rear handle
Hedge trimmer head with blade sheath

4
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
SPECIFICATION
• Dual action blade
• Dual safety switch
• Rubber overmould rear handle
• Telescopic extension rear handle
• 10 position pivot head
• Equipped with shoulder strap for easy use
Technical Data
Model ASYPHT1510
Nominal voltage of product with battery 18V d.c./2.0Ah Li-ion
No-load cutting speed 1400 /min
Max cutting diameter 16mm
Cutting length 460mm
Blade length 510mm
Total length 199cm-250cm
Measured sound power level 92.4dB(A), K=3dB(A)
Guaranteed sound power level 96 dB(A)
Vibrations 1.79m/s, k=1.5m/s
Machine Weight 4 kg
Battery pack Model B0P-SP07-18ZM
Battery capacity 2.0Ah
Battery charging time Max. 50mins
Battery charger Model B0Q-SP06-20ZB
Battery charger input 220-240V AC, 50/60Hz 65W
Battery charger output 20V d.c. 2.4A
Protection class of charger Class II
Note: The above specifications are the MAXIMUM capacities of the tool. Voltage measured
without workload. Initial battery voltage reaches 20 Volts. Nominal voltage is 18 Volts.

5
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS
Symbol of a warning
Read and refer to these operating instructions
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear safety helmet.
Wear protective clothing.
Do not expose the product to rain or wet conditions (moisture).
Objects thrown by the product could hit the user or other bystanders. Always ensure
that other people and pets remain at a safe distance from the product when it is in
operation. In general, children must not come near the area where the product is.
Disconnect from the mains plug if the cord is damaged or entangled. DO NOT TOUCH
THE CORD BEFORE DISCONNECTING THE SUPPLY.
Caution: Very danger because of electronic shock! Keep it away at least 10m from
transmission lines.

6
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Sharp blade can cut limbs.
Switch the product off and disconnect it from the power supply before assembly,
cleaning, adjustments, maintenance, storage and transportation.
96
Guarantee sound power level
Remove the battery pack before adjusting, cleaning or maintenance,
and before leaving the machine unattended for any period.
Batteries may enter water cycle if disposed improperly, which can be hazardous for
ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
Do not burn
Li-Ion battery This product has been marked with a symbol relating to ‘separate
collection’ for all battery packs and battery pack. It will then be recycled or dismantled
in order to reduce the impact on the environment. Battery packs can be hazardous for
the environment and for human health since they contain hazardous substances.
Waste electrical products must not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for recycling
advice.
Double insulation (Only for charger)
Indoor use only (Only for charger)

7
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Positive terminal (Only for charger)
Negative terminal (Only for charger)
T 3.15A Fuse (Only for charger)
The product complies with the applicable European directives and an evaluation
method of conformity for these directives was done.
UK Conformity Assessment

8
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
IMPORTANT SAFETY WARNINGS
General Power Tool Safety Warnings
Warning: Please read the following instructions carefully,
failure to do so could lead to serious personal injury. When
using the electric hedge trimmer, basic safety precautions,
including the following, should always be followed to reduce
the risk of fire,electric shock and personal injury. Read all
these instructions before operating this product and save
these instructions.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Become familiar with the owner’s manual before attempting
to operate this machine.
• This machine is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• The machine is only to be used with the power supply unit
provided with the machine.
Important! Read carefully before use, keep for further
reference.

9
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Work Area Safety
• Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Electrical Safety
• Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.

10
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Personal Safety
• Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
• Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep
your hair and clothing away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a
second.

11
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Power Tool Use and Care
• Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and
safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making
any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.
• Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.
• Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a
hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from
oil and grease. Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in unexpected
situations.

12
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Service
• Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety
of the power tool is maintained.
Product Safety Warnings
Hedge Trimmer Safety Warnings:
• Use the tool only with specifically designated battery packs. Use
of any other battery packs will increase the risk of injury and fire.
• Only operate the product in daylight or in good artificial light.
• Do not expose tool and charger to rain or wet conditions. If a
tool or charger is exposed to moisture it will increase the risk of
electric shock, battery damage, fire or explosion.
• Keep all parts of the body away from the blade. Do not remove
cut material or hold material to be cut when blades are moving.
Blades continue to move after the switch is turned off. A
moment of inattention while operating the hedge trimmer may
result in serious personal injury.
• Carry the hedge trimmer by the handle with the blade stopped
and taking care not to operate any power switch. Proper carrying
of the hedge trimmer will decrease the risk of inadvertent
starting and resultant personal injury from the blades.
• When transporting or storing the hedge trimmer, always fit the
blade cover. Proper handling of the hedge trimmer will decrease
the risk of personal injury from the blades.
• When clearing jammed material or servicing the unit, make
sure all power switches are off and the battery back is removed
or disconnected. Unexpected actuation of the hedge trimmer
while clearing jammed material or servicing may result in serious
personal injury.

13
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Hold the hedge trimmer by insulated gripping surfaces only,
because the blade may contact hidden wiring. Blades contacting
a “live” wire may make exposed metal parts of the hedge
trimmer “live” and could give the operator an electric shock.
• Keep all power cords and cables away from cutting area. Power
cords or cables may be hidden in hedges or bushes and can be
accidentally cut by the blade.
• Do not use the hedge trimmer in bad weather conditions,
especially when there is a risk of lightning. This decreases the
risk of being struck by lightning.
• Check the hedges and bushes for foreign objects, e.g., wire
fences and hidden wiring.
• Hold the hedge trimmer properly, e.g., with both hands if two
handles are provided.
• The hedge trimmer is intended to be used by the operator at
ground level and not on ladders or any other unstable support.
• Before operating the hedge trimmer, the user should make sure
the locking device(s) of any moving elements (e.g., the extended
shaft and pivoting element), if any, are in the locked position.
• Recommendation for the use of a residual current device with a
tripping current of 30 mA or less.
Long Reach Hedge Trimmer Safety Warnings:
• To reduce the risk of electrocution, never use the extended-
reach hedge trimmer near any electrical power lines. Contact
with or use near power lines may cause serious injury or electric
shock resulting in death.
• Always use two hands when operating the extended-reach
hedge trimmer. Hold the extended-reach hedge trimmer with
both hands to avoid loss of control.

14
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Always use head protection when operating the extended- reach
hedge trimmeroverhead. Falling debris can result in serious
personal injury.
Safety Warning For Battery Pack
• Fully charge battery pack before the first use.
• Recharge battery pack when the power output starts to slow.
Do not continue to use product when battery capacity level
is low.
• To prevent serious damage to the battery pack, charge in
temperatures above 5°C or below 45°C. Longest life and best
performance can be achieved when battery is charged at room
temperature (20 °C ± 5 °C).
• If the battery temperature is hot after use, it must be allowed to
cool before putting it into the charging station.
• If the battery pack becomes too hot during charging, disconnect
and switch off immediately. Contact the service center directly.
• Do not dismantle, open or shred cells or battery pack.
• Do not short-circuit a battery pack. Do not store battery packs
haphazardly in a box or drawer where they may short-circuit
each other or be short-circuited by conductive materials. When
battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other
small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together
may cause burns or a fire.
• Do not carry individual battery packs in your pockets or bag as
they could short-circuit against other metal items.
• Do not expose battery pack to heat or fire. Avoid use or storage
in direct sunlight for extended periods of time.
• Do not subject battery pack to mechanical shock.

15
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• In the event of battery leaking, do not allow the liquid to come
into contact with the skin or eyes. If contact has been made,
wash the affected area with copious amounts of water and seek
medical advice.
• Should a Li-ion battery catch fire, ensure to use the correct fire
extinguisher to combat the fire. Do not throw or spray water on
a burning Li-ion battery.
• Keep battery pack clean and dry. Wipe the battery pack
terminals with a clean dry cloth if they become dirty.
• Battery pack needs to be charged before use. Always refer to
this instruction and use the correct charging procedure.
• Do not maintain battery pack on charge when not in use.
• After extended periods of storage, it may be necessary to
charge and discharge the battery pack several times to obtain
maximum performance.
• Battery pack gives its best performance when it is operated at
normal room temperature (20 °C ± 5 °C).
• When disposing of battery packs, keep battery packs of different
electrochemical systems separate from each other.
• Recharge only with the charger specified by manufacturer. Do
not use any charger other than that specifically provided for use
with the equipment. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another
battery pack.
• Do not use any battery pack which is not designed for use with
the equipment.
• Keep battery pack out of the reach of children.
• Retain the original product literature for future reference.
• Remove the battery from the equipment when not in use.
• Dispose of properly.

16
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Do not mix cells of different manufacture, capacity, size or type
within a device.
• Do not remove battery pack from its original packaging until
required for use.
Safety Warning For Battery Charger
• Charge only battery pack of the same model provided by
manufacturer and of models recommended by manufacturer.
• Do not use the original charger on other Li-ion batteries or on
any other type of battery as this can increase the risk of fi e or
explosion.
• Check the battery charger, cable and plug before each use.
Do not use the battery charger if damaged. Do not open the
battery charger yourself, charger must be repaired by qualified
personnel using original spare parts.
• The charger is designed to use a standard household 220-240
V~ 50Hz power source, ensure that the plug matches the outlet.
• Never modify the plug in any way, this will reduce the risk of
electric shock.
• Do not abuse the cord of charger. Never use the cord for
carrying, pulling or unplugging the charger. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• Make sure the charger cord is situated so that it will not be
stepped on, tripped over or get damaged.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Keep the battery charger clean. Contamination can increase the
risk of electric shock.

17
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Protect the battery charger from rain and moisture. If water
accesses the battery charger there is an increased risk of
electric shock.
• Battery will heat up whilst charging. When charging batteries,
ensure that the battery charger is in a well-ventilated area and
to reduce the risk of fire, do not operate battery charger on or
close to inflammable materials such as paper or textiles.
• Do not overcharge any batteries. Ensure that batteries and
chargers are not left unsupervised during charging.
• The temperature range over which the battery pack can be
charged is typically between 5°C-45°C. Attempts to charge out
with the prescribed temperature range may automatically be
blocked by the protection circuitry of the battery pack. Longest
life and best performance can be obtained if the battery pack is
charged at room temperature.
• Disconnect charger from the power supply when not in use. This
will reduce the risk of electric shock or damage to the charger.
• This charger can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

18
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
PRODUCT DESCRIPTION AND IDENTIFICATIONS
17
15
14
3 4 5 6 7 8 9 10
16
131211
21
1. Charger
2. Battery pack
3. Trigger switch on rear handle
4. Trigger switch lock-off button
5. Strap connector
6. Strap position lock nut
7. Soft shaft grip
8. Lever latch of telescopic shaft
9. Lever latch for trimmer head installation
Not all the accessories illustrated or described are included in standard delivery.
10. Socket for trimmer head installation
11. Lock button for trimmer head installation
12. Rotating handle
13. Pivot angle adjustment push button
14. Motor housing
15. Trimmer blade
16. Power connection pins
17. Blade protection sheath

19
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]

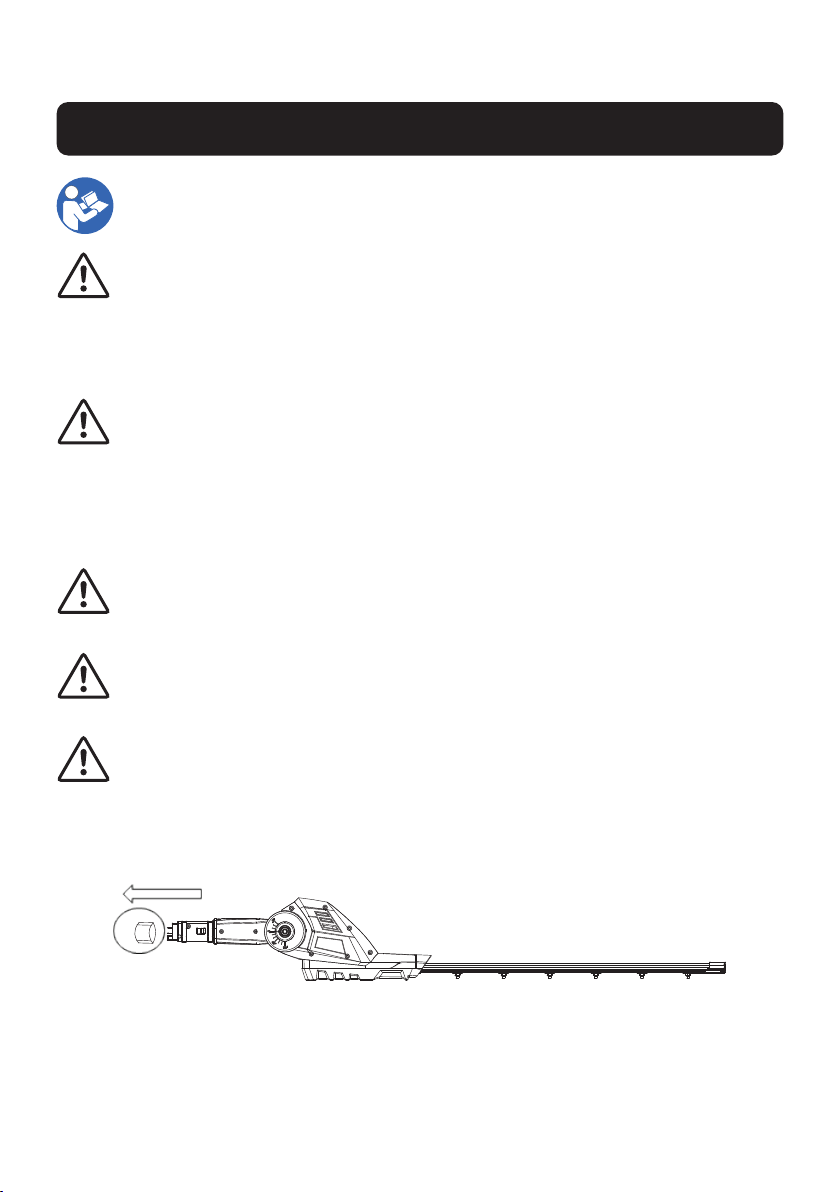

ASSEMBLY AND OPERATING INSTRUCTIONS
NOTE: To reduce the risk of injury, user must read instruction
manual.
WARNING: Before assembly and adjusting to the long reach hedge
trimmer, ensure the hedge trimmer is turned off and the battery
pack is removed.
Assemble the long reach hedge trimmer
WARNING! This product requires assembly. Carefully remove the product and any
accessories from the box. Make sure that all items listed in the packing list are
included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do
not discard the packing material until you have carefully inspected and satisfactorily operated the
product.
If any parts are damaged or missing, please contact authorized service center or retailer.
WARNING! If any parts are damaged or missing, do not operate this product until
the parts are replaced. Failure to heed this warning could result in serious personal
injury.
WARNING! Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious personal injury.
WARNING! Do not connect battery pack until assembly is complete. Failure to comply
could result in accidental starting and possible serious personal injury.
1. Remove the power connection pins cover before operation.

20
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
2. Connecting the hedge trimmer head
• Hold the telescopic extension rear handle and the hedge trimmer head level and still. Open the
lever latch for trimmer head installation (9). Align the power connection pins (16) with the holes
in the socket for trimmer head installation (10). Insert the power connection pins into the socket
holes until the lock buttons for trimmer head installation (11) click into the shaft at the right seats.
• Push back the lever latch for trimmer head installation (9) back to lock in position securely. Check
the connection is tight for safe working.
lock buttons for trimmer head installation (11)
the lever latch for trimmer head installation (9)
3. Telescopic shaft length adjustment
To extend the shaft, open the lever latch (8) on the telescopic shaft and extend by pulling. Once the
required length is achieved, simply close the lever latch (8) locking the shaft in postion. Ensure the
shaft is locked securly before operatiog.
8
8
