HAYGAIN Flexineb 2 User manual

innovative equine nebulizer
silent, portable, comfortable, compact, efficient, affordable, simple

Flexineb™ is a silent, efficient, portable equine nebulizer device that is simple to use, comfortable and affordable. It
operates without the noise of loud compressors or the inconvenience of cumbersome hoses and electrical cords.
Flexineb™ utilizes Nortev’s proprietary technology and is extremely portable allowing in excess of three hours of
operation before the lithium-ion battery needs recharging.
The Flexineb has proven
itself useful when nebulizing
antibiotics, bronchodilators,
corticosteroids and mucolytics.
Medications must be prescribed
by veterinarians; end users
should follow the advice of
veterinarians at all times.
Cleaning is easy. Simply wash
with warm, soapy water.
Disinfecting is done by using
cold sterilization methods.
A standard 10 milliliters
medication cup is included. A 20
milliliter extension is provided to
facilitate volumes of up to 30
milliliters. No medication remains
in the cup after treatment.
Flexineb™ fits comfortably onto
the horse’s nose as a result of the
flexible material. An adjustable
control allows full control of the
exit valve, enabling the caregiver
to bypass the valve for easy
breathing or to facilitate
inhalation deep into
the lungs.
The transparent aerosol holding
chamber allows the user to see
the aerosol mist being generated
by the Flexineb™ technology,
in conjunction with the horse’s
breathing emptying the
chamber and receiving the
fine particle aerosol.
System accessories include an
AC/DC power supply to charge
the internal battery, along with
a user manual and a convenient
storage bag.
DRUGS VISIBILITY
ACCESSORIES
1. Portable, easy to assemble mask 2. Battery-operated controller 3. Nebulizer
CLEANING & DISINFECTING
THREE SIMPLE COMPONENTS
VOLUME OF MEDICATION
COMFORT & TOLERANCE
the flexineb™ system for horses
Does your horse suffer from respiratory problems, allergies, airway irritation and inflammation?
Would your horses improve their performance with clearer airways?
SIMPLE & INTEGRATED
Easy set-up and operation with no
hoses, cords or awkward valves.
RAPID 10 milliliters saline areosolized in
less than 12 minutes.
innovative equine nebulizer
SILENT Unlike most nebulizers.
ADAPTABLE For use with metered
dose inhalers.
SAVINGS On drug administration.
Although the FlexiNeb mask material is soft and exible, the front aerosol chamber and battery controller are made of hard plastic.
Therefore, caregivers should be mindful of the risk posed by the horse shaking its head when the FlexiNeb is tted on the animal.
© 2012 - Version 1.0

1
Just
Portable Equine Nebuliser System
INSTRUCTIONS FOR USE
Intended Use
The Flexineb®
is a portable equine nebuliser system intended to aerosolize veterinarian
prescribed liquid solutions into a fine mist for inhalation into the airways of the horse.
The end
user is liable for the
safe operation of the Flexineb® and its parts as outlined in the Instructions
for
Use. Medications must be prescribed by a veterinarian and end users should follow the
advice of their veterinarian at all times.
Safety Information
When
using the Flexineb® for the first time remember it is the first time for the horse too so
caution is advised. Softly
place the Flexineb® over the horse's nose and mouth with the bottom
exit valve
open so the horse can breathe normally. Push up until the nostrils are covered and a
seal is made
around the nose and mouth. Once the horse is breathing normally and is getting
used
to the Flexineb®, shut the bottom valve by twisting the exit valve and commence
treatment. If the
horse is resisting the mask be patient and let them look at it and smell it before
attempting
to fit the mask again. If the horse starts to get scared during treatment, slightly open
the
exit valve so more air is being inhaled. Close the valve again once the horse is relaxed.
In
an emergency situation the exit valve on the bottom of the mask can be pulled out to allow
the
horse breathe freely. Although the mask material is soft and flexible the front aerosol
chamber
and battery controller is hard plastic therefore caregivers should be mindful of the risk
posed
by the horse shaking its head with the Flexineb® fitted.
Meter Dose
Inhaler (not
supplied)
Adaptor
(supplied)
Instructions for Use
Flexineb Nebuliser (Fig. 1):
Flexineb MDI Use (Fig. 2):
Medication Cup
Controller
(Battery or Mains
Operated)
Inlet Valve
Aerosol
Chamber
Mask
®
2

2
Just
Intended Use
Safety Information
Meter Dose
Inhaler (not
supplied)
Adaptor
(supplied)
Instructions for Use
Flexineb Nebuliser (Fig. 1):
1.
Please read the Intended Use,Safety Information and Maintenance sections before
using Flexineb
2.
Check Inlet and Exit Valves are moving freely before placing the Mask on the horse
3.
Rotate and open the Vent at bottom of Mask to allow the horse become familiar with the device
4.
Fill the Medication Cup strictly following advice of your veterinarian
5.
Close the vent in the bottom of the Mask when the horse is familiar with the Mask
6.
Switch on the Controller and nebulisation will begin after a few seconds
7.
You will see the Aerosol Chamber fill with aerosol and empty when the horse inhales
8.
The Controller will time out after approximately 18 minutes or it can be switched off manually
9.
To re-charge the battery only use the Nortev supplied charger
Flexineb MDI Use (Fig. 2):
1.
Remove the Controller, Cable and Medication Cup
2.
Plug the supplied Adaptor into the port on top of the Aerosol Chamber
3.
Rotate the Aerosol Chamber to the horizontal position
4. Insert the MDI and administer medication following the advice of your veterinarian
Figure 1: Flexineb Nebuliser
Use
Figure 2: Flexineb MDI Use
Medication Cup
Exit Valve and Vent
Controller
(Battery or Mains
Operated)
Inlet Valve
Aerosol
Chamber
Mask
Short Strap
Long Strap
Cable
®
MS-052 Rev. 12 E nglish
2

3
Technical Information
Flow Rate:
Typically ≥1.0 ml/min with 0.9% NaCl solution. The flow rate is very dependent on the drug used.
Aerosol Droplet Size:
Typically 70% of particles generated are less than 5 microns VMD measured using Malvern
Spraytech with 0.9% NaCl solution. The aerosol droplet size is dependent on the drug used.
Medication Cup Volume:
The medication cup will hold 10ml of liquid but is expandable to 30ml using the plug in extension
cup supplied. The controller has a timer function therefore, if the extension cup is used the
controller will need to be re-started to complete the dose.
Battery Power:
Battery Type: 7.4V Li-ion rechargeable battery. Use the Nortev supplied battery only.
Use of another type of battery may present a risk of fire or explosion.
Operating Time: >3 hours from fully charged.
Battery Charging:
Use the Nortev supplied charger only. Use of an alternative charger may present a
risk of fire or explosion.
A fully discharged battery can take 4 to 5 hours to reach full charge.
Mains Power Supply:
The Flexineb™ can also be operated using the Power Supply provided with the system.
The same Power Supply charges the battery. Use the Nortev Power Supply only.
Use of an alternative Power Supply may present a risk of fire or explosion.
Environmental Conditions:
Operating: 5°C to 45°C and up to 95% RH
Storage and Transportation: -20°C to +45°C and 15% to 95% RH

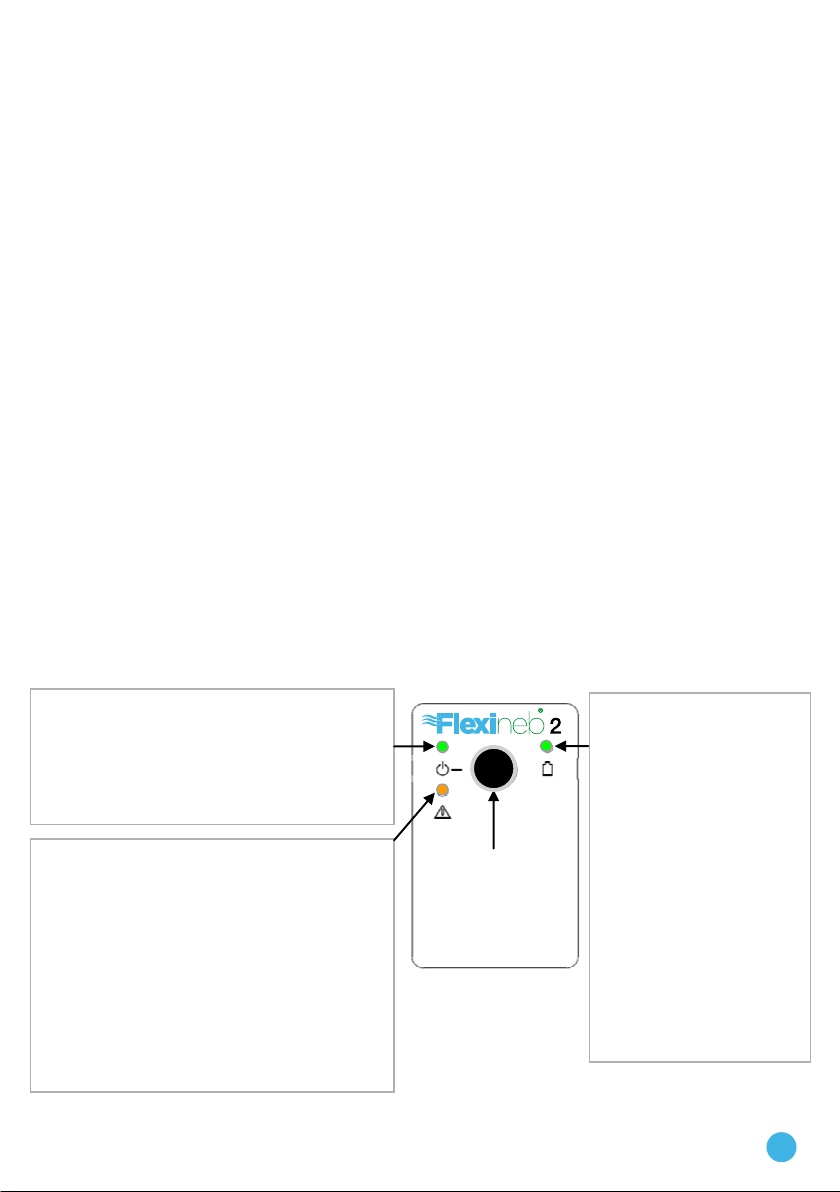

Controller Functions
Maintenance / Cleaning
Operation LED:
Green = System On
Constant Red=Low Battery Warning, typically
time left for one treatment before re-charging is
required.
Flashing Red = Battery is dead and you must re-
charge the battery to continue using the system.
Warning LED:
LED Flashes and Controller Powers Off means
there is a break in the electrical circuit. The
problem may be a disconnected or broken cable
or broken connection in the medication cup.
Check the connections or replace the broken
cable or medicatio n cup to fix the problem.
LED Constant On means an internal electronic
fault has occurred and the unit needs to be
returned for repair.
Contact your Customer Service line for advice.
Battery Charging LED:
Green means the Flexineb
charger is connected and
the battery is charging.
The Green LED wi ll turn off
when the battery has
reached full charge.
Full charging can take 4 to 5
ho urs if t he battery is
completely discharged.
If the battery cannot reach
full charge the LED will not
turn of f and the ba ttery may
need replacing.
A battery that cannot reach
full charge will give reduced
operation time.
On / Off Switch
MS-052 Rev. 12 E nglish
2

4
Technical Information
Controller Functions
Troubleshooting
Refer to www.nortev.com website for detailed information on troubleshooting Flexineb problems.
Maintenance / Cleaning
Medication Cup:
Cleaning: It is very important to wash out the Med Cup after each use to avoid contamination or damage
of the metallic vibrating mesh. Protect the electrical connector from getting wet when cleaning by using
the protective cap provided. To clean out the Med Cup open up the soft blue Cap and place 2-3 drops of
mild dishwashing liquid (do not use dishwasher detergent) into the Cup and fill with distilled water.
Close the soft blue Cap and shake the Cup vigorously for about 15 seconds and squeeze the soft Cap to
push water through the mesh whilst shaking. Open the Cap and rinse out from both sides with distilled
water. Shake off excess water and let air dry before re-use.
Disinfection: To disinfect the outside surfaces of the Med Cup use anti-bacterial wipes.
CAUTION:
Do not immerse the Med Cup in water or cleaning chemical solutions!
Do not nebulise or put chemical cleaning solutions inside the Cup as they may permanently
damage the metallic mesh or reduce its life!
Do not use sharp instruments to clean the metallic mesh in the Med Cup!
For continuity of treatment it is highly recommended to carry spare Med Cups!
Mask:
Cleaning: The Mask can be washed using clean warm tap water with some dish washing up liquid.
Rinse off with warm clean tap water and dry off before re-use.
Disinfection: First disassemble all parts of the Mask and wash them thoroughly with clean warm tap
water and dish washing up liquid. Rinse the parts off and let them air dry on a clean dry surface.
Disinfect each part by wiping down thoroughly with anti-bacterial wipes before re-assembly.
Alternatively the Mask parts can be soaked in Nortev approved disinfectant chemicals.
Refer to separate information sheet or www.nortev.com for details on recommended disinfectants.
Check www.nortev.com for updates and video instructions on Cleaning & Disinfecting Flexineb.
Controller: To maintain the function of the electronic controller it must be used and stored in dry conditions.
To maintain the battery function it must be charged when the Operation LED turns Red.
CAUTION:
Do not immerse the controller in water or any liquid as this will permanently damage the electronics!
Warranty
Mask Assembly (excluding valves), Controller (excluding battery) and Cable, Power Supply (charger): 24
months. Battery: 6 months. The Medication Cup is a wearing part and its life is very dependent on drugs
nebulised and how well it is maintained therefore it is not covered by warranty.
Damage caused by improper handling or misuse is not covered by warranty.
Compliance
Flexineb complies with the essential requirements of all relevant European Directives and Harmonised
Standards
Customer Service [phone] or email [e-mail] or contact your local distributor
To order replacement parts contact your local distributor or visit our online shop at www.nortev.com
Postal Address:Nortev Limited, Unit 18, Corporate Park, Claregalway, Co. Galway, Ireland
Check the connections or replace the broken
cable or medicatio n cup to fix the problem.
On / Off Switch
MS-052 Rev. 12 E nglish
2
MS-248 Rev. 00 English
Nortev Limited, Unit 18, Claregalway Corporate Park, Claregalway, Co. Galway, Ireland

MS-228 REV 01
™
Medication Cup Cleaning Instructions
Medicación Instrucciones de limpieza de la Copa
Spare Medication Cups:
It is highly recommended to have spare medication cups on hand to ensure continuity of treatment.
Spare medication cups may be purchased by calling 1.800.525.4339
Perdona Copas para la medicina:
Es muy recomendable tener tazas medicación repuesto a mano para garantizar la continuidad del
tratamiento. Tazas medicación repuesto se pueden comprar llamando al 1.800.525.4339
Use a clean tub and dishwashing liquid.
Utilice una tina limpia y detergente para
platos.
Add a few drops of dishwashing liquid.
Añadir unas gotas de detergente
líquido.
Use clean warm water.
Use agua tibia y limpia.
Rinse both sides with clean water.
Enjuague ambos lados con agua
limpia.
Rinse the med cup thoroughly.
Enjuague bien la copa med.
Add the protective cap.
Añadir la tapa de protección.
1
2
3
4
5
6
