Hayward Sense and Dispense User manual

Hayward Pool Products
620 Division Street, Elizabeth NJ 07207
www.hayward.com
Sense and Dispense
ORP and pH Sensing Kit for OmniLogic
Owner's Manual
HL-CHEM
Contents
Description............................1
Installation............................2
Operation............................13
Maintenance....................... 17
Warranty..............................18
092537 RevA
TM
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Hayward could void the user’s authority to oper-
ate this equipment.
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio / TV technician for help.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The term “IC” before the certification / registration number only signifies that the Industry Canada
technical specifications were met.
Description
The HL-CHEM is an ORP and pH sensing kit that is offered as an accessory for all OmniLogic®pool
automation controls. With the HL-CHEM, the OmniLogic can provide a fully integrated chemistry
solution for your pool. The HL-CHEM continuously tests the pool's sanitization and pH levels al-
lowing the OmniLogic to automatically generate the correct amount of chlorine and dispense the
proper amount of pH reducer. Together, they provide an automated system controlling both sanitiza-
tion and pH balance.
The HL-CHEM comes with two pigtails (120 VAC and 240 VAC) for connection to a pH reducing
device like a peristaltic pump or solenoid valve (not included) that requires a line cord receptacle.
For easy integration, Hayward offers the AQL-CHEM2 (120 VAC) and AQL-CHEM2-240 (240 VAC)
CO2dispense kit that plugs into the pigtail and will reduce the pool's pH level by injecting CO2into
the pool water.
1
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

What's Included
The HL-CHEM comes with everything needed to allow the OmniLogic to sense ORP and pH levels.
The following is a description of the included components:
Professional Grade ORP probe - Samples water from the pool filtration system and sends signals
to the OmniLogic indicating the oxidation-reduction potential (redox) of the pool water. ORP is an
actual measurement of sanitizer activity and bacteriological water quality rather than an expres-
sion of chemical residual levels. ORP is not fooled by the effects of pH, TDS (total dissolved solids)
and other factors giving a more accurate measurement of the effectiveness of chlorine and water
quality.
Professional Grade pH probe - Samples water from the pool filtration system and sends signals to
the OmniLogic indicating the acidity of the water. When used with a Hayward AQL-CHEM2 or other
pH dispensing device, the OmniLogic can keep the pool water's pH level balanced.
Probe Cell - The Probe Cell is used to house the probes and provide a location for water collection
and testing. Two hoses are provided to connect the Probe Cell to the supply and return sides of the
pool filtration system. The Probe Cell can be mounted directly to the OmniLogic or remote mounted
in the vicinity of the control (restricted by the length of the probe wiring).
pH Dispense Pigtails - The pH Dispense pigtails provide a plug-in receptacle for the AQL-CHEM2,
AQL-CHEM2-240 or other pH related dispensing device (peristaltic pumps, solenoid valves, etc.)
that will be controlled by the OmniLogic.
Various Hardware - The HL-CHEM includes the necessary tubing, tubing connectors and mounting
hardware to complete the installation.
Compatibility
The HL-CHEM is compatible with the OmniLogic pool control. An AQL-CL chemistry kit must be
used with the OmniLogic if automatic chlorine generation is desired.
Installation
DANGER of Death, Injury or Property Damage if procedure not followed. This accessory
connects to the OmniLogic panel beneath the dead front. Dead front removal is required for this
installation. Power to the OmniLogic panel MUST be shut off before the dead front is removed. This
means a complete shutdown of power to the entire OmniLogic panel
Overview
Installing the HL-CHEM requires the following steps:
• MountingtheProbeCell
• PlumbingtheProbeCell
• InstallingORPandpHprobes
• WiringprobestoProbeCellcommunicationbox
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2

• WiringtheProbeCelltotheOmniLogic
• WiringthepHDispensePigtailtotheOmniLogic
• ConguringtheOmniLogic
• ValidatingOperation
• EstablishingMaintenanceSchedule
Materials Needed for Installation
• 7/16”drillbit
• ¼”NPTtap
• TwosmalladjustablewrenchesifsidemountingtoOmniLogic
• 3/16”drillbitifsidemountingtoOmniLogic
• Deburringtoolorleifsidemounting
• Mountinghardwareifsurfacemounting(notsidemounting)
• Flextubingcutter
• Water-tightstrainrelieffordispensepigtail
• Flatheadscrewdriverandmallettoremoveknock-outandinstallstrainrelief
• 120VACGroundFaultCircuitBreaker(GFCB)forpowering120VACdispensepigtailor
 240VAC(GFCB)forpowering240VACdispensepigtail
• Extrawire,wirestrippers,andwirenutscouldbehelpfulinsomeinstallations
• Anyitemsthatwouldberequiredforwiringandinstallationperlocalcode
Before carrying out any part of the installation, you MUST power down the OmniLogic panel. If the
pool filter pump is not powered from the OmniLogic, it MUST be powered down separately. This
will relieve pressure in the pool filtration system.
Mounting the Probe Cell
The Probe Cell can be mounted directly on the side of the OmniLogic or mounted up to 15' away
(limited by length of Probe Cell cable). When mounting remotely, take into account the amount of
cable needed to route through the OmniLogic.
The key to successful Probe Cell installation is in the plumbing. A pressure differential is required
to allow clean, untreated water to pass through the cell and across the probes. Consider this when
looking for an ideal mounting location.
Side Mounting: Side mounting the HL-CHEM will require drilling 3 mounting holes through the
"dimples" found on the side of the OmniLogic enclosure. Refer to the diagram and steps below.
OmniLogic power must be shut off before the enclosure can be drilled.
1) Remove door and front panel.
2) Usea3/16"dia.drillbitanddrillthroughthethree"dimples"onthesideoftheenclosure.
Take care that any wires behind the enclosure wall are clear and will not be damaged by the
drill bit.
3) After the holes are drilled, grind or file down any burrs and brush away any metal chips.
4) Route Probe Cell cable through access hole at bottom of Probe Cell mounting bracket.
5) Use the included stainless steel hardware to fasten the HL-CHEM to the OmniLogic as shown
on the top of the following page.
3
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Surface mounting: The Probe Cell can be mounted up to 15' away from the OmniLogic (limited by
length and routing of cable). Use the four mounting holes on the back of the bracket when surfac-
ing mounting. Common wood screws can be used for most applications.

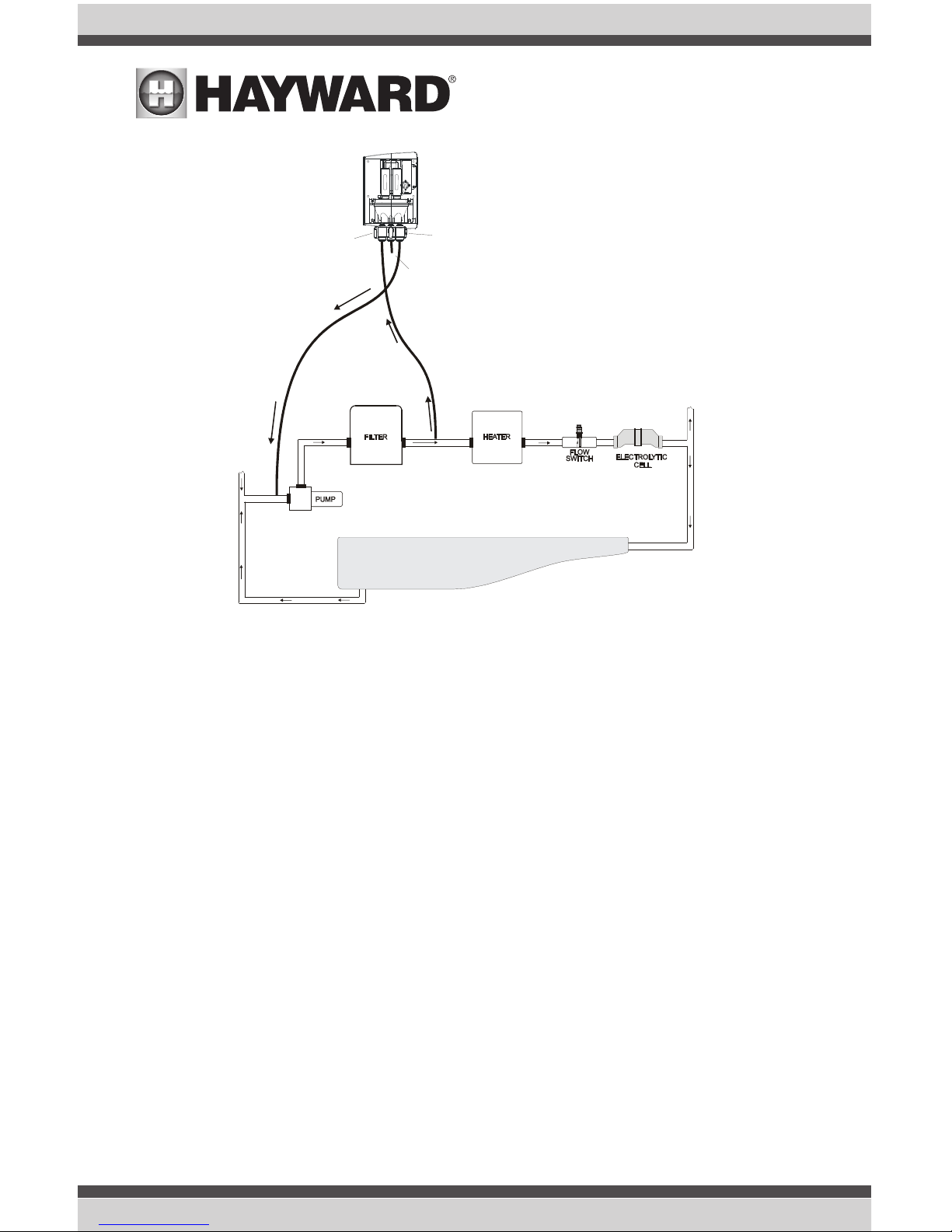

Plumbing the Probe Cell to the pool plumbing
The Probe Cell requires connection to the pool plumbing using the supplied flex tubing. Two ports
on the Probe Cell, influent and effluent, are connected to the supply and return sides of the pool
plumbing. Refer to diagram on th following page as well as the instructions.
Use remote
mounting holes
when surface mounting.
Route probe cell cable
through access hole
BEFORE mounting.
metal washer
rubber
washer
OmniLogic
enclosure wall
HL-CHEM
bracket wall
Side Mounting
HL-CHEM
Zip Tie and store extra
cable length here
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
4

Drillandtapa¼"NPTholeusinga7/16"drillbitonthereturnsideofthepoolplumbingataloca-
tion just downstream of the filter, but upstream from the AQL-CL Electrolytic Cell. Use caution not
to tap tapered threads too deeply. Using teflon plumber's tape, install a tubing connector into the
hole. Run flex tubing from the tubing connector to the influent Probe Cell port. Push the flex tubing
all the way into the pressure fitting to seat.
Drillandtapanother¼"NPTholeonthesupplysideofthepoolplumbing.Usecautionnottotap
tapered threads too deeply. Using teflon plumber's tape, install the remaining tubing connector and
run flex tubing to the effluent Probe Cell port. Push the flex tubing all the way into the pressure
fitting to seat.
Cut a 3" length of flex tubing and insert it into the sample stream port. This port can be used to
draw water samples if needed.
If flex tubing needs to be replaced, use only 3/8” UV-resistant cross-linked polyethylene tubing
(PEX).
Installing ORP and pH probes to the Probe Cell
The ORP and pH probes are shipped "wet" in plastic storage caps. It's very important that the
probes remain wet at all times. If the probes are allowed to dry out, they will fail and the HL-CHEM
will be ineffective. After installation, the Probe Cell will ensure that the probes are constantly
exposed to pool water. During periods when the filter pump is off (even extended periods), there
should be sufficient moisture remaining in the Probe Cell to ensure that the probes are protected.
Remove the ORP and pH probes from their plastic storage caps and save the caps for future use.
FROM
POOL
FROM
SPA RETURN
TO POOL
RETURN
TO SPA
POOL
Influent
Port
Effluent
Port
Sample
Stream
Port
5
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

pH
Probe
ORP
Probe
apply teflon
plumber's tape
to threads
To ensure that the probes continue to remain wet,
fill the Probe Cell with pool water before installing
the probes. Apply a length of plumber's tape to
the probe threads. Hand-tighten the probes only.
At startup, check for leaks. If probe leaks, do not
tighten more—instead remove and re-apply new
Teflon tape.

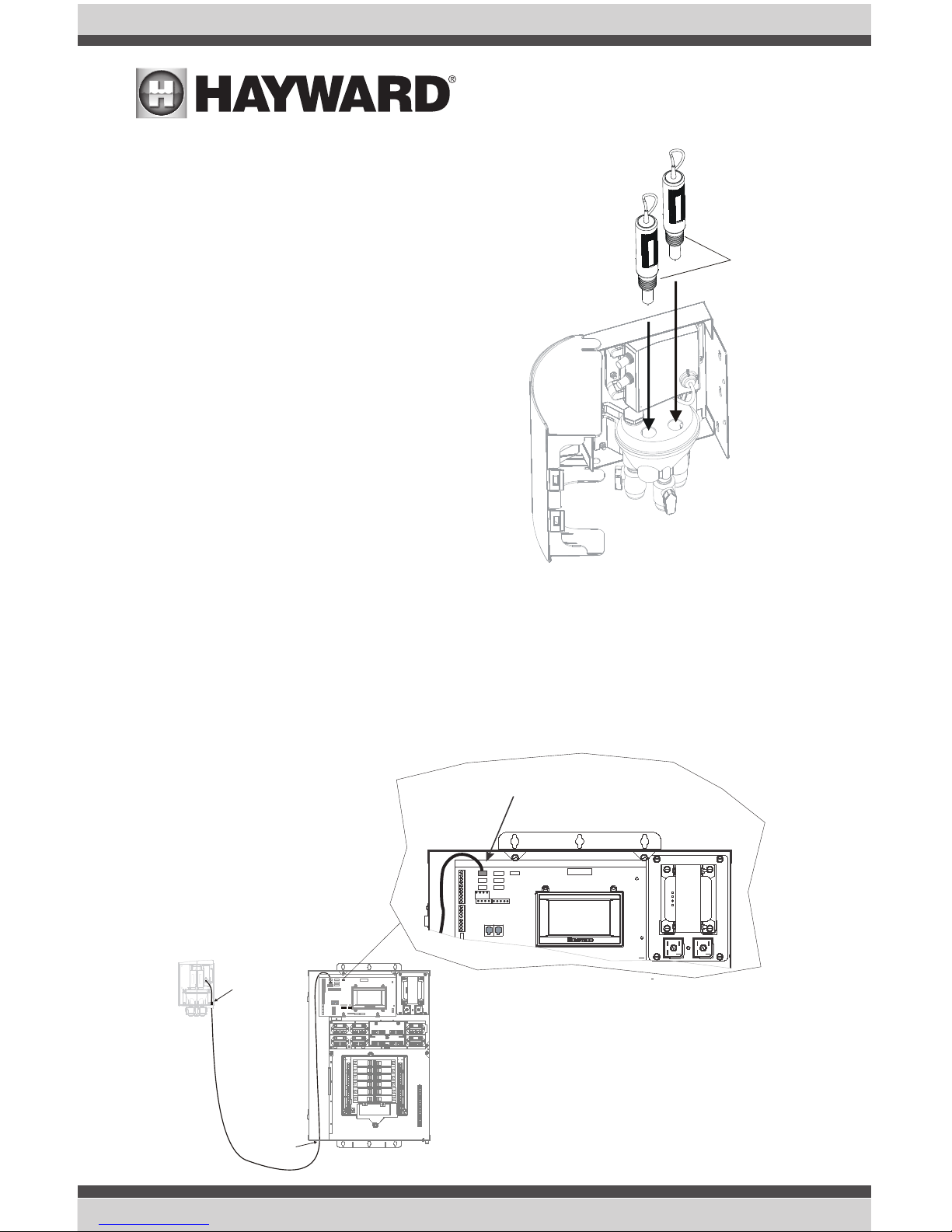

Wiring the probes to the Probe Cell
Both probes must be wired to the communica-
tion box within the Probe Cell. The probe cables
use typical BNC connectors that attach to the
designated connectors on the communication box.
Refer to the label on the communication box for
the appropriate connections. Push the connectors
in and turn clockwise until locked. After connect-
ing, route the wires in a manner where they will
not interfere with the door of the Probe Cell. Save
BNC connector protective covers for future use.
Connect Probe Cell cable here
Route cable
through
access hole
Route
though
knockout
Wiring the Probe Cell to the OmniLogic
With power off to the OmniLogic, remove the dead front to expose the main board. Route the Probe
Cell cable through an available knockout, along the low voltage channel and make the proper con-
nection to the low speed RS-485 bus (4 pin connector) as shown below. When side mounting the
Probe Cell, route the cable through the access hole at the bottom of the mounting bracket BEFORE
screwing the bracket in place.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
6

Wiring the Pigtail or pH Dispensing Device
Two pigtails (120 VAC and 240 VAC) are included with the HL-CHEM sensing kit to be used with
pH dispensing devices (peristaltic pumps, solenoid valves, etc.) that require a plug-in receptacle,
including the Hayward AQL-CHEM2 and AQL-CHEM2-240. If your pH dispensing device will be
direct wired (hard wired), the pigtail is not necessary.
WARNING: Follow local codes for pigtail installation. Installation may require retrofitting a weather-
tight outlet and plug to the pigtail and dispense hardware (such as Cooper WaterTight or similar
connectors) or weather proof junction box.

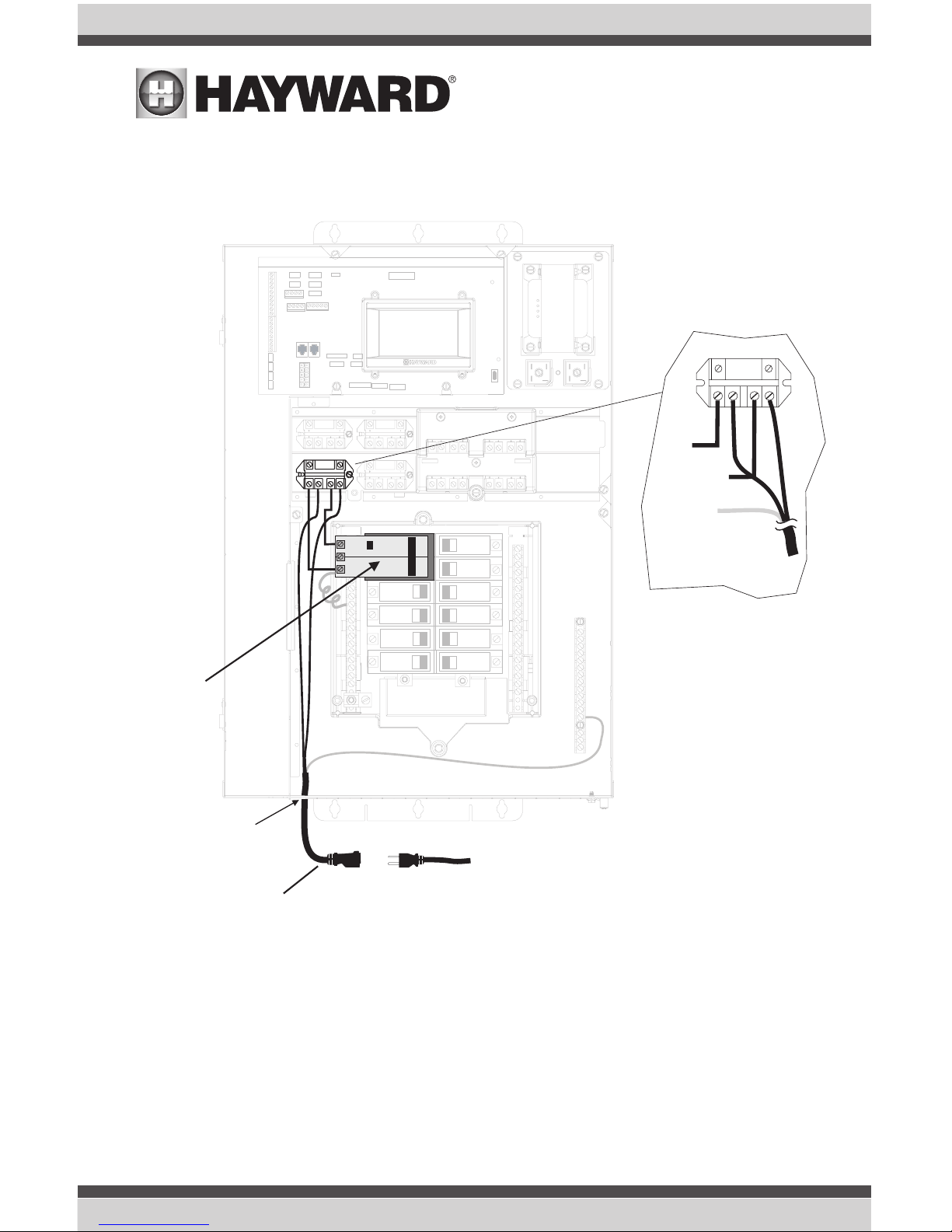

NOTE: The OmniLogic can use either a 120 VAC or 240 VAC pH dispensing device. Wire the pigtail
or device directly to any of the OmniLogic relays. Provide the proper input voltage to the line side
of the relay. For 120 VAC, refer to the diagram below. For 240 VAC, refer to the diagram on page
8.
7
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

240 VAC
GFCB
240 VACpH dispense Pigtail
(included with HL-CHEM)
use watertight
strain relief here
Line 1
from GFCB
Line 2
from GFCB
to Ground
Pigtail
to AQL-CHEM2
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
8
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

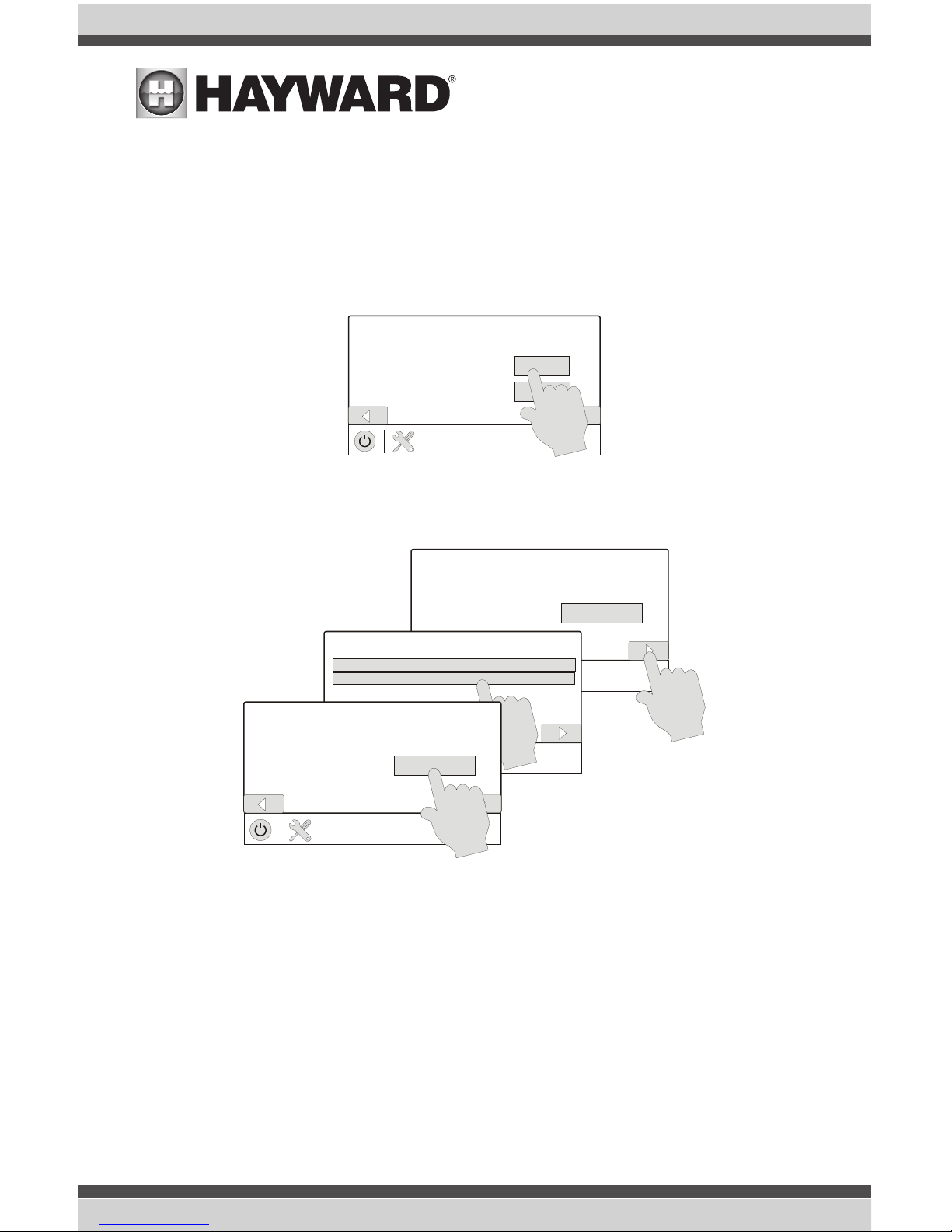

Configuring the OmniLogic
After the HL-CHEM is mounted, plumbed and wired, the OmniLogic must be configured to use the
HL-CHEM.
ReplacethedeadfrontandrestorepowertotheOmniLogic.AttheHOMEscreen,gotoCONFIGU-
RATIONintheBACKYARDSCREENS.EntertheCONFIGURATIONWIZARDandadvancethroughthe
menus until you see the screen below.
After selecting "Yes", the HL-CHEM will be automatically discovered and you'll be prompted to
select a unique address.
Pressing the box will bring you to a table which shows a list of connected devices. Selecting the
HL-CHEM from this table will automatically configure the OmniLogic to use the proper address.
The HL-CHEM is now ready to be configured. You'll be presented with a series of screens that will
require you to input desired operating parameters and settings. Refer to the related information on
the following pages as you progress through the screens.
YES
POOL
configuration
Do You Have a Sense &
Dispense Module?
NO
POOL
configuration
Which Hayward Unique
Address?
5010000001
Chemistry Sensing Module
POOL
configuration
Select Device
HUA Device Name Device Type
501000001 Legacy Chemistry Sense Chemistry Sense
POOL
configuration
Which Hayward Unique
Address?
Chemistry Sensing Module
9
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

ORP Control
A Hayward AQL-CL Chlorination Kit is needed if chlorine generation is desired.
If "Yes" is selected (AQL-CL Chlorination Kit must be used): You'll automatically be asked to config-
ure ORP settings as shown below. The OmniLogic refers to the ORP level in the pool and automati-
cally adjusts chlorine output to maintain the desired level.
If "No" is selected, and a AQL-CL Chlorination Kit is used: After answering "No", you'll be asked
ifaSaltWaterChlorineGeneratorwillbeused.Ifyouanswer"Yes"tothis,you'llbepromptedto
enter a run time %. The OmniLogic will generate chlorine for this % of time during the filter cycle.
Chlorine output is based on this manual setting only. ORP level is not used to control the chlorinator
output.
If "No" is selected, and a AQL-CL Chlorination Kit is NOT used: After answering "No", you'll be
askedifaSaltWaterChlorineGeneratorwillbeused.Whenyouanswer"No",you'lladvance
directly to pH configuration.

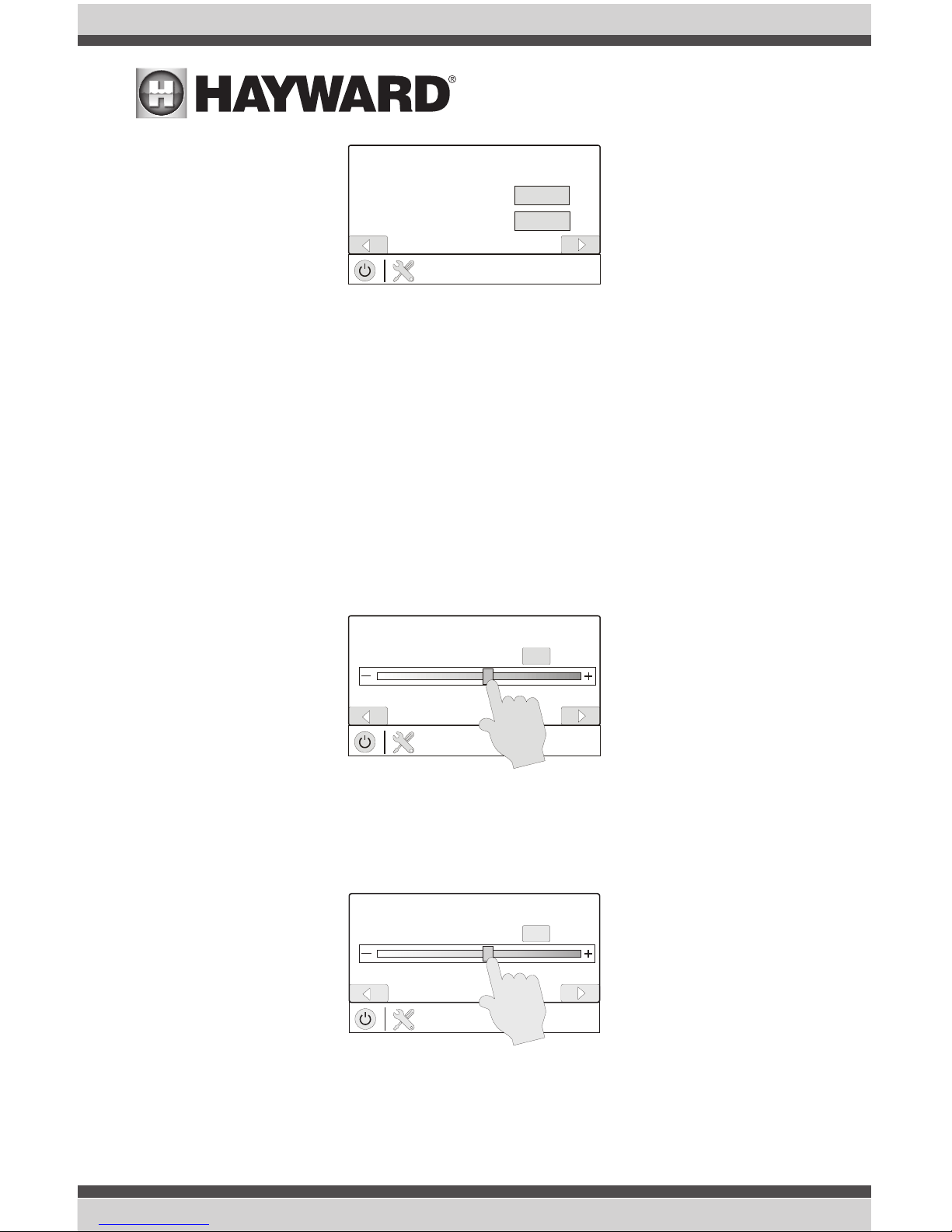

ORP Setpoint
Refer to "Controlling ORP with the OmniLogic" on page 15 for tips on determining the ORP setpoint
(650mVdefault).TheHL-CHEMwillmeasurethepool'sORPandgeneratemoreorlesschlorineto
maintain the setpoint setting. Note that the OmniLogic will attempt to maintain this level but typi-
cally the pool's ORP level will vary above this value during normal operation. The adjustable range
is from 400mV to 900mV in 5mV increments.
ORP Timeout
To protect the pool, the OmniLogic control will automatically shut down ORP control and display an
alarm if the HL-CHEM runs continuously for more than the selected timeout value. This prevents a
situation where the OmniLogic is constantly feeding chlorine because of a probe error or external
problem with the pool. It allows the pool owner to evaluate the pool chemistry before continuing
with ORP control. Select the desired timeout value.
YES
POOL
configuration
Does ORP Control Chlorination?
NO
ORP
650
POOL
configuration
ORP Setpoint mV
ORP
47
POOL
configuration
ORP Timeout Hrs
ORP
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
10

Select Cell
The OmniLogic can use the following Hayward TurboCells:
• T-CELL-15-selectwhenusingT-CELL-15(inc.withAQL-CL),GLX-CELL-15-W
• T-CELL-9-selectwhenusingT-CELL-9,GLX-CELL-9-W
• T-CELL-3-selectwhenusingT-CELL-3,GLX-CELL-3-W
• T-CELL-5-selectwhenusingGLX-CELL-5,GLX-CELL-5-W
NOTE: Use of a non-genuine Hayward replacement salt chlorination cell on any Hayward automation or chlori-
nation product will void the warranty for that product and could potentially damage the unit.
TurboCell Location
Like the HL-CHEM, the TurboCell will automatically be sensed and you will be prompted to select
the proper location. Follow the same procedure as shown on page 9.
pH Control
If automatic pH reduction is desired, a dispensing device must be connected to one of the relays in
the OmniLogic. If so, select "Yes" and configure pH reduction with the following screens.
Acid or CO2
Select the type of pH reduction that will be used.
POOL
configuration
ORP
T-CELL-15
Type of Cell?
POOL
configuration
ORP
CHLR1
Where is the Cell Located
Is pH Reduction Enabled?
YES
POOL
configuration
NO
pH
Are You Using Acid or Co2?
ACID
POOL
configuration
Co2
pH
11
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Number of Dispensers
Select the number of dispensers that are wired to the OmniLogic.
Relay Device Name
Configure the OmniLogic to use the acid or CO2dispenser by selecting the relay that is wired to the
dispenser.
pH Setpoint
Enter the desired pH level. The OmniLogic will dispense CO2or acid when necessary to maintain
thislevel.Theadjustablerangeisfrom7to8in0.1increments.
POOL
configuration
7. 6
pH Setpoint
pH
POOL
configuration
ENTER
value
7.6
123
456.
7890
POOL
configuration
7. 2
pH Setpoint
pH
How ManyAcid/Co2
Dispensers?
POOL
configuration
pH
1
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
12

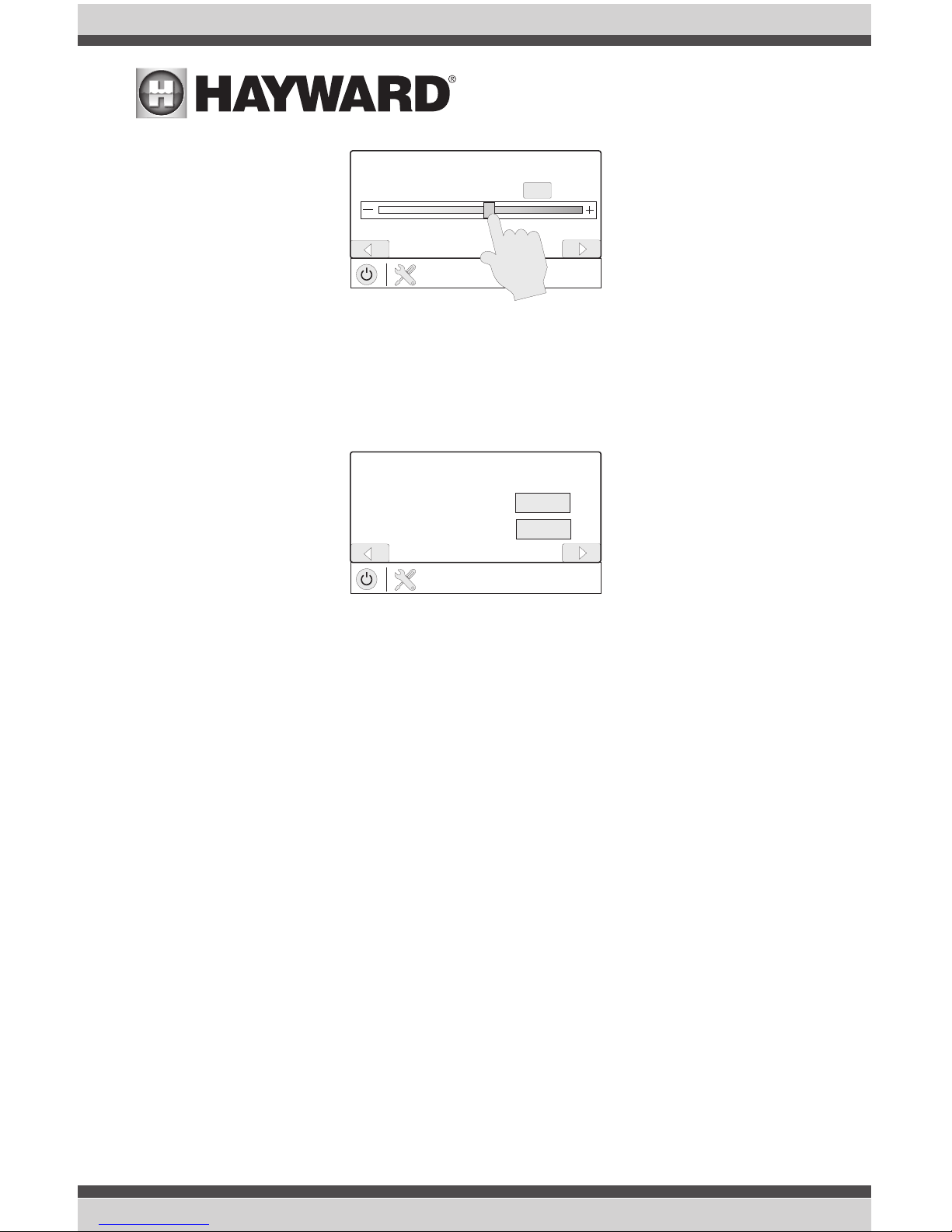

pH Timeout
To protect the pool, the OmniLogic control will automatically shut down pH control and display an
alarm if the HL-CHEM runs continuously for more than the selected timeout value. This prevents a
situation where the OmniLogic is constantly feeding acid or CO2because of a probe error or exter-
nal problem with the pool. It allows the pool owner to evaluate the pool chemistry before continu-
ing with pH control. The selectable range is 1-120 minutes.
pH Extend
When pH Extend is enabled, the OmniLogic control will keep the pool filter pump on regardless of
its timer settings until the pH level is within its programmed parameters. The pump will continue to
run and acid or CO2will continue to dispense until the programmed levels are reached. When the
pH level reaches the setpoint, the pump will be allowed to go back to automatic control.
Operation
Before operating the HL-CHEM, test and adjust the pool water chemistry to the recommended
levels shown in the OmniLogic Owner's Manuals. This is an important step and is crucial to the
successful operation of the HL-CHEM. If using salt chlorination, adjust salt to recommended levels.
Alarms
AfterexitingtheCONFIGURATIONWIZARD,alarmsforbothORPandpHwillbeenabled.Toview
alarms, click on the ALARM icon found in the BACKYARD SCREENS. Refer to the OmniLogic manual
for more information about alarms.
ORP Alarm
The OmniLogic will automatically set a high and low alarm for the ORP level. The high alarm point
is 850mV and the low alarm point is 350mV. If the ORP level meets or exceeds these points, an
alarm message will display locally and on all remote controls. Also, if the ORP level is too high,
chlorine generation will shut down.
60
POOL
configuration
pH Dispensing Timeout Mins
pH
pH Extend Enabled?
YES
POOL
configuration
NO
pH
13
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

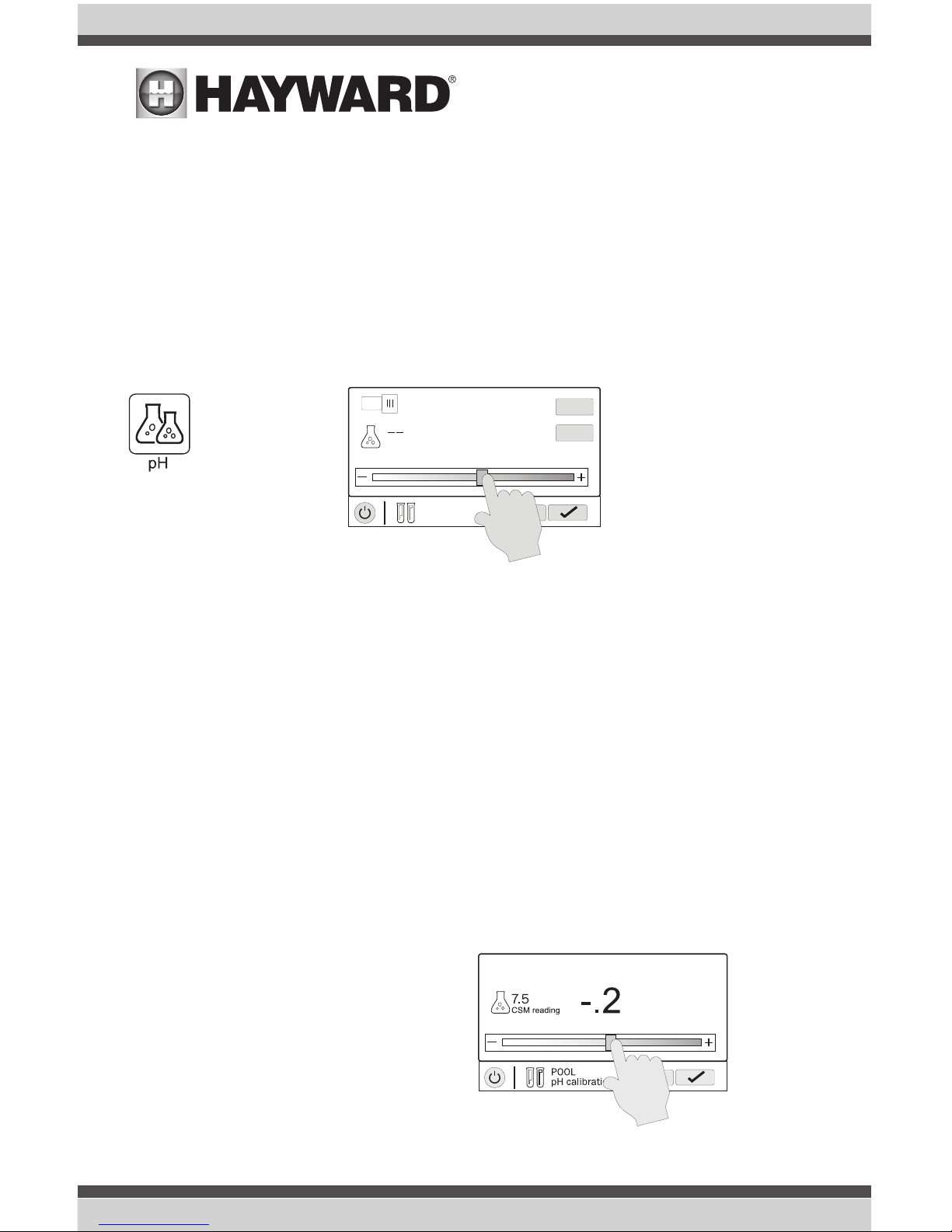

pH Alarm
The OmniLogic will automatically set a high and low alarm for the pH level. The high alarm point is
8.1andthelowalarmpointis6.9.
Settings
Although initial settings were entered during configuration, changes may be desired as pool
conditions change. To quickly display and change settings, select the desired Body of Water at the
HOMESCREENthengototheSETTINGSSCREEN.Selectthefollowing:
pH Setting Adjustsetpointfrom7.0to8.0.
On/Off Enable and disable pH dispensing.
Force pH reducer is added for 15 minutes regardless of pH level and then automatically
goes to Auto Sensing mode. This mode is helpful when setting up and testing the
AQL-CHEM2(-240) or other automatic dispenser.
Calib pH Calibration should take place at initial setup and periodically when the pH read-
out doesn't match tested values.
To calibrate the pH probe, test the pH of the pool water with a dependable qual-
ity test kit after the pool pump has been running for a period of time. Hayward
suggests that you take more than one test and average the results before using
the value to calibrate. Compare this result to the current pH reading and enter the
offset amount. If the tested value is lower than the current reading, the offset will be
negative. If greater, the offset will be positive. Refer to the example below.
 CurrentpHreading:7.5.
 Averageoftestedreadings:7.3.
 Offset:7.3-7.5=-.2
POOL
pH
FORCE
CALIB
pH 7.3
ON
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14

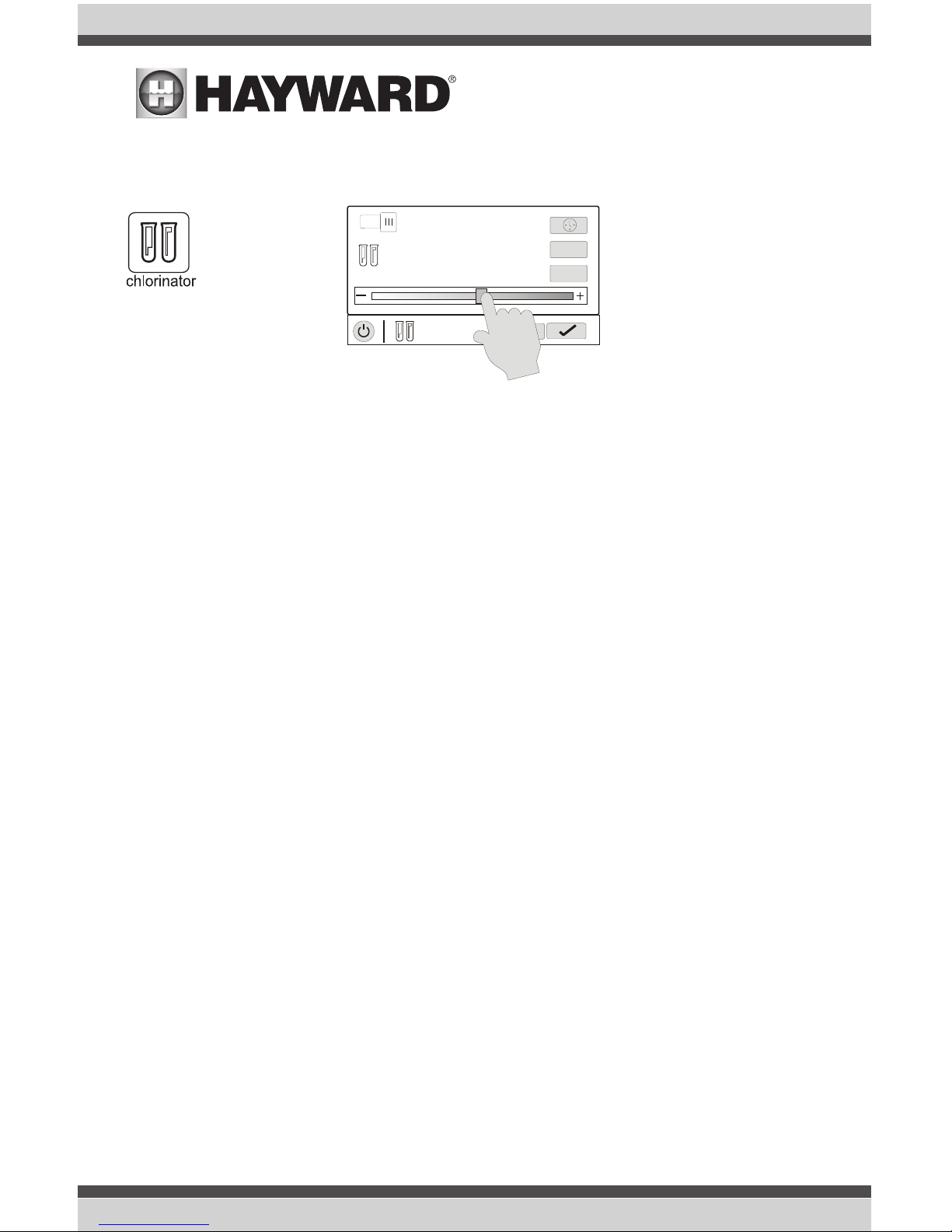

ORP Setting If ORP controls chlorination (page 10), adjust setpoint from 400mV to 900mV. If
ORP does not control chlorination, adjust from 0% to 100%.
On/Off Enable and disable ORP sensing and chlorine generation.
Schedule Enable and disable chlorine generation based on time. You can set a unique sched-
ule for the chlorinator that will override filter pump settings. See the OmniLogic
manual for details on how to create schedules.
SC Superchlorinate allows you to select a continuous run time for maximum chlorina-
tion.Selectaruntimebetween0-96hours.TheOmniLogicwilloverridepump
schedules and generate chlorine continuously for this amount of time.
Diag Displays electrical diagnostics for the Turbo Cell.
Controlling ORP with the OmniLogic
Follow these steps to adjust the desired ORP level:
1. IMPORTANT: Balance the pool water to the ideal levels shown in the OmniLogic manuals,
including pH, total alkalinity, cyanuric acid, hardness and salt level.
2. Adjust the chlorine to the ideal level as well; e.g. 1-3 ppm free chlorine. This chlorine level is
what we want to maintain.
3. Afterallowingthesystemtorunfor30-60minutes,observewhattheSenseandDispense
system reports as the pool water ORP level.
4. Set the ORP setpoint setting to this reported ORP level.
5. Monitor the free chlorine and ORP every day for 1 week. If adjustments to the ORP setpoint
areneeded,makeadjustmentsinincrementsof10or20mVunits—LARGEADJUSTMENTS
OF THE ORP SETPOINT SHOULD NOT BE NECESSARY IF YOU STARTED WITH A BALANCED
DIAG
POOL
chlorinator
SC
average
50%
ON
15
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

POOL THAT HAD THE PROPER AMOUNT OF FREE CHLORINE.
6. Ifthesystemisnotstabilizing(ordoesnotseemtobestabilizing)thereare3thingsyoucan
do:
a. Clean the probe
b. Rebalance the pool –including the free chlorine level
c. Check for combined chlorine—if high (>0.5ppm), shock treat with chlorine or non-
chlorine shock
Controlling pH with the OmniLogic
Plaster pools and pools serviced by salt-chlorine generators typically cause a slow pH rise which
must be managed. With the Sense and Dispense technology, CO2or acid is dispensed into the
filter system’s return water as needed until the pH probe reports proper pH level.
The Hayward AQL-CHEM2(-240) are CO2dispensing systems that eliminate the need to handle
acid and are economical and efficient methods for effective pH control. When the CO2gas is
injected into water, it dissolves and becomes carbonic acid, a weak acid that is very effective at
lowering pH but becomes self-limiting if over-fed.
CAUTION: IF YOU CHOOSE AN ACID FEEDER FOR pH CONTROL, additional safety precautions are
requiredtoensurethatanequipmentmalfunctionisdetected.Greatcaremustbetakenwhenin-
stalling, maintaining and operating acid pump feed systems. Acid is dangerous to handle, and will
harm people and equipment if not properly contained, transported, poured, stored, and dispensed.
CAUTION: Equipment failure can potentially cause too much acid to be dispensed into the water,
causing an equipment and health hazard which would not be detectable without the use of inde-
pendent pH measurement.
• Alwaysusea4:1dilutionintheacidfeedsystem.
• CAUTION:Topreventaviolentreaction,ALWAYSADDACIDTOWATER,neveraddwatertoacid
to dilute it. Some use the rhyme “Remember, do as you oughta- add acid to water”
• Strictlyfollowtheacidvendor’ssafetyandhandlingprotocolsincludinghand,bodyandeye
protection when transferring or handling acid.
• Choosea5gallonperdayacidfeedpumptokeepowratelow.
• Limittheavailableacidreservoirto1gallonper15,000gallonsofwater.Thislimitstheavail-
able acid in the event that equipment malfunctions and empties the tank into the pool or spa.
• OnlyaproperlyinstalledandmaintainedsystemwillcontrolthepHandsanitizerlevelsofthe
water.
• WARNING:Ifacidisnotdilutedproperlyorthefeedpumpisoversized,itwillovershootthepH
correction.
• Atleastmonthly,useanindependentpHandchlorinetestkittoverifythatpHandchlorineare
at a safe level. If the probes are broken, depleted, dirty, fouled with oils, lotions, or other con-
taminants, they can report inaccurate result to the system causing incorrect water chemistry,
which at worst, could harm people or equipment.
• ChecktheOmniLogic’sdisplayeachdaybeforeenteringthewater.Ifthereisanalarm,follow
the troubleshooting guide to understand and rectify the condition. If the display is blank, or
reporting a communications error, troubleshoot the equipment and rectify the failure before
entering the water.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
16

• Followtheinstallationchecklisttoverifyproperoperationuponinstallationandatthebegin-
ning of each pool season.
Maintenance
Water Chemistry
Always test water chemistry with a quality manual test kit. The HL-CHEM provides instrument
grade accuracy which exceeds that of most liquid-standard water testing kits. Therefore, it may be
preferable to calibrate pH using commercially available reference solutions. Calibrate pH periodi-
cally using the method described earlier in this manual. It's important to note that changes in pH,
cyanuric acid concentration, total dissolved solids, and use of additional or alternative sanitizers will
all affect the primary sanitizer residual level relative to ORP. Maintain total alkalinity on a regular
basis to ensure pH stability. To maintain a consistent sanitizer residual in parts per million (ppm),
periodically adjust the ORP level.
Probe Maintenance
The probes must be clean and free from oil, chemical deposits and contamination to function
properly. After saturation in pool or spa water, the probes may need to be cleaned on a weekly or
monthly basis depending on bather load and other pool specific characteristics. Slow response,
increased need to calibrate pH, and inconsistent readings are indications that the probes are in
need of cleaning.
To clean the probes without running the Wizard, turn off input power to the OmniLogic. Disconnect
the probe connectors from the communication box, unscrew the probe and carefully remove them
from the Probe Cell. Clean the reference junction (the white ring at the bottom of the probe body)
with a soft toothbrush and regular tooth paste. A household liquid dishwashing detergent may also
be used to remove any oil. Rinse with fresh water, replace teflon tape on threads and reinstall
probes. If properly cleaned probes continue to provide unstable readings or require excessive
calibration, the probes should be replaced.
Probe Storage
Exposure to atmospheric conditions will cause the probe tips to dry out. Store the probes with the
included plastic probe storage caps if removed from the Probe Cell for more than one hour. If the
storage caps have been misplaced, store the probes individually in small glass or plastic containers
with clean water covering the probe tips. Store probes in a location that will not be subjected to
freezing temperatures.
Winterizing
The HL-CHEM probes must be protected from freezing conditions. If the pool is winterized, plan to
remove and store the probes (as described above) as part of the normal pool winterizing process.
The Probe Cell and related plumbing must be drained as well. BNC connectors should be capped
with the original protective covers. A winterizing kit with probe caps, BNC covers, and other neces-
sary winterizing accessories is available to replace any missing items. Contact your local Hayward
dealer for more information.
17
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

LIMITED WARRANTY (effective 03/01/12) Hayward warrants its Pro Logic, OnCommand and E-Command
pool automation products as well as its Aqua Rite, Aqua Rite Pro, Aqua Plus and SwimPure chlorination
products to be free of defects in materials and workmanship, under normal use and service, for a period
of three (3) years. Hayward also warrants its Aqua Trol chlorination products to be free of defects in
materials and workmanship, under normal use and service for a period of one (1) year. These warran-
ties are applicable from the initial date of purchase on private residential swimming pools in the US and
Canada. Installations of product for use on commercial pools in the US and Canada is covered for a
period of one (1) year for defects in materials and workmanship. Hayward warrants all accessories and
replacement parts for the above-identified pool automation and chlorination products for a period of one
(1) year. Accessories also include remotes, actuators, base stations, temperature sensors, flow switches
and chemistry probes. Each of these warranties is not transferable and applies only to the original owner.
Hayward shall not be responsible for cartage, removal, repair or installation labor or any other such costs
incurred in obtaining warranty replacements or repair.
Proof of purchase is required for warranty service. If written proof of purchase is not provided, the
manufacturing date code will be the sole determinant of the date of installation of the product. To obtain
warranty service or repair, please contact the place of purchase or the nearest Hayward authorized war-
ranty service center. For more information on authorized service centers please contact the Hayward
TechnicalServiceSupportCenter(61WhitecapRoad,NorthKingstownRI,02852)orvisittheHayward
web site at www.hayward.com.
WARRANTY EXCLUSIONS:
1. Material supplied or workmanship performed by others in process of installation.
2. Damage resulting from improper installation including installation on pools larger than the product rating.
3. Problems resulting from failure to install, operate or maintain the product(s) in accordance with the
recommendations contained in the owners manual(s).
4. Problems resulting from failure to maintain pool water chemistry in accordance with the recommenda-
tions in the owners manual(s).
5. Problems resulting from tampering, accident, abuse, negligence, unauthorized repairs or alternations,
fire, flood, lightning, freezing, external water, degradation of natural stone used in or immediately adjacent
toapoolorspa,waroractsofGod.
6. Use of a non-genuine Hayward replacement salt chlorination cell on any Hayward automation or
chlorination product will void the warranty for that product.
The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect
to its products and is in lieu of all other warranties expressed or implied, including warranties of merchant-
ability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any
consequential, special or incidental damages of any nature. Some states do not allow a limitation on
how long an implied warranty lasts, or the exclusion of incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights, which vary from state to state.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
18

For further information or consumer
technical support, visit our website at
www.hayward.com
Hayward is a registered trademark and OmniLogic and Sense and Dispense
are trademarks of Hayward Industries, Inc. © 2013 Hayward Industries, Inc.
All other trademarks not owned by Hayward are the property of their respective owners.
Hayward is not in any way affiliated with or endorsed by those third parties.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
