HD-LINK IW04B-N User manual

Instruction Manual
High-Definition Link for B MW
IW04B -N
Model Name IW04B-N
Latest Firmware Date 2016 -04-12
Manual Version Rev. 2.1
Language English
Release Date: 2016 – 04-14
HDMI IN 5V USB
POWER LVDS IN/OUT
POWER/CAN MODE DIP SWITCH AV IN/OUT
NAVI IN UART I/F
iw04b- n
digita l mult i int erface
fo r bmw
Car-Solutions.com
[email protected]
www.car-solutions.com

3
IW04B-N-related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
•The ‘POWER / CAN Cable’should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device-related
•HDMI mode accepts general-screen resolution of HDMI devices.
•Generally, '5V 1APower output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box-related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the ‘NAVI (12V) OUT' wire supported by IW04B-N should be spliced with anACC wire of navigation box.
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
C autions
Car-Solutions.com
[email protected]
www.car-solutions.com

4
ⓐⓑⓒⓓ
ⓔⓕⓖⓗⓘⓙ
ⓐDIP SWITCH
ⓑAV IN / OUT
ⓒMODE
ⓓPOWER / CAN
ⓔHDMI IN
ⓕ5V USB POWER
ⓖNAVI IN
ⓗUART I/F
ⓘLVDS IN
ⓙLVDS OUT
ON 12345678910
HDMI IN 5V USB
POWER LVDS IN/OUT
POWER/CAN MODE DIP SWITCH AV IN/OUT
NAVI IN UART I/F
iw04b- n
digita l mult i int erface
fo r bmw
Length: 142 mm
Width: 97 mm
Height: 21 mm
E xterior
Dimens ion
Car-Solutions.com
[email protected]
www.car-solutions.com

5
Power / CAN Cable LVDS Cable AV IN / OUT Cable 5-pin Micro USB Cable
Mode Switch HDMI Extender
(For stick type HDMI device)
C omponents
Optional P arts (s old s eparately at the K AP )
Car-Solutions.com
[email protected]
www.car-solutions.com

HDMI Device
HDMI
HDMI USB
Navigation Box
HDMI
HDMI USB
USB
NAVI 12V Power Output (ACC 12V OUT)
※CAN HIGH / LOW Pin Specification
Monitor Main-Harness
1
4
OEM Head Unit
(OEM LVDS Cable)
(Provided LVDS Cable)
Pin # 5 = CAN HIGH (Light green / Orange)
Pin # 11 = CAN LOW (Light green)
Pin # 12 = GND(Brown)
Pin # 15 = Head Unit Power(Red / Yellow)
OEM Main cable
Provided Main cable
GND Output(GROUND)
IR OUT
HDMI IN 5V USB
POWER LVDS IN/OU T
POWER/CAN MODE DIPSWITCH AV IN/OUT
NAVI IN UART I/F
iw04b- n
digita l mu lt i int erfac e
fo r b mw
6
Full Ins tallation Diagram
External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
RV-CAM Video Input
DIP S/W Setting
FV-CAM Video Input
(AV1)
12V Power Output & GND Output(RV-CAM Power)
NAVI Audio Input
Audio Output
※Optional External Devices
AV-Input(AV2)
Reverse Signal Detection(optional)
Mode Switch
(optional)
Car-Solutions.com
[email protected]
www.car-solutions.com

HDMI
HDMI
USB USB
HDMI
HDMI
(Male)
7
HDMI
(Female)
HDMI IN 5V USB
POWER
HDMI Device
HDMI IN 5V USB
POWER
HDMI Device
HDMI C onnection Diagram
(5V-1A Power output for HDMI Device)
(HDMI Extender) (HDMI Cable) ‘Dongle & Adapter’ Type HDMI Devices
(5V-1A Power output for HDMI Device)
‘Stick Type’ HDMI Devices
Car-Solutions.com
[email protected]
www.car-solutions.com

iNAVI - CUBE
HDMI
Touch screen panel
8
N-Link or KG-W14H
USB
Touch screen panel
NAVI IN
Navigation(GPS) Box
UART I/F LVDS IN / OUT NAVI IN
Navigation(GPS) Box
UART I/F LVDS IN / OUT
USB
HDMI
HDMI
HDMI
Navigation C onnection Diagram
(USB cable connecting is for ‘N-Link’ only.)
Car-Solutions.com
[email protected]
www.car-solutions.com

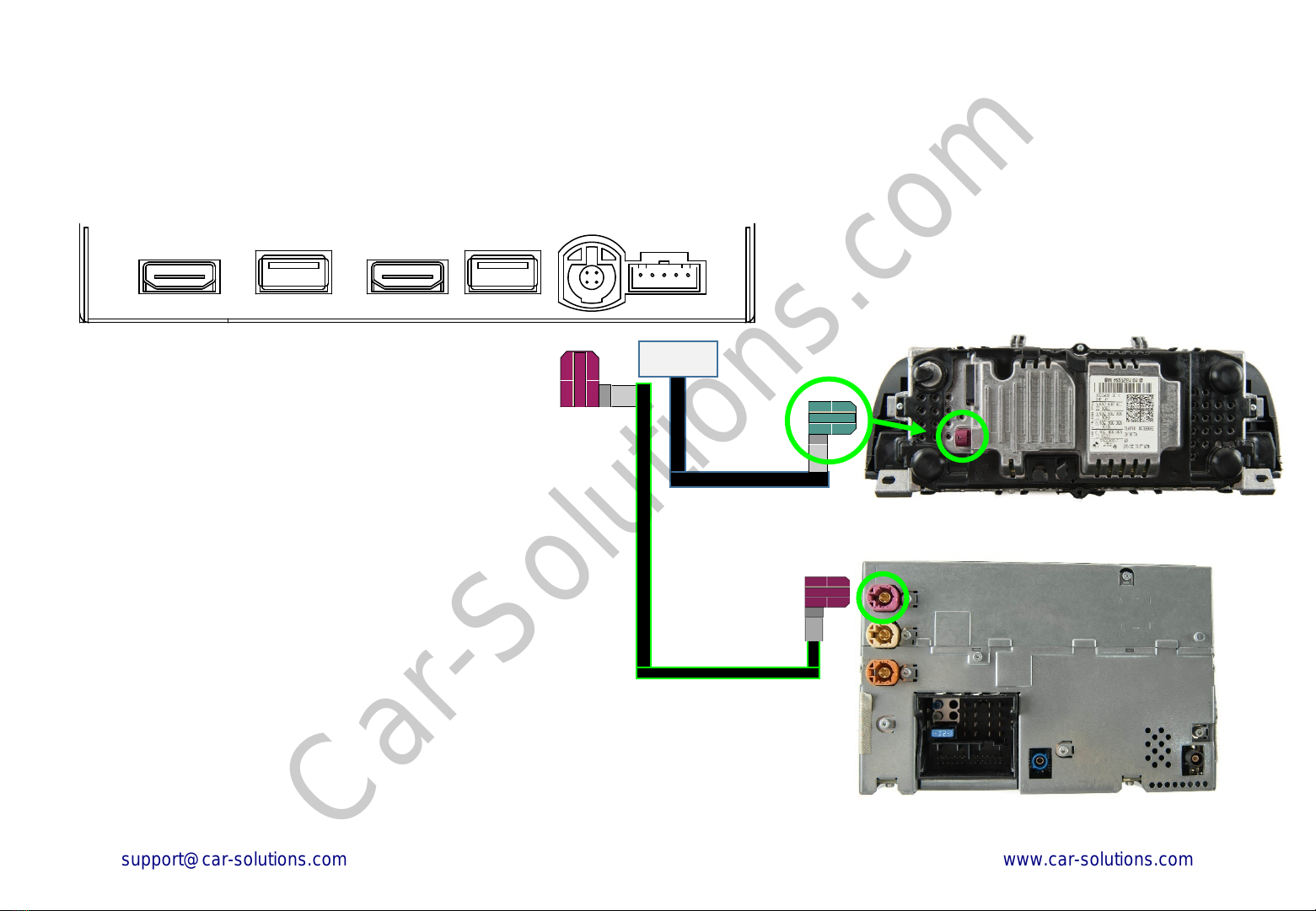

Head Unit
LCD
Cable (OEM LVDS Cable)
(Provided LVDS Cable)
10
'Genuine(OEM) LVDS connector' should be connected
to IW04B-N LVDS IN / OUT port
‘Provided LVDS connector' should be connected to the
monitor instead to the genuine connector.
Monitor(OEM)
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS IN / OUT
LVDS C onnection Diagram
Car-Solutions.com
[email protected]
www.car-solutions.com

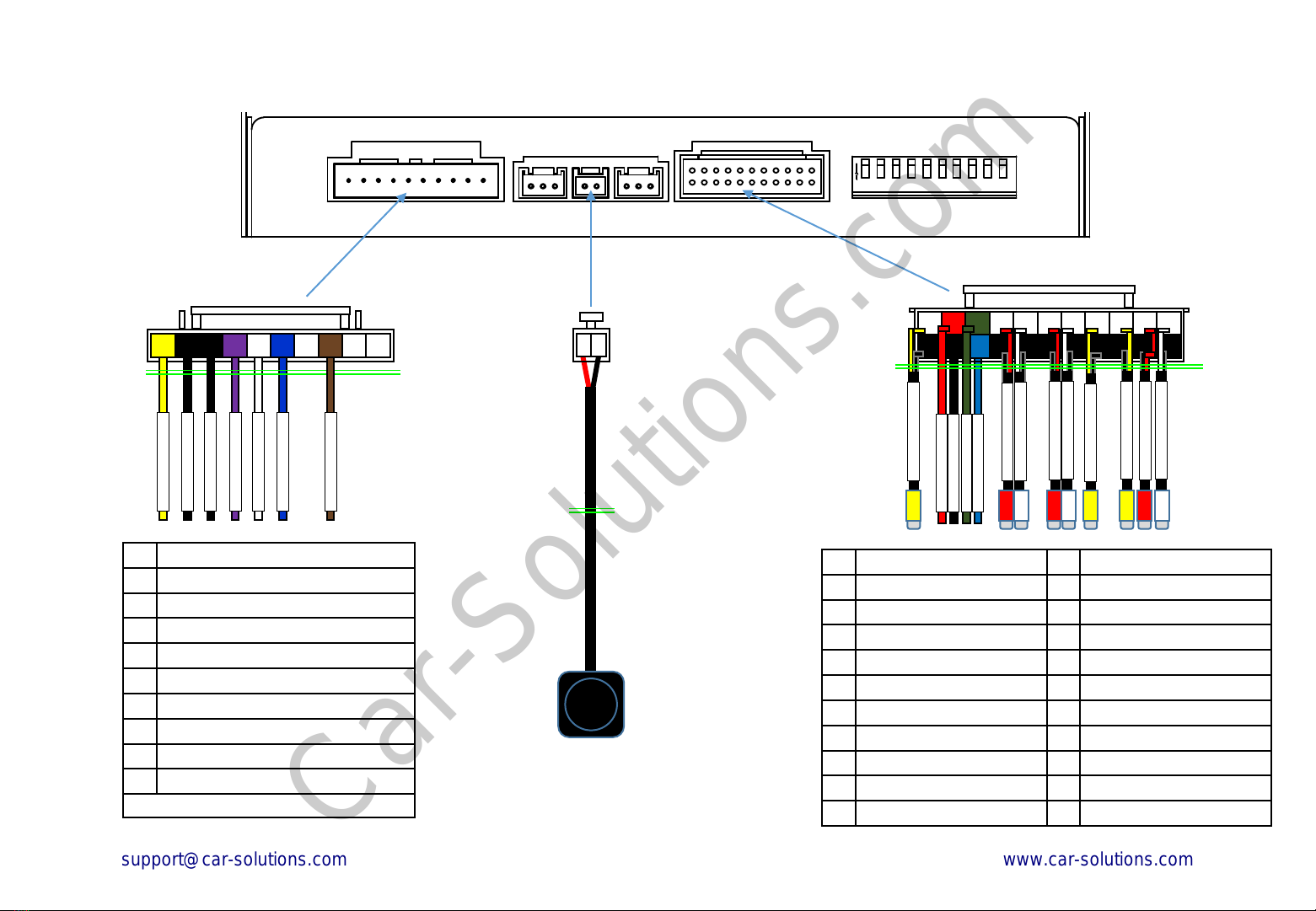

ON 1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 BATTERY POWER INPUT
2 GND INPUT
3 GND OUTPUT
4 ACC(12V) POWER OUTPUT
5 PAS CAN HIGH
6 PAS CAN LOW
7 -
8 IR OUT
9 -
10 -
CAN H
CAN L
BAT +
GROUND
NAVI 12V OUT
Push Switch
•The colors of each wires can be changed under manufacturer’s circumstance.
Body Connector specifications
1 2
12
Length : 100 cm
GROUND
IR OUT
1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
Length : 20 cm
Length: 150 cm
1 RV-CAM VIDEO INPUT 12 GND(RV-CAM VIDEO)
2 RV-CAM POWER OUT 13 GND OUTPUT(RV-CAM)
3 REVERSE DETECTION 14 IR OUT
4 NAVI AUX INPUT R 15 GND(NAVI AUX IN R)
5 NAVI AUX INPUT L 16 GND(NAVI AUX IN L)
6 AUDIO OUTPUT R 17 GND(AUDIO OUT R)
7 AUDIO OUTPUT L 18 GND(AUDIO OUT L)
8 AV1 VIDEO INPUT 19 GND(AV1 VIDEO IN)
9 AV2 VIDEO INPUT 20 GND(AV2 VIDEO IN)
10 AV2 AUDIO INPUT R 21 GND(AV2 AUDIO IN R)
11 AV2 AUDIO INPUT L 22 GND(AV2 AUDIO IN L)
POWER / CAN AV IN / OUT DIP SWITCHMODE
Car-Solutions.com
[email protected]
www.car-solutions.com

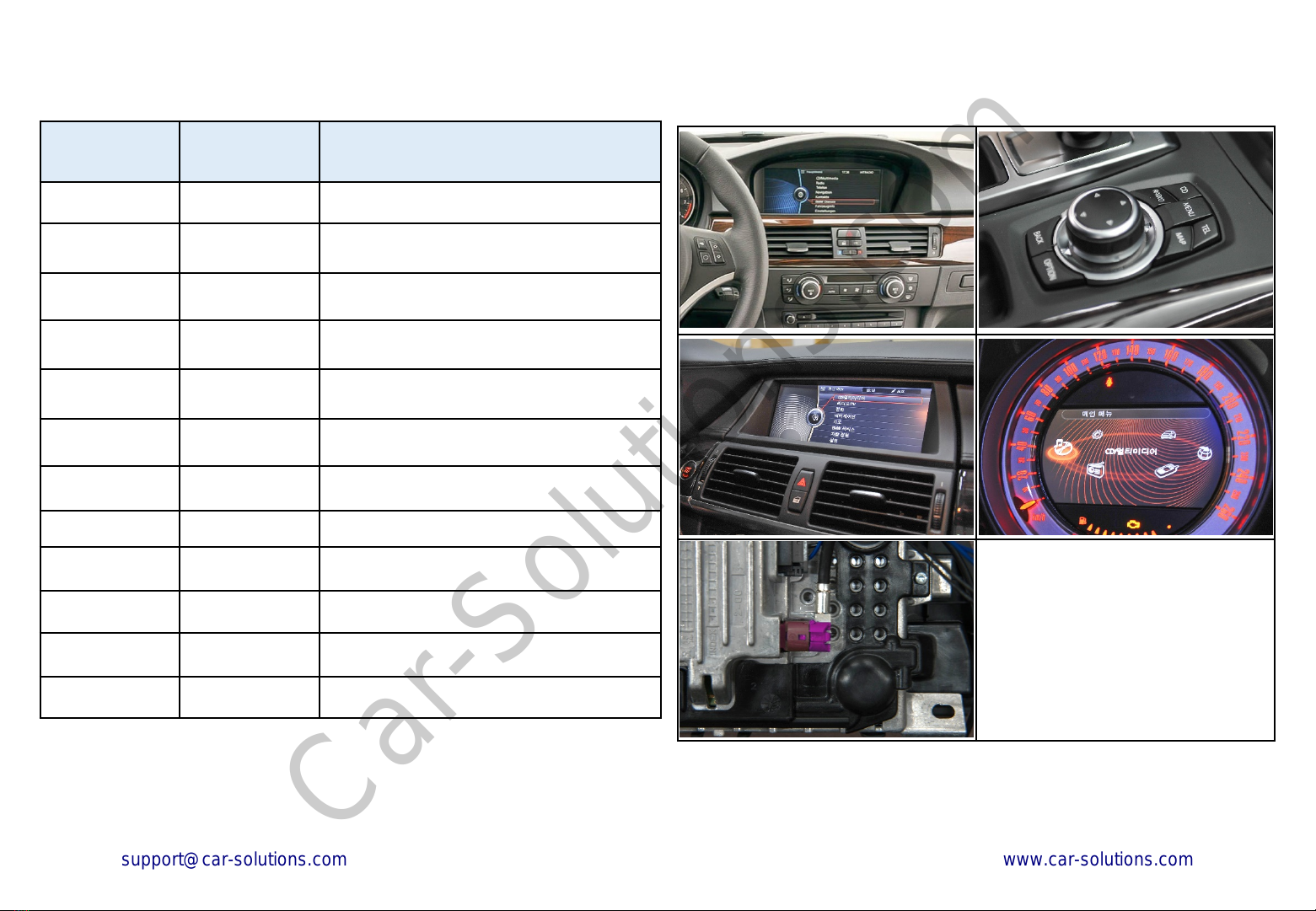

Car Models Production
Year Specific Models
3 Series 2009 -2012 E90, E91, E92, E93
5 series 2009 E60,E61
5 series 2009-2012 F10, F11 , F07(5GT)
6 Series 2011 -2012 F12, F13
7 Series 2009 -2013 F01, F02
X1series 2009 - E84
X3 series 2011 - 2013 F25
X5 series 2009 -2013 E70
X6 series 2010 - 2013 E71, E72 The IW04B-N supports the BMW
original screen equipped with
‘4-pin LVDS round connector’ only.
Please check the specification of
original LVDS connector on the
sidelines of a production year.
13
C ar C ompatibility C hart
Car-Solutions.com
[email protected]
www.car-solutions.com

1
Button Function Operation Remarks
MENU
Changing
Modes Press the button 2 seconds long. Order: HDMI →NAVI →AV2 →OEM
MENU
Shortcut to
each modes
Press the button 2 times. < OEM → NAVI >
Press the button 4 times. < OEM → AV2 >
MENU Back to OEM Press the button short. Return to the OEM mode in any modes.
MENU
System
Locking /
Unlocking Press the button 10 seconds long.
If you visit car service center, you can lock
the all functions of IW04B-N.
It is only possible to use the OEM functions
under it is locked.
LEFT
PUSH
Changing
mode to Front
View Camera
mode(AV1)
Changing mode to Front View Camera
mode(AV1) Push the button left 2 seconds long.
RIGHT
PUSH
Changing
mode to
PIP(Rear)
Push the button right 2 seconds long.
(Only Rear,AV1) You can use this function only for 3 modes. (Full, PIP Mode1, PIP Mode2)
BACK
Reset to
factory default
setting and
power.
Press the button 10 seconds long. You can use this function when you get in trouble to see the screen while setting the
screen.
1
1
For BMW
2
14
1
2
1
BMW iDrive Controller
Activation by original buttons of B MW
Car-Solutions.com
[email protected]
www.car-solutions.com

15

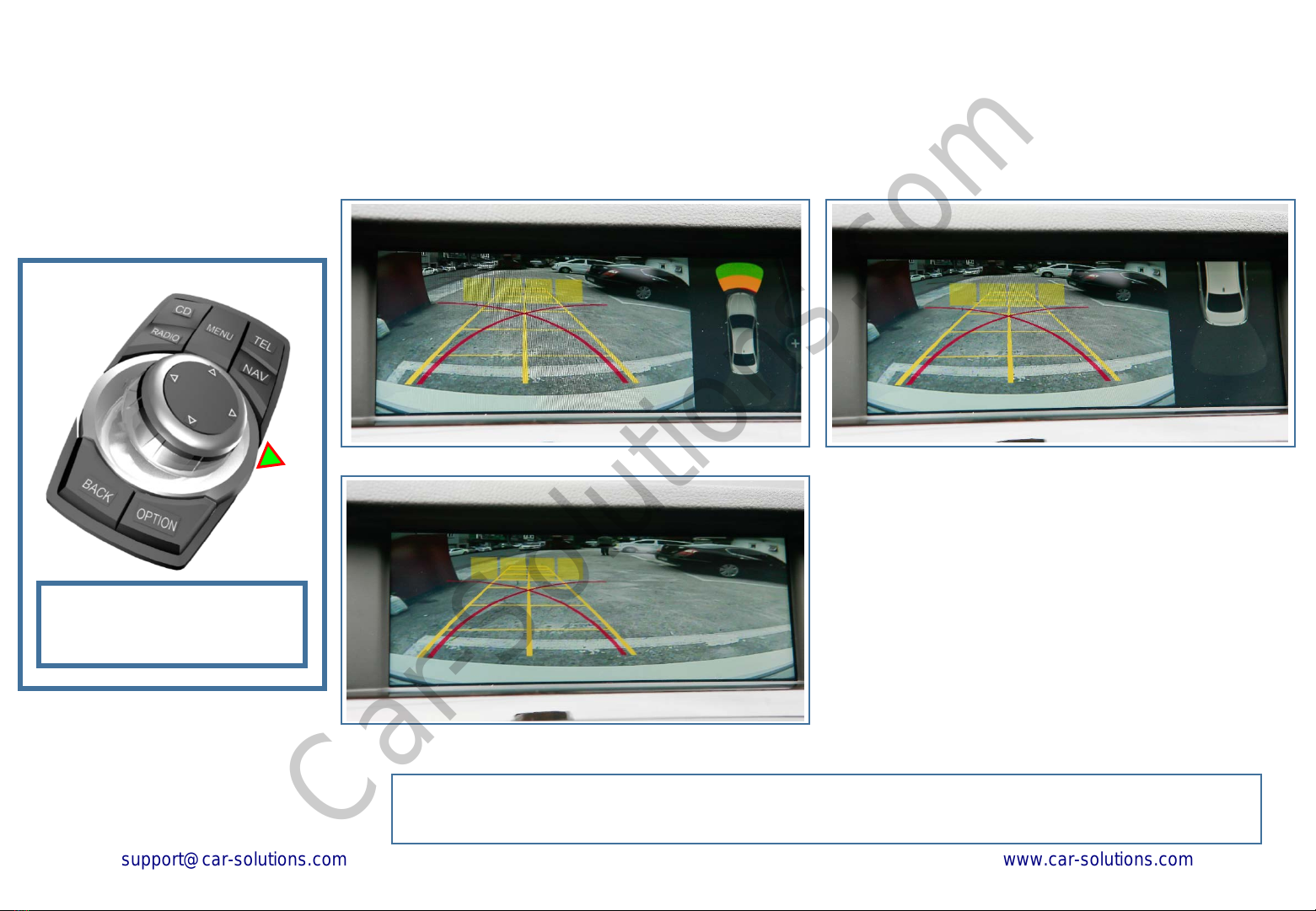

Rear View PIP
(External Rear View Camera) *Parking line color change to green color
1. Rear, AV1 PIP MODE
You can use this function only for 3 modes. (Full, PIP Mode1, PIP Mode2)
Push the button right 2
seconds long
!
Car-Solutions.com
[email protected]
www.car-solutions.com

DIP S witch S ettings
Pin
No. ON(▼) OFF(▲)
1 HDMI Mode Skip HDMI Mode
2 Navigation Mode Skip Navigation Mode
3 External Rear View Camera Original Rear View Camera
4 External Front View
Camera(AV1 Mode) Skip External Front View
Camera(AV1 Mode)
5 AV2 Mode Skip AV2 Mode
6
Selection of car model
7
8
9
10 Connect i-drive can Connect monitor can
OFF
ON ON: ▼OFF:▲No.6 No.7 No.8 No.9 No.10 Car Models
OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)
5(F10),6(F12),7(F01),
5GT( F07) / 10.2inch
X5(E70),X6(E71), E60(Entire
model) / 8.8 inch
OFF(▲) OFF(▲) OFF(▲) OFF(▲) ON(▼) 5(F10),
6(F12),7(F01),5GT(F07),
(2012 ~ Connect i-drive can)
OFF(▲) OFF(▲) OFF(▲) ON(▼) OFF(▲) 2010 3(E90), X1,(E84),X3(F25)
2nd Generation i-drive / 8.8
inch
OFF(▲) OFF(▲) OFF(▲) ON(▼) ON(▼) MINI Visual Boost / 6.5 inch
16
* Among the BMW models[5 series(F10) and 5 GT(F07)] produced in 2013, most of
them are equipped with 6 pin LVDS monitor connector but some of them are
equipped with 4 pin LVDS monitor connector. Then, you should splice CAN wires
connection under the i-Drive controller, separately.
Car-Solutions.com
[email protected]
www.car-solutions.com

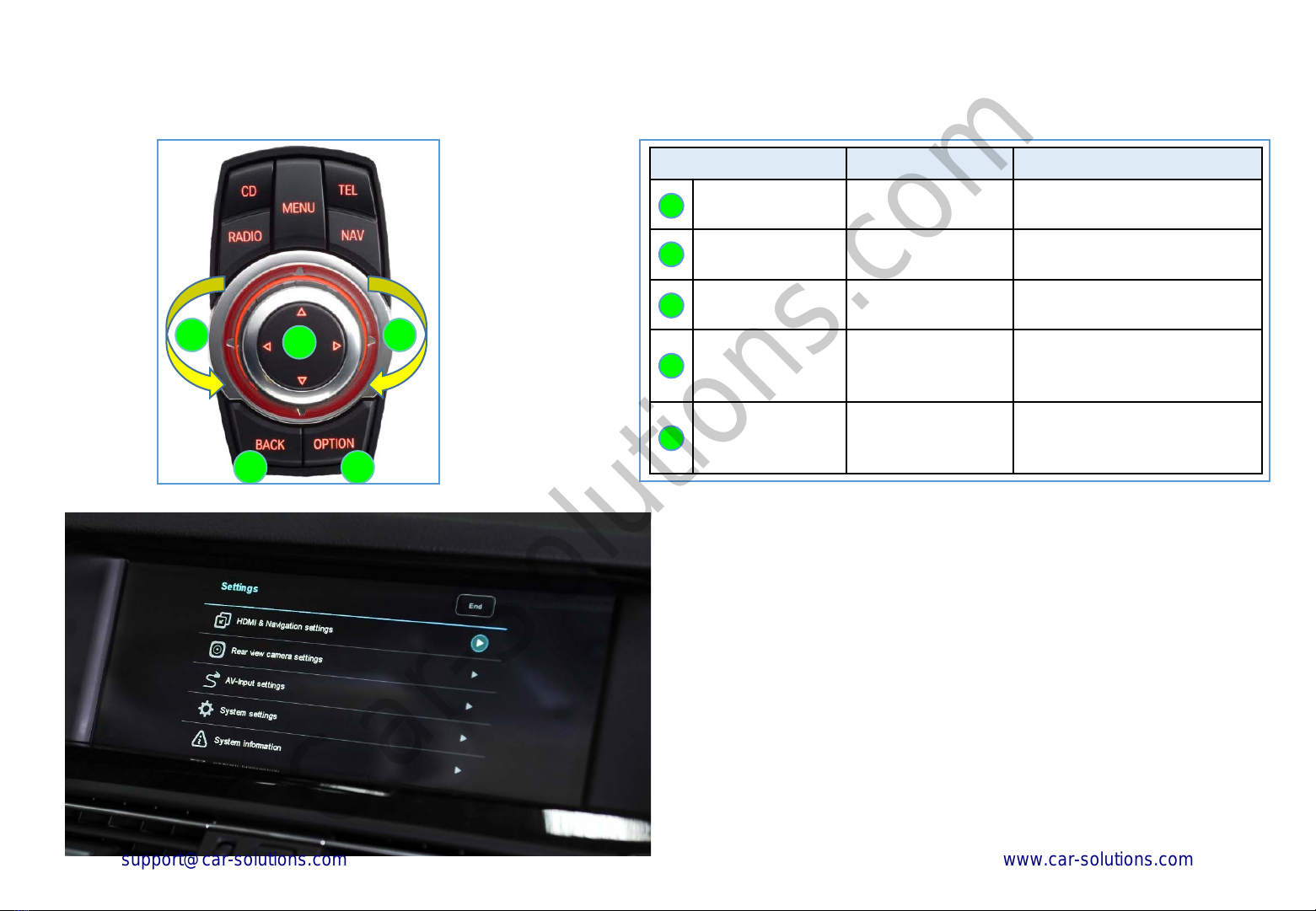

1
Button Function Operation
OPTION Enter into the
setting menu Press the button 5 seconds long.
BACK Back to previous
menu Press the button short.
Selection Select the menu
and setting values. Press the button short.
Turn the dial
counterclockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to up(↑) and left(←).
Turn the dial
clockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to down(↓) and right(→).
3
4
2
5
S ettings
For BMW
17
2 1
4 5
3
1. E nter into the s etting menu.
<Press the ‘OPTION’ button 5 seconds long.>
-HDMI & Navigation settings
-Rear view camera settings
-AV-input settings
-System settings
-System information
Car-Solutions.com
[email protected]
www.car-solutions.com

18
설정 메뉴
2. HDMI mode s ettings
-Mode selection: HDMI ↔ NAVI
-Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of HDMI display.
-Screen position & size
= Entry Disabled / Not applicable.
3. NAVI mode s ettings
-Mode selection: NAVI ↔ HDMI
-Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of NAVI display.
-Screen position & size
= Entry Disabled / Not applicable.
-Navigation Resolution selection
①800 X 480 ②1280 X 480
Car-Solutions.com
[email protected]
www.car-solutions.com

19

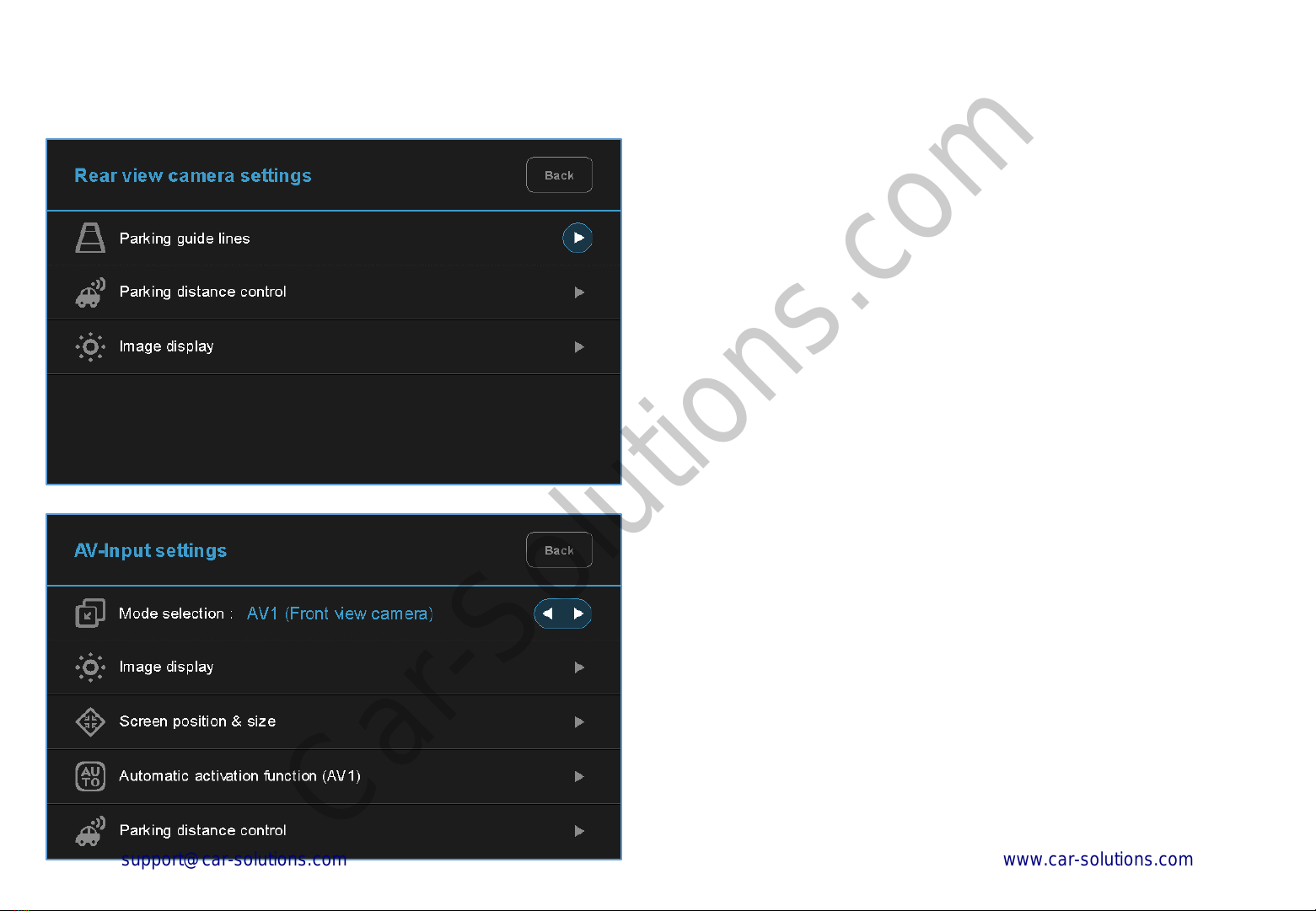

4. Rear view camera settings
-Parking guide lines
= Adjust position of parking guide lines and
select the lines ‘ON or OFF’.
-Parking distance control
= Adjust the position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’.
-Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of Rear view camera display.

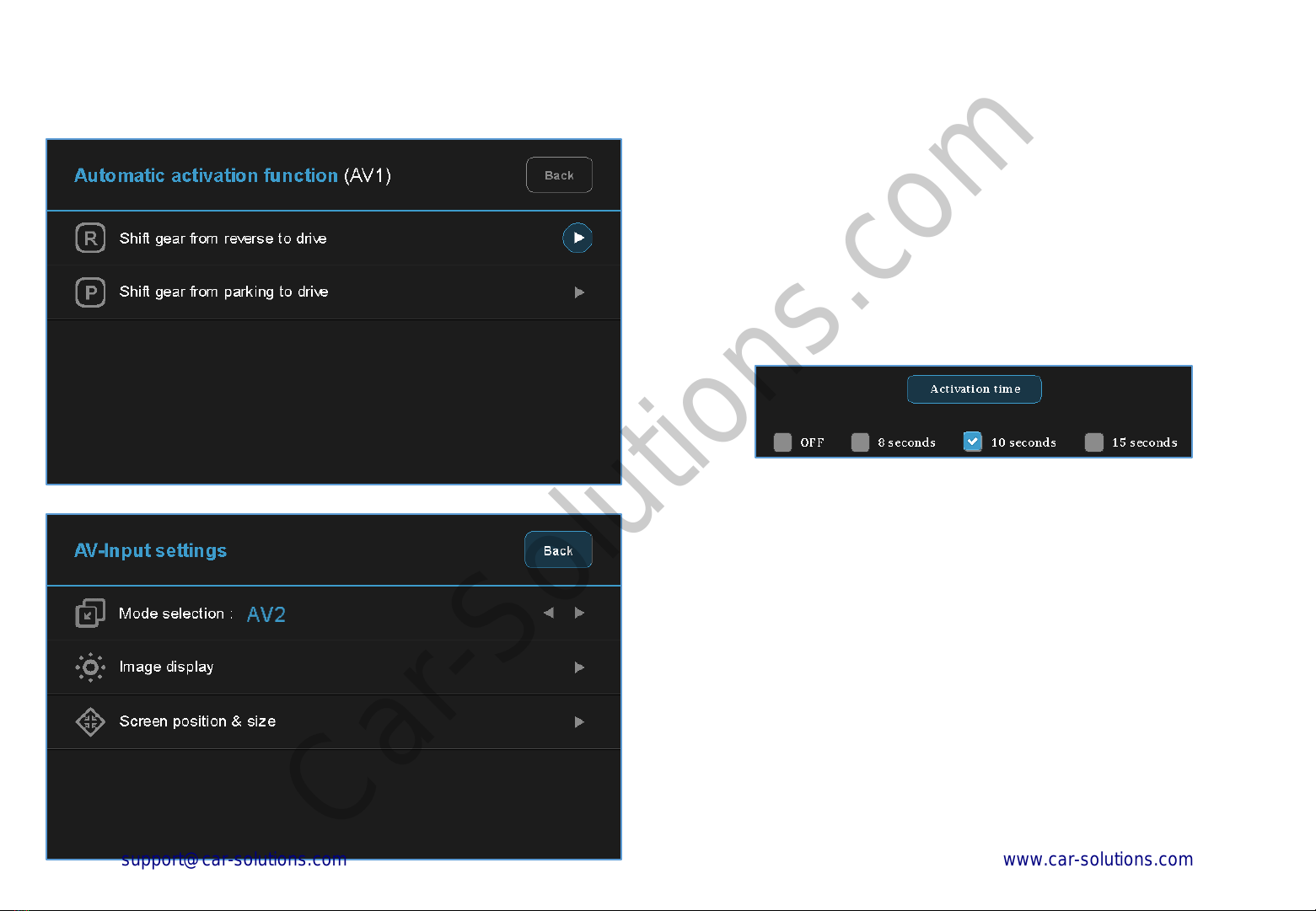

5. AV1(Front view camera) s ettings
-Mode selection:AV1(Front view camera) ↔ AV2
-Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV1(Front view camera) display.
-Screen position & size
= Entry Disabled / Not applicable.
-Automatic activation function(AV1)
= * Please refer to next page.
-Parking distance control
= Adjust the position of parking distance control sensors
to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’.
S ettings
Car-Solutions.com
[email protected]
www.car-solutions.com

20
6. Automatic activation function(AV1)
-Shift gear from reverse to drive
-Shift gear from parking to drive
* When you shift gear ‘from reverse to drive’ or ‘from parking to drive’,
it just works automatically during the activation time you selected.
S ettings
7. AV2 s ettings
-Mode selection:AV2 ↔ AV1(Front view camera)
-Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV2 display.
-Screen position & size
= Entry Disabled / Not applicable.
Car-Solutions.com
[email protected]
www.car-solutions.com

21
S ettings
8. S ys tem s ettings
-Safe mode
= Select the one of two between ‘ON and OFF’.
* If you select ‘ON’, 3 modes(HDMI, NAVI and AV2) will be faded out
when the car is driven.
-Factory default
= Reset all setting values to factory default setting.
9. System information
-Mode name : IW04B-N
-Firmware date : 2016 – 01 – 14 (Latest firmware date)
-= You can check the current firmware version date.
-Dip switch settings
= You can check the current positions of dip switch settings.
Car-Solutions.com
[email protected]
www.car-solutions.com

22
S ettings
10. Information of Dip s witc h s ettings
* You can check the current positions of dip switch settings.
ex 1)
Actual DIP switch values. (→)
Appears on the setting menu. (↓)
ex 2)
Actual DIP switch values. (→)
Appears on the setting menu. (↓)
Car-Solutions.com
[email protected]
www.car-solutions.com
