HD-SD SW-3052 User manual
SW-3052
5x2 HD/SD-SDI Matrix Switch
UserManual
Made in Taiwan
~ 1 ~
SafetyandNotice
The SP-3052 5x2 HD/SD-SDI Matrix Switch has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the SW-3052
should be used with care. Please read and follow the safety instructions to protect yourself from possible injury
and to minimize the risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep away the objects that might damage the device and assure that the placement of this unit is on a stable
surface.
zUse only the power adapter, power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
~ 2 ~
This SW-3052 receives, equalizes, and reclocks*up to 8 SDI inputs, perfectly switches the desired input to
SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit rates, and the re-transmitted quality
is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes
versatile and easier. By perfectly duplicating the chosen SDI input, this SDI switch provides two identical outputs,
and acts like a SDI splitter. SW-3052 offers the most convenient and cost effective means for swift switch and
duplication of high quality SDI in the market.
Features
zHD/SD-SDI Switch
zUp to 5 equalized & re-timing SDI inputs*
zDual Color LED indication of HD/SD of the output SDI
zAutomatic detection of the SDI Input
zSynchronizes input/output (switch after vertical sync)
zLow-cost 5x2 HD/SD (dual-rate) switch with dual outputs
zProvides the equalized and reclocked*transmission path up to 300m (1000ft) at SD-SDI or 150m (500ft) at
HD-SDI
zMultiple control by RS-232, IR remote, and push button
*Optionaluponrequest
Introduction
~ 3 ~
Specifications&PackageContents
Model Name SW-3005
SW-3052
SW-3008 SW-3082
Technical
Role of usage 5x1 switch
5x2 matrix switch
8x1 switch 8x2 matrix switch
SDI standards SD-SDI & HD-SDI
Auto HD/SD-SDI detection
Y
es
Supported protocols SMPTE 259M
/
SMPTE 292M
Video bandwidth Single-link [1.485Gpbs & 1.485/1.001Gbps]
Data rates 143 / 270 / 1483 / 1485 Mbps
Video support [HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30
Output impedance 75
Ω
Reclocking function Optional upon request
Cable equalization [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m (1000ft)
Loop-out Synchronized BNC loop-out at input and output
Audio support
Y
es
RP-918 pathological patterns
I
mmune
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50
Ω
]
Input 5x BNC [SDI]
5x BNC [SDI]
8x BNC [SDI] 8x BNC [SDI]
Output 1x BNC [SDI]
2x BNC [SDI]
1x BNC [SDI] 2x BNC [SDI]
BNC connector 75
Ω
inter-locked socket
Eye pattern characteristics
(HD-SDI)
Amplitude: Within 800mV ±3% (<10%)
Rise overshoot: Less than 2% (<10%)
Fall overshoot: Less than 2% (<10%)
L
ong time jitter: 0.195 UI
(<1.0
U
I)
Timing jitter: 0.195 UI (<1.0 UI)
Alignment jitter: 0.127 UI (<0.2 UI)
Mechanical
Housing Metal
case
Dimensions
[L x W x H]
Model 187 x 125 x 43mm [7.4”x4.9”x1.7”]
Package 330 x 200
x 95mm [1’1“x7.9”x3.7”]
Carton 495 x 440x 380mm [1‘7.5”x1’5.3”x1’3”]
Weight Model 890g [2.0 lbs]
890g [2.0 lbs]
890g [2.0 lbs] 890g [2.0
lbs]
Package
Fixedness
I
nter-locked
power supply
Power supply 5V 4A DC
Power consumption 10 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents
1x SW-3005
/
SW-3052
/
SW-3008
/
SW-3082
1x IR remote controller
1x 5V power adapter
1x User Manual
ThemeasurementresultsarefromTektronixVFM‐700withSDIthrough1m(3.3ft)longBelden1694A.
~ 4 ~

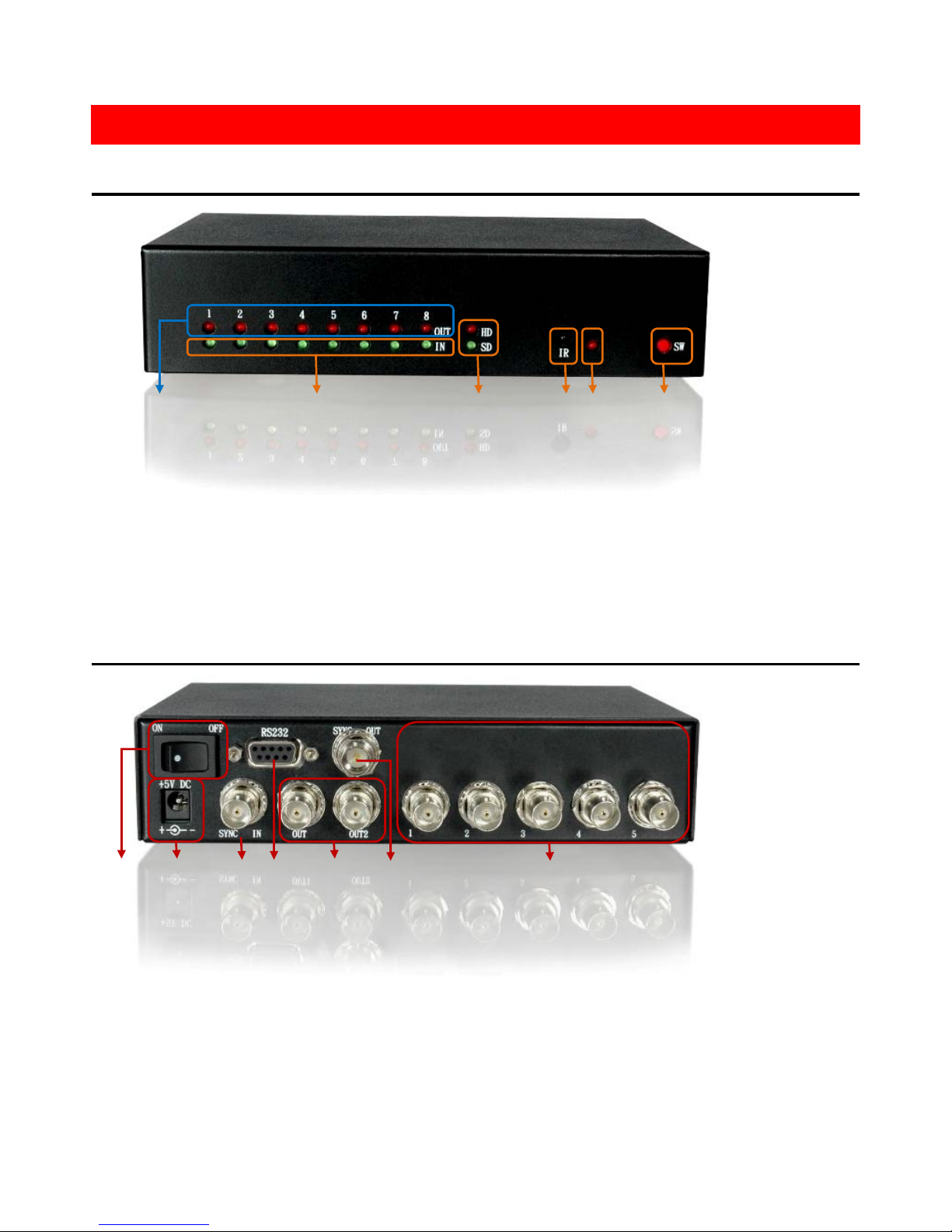

FrontPanel
1. Chosen input channel LED
2. Input channel auto detection LED
3. Output HD/SD detection LED
4. IR remote receiver
5. Power indicator LED
6. Push button for input channel switch
RearPanel
7. Power switch
8. 5V DC power jack
9. Synchronized SDI signal input
10. RS-232 control port for PC control
11. SDI output
12. Synchronized signal loop-out (add 75Ωterminator if not connect)
13. SDI input
Panel Descriptions
1 2 3
4
5
6
7 8 109 11 12 13
~ 5 ~
1. Connect SDI enable equipments to the output of SW-3052.
2. Connect the SDI input sources to the inputs of SW-3052.
3. Plug power adapter cable into 5V DC power jack.
4. Use IR remote, RS-232, or front panel push button to switch between input channels.
Hardware Installation
IR Remote Control
: To the right
: Channel 1
: Channel 2
: Channel 3
: Channel 4
: Channel 5
: Channel 6
: Channel 7
: Channel 8
: Reserved
: Reserved
: Reserved
: Reserved
: To the left
~ 6 ~
The SELLER warrants the SW-3052 5x2 HD/SD-SDI Matrix Switch to be free from defects in the material and
workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product
fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications
including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other
implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for
shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be free from
any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER
assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be
liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in
this manual, even if advised of the possibility of such damages. Also, the technical information contained herein
regarding the SW-3052 features and specifications is subject to change without further notice.
