HDTV Supply HDTVHDVEB100CC User manual

HDMI Extender over IP
True 4K60 UltraHD
VER 1.1

1/7
Thank you for purchasing this product
Surge protection device recommended
Table of Contents
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this man-
ual for future reference.
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shook, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
1. Introduction..........................................................................................
2. Features................................................................................................
3. Package Contents...............................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions.....................................................
5.1. Transmitter Panel...........................................................................
5.2. Receiver Panel..............................................................................
6. Connection Diagram...........................................................................
7. Notes.....................................................................................................
2
2
2
3
4
4
5
6
7
1/7

1. Introduction
2. Features
☆Compliant with HDMI 2.0 and HDCP 2.2, pixel clock up to 594MHz
☆Up to 100 meters on Cat6a or better for 4K/60 Hz/ 4:4:4 video
☆Up to 90 meters on Cat6 or better for 4K/30Hz/4:4:4 video
☆Support digital audio formats: LPCM 7.1CH, Dolby TrueHD, Dolby
Digital Plus and DTS HD Master Audio
☆RS-232 (up to 115.2 kbaud) matrix, Infrared matrix
☆IP based switching with zero-frame latency
☆Transmission Interface:10 Gigabit XFI, IEEE 802.3 (RJ45)
☆AV Processing Technology:
Colors pace and frame-rate conversion
Ultra-light compression, lossless for most content
Audio embedding and de-embedding
Audio down-mixing and re-sampling
Video-splitting and bezel correction
3. Package Contents
①1× HDMI Extender Transmitter
②1× HDMI Extender Receiver
③2× 12V/2.5A DC Power Adapters
④2× Wideband IR Receiver cables
⑤2× Wideband IR Blaster cables
⑥4× Phoenix terminals (3 pins)
⑦4× Mounting Ears
⑧1× User Manual
The machine is a HDMI Extension tool, distance up to 330ft/100 meters,
connect a 10 GBE network switch transmits over Cat6a cable, it designed
over based IP switching, and processing of Digital video resolutions up to
4K/60/4:4:4 (594 MHz) & HDR, HDMI multi-channel digital audio & analog
audio, Bidirectional RS-232, IR.
2/7

4. Specifications
HDMI Compliance HDMI 2.0b
HDCP 2.2
18Gbps
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
4K60 10-bit, 1080p 12-bit
HDMI Audio
Formats
ESD Protection Human body model — ±8kV (air-gap discharge) &
±4kV (contact discharge)
HDCP Compliance
Video Bandwidth
Color Depth
Technical
Video Resolutions Up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,
1080P@120Hz, and 1080P 3D@60Hz
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and
DTS HD Master Audio
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x RS-232 [Phoenix jack]
1x IR In [3.5mm Stereo Mini-jack]
Outputs: 1x 10G BaseT OUT [RJ45 connector]
1x AUDIO OUT [Phoenix jack]
1x IR Out [3.5mm Stereo Mini-jack]
Receiver
Inputs：1×10G BaseT [RJ45 connector]
1×IR In [3.5mm Stereo Mini-jack]
Outputs: 1×HDMI TypeA [19-pin female]
1×RS-232 [Phoenix jack]
1×AUDIO OUT [Phoenix jack]
1×IR Out [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions TX/RX: 150mm [L] x 98mm [W] x 32mm [H]
Weight TX: 489g, RX: 471g
Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified)
Power Consumption TX: 20W, RX: 18.7W
3/7

5. Operation Controls and Functions

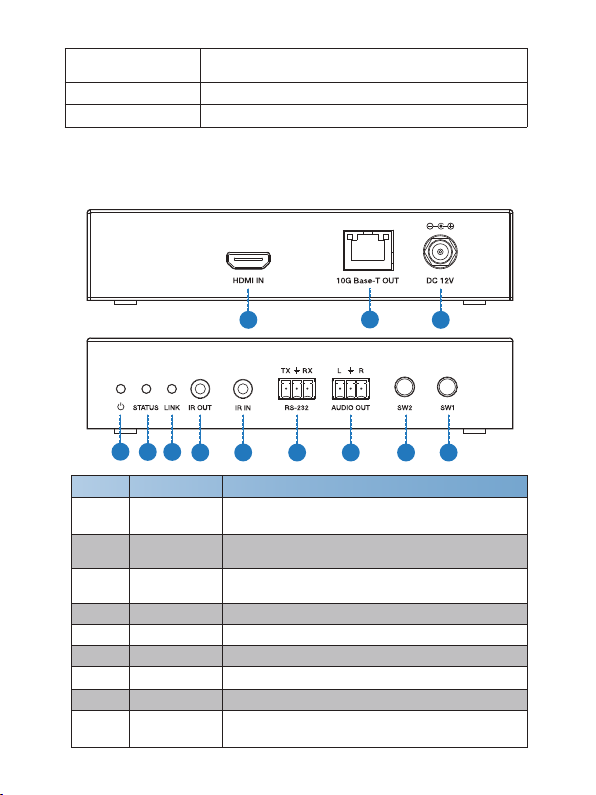

5.1 Transmitter Panel
Operation
Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
34
Number Name Function descriptions
1 HDMI IN Connect to the HDMI source device, such as
DVD player or Set top box.
123
45 6 7 8 9 10 11 12
210G Base-T
OUT 10G Enternet port signal output.
3 DC 12V Connect 12V/2.5A adaptor to AC wall outlet for
power supply.
4 Power LED Blue LED power indicator light.
5STATUS LED Blue LED status indicator light.
6LINK LED Blue LED video indicator light.
7 IR OUT IR signal output. Connect to an IR blaster cable.
8 IR IN IR receiver input. Connect to IR receiver cable.
9 RS-232 Use the phoenix jack for connect PC or control
system to transmit RS-232 commands.
4/7

5.2 Receiver Panel
10 AUDIO OUT Use the phoenix jack for connect audio output.
This port output from HDMI input port audio.
11 SW2 button Reserved button.
12 SW1 button Reserved button.
12 3
4 5 6 7 8 9 10 11 12
34
Number Name Function descriptions
1 HDMI OUT Connect to the HDMI output source device, such
as HDTV or monitor.
210G Base-T
IN 10G Enternet port signal input.
3 DC 12V Connect 12V/2.5A adaptor to AC wall outlet for
power supply.
4 Power LED Blue LED power indicator light.
5STATUS LED Blue LED status indicator light.
6LINK LED Blue LED video indicator light.
7 IR OUT IR signal output. Connect to an IR blaster cable.
8 IR IN IR receiver input. Connect to an IR receiver cable.
9 RS-232 Use the phoenix jack for connect PC or control
system to transmit RS-232 commands.
5/7

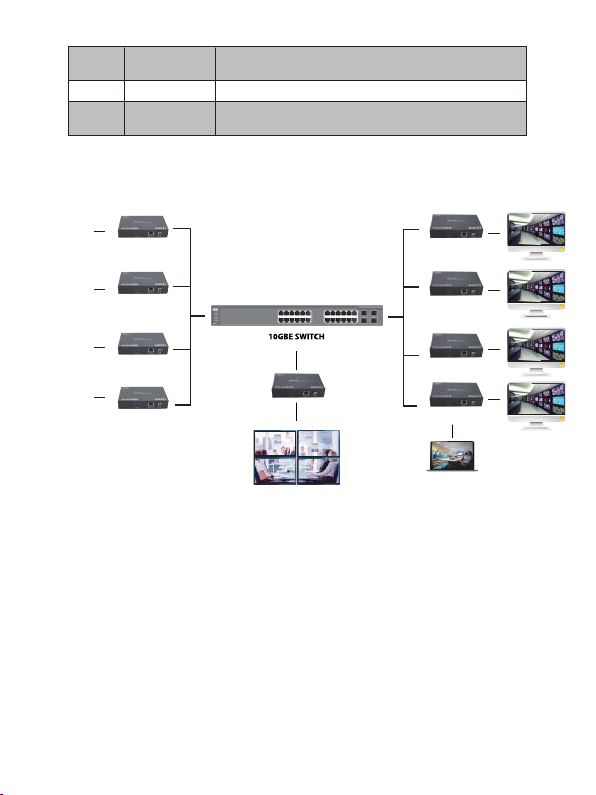

6. Connection Diagram
10 AUDIO OUT Use the phoenix jack for connect audio output.
This port output from HDMI input port audio.
11 SW2 button Reserved button.
12 SW1 button Copy EDID from the Receiver HDMI display send
to the Transmitter HDMI source.
TX RX
4×RX
Video Wall
Matrix Switching
Manage tool Computer
TX
TX
TX
RX
RX
RX
DVD player
6/7

7. Notes

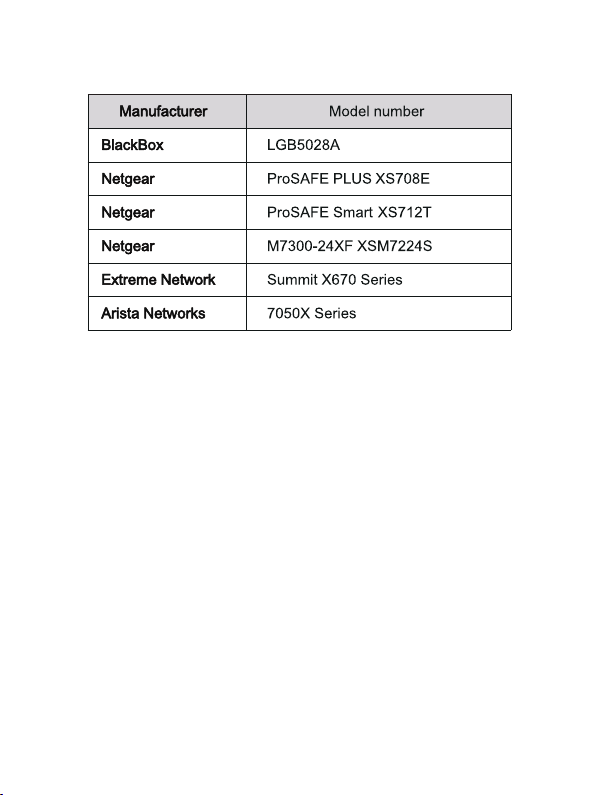

Recommend switch model:
Maybe the switch need some configurations for match the product to use all
functions.
The windows that manage tool needs operation information , please contact
us.
