HEALTH RIDER SoftStrider HRTL10980 User manual

¨
USER'S MANUAL
Model No. HRTL10980
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing com-
plete customer satisfaction. If
you have questions, or if there
are missing or damaged parts,
we will guarantee complete
satisfaction through direct
assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE. The
trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð 6 p.m. MST

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SETTING UP THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
GROUNDING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CONSOLE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Please save them
for future reference.
¨

3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or oxygen is administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds. Never allow
more than one person at a time on the tread-
mill.
8. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose
clothing that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women.
9. Always wear athletic shoes when using the
treadmillÑnever use the treadmill with bare
feet, wearing only stockings, or in sandals.
For maximum walking belt life, never use
shoes with heavy treads.
10. When connecting the power cord (see page
7), plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector
away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE-
FORE YOU BEGIN on page 5 if the treadmill
is not working properly.)
14. Never start the treadmill while you are stand-
ing on the walking belt.
15. Always hold the handrails when walking or
running on the treadmill.
16. The treadmill is capable of high speeds; ad-
just the speed in small increments to avoid
sudden jumps in speed.
17. To reduce the possibility of the treadmill
overheating, do not operate the treadmill
continuously for longer than one hour.
18. Never leave the treadmill unattended while it
is running. Always remove the key and move
the on/off switch to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the on/off switch.)
19. Never insert any object into any opening.
20. When operating the treadmill, keep hands
and feet from underneath the treadmill.
21. You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is fully engaged.
23. Inspect and tighten all parts of the treadmill
every three months.

4
24. Always unplug the power cord before
performing the maintenance and adjustment
procedures described in this manual. Never
remove the belly pan unless instructed to do
so by an authorized service representative.
Servicing other than the procedures in this
manual should be performed by an autho-
rized service representative only.
25. The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
WARNING
IMPORTANT:
Incline must be set at lowest
level before folding treadmill
into storage position.
The decals shown below and to the right have been placed
on your treadmill. If a decal is missing, or if it is not legi-
ble, please call our Customer Service Department toll-free
at 1-800-999-3756 to order a free replacement decal. Apply
the decal in the location shown.

5
Congratulations for purchasing the SOFTSTRIDER
S400ª treadmill by HealthRider. The SOFTSTRIDER
S400 offers an impressive array of features that will
help you to achieve your fitness goals in the conve-
nience of your home. From the advanced console to
the ultra-soft walking belt, the SOFTSTRIDER S400 is
designed to make each workout more effective and
enjoyable. And when youÕre not exercising, the SOFT-
STRIDER S400 can be folded away, taking less than
half the space of conventional treadmills.
For your benefit, read this manual carefully before
using the SOFTSTRIDER S400 treadmill. If you have
additional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is HRTL10980. The
serial number can be found on a decal attached to the
treadmill (see the front cover of this manual for the
location).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
*Water bottle is not included
Storage Latch
Console
Book Holder
Accessory Tray
Water Bottle Holder*
Key/Clip
Circuit
Breaker
On/Off
Switch
Cushioned Walking Belt for
maximum exercise comfort
Foot Rail
Power
Cord
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts

6
SETTING UP THE TREADMILL
Set-up requires two people. Place the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until the treadmill is set up. No tools are required.

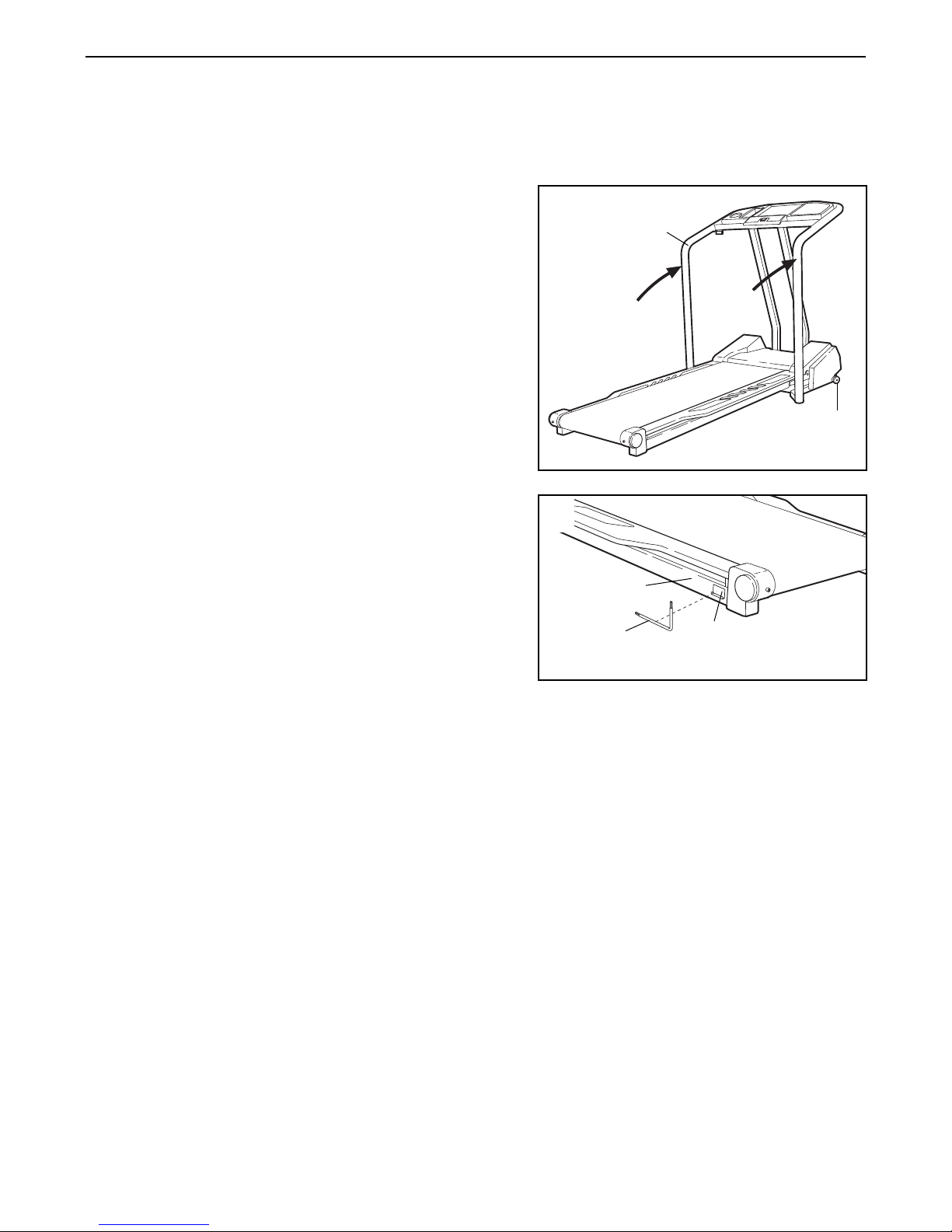

1. With the help of a second person, carefully raise the
Uprights (82) until the Front Wheels (77) are resting on
the floor as shown.
2. Remove the paper backing from the Wrench Clip (71).
Press the Wrench Clip onto the Frame (92) in the indi-
cated location. Press the Allen Wrench (72) into the
Wrench Clip. Note: The use of the Allen Wrench is
described on pages 17 and 18.
1
77
72
92
71
3. Make sure that all parts are tightened before you use the treadmill. Place a mat beneath the treadmill
to protect the floor or carpet. For your benefit, we recommend that you familiarize yourself with the
ÒTROUBLE-SHOOTING AND MAINTENANCEÓ section on page 17.
2
82

7
GROUNDING INSTRUCTIONS
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeÕs power.
Voltage surges, spikes, and noise interference can re-
sult from weather conditions or from other appliances
being turned on or off.
To decrease the pos-
sibility of your tread-
mill being damaged,
always use a surge
protector (not in-
cluded) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a UL-
listed surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding pro-
vides a path of least re-
sistance for electric cur-
rent to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an ap-
propriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole recep-
tacle as shown in drawing 2 if a properly grounded out-
let is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the productÑif it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet

8
CONSOLE OPERATION
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the console is in the manual mode, the
speed and incline of the treadmill can be changed with
a touch of a button. As you exercise, the LED displays
will provide continuous exercise feedback. The console
also offers six preset workout programs: four programs
automatically control the speed of the treadmill and
two programs automatically control the incline of the
treadmill as they guide you through effective workouts.
You can even create your own workout programs and
store them in memory for future use.
In addition, the console features exclusive Personal
Trainer programs. Simply mail the included personal
profile to E-Coach¨. A personal trainer will send you
instructions for selecting a Personal Trainer program
designed to help you reach your specific fitness goals.
Two optional pulse sensors add even more features to
the console. An optional hand pulse sensor mounts to
the handlebar in front of the console, allowing you to
measure your heart rate at any time as you exercise.
Or, an optional chest pulse sensor can be worn during
your workouts, for hands-free heart rate monitoring. To
purchase one of the optional pulse sensors, refer
to page 15.
Note: The console can display speed and distance
in either miles or kilometers (see page 11). For
convenience, all instructions in this section refer
to miles.
CAUTION: Before operating the
console, read the following precautions.
¥ Do not stand on the walking belt when turn-
ing on the power or starting the walking belt.
¥ Always wear the clip (see H above) while
operating the treadmill. If the key is pulled
from the console, the walking belt will stop.
¥ The treadmill is capable of high speeds;
adjust the speed in small increments.
¥ To reduce the risk of electric shock, keep the
console dry. Avoid spilling liquid on the
console and use only a sealable water bottle.
A
B
C
E F GD
H
I
J
N O P Q
Note: If there is a thin sheet of clear plastic
on the face of the console, remove it.
K
M
L

9
Refer to the drawing at the top of page 8.
A. Water Bottle HolderÑKeeps your water bottle
handy during your workouts.
B. Accessory TrayÑHolds your personal items.
C. Reading RackÑAllows you to enjoy your favorite
magazine or read a book while you get in shape.
D. INCLINE ButtonsÑThese buttons control the incline
of the treadmill. Each time a button is pressed, the
incline will change by 0.5%. The incline range is
1.5% to 10%.
E. PAUSE/STOP ButtonÑThis button stops the
walking belt. When the button is pressed, the TIME,
DISTANCE/INCLINE and CALORIES/PULSE dis-
plays will pause. If the button is held down for two
seconds, the displays will be reset.
F. START ButtonÑThis button starts the walking belt.
G. SPEED ButtonsÑThese buttons control the speed
of the walking belt. Each time a button is pressed,
the speed will change by 0.1 mph. The speed range
is 0.5 mph to 10 mph.
H. Key with ClipÑThe key turns the console on and
off. The attached clip is designed to be worn on
your waistband. If the key is pulled from the con-
sole, the power will automatically turn off.
I. Operating InstructionsÑThese instructions list the
basic steps of console operation.
J. LED DisplaysÑThese displays provide continuous
feedback of the elapsed time, speed, distance,
incline and the number of calories you have burned.
The lower display also shows your heart rate when
an optional pulse sensor is used.
K. Program DisplayÑThis display shows your
progress during workout programs, as well as
upcoming incline or speed changes.
L. MANUAL/Program IndicatorsÑThese indicators
show when the manual mode is selected and when
one of the workout programs is selected.
M. Program ProfilesÑThese profiles show how the
incline or speed of the treadmill will change during
workout programs. During the Speed 1 program, for
example, the speed will gradually increase during
the first half of the program, and then gradually
decrease during the last half.
N. SELECT ButtonsÑThese buttons are used to make
various selections on the console.
O. ENTER ButtonÑThis button is used to enter selec-
tions.
P. PERSONAL TRAINER ButtonÑThis button is used
to select Personal Trainer programs. Note: Personal
Trainer programs cannot be selected until you have
received instructions from a personal trainer (see
PERSONAL TRAINER PROGRAMS on page 15).
Q. RECORD ButtonÑThis button is used to program
the Custom 1 and Custom 2 programs.
Make sure that the
on/off switch, located
on the front of the
treadmill, is in the on
position.
Next, make sure that the power cord is properly plugged
in (see page 7). Note: If the key is in the console when
the power cord is plugged in, the letters ÒPOÓ will flash in
the CALORIES/PULSE display. If this occurs, remove
the key.
Step onto the foot rails of the
treadmill. Find the clip
attached to the key, and slide
the clip onto the waistband of
your clothing. Next, insert the
key fully into the console. The
MANUAL indicator will begin to flash; all other indicators
and displays will remain dark.

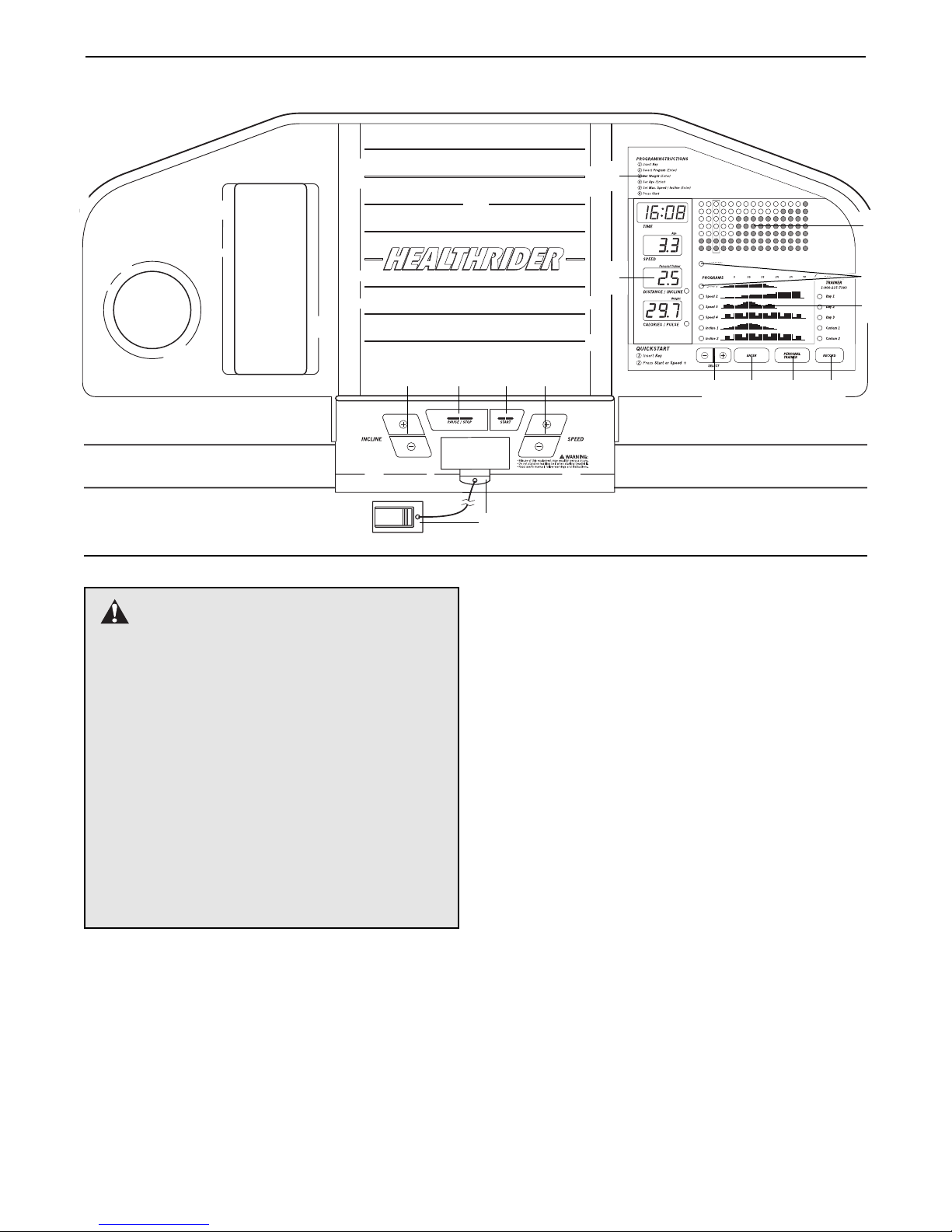

DIAGRAM OF THE CONSOLE
HOW TO TURN ON THE POWER
On

10
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 9.
Note: When you are familiar with the console,
you may go directly to step 5. While learning to
use the console, please read all steps.
Select the MANUAL mode.
When the key is inserted,
the MANUAL indicator
will begin to flash. (Note:
If a program has been
selected, hold down the
PAUSE/STOP button for
two seconds until the MANUAL indicator is flashing.)
To select the manual mode, press the ENTER but-
ton while the MANUAL indicator is flashing.
Enter your weight if desired.
When the manual mode
is selected, the TIME
display will light and a
weight setting will begin
to flash in the CALO-
RIES/PULSE display. If
you enter your weight into the console, the CALO-
RIES/PULSE display will be more accurate.
If you do not want to enter your weight, press the
ENTER button. To enter your weight, press the
SELECT buttons. Each time a button is pressed,
the weight setting will change by 1 pound. If a but-
ton is held down, the weight setting will change in
increments of 5 pounds. When the correct weight
is shown, press the ENTER button. Once your
weight is entered, it will be saved in memory.
Enter your age if desired.
After a weight setting is
entered, an age setting
will begin to flash in the
SPEED display.
If you do not want to
enter your age, press the ENTER button. If you
want to enter your age, press the SELECT but-
tons. Each time a button is pressed, the age set-
ting will change by 1 year. If a button is held down,
the age setting will change in increments of 5
years. When the correct age is shown, press the
ENTER button. Once your age is entered, it will be
saved in memory.
Press the START button or the SPEED + button.
A moment after the button is pressed, the walking
belt will begin to move at 1.0 mph. Hold the hand-
rails and begin walking. As you exercise, change
the speed of the walking belt as desired with the
SPEED buttons. Each
time a button is pressed,
the speed will change
by 0.1 mph. The speed
range of the walking belt
is 0.5 mph to 10.0 mph.
To stop the walking belt for a moment, press the
PAUSE/STOP button. The displays will pause and
the TIME display will begin to flash. To restart the
walking belt, press the START button or the
SPEED + button. Note: To stop the walking belt
and reset all displays, hold down the PAUSE/STOP
button for two seconds. The console will then be in
the same state as if the key had just been inserted.
Note: When one of the SPEED buttons is pressed,
the SPEED display will show the selected speed
setting for seven seconds. The display will then
show the actual speed of the walking belt.
Adjust the incline as desired.
To vary the intensity of
your exercise, the in-
cline of the treadmill can
be changed with the
INCLINE buttons. Each
time a button is pressed,
the incline will change by 0.5%. The incline range
is 1.5% to 10%. Note: When one of the INCLINE
buttons is pressed, the DISTANCE/INCLINE
display will show the incline setting for seven
seconds. After the INCLINE buttons are pressed, it
may take a moment for the treadmill to reach the
selected incline setting.
Follow your progress with the LED displays.
TIME displayÑThis
display shows the total
time that the walking
belt has been moving.
Note: When a workout
program is selected, this
display will show the time remaining in the program.
7
6
5
4
3
2
1
HOW TO USE THE MANUAL MODE

11

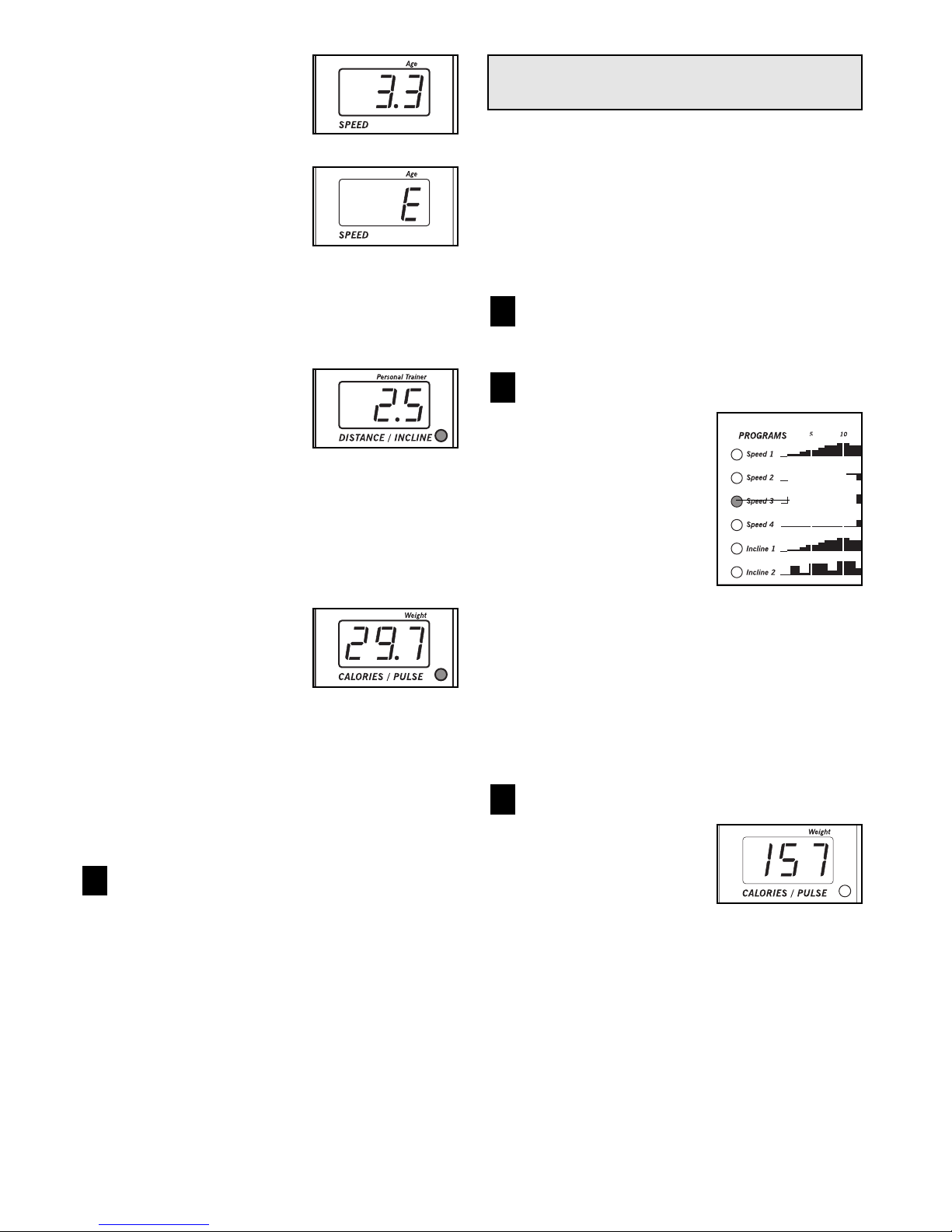

SPEED displayÑThis
display shows the speed
of the walking belt, in
miles per hour or kilome-
ters per hour.
How to select miles per
hour and kilometers
per hour: Hold down the
PAUSE/STOP button
while inserting the key
into the console. An ÒEÓ
(for english miles) or an ÒMÓ (for metric kilometers)
will appear in the SPEED display. Press the SPEED
+ button to change the unit of measurement.
Remove and then reinsert the key.
DISTANCE/INCLINE
displayÑThis display
shows the distance that
the walking belt has
moved and the incline
level of the treadmill.
Every seven seconds, the display will change from
one number to the other. The INCLINE indicator
will light when the incline is shown. Note: If the
speed is shown in mph, the distance will be shown
in miles. If the speed is shown in kph, the distance
will be shown in kilometers.
CALORIES/PULSE
displayÑThis display
shows the number of
calories you have
burned.
Note: If an optional hand pulse sensor or chest
pulse sensor is used, the CALORIES/PULSE dis-
play will show both the number of calories you
have burned and your heart rate. Every seven sec-
onds, the display will change from one number to
the other. The PULSE indicator will light when your
heart rate is shown.
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails and press the PAUSE/STOP
button. Next, change the incline of the treadmill to
1.5%. The incline must be at 1.5% when the
treadmill is folded to the storage position or
the treadmill will be damaged. Remove the key
from the console and put it in a secure place. Move
the on/off switch to the off position (see page 9).
The Speed 1, Speed 2, Speed 3 and Speed 4 programs
automatically control the speed of the treadmill as they
guide you through effective workouts; the Incline 1 and
Incline 2 programs automatically control the incline of
the treadmill.
Follow the steps below to use a Speed program or an
Incline program.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 9.
Select the desired program.
To select a program,
the MANUAL indicator
or a program indicator
must be flashing. If
necessary, hold down
the PAUSE/STOP but-
ton for two seconds until
the MANUAL indicator is
flashing. Next, press
the SELECT + or Ð
button repeatedly until
the Speed 1, Speed 2, Speed 3, Speed 4, Incline 1
or Incline 2 program indicator is flashing. Then,
press the ENTER button. A profile of the program
you have selected will appear in the program display.
Note: When you are familiar with the console,
you may go directly to step 6. While learning to
use the console, please read all steps.
Enter your weight if desired.
When a program is
selected, a weight
setting will begin to flash
in the CALORIES/
PULSE display. If your
weight is entered into
the console, the CALORIES/PULSE display will be
more accurate.
If you do not want to enter your weight, or if you
have already entered your weight, press the
ENTER button. If you want to enter your weight,
press the SELECT buttons. When the correct
weight is shown, press the ENTER button.
3
2
1
8
HOW TO USE THE SPEED PROGRAMS AND
THE INCLINE PROGRAMS
Program
Indicator

12
Enter your age if desired.
See step 4 on page 10.
Adjust the maximum incline or speed setting.
If you selected the
Speed 1, Speed 2,
Speed 3 or Speed 4
program: After an age
setting is entered, a

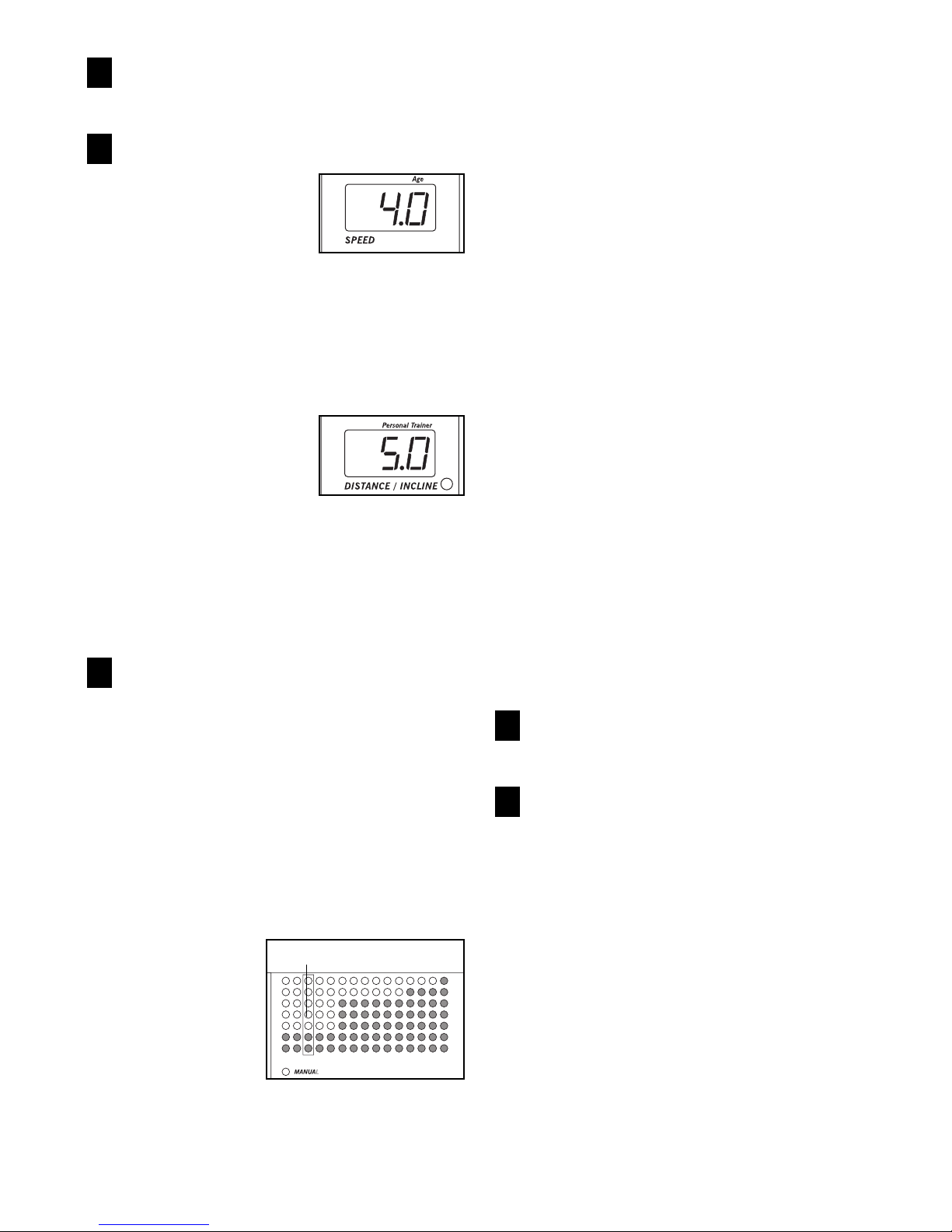

number will begin to flash
in the SPEED display. This number shows the
maximum speed that the walking belt will reach
during the program. The maximum speed setting
can be from 4 mph to 10 mph. If you want to
change the maximum speed setting, press the
SELECT buttons. Then, press the ENTER button.
If you selected the
Incline 1 or Incline 2
program: After an age
setting is entered, a
number will begin to flash
in the DISTANCE/
INCLINE display. This number shows the maximum
incline that the treadmill will reach during the pro-
gram. The maximum incline setting can be from 5%
to 10%. If you want to adjust the maximum incline
setting, press the SELECT buttons. Then, press the
ENTER button.
Press the START button or the SPEED + button
A moment after the button is pressed, the walking
belt will begin to move. (If an incline program is
selected, the treadmill will also adjust to the first
incline setting of the program, unless it is already
at the first incline setting.) Hold the handrails and
begin walking.
Each program consists of twenty 60-second or 90-
second segments. If an incline program is selected,
one incline setting is programmed for each segment;
if a speed program is selected, one speed setting is
programmed for each segment. The incline or
speed setting of
the first segment
will be shown in
the flashing
current segment
column of the
program display.
The incline or
speed settings of
the next twelve
segments will be shown in the twelve columns to
the right.
When only three seconds remain in the first seg-
ment of the program, both the current segment col-
umn and the column to the right will flash. When
the first segment is completed, two tones will
sound and all incline or speed settings will move
one column to the left. The incline or speed setting
of the second segment will then be shown in the
current segment column, and the incline or speed
of the treadmill will adjust to that setting. The
program will continue in this way until all twenty
segments are completed.
If an incline program is selected, the speed of the
treadmill can be changed at any time with the
SPEED buttons. If a speed program is selected,
the incline of the treadmill can be changed at any
time with the INCLINE buttons.
The TIME display will show the time remaining in
the program. When no time remains, the walking
belt will slow to a stop and the program will be
completed.
Note: If the program is too easy or too difficult, the
incline or speed setting of the current segment can
be adjusted with the INCLINE or SPEED buttons. To
stop the program for a moment, press the PAUSE/
STOP button. The displays will pause and the
TIME display will begin to flash. To restart the pro-
gram, press the START button or the SPEED +
button. To end the program at any time, hold down
the PAUSE/STOP button for two seconds. The
console will then be in the same state as if the key
had just been inserted.
Follow your progress with the LED displays.
See step 7 on page 10.
When you are finished exercising, remove the
key.
Make sure that the incline of the treadmill is at
1.5%. The incline must be at 1.5% when the
treadmill is folded to the storage position or
the treadmill will be damaged. Remove the key
from the console and put it in a secure place. In ad-
dition, move the on/off switch to the off position
(see page 9).
8
7
6
5
4
Current Segment

13
The Custom 1 and Custom 2 programs are workout
programs that you create. The programs control both
the speed and the incline of the treadmill, and can be
up to 40 minutes long. The programs are stored in
memory, and can be changed as many times as de-
sired. Follow the steps below to create a program.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 9.
Select the Custom 1 or Custom 2 program.
To select the Custom 1
or Custom 2 program,
the MANUAL indicator
or a program indicator
must be flashing. If nec-
essary, hold down the
PAUSE/STOP button for two seconds until the
MANUAL indicator is flashing. Next, press the
SELECT + or Ð button repeatedly until the Custom
1 or Custom 2 program indicator is flashing. Then,
press the ENTER button. One or more indicators
will appear in the program display.
Note: When you are familiar with the console,
you may go directly to step 5. While learning to
use the console, please read all steps.
Enter your weight if desired.
When the Custom 1 or
Custom 2 program is
selected, a weight setting
will begin to flash in the
CALORIES/PULSE dis-
play. If your weight is en-
tered into the console, the CALORIES/PULSE
display will be more accurate.
If you do not want to enter your weight, or if you
have already entered your weight, press the
ENTER button. If you want to enter your weight,
press the SELECT buttons. When the correct
weight is shown, press the ENTER button.
Enter your age if desired.
See step 4 on page 10.
Press the START button or the SPEED + button.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.

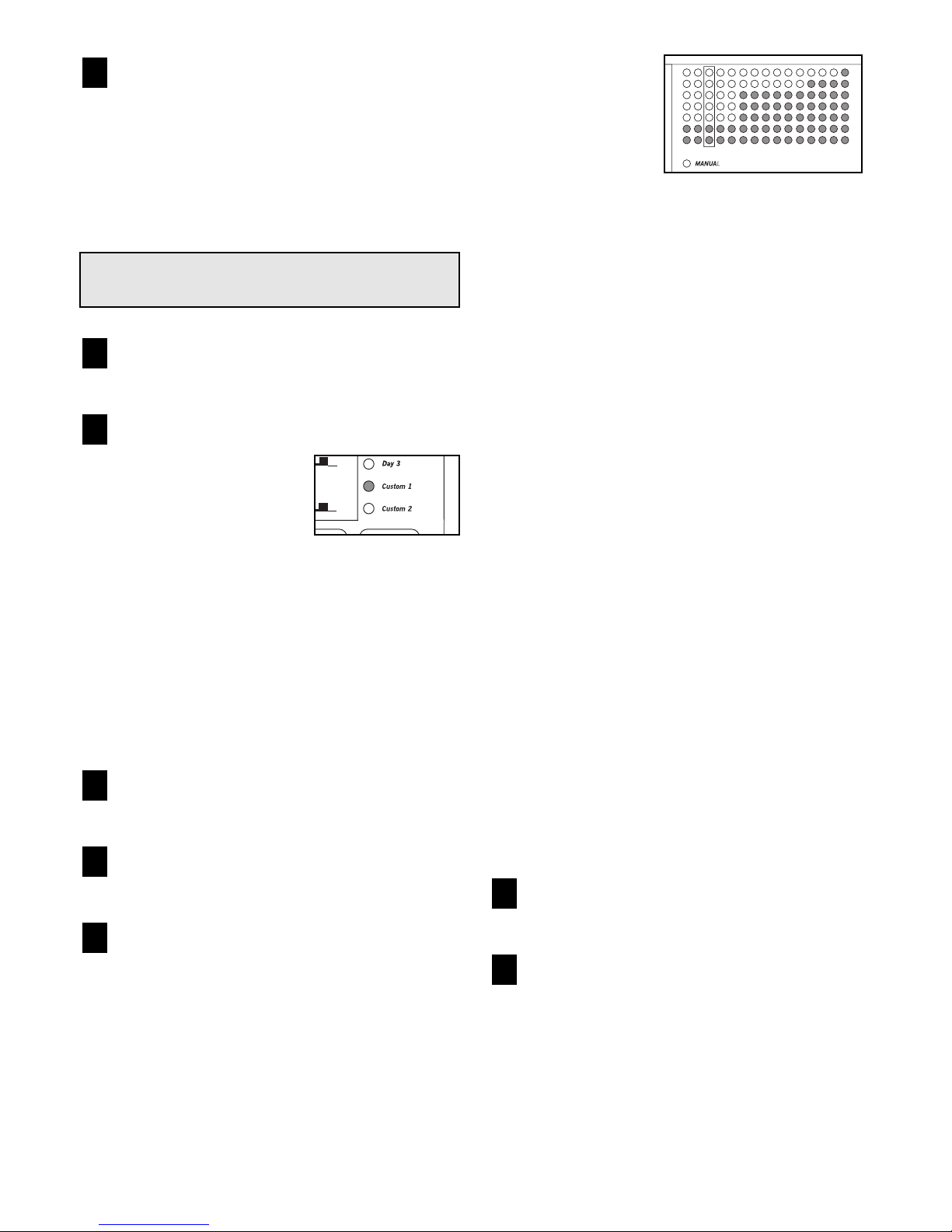

Press the RECORD button and program the
desired speed and incline settings.
When the RECORD button is pressed, the Custom
1 or Custom 2 indicator will begin to flash rapidly.
Speed and incline settings can be programmed
only when the indicator is flashing rapidly.
Each program is divided into 60-second segments.
One speed setting and one incline setting can be
programmed for each segment. The speed setting
of the first segment is shown in the flashing
current segment
column of the
program display.
(The incline
settings are not
shown in the
program dis-
play.) To pro-
gram speed and
incline settings
for the first segment, simply adjust the speed and
incline of the treadmill as desired with the SPEED
and INCLINE buttons. Every few times the SPEED
buttons are pressed, one additional indicator will
light or darken in the current segment column.
When the first segment is completed, two tones will
sound and the current speed and incline settings
will be stored in memory. All settings shown in the
program display will then move one column to the
left, and the speed setting of the second segment
will be shown in the current segment column.
Program speed and incline settings for the second
segment as described above. Repeat this proce-
dure until you have programmed speed and incline
settings for as many segments as desired.
Programs can have up to forty segments.
Note: To stop the program for a moment, press the
PAUSE/STOP button. The displays will pause and
the TIME display will begin to flash. To restart the
program, press the START or SPEED + button.
Hold down the PAUSE/STOP button for two
seconds.
When you have programmed speed and incline
settings for as many 60-second segments as
desired, hold down the PAUSE/STOP button for
two seconds. The speed and incline settings that
you have programmed and the length of the pro-
gram will be stored in memory. To use the program
again, see HOW TO USE THE CUSTOM 1 AND
CUSTOM 2 PROGRAMS on page 14.
7
6
5
4
3
2
1
HOW TO PROGRAM THE CUSTOM 1 AND
CUSTOM 2 PROGRAMS
Current Segment

14
When the program is completed, remove the
key.
Make sure that the incline of the treadmill is at 1.5%.
The incline must be at 1.5% when the treadmill
is folded to the storage position or the treadmill
will be damaged. Remove the key from the con-
sole and put it in a secure place. In addition, move
the on/off switch to the off position (see page 9).
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 9.
Select the Custom 1 or Custom 2 program.
To select the Custom 1
or Custom 2 program,
the MANUAL indicator
or a program indicator
must be flashing. If nec-
essary, hold down the
PAUSE/STOP button for two seconds until the
MANUAL indicator is flashing. Next, press the
SELECT + or Ð button repeatedly until the Custom
1 or Custom 2 program indicator is flashing. Then,
press the ENTER button. A profile of the program
you have selected will appear in the program display.
Note: When you are familiar with the console,
you may go directly to step 5. While learning to
use the console, please read all steps.
Enter your weight if desired.
See step 3 on page 13.
Enter your age if desired.
See step 4 on page 10.
Press the START button or the SPEED + button.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Each program is divided into 60-second segments.
One speed setting and one incline setting are pro-
grammed for each segment. The speed setting of
the first segment is shown in the flashing current
segment column of the program display. (The in-
cline setting is not shown in the program display.)
When only three seconds remain in the first seg-
ment of the pro-
gram, both the
current segment
column and the
column to the
right will flash.
When the first
segment is com-
pleted, two tones will sound and all speed settings
will move one column to the left. The speed setting
of the second segment will then be shown in the
current segment column, and the incline and speed
of the treadmill will adjust to the second settings
that you programmed previously. The program will
continue in this way until all segments are com-
pleted and no time remains in the TIME display.
The walking belt will then slow to a stop and the
program will be completed.
Note: To stop the program for a moment, press the
PAUSE/STOP button. The displays will pause and
the TIME display will begin to flash. To restart the
program, press the START button or the SPEED +
button. To end the program at any time, hold down
the PAUSE/STOP button for two seconds. The
console will then be in the same state as if the key
had just been inserted.
Note: During the program, the speed and incline
settings of the current segment can be adjusted
with the SPEED and INCLINE buttons. Adjustments
will not be stored in memory. To reprogram speed
and incline settings, press the RECORD button.
The Custom 1 or Custom 2 indicator will begin to
flash rapidly. Speed and incline settings can be
reprogrammed only when the indicator is flash-
ing rapidly. Next, adjust the speed and incline of
the treadmill with the SPEED and INCLINE buttons.
When the current segment of the program is com-
pleted, the new speed and incline settings will be
stored in memory. When you have reprogrammed
speed and incline settings for as many segments as
desired, press the RECORD button again.
Follow your progress with the five displays.
Refer to step 7 on page 10.
When the program is completed, remove the
key.
Make sure that the incline of the treadmill is at 1.5%.
The incline must be at 1.5% when the treadmill
is folded to the storage position or the treadmill
will be damaged. Remove the key from the con-
sole and put it in a secure place. In addition, move
the on/off switch to the off position (see page 9).
7
6
5
4
3
2
1
8
HOW TO USE THE CUSTOM 1 AND CUSTOM 2
PROGRAMS

15
The console features an information mode that keeps
track of the total time and distance accumulated on the
treadmill. The information mode also allows you to
switch the console from miles per hour to kilometers
per hour.
To select the information mode, hold down the
PAUSE/STOP button while inserting the key into the
console. When the information mode is selected, the
following information will be shown:
The TIME display will show
the total number of hours
accumulated on the treadmill.
The SPEED display will show
an ÒEÓ (for english miles) or an
ÒMÓ (for metric kilometers). To
change the unit of measure-
ment, press the SPEED +
button.
The DISTANCE/INCLINE dis-
play will show the total number
of miles accumulated on the
treadmill.
To exit the information mode, remove the key from the
console.
In addition to the Incline programs, the Speed programs,
and the Learn programs, the console features exclusive
Personal Trainer programs. Simply mail the included
personal profile to E-Coach¨. A personal trainer will
send you instructions for selecting a Personal Trainer
program designed to help you reach your specific
fitness goals.
Two optional pulse sensors add even more features to
the console. To purchase one of the pulse sensors,
refer to the card accompanying the treadmill.
An optional hand
pulse sensor mounts
to the handlebar in
front of the console,
allowing you to mea-
sure your heart rate
at any time during
your workouts.
An optional chest pulse sensor can be worn during
your workouts, for hands-free heart rate monitoring.
Note: The hand pulse sensor and the chest pulse sen-
sor cannot be used simultaneously.
PERSONAL TRAINER PROGRAMSTHE INFORMATION MODE
OPTIONAL PULSE SENSORS
Hand
Pulse
Sensor
Chest Pulse Sensor

16
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
Caution: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right. To
decrease the possibility of injury, bend your legs and
keep your back straight. As you raise the treadmill,
make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown, and hold the
treadmill firmly. Using your left hand, push the storage
latch to the left. Raise the treadmill until the storage latch
snaps into the catch. Make sure that the storage latch
is inside of the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85¡ Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
storage latch is inside of the catch.
1. Hold the handrails and place one foot on the base.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, push the storage latch to the
left. Pivot the treadmill until the storage latch is past the
catch.
2. See the drawing at the top of this page. Hold the treadmill
firmly with both hands, and lower the treadmill to the floor.
To decrease the possibility of injury, bend your legs
and keep your back straight.
Base
Front Wheels
Catch
Storage
Latch
Storage
Latch
Catch

17
PROBLEM SOLUTION
a. Make sure that the power cord is plugged into a surge protector, and that the
surge protector is plugged into a properly grounded outlet. (See page 7.) Use only
a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or
less in length.
b. Make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the frame near
the power cord. If the switch protrudes as shown, the
circuit breaker has tripped. To reset the circuit
breaker, wait for five minutes and then press the
switch back in.
d. Check the on/off switch located on the frame near the
power cord. The switch must be in the on position.
a. Check the circuit breaker (see c. above). If the circuit breaker has tripped,
wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console and then reinsert it.
d. Make sure that the on/off switch is in the on position (see d. above).
a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of
five feet or less in length.
b. If the walking belt is overtightened, tread-
mill performance may decrease and the
walking belt may be permanently dam-
aged. Remove the key and UNPLUG THE
POWER CORD. Using the included allen
wrench, turn both rear roller adjustment
bolts counterclockwise 1/4 of a turn. When
the walking belt is properly tightened, you
should be able to lift the edges of the
walking belt 3 to 4 inches off the walking
platform. Be careful to keep the walking
belt centered. Plug in the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, call our Customer Service
Department toll-free.
1. The power does not
turn on
2. The power turns off
during use
3. The walking belt
slows when walked
on
TROUBLE-SHOOTING AND MAINTENANCE
Most treadmill problems can be solved by following the instructions below. If further assistance is
needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
Reset
On
Position
Ti d
Reset
Tripped
Rear Roller Adjustment Bolts
3Ð4Ó
b

18
PROBLEM SOLUTION
a. If the walking belt has shifted to the
left, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn the left rear roller adjustment
bolt clockwise, and the right bolt counter-
clockwise, 1/4 of a turn each. Be careful
not to overtighten the walking belt. Plug in
the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt has shifted to the right,
first remove the key and UNPLUG THE
POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt
counterclockwise, and the right bolt clock-
wise, 1/4 of a turn each. Be careful not to
overtighten the walking belt. Plug in the
power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
c. If the walking belt slips when walked on,
first remove the key and UNPLUG THE
POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts clock-
wise, 1/4 of a turn. When the walking belt
is correctly tightened, you should be able
to lift the edges of the walking belt 3 to 4
inches off the walking platform. Be careful
to keep the walking belt centered. Plug in the power cord, insert the key and run
the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a. If error code ÒE1,Ó ÒE2,Ó or ÒE3Ó appears in the SPEED display, remove the key,
wait for ten seconds, and then reinsert it. If the error code appears again, call our
Customer Service Department. Do not operate the treadmill until the problem
is corrected.
b. Error code ÒE4Ó may appear in the SPEED display if the walking belt is moving at
a slow speed and there is excessive stress on the motor. If this occurs, remove
the key, wait for ten seconds, and then reinsert it. If you weight over 200 pounds,
it may also be helpful to increase the incline of the treadmill. If the error code ap-
pears again, call our Customer Service Department. Do not operate the treadmill
until the problem is corrected.
a. Use a color-fast upholstery cleaner to clean the walking belt. Test the
cleaner on a small area before cleaning the entire belt.
a. Due to variations in humidity and temperature, there is a possibility that
bubbles may form in the walking belt. Although the bubbles will disappear with
time, you may unplug the power cord, carefully insert a needle into the bubbles,
and push the air out of the bubbles.
a
b
c
4. The walking belt is
off-center or slips
when walked on
5. An error code (ÒE1,Ó
ÒE2,Ó ÒE3,Ó or ÒE4,Ó)
appears in the SPEED
display
6. The walking belt
becomes soiled
7. Bubbles form in the
walking belt

19
The following guidelines will help you to plan your exer-
cise program. For more information about exercise,
consult your physician or obtain a reputable book.
EXERCISE INTENSITY
Whether you want to burn fat or to strengthen your
cardiovascular system, you can tailor your exercise to
your specific goals. The key to achieving the desired
results is to exercise with the proper intensity. As you
exercise, your heart rate should be kept at a level be-
tween 70% and 85% of your maximum possible heart
rate. This is known as your training zone. You can find
your training zone in the table below. Training zones
are listed according to age and physical condition.
To measure your heart
rate, stop exercising
and place two fingers
on your wrist as
shown. Take a six-sec-
ond heartbeat count,
and multiply the result
by ten to find your
heart rate. (A six-second count is used because your
heart rate drops quickly when you stop exercising.) If
your heart rate is too high or too low, adjust the speed
or incline of the treadmill accordingly.
Burning Fat
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, keep your heart rate near the low end of your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
keep your heart rate near the middle of your training
zone as you exercise.
WORKOUT GUIDELINES
Each workout should include three parts: (1) a warm-
up, (2) training zone exercise, and (3) a cool-down.
Warming UpÑBegin each workout with five to ten
minutes of stretching and light exercise to warm up. A
proper warm-up increases your body temperature, heart
rate, and circulation in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 30 minutes. Breathe regu-
larly and deeply as you
exerciseÑnever hold your breath.
Cooling DownÑEnd each workout with five to ten
minutes of stretching to cool down. This will develop
muscle flexibility and will help to prevent post-exercise
problems.
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may complete
up to five workouts each week if desired. The key to
success is to make exercise a regular and enjoyable
part of your everyday life.
CONDITIONING GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
individuals over the age of 35 or individuals
with pre-existing health problems.
20 138-167 133-162
25 136-166 132-160
30 135-164 130-158
35 134-162 129-156
40 132-161 127-155
45 131-159 125-153
50 129-156 124-150
55 127-155 122-149
60 126-153 121-147
65 125-151 119-145
70 123-150 118-144
75 122-147 117-142
80 120-146 115-140
AGE Unconditioned Conditioned
TRAINING ZONE (Beats/Min.)

PART LISTÑModel No. HRTL10980 R1098A
Key
No. Qty. Description
1 1 Rear Roller
2 6 Isolator
3 2 Front Platform Screw
4 4 Hood Bracket Clip
5 1 Handrail
6 1 Walking Platform
7 2 Frame Pivot Bolt
8 38 Screw
9 2 Rear Platform Screw
10 2 Cable Tie Clamp
11 6 Small Screw
12 1 Releasable Tie
13 5 8Ó Cable Tie
14 1 Belly Pan
15 1 Hood
16 2 Frame Pivot Spacer
17 2 Console Bushing
18 8 Center Grip Tape
19 1 Incline Leg
20 1 Shock
21 1 Front Roller/Pulley
22 1 Walking Belt
23 1 Motor Tension Nut
24 1 Motor Star Washer
25 1 Motor Tension Washer
26 6 Motor Tension Bolt
27 1 Motor
28 1 Motor Belt
29 1 Pulley/Flywheel/Fan
30 6 Motor Pivot Nut
31 1 Front Roller Adjust. Bolt
32 5 Roller Adjust. Washer
33 1 Motor Pivot Bolt
34 1 Front Roller Adjust.Nut
35 1 Speed Optic Disk
36 1 Optic Switch Bracket
37 2 Optic Switch Bolt
38 1 Bracket Nut
39 2 Optic Switch
40 1 Optic Switch Star Washer
41 2 Optic Switch Nut
42 2 Hood Bracket, Short
43 2 Grommet
44 4 Plastic Stand-Off
45 1 Power Cord Bracket
46 1 On/Off Switch
47 1 Circuit Breaker
48 2 Handrail Endcap
49* 1 Motor/Pulley/Fly./Fan
50 2 Hood Bracket (long)
Key
No. Qty. Description
51 1 Power Supply w/Clips
52 1 Controller
53 1 Power Cord Grommet
54 1 Power Cord
55 1 Pulse Sensor Housing
56 2 Handrail Bolt
57 2 Handrail Washer
58 1 Pulse Sensor Cap
59 1 Console Base
60 1 Console
61 1 Electronics Bracket
62 2 Latch Screw
63 1 Choke Bracket
64 1 Key/Clip
65 1 Storage Latch
66 1 Rear Roller Ground Wire
67 1 Incline Warning Decal
68 1 Storage Catch
69 1 Incline Motor Spacer
70 2 Endcap Insert
71 1 Wrench Clip
72 1 Allen Wrench
73 1 Wire Harness Grommet
74 2 Upright Base Endcap
75 2 Frame Pivot Washer
76 2 Wheel Nut
77 2 Front Wheel
78 2 Wheel Bolt
79 4 Base Pad
80 1 Left Front Grip Tape
81 1 Wire Harness
82 1 Upright/Base
83 1 Incline Motor Plate
84 1 Incline Motor Shield
85 1 4Ó Cable Tie
86 1 Incline Optic Disk
87 1 23Ó Cable Tie
88 1 Incline Motor
89 1 Incline Stop Bracket
90 1 Pulse Sensor Cover
91 2 Photo Switch Wire
92 1 Frame
93 1 Right Endcap
94 1 Left Endcap
95 2 Endcap Pad
96 1 Motor-Controller Wire
97 2 Rear Roller Adjust. Bolt
98 1 Latch Decal
99 2 Platform Screw
100 1 Electronics Shield
Key
No. Qty. Description
101 6 Wheel Washer
102 2 Sensor Cover Screw
103 2 Console Screw, Long
104 3 Incline Warning Decal
105 1 Right Front Grip Tape
106 1 Right Rear Grip Tape
107 1 Left Rear Grip Tape
108 1 Storage Catch Bolt
109 1 Storage Catch Washer
110 1 Storage Catch Nut
111 1 Handrail Cap (left)
112 1 Handrail Cap (right)
# 1 8Ó Black Wire, M/F
# 1 8Ó Black Wire, 2 Ring
# 1 20Ó White Wire, 2 F
# 1 4Ó White Wire, M/F
# 1 14Ó Blue Wire, M/F
# 1 8Ó Blue Wire, 2 Female
# 1 4Ó Blue Wire, 2 F
# 1 8Ó Red Wire, M/F
# 1 4Ó Green F/Ring
# 1 12Ó Wire Harness
# 1 UserÕs Manual
* Includes all parts shown in the box.
For more information about the
optional pulse kit, see page 15.
# These parts are not illustrated
Specifications are subject to change
without notice.
