HearthStone Heritage 8091 User manual

Heritage Pellet Model 8091
Report: 261-S-04b-2
Manual: 6400-40465-1
Revision: 8 - 6/12/2012
Heritage
(Model 8091)
Pellet Stove
OWNER’S MANUAL
Operating Instructions
Please read this entire manual before installation and use of this pellet fuel burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 2 of 38
Intentionally Blank

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 3 of 38
Table of Contents
Operation................................................................................................................................ 4
Loading Pellets .................................................................................................................................................... 4
Modes of Operation.............................................................................................................................................5
Ash Disposal......................................................................................................................................................25
Maintenance......................................................................................................................... 26
Daily...................................................................................................................................................................27
Weekly or as Needed ........................................................................................................................................ 27
Monthly ..............................................................................................................................................................27
Yearly or Every Ton of Pellets........................................................................................................................... 28
As Needed.........................................................................................................................................................30
Glass Replacement Procedures........................................................................................................................31
Troubleshooting .................................................................................................................. 32
Display Messages:.............................................................................................................................................32
General Issues:.................................................................................................................................................. 34
Replacement Parts & Optional Accessories List.............................................................. 36
Safety Label ......................................................................................................................... 37

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 4 of 38
Operation
CAUTION: HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY
CAUSE SKIN BURNS.
CAUTION: DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.
CAUTION: DO NOT BURN GARBAGE, FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, OR ENGINE OIL.
CAUTION: THIS UNIT IS DESIGNED TO BURN ONLY PREMIUM NATURAL WOOD PELLETS. DO NOT BURN ANY
OTHER MATERIAL NOT DESIGNATED AS WOOD PELLET FUEL. USE OF CHUNK WOOD IN THIS STOVE IS
PROHIBITED BY LAW. BURNING ANYTHING OTHER THAN WOOD PELLET FUEL CAN CAUSE OVERFIRING,
DAMAGE THE APPLIANCE, AND WILL VOID THE WARRANTY.
USE ONLY THE BURN POT DESIGNED FOR THIS STOVE – DO NOT SUBSTITUTE WITH OTHER PARTS OR USE
A GRATE TO HOLD THE FUEL.
WARNING: DO NOT ABUSE THE FRONT DOOR GLASS BY STRIKING, OR BY SLAMMING THE DOOR.
CAUTION: DO NOT OPERATE THIS UNIT WITH BROKEN DOOR GLASS.
DO NOT ALLOW FIRE TO BURN TOO CLOSE TO THE GLASS.
DO NOT OPERATE WITH THE FRONT DOOR, OR ASH DRAWER OPEN – THE UNIT WILL SHUT DOWN.
DISCONTINUE OPERATION IF YOU SMELL SMOKE COMING FROM THE HEATER.
IF A MALFUNCTION IS SUSPECTED, TURN THE UNIT OFF USING THE CONTROL PANEL, DO NOT UNPLUG!
IF THE FLAMES BECOME SOOTY, OR THE BURN POT OVERFILLS WITH PELLETS, IT IS RECOMMENDED TO
TURN OFF THE STOVE AND THOROUGLY CLEAN ALL STOVE AREAS AS PER MAINTENANCE DIRECTIONS.
WHEN OPERATING NORMALLY, THIS APPLIANCE COULD TRIGGER SMOKE DETECTORS INSTALLED TOO
CLOSE TO THE UNIT.
Loading Pellets
Lift the hopper door vertically until fully opened, open secondary hopper door; add pellets into hopper until full.
In order to maximize hopper capacity, push pellets into void spaces. With all voids full, maximum hopper
capacity is approximately 50 lbs of pellets. To reduce the introduction of fines, or spillage, we recommend the
use of a secondary container to add pellets. Clean up any pellets spilled on, or down inside the stove.
Store pellets in a dry location, and outside the required clearances to combustibles of the heater.
NOTES:
WARNING! TOP GRILL AND FRONT EDGE OF STOVE CAN BECOME VERY HOT, AVOID ALL CONTACT WITH
HEATED SURFACES
IF THE HOPPER DOOR IS LEFT OPEN, A CAP OPEN MESSAGE WILL SHOW ON THE DISPLAY. AN OPEN
HOPPER DOOR WILL AUTOMATICALLY STOP FUNCTION OF THE FEED AUGER, AS THE AUGER POSES A
HAZARD TO FINGERS DURING OPERATION. TO ACKNOWLEDGE THIS MESSAGE, SIMPLY CLOSE THE
HOPPER DOOR.
All operations of the stove are initiated from the User Interface pad. This pad is designed to provide simple,
user-friendly operation of the stove. There are only four buttons on the interface pad, Power (On/Off), MENU,
+, -. During normal operation, the interface screen will illuminate red. When the unit is in OFF mode, but power
is supplied, the pad will display its operational state without the red backlighting. If an error is detected, an error
message is displayed, and the readout will flash.
Power
Plus
Menu
Minus

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 5 of 38
Operation
Modes of Operation
The Heritage Pellet Stove has various modes of operation. They are:
Manual – Most basic mode (no thermostatic control).
Thermostat – Optional mode. Requires an external mili-volt thermostat sold at your local Hearthstone
dealer or hardware store.
Automatic – Easiest automatic mode. Requires the use of the Hearthstone’s Room Sensor (included with
the stove).

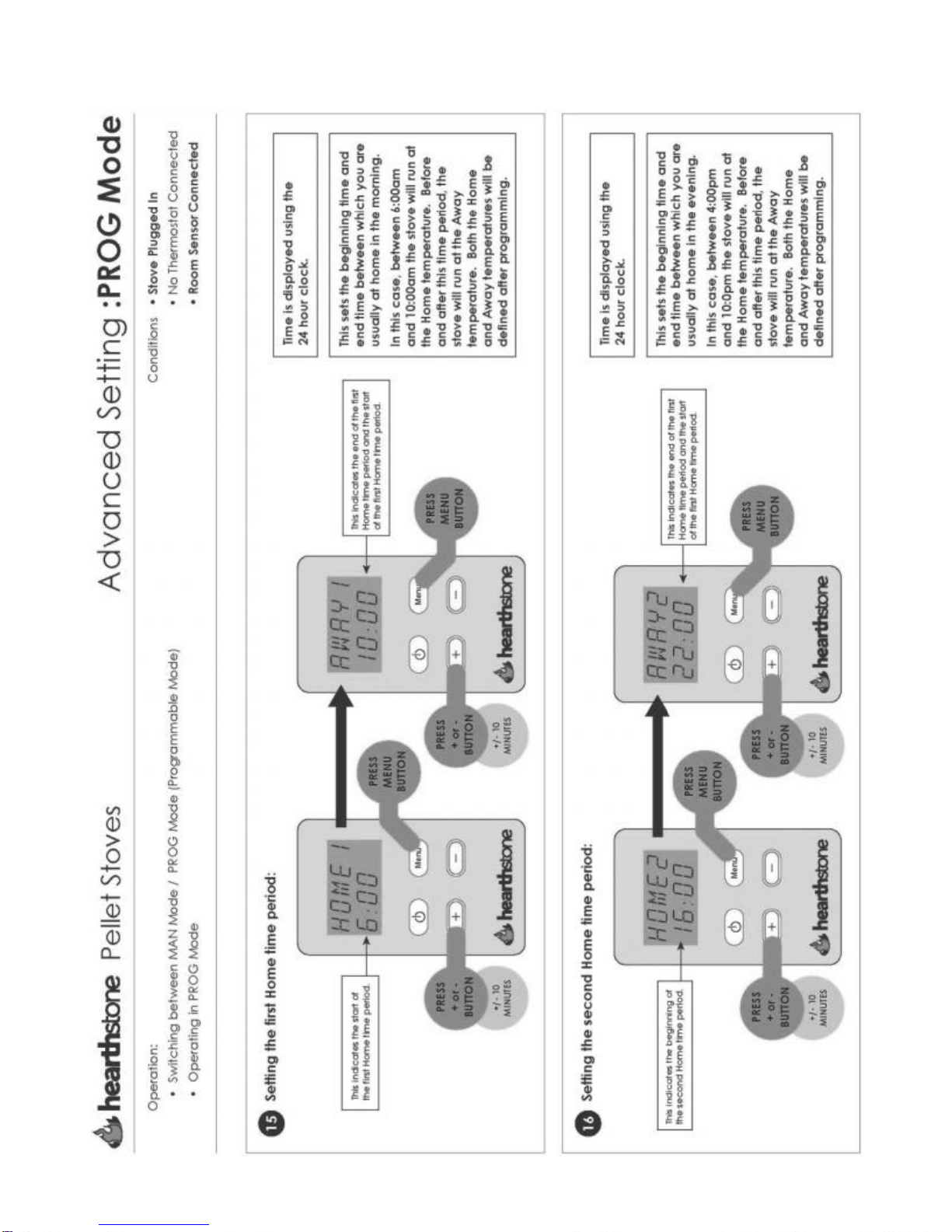

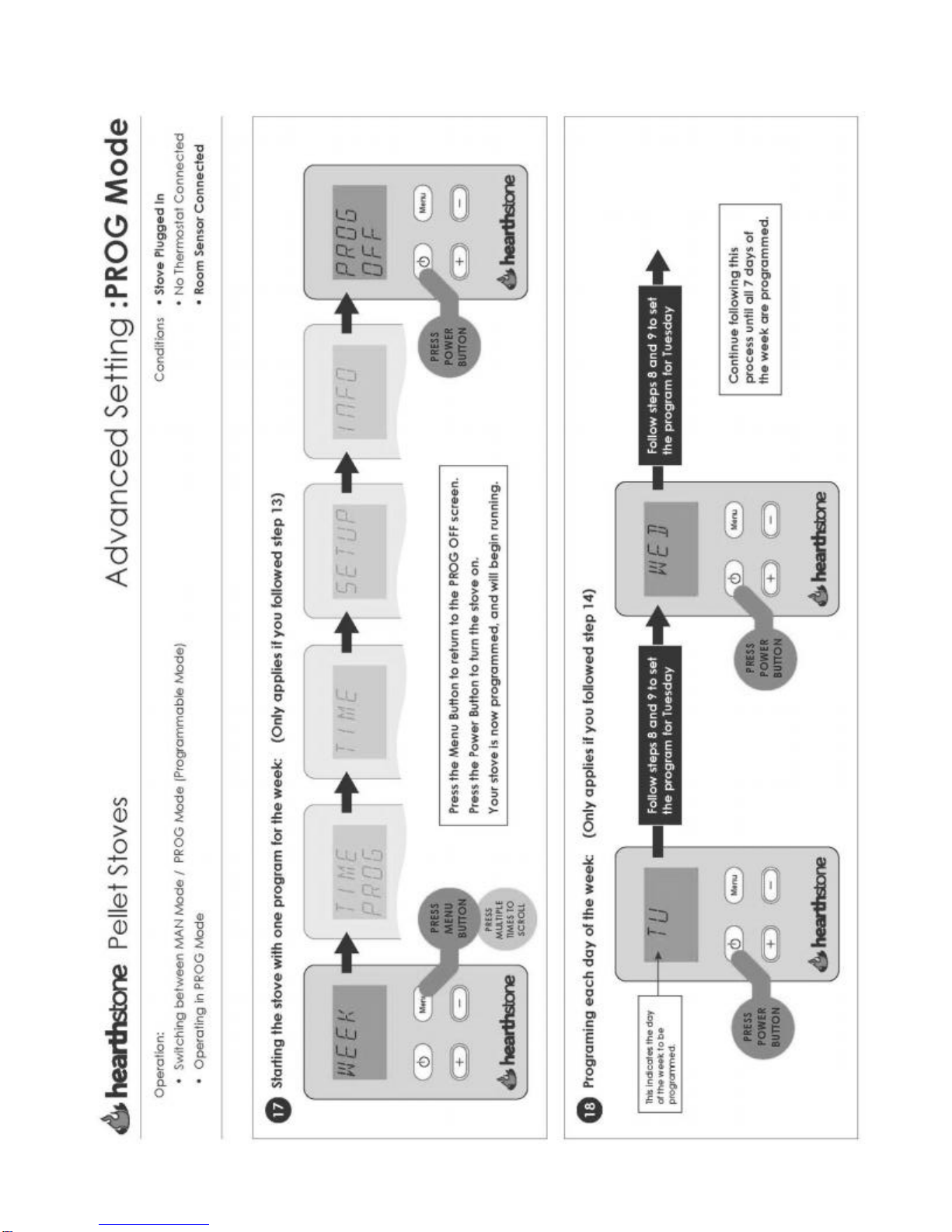

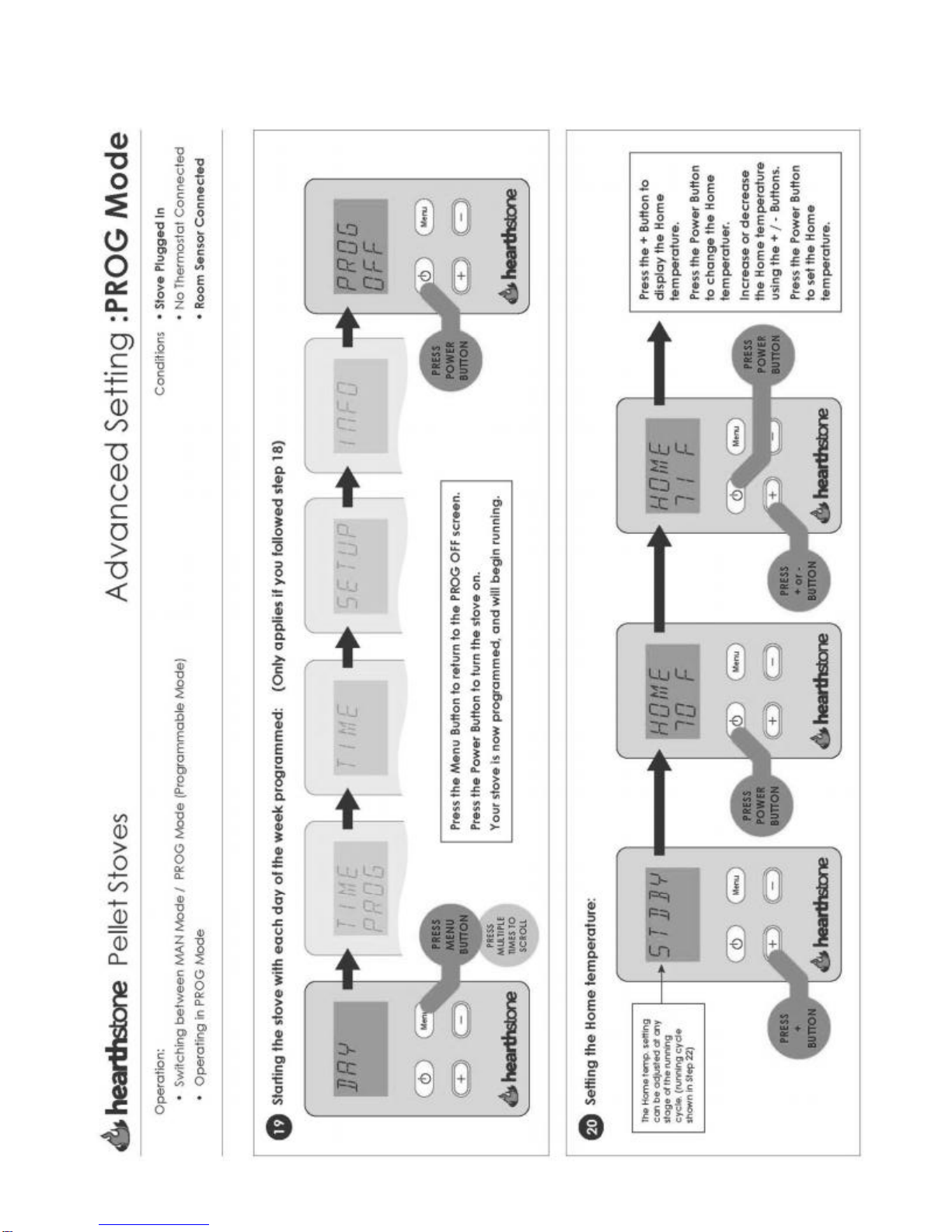

Programmable – Best automatic mode. Requires the use of the Hearthstone’s Room Sensor (included with
the stove).
Note: If the stove is triggered to shut down and then triggered to turn back on immediately, it will still go through
the complete shut down and startup process.

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 6 of 38
Operation

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 7 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 8 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 9 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 10 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 11 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 12 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 13 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 14 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 15 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 16 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 17 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 18 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 19 of 38

Hearthstone Quality Home Heating Products, Inc. Heritage Model 8091 Pellet Stove
Page 20 of 38
Set the Current Time/Date (Programmable Mode)
Action
Step 1: From the main display press twice.
Step 2: Press the button to enter the Time menu.
Step 3: Press the button to enter the Time Set area.
Step 4: Use the button to set the hour and the button to set the
minutes. Once the time is set press to continue.
Note: 24 hour clock is used on this stove.
Step 5: Use the and buttons to change and set the current day of
the month.
Press to continue.
Step 6: Use the and buttons to change and set the current month
of the year.
Press to continue.
Step 7: Use the and buttons to change and set the current year.
Press to continue.
Step 8: The current day of the week displays. Press to confirm the date
settings.
time
Prog
70 F
Time
Set
Time
9:25
day
25
Mont
h
Year
2009
we
- 1:0 -
Prog
70 F
