Heat & Glo LifeStyle Dakota-AU 7145 Installation instructions

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 1
Installation & Operation
Instructions
MODEL: Dakota-AU
Australian Gas Association
Certification Number: 7145
This manual must be used for installation and retained
by Homeowner for operation and maintenance.
This product may be covered by one or more of the following patents:
(United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356,
5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112,
5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698,
6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441,
6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408,
2313972; (Australia) 543790; 586383; 780250, 780403, 1418504; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents
pending.

2 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
Read this manual before installing or operating this fireplace.
Please retain this owner’s manual for future reference.
Congratulations on selecting a Heat & Glo LifeStyle Collec-
tion gas fireplace—an elegant and clean alternative to wood
burning fireplaces. The Heat & Glo LifeStyle Collection gas
fireplace you have selected is designed to provide the ut-
most in safety, reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and care-
fully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control sys-
tems.
Your new Heat & Glo LifeStyle Collection gas fireplace will
give you years of durable use and trouble-free enjoyment.
Welcome to the Heat & Glo LifeStyle Collection family of
fireplace products!
Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on fireplace:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your fireplace:
Congratulations

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 3
Table of Contents
1 Listing and Code Approvals 4
A. Fireplace Certification . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started 4
A. Design and Installation Considerations . . . . . . . . . . . . 4
3 Framing and Clearances 5
A. Select Fireplace Location . . . . . . . . . . . . . . . . . . . . . . 5
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Outdoor Enclosure Options . . . . . . . . . . . . . . . . . . . . . 7
4 Fireplace Preparation 8
A. Remove Logs and Shipping Cover . . . . . . . . . . . . . . . 8
B. Securing and Leveling Fireplace . . . . . . . . . . . . . . . . . 8
5 Gas Information 9
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . 9
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Electrical Information 10
A. Ignition System Wiring. . . . . . . . . . . . . . . . . . . . . . . . 10
B. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Finishing 11
A. Mantel Projections. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Fireplace Setup 13
A. Clean the Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . 13
B. Grate Assembly Placement . . . . . . . . . . . . . . . . . . . . 13
C. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . 13
D. Placing Lava Rock. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
E. Glass Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
F. Reinstall Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Operating Instructions 17
A. Before Lighting Fireplace. . . . . . . . . . . . . . . . . . . . . . 17
B. Operating Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . 17
C. Lighting the Fireplace . . . . . . . . . . . . . . . . . . . . . . . . 18
D. After the Fireplace is Lit. . . . . . . . . . . . . . . . . . . . . . . 19
E. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 19
10 Maintaining and Servicing the Fireplace 20
A. Valve Access and Service . . . . . . . . . . . . . . . . . . . . . 21
B. Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . 22
C. Maintenance and Service Tasks:. . . . . . . . . . . . . . . . 23
11 Troubleshooting 24
A. Electronic Ignition System . . . . . . . . . . . . . . . . . . . . . 24
12 Reference Materials 25
A. Fireplace Dimension Diagram . . . . . . . . . . . . . . . . . . 25
B. Service Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
C. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Note: An arrow ( ) found in the text signifies change in content.
¨

4 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
1
1 Listing and Code Approvals
A. Design and Installation Considerations
2
2 Getting Started
Before installation check that local distribution conditions,
nature of gas and pressure, and adjustment of the fireplace
are compatible.
This fireplace must be installed with the rules in force, and
used only in a sufficiently ventilated space. Consult instruc-
tions before installation and use of this fireplace.
• Carefully remove the fireplace and components from the
packaging.
• The gas logs are packaged separately and must be field
installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benefit.
A. Fireplace Certification
MODEL DAKOTA-AU IS AUSTRALIAN GAS AS-
SOCIATION APPROVED FOR NATURAL GAS
OR PROPANE AS AN OUTDOOR FIREPLACE.
Refer to the appliance data plates for gas consumptions and
pressures.
Installation and servicing of this appliance should only be
carried out by an authorized person in accordance with the
manufacturer’s instructions. All relevant codes and regula-
tions laid down by the gas fitting authorities, municipal build-
ing regulations, and the requirements of the National Gas
Installation Standard AS5601 must be observed.
This appliance and its components are tested and safe when
installed in accordance with this installation manual. Report
to your dealer any parts damaged in shipment, specifically
check glass condition. The gas logs are in separate pack-
ages. Read all instructions before starting installation and
follow these instructions carefully during installation to en-
sure maximum benefit and safety. Failure to follow them will
void your warranty and may present a fire hazard.
The Heat & Glo warranty will be voided by, and Heat & Glo
disclaims any responsibility for the following actions:
• Installation of any damaged heater system component.
• Modification of the heater or installation other than as
instructed by Heat & Glo.
• Improper positioning of the gas logs.
• Installation and/or use of any component part not
manufactured or approved by Heat & Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 5
A
E
Note: If this surface is
inside the building’s
warm air envelope... ...then this surface
must be an exterior
wall system.
B
C
DD
B
C
E
D
1.47 M
2.08 M
Note:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings.
• To combustibles.
• For service access.
Locate fireplace away from traffic areas.
WARNING
A. Select Fireplace Location
When selecting a location for your fireplace it is important to consider the required clearances to walls (See Figure 3.1).
Note: For actual fireplace
dimensions refer to Section 12.
Figure 3.1 Fireplace Locations
3
3 Framing and Clearances
ABCDE
629 mm 1.22 m 1.25 m 13 mm 38 mm
This appliance shall be used in an above ground open-air situation with natural ventilation,
without stagnant areas, where gas leakage and products of combustion are rapidly
dispersed by wind and natural convection.

6 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
B. Clearances
1.17 m
1.17 m
Header height.
Use only non-combustible
material below the top of
the top standoffs.
629 mm
1.24 m
2.13 m
to ceiling
0 mm
0 mm to level
of standoffs
Combustible Object
914 mm
Combustible flooring may be installed
next to the front of the appliance.
38 mm
Drywall
(if used)
0 mm
13 mm
Upper front can be covered
with non-combustible material
or removed and replaced with
non-combustible material.
38 mm
• Appliance must be installed in
amply insulated area.
• Area must have minimum of 25%
of surface area open.
• Surface area = sum of walls
surface.
Figure 3.2 Framing Dimensions

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 7
An enclosure with walls on all sides, but at least one permanent
opening at ground level and no overhead cover.
Figure 3.3 Four Sides and a Permanent Opening
C. Outdoor Enclosure Options
Any enclosure in which the appliance is used shall comply
with one of the following (Figures 3.3 - 3.7):
A partial enclosure that includes an overhead cover
and no more than two walls.
Figure 3.4 Two Walls and a Roof
Both ends open
A partial enclosure that includes an overhead cover
and no more than two walls.
Figure 3.5 Two Walls and a Roof
Open side at
least 25% of
total wall area
30% or more in total
of the remaining wall
area is open and
unrestricted
Figure 3.6 More than Two Walls
With an overhead cover and more than two walls, the follow-
ing shall apply (Figures 3.6 - 3.7):
• At least 25% of the total wall area is completely open,
and
• At least 30% of the remaining wall area is open and
unrestricted.
• In the case of balconies, at least 20% of the total wall area
shall be, and will remain, open.
Open side at
least 25% of
total wall area
30% or more in total
of the remaining wall
area is open and
unrestricted
Figure 3.7 More than Two Walls

8 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
4
4 Fireplace Preparation
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
CAUTION
A. Remove Logs and Shipping Cover
Remove locking screw at the top of the doors (shown in Fig-
ure 4.1).
Open the doors by sliding the handles toward the outside
edges of the doors as shown in Figure 4.1. Remove the car-
tons of logs from their shipping location in the fireplace. Set
logs and door lock bracket screw aside for later reinstalla-
tion.
Open Open
Locking Screw
Figure 4.1 Door Operation
Do NOT notch into the framing around the fireplace
spacers.
CAUTION
NAILING TABS
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
Figure 4.2 Proper Positioning, Leveling and Securing of a Fire-
place
B. Securing and Leveling Fireplace
The diagram shows how to properly position, level, and se-
cure the fireplace (see Figure 4.2). Nailing tabs are provided
to secure the fireplace to the framing members.
• Place the fireplace into position on either a combustible
or non-combustible continuous flat surface.
Fire Risk
• Prevent contact with sagging, loose
insulation.
• Do NOT install against vapor barriers or
exposed insulation.
WARNING
Note: The top standoffs may be removed before sliding
fireplace into position only if using a non-combustible
enclosure.
• Level the fireplace from side to side and front to back.
• Shim the fireplace as necessary.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the fireplace to the framing by using nails or screws
through the nailing tabs.
• Place a bead of caulk along the front of the fireplace to
prevent water running under the fireplace.
Save logs and locking screw, to complete installation.

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 9
5
5 Gas Information
Note: Gas line MUST be run from right side of fireplace.
WARNING
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete,
all connections must be tightened and
checked for leaks with a commercially
available, non-corrosive leak check
solution. Be sure to rinse off all leak check
solution following testing.
Fittings and connections may have loosened
during shipping and handling.
WARNING
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 60 mbar.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 60 mbar.
A. Gas Pressure Requirements
Pressure requirements for Heat & Glo gas fireplaces are
shown in Table 5.1 below.
Two taps are provided on the outlet side of the gas control
for a test gauge connection to measure the inlet and outlet
pressures. These inlet and outlet pressure taps can be ac-
cessed through the internal valve access panels as shown
in Section 10: Maintaining and Servicing the Fireplace.
The fireplace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 60 mbar.
If the fireplace must be isolated from the gas supply piping
system by closing an individual shut-off valve, it must be of
the handle-less type.
B. Gas Connection
Note: Have the gas supply line installed in accordance
with local building codes by a qualified installer approved
and/or licensed as required by the locality.
Note: Before the first firing of the fireplace, the gas supply
line should be purged of any trapped air.
Note: Consult local building regulations to properly size the
gas supply line leading to the hook-up at the unit.
Table 5.1
Natural Gas Propane
Supply Pressure 1.13 kPa 2.75 kPa
Outlet Pressure .75 kPa 2.40 kPa
Burner Injector DMS 25 DMS 44

10 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
Battery polarity must be correct or module damage will
occur.
CAUTION
6
6 Electrical Information
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
CAUTION
BATTERY PORT
(4 AA BATTERIES)
VALVE
PILOT
IGNITION MODULE
6VDC
ON/OFF
SWITCH
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
PILOT GAS LINE
CONNECTED TO
BACK OF VALVE
IGNITION
MODULE
(6V)
ON/OFF
WALL SWITCH
VALVE
FLAME SPARKER/
SENSOR
ANT.
REMOTE
CONTROL
A. Ignition System Wiring
• This fireplace is equipped with an electronic ignition
system which operates on a 6 volt system.
• The batteries are located within the ignition module which
is located within the external control box. A wiring diagram
is shown in Figure 6.1.
• The battery pack requires four AA batteries (not included).
See Section 10.B. for battery replacement.
Figure 6.1 Electronic Ignition Wiring Diagram
B. Remote Control
• This fireplace is equipped with a remote control to
operate the ignition system.
• 9 volt battery required.
• Follow operating instructions included with remote
control.

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 11
A. Mantel Projections
Figure 7.1 shows the minimum vertical dimension of fireplace mantels or other combustible projections above the top front
edge of the fireplace.
Mantel
B
A
2.13 m
minimum
ceiling height
Overhang
305 mm
max. combustible
mantel depth
Figure 7.1 Clearances to Combustible Mantels or other Combustibles above Fireplace
7
7 Finishing
If Ais:
Then Bmust
be at least:
152 mm - 914 mm 660 mm
915 mm or more 457 mm

12 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
Sealant Material
0 mm.
0 mm.
0 mm.
Finish wall material
may be combustible,
top & sides.
Upper front can be covered
with non-combustible material
or removed and replaced with
non-combustible material.
Fire Risk
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fire hazard.
Finishing materials must not interfere with:
• Air flow through grilles or louvers.
• Operation of louvers or doors.
• Access for service.
WARNING
B. Facing Material
Figure 7.2 Non-combustible Facing Diagram
Fire Risk
Finish all edges and fronts to clearances and
specifications listed in manual.
WARNING
• Metal fireplace front may be covered with non-
combustible material only.
• Do NOT overlap combustible materials onto fireplace
front.
• Install combustible materials up to specified clearances
on top front and side edges.
• Seal joints between the finished wall and fireplace top
and sides using only a 150° C minimum sealant.

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 13
A. Clean the Fireplace
Clean/vacuum any materials that may have accumulated inside the firebox.
Figure 8.1 Back Legs in Grate Brackets (front view)
8
8 Fireplace Setup
Figure 8.5 Left Rear Log (SRV728) (front view)
Figure 8.3 Right Rear Log (SRV720) (front view)
C. Positioning the Logs
Place right rear log on the grate against the fireplace right side wall, so that its right end sits in the bracket opening.
Place the left rear log on the grate against the left wall and rest it on the right rear log.
Ensure grate assembly is over burner assembly, centered from left to right, and back legs are in grate brackets.
B. Grate Assembly Placement
Figure 8.2 Top view
Back Legs in Grate Brackets
Back Legs in Grate Brackets
Figure 8.4 Top view
Figure 8.6 Top view
See Section 12.B. for log descriptions and illustrations.

14 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07

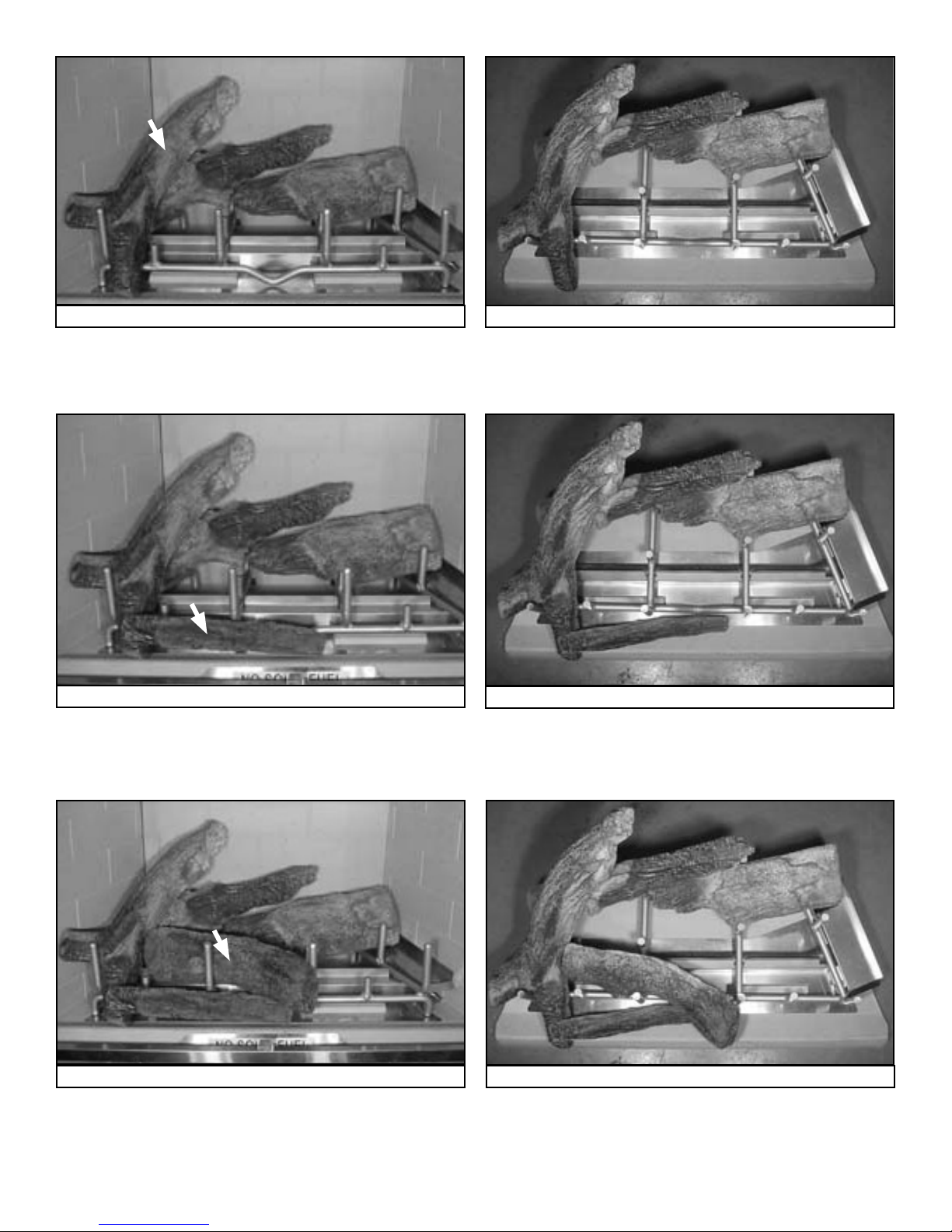

Figure 8.9 Front Log (SRV727) (front view)
Figure 8.7 Left Side Log (SRV723) (front view)
Place the fork of log onto the left front bar and rest its back on left rear log.
Place front log in front of the main grate with its left end resting on left side log as shown.
Figure 8.11 Front Left Log (SRV722) (front view)
Place front left log between locating bars so it rests against left side log and on top of front log.
Figure 8.8 Top view
Figure 8.10 Top view
Figure 8.12 Top view

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 15
Place right front corner log between the right side wall and right side grate bar as shown.
Place right side log against the rightmost front grate bar and rest its rear on right rear log, angled towards the corner as
shown.
Place right center log between the 4th and 5th vertical bars on the log grate, resting the back on right rear log.
Figure 8.13 Front Right Log (SRV724) (front view) Figure 8.14 Top view
Figure 8.15 Right Side Log (SRV740) (front view) Figure 8.16 Top view
Figure 8.17 Right Front Corner Log (SRV742) (front view) Figure 8.18 Top view

16 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
Handle glass with care.
• Inspect the glass for cracks, chips or
scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate fireplace with glass door
removed, cracked, broken or scratched.
• Replace glass door assembly as a
complete assembly.
WARNING
E. Glass Assembly
• The glass doors are included with and pre-installed in the
fireplace.
• To adjust doors (door lock screw must be removed, see
Section 4.A. and Figure 8.20), open them and loosen
screws on top and bottom pivot pins. Slide each door as
necessary and tighten screws.
• To adjust handle, loosen screws to move handles as
necessary and tighten screws.
Ashlip
Rock Pan
Figure 8.19 Placement of Lava Rocks
D. Placing Lava Rock
• After logs have been placed spread part of the lava
rock (included) between the rock pan and ashlip (see
Figure 8.19). Use of lava rock is optional.
F. Reinstall Door Lock
• When logs and lava rock have been installed, or if the
glass assembly has been adjusted, reinstall the door lock
by inserting the screw at the top of the door (see also,
Section 4.A.). Tighten screw.
Open Open
Locking Screw
Figure 8.20 Reinstall Door Lock

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 17
Fire Risk
Burn Risk
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT
Glass and other surfaces are hot during
operation and cool down.
WARNING
• Supervise young children when they are in the area
of the appliance.
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers open or
removed.
• Clothing or other flammable materials should not be
hung from the appliance, or placed on or near the
appliance.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
fireplace. For assistance or additional information consult
a qualified installer, service agency or the gas supplier.
WARNING
9
9 Operating Instructions
A. Before Lighting Fireplace
Before operating this fireplace, have a qualified
technician:
• Remove all shipping materials from inside the firebox.
• Review proper placement of logs and lava rock.
• Check the wiring and batteries.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the flow of combustion and ventilation air is
not obstructed (front grilles).
• Switch must be in position shown in Figure 9.1 in order
for remote control to operate properly.
SWITCH IS SHOWN
IN "ON" POSITION
Figure 9.1 Valve Switch Position
B. Operating Cautions
• DO NOT PLACE ARTICLES ON OR AGAINST THE
APPLIANCE.
• DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THE APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THE
APPLIANCE WHILE IT IS IN OPERATION.
• TO BE INSTALLED ONLY BY AN AUTHORIZED
PERSON.
• THIS APPLIANCE SHALL NOT BE INSTALLED OR USED
INDOORS.
• THE GUARD IS FITTED TO THIS APPLIANCE TO
REDUCE THE RISK OF FIRE OR INJURY FROM BURNS,
AND NO PART OF IT SHOULD BE REMOVED.
• Certain materials, when stored near the appliance, will be
subjected to radiant heat and could be damaged.

18 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
C. Lighting the Fireplace
Electronic Ignition
LIGHTING
INSTRUCTIONS
TO TURN OFF
GAS TO FIREPLACE
1. Push the ‘OFF’ button on remote.
2. Remove batteries from receiver.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This fireplace is equipped with
an electronic pilot ignition device
which automatically lights the
burner. Do not try to light the
burner by hand.
B. BEFORE LIGHTING, smell all
around the fireplace area for gas.
Be sure to smell next to the floor
because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any appliance.
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property dam-
age. Refer to the owner’s information
manual provided with this fireplace.
This fireplace needs fresh air for safe
operation and must be installed so
there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the man-
ufacturer’s instructions, this product
could expose you to substances in
fuel or fuel combustion.
Keep burner and control compart-
ment clean. See installation and
operating instructions accompanying
fireplace.
CAUTION:
Hot while in operation. Do not touch.
Keep children, clothing, furniture,
gasoline and other liquids having
flammable vapors away.
Do not operate the fireplace with
panel(s) removed, cracked or bro-
ken. Replacement of the panel(s)
should be done by a licensed or
qualified service person.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. Do not use this fireplace if any part
has been under water. Immediately
call a qualified service technician to
inspect the fireplace and to replace
any part of the control system and
any gas control which has been
under water.
NOT FOR USE
WITH SOLID FUEL
For use with natural or propane
gases.
WARNING:
1. This fireplace is equipped with an
ignition device which automatically
lights the burner. Do not try to light
the burner by hand.
2. Wait five (5) minutes to clear out any
gas. Then smell for gas, including
near the floor. If you smell gas, STOP!
Follow “B” in the Safety Information
located on the left side of this label. If
you don’t smell gas, go to next step.
3. To light the burner, simultaneously
press the star and up arrow
buttons on the remote control until a
short acoustic signal confirms the start
sequence has begun.
4. If the fireplace will not operate, check
the batteries then follow the instruc-
tions “To Turn Off Gas to Fireplace”
and call your service technician or gas
supplier.

Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07 19
• Prevent accidental fireplace operation when not
attended.
• Remove batteries from remote switch if absent or if
fireplace will not be used for an extended period of
time.
• Property damage possible from elevated
temperatures.
CAUTION
Fire Risk
Keep combustible materials, gasoline and
other flammable vapors and liquids clear of
fireplace.
• Do NOT store flammable materials in the
vicinity of the fireplace.
• Do NOT use gasoline, lantern fuel,
kerosene, charcoal lighter fluid or similar
liquids in this fireplace.
Combustible materials may ignite.
WARNING
E. Frequently Asked Questions
D. After the Fireplace is Lit
Initial Break-in Procedure
When you light the fireplace, you may notice that it produces
heat which does have an associated odor or smell. If you
feel this odor is excessive it may require the initial three to
four hour continuous burn on high followed by a second burn
up to 12 hours to fully drive off any odor from paint and lubri-
cants used in the manufacturing process. Condensation of
the glass is normal
Issue Solution
Condensation on the glass
This is a result of gas combustion and temperature variations. As the fireplace warms, this condensation will
disappear.
Blue flames
This is a result of normal operation and the flames will begin to yellow as the fireplace is allowed to burn for 20
to 40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is caused by the curing of
the paint and the burning off of any oils remaining from manufacturing.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound
produced by a furnace or heating duct. This noise does not affect the operation or longevity of the fireplace.

20 Heat & Glo Lifestyle Collection • Dakota-AU• 4036-914 Rev B • 06/07
Although the frequency of fireplace servicing and maintenance will depend on use and the type of installation, a qualified
service technician should perform an fireplace check-up annually.
Debris from any outside source and/or soot must be removed from the fireplace. Allow logs to cool, remove if necessary,
vacuum and replace in accordance with instructions on pages 13-16. It is imperative that control compartments, burners,
and circulating air passageways of the appliance be kept clean.
Annual inspection by qualified technician
recommended.
Check:
• Condition of doors, surrounds and fronts.
• Condition of glass, glass assembly.
• Obstructions of combustion and ventilation
air.
• Condition of logs.
• Condition of firebox.
• Burner ignition and operation.
• Burner air shutter adjustment.
• Gas connections and fittings.
Clean:
• Glass.
• Air passageways, grilles, control
compartment.
• Burner, burner ports.
Risk of:
•Fire
• Delayed ignition or explosion
• Exposure to combustion fumes
• Odors
WARNING
Handle glass assembly with care.
Note: Clean glass after initial 3-4 hours
operation. Longer operation without
cleaning glass may cause a permanent
white film on glass.
When cleaning glass door:
• Avoid striking, scratching or slamming
doors.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on
white film.
• Do NOT clean glass when it is hot.
• Turn off fireplace after 3-4 hours of operation
and ALLOW TO COOL.
• Remove and clean glass assembly.
• Replace glass assembly and operate
fireplace for an additional 12 hours.
Refer to maintenance instructions.
CAUTION
10
10 Maintaining and Servicing the Fireplace
Risk of injury or property damage
Before servicing:
• Turn off gas.
• Disable remote control.
• Ensure fireplace is completely cooled.
• Remove door lock screw.
After Servicing:
• Replace door lock screw.
WARNING
