Heat & Glo LifeStyle PIER-TVFL Assembly instructions

1
Models:
PIER-TVFL
ST-42TVFL
Installers Guide
455-900G 2/04
-Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's in-
structions.
•If you cannot reach your gas supplier, call the
fire department.
-Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER,SERVICEAGENCY,ORTHE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THISINSTALLERS
GUIDE MUST BE LEFT WITH THE APPLIANCE
FOR FUTURE REFERENCE.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790;
586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Underwriters
Laboratories Listed

2
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOWthese installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the
Owners Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been underwater.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a qualified service person. The
appliance and venting system should beINSPECTED before initial use and at least
annually by a professional service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. It isIMPERATIVE that the unit’s
control compartment, burners, and circulating air passagewaysBE KEPT CLEAN to
provide for adequate combustion and ventilation air.
Always KEEP the appliance clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should beLOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable materialSHOULD NOT
BE PLACED on or near the appliance.
Children and adults should beALERTED to the hazards of high surface temperature
and shouldSTAYAWAYto avoid burns or clothing ignition. Young children should be
CAREFULLYSUPERVISED when they are in the same room as the appliance.
These unitsMUST use one of the vent systems described in the Installing the Fireplace
section of theInstallers Guide.NO OTHERvent systems or componentsMAYBE USED.
This gas fireplace and vent assembly MUST be vented directly to the outside and
MUST NEVER be attached to a chimney serving a separate solid fuel burning
appliance. Each gas applianceMUST USE a separate vent system. Common vent
systems arePROHIBITED.
INSPECT the external vent cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the fireplace before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLYbe replaced as a complete unit, as supplied
by the gas fireplace manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
DO NOT place furniture or any other combustible household objects within 36 inches
of the fireplace front.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

3
Table of
Contents
Safety and Warning Information ....................2
Service Parts List...............................................4
Section 1: Approvals and Codes................ 10
Appliance Certification..........................................10
Installation Codes .................................................10
High Altitude Installations ......................................10
Section 2: Getting Started .............................11
Introducing the Heat-N-Glo Gas Fireplaces .........11
Pre-installation Preparation ..................................11
Section 3: Installing the Fireplace .............. 14
Step 1 Locating the Fireplace............................14

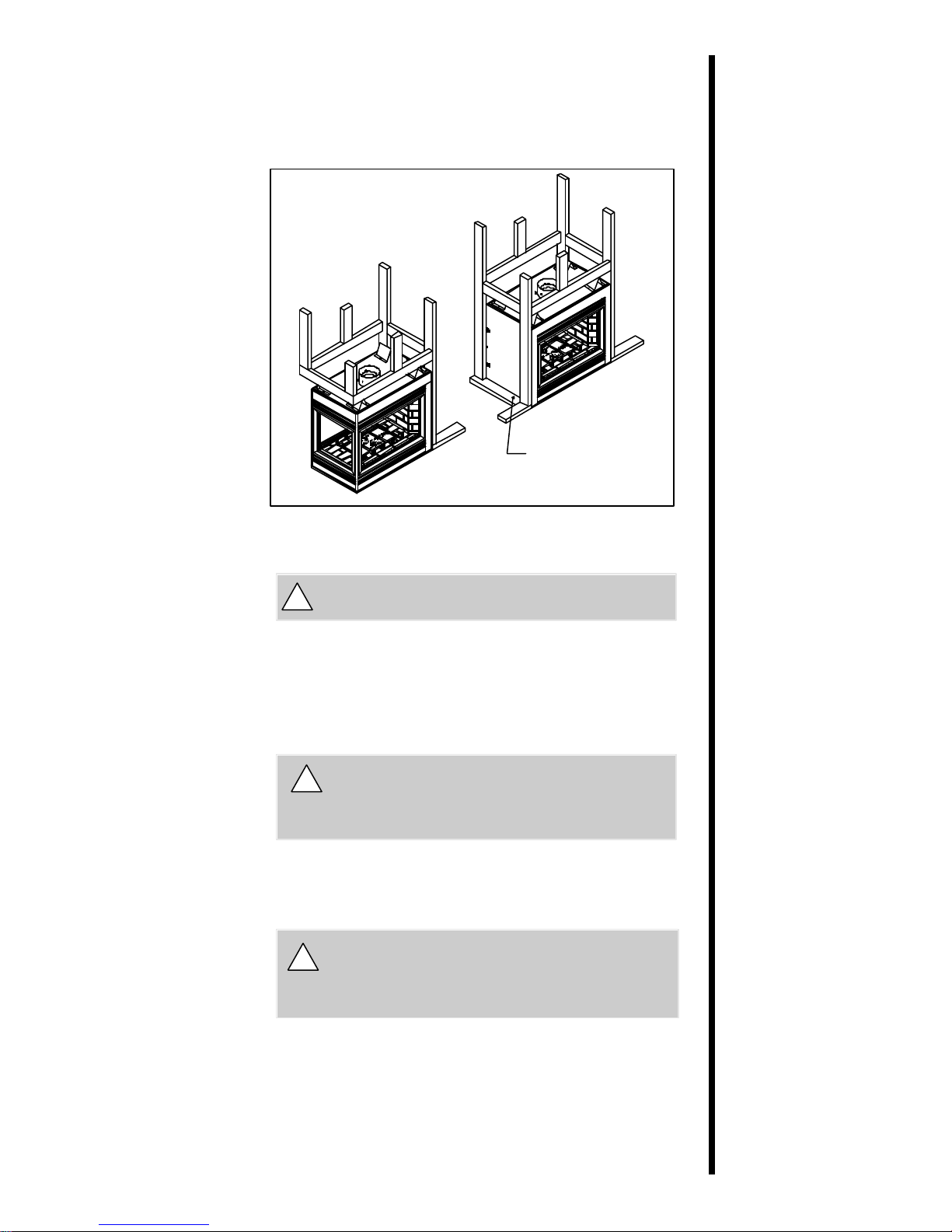

Step 2 Framing the Fireplace............................15
Step 3 Negative Pressure Make-up Air..............16
Step 4 Installing the Vent System ......................18
A. Vent System Approvals ......................18
B. System Components.........................18
C. Bedroom Installation in Canada ........20
D. Vent Termination ................................20
Step 5 Positioning, Leveling, and
Securing the Fireplace...........................21
Step 6 The Gas Control Systems .....................21
Step 7 The Gas Supply Line..............................22
Step 8 Gas Pressure Requirements .................23

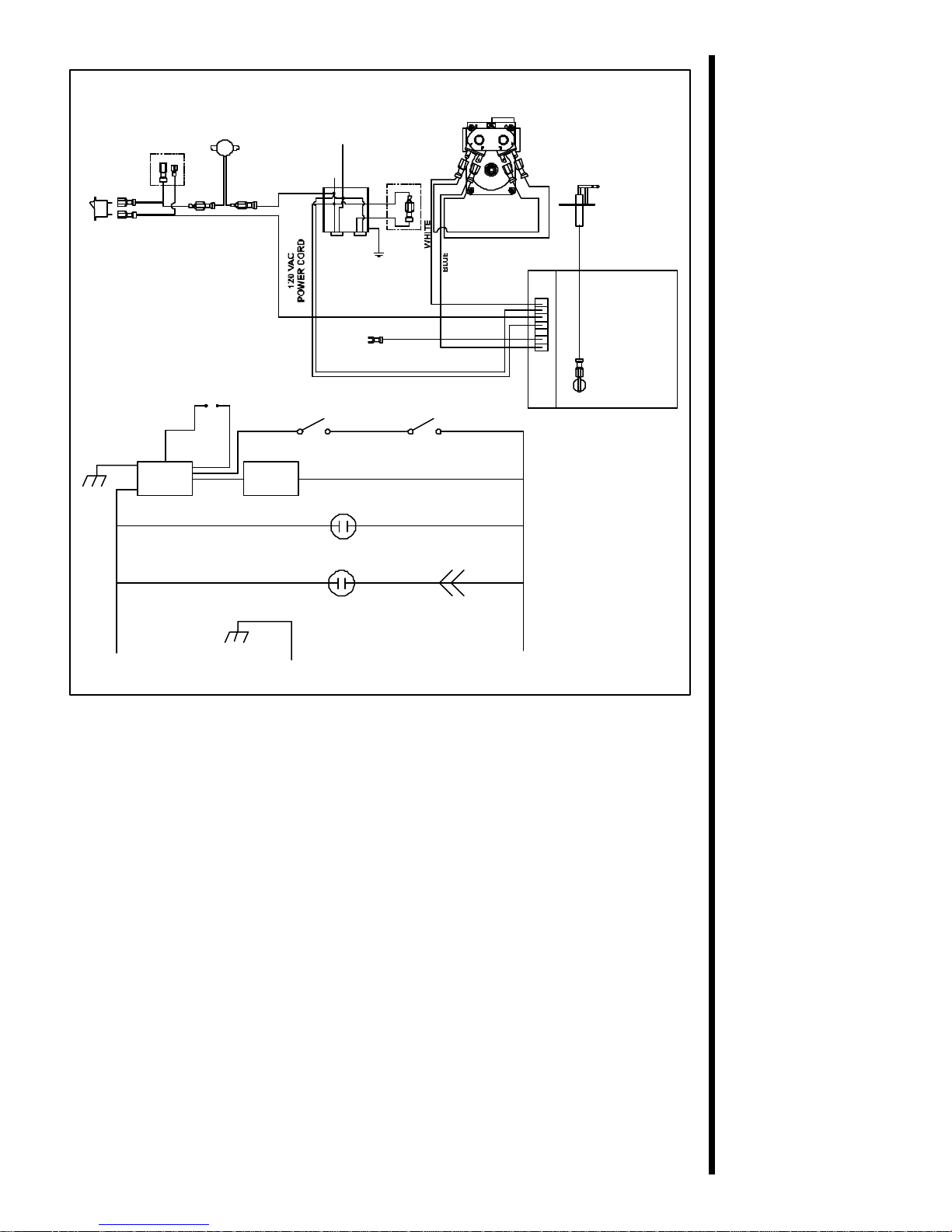

Step 9 Wiring the Fireplace...............................24
Step 10 Finishing .................................................25
Step 11 Installing Trim, Logs & Ember Material ..27
Installing the Trim ...................................27
Positioning the Logs ...............................27
Placing the Ember Material ....................28
Step 12 Before Lighting the Fireplace .................29
Step 13 Lighting the Fireplace.............................29
After the Installation ..............................................29
Section 4: Maintaining and Servicing
Your Fireplace ............................. 30
u= Contains updated information.
u
u
u
u

10 Heat-N-Glo Quality
Systems registered
by SGS ICS
Approval Listings
and Codes Appliance Certification
The Heat-N-Glo fireplace models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
Pier-TVFL Underwriters B- Vent ANSI Z21.50•CGA2.22
ST-42TVFL Laboratories Decorative
Installation Codes
The fireplace installation must conform to local codes. Before installing the
fireplace, consult the local building code agency to ensure that you are in
compliance with all applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must conform to the
National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-
B149 Installation Codes (in Canada). The appliance must be electrically
grounded in accordance with local codes or, in the absence of local codes with
the National Electric Code ANSI/NFPA No. 70 (in the United States), or to the
CSA C22.1 Canadian Electric Code (in Canada).
This model (natural gas and propane) can be installed in a bedroom (in the United
States) which has a total volume of unconfined space appropriate to the particular
installation. Refer to the National Fuel Gas Code ANSI Z223.1/NFPA54 (current
edition). The Uniform Mechanical Code - (current edition), and local Building
Officials for the options allowed in obtaining an effective bedroom volume of
unconfined space.
This model (natural gas and propane) can be installed in a bedroom (in Canada)
if a thermostat (Model WH-STAT) is installed with the unit. Consult local code
authorities. Detailed installation instructions for Model WH-STAT are included
with the kit.
High Altitude Installations
U.L. Listed gas appliances are tested and approved without requiring changes for
elevations from 0 to 2,000 feet in the U. S. A. and in Canada.
Wheninstallingthisappliance atanelevationabove2,000feet, itmaybenecessary
to decrease the input rating by changing the existing burner orifice to a smaller
size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot
elevationintheU.S.A.or10%forelevationsbetween2000and4500feetinCanada.
If the heating value of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4,500 feet (in Canada), check with
local authorities.
Consult your local gas utility for assistance in determining the proper orifice for
your location.
1
Approvals
and Codes
u

11
2
Getting
Started
Introducing the
Heat-N-Glo
Gas Fireplaces
Heat-N-Glo B-type vent gas fireplaces are designed to
operate with all exhaust gases expelled to the outside
of the building.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas fireplace diagrams, including the dimensions, are
shown in this section.
Pre-installation
Preparation This gas fireplace and its components are tested and
safe when installed in accordance with this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with damaged, incomplete, or
substitute parts.
The vent system components are shipped in separate
packages. The gas logs are packed separately and
must be field installed. Read all of the instructions
before starting the installation. Follow these
instructions carefully during the installation to
ensure maximum safety and benefit. Failure to
follow these instructions will void the owner’s
warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-
N-Glo disclaims any responsibility for, the following
actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass
door.
•Installation and/or use of any component part not
manufactured and approved by Heat-N-Glo not
withstanding any independent testing laboratory or
other party approval of such component part or
accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.

12
24 1/4
(616mm)
40 3/4 (1035mm)
36 7/8 (937mm)
36 7/8
(937mm)
41
(1043mm)
24 1/4
(616mm)
12 1/8
(308mm)
21 5/8
(551mm)
VENT COLLAR
ELECTRICAL
ACCESS
2 1/2
(64mm)
4
(102mm)
4
(102mm)
2 1/2
(64mm)
GAS LINE
ACCESS
LEFT SIDE
FRONT
RIGHT SIDE
1/2"
STANDOFFS
TOP STANDOFFS
ELECTRICAL
ACCESS GAS LINE
ACCESS
GAS CONTROL
VALVE
RATING PLATES
& LABELS
Figure 1. Diagram of the Pier-TVFL
When planning a fireplace installation, it’s necessary to determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan, wall switch, or remote
control—are desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal or
wood panel that extends the full width and depth of the fireplace.

13
Figure 2. Diagram of the ST-42TVFL
24 1/4
(616mm)
12 1/8
(308mm)
VENT
COLLAR
21 5/8
(549mm)
36 1/8 (918mm)
43 (1093mm)
41
(1042mm)
36 7/8
(937mm)
GAS LINE
ACCESS
2 1/2
(64mm)
ELECTRICAL
ACCESS
2 1/2
(64mm)
4
(102mm)
4 (102mm)
LEFT SIDE FRONT
RIGHT SIDE
GAS LINE
ACCESS
GAS
CONTROL VALVE
RATING PLATE
& LABELS
ELECTRICAL
ACCESS
TOP STANDOFFS
1/2" STANDOFFS

14

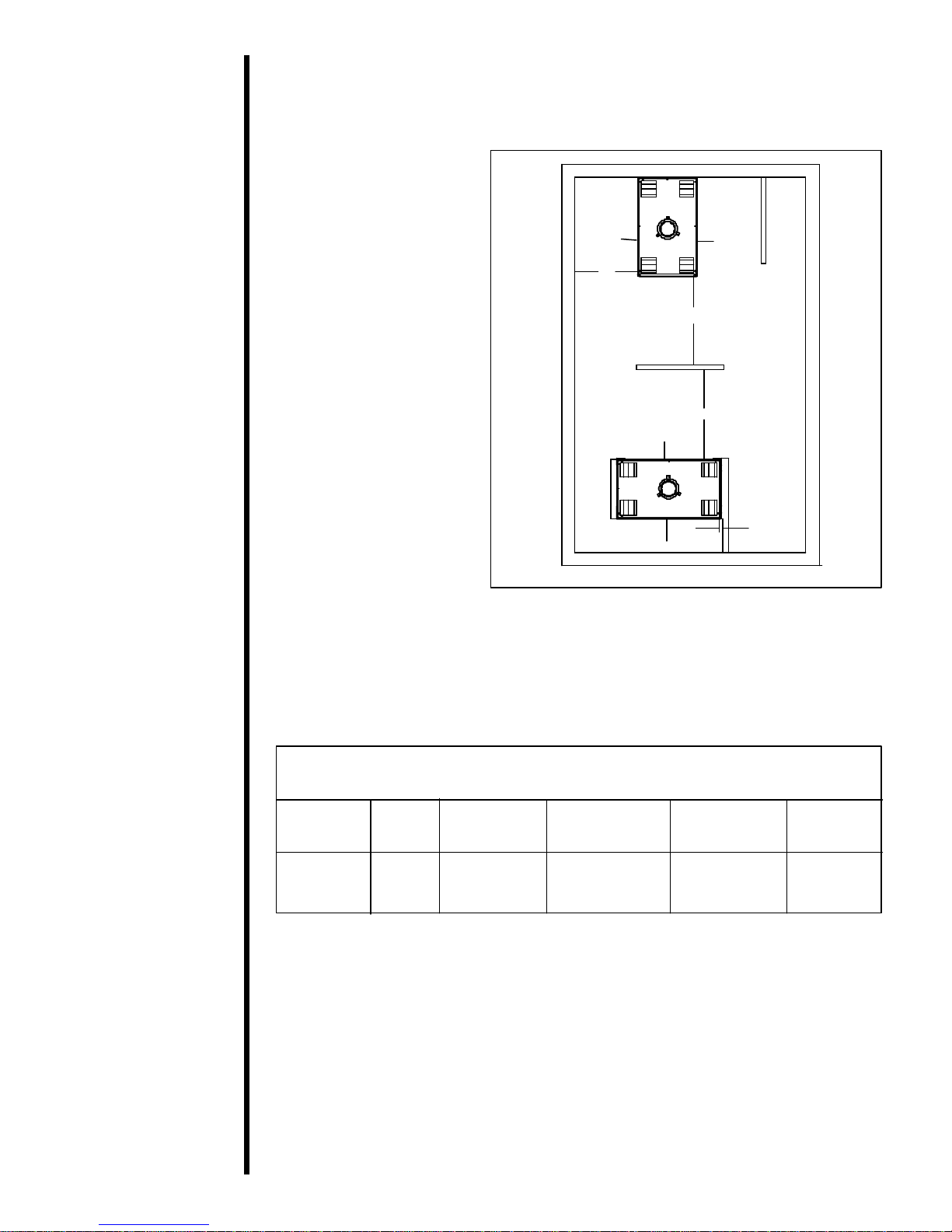

Figure 3. Fireplace Locations and Space
Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined
by stand-offs.
Minimum Clearances from the Fireplace to
Combustible Materials
Glass Back of Metal Ends Top of
Sides Floor Fireplace of Fireplace Fireplace Ceiling*
36 inches 01/2 inch 1/2 inch 4-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
The clearance to the ceiling is measured from the top of
the unit, excluding any standoffs (see Figure 13).
Theminimumclearancetoaperpendicular wall extending
past the face of the fireplace is one inch (25 mm).
The metal end(s) of these fireplaces may NOT be
recessed into combustible construction.
3
Installing the
Fireplace
Step 1
Locating the
Fireplace
The diagram below shows space and clearance
requirements for locating a fireplace within a room.
PIER-TVFL
ST-42TVFL
36 "
GLASS
GLASS
GLASS
36"
GLASS
GLASS
1"
36"
TOP
VIEW
*

15
MODEL A B C
PIER 40 1/4 23 1/4 41 1/2
ST-42TVFL 44 23 1/4 41 1/2
Minimum Clearances from the B-Type Vent Pipe
to Combustible Materials is 1 inch (25 mm) all
around the pipe.
Step 2
Framing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be
positioned to accommodate wall coverings and
fireplace facing material. The diagram below shows
framing reference dimensions.
CAUTION MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.
Figure 5. Framing Dimensions
A
C
B
ST-42TVFL
FRAMING
HEADERS
C
AB
PIER-TVFL

16
Step 3
Negative
Pressure
Make-up Air
Negative Pressure warning: When negative pressure
is present, an atmospherically vented fireplace (with a
draft hood) may not function properly and it may down
draft. In the case of a gas appliance, spillage of the
combustion gases may occur. This may create a
dangerous carbon monoxide situation in the house.
The causes of negative pressure to a house can include
the following:
•Stackeffectinthebuilding.
•Exhaust only appliances (mechanically and
atmospherically vented).
•Inadequate make-up air (which is increasingly
more prevalent in new construction).
NOTE: This fireplace will operate correctly only if
adequate ventilation is provided to allow proper draft to
the fireplace system. Heat-N-Glo assumes no
responsibility for the improper performance of the
fireplace system caused by inadequate draft due to
environmental conditions, down drafts, tight sealing
construction of the structure, or mechanical exhausting
devices which create a negative air pressure within the
structure where the fireplace is located.
It is recommended that all natural venting non-air tight
gas fireplaces have outside air connected to them. It is
also recommended that the building be mechanically or
passively balanced to allow atmospherically vented
appliances, such as top vented gas fireplaces with draft
hoods, to draft properly. If the home experiences
negative pressure or is likely to experience negative
pressure, connection to an outside air source is
mandatory.
Installing Optional Outside Make-up Air: This unit is
equipped to accept outside air. By using outside make-
up air, the amount of room air used for combustion will
be reduced. It is recommended that an AK-TV air kit be
used with this appliance.
WARNING: IN ANEGATIVE PRESSURE
CONDITION (LIKELYTO OCCUR IN NEW
HOMES THAT DO NOT HAVE ADEQUATE
MAKE-UP AIR) THE OUTSIDE AIR KIT
MUST BE INSTALLED TO OBTAIN
PROPER PERFORMANCE AND TO HELP
PREVENT SPILLAGE OF COMBUSTION
GASES.
A 4-inch damper assembly (found in AK-TV Kit) must be
installedto the fireplace.SeeFigure5. Attach the
damper assembly to the outer wrap of the fireplace using
sheetmetal screws
!

17
Detailed installation instructions for Model AK-TV
Outside Air kit are found in the kit.
Air Damper
Before lighting the burner, open the damper plate by
sliding the air damper rod, located by the gas valve,
towards you.
Figure 5. Make-up Air
DUCT COLLAR DAMPER
ASSEMBLY

18
Step 4
Installing the
Vent System
A. Vent System Approvals
These fireplaces are approved to use 6-inch (152mm)
diameter B-type vent. B-type vent must be used
when the vent system is within combustible
construction.
These models may also use single wall rigid or flexible
gas vent IF and ONLY IF the vent system is installed
withinnon-combustibleconstructionsuchasamasonry
chimney. The same diameters noted above for B-type
vent must be used for single-wall vent. See Figure 6.
The flame and ember appearance may vary based on
thetypeoffuelburnedandtheventingconfigurationused.
B. System Components.
Vent System Configuration
MAXIMUM TOTAL HORIZONTAL RUN = 17 FT.
MINIMUM TOTAL VERTICAL RISE = 10 FT.
MAXIMUM NO. of ELBOWS: 2 - 90oor 4 - 45o
Plan and install the vent system using the parameters
shownabove.
WARNING: YOU MUST NOT EXCEED
THESE PARAMETERS.
Connect a B-Type vent component to the flue outlet
collar. Look at top inside of the firebox to check that
the vent pipe is attached to the unit. NOTE: It is
required to first attach a straight section of vent
to the unit before attaching a 90oelbow. Avoid
using elbows in the vent system if possible.
A 90-degree elbow CANNOT be attached directly to
the unit. A 45oelbow can be attached directly to
the unit. It must have a straight section of pipe
attached to it for a MINIMUM of 4-feet before a
second450elbow to a horizontal run (see Figure 6).
The horizontal component of the vent system must
not exceed a MAXIMUM of 17-feet. The vertical
component of the vent system must exceed a
MINIMUM of 10-feet. Two 450elbows to vertical can
be used at any length within the 17-feet maximum
horizontal component.
Continue to add vent components, until the vent run is
completed.
WARNING: YOU MUST NOT EXCEED A
TOTAL MAXIMUM HORIZONTAL RUN OF
17FEETFORTHEENTIREVENTSYSTEM.
NOTE: The vent termination must be in a vertical
position and the termination cap must be listed
for the vent pipe used.
Consult local building code officials and codes for
proper vent system installations.
!
!
u

19
Figure 6. Vent System Attachment
!
WARNING: THIS GAS FIREPLACE
MUST NEVER BE VENTED BY
CONNECTING TO ACHIMNEY FLUE
SERVING ASEPARATE SOLID FUEL
BURNING APPLIANCE.
4 FT.
MINIMUM
17 FT.
MAXIMUM
MAXIMUM HORIZONTAL RUN
4 FT
MINIMUM
10 FT.
MINIMUM

20
C. Bedroom Installation in Canada
This model MUST NOT be vented into a vent
system installed exterior to a building. The part of
the vent system above the roof line can be exterior
to the building.
D. Vent Termination
WARNING: MAJOR U.S. BUILDING
CODES SPECIFY MINIMUM
CHIMNEY AND/OR VENT HEIGHT
ABOVE THE ROOF TOP. THESE
MINIMUM HEIGHTS ARE
NECESSARYIN THE INTEREST OF
SAFETY. FIGURE 7 AND TABLE
SHOW MINIMUM HEIGHTS,
PROVIDED THE TERMINATION CAP
IS AT LEAST 8-FEET FROMA
VERTICAL WALL.
NOTE: THERE SHOULD BE A5 FOOT (60”)
MINIMUM CLEARANCE TOAN UNVENTILATED
VINYL CLAD SOFFIT.
ROOFPITCH H (MIN.) FT.
FLATTO 6/12 1.0
6/12 TO 7/12 1.25
OVER 7/12 TO 8/12 1.5
OVER 8/12 TO 9/12 2.0
OVER 9/12 TO 10/12 2.5
OVER 10/12 TO11/12 3.25
OVER11/12 TO12/12 4.0
OVER 12/12 TO 14/12 5.0
OVER 14/12 TO 16/12 6.0
OVER 16/12 TO 18/12 7.0
OVER 18/12 TO 20/12 7.5
OVER 20/12 TO 21/12 8.0
Figure 7. Vent Termination
!
H (MIN.)-MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VENT CAP
LOWEST DISCHARGE OPENING
12 X
ROOF PITCH IS X/12

21
The diagram below shows how to properly position,
level, and secure the fireplace.
1. Place the fireplace
into position.
2. Level the fireplace
from side to side and
from front to back.
3. Shim the fireplace
with non-combustible
material, such as
sheet metal, as
necessary.
4. Secure the fireplace to
the framing by nailing
or screwing.
Figure 8. Proper Positioning, Leveling, and
Securing of a Fireplace
Step 6
The Gas Control
Systems
WARNING: THIS UNIT IS NOT FOR USE
WITH SOLID FUEL.
Direct Spark Ignition (DSI) or Standing Pilot (Millivolt)
gas control systems are used in these models.
Standing Pilot Ignition System
This system includes millivolt control valve, standing
pilot, thermopile/thermocouple flame sensor, and
piezo ignitor.
WARNING
110-120 VAC MUST NEVER BE
CONNECTED TO ACONTROL VALVE IN
AMILLIVOLT SYSTEM.
Direct Spark Ignition (DSI) System
This system includes a 110V control valve, electronic
module (with internal transformer) and spark ignitor/
flamesensor.
WARNING: CONTINUOUS 110 -120 VAC
SERVICE MUST BE DIRECTLYWIRED
TO THE FIREPLACE JUNCTION BOX IN
A DSI SYSTEM.
Step 5
Positioning,
Leveling, and
Securing the
Fireplace
NAILING TABS
AT BASE OF
FIREPLACE.
!
!
!

22
STANDING PILOT DSI IGNITION
Figure 9. Gas Controls Systems
Step 7
The Gas
Supply Line
NOTE: Have the gas supply line installed in
accordance with local building codesby a qualified
installer approved and/or licensed as required
by the locality. (In the Commonwealth of
Massachusettsinstallation mustbeperformed by
a licensed plumber or gas fitter).
NOTE: Before the first firing of the fireplace, the
gas supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly
size the gas supply line leading to the 1/2 inch
(13 mm) hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line. To install the gas supply line:
•A listed (andCommonwealthofMassachusettsap-
proved) 1/2 inch (13mm) tee-handle manual shut-
off valve and a listed flexible gas connector are
connected to the 1/2 inch (13mm) inlet of the con-
trol valve. NOTE: If substituting for these compo-
nents, please consult local codes for compliance.
•The gas line may be run from either side of the
fireplace provided the hole in the outer wrap does
not exceed 2 inches in diameter and it does not
penetrate the airtight firebox.
•The gap between the supply piping and gas ac-
cess hole can be plugged with non-combustible
insulation to prevent cold air infiltration.
•Locatethe gas line accessholein the outer casingof
the fireplace.
•Remove decorative door by lifting up away to gain
access to the gas control and shut-off valve, insert
thegassupply linethroughthegasline hole,andcon-
nect it to the shut-off valve.
•When attaching the pipe, support the control so that
the lines are not bent or torn.
•After the gas line installation is complete, all connec-
tions must be tightened and checked for leaks with a
commerciallyavailable,non-corrosiveleakcheckso-
lution. Be sure to rinse off all leak check solution fol-
lowing testing.
WARNING: DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
!
u
u
u

23
•At the gas line access hole, use insulation to re-
pack the space around the gas pipe.
•Insert insulation from the outside of the fireplace and
pack the insulation tightly to totally seal between the
pipe and the outer casing.
The gas line should be
installed by a qualified
service technician.
Figure 10. Gas Supply Line
Step 8
Gas Pressure
Requirements
Pressure requirements for Heat-N-Glo gas fireplaces
are shown in the table below.
Pressure Natural Gas Propane
Minimum 5.0 inches 11.0inches
Inlet Pressure w.c. w.c.
Maximum Inlet 14.0inches 14.0inches
Gas Pressure w.c. w.c.
Manifold 3.5 inches 10.0inches
Pressure w.c. w.c.
A one-eighth (1/8) inch (3 mm) N.P.T. plugged tapping
is provided on the inlet and outlet side of the gas
control for a test gauge connection to measure the
manifoldpressure.
The fireplace and its individual shut-off valve must be
disconnected from the gas supply piping system
during any pressure testing of the system at test
pressures in excess of one-half (1/2) psig (3.5 kPa).
The fireplace must be isolated from the gas supply
piping system by closing its individual shut-off valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than one-half
(1/2) psig (3.5 kPa).
FLEX
CONNECTOR
GAS VALVE
MANUAL
SHUT-OFF
VALVE
USE A WRENCH ON
SHUT-OFF VALVE
WHEN TIGHTENING
GAS LINE
GAS LINE
ACCESS

24 Figure 11. Standing Pilot Ignition Wiring Diagram
!
!
Step 9
Wiring the
Fireplace
NOTE: Electrical wiring must be installed by a
licensed electrician.
Caution: Disconnect remote controls if you are
absent for extended time periods. This will
prevent accidental fireplace operation.
For Standing Pilot Ignition Wiring
Appliance Requirements
•This appliance DOES NOT require 110-120 VAC to
operate.
WARNING
DO NOT CONNECT 110-120 VAC TO THE
GAS CONTROL VALVE WALL SWITCH
OR THE APPLIANCE WILL
MALFUNCTION AND THE VALVE WILL
BE DESTROYED.
Optional Accessories
Optional remote control kits require that 110-120 VAC
be wired to the factory installed junction box before the
fireplace is permanently installed.
Wall Switch
Position the wall switch in the desired position on a
wall. Run a maximum of 25 feet (7.8 m) or less length
of 18 A.W.G. minimum wire and connect it to the
fireplace ON/OFF switch pigtails.
WARNING
DO NOT CONNECT 110-120 VAC TO THE
WALL SWITCH OR THE CONTROL
VALVE WILLBE DESTROYED.
CAUTION LABELALL WIRES PRIOR TO DISCONNECTION
WHEN SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION. VERIFYPROPER
OPERATION AFTER SERVICING.
HI-TEMP LIMIT SWITCH
ON
OFF
ON/OFF SWITCH
GAS VALVE
THERMOPILE
BLACK S1
OPTIONAL WALL SWITCH,
THERMOSTAT OR REMOTE
REMOTE SWITCH
PIGTAIL
BLACK L1 BLACK L2
WHITE T2
RED T1
THERMOCOUPLE

25
Figure 12. Direct Spark Ignition (DSI) Wiring Diagram
For Direct Spark Ignition (DSI) Wiring
Appliance Requirements
This appliance requires that 110-120 VAC be wired
to the factory installed junction box. Maintain correct
polarity when wiring the junction box.
Optional Accessories
Optional remote control kits require that 110-120
VAC be wired to the fireplace junction box.
Wall Switch
Position the wall switch in the desired position on a
wall. Run a maximum of 25 feet (7.8 m) or less of
16 A.W.G. minimum wire and connect it to the
fireplace ON/OFF switch pigtails.
CAUTION LABELALL WIRES PRIOR TO
DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE
IMPROPERAND DANGEROUS OPERATION.
VERIFYPROPER OPERATION AFTER
SERVICING.
FLAME SENSOR/SPARKER
IGNITION
MODULE GAS
VALVE
HI-TEMP
LIMIT SWITCH ON/OFF SWITCH
REMOTE OUTLET
FAN OUTLET CONNECTORS
HOT
GROUND
NEUTRAL
HI TEMP
LIMIT SWITCH
OPTIONAL REMOTE,
WALL SWITCH
OR THERMOSTAT
(ON CERTIFIED UNITS ONLY)
BLACK
GROUND
FAN
REM
OPTIONAL
FAN
SWITCHES
L2
(NEUTRAL)
L1
(HOT)
100-254A
JUNCTION
BOX
120 VAC
ON/OFF
GROUND
TO
FIREPLACE
CHASSIS
WHITE
GREEN
BLUE 501-592
DSI
MODULE ORANGE
459-591
IGNITOR
476-500
DSI CONTROL VALVE
WHITE
BLACK
WHITE
YELLOW
BLUE

26
!
Step 10
Finishing The following diagram shows the minimum vertical
and corresponding maximum horizontal
dimensions of fireplace mantels or other
combustible projections above the top front edge
of the fireplace. See Figures 3 and 4 for other
fireplaceclearances.
Only non-
combustible
materials may be
used to cover the
black fireplace front.
Figure 13. Minimum Vertical and Maximum
Horizontal Dimensions of
Combustibles above Fireplace
WARNING
WHEN FINISHING THE FIREPLACE,
NEVER OBSTRUCT OR MODIFY THE
AIR INLET/OUTLET GRILLES IN ANY
MANNER.
12"
1 1/2"
MINIMUM
DRY WALL
TOP FRONT
EDGE OF
FIREPLACE
31”
CEILING
CAUTION IF JOINTS BETWEEN THE FINISHED WALLSAND
THE FIREPLACE SURROUND (TOPAND SIDES)
ARE SEALED,A300°F. MINIMUM SEALANT MA-
TERIAL MUST BE USED. THESE JOINTS ARE
NOT REQUIRED TO BE SEALED. ONLYNON-
COMBUSTIBLE MATERIAL (USING 300° F. MINI-
MUM ADHESIVE, IF NEEDED) CAN BE APPLIED
AS FACING TO THE FIREPLACE SURROUND.
SEE THE FOLLOWING DIAGRAM
