Model:
Everest
• DO NOT storeorusegasoline or other flam-
mablevapors andliquidsin thevicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,service agency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer’s instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as fire-
place.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 2
!
!
!
!
!!
!
!!
!
!
!
!
!
!
!
!
Safety and Warning Information
!
!
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
Anysafety screen orguardremovedfor servicing must
be replaced before operating this appliance.
Turn off the gas before servicing this appliance. It
is recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the gas fireplace
manufacturer. NO SUBSTITUTE material may be
used.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Broken glass may
be sharp to the touch, use caution when removing.
Replacementof the glass doorshouldbeperformedby
a licensed or qualified service person. DO NOT strike
or slam the glass door.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in place
on the fireplace before the unit can be placed into safe
operation.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air flow.
This gas fireplace and vent assembly MUST be vented
directlytotheoutsideandMUSTNEVERbeattachedtoa
chimneyservingaseparate solid fuel burningappliance.
Eachgas appliance MUST USE aseparatevent system.
Common vent systems are PROHIBITED.
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
Childrenandadultsshouldbe ALERTEDtothehazards
ofhighsurfacetemperatureandshouldSTAYAWAYto
avoid burns or clothing ignition. Young children should
be CAREFULLY SUPERVISED when they are in the
same room as the appliance.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
anddraperies.Clothingor flammablematerialSHOULD
NOT BE PLACED on or near the appliance.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operations.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
systemshouldbe INSPECTED before initial useand at
least annually by a professional service person. More
frequentcleaningmay be required dueto excessive lint
fromcarpeting,beddingmaterial,etc.ItisIMPERATIVE
that the unit’s control compartment, burners, and
circulating air passageways BE KEPT CLEAN to
provide for adequate combustion and ventilation air.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
Prior to the first firing of the fireplace, READ the Using
Your Fireplace section of the Owners Guide.
READ and UNDERSTAND all instructions carefully
beforestarting the installation. FAILURE TO FOLLOW
these installation instructions may result in a possible
fire hazard and will void the warranty.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 3
Table of Contents
Safety and Warning Information. ....................................2
Service Parts Lists...........................................................4
Section 1: Approvals and Codes....................................7
Appliance Certification........................................................7
Installation Codes...............................................................7
High Altitude Installations ...................................................7
Section 2: Getting Started ...............................................8
Introducing the Heat & Glo Gas Fireplaces........................8
Pre-installation Preparation................................................8
Section 3: Installing the Fireplace. ...............................10
Step 1 Locating the Fireplace .......................................10
Step 2 Framing the Fireplace........................................10
Step 3 Installing the Vent System .................................11
A. Vent System Approvals ................................11
B. Installing Vent Components..........................16
C. Vent Termination ..........................................19
Step 4 Positioning, Leveling, and
Securing the Fireplace.......................................22
Step 5 The Gas Control Systems..................................22
Step 6 The Gas Supply Line.........................................23
Step 7 Gas Pressure Requirements .............................23
Step 8 Wiring the Fireplace...........................................24
Step 9 Finishing ............................................................25
Step 10 Installing Trim, Logs, and Ember Material .........26
Installing the Trim...............................................26
Positioning the Logs ..........................................26
Placing the Ember Material................................26
Step 11 Before Lighting the Fireplace.............................27
Step 12 Lighting the Fireplace ........................................27
After the Installation .........................................................27
Battery Backup.................................................................27
Section 4: Maintaining and Servicing
Your Fireplace. .............................................28
Contact Information........................................29
Î= Contains updated information.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 4

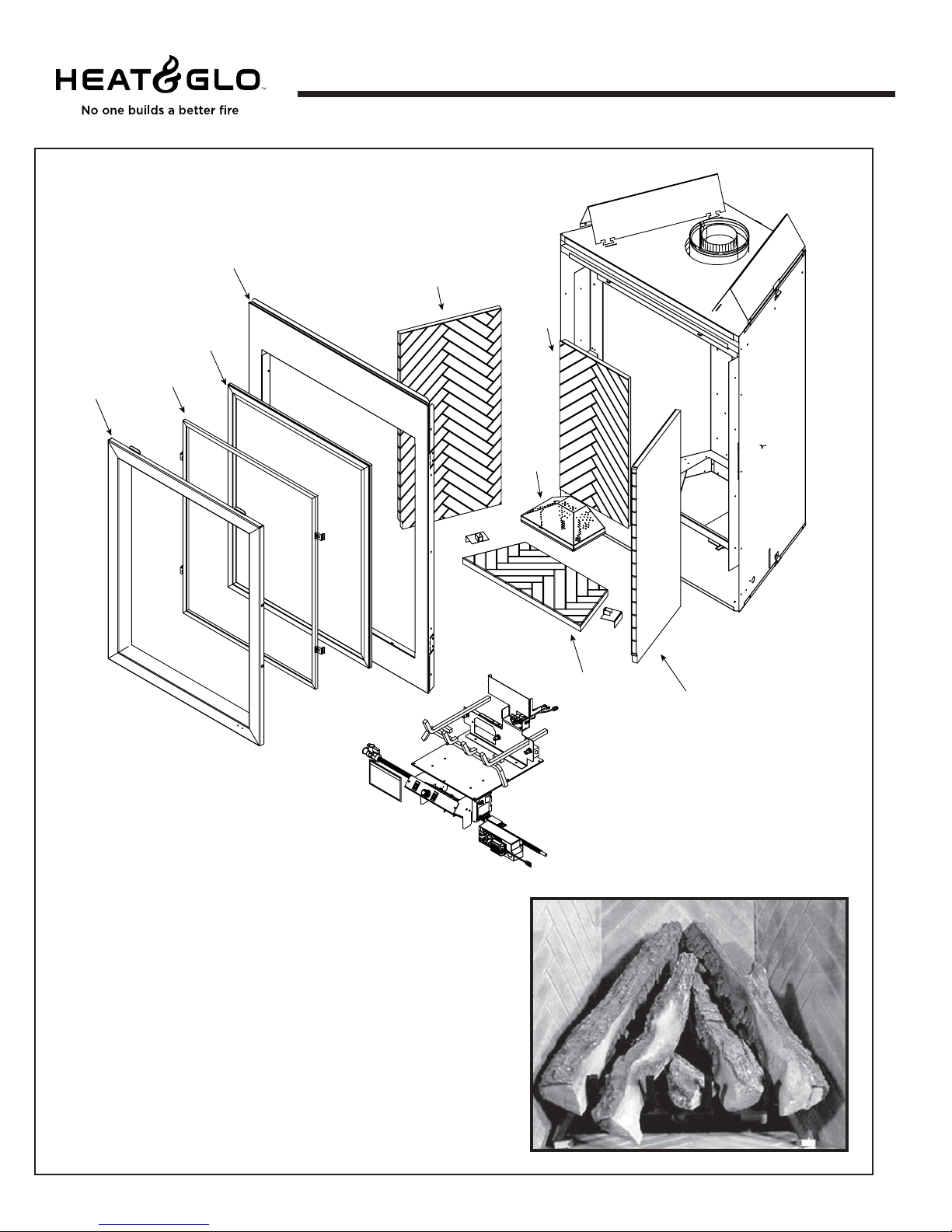

Service Parts Diagram
Service Parts EVEREST
Beginning Manufacturing Date: Aug. 2000
Ending Manufacturing Date: ______
7
8
9
10
11
12
13
14 15
Part number list on following page.
Log Set Assembly
26
543

Heat & Glo • Everest • 750-900 Rev. o • 10/08 5
Service Parts List EVEREST
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-EVEREST Y
1 Log 1 (Back Log Not Shown) SRV750-703
2 Log 2 SRV750-701A
3 Log 3 SRV750-702A
4 Log 4 SRV750-705
5 Log 5 SRV750-706
6 Log 6 SRV750-704
7 Burner NG, LP 750-175A Y
8 Refractory, Back SRV750-732
9 Refractory, Left Side SRV750-730
10 Surround Pre July 2003 750-130
Post July 2003 750-132
11 Trim Door Mesh MESH-EVEREST Y
12 Glass Door Assembly GLA-EVEREST Y
13 Decorative Front DF-EVEREST
14 Refractory, Base SRV750-733
15 Refractory, Right Side SRV750-731
Exhaust Baffle 750-153
Glass Latch Assembly 386-122A Y
Lava Rock 705-420
Mineral Wool 050-721
Touch Up Paint TUP-GBK-12
STANDING PILOT CONVERSION KITS Pre 5000
Thermocouple 446-511 Y
Thermopile 2103-512 Y
Pilot Tube SRV485-301 Y
Conversion Kit NG NGK-EVEREST Y
Conversion Kit LP LPK-EVEREST Y
Pilot Orifice NG 446-505 Y
Pilot Orifice LP 446-517 Y
Regulator NG 060-518 Y
Regulator LP 060-519 Y
IPI CONVERSION KITS Post 5000
Conversion Kit NG NGKP-EVEREST Y
Conversion Kit LP LPKP-EVEREST Y
Pilot Orifice NG 593-528 Y
Pilot Orifice LP 593-527 Y
Regulator NG NGK-DXV Y
Regulator LP LPK-DXV Y
Additional service part numbers appear on following page.
Î

Heat & Glo • Everest • 750-900 Rev. o • 10/08 6
2
3
3
54
6
10
9
811
17
18
19
Valve Assembly Parts List
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
IPI Valve Assembly
Post Serial #5000
Standing Pilot Valve Assembly
Pre Serial #5000
Service Parts EVEREST
Beginning Manufacturing Date: Aug. 2000
Ending Manufacturing Date: ______
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION (SP) Pre 5000 (IPI) Post 5000
1 Manifold Assembly N/A 750-310A Y
2Pilot Assembly NG 485-510A 593-512A Y
Pilot Assembly LP 485-511A 593-513A Y
3Log Orifice NG (#53A) 060-801 582-853 Y
Log Orifice LP (#64A) 750-800 582-864 Y
4Orifice NG (#45A) 062-801 582-545 Y
Orifice LP (#56) 045-802 582-856 Y
5 Grate Assembly 750-360A 750-360A
6 On/Off Rocker Switch 060-521A 060-521A Y
7 Rocker Switch Assembly N/A 750-556A Y
8 Flame Control Knob 571-531 571-531 Y
9 Flex Ball Valve Assembly 302-320A 302-320A Y
10 Valve NG 060-522 750-500 Y
Valve LP 060-523 750-501 Y
11 Flexible Gas Connector 567-301A 567-301A Y
12 Battery Pack N/A 593-594A Y
14 Junction Box 100-250A 4021-013 Y
13 3 Volt Transformer N/A 593-593A Y
15 Module Wire Assembly N/A 593-590A Y
16 Module N/A 593-592 Y
17 Wire Harness 049-552A N/A Y
18 Wire Harness 049-551A N/A Y
19 Piezo Ignitor 219-513 N/A Y

Heat & Glo • Everest • 750-900 Rev. o • 10/08 7
Installation Codes
The fireplace installation must conform to local codes.
Before installing the fireplace, consult the local building
code agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Inthe absenceof localcodes, thefireplaceinstallationmust
conformto the NationalFuelGasCodeANSIZ223.1 (inthe
United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No.
70 (in the United States), or to the CSA C22.1Canadian
Electric Code (in Canada).
Thesemodelsmay beinstalled in abedroom orbed-sitting
room in the U.S.A. and Canada.
1Approvals and Codes
Appliance Certification
TheHeat& Glofireplacemodel discussed inthis Installers
Guidehave beentested tocertificationstandardsandlisted
by the applicable laboratories.
Certification
MODEL: EVEREST
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSIZ21.88-1998/CSA2.33 M98 • UL307B
High Altitude Installations
U.L.Listed gasappliances aretested andapproved without
requiring changes for elevations from 0 to 2,000 feet in the
U. S. A. and in Canada.
Wheninstallingthis appliance atanelevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 8
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat & Glo direct vent gas fireplaces are designed to op-
erate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gas fireplacediagrams,including thedimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure tofollow theseinstructions willvoid theowner’s
warranty and may present a fire hazard.
When planning a fireplace installation, it’s necessary to
determine:
• Where the unit is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
• Whetheroptional accessoriesdevices suchasafan,wall
switch, or remote control are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.
Warranty
TheHeat& GloWarrantywillbe voidedby,andHeat &Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not manu-
factured and approved by Heat & Glo, not withstanding
any independent testing laboratory or other party ap-
proval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 9
Figure 1. Diagram of the Everest
TOP STANDOFFS
TOP VENT COLLARS
TRIM DOOR
RATING PLATE
AND LABELS
GAS CONTROLS ELECTRICAL
ACCESS
GAS LINE
ACCESS
Ø8
(203.1)
8
(203 mm)
8-15/16
(227 mm)
20-7/8
(531 mm)
ELECTRICAL
ACCESS
4-11/16
(119 mm)
2-5/16
(59 mm)
49-7/8
(1266 mm)
4-11/16
(118 mm)
23-3/8
(593 mm)
28-13/16
(732 mm)
34-1/8
(866 mm)
36-1/8
(918 mm)
47-7/16
(1205 mm)
5-12
(139 mm)
GAS LINE
ACCESS
54-1/2
(1384 mm)
45-7/16
(1154 mm)
2-18
(55 mm)

Heat & Glo • Everest • 750-900 Rev. o • 10/08 10
3Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
A B C D E
35 1/2” 21 3/4” 30 1/2” 43 1/4” 61 3/16”
(902 mm) (552 mm) (775 mm) (1099 mm) (1554 mm)
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front.........................36 ..............914
Floor .............................0 ..................0
Rear ...........................1/2................13
Sides ...........................1/2................13
Top ..........................4 1/2 .............114
Ceiling* ............................31 ...............787
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
Framing should be
constructed of 2 X 4
lumber or heavier.
A...... 35-1/8” (892 mm)
B...... 50-1/2” (1283 mm)
C...... 21-3/8” (542 mm)
D...... 55-1/2” (1372 mm)
Figure 3. Framing Dimensions
For minimum clearances, see the direct vent termination
clearance diagrams on pages 20 and 21 in this manual.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1 ................25
Horizontal Sections
Top......................................3.................75
Bottom................................1.................25
Sides...................................1.................25
At Wall Firestops
Top......................................3.................76
Bottom................................1.................25
Sides...................................1.................25
A
B
4” (102 mm)
D
C
E
1/2” (13 mm)
Shows center of
10” x 12” vent framing
holes for venting.
C
B
A
D
* The clearance to the ceiling is measured from the
top of the unit, excluding the stand-offs and collar.
See Figure 24 for further details. (Center of 12 x 10)
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.Theminimum clearanceto aperpendicularwall
extending past the face of the fireplace is 4 inches (102
mm). The back of the fireplace may be recessed 23 (584
mm) inches (546 mm) into combustible construction.
Step 2. Framing the Fireplace
Fireplaceframing canbe builtbefore orafter thefireplace is
setin place.Framingshouldbepositionedtoaccommodate
wall coverings and fireplace facing material. The diagram
below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS, BEFORE FRAMING.
Thedistance fromtheunittocombustibleconstructionis
to be measured from the unit outer wrap surface to the
combustible construction, NOT from the screw heads
that secure the unit together.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 11
Figure 5. Vent Components and Terminations
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodelsare approvedtouseDVP-series direct
vent pipe components and terminations.Approved
vent system components are labeled for identifica-
tion. This pipe is tested and listed as an approved
component of the fireplace. The pipe is tested to
be run inside an enclosed wall. There is no require-
ment for inspection openings at each joint within
the wall. There is no required pitch for horizontal
vent runs. NO OTHER VENTING SYSTEMS OR
COMPONENTS MAY BE USED.
Detailed installation instructions are included with
each vent termination kit and should be used in
conjunction with this Installers Guide. The draw-
ing below shows vent system components and
terminations.
The flame and ember appearance may vary based
on the type of fuel burned and the venting configu-
ration used.
Identifying Vent Components
Thevent systemsinstalled onthis gasfireplacemay
include one, two, or three 90° elbow assemblies.
The relationships of vertical rise to horizontal run
in vent configurations using 90° elbows MUST BE
strictly adhered to. The rise to run relationships are
shown in the venting drawings and tables. Refer to
the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of
one 90° elbow. rise to run ratios in the vent system
must be followed if 45° elbows are used.
NOTE: PIPES OVERLAP 1-1/4
INCHES (31.8 mm) AT EACH JOINT.
Figure 4. DVP-Series Direct Vent Component Specifications
(5-inch inner pipe / 8-inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8 45.0º
10-1/4
DVP45
14-1/4
Vent system
termination kits
Vent system components
To Unit
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
PIPE LENGTH
CEILING
FIRESTOP
DVP-TV
DVP-TVHW
DVP-TRAP

Heat & Glo • Everest • 750-900 Rev. o • 10/08 12
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40’ MAX. (12.4 M)
Figure 6. Straight Up Vertical Venting
V
CAP

Heat & Glo • Everest • 750-900 Rev. o • 10/08 13
Figure 7. Venting with One 90° Elbow
NOTE: If a 90º elbow is first attached to the unit,
the maximum horizontal run is 3 feet (914 mm).
NOTE: For corner installations: A 6 inch (152 mm) section of
straight pipe may need to be attached to the fireplace before a
90º elbow, to allow the vent pipe to clear the top standoffs.
VENTING WITH ONE (1) 90° ELBOW
V H
1’ MIN. (305 mm) 10’ MAX. (3.1 m)
2’ MIN. (610 mm) 15’ MAX. (4.65 m)
4’ MIN. (1.22 m) 20’ MAX. (6.2 m)
V+H= 40’ MAX. (12.4 mm) H = 20’ MAX. (6.2 m)
H
V
H
V

Heat & Glo • Everest • 750-900 Rev. o • 10/08 14
V H + H1
1’ MIN. (305 mm) 10’ MAX. (3.1 m)
2’ MIN. (610 mm) 15’ MAX. (4.65 m)
4’ MIN. (1.22 m) 20’ MAX. (6.2 m)
V+H+H1= 40’ MAX. (12.4 m) H+H1= 20´ MAX. (6.2 m)
V+V1+H= 40’ MAX. (12.4 m)
Figure 8. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90° ELBOWS
H1
H
V
V
V1
H

Heat & Glo • Everest • 750-900 Rev. o • 10/08 15
V
H
H1
V1
V
H
H1
V1
Figure 9. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
V + V1 H + H1
1’ MIN. (305 mm) 10’ MAX. (3.1 m)
2’ MIN. (610 mm) 15’ MAX. (4.65 m)
4’ MIN. (1.22 m) 20’ MAX. (6.2 m)
NOTE: H + H1= 20’ MAX. (6.2 m)
V + V1 + H + H1= 40’ MAX. (12.4 m)

Heat & Glo • Everest • 750-900 Rev. o • 10/08 16
Figure 10. Vertical Baffle
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
• Make sure that the fireplace gasket supplied with the
fireplacesealsbetweenthefirstcomponentand theouter
fireplace wrap.
• Refer to Cinch Pipe and Termination Cap installation
instructions.
B. Installing Vent Components
If your vertical vent component is over 10 feet, you may
want to install the included vertical baffle to improve flame
appearance.Vertical baffleis locatedinthe bagcontaining
theinstruction manual.Centerthe verticalbaffle onthe five
inch vent being used, and with self tapping screws secure
the baffle to the inside of the firebox (see Figure 10).
With vent runs of 30 feet or more without elbows, an
additional baffle (SRV750-152) is to be used with the
suppliedbaffle.Thisisaservice partand istobepurchased
separately.
VERTICAL
BAFFLE 5” EXHAUST
PIPE
2. Assembling Vent Sections
Refer to Cinch Pipe and Termination Cap installation in-
structions.
!
WARNING: ENSURETHAT THEFIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALS BETWEEN THE FIRST VENT COMPO-
NENT AND THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
to the fireplace, skip to the sections, Install Firestops and
Vent Termination.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 17
Figure 11
!
DIRECTION
UP
HEAT SHIELD
COMBUSTIBLE SURFACE
90 ELBOW
0
Figure 12
CORRECT INCORRECT
COMBUSTIBLE
SURFACE
HEAT
SHIELD
3“ MIN.
(76 MM)
3. Install Support Brackets
Refer to Cinch Pipe and Termination Cap installation in-
structions.
To Install the Heat Shield:
1. Determineiftheheatshieldisrequired.Dosobymeasuring
the vertical distance between the top horizontal surface of
theelbowtoanycombustiblesurfaceabove.Ifthedistance
is more than 4 inches, the heat shield is NOT required. If it
is 4 inches or less, the heat shield IS REQUIRED. Install
per the following steps. See Figure 11.
2. Fasten the shield in place using the four pilot holes
provided in the part. The shield should be oriented such
that the 13 1/8 inch dimension (longest dimension) is
running in the same direction the elbow is pointing. The
shield should be centered directly above the elbow, and
positioned so that it creates a 1/2 inch airspace between
the shield and the combustible surface. See Figure 12.
Refer to Cinch Pipe and Termination Cap installation in-
structions.
• Continue adding vent components, locking each suc-
ceeding component into place.
• Ensurethat eachsucceeding ventcomponent issecurely
fitted and locked into the preceding component in the
vent system.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible wall through which the vent
passes.
NOTE: Model DVP-TRAP does not need an exterior
firestop on an exterior combustible wall.
• 90°elbowsmaybeinstalledandrotatedtoanypointaround
the preceding component’s vertical axis. For elbows that
are changing the vent direction, one screw minimum
should be put in the outer vent at the joint to prevent the
elbow from rotating.
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRESTHE USEOF HEAT SHIELD
570-290ABOVE THEFIRST 90ºELBOW INTHE
VENTING SYSTEM.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 18
For Vertical Runs- One ceilingfirestopisREQUIRED
at the hole in each ceiling through which the vent
passes.
To install firestops for vertical runs that pass through
ceilings:
• Positionaplumb bobdirectlyover the centerof the verti-
cal vent component.
• Mark the ceiling to establish the centerpoint of the
vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cuta10 inchx10 inch(254mm x254mm) hole through
the ceiling, using the centerpoint previously marked.
• Frame the hole with framing lumber the same size as
the ceiling joists.
Figure 15. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of the
previously cut and framed hole.
This shows a ceiling installation.
Figure 14. 10” x 10” Hole & New Framing Members
Ifthearea abovethe ceilingIS an attic,positionand secure
the firestop on top of the previously framed hole.
Thisshowsan atticinstallation.Keep insulationawayfrom
the vent pipe at least 1 inch (25 mm).
Figure 16. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (25.4 cm) )mc4.52(”01
Figure 13. 10” x 12” Hole and Vent Pipe
To install firestops for horizontal runs that pass through
either interior or exterior walls:
• Cut a 12 inch by 10 inch (305 mm X 254 mm) hole
through the wall. The center of the hole is one (1) inch
(25.4 mm) above the center of the horizontal vent
pipe.
• Positionthe firestopsonbothsidesofthe holepreviously
cut and secure the firestops with nails or screws.
• The pipe opening of the firestops MUST be placed
towards the bottom of the fireplace.
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
10" (25.4 cm)
12" (30.5 cm)
INTERIOR
WALL SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

Heat & Glo • Everest • 750-900 Rev. o • 10/08 19
Figure 17. Trapezoid Termination Cap
7-1/4 in.
(184 mm)
!
WARNING: VENTING TERMINALS SHALL
NOT BE RECESSED INTO A WALL OR SIDING.
VENT TERMINATION CLEARANCES MUST BE
FOLLOWED TO AVOID FIRE DANGER. SEE
VENT TERMINATION MINIMUM CLEARANCES
DIAGRAM ON FOLLOWING PAGE.
C. Vent Termination
Refer to Cinch Pipe and Termination Cap installation in-
structions.
WARNING: THE TERMINATION CAP MUST
BE POSITIONED SO THAT THE ARROW IS
POINTING UP.
!

Heat & Glo • Everest • 750-900 Rev. o • 10/08 20
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 18. Minimum Clearances for Termination
A = 12 inches.................clearancesabovegrade,veranda,
porch, deck or balcony
B = 12 inches.................clearances to window or door
thatmay be opened,or toperma-
nently closed window. (Glass)
D* = 18 inches.................vertical clearance to unventilated
soffitorto ventilated soffitlocated
above the terminal
*30 inches................for vinyl clad soffits and below
electrical service
F = 9 inches..................clearance to outside corner
G = 6 inches...................clearance to inside corner
H = 3 ft. (Canada)..........not to be installed above a gas
meter/regulator assembly within 3
feet (90 cm) horizontally from the
center-line of the regulator
I = 3 ft...........................clearancetogas service regulator
vent outlet
J = 9 inches (U.S.A.)
12 inches (Canada) clearance to non-mechanical
air supply inlet to building or the
combustion air inlet to any other
appliance
K = 3 ft. (U.S.A.)
6 ft. (Canada)...........clearance to a mechanical (pow-
ered) air supply inlet
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED.
** avent shallnot terminatedirectly aboveasidewalk orpaved driveway
whichis located between two singlefamily dwellingsand serves both
dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor, or meets Note 2.
Note 1: On private property where termination is less than 7 feet above a
sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap
shield is suggested. (See vents components page)
Note 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be a
minimum of 1 foot below the termination cap.
(See Note 1)
(See Note 2)
Note 3: Local codes or regulations may require different
clearances.
Note 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
Note 5: Location of the vent termination must not interfere with
access to the electrical service.
WARNING: In the U.S: Ventsystem terminationisNOT permitted in
screenedporches. You mustfollow side wall,overhang and ground
clearances as stated in the instructions.
In Canada: Vent system termination is NOT permitted in screened
porches. Vent system termination is permitted in porch areas with
two or more sides open. You must follow all side walls, overhang
and ground clearances as stated in the instructions.
Heat& Gloassumes no responsibility for theimproper performance
of the appliance when the venting system does not meet these
requirements.
Electrical
Service
V
S
VS
V
T
D*
V
MN
P
R
Q
N = 6 inches ..................non-vinyl sidewalls
12 inches ................vinyl sidewalls
P = 8 ft.
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
Alcove Applications
(See Note 1)
(See Note 5)
(See Note 5)
L** = 7 ft.......................... clearance above paved
sidewalk or a paved driveway
located on public property
M*** = 18 inches................ clearance under veranda, porch,
deck, balcony or overhang
42 inches ............... vinyl
S = 6 inches.................clearancefromsides of electri-
cal service
T = 12 inches................clearance above electrical
service
