Heat Controller Century Installation guide

where you need it,
when you need it
Comfort…
Ductless Mini-Split Systems

At Century, we’re in the business of making you
comfortable, whether at home, work, school, or at
play. We offer a broad product selection for both residential
and commercial use. Products that are efficient, effective
and designed to add value.
We’ve been in the comfort business since our founding in
1933, and our roots go back even further. We can trace
our beginnings to the Wingert Furnace Co. which began
building coal, gas and oil furnaces in 1907. We moved to
our new headquarters in Jackson, Michigan, in 1955, and
this facility has been expanded several times—most recently
in 2006—to accommodate our growth.
Century is known throughout the heating and air
conditioning industry for efficient, reliable products and
in-season availability. Whether for heating or cooling, these
products meet or exceed industry standards for energy
efficiency. The line is constantly being updated to add the
features and new technology that customers demand.
Ductless mini-split systems are one of our fastest growing
product groups, and there are many reasons for this
increasing popularity—but overall, the key is flexibility. They
allow air conditioning (and heating with heat pump models)
to be added quickly, conveniently and economically—often
in locations where installing such comfort systems didn’t
seem possible or practical.
Read on to find out how a ductless mini-split system
can make you comfortable, and do it efficiently and
economically.
Comfort…
it’s what we’re
all about

Table of Contents
This guide to ductless mini-splits is designed to
explain how units work, the advantages they bring,
and to show you the entire Century line. With single
zone, multi-zone, and ceiling cassette models, there’s
a mini-split in the size and type you need to add
comfort to just about any location!
Where can you use a mini-split? ............................2
Advantages of mini-splits .......................................3
Mini-splits and indoor air quality...........................3
How does a mini-split work?..................................4
Inverter technology.................................................5
Multi-zone flexibility...............................................6
Energy efficiency explained....................................7
Advantages of new refrigerant type .....................7
Quick reference guide to models...........................8
Features of mini-split line.......................................9
Model specifications
“S” Series Single Zone.......................................10
“V” Series Inverter Single Zone ........................12
“V” Series InverterFlex Multi-Zone...................14

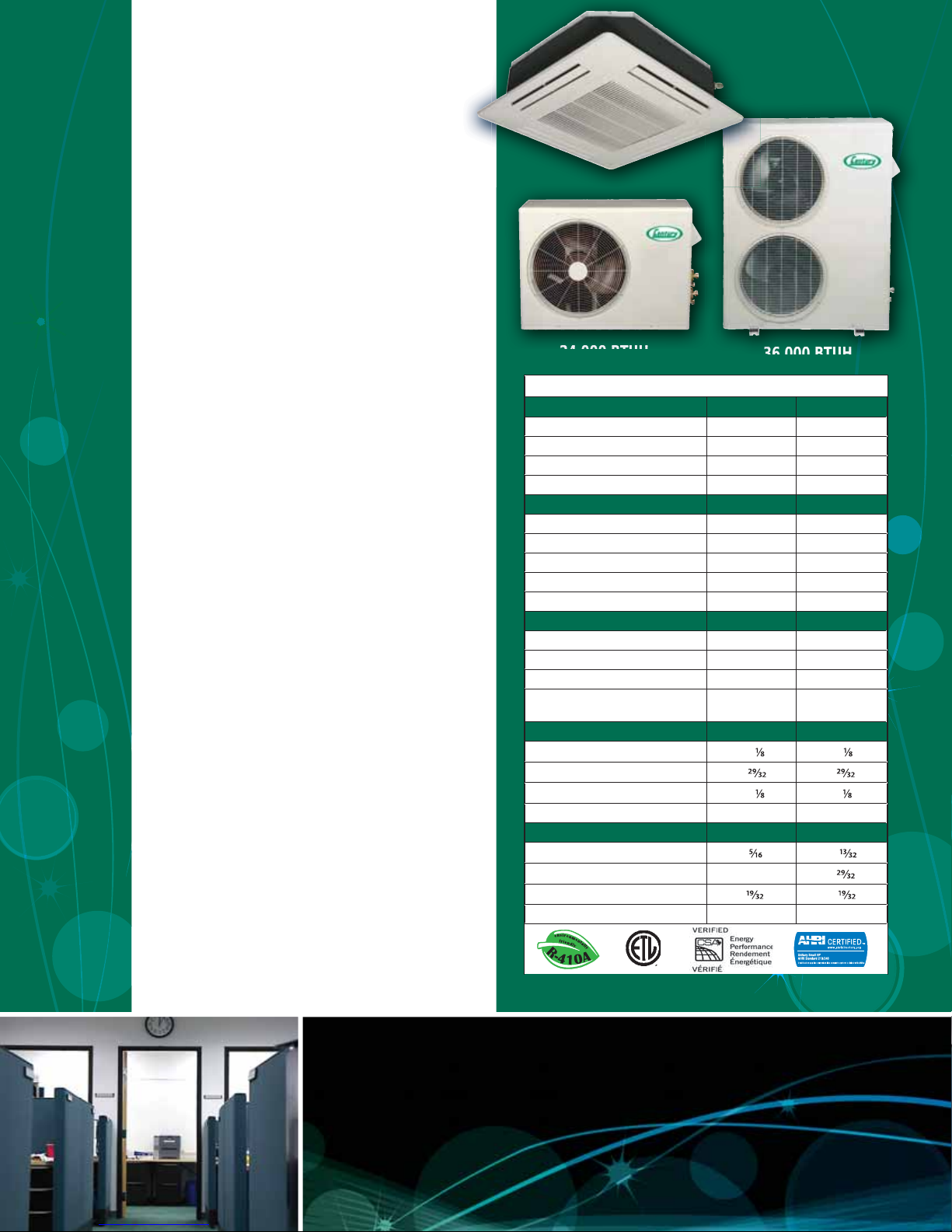

“D” Series Ceiling Cassette ..............................16
Ready to buy? Things to consider ........................17
T
abl
T
h
is
g
explai
n
and t
o
z
one,
m
a min
i
comf
o
Wh
er
e
Adva
n
Mini-s
How
d
Invert
e
Multi-
Ener
gy
Adva
n
Quick
Featu
r
Mode
l
“S”

Ductless mini-split systems are a great solution to a wide variety of installation challenges, giving
contractors the ability to put air conditioning (and heat with heat pump models) in locations that
previously seemed impossible. They’re ideal when installing ductwork is difficult, prohibitively
expensive, or simply impractical. Both residential and commercial structures, new construction
and existing buildings, are candidates for mini-splits.
Basically a mini-split does away with the need for ductwork. Like a regular split system A/C or
heat pump, the condenser is located outdoors; one or more air handlers are placed indoors. The
two are connected by electrical, refrigerant, and condensate drain lines that run through a small
hole in an exterior wall, generally 3” in diameter or less.
In addition to eliminating the need for ducting, one of the other big advantages of mini-split
systems is true zone control. The air handler is dedicated to the room being conditioned and
is controlled by a wireless remote. That room can be kept at a temperature and humidity level
different from the rest of the house or building.
Multi-zone systems for two, three or four rooms (or one large space) feature a single condenser
that handles two, three or four air handlers. Each air handler is independently controlled, with its
own remote and electronics-based climate controls to regulate temperature and humidity levels,
as well as air flow. Units in a bedroom and a home office, for instance, can be programmed
for different hours of operation with the 24-hour timer, or two classrooms situated side by side
can be set at different temperatures.
Mini-split systems have the flexibility to fit virtually anywhere and with SEER ratings up to 20.0,
they’re also economical to operate.
Where can you use a mini-split? Common applications include:
nHistoric homes (the aesthetics of the
exterior are maintained)
nHomes with hydronic heat
nResidential additions such as a
sunroom or bedroom
nVacation homes and cabins
nSchools (individual classroom control)
nChurch sanctuaries and fellowship halls
nNursing homes and hospitals
Ductless Mini-Splits
The Comfort Solution
2
nRestaurants
nRemote offices such as those inside
a warehouse or factory
nUtility transfer stations
nArena sky boxes
nComputer rooms (temperature/
humidity can be different than the
rest of the building)
nATMs and office lobbies
les
uctl
ss M
Mi
Ductless Mini-
Th C f t S
Du
S
S

Advantages of a ductless mini-split system
Quiet Operation—The operational sound of the compressor and fan is kept
outside with the condensing unit and the indoor air handler is designed to be
exceptionally quiet
Easy Installation—All it takes to connect the outdoor condenser and the indoor
air handler is a hole about 3” in diameter to run refrigerant lines, condensate
drain and electrical wires between the two components
Efficiency—Units are designed to be energy efficient with high SEER ratings that
meet or exceed government mandated standards; and only the room or area being
used is conditioned, potentially decreasing electricity usage when compared to
traditional systems
Attractive Appearance—High wall models feature a low profile indoor unit in
a neutral color that blends with any décor; ceiling cassettes also come in a neutral
color that virtually disappears in ceiling installations
Security—With a room air conditioner, there’s always the worry that access to
the home can be gained through the window where the unit is mounted; that
worry is eliminated with a ductless system
Consistent Comfort—Electronic climate controls regulate operation to maintain
a preset temperature level; random swing air flow (on most units) continually
adjusts the fan speed and air direction for a gentle, breeze-like effect
Simple Operation—One fully featured remote is included for each indoor air
handler, making it simple to select the mode, set the temperature and the timer,
and change the airflow direction
Mini-Splits and Indoor Air Quality
According to the EPA, the air inside our homes is often more polluted than
outside air. What’s needed to protect yourself from airborne contaminants
is a high quality filtration system, and that’s just what you get with all
ductless mini-splits from Century .
In fact, our “V” Series inverter units are equipped with triple filtration:
• Ionizer—removes microscopic particles from the air
• Active carbon and dust filter—removes dust, smoke, and pollen
• Air freshening filter—helps freshen the air
Additionally, the units can be operated in the dehumidification mode without
cooling or heating. This removes excess humidity from the indoor air, one of
the keys to preventing the growth of mold, mildew and other contaminants.
There’s more to comfort
than just temperature…
3
Advanta
g
Q
uiet O
p
erati
o
outside with the
exceptionall
y
qu
i
E
as
y
Installatio
n
air handler is a
h
d
rain and electr
ic
Effi
cien
cy
—
Uni
t
meet or exceed
g
o
use
d
is con
d
itio
n
tra
d
itiona
l
s
y
st
em
A
ttract
i
ve A
pp
e
a neutra
l
co
l
or t
h
co
l
or t
h
at virtua
l
ly
Secur
i
t
y
—
Wit
h
t
h
e
h
ome can
b
e
worr
y
is elimina
te
Co
n
s
i
ste
n
t
Co
m
a preset tempe
ra
ad
j
usts the fan
s
Si
mp
le O
pe
rati
o
handler, makin
g
and chan
ge
the
a
Mini-Spli
t
A
ccordin
g
to t
h
outside air. W
ha
is a hi
g
h qual
it
ductless mini-
sp
In
f
act, our “V”
• Ionizer—re
mo
• Active carbo
n
• Air fresheni
ng
A
dditionall
y
, th
e
coolin
g
or heati
the ke
y
s to prev
e

Cooling without Ductwork
A ductless mini-split air conditioner works the same way central air
conditioning does with one big difference—there’s no ductwork.
Both the central system and the mini-split can be classified as
split systems because they consist of an outdoor condensing
unit and an indoor air handler. With a central A/C system, the
indoor components include a cooling coil and an air handler (the
furnace’s blower or a separate air handler) that circulates the
conditioned air throughout the structure by way of the ductwork.
The mini-split indoor unit functions as both the indoor coil and
the air handler, delivering conditioned air directly into a single
room without sending it through any ductwork.
Heat Pump Models
A heat pump mini-split operates in basically the same manner,
but adds heating capability. In the summer it transfers heat
from inside the home to the outdoors. A reversing valve makes
it possible for the unit to reverse this procedure during cold
weather, absorbing heat from the outdoors and transferring it
indoors (yes, there is warm air outside, even when it’s below
freezing).
Heat Gain/Loss
One of the advantages this “ductless” operation provides is
efficiency. In a central system, the cooler air absorbs heat as
it travels through the ductwork. The longer the duct run, the
greater the temperature gain. In winter, heat can also be lost as
the conditioned air travels through the ducts.
Don’t forget that it takes air pressure to move the conditioned air
through the ducting system and that involves some noise from
the fan and the actual movement of air. A mini-split system,
however, is ultra-quiet because it doesn’t have to push the air
through many feet of ductwork.
Indoor Air Handler
How does a
mini-split
work?
This diagram shows a typical
single zone installation:
n The condensing unit is
installed outdoors while
the air handler is mounted
inside on an exterior wall.
A hole approximately 3” in
diameter is drilled through
the wall. The lines that carry
refrigerant from the air
handler to the condensing
unit and back run through
this hole.
n An electric line runs between
the two components: power
is supplied by the outdoor
unit so there are no cords and
plugs visible on the interior. A
bracket mounted to the wall
supports the air handler, but
is hidden by air handler.
n A drain line runs from the
air handler to the outside to
carry condensate away.
Outdoor Condenser
O
Ou
tdoor Condenser
4

Inverter Technology:
Taking comfort and efficiency
to the next level
Century’s “V” Series ductless mini-split
heat pumps maximize comfort by reducing
temperature fluctuations and at the same
time save an estimated 40% or more
on energy consumption, compared with
traditional mini-split systems.
What’s different about the “V” Series?
It uses state-of-the-art inverter
technology.
An inverter is an electrical
device that varies the
frequency of the power
going to the compressor.
This allows the compressor
to run at variable speeds so
that it can precisely match the power with
the demand.
A microprocessor adjusts the compressor
speed by sampling the ambient air
temperature in the room or space
being cooled or heated. At start up,
the compressor runs at high RPMs to
quickly reach the desired temperature
in the room. Then it slows down to
a low rotation speed to maintain the
temperature. However, during times of
high demand such as weather extremes,
or even a large gathering in the room,
the compressor ramps up to a faster
speed to meet the demand.
Compare this to a traditional system
which cools by running the
compressor until the
setpoint is reached and
then turns off. This
on-off cycling results in
temperature fluctuations
that affect comfort, and
also adds to wear and tear of
the components.
Temperature isn’t the only contributor
to comfort: humidity is critical. Dehu-
midification, especially during hot, muggy
weather, is an integral component of
cooling. When the compressor in a tra-
ditional system cycles off, dehumidifica-
tion also stops. With an inverter system,
excess moisture in the air is removed all
the time because the unit runs constantly,
although mostly at “economy” speed.
Ductless mini-splits can save you money when it comes to adding
on to your house. If your current HVAC system is correctly sized to
your existing structure, it may not have the capacity to handle the
new square footage. Rather than replacing the entire system, you
can cool and heat your new space with a mini-split—and save the
cost of installing ductwork.
5
Advantages of
Inverter Technology
n Reaches the desired
temperature quickly
n Provides precise temperature
control and continuous
dehumidification (cooling mode)
n Extends component life by
eliminating on-off cycling
n
Operates exceptionally quietly
because the DC compressor
runs mostly at low speed,
which also reduces any
vibration and associated noise
n Saves energy by matching
the compressor speed to
the demand; rated at up
to 20.0 SEER
n Extra heating capacity even at
low ambient temperatures

When you need to
condition more than
one space, it’s not
necessary to install
separate systems. You
can choose multi-zone
models that let you
cool and heat multiple
rooms, and with our
InverterFlex models,
you can mix and match
2, 3 or 4 air handlers
to best match your
room requirements.
Each system uses one
outdoor condensing
unit tied to multiple
indoor units, and
each of the indoor
units is independently
controlled to meet
specific comfort requirements.
InverterFlex units make zoning
practical and economical. No
complicated systems and controls
are required to cool and heat
individual rooms. Setting the
desired comfort level is a snap,
using the wireless remote that
comes with each indoor air handler.
This makes them ideal not just
for residential use, but also for
nursing homes, classrooms,
anywhere individual comfort
control is preferred.
The multi-zone design is also ideal
for large spaces. One or more
InverterFlex systems can be effective
(and quiet) for a church sanctuary
or fellowship hall, school commons
area, even a warehouse setting,
for example. As with all mini-splits,
there’s minimal disruption for
Multi-Zone
Flexibility
A ductless mini-split can contribute to a better night’s rest by making
your bedroom more comfortable. You can control the temperature
and humidity levels separately from the rest of the home and select
Sleep Mode, if you choose. For most people, body temperature drops
as they sleep so the room setting that was comfortable at bedtime
is too cool by early morning. The Sleep Mode automatically adjusts
the temperature during the night so you don’t wake up looking for a
blanket or have to get up to change the thermostat.
6
installation and the sleek indoor
units blend into the décor.
As for operating costs, the units use
inverter technology for efficiency,
but you may choose to heat/cool
only the room or space being used,
saving even more on utility bills.
Capacities for InverterFlex models
range from 18,000 BTUH to 36,000
BTUH, with indoor air handlers sized
from 9,000 to 12,000 BTUH per zone.
You can see how one outdoor condenser is used in conjunction with multiple
indoor air handlers in a single structure. Air handlers can be installed up to
82’ (depending on model) from the condenser, so you can place the condenser
in the best location for your landscaping.
TM

What do we mean by ‘Energy Efficient’?
In recent years, heating and cooling manufacturers have made significant
advances in the efficiency of their systems in terms of energy usage. This is an
especially important purchase consideration as fuel prices continue to rise.
Cooling efficiency is measured by a Seasonal Energy Efficiency Ratio (SEER)
rating. The higher the number, the more efficient the equipment. All Century
systems meet or exceed the federally mandated 13.0 SEER rating, and some
are rated as high as 20.0!
For heat pump models, efficiency is shown by a Heating Season Performance
Factor (HSPF). This is an estimate calculated by dividing the seasonal heating
output by the seasonal power consumption in watts. The federal minimum
is 7.7; the most efficient heat pumps have an HSPF between 8 and 10. Our
units are rated as high as 9.5 in the ‘V’ series.
All heating and cooling equipment comes with an Energy Guide label which
shows the estimated energy usage—you can use these labels to compare
equipment efficiency. Your dealer can help you determine which system is best
for you, taking into account a number of factors including the average number
of yearly cooling and heating days in your area of the country, in addition to
your individual needs.
All Century ductless mini-splits come charged with R-410A, an
environmentally friendly refrigerant.
Why is this important? Because R-410A doesn’t contribute to depletion
of the earth’s vital ozone layer.
The ozone layer is located in the stratosphere, providing a
protective barrier against the sun’s harmful ultraviolet rays
which can cause skin cancer and cataracts in people. UV
rays can also affect animals and crop yields.
In the past, most refrigerants were compounds
that contained chlorine—chlorofluorocarbons or
hydrochlorofluorocarbons. You don’t have to remember
these long names, but you should be aware that when these kinds
of refrigerants are released to the atmosphere, the chlorine molecule
combines with one of the ozone’s oxygen molecules, destroying ozone
at a faster rate than it can be replenished.
Soon all CFC and HCF refrigerants used around the world will be
replaced by non-ozone depleting types such as the R-410A that’s
already in use in all our mini-split models.
pr
pr
pr
pr
pr
pr
pr
pr
pr
pr
pr
p
p
p
p
p
p
p
p
p
p
p
p
p
ot
o
o
ectiv
e
wh
wh
w
w
w
w
w
w
w
w
w
w
ic
h
ra
ra
ra
ra
ra
ra
a
ra
ra
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
y
y
y
I
I
I
I
I
I
I
In
n
n
n
n
II
I
I
n
I
I
I
I
I
t
th
hydro
All C t d tl i i lit h d ith R 410A
7
Energy efficient
and environmentally sound
V Series
Single Zone Heat Pumps
9,000 - 24,000 BTUH
Inverter Technology
S Series
Single Zone
Cooling only and Heat Pumps
9,000 - 24,000 BTUH
Mini-Split Systems
See complete descriptions and specifications
beginning on page 11.
V Series
InverterFlex Heat Pumps
Dual, Tri and Quad Zone
18,000 - 36,000 BTUH
D Series
Ceiling Cassette
24,000 & 36,000 BTUH
cooling only

8
Quick Reference Guide
SEER HSPF Auto Operation Turbo Mode Sleep Mode 24 Hour Timer Auto Louver Swing Louver Setting Multi-Stage Filtration Auto Restart Low Ambient Op. Wireless Remote Self-Diagnostics Ionizer
“S” Series
Single Zone
SMA09SC-0 13.0 - 333333 -3333 -
SMA12SC-0 13.0 - 333333 -3333 -
SMA18SC-1 13.0 - 333333 -3333 -
SMA24SC-1 13.0 - 333333 -3333 -
SMH09SC-0 13.0 7.8 333333 -3333 -
SMH12SC-0 13.0 7.8 333333 -3333 -
SMH18SC-1 13.0 7.8 333333 -3333 -
SMH24SC-1 13.0 7.8 333333 -3333 -
“V” Series
Single Zone
with Inverter
Technology
VMH09SC-1 19.0 9.5 333333333333
VMH12SC-1 20.0 9.5 333333333333
VMH18SC-1 17.0 8.2 333333333333
VMH24SC-1 17.0 8.2 333333333333
“V” Series
Multi-Zone
with Inverter
Technology
VMH18DC-1 16.0 7.7 333333333333
VMH27TC-1 16.0 7.7 333333333333
VMH36QC-1 15.2 7.7 333333333333
“D” Series
Ceiling Cassette
DMC24CA-1 13.0 - 33 -33333 -33 -
DMC36CA-1 13.0 - 33 -33333 -33 -
Design, specifications and performance data subject to change without notice.
Use this handy guide to
check on the features
of each type of unit.
You can find more
detail on the product
pages that follow.
Classrooms in schools and churches are ideal candi-
dates for ductless mini-splits, especially multi-zone
models. They allow each room to be individually
controlled to meet specific requirements and the
units can be turned off when the room is not in use
for additional energy savings.

9
Ultra-Quiet Operation
High tech multi-speed fan provides balanced air flow that’s so quiet, you may not
realize the unit is turned on
Attractive Appearance
The low profile of wall mount indoor units, along with sleek grille design, results in an
attractive, unobtrusive installation; outdoor units can be installed close to the building
Random Swing
The unit randomly changes the louver direction for a natural breeze-like effect that is
preferred by most people; this feature can be selected in most modes
Airflow Direction Control
The vertical louvers can be set for desired airflow direction
Multi-Stage Filtration
Triple filtration in our “V” Series helps improve indoor air quality: an active carbon and
dust filter removes pollen, dust and smoke; an ionizer removes microscopic particles
from the air, and a freshening filter helps freshen the air
Auto Restart
The unit resumes operation when power is restored after a temporary outage, reverting
to the last-used setting
24-Hour Timer
Turns the unit on and off during the day for comfort when you’re home and energy
savings when you’re away
Low Ambient Operation
All high wall mini-splits can operate when the outside temperature is as low as 5o F
without installing a separate low ambient kit
Environmentally Friendly Refrigerant
All Century mini-split systems use R-410A which does not contribute to depletion of
the earth’s vital ozone layer
Self-Diagnostics
Makes it easy to identify any operational problems
All features not available on all models: see reference guide or individual series for specific features
You can operate Century mini-
splits in a variety of modes
to suit your needs and your
personal comfort level:
nAuto Operation—Climate
controls sense the temperature
in the room and turn the unit
and fan on and off as needed
to maintain the desired
temperature
nCooling Mode—Choose this
mode when cooling is needed
nTurbo Mode—To quickly
bring the room to the desired
temperature, the fan operates
at super high speed until the
setting is reached
nHeat Mode—For heat pumps,
the condenser extracts
heat from outside air for
economical comfort
nDehumidification Mode—The
unit automatically adjusts
the air flow and temperature
setting according to current
room conditions for comfort
even in the most humid
conditions
nAuto Sleep Mode—Because
our body temperature cools
down as we sleep, the unit
automatically adjusts the
setting for all-night comfort
nAir Circulation—The fan
circulates air without heating
or cooling and can be set at
low, medium or high speed
Operation is controlled by
a fully featured wireless
remote. Intuitive design
makes it easy to select
the operational mode.
For Multi-Zone units,
one remote is included
for each indoor unit.
Mini-Splits are packed
with comfort features
b
y

‘S’ Series
Single zone cooling only
and heat pump models
Our “S” Series, rated at 13 SEER, offers
economical zone control because only the
room or area being used is conditioned.
Also, no energy is used to force air through
a duct system.
Since the unit is independent of any other
heating or cooling system, specific comfort
requirements can be set for the space. A
wireless remote makes it easy to select both
temperature and mode.
The indoor air handler features a sleek design
that extends just 9” or less into the room,
depending on the model. For installation
flexibility, the indoor section can be located
up to 82 feet from the outdoor section.
Not only is the air handler visually unobtrusive,
it’s also so quiet you’ll forget it’s even there.
Fan speed and mode can be selected so the
air flow provides the comfort needed without
being disruptive. All models feature three
fan speeds.
Built with quality components, the system
includes a three minute delay at start-up to
protect the compressor from short cycling.
Ambient operating temperature: cooling 5° to
109.4° F, heating 19.4° to 75.2° F.
Includes a fully featured
wireless remote
9,000 to
24,000
BTUH
Features
nWhisper Quiet—High tech fan in the indoor unit
delivers balanced air flow
nTemperature Compensation—Indoor unit adjusts
automatically as needed to eliminate stratification
between ceiling and floor temperatures
nRandom Swing—Continually adjusts air direction
for a gentle, breeze-like effect
nMultiple Modes—Cooling, dehumidification only,
air circulation (heating in heat pump models) plus:
• Sleep mode
• 24-hour timer
• Turbo mode
nAuto Operation—Automatically adjusts to
maintain a constant temperature/humidity level
nAir Filtration—An air filter helps trap dust,
pollen, and other particles in the air; this
permanent filter is designed to be washed on a
regular basis and re-installed
nAuto Restart—Reverts to the last setting
following a power failure
nLow Ambient Operation—Crankcase heater
allows operation to 5° F (cooling)
nDefrost—On heat pump models
Indoor Unit
Outdoor Unit
10
Owners of historic homes will appreciate the comfort and convenience of ductless
mini-splits. Adding air conditioning to older homes can be expensive and difficult,
while window units destroy the exterior appearance of the home. But with a
mini-split, the outdoor condenser can be located where it doesn’t detract from
the curb appeal, and simple conduit containing refrigerant and electrical lines is
inconspicuous. Remodelers and renovators will appreciate these same qualities.

‘S’ Series
13 SEER Single Zone Ductless Mini-Split Sytems
11
Cooling Only Heat Pump Models
FEATURES SMA09SC-0 SMA12SC-0 SMA18SC-1 SMA24SC-1 SMH09SC-0 SMH12SC-0 SMH18SC-1 SMH24SC-1
Power Supply 115-1-60 115-1-60 208/230-1-60 208/230-1-60 115-1-60 115-1-60 208/230-1-60 208/230-1-60
Cooling Capacity (BTUH)
9,000 12,000 16,200/
18,000
21,600/
23,000 9,000 12,000 16,200/ 18,000
21,600/
23,000
CoolingAmps 7.3 10.0 6.8/6.8 8.8/8.8 7.3 10.0 6.8/6.8 8.8/8.8
Dehumidify (Pts/Hr.) 2.1 2.5 3.8 5.3 2.1 2.5 3.8 5.3
Heating Capacity
(BTUH) N/A N/A N/A N/A 10,000 12,500 16,200/
18,000
21,600/
23,000
HeatingAmps N/A N/A N/A N/A 7.6 10.0 7.0/7.0 8.8/8.8
HSPF N/A N/A N/A N/A 7.8 7.8 7.8 7.8
INDOOR UNIT
Air flow (CFM) 342/271/218 471/412/371 618/589/547 795/688/624 341/271/218 500/430/394 618/589/547 795/688/624
Fan Speeds (C/H/F) 3/–/3 3/–/3 3/–/3 3/–/3 3/3/3 3/3/3 3/3/3 3/3/3
AIR DIRECTION
Vertical Modulating Remote Remote Remote Remote Remote Remote Remote Remote
Horizontal (left/right) Manual Manual Manual Manual Manual Manual Manual Manual
Random Swing Standard Standard Standard Standard Standard Standard Standard Standard
INDICATOR LAMPS
ON/OFF Standard Standard Standard Standard Standard Standard Standard Standard
24 HrTimer/Sleep Mode
Standard Standard Standard Standard Standard Standard Standard Standard
Defrost N/A N/A N/A N/A Standard Standard Standard Standard
Temperature Setting Remote Temperature Set Range 62° F to 88° F Remote Temperature Set Range 62° F to 88° F
INDOOR UNIT DIMENSIONS
Width (inches) 311/8361/4421/249 3/16 311/8361/4421/249 3/16
Height (inches) 10 7/16 11 1/213 12 13/16 10 7/16 11 1/213 12 13/16
Depth (inches) 711/16 87/899
1/16 711/16 87/899 1/16
NetWt/ShippingWt (lbs)
16.5/19.8 28.7/33.0 33.0/46.3 39.7/55.1 16.5/19.8 28.7/33.0 33.0/46.3 39.7/55.1
OUTDOOR UNIT DIMENSIONS
Width (inches) 3011/16 2915/16 331/4351/43011/16 2915/16 331/4351/4
Height (inches) 215/8231/4273/8337/8215/8231/4273/8337/8
Depth (inches) 97/8111/4133/16 13 97/8111/4133/16 13
NetWt/ShippingWt (lbs.)
70.5/77.1 79.3/86.0 116.9/125.7 141.1/150.0 68.3/74.9 83.8/90.4 116.9/125.7 143.3/152.1
ELECTRICAL DATA OUTDOOR UNIT*
Main Power Connection
Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit
Max. Circuit Ampacity 13.6 17.2 12.7 16.5 13.6 17.2 12.7 16.5
Max. Fuse/HACR
Circuit Breaker 15A 20A 15A 20A 15A 20A 15A 20A
Recommended Indoor/
Outdoor Connecting
CableType (SJOW)
18AWG
4 conductor
300V or heavier
18AWG
4 conductor
300V or heavier
Line Voltage
per NEC*
Line Voltage
per NEC*
18AWG
4 conductor
300V or heavier
18AWG
4 conductor
300V or heavier
Line Voltage
per NEC*
Line Voltage
per NEC*
LINE SETS O.D. (inch) / REFRIGERANT
Refrigerant R-410A R-410A R-410A R-410A R-410A R-410A R-410A R-410A
Liquid (flare) (inch) 1/4 1/4 1/4 3/8 1/4 1/4 1/4 3/8
Suction (flare) (inch) 3/8 1/2 1/2 5/8 3/8 1/2 1/2 5/8
Max. Line Set Length
1
65.5 feet 65.5 feet 82 feet 82 feet 65.5 feet 65.5 feet 82 feet 82 feet
Max.Outdoor Elevation2
26 feet 26 feet 32.8 feet 32.8 feet 25.6 feet 25.6 feet 32.8 feet 32.8 feet
C US
Warranty—5 years on compressor, 1 year on parts
(Some limitations apply; see printed warranty for details.)
*Always follow local, state and national electrical codes. Main power connection is 208-230V.
1Min. 15 ft. line set recommended.
2Oil trap should be installed every 16.5 to 23 feet (5-7m).
Design, specifications and performance data subject to change without notice.

Features
nAttractive Cabinet—Indoor units feature a
slim profile with rounded corners and sleek
grilles with a subtle metallic look panel
nMultiple Modes—Cooling, dehumidification
only, and heating
• Sleep mode
• 24-hour timer
• Turbo mode
• Auto sleep mode
nRandom Swing—Continually adjusts fan
speed and air direction for a gentle, breeze-
like effect that’s preferred by most people
nRemote Control—Makes it easy to program
and operate the unit
nMulti-Stage Filtration—Includes ionizer to
remove microscope particles, active carbon
and dust filter, and freshening filter for
improved indoor air quality
nLow Ambient Operation—Cooling
mode functions even when the outdoor
temperature reaches 5oF
nDefrost Control—Automatically removes any
frost accumulation on the coil
nAuto Restart—Reverts to the last setting
following a power failure
‘V’ Series
Inverter technology in a
wide range of capacities
Outdoor Unit
208-230V
9,000 to
24,000
BTUH
V
o
0
H
12
Comfort and energy efficiency combine in these
attractive wall mount mini-splits. Rated as high
as 20 SEER, they include all the advantages of
advanced inverter technology.
You’ll find that your room reaches the preset
temperature quickly and that the temperature is
constant, without the variations that occur in other
types with on-off cycling. Because the units run
at low frequency most of the time, energy usage
is kept to a minimum. However, during weather
extremes (or when you have a room full of people),
the compressor ramps up automatically to maintain
the comfort level.
“V” Series units are exceptionally quiet. Heavy duty
compressors in the condensers are not just efficient,
but they also reduce noise and vibration. Inside,
the balanced fan circulates large volumes of air at
minimal noise levels.
Applications
Single zone models are especially suited to one
room residential installations such as bedrooms,
sunrooms, additions and workshops. For large
spaces up to 1550 square feet such as offices,
conference rooms, common areas, etc., the 24,000
BTUH models deliver big capacity with exceptional
efficiency. The inverter technology automatically
matches the power delivered with the load
requirements for precise temperature control.
Low Ambient Operation
The low ambient feature allows cooling when
outdoor temperature falls below freezing—great
for temperature/humidity sensitive environments.
Additionally, a factory installed crankcase heater
keeps compressor oil warm and reduces heat loss
to ambient air.
Low Ambient Operation: cooling 5° – 122° F,
heating 5° – 93.2 ° F.
Cooling and
heat pump
models in
all sizes
9,000, 12,000 and
18,000 BTUH Models
Indoor Unit

13
‘V’ Series
Single Zone Ductless Mini-Split Systems with Inverter Technology
C US
Heat Pump Models
FEATURES VMH09SC-1** VMH12SC-1** VMH18SC-1** VMH24SC-1
Power Supply 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Cooling Capacity (BTUH) 9,000 12,000 17,500 23,000
SEER 19 20 17 17
CoolingAmps 3.5 4.7 6.7 9.7
Dehumidification (Pts/Hr.) 2.3 2.5 3.6 4.7
Heating Capacity (BTUH) 10,000 12,500 18,000 24,000
HeatingAmps 3.8 5.4 6.3 9.5
HSPF 9.0 9.5 8.5 9.0
INDOOR UNIT
Air flow (CFM) 400/318/288 430/341/312 624/589/506 736/677/589
Fan Speeds (Hi/Med/Lo) 3333
AIR DIRECTION
Vertical Modulating Remote Remote Remote Remote
Horizontal (left/right) Manual Manual Manual Manual
Random Swing Standard Standard Standard Standard
INDICATOR LAMPS
ON/OFF Yes Yes Yes Yes
24 Hr.Timer/Sleep Mode Yes Yes Yes Yes
Defrost or Hot Start Yes Yes Yes Yes
Temperature Setting On Remote: 62° F – 86° F temperature setting range
INDOOR UNIT DIMENSIONS
Width (inches) 331/4331/4421/242 1/2
Height (inches) 11 1/411 1/412 5/812 5/8
Depth (inches) 61/261/27 7/87 7/8
NetWt/Shipping Wt (lbs) 19.8/24.3 19.8/24.3 31.9/44.0 31.9/44.0
OUTDOOR UNIT DIMENSIONS
Width (inches) 2915/16 2915/16 331/4351/4
Height (inches) 231/4231/4273/8337/8
Depth (inches) 111/4111/4133/16 13
NetWt/Shipping Wt (lbs.) 83.8/90.4 86.0/92.6 110.2/119.0 136.7/147.7
ELECTRICAL DATA OUTDOOR UNIT*
Main Power Connection Outdoor Unit Outdoor Unit Outdoor Unit Outdoor Unit
Max. Circuit Ampacity 9 9.5 15 13.5
Max. Fuse/HACR Circuit Breaker 15 15 15 15
Recommended Indoor/Outdoor
Connecting CablerType (SJOW) Line Voltage
per NEC*
Line Voltage
per NEC*
Line Voltage
per NEC*
Line Voltage
per NEC*
LINE SETS O.D. (inch) / REFRIGERANT
Refrigerant R-410A R-410A R-410A R-410A
Liquid Connection (flare) (inch) 1/4 1/4 1/4 3/8
Suction Connection (flare) (inch) 3/8 1/2 1/2 5/8
Maximum Line Set Length 165 feet 65 feet 82 feet 82 feet
Maximum Elevation (outdoor)226 feet 26 feet 32.8 feet 32.8 feet
Warranty—6 years on compressor, 2 years on parts
(Some limitations apply; see printed warranty for details.)
*Always follow local, state and national electrical codes. Main power connection is 208-230V.
**Energy Star compliant models.
1Min. 15 ft. line set recommended.
2Oil trap should be installed every 16.5 to 23 feet (5-7m).
Design, specifications and performance data subject to change without notice.

Includes one fully featured
wireless remote per indoor unit.
‘V’ Series
Our InverterFlex multi-zone units let you
condition two, three or four rooms—or one
large space—with just one outdoor unit. The
contractor can design a system that best meets
the load requirements of each room being
conditioned because indoor air handlers can be
mixed and matched.
A single outdoor condenser is sized for multiple
indoor air handlers. These 9,000 and 12,000
BTUH indoor units can be mixed, up to the
point that their combined capacity reaches the
total system capacity—see the chart on the
following page.
InverterFlex models incorporate all the advantages
of inverter technology. The compressor speed is
variable, depending on the load demand. Most
of the time the unit runs at low RPMs, saving
energy while maintaining comfort, but ramping
up to higher RPMs when needed. Temperature
fluctuations and compressor on/off cycling are
eliminated, and indoor air quality is enhanced
because air is constantly being pulled through
the filters and dehumidified.
True zone control is possible
because each air handler operates
independently. InverterFlex systems
are also great for larger spaces such
as fellowship halls and commons
areas: install one or more units for
quiet, efficient, easily controlled
comfort.
Features
nZone Control—Each air handler is independently
controlled, can be set for individual preferences or
turned off when the room isn’t being used
n
Random Swing—Continually adjusts air direction for
a gentle, breeze-like effect preferred by most people
nMultiple Modes—Cooling, dehumidification only,
air circulation, heating plus:
• Sleep mode
• 24-hour timer
• Turbo mode
nLow Ambient Operation—cooling 5° – 122° F,
heating 5° – 93.2 ° F
nAuto Operation—Automatically selects the mode
required to maintain a constant temperature/
humidity level
nMulti-Stage Filtration—Includes ionizer to
remove microscope particles, active carbon
and dust filter, and freshening filter for
improved indoor air quality
nAuto Restart—Reverts to the last setting
following a power failure
InverterFlex™ Systems
Dual Zone 18,000 to 24,000 BTUH
Tri/Quad-Zone 27,000
to 36,000 BTUH
Cool and heat two rooms or separate areas. Includes two indoor
air handlers and two wireless remotes, one for each air handler.
Cool and heat three or four rooms/separate areas.
Includes three or four air handlers and one wireless
remote for each air handler.
n
it.
sible
ates
e
ms
c
h
s
14
Dual Zone 18
,0
00 to 24
,0
0
0
Co
ol
l
a
a
nd
nd
h
eattworo
om
s
s
or
or
separat
TM

15
‘V’ Series InverterFlex
Multi-Zone Ductless Mini-Split HeatPumps
Mix and match indoor units up to the maximum BTUHs for each
system. The chart on the right shows the various combinations.
Note that outdoor and indoor units are ordered separately; “A”
indicates outdoor unit, “B” indicates indoor unit.
For instance, to order a 33,000 BTUH tri-zone, you’ll specify one
A-VMH36QC, two B-VMH12FC, and one B-VMH09FC.
Outdoor Units
FEATURES A-VMH18DC-1 A-VMH27TC-1 A-VMH36QC-1
Power Supply
208/230-1-60 208/230-1-60 208/230-1-60
System Cooling Capacity (BTUH) 18,000 27,000 36,000
SEER 16.0 16.0 15.0
CoolingAmps 7.5 11.0 15.0
System Heating Capacity (BTUH) 19,000 28,000 38,000
HeatingAmps 7.6 11.2 15.0
HSPF 7.7 7.7 8.5
OUTDOOR UNIT DIMENSIONS
Width (inches) 331/4331/439
Height (inches) 273/8273/837
Depth (inches) 133/16 133/16 13
NetWt/Shipping Wt (lbs.) 117.9/125.7 125.7/133.4 189.6/198.4
ELECTRICAL DATA OUTDOOR UNIT*
Main Power Connection Outdoor Unit Outdoor Unit Outdoor Unit
Min. Circuit Ampacity 10.5 16.0 15.4
Max. Fuse/HACR Circuit Breaker 15 20 20
Recommended Indoor/Outdoor
Connecting Cable (SJOW) Line Voltage
per NEC*
Line Voltage
per NEC*
Line Voltage
per NEC*
LINE SETS O.D. (inch) / REFRIGERANT
Refrigerant R-410A R-410A R-410A
Liquid (flare) (inch) 1/4 1/4 1/4
Suction (flare) (inch) 3/8 3/8 3/8
Maximum Line Set Length149.2 feet 49.2 feet 49.2 feet
Maximum Elevation (outdoor)232.8 feet 32.8 feet 32.8 feet
InverterFlex Outdoor/Indoor Combinations
OUTDOOR UNIT ZONES INDOOR UNITS TOTAL BTUH
A-VMH18DC-1 Dual 9K + 9K 18,000
A-VMH27TC-1
Dual 9K + 12K 21,000
Dual 12K + 12K 24,000
Tri 9K + 9K + 9K 27,000
A-VMH36QC-1
Tri 9K + 9K + 12K 30,000
Tri 9K + 12K + 12K 33,000
Tri 12K + 12K + 12K 36,000
Quad 9K + 9K + 9K +9K 36,000
Indoor Units
FEATURES B-VMH09FC-1 B-VMH12FC-1
INDOOR UNIT
Cooling Capacity BTUH 9,000 12,000
Heating Capacity BTUH 10,000 13,000
Air flow (CFM) 335/283/206 412/306/247
Dehumidification (Pts/Hr) 2.3 2.5
Fan Speeds 33
AIR DIRECTION
VerticalAdjustment Manual Manual
Horizontal Modulating Yes Yes
Random Swing Yes Yes
INDICATOR LAMPS
ON/OFF Yes Yes
24 Hr.Timer/Sleep Mode Yes Yes
Defrost Yes Yes
Temperature Setting On Remote: 62° F – 88° F
INDOOR UNIT DIMENSIONS
Width (inches) 315/16 331/4
Height (inches) 10 5/811 1/4
Depth (inches) 61/461/4
NetWt/Shipping Wt (lbs) 22/26.5 22/26.5
Liquid (flare) (inch) 1/4 1/4
Suction (flare) (inch) 3/8 1/2*
C US
*Always follow local, state and national electrical codes. Main power connection is 208-230V.
1Min. 15 ft. line set recommended
2Oil trap should be installed every 16.5 to 23 feet (5-7m).
Design, specifications and performance data subject to change without notice.
Ambient Operating Temperature: 5° - 122° F (cooling); 5° - 93.2° F (heating)
*Adapter included with indoor section
* 9K = Model No. B-VMH09FC-1, 12K = Model No. B-VMH12FC-1
Warranty—6 years on compressor, 2 years on parts
(Some limitations apply; see printed warranty for details.)
TM

‘D’ Series
Ceiling Cassette Systems
208-230V/60/1
Features
nMultiple Modes for Comfort—Cooling, fan
only, dehumidification only, auto sleep modes
n Auto Operation—Fan speed and temperature
are automatically adjusted according to the actual
temperature of the room
n Timer Modes—Can be programmed for daily,
weekly and holiday operation for energy savings
when the room is not being used
nSwirl Mode—Controls the louvers to reduce
temperature stratification; louver swing delivers
uniform comfort
nPlasma Air Purifying Filter—High tech filter
improves indoor air quality; unit also includes a
washable air filter
nAuto Restart—Reverts to last programmed
setting after a power failure
nSelf-Diagnostics—Indicates when
maintenance is required
Our indoor cooling only units fit flush in the
ceiling with an attractive panel incorporating
airflow louvers. A small light display on the
indoor unit shows operation and if the timer is in
use, plus signals when the filter needs changing.
A full featured wireless remote and a wired wall
remote to control operation and program the unit
are both included.
To optimize comfort and minimize energy
consumption, a multi-stage compressor system in
the 36,000 BTUH unit uses two compressors that
operate individually or in tandem to closely match
the load for greatest efficiency.
24,000 BTUH 36,000 BTUH
24
24
0
0
00
00
B
B
TU
TU
H
H
36
36
0
00
B
TU
H
H
20
8
16
Offices are ideal locations for ceiling cassettes...the overhead location
allows conditioned air to reach cubicles and work areas within a single
space. Units can be programmed on a weekly basis for comfort during
working hours and energy savings in the evenings or on weekends.
Warranty—5 years on compressor, 1 year on parts
(Some limitations apply; see printed warranty for details.) *Always follow local, state and national electrical codes. Main power
connection is 208/230V.
Cooling Only
FEATURES DMC24CA-1 DMC36CA-1
Power Supply 208/230-1-60 208/230-1-60
Cooling Cap. (BTUH) 23,500/24,000 33,500/34,000
SEER 13.0 13.0
Dehumidify (Pts/Hr.) 6.3 7.8
Indoor Unit
Air Flow (CFM) H/M/L 650/600/550 850/800/750
Fan Speeds (Cool/Fan) 3 / 3 3 / 3
Air Direction–Four Way Standard Standard
24 Hr. Timer/Sleep Mode Standard Standard
Defrost Control Standard Standard
Electrical Data Outdoor Unit*
Main Pwr. Connection Outdoor Unit Outdoor Unit
Min. Circuit Ampacity 16.8 24.3
Max. Fuse/HACR Cir Brkr. 25 40
Indoor/Outdoor Connection Line Voltage
Per NEC*
Line Voltage
Per NEC*
Indoor Unit Chassis Dimensions
Width (inches)* 33 33
Height (inches) 88
8
Depth (inches)* 33 33
Shipping Wt (lbs) 70 70
Outdoor Unit Dimensions
Width (inches) 34 35
Height (inches) 31½
Depth (inches) 12 14
Shipping Wt. (lbs) 175 210
C US

Ready to buy?
Here are some things to consider:
When you buy Century products, you’re purchasing the peace of mind that
comes from dealing with a company that has a long track record of success.
We have a well-deserved reputation not only for quality products, but also
for standing behind those products with excellent warranty and support
programs. We have technicians available to handle telephone inquiries about
operation, installation and maintenance. Our web site is another resource:
owners’ manuals can be downloaded and your installer can access technical
information and service manuals.
Warranty Coverage
Century stands behind its mini-splits with some of the strongest warranties
in the industry. All our ductless mini-split systems are covered by a limited
five year warranty on the compressor and one year on other parts, and our
“V” Series is covered by a 6 year compressor, 2 year parts limited warranty.
(Some limitations apply, see our web site for full warranty details).
Consumer Financing Program
Your Century dealer makes it easy for you to purchase a ductless mini-split
system for residential use. Our KwikComfort and GeoSmart Financing
Programs give you the credit you need for a system, installation and any
related equipment—with no long wait and no credit hassle. Program
Representatives are available by phone seven days a week and, in most cases,
they can give you an answer within minutes. There’s no annual fee and a
variety of payment options is available. Talk to your Century dealer about
the advantages of one of these financing programs.
Extended Service Agreements
We stand behind our products with exceptionally strong warranties, but
as with any product containing mechanical and electronic components,
service is sometimes needed. Our AssurancePlus®program gives you an extra
measure of protection that extends beyond the standard warranty coverage.
It protects you against unexpected problems that require service and/or
replacement parts. AssurancePlus®extended service agreements allow you
to extend coverage beyond the original warranty, and there is a variety of
plans to choose from, offering parts and labor coverage, parts only or labor
only. Your Century dealer has all the details on the AssurancePlus®program.
17
Talk to your Century dealer about the advantages of
ductless mini-split systems and if one is right for your
location and situation. He should also make an on-
site inspection to measure and evaluate the space so
that your system is sized correctly.
correctl
and evaluat
correc
r
syst
em

1900 Wellworth Ave., Jackson, MI 49203
www.heatcontroller.com
Design, specifications, materials and performance data subject to change without notice.
RP 2.5M 03/11 Copyright 2010 Heat Controller, Inc. All rights reserved. CY-MS-B
Century offers a full line of ductless mini-split systems
that are quality constructed and energy efficient to
keep your family comfortable throughout the year.
With single zone, multi-zone, and ceiling cassette
models, there’s a system in the size and type you
need to add comfort to just about any location.
All our mini-splits are backed by strong warranty
coverage and after-sales support. Your dealer can
give you recommendations on which models best
suit your needs and lifestyle.
