Heat Controller DMH36TB-1 User manual

DMC24DB-1, DMH24DB-1
DMC36TB-1, DMH36TB-1

2Room Air Conditioner
Room Air Conditioner Installation Manual
TABLE OF CONTENTS
Installation Parts Provided.........................................3
Safety Precautions......................................................4
Installation of Indoor, Outdoor Unit...........................9
Select the best location ...........................................9
Piping length and elevation....................................10
Fixing Installation Plate ..........................................11
Drill a hole in the wall.............................................11

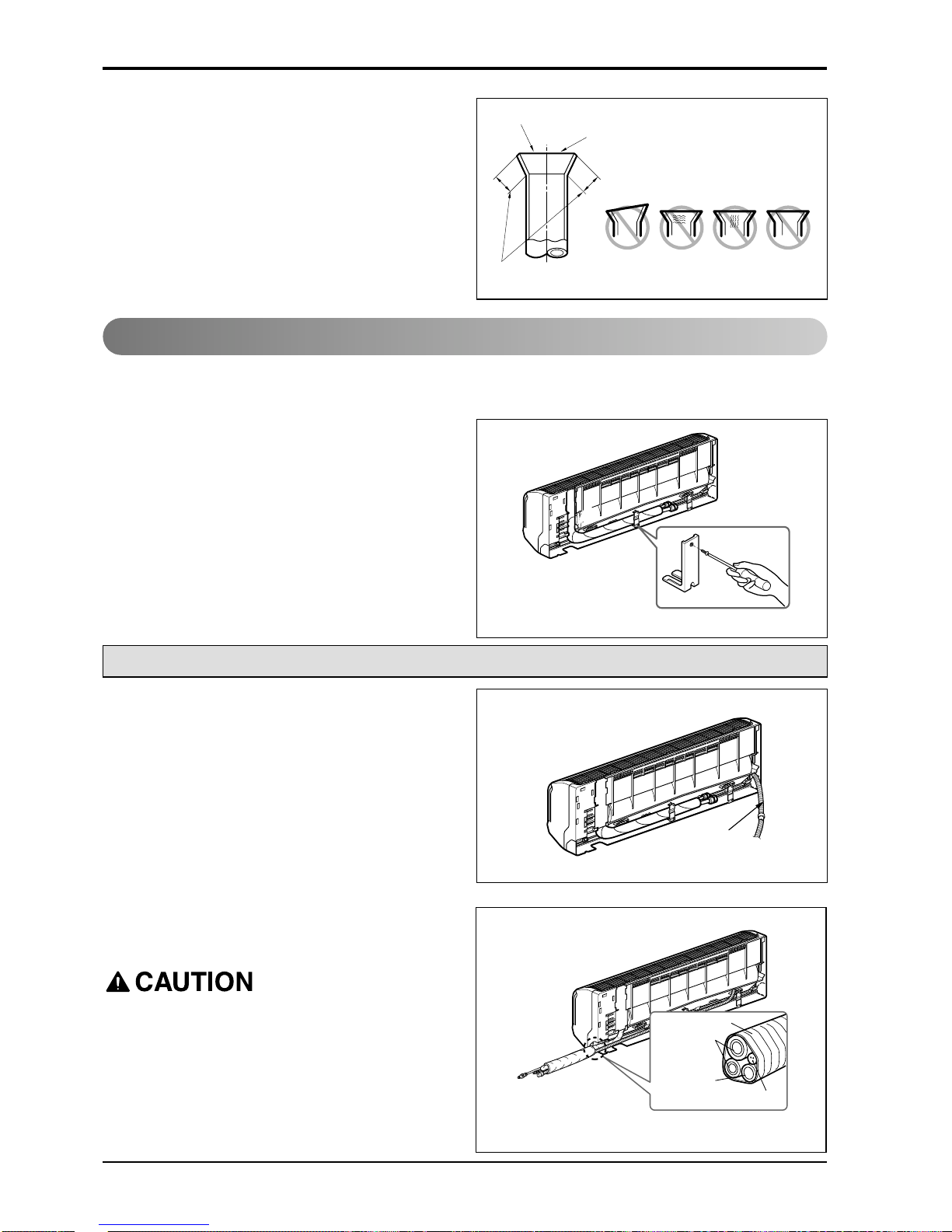

Flaring Work and Connection of Piping..................12
Flaring work............................................................12
Connecting the Piping............................................13
Connecting the Cable between Indoor Unit
and Outdoor Unit.......................................................19
Connect the cable to the Indoor unit......................19
Connect the cable to the Outdoor unit...................20
Connection method of the connecting
cable(Example).......................................................21
Connect the cable to the indoor unit......................22
Checking the Drainage, Forming the Pipings and
Long Pipe Setting...................................................23
Checking the drainage............................................23
Forming the piping..................................................24
Air Purging and Evacuation.....................................25
Checking method....................................................25
Evacuation..............................................................26
Charging.....................................................................27
Test Running..............................................................28
❏Level gauge
❏Screw driver
❏Electric drill
❏Hole core drill (ø50mm)
❏Horizontal meter
❏Flaring tool set
❏Specified torque wrenches
1.8kg.m, 4.2kg.m, 5.5kg.m, 6.6kg.m
(different depending on model No.)
❏Spanner .................Half union
❏A glass of water
❏Screw driver
❏Hexagonal wrench(4mm)
❏Gas-leak detector
❏Vacuum pump
❏Gauge manifold
❏Owner's manual
❏Thermometer
❏Holder Remote Control
Installation Requirements Required Tools

Installation Manual 3
Installation Parts Provided
Installation Parts Provided
Type "A" screws and plastic anchors
Type "B" screws Holder Remote Control
Installation plate
Standard Type
more than
70cm
(27.6 inch)
more than
30cm
(11.8 inch)
more than
30cm
(11.8 inch)
Air Outlet
Air Intake
(side, rear)
Connection pipe
Drain hose
Connecting wire
Control cover
more than 30cm
(11.8 inch)
more than
70cm
(27.6 inch)
24k
36k
more than
20cm
(7.9 inch)
more than
20cm
(7.9 inch)
Air Outlet
Air Intake
(side, rear)
Connection pipe
Drain hose
Connecting wire
Control cover
more than 20cm
(7.9 inch)

4Room Air Conditioner
Safety Precautions
Safety Precautions
To prevent the injury of the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage.The seriousness is
classified by the following indications.
■The meanings of the symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Installation
Be sure not to do.
Be sure to follow the instruction.
For electrical work, contact the
dealer, seller, a qualified
electrician, or an Authorized
Service Center.
•There is risk of fire or electric shock.
Install the panel and the cover of
control box securely.
•There is risk of fire or electric shock.
Do not install, remove, or re-
install the unit by yourself
(customer).
•There is risk of fire, electric shock,
explosion or injury.
Be cautious when unpacking and
installing the product.
•Shape edges could cause injury. Be
especially careful of the sharp edges.
For installation, always contact
the dealer or an Authorized
Service Center.
•There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
•It may cause injury, accident, or
damage to the product.

Installation Manual 5
Safety Precautions
■Operation
Be sure the installation area
does not deteriorate with age.
•If the base collapses, the air
conditioner could fall with it, causing
property damage, product failure, and
personal injury.
Install the indoor unit on the wall
where the height from the floors
more than 8ft(2.4m)
•There are sharp moving parts that
could cause personal injury.
Do not handle the pipe by
yourself(customer)
•High-Pressure refrigent may cause
personal injury.
Do not allow water to run into
electric part.
•There is risk of fire, failure of the
product, and/or electric shock.
Do not let the air conditioner run
for a long time when the
humidity is very high and a door
or a window is left open.
•Moisture may condense and wet or
damage furnishings.
Do not store of use flammable
gas or combustibles near the air
conditioner.
•There is risk of fire or product failure.
Do not use the product in a
tightly closed space for a long
time.
•Oxygen deficiency could occur.
•Some ventilation by opeing window
is necessary for the fresh air.
When flammable gas leaks, turn off
the gas and open a window for
ventilation before turning the product
on. Do not use the telephone or turn
switches on or off.
•There is risk of explosion or fire.
Turn of breaker to the unit if
strange sounds odors or smoke
comes from it.
• There is risk of fireproduct failure
and/or electric shock.
8ft(2.4m)
Wax
Thinner

6Room Air Conditioner
Safety Precautions
Stop operation and close any
window in storm or hurricane.
before the hurricane arrives.
•There is risk of property damage,
failure of product, or electric shock.
Do not open the inlet grill of the
product during operation. (Do
not touch the electrostatic filter,
if the unit is so equipped.)
•There is risk of physical injury, electric
shock, or product.
When the product is soaked
(flooded or submerged), contact
an Authorized Service Center.
•There is risk of electrical shock.
Ventilate the product from
time to time when operating
it together with a stove, etc.
•There is risk of fire or electrical
shock.
Turn off breaker to the
appliance before performing
cleaning or maintenance.
•There is risk of electric shock.
When the product is not
being used for a long time
turn off the breaker.
•There is risk of product damage
or failure, or unintended
operation.
Take care to ensure that nobody could step
on or fall onto the outdoor unit.
•There could result in personal injury and product
damage.
Do not insert hands or other objects
through the air inlet or outlet while the air
conditioner is on.
•There are sharp and moving parts that could
cause personal injury.

Installation Manual 7

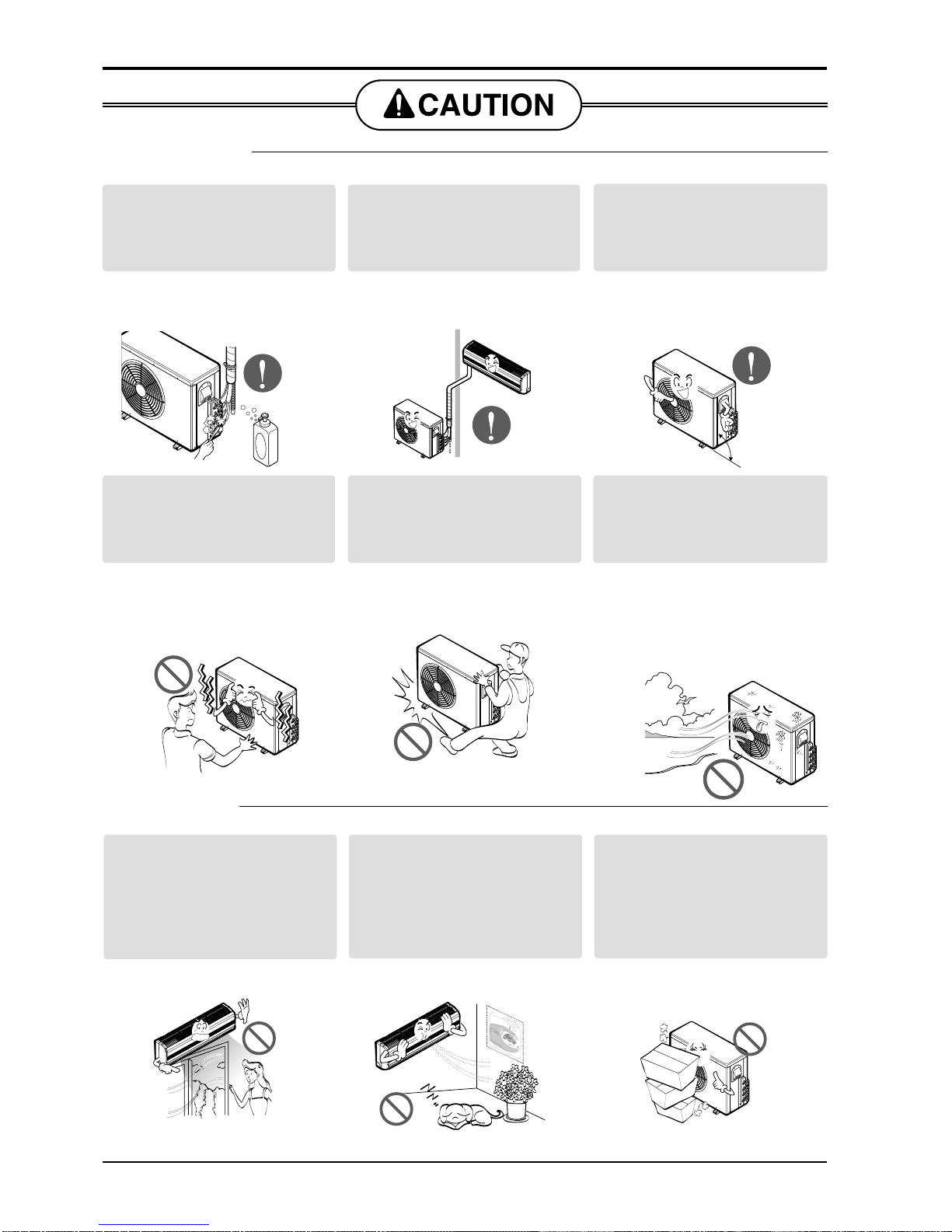

■Installation
■Operation
Do not direct airflow at
room occupants.
•This could damage your health.
Do not use the product for
special purposes, such as
preserving foods, works of
art, etc. It is a consumer air
conditioner, not a precision
refrigeration system.
•There is risk of damage or loss
of property.
Do not block the inlet or
outlet of air flow.
•It may cause product failure.
90°
Do not install the product
where the noise or hot air
from the outdoor unit could
offend the neighbors.
•It may cause a problem for your
neighbors.
Use two or more people to
lift and transport the air
conditioner
•Avoid personal injury.
Do not install the product
where it will be exposed to
sea wind (salt spray)
directly.
•It may cause corrosion in the
product. Corrosion, particularly
on the condenser and
evaporator fins, could cause
product malfunction or inefficient
operation.
Always check for
gas(refrigerant) leakage
after installation or repair of
product.
•Low refrigerant levels may
cause product failure.
Install the drain hose to
ensure that water is drained
away properly.
•A bad connection may cause
water leakage.
Keep level even when
installing the product.
•To avoid vibration or water
leakage.

8Room Air Conditioner
Safety Precautions
Use a soft cloth to clean.
Do not use harsh
detergents, solvents, etc.
•There is risk of fire, electric
shock or damage to the plastic
parts of the product.
Do not touch the metal
parts of the product when
removing the air filter.They
are very sharp!
•There is risk of personal injury.
Do not step on or put
anything on the product.
(outdoor unit)
•There is risk of personal injury
and failure of product.
■Disuse
Always insert the filter securely.
Clean the filter every two weeks
or more often if necessary.
•A dirty filter reduces the efficiency of
the air conditioner and could cause
product malfunction or damage.
Do not drink the water drained
from the unit.
•It is not sanitary and could cause
serious health issues.
Use a firm stool or ladder when
cleaning or maintaining the air
conditioner.
•Be careful and avoid personal injury.
Replace all the batteries in the
remote.
•There is risk of fire or explosion.
Do not recharge or disassemble
the batteries. Do not dispose of
batteries in a fire.
•They may burn or explode.
If the liquid from the batteries
gets onto your skin or clothes,
wash it well with clean water.
Do not use the remote if the
batteries have leaked.
•The chemicals in batteries could
cause burns or other health hazards.

Installation of Indoor, Outdoor Unit
Installation Manual 9
Installation of Indoor, Outdoor Unit
Read completely, then follow step by step.
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles
in front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure the spaces indicated by arrows from
the wall, ceiling, fence or other obstacles.
6. Use a stud finder to locate studs to prevent
unnecessary damage to the wall.
Outdoor unit
1. If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
2. Ensure that the spaces indicated by arrows
around front, back and side of the unit.
3. Do not place animals and plants in the path
of the warm air.
4.Take the air conditioner weight into account
and select a place where noise and vibration
are minimum.
5.
Select a place so that the warm air and sound
from the air conditioner do not disturb
neighbors.
Rooftop Installations:
If the outdoor unit is installed on a roof
structure, be sure to level the unit. Ensure the
roof structure and anchoring method are
adequate for the unit location. Consult local
codes regarding rooftop mounting.
Select the best location
More than 5cm
(2.0 inch)
More than 5cm
(2.0 inch)
More than 2.3m
(90.6 inch)
More than 5cm
(2.0 inch)
more than 70cm
(27.6 inch)
more than 30cm
(11.8 inch)
more than 30cm
(11.8 inch)
more than 70cm
(27.6 inch)
more than 20cm
(7.9 inch)
more than 20cm
(7.9 inch)
CAUTION: Install the indoor unit
on the wall where the height from
the floors more than 2.3m(7.5ft).
24k
36k

10 Room Air Conditioner
Installation of Indoor, Outdoor Unit
Multi Piping Type
Piping length and elevation
24k 30m(100ft) 15m(50ft) 3m(10ft) 7.5m(25ft) 7.5m(25ft)
36k 45m(150ft) 15m(50ft) 3m(10ft) 7.5m(25ft) 7.5m(25ft)
Capacity(Btu/h) Max total length of all pipes
(A+B/A+B+C)
Max length of
each pipe
(A/B/C)
Min length of
each pipe
(A/B/C)
Max Elevation
between each
indoor unit and
outdoor unit (h1)
Max elevation
between indoor
units (h2)
h2
h2
h1
A
B
B
C
h2
h1
A
B
h1
h1
h1
CAUTION: Capacity is based on standard length and maximum allowance
length is on the basis of reliability. Oil trap should be installed every 5~7
meters (16.4~23.0ft).
12k 3/8" 1/4" 7.5m(25ft) 20g/m(0.32oz/ft)
Gas Liquid Standard Length Additional
Refrigerant
Indoor Capacity
(Btu/h)
Pipe Size
24k 36k

Installation of Indoor, Outdoor Unit
Installation Manual 11
The wall you select should be strong and solid
enough to prevent vibration
1. Mount the installation plate on the wall with
type "A" screws. If mounting the unit on a
concrete wall, use anchor bolts.
•Mount the installation plate horizontally by
aligning the centerline using a level.
2. Measure the wall and mark the centerline. It
is also important to use caution concerning
the location of the installation plate-routing
of the wiring to power outlets is through the
walls typically. Drilling the hole through the
wall for piping connections must be done
safely.
Fixing Installation Plate
Installation Plate
Type "A" screw
Chassis
Hook
Installation plate
Left rear piping Right rear piping
Ø70mm Ø70mm
DB
A
C
ABCD
SE 65 110 85 110
CHASSIS
(Grade)
Distance (mm)
•Drill the piping hole with a ø70mm hole core drill. Drill the piping hole at either the right or the
left with the hole slightly slanted to the outdoor side.
Drill a hole in the wall
5-7mm
(0.2"~0.3")
Indoor WALL Outdoor

12 Room Air Conditioner
Flaring Work and Connection of Piping
Flaring Work and Connection of Piping
Flaring work
Main cause for gas leakage is due to defect in flaring work. Carry out correct flaring work in the
following procedure.
Cut the pipes and the cable.
1. Use the piping kit accessory or the pipes
purchased locally.
2. Measure the distance between the indoor and
the outdoor unit.
3. Cut the pipes a little longer than measured
distance.
4. Cut the cable 1.5m (5.0ft) longer than the pipe
length.
Burrs removal
1. Completely remove all burrs from the cut cross
section of pipe/tube.
2. Put the end of the copper tube/pipe in a
downward direction as you remove burrs in
order to avoid dropping burrs into the tubing.
Putting nut on
•Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube having
completed burr removal.
(not possible to put them on after flaring work)
Flaring work
•Carry out flaring work using flaring tool as shown
below.
•Firmly hold copper pipe in a die in the dimension
shown in the table above.
Copper
pipe
90°Slanted Uneven Rough
Pipe Reamer
Point down
Flare nut
Copper tube
mm inch mm
Ø6.35 1/4 0~0.5
Ø9.52 3/8 0~0.5
Outside diameter A
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"

Flaring Work and Connection of Piping
Installation Manual 13
Check
1. Compare the flared work with the figure by.
2. If a flared section is defective, cut it off and
do flaring work again.
Indoor
1. Prepare the indoor unit's piping and drain hose for installation through the wall.
2. Remove the plastic tubing retainer(see the
illustration by) and pull the tubing and drain
hose away from chassis.
3. Replace only the plastic tubing holder 1, not
the holder 2 in the original position.
1. Route the indoor tubing and the drain hose in
the direction of rear right.
2.
Insert the connecting cable into the indoor unit
from the outdoor unit through the piping hole.
•Do not connect the cable to the indoor unit.
•Make a small loop with the cable for easy
connection later.
3.Tape the tubing, drain hose, and the
connecting cable. Be sure that the drain hose
is located at the lowest side of the bundle.
Locating at the uper side can cause drain pan
to overflow inside the unit.
If the drain hose is routed inside the room,
insulate the hose with an insulation material*
so that dripping from "sweating"(condensation)
will not damage furniture or floors.
*Foamed polyethylene or equivalent is
recommended.
Inclined
Inside is shiny without scratches
Smooth all round
Even length
all round
Surface
damaged Cracked Uneven thickness
= Improper flaring =
Connecting the Piping
For right rear piping
Drain hose
Connecting
pipe
Connecting cable
Tape
Drain hose

14 Room Air Conditioner
Flaring Work and Connection of Piping
4. Indoor unit installation
Hook the indoor unit onto the upper portion of
the installation plate.(Engage the two hooks
of the rear top of the indoor unit with the
upper edge of the installation plate.) Ensure
that the hooks are properly seated on the
installation plate by moving it left and right.
Press the lower left and right sides of the unit
against the installation plate until the hooks
engage into their slots(clicking sound).
Connecting the piping to the indoor unit and
drain hose to drain pipe.
1. Align the center of the pipes and sufficiently
tighten the flare nut by hand.
2.Tighten the flare nut with a wrench.
3.When extending the drain hose at the indoor
unit, install the drain pipe.
Wrap the insulation material around the
connecting portion.
1. Overlap the connection pipe insulation
material and the indoor unit pipe insulation
material. Bind them together with vinyl tape
so that there may be no gap.
2.Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with vinyl tape for enough to
cover where they fit into the rear piping
housing section.
Drain hose
Connecting
cable
Indoor unit tubing Flare nut Pipes
Wrench
Indoor unit tubing
Open-end wrench (fixed)
Connection pipe
Flare nut
Vinyl tape(narrow)
Adhesive
Drain pipe
Indoor unit drain hose
Plastic bands Insulation material
Vinyl tape(narrow)
Connection pipe
Connecting cable
Vinyl tape (wide) Wrap with vinyl tape
Indoor unit pipe
Pipe
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
mm inch kg.m(lbf.ft)
Ø6.35 1/4 1.8(13.0)
Ø9.52 3/8 4.2(30.4)
Outside diameter Torque

Flaring Work and Connection of Piping
Installation Manual 15
1. Route the indoor tubing and the drain hose to
the required piping hole position.
2. Insert the piping, drain hose, and the
connecting cable into the piping hole.
3.
Insert the connecting cable into the indoor unit.
•Don't connect the cable to the indoor unit.
•Make a small loop with the cable for easy
connection later.
4.Tape the drain hose and the connecting
cables.
5. Indoor unit installation
•Hang the indoor unit from the hooks at the
top of the installation plate.
•Insert the spacer etc. between the indoor
unit and the installation plate and separate
the bottom of the indoor unit from the wall.
Connecting the piping to the indoor unit and
the drain hose to drain pipe.
1. Align the center of the pipes and sufficiently
tighten the flare nut by hand.
2.Tighten the flare nut with a wrench.
3.When extending the drain hose at the indoor
unit, install the drain pipe.
For left rear piping
Drain pipe
Connecting
cable
1 2
Installation plate
Spacer
Indoor unit
8cm
Indoor unit tubing Flare nut Pipes
Wrench
Indoor unit tubing
Connection pipe
Flare nut
Open-end wrench (fixed)
Vinyl tape
Adhesive
Drain hose
Indoor unit drain hose
(narrow)
mm inch kg.m(lbf.ft)
Ø6.35 1/4 1.8(13.0)
Ø9.52 3/8 4.2(30.4)
Outside diameter Torque

16 Room Air Conditioner
Flaring Work and Connection of Piping
Wrap the insulation material around the
connecting portion.
1. Overlap the connection pipe heat insulation
and the indoor unit pipe heat insulation
material. Bind them together with vinyl tape
so that there may be no gap.
2.Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with cloth tape over the range
within which they fit into the rear piping
housing section.
Reroute the pipings and the drain hose
across the back of the chassis.
Indoor unit installation
1. Remove the spacer.
2. Ensure that the hooks are properly seated on
the installation plate by moving it left and
right.
3. Press the lower left and right sides of the unit
against the installation plate until the hooks
engage into their slots(clicking sound).
Plastic bands Insulation material
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Indoor
unit piping
Pipe
Vinyl tape
(wide) Wrap with vinyl tape
Drain hose Vinyl tape(narrow)
Pipe
Wrap with
vinyl tape(wide)
Piping for
passage through
piping hole
Drain hose
Connecting
cable

Flaring Work and Connection of Piping
Installation Manual 17
Installation Information. For left piping. Follow the instruction below.
Good case
•Press on the upper side of clamp and unfold the tubing to downward slowly.
Bad case
•Following bending type from right to left may cause damage to the tubing.

18 Room Air Conditioner
Flaring Work and Connection of Piping
Outdoor
Align the center of the pipings and sufficiently
tighten the flare nut by hand.
Finally, tighten the flare nut with torque wrench
until the wrench clicks.
•When tightening the flare nut with torque
wrench, ensure the direction for tightening
follows the arrow on the wrench.
Outdoor unit
36k
Liquid side piping
Torque wrench
B-UNIT
A-UNIT
Gas side piping
Torque wrench
Liquid side piping
B-UNIT
C-UNIT
A-UNIT
Gas side piping
Outdoor unit
24k
Outside diameter Torque
mm inch
kg.m(lbf.ft)
Ø6.35 1/4 1.8(13.0)
Ø9.52 3/8 4.2(30.4)

Connecting the Cable between Indoor Unit and Outdoor Unit
Installation Manual 19
Connecting the Cable between Indoor Unit and Outdoor Unit
Connect the cable to the indoor unit by connecting the wires to the terminals on the control
board individually according to the outdoor unit connection. (Ensure that the color of the wires
of the outdoor unit and the terminal No. are the same as those of the indoor unit.)
The earth wire should be longer than the common wires.
The circuit diagram is not subject to change without notice.
When installing, refer to the electrical diagram behind the front panel of Indoor Unit.
The wiring for the outdoor unit can be found on the inside of the Outdoor Unit control cover.
Connect the cable to the Indoor unit.
WARNING:
• The circuit diagram is not subject to change without notice.
• Be sure to connect wires according to the wiring diagram.
• Connect the wires firmly, so that not to be pulled out easily.
• Connect the wires according to color codes by referring to the wiring diagram.
WARNING: Provide a circuit
breaker between power source
and the outdoor unit as shown
below.
WARNING! :The power wire to the outdoor unit must be of sufficient gauge
to meet the Minimum Circuit Ampacity (MCA) as indicated on the outdoor
unit rating plate and be of type required by NEC and local codes.
The connecting cable between the indoor and outdoor unit should be SJOW
type, minimum 18 gauge, and meet requirements of NEC and local codes.
Air
Conditioner
Main power source
Circuit Breaker
Use a circuit breaker
or time delay fuse.
GN/YL20mm
Line voltage (208~230V)
24k 36k
GN/YL20mm
Line voltage (208~230V)
GN/YL20mm
AWG18
Low voltage (below 40V)
WARNING! Secure the interconnecting on both ends by using the clamps
provided.

20 Room Air Conditioner
Connecting the Cable between Indoor Unit and Outdoor Unit
Connect the cable to the Outdoor unit.
1. Remove the cover control from the unit by
loosening the screw.
Connect the wires to the terminals on the
control board individually as the following.
2. Secure the cable into the control board with
the strain relief clamp.
3. Refix the cover control to the original position
with the screw.
:
1. Separately wire the high and low voltage line.
2. Use heat-proof electrical wiring capable of withstanding temperature up to 75°C(167°F).
3. Use outdoor and waterproof connection cable rated more than 300V for the connection between
indoor and outdoor unit. (For example, Type SJOW)
WARNING:
•Be sure to comply with local codes while running the wire from the indoor unit to
the outdoor unit(size of wire and wiring method, etc).
•Every wire must be connected firmly.
•No wire should be allowed to touch refrigerant tubing, the compressor or any
moving parts.
NOTICE
Outdoor unit
Over 5mm
Holder for
power supply
cord
Connecting
cable
Cover control
Terminal block
Power supply
cable
A-UNIT
4321
B-UNIT
4321
Terminal BLOCK
4321
Terminal BLOCK
4321
LN
Power Source
208/230V AC
(High voltage)
Indoor A-UNIT
24k Outdoor side
Indoor B-UNIT
Connecting cable(Low voltage)Connecting cable(Low voltage)
Connecting cable(Low voltage)
Connecting cable(Low voltage)
A-UNIT
4321
B-UNIT
4321
Terminal BLOCK
4321
Terminal BLOCK
4321
LN
Power Source
208/230V AC
(High voltage)
Indoor A-UNIT
36k Outdoor side
Indoor B-UNIT
C-UNIT
4321
Terminal BLOCK
4321
Indoor C-UNIT
Connecting cable(Low voltage)Connecting cable(Low voltage)
