Heat Controller VMH 09 User manual

Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • [phone] • www.heatcontroller.com
INSTALLATION
MANUAL
VMH 09/12/18/27/36
Version C
InverterFlex
Ductless Mini-Split Heat Pump

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
1
Table of Contents
Safety Precautions
Warnings and Cautions ...........................................................................2
Installation Instructions
Selecting an installation location..............................................................3
Accessories..............................................................................................4
System installation...................................................................................5
Indoor unit installation..............................................................................6
Outdoor unit installation ...........................................................................9
Refrigerant Pipe Connection
Refrigerant pipe connection...................................................................10

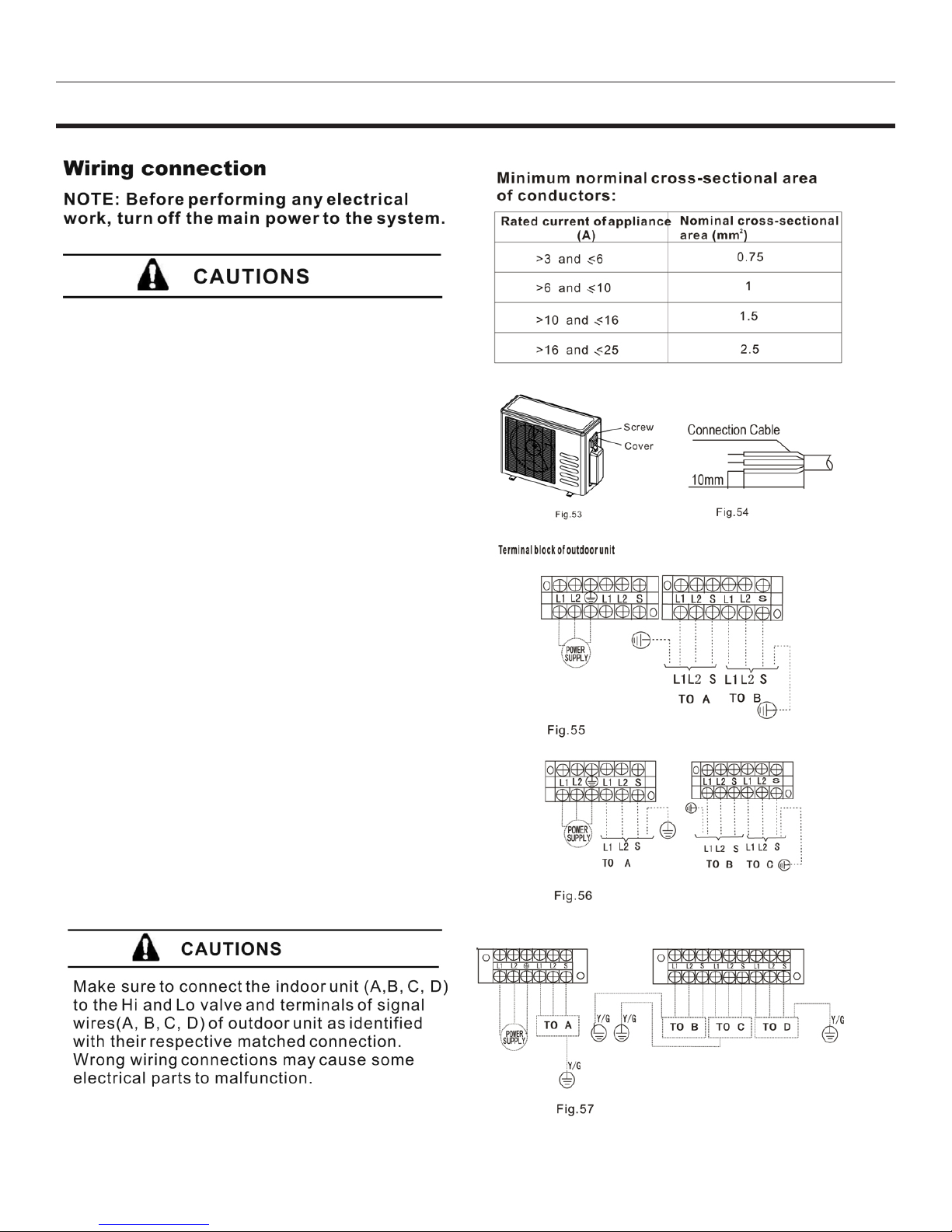

Electrical Work
Electrical Work .......................................................................................12
Air Purging
Air purging with vacuum pump...............................................................14
Safety and refrigerant leak check ..........................................................16

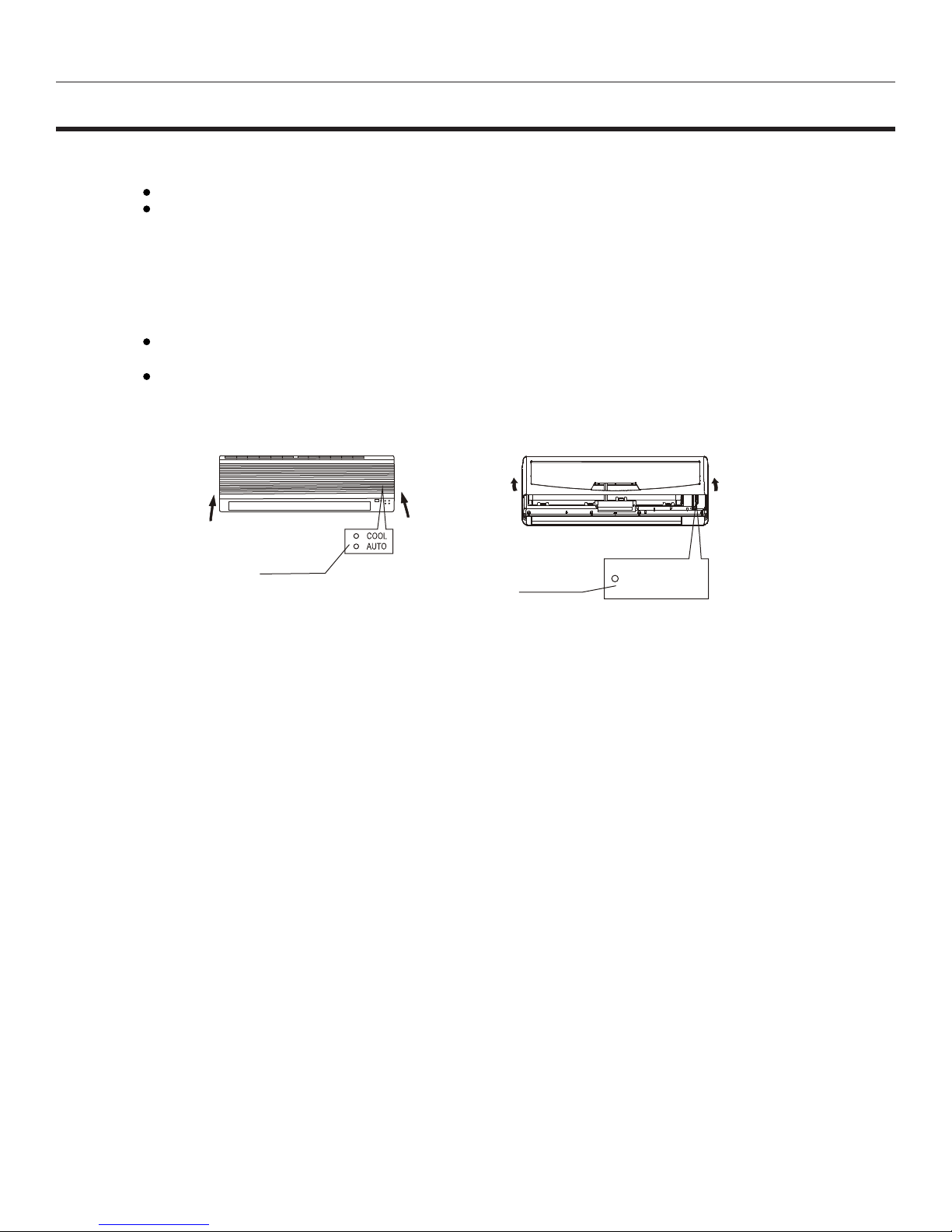

Testing the System
Test Run.................................................................................................17
Caution
• Contact an authorized service technician for repair or maintenance of this unit.
• Contact an authorized installer for installation of this unit.
• Installation work must be performed in accordance with local and national electrical
codes and standards by authorized personnel only.
!

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
2
WARNING!
!
CAUTION!
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
This symbol denotes item that is PROHIBITED from doing.
The items to be followed are classied by the symbols:
1) Do not install without an authorized servicer/installer.
2) Install according to this installation instruction. If installation is defective, it can cause water leakage, or
electrical shock/re.
3) Use the supplied accessories and specied parts for installation.
4) Install the indoor unit on a wall strong enough to hold the unit’s weight. Install the outdoor unit on a
raised concrete pad or blocks to provide a solid, level foundation. In a location with high winds, anchor
the unit and provide an air bafe. In snowy areas (for heat pump models), install the outdoor unit on a
raised platform so that it is higher than drifting snow. Provide snow vents.
5) For electrical work, follow local and national electric codes and these installation instructions. An
independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defects
are found in electrical work, it will cause electrical shock or re.
6) Use the specied cable and connect tightly and clamp the cable so that no external force will stress the
terminal. Loose wiring may cause overheating at the connection points and a possible re hazard.
7) Wiring routing must be properly arranged so that control board cover is xed properly. If control board
cover is not xed perfectly, it will cause overheating at connection point of terminal, re or electrical shock.
8) When charging the unit, take care not to let air/substances other than the specied refrigerant go into
refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration
cycle, explosion and injury.
9) Do not modify the length of the power supply cord or use an extension cord, and do not share the
single outlet with other electrical appliances. Otherwise, it will cause re or electrical shock.
1) This equipment must be grounded and installed with a ground leakage current breaker. It may cause
electrical shock if grounding work doesn’t comply with local/national electric codes.
2) Do not install the unit at place where leakage of ammable gas may occur. If gas leaks and
accumulates near the unit, it may cause re.
3) Carry out drainage piping as mentioned in installation instructions. If not done correctly, water may
enter the room and damage personal belongings.
WARNING!
!
CAUTION!
!
• Read the follow SAFETY PRECAUTIONS carefully before installation.
• Electrical work must be performed by a licensed electrician. Be sure to use the correct rating of the power
cord and main circuit for the model to be installed.
• Incorrect installation due to ignoring the instruction will cause harm or damage.
n The seriousness is classied by the following indications.

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
3
1. Wall-mounted type
Selecting installation place
Read completely, then follow step by step.
Indoor unit
• Do not expose the indoor unit to heat or steam.
• Select a place where there are no obstacles in front or
around the unit.
• Make sure that condensation drainage can be conveniently
routed away.
• Do not install near a doorway.
• Ensure that the space on the left and right of the unit is more than 5in.(12cm).
• Use a stud nder to locate studs to prevent unnecessary damage to the wall.
• The indoor unit should be installed on the wall at a height of 6.5ft.(2m) or more from the oor.
• The indoor unit should be installed allowing a minimum clearance of 6in.(15cm) from the ceiling.
• Any variations in pipe length may require adjustment to refrigerant charge.
• Do not expose unit to direct sunlight. The sun will fade the plastic cabinet and affect its appearance.
Outdoor unit
• If an awning is built over the outdoor unit to prevent
direct sunlight or rain exposure, make sure that heat
radiation from the condenser is not restricted.
• Ensure that the clearance around the back of the unit
is more than 12in.(30cm) and left side is more than
12in.(30cm). The front of the unit should have more
than 79in.(200cm) of clearance and the connection
side (right side) should have more than 24in.(60cm)of
clearance.
• Do not place animals and plants in the path of the air
inlet or outlet.
• Take the air conditioner weight into account and select a place where noise and vibration will not be an issue.
• Select a place so that the warm air and noise from the air conditioner do not disturb neighbors.
Rooftop installation
• If the outdoor unit is installed on a roof structure, be sure to level the unit.
• Ensure the roof structure and anchoring method are adequate for the unit location.
• Consult local codes regarding rooftop mounting.
• If the outdoor unit is installed on roof structures or external walls, this may result in excessive noise and vibra-
tion, and may also be considered a non-serviceable installation.

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
4
4
Accessories
INSTALLATION INSTRUCTIONS
Note: Except the above parts provided, the other parts needed during installation you must
purchase.
Parts you must
purchase
(The minimum pipe
wall-thickness
of 0.7mm is required. )
6.35
9.53
12.7
82
Self-tapping Screw B ST2.9X10
Remote controller
Installation Plate
Name of Accessories
Self-tapping Screw A ST3.9X25
Seal (See Page 8 for details)
Drain Joint
Connecting
pipe
Assembly
Liquid side
Plastic Expansion Sheath
Number Q ty/one unit
Gas side
9Remote controller holder 1
( 12000Btu/h model)
( 12000Btu/h model)
(See page 8 for details)
1
8
8
1
1
1
7
6
5
4
3
2
1
Level gauge
Screwdriver
Electric drill,Hole core drill ( 26in.(65mm))
Flaring tool set
Specified torque wrenches: 1.8kgf.m, 4.2kgf.m,
5.5kgf.m, 6.6kgf.m(different depending on model No.)
Spanner (half union)
Hexagonal wrench (1.5in.(4mm))
Gas-leak detector
Tools needed for installation:
Vacuum pump
Gauge manifold
Users manual
Thermometer
Multimeter
Pipe cutter
Measuring tape
Qty/unit
Level gauge
Screwdriver
Electric drill, Hole core drill (o .25in.(65mm))
Flaring tool set
Torque wrench
Spanner (half union)
Hexagonal wrench (1.5in.(4mm))
Gas-leak detector
1/4" (6.35mm)
3/8" (9.53mm) (<12,000 Btu/h model)
1/2" (12.7mm) (≥12,000 Btu/h model)
45

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
5
• Use a stud nder to locate studs to prevent
unnecessary damage to the wall.
• A minimum pipe run of 9.8 ft (3m) is re-
quired to minimize vibration & excessive
noise.
• Two of the “A,” “B” and “C” air ow direc-
tions should be free from obstructions for
the outdoor unit.
CAUTION
Single-Dual Zone
Single-Tri Zone
Single-Quad Zone

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
6

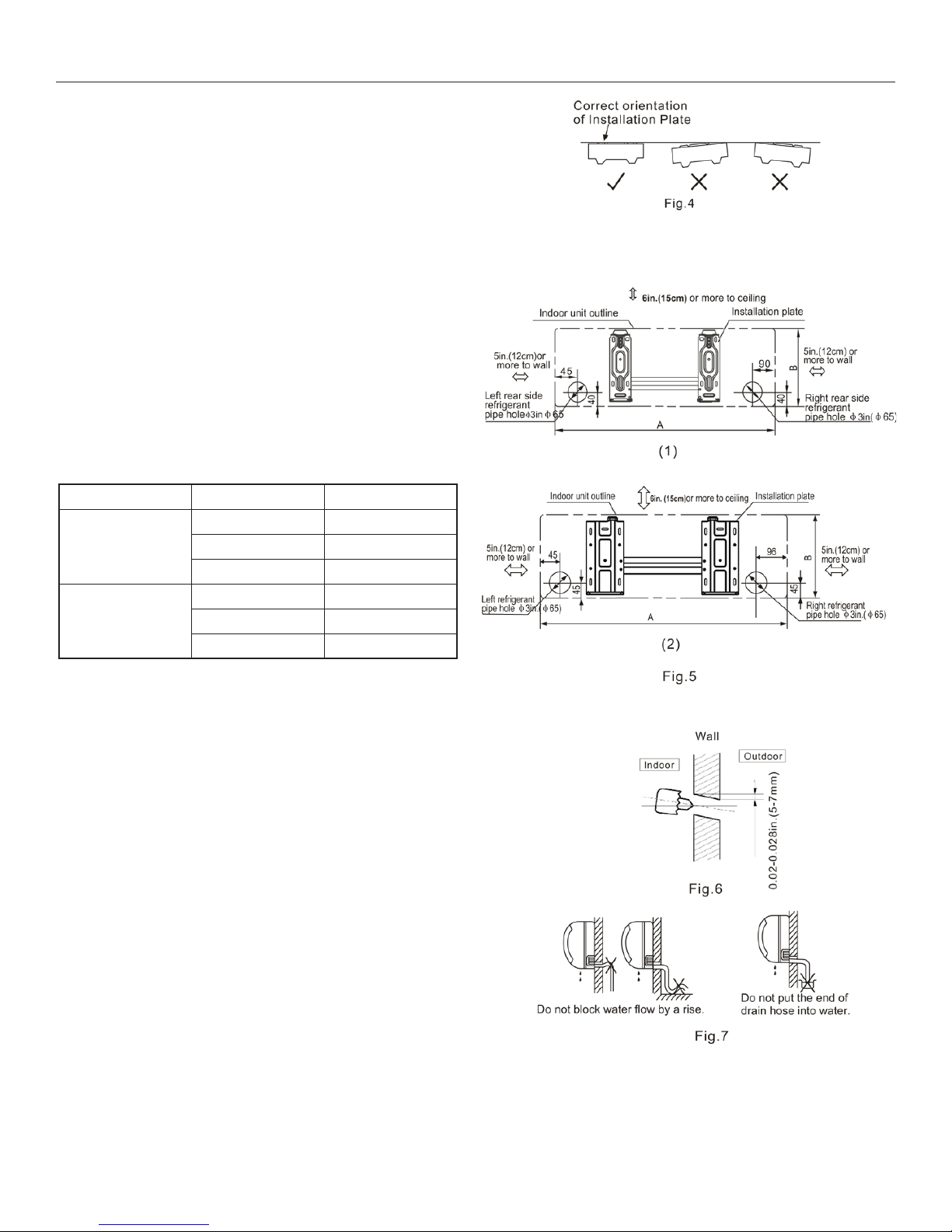

Indoor unit installation (wall-mounted type)
1. Installation Plate
A. Mount the installation plate horizontally on struc-
tural parts (studs) of the wall with proper clear-
ance around the installation plate.
B. If the wall is made of brick, concrete or the like,
drill eight (8) 5mm (0.2in.) diameter holes in
the wall.Insert anchor for appropriate mounting
screws.
C. Fit the installation plate on the wall with eight (8)
type “A” screws.
NOTE:
Fit the Installation Plate and drill holes in the wall ac-
cording to the wall structure and corresponding mount-
ing points on the installation plate. The Installation
Plate may be slightly different according to the different
models of indoor unit.
2. Drill a hole in the wall
A. Determine hole positions according to the dia-
gram detailed in Fig.5. Drill one (1) hole ( 3in.
(65mm)) slanting slightly toward the outdoors,
as shown in Fig. 6.
B. Always use wall hole conduit when drilling metal
grid, metal plate or the like.
3. Connective Pipe and Drainage Installation
A. Run the drain hose sloping downward. Do not
install the drain hose as illustrated in Fig.7.
Model A in. (mm) B in. (mm)
<12,000 Btu/h
28 (710) 10 (250)
30 (750) 10 (250)
31 (780) 11 (270)
≥12,000 Btu/h
32 (790) 10 (265)
31 (780) 11 (270)
32 (815) 11 (280)

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
7
7
INSTALLATION INSTRUCTIONS
1. For the left-hand and right-hand piping,
remove the pipe cover from the side
panel.
2. For the rear-right-hand and rear-left-hand
piping, install the piping as shown in Fig.9.
Bend the connective pipe to be laid at 4in.(43mm)
height or less from the wall.
3. Fix the end of the connective pipe. (Refer
to Tightening Connection in REFRIGERANT
PIPING CONNECTION)
Connective pipe installation
2. When connecting extension drain hose,
insulate the connecting part of extension
drain hose with a shield pipe, do not let
the drain hose slack.
Right-hand piping
Left-hand piping
Rear-right piping
Rear-left piping
Indoor unit outline
Connective pipe
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
43
Fig.8
Fig.9
Fig.10
4. Piping and wrapping
Bundle the tubing, connecting cable, and drain
hose with tape securely, evenly as shown in
Fig.11.
Because the condensed water from rear of the
indoor unit is gathered in ponding box and is
piped out of room. Do not put anything else in
the box.
Indoor unit
Connective
pipe
Pipe room
Ponding box
Wrapping belt
Connective
cable
Drain hose
Fig.11
Connect the indoor unit first, then the
outdoor unit.
Do not allow the piping to let out from
the back of the indoor unit.
Be careful not to let the drain hose slack.
Heat insulated both of the auxiliary piping.
Be sure that the drain hose is located at
the lowest side of the bundle. Locating
at the upper side can cause drain pan
to overflow inside the unit.
Never intercross nor intertwist the power
wire with any other wiring.
Run the drain hose sloped downward to
drain out the condensed water smoothly.
CAUTION
• Connect the indoor unit rst, then the outdoor
unit.
• Do not allow the piping to let out from the back
of the indoor unit.
• Be careful not to let the drain hose slack.
• Heat insulate both of the auxiliary piping.
• Be sure that the drain hose is located at the low-
est side of the bundle. Locating at the upper side
can cause drain pan to overow inside the unit.
• Never intercross nor intertwine the power wire
with any other wiring.
• Run the drain hose sloped downward to drain
out the condensed water smoothly.
Wall Cap

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
8
1. Pass the piping through the hole in the wall.
2. Put the upper claw at the back of the indoor
unit on the upper hook of the installation
plate, move the indoor unit from side to
side to see that it is securely fastened (see
Fig.12).
3. Separate the bottom of the indoor unit from
the wall by inserting spacer, etc., between
the indoor unit and the wall. Remove spacer
after piping is complete.
4. Push the lower part of the indoor unit up on
the wall, then move the indoor unit from side
to side, up and down to check if it is secure.
4. Indoor unit installation
Spacer

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
9
Outdoor Unit Installation
Outdoor installation precaution
• Install the outdoor unit on a rigid base to prevent
increasing noise level and vibration.
• Determine the air outlet direction where the
discharged air is not blocked. If the installation
place is exposed to strong winds, ensure the unit
is lengthwise along the wall or provide a suitable
air bafe.
• If suspending the unit, follow the bracket manu-
facturer’s instructions.
• Use a raised concrete pad or concrete blocks to
provide a solid, level surface. Securely anchor the
unit down with bolts.
• Be sure there are no obstacles which block radiat-
ing air.
• In a snowy area, install the outdoor unit on a raised
platform that is higher than drifting snow.
Anchoring outdoor unit
Anchor the outdoor unit with 5/16" (8mm) or 3/8"
(10mm) bolt and nut tightly and horizontally on a
concrete or rigid mount.
Outdoor unit dimensions
WxHxD in. (mm)
Mounting Dimensions
A in. (mm) B in. (mm)
29.9 x 23.2 x 11.2 (760 x 590 x 285) 20.9 (530) 11.4 (290)
33.3 x 27.4 x 13.2 (845 x 695 x 335) 22 (560) 13.2 (335)
35.2 x 33.9 x 13.0 (895 x 860 x 330) 23.2 (590) 13.1 (333)
39.0 x 38.0 x 14.0 (990 x 965 x 355) 24.5 (623) 14.4 (366)
Fig. 45

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
10
Fit the seal into the drain elbow, then insert the
drain joint into the base pan hole of outdoor unit,
rotate 90 to securely assemble them.
Connecting the drain joint with an extension drain
hose (Locally purchased), in case of the water
draining off the outdoor unit during the heating
mode.
Drain joint installation
Seal
Drain joint
Base pan hole of
outdoor unit
Seal
Drain pipe
Refrigerant pipe connection
Oblique
90 Roughness
Burr
Main cause for refrigerant leakage
is due to defect in the flaring work.
Carry out correct flaring work
using the following procedure:
A: Cut the pipes and the cable.
1. Use the piping kit accessory or pipes
purchased locally.
2. Measure the distance between the indoor
and the outdoor unit.
3. Cut the pipes a little longer than the
measured distance.
4. Cut the cable 1.5m longer than the pipe
length.
1. Flaring work
Fig.46
B: Burr removal
1. Completely remove all burrs from the cut
cross section of pipe/tube.
2. Put the end of the copper tube/pipe in a
downward direction as you remove burrs in
order to avoid dropping burrs into the tubing.
Pipe
Reamer
Point down
Fig.47
Fig.48
C: Putting nut on
Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube
having completed burr removal.(not possible
to put them on after flaring work)
Flare nut
Copper tube
Fig.49
24
REFRIGERANT PIPE CONNECTION
hose (locally purchased) is recommended.
Use line set kit or copper tubes/pipes
purchased locally.
Cut the pipes/tubes a little longer than
the measured distance.
Cut the cable 1.5m longer than the pipe/
tube length.

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
11
D: Flaring work
Firmly hold copper pipe in a die in the dimension shown
in the table below.
Tightening Connection
• Align the center of the pipes.
• Sufciently tighten the are nut with ngers, and then
tighten it with a spanner and torque wrench as shown
in Fig.51 & 52.
Caution
Excessive torque can break nut depending on
installation conditions.
Outer diameter
in. (mm)
A in. (mm)
Max. Min.
o 1/4" (6.35) 0.5 (1.3) 0.276 (0.7)
o 3/8" (9.35) 0.63 (1.6) 0.394 (1.0)
o 1/2" (12.7) 0.709 (1.8) 0.394 (1.0)
Outer
Diameter
Tightening
torque
Additional tightening
torque
o 1/4" (6.35) 11.57 ft-lb
(160 kgf-cm)
14.46 ft-lb
(200 kgf-cm)
o 3/8" (9.35) 21.69 ft-lb
(300 kgf-cm)
25.3 ft-lb
(350 kgf-cm)
o 1/2" (12.7) 36.17 ft-lb
(500 kgf-cm)
39.78 ft-lb
(550 kgf-cm)
Refrigerant Pipe Connection

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
12
Electrical Work
1) Never fail to have an individual power circuit specically for the air conditioner.
As for the method of wiring, be guided by the circuit diagram posted on the in-
side of control cover.
2) The screws which fasten the wiring in the casing of electrical ttings are liable
to come loose from vibrations to which the unit is subjected during the course
of transportation. Check them and make sure that they are all tightly fastened. (If
they are loose, it could cause burn-out of the wires.)
3) Specication of power source.
4) Conrm that electrical capacity is sufcient.
5) See that the starting voltage is maintained at more than 90 percent of the rated
voltage marked on the name plate.
6) Conrm that the cable thickness is as specied in the power source specica-
tion.
7) Always install an earth leakage circuit breaker in a wet or moist area.
8) The following would be caused by voltage drop.
Vibration of a magnetic switch, which will damage the contact point, fuse breaking,
disturbance of the normal function of the overload.
9) The means for disconnection from a power supply shall be incorporated in the
xed wiring and have an air gap contact separation of at least 3mm in each
active(phase) conductors.
CAUTION
Electric safety regulations for the initial Installation
1. Power voltage should be in the range of 90%~110%of rated voltage.
2. The creepage protector and main power switch with a 1.5 times capacity of Max. Current of the unit should
be installed in power circuit.
3. Ensure the air conditioner is grounded well.
4. Connect wiring to the unit according to the electrical diagram located on the panel of the outdoor unit.
5. All wiring must comply with local and national electrical codes and be installed by qualied and skilled
electricians.
6. An individual branch circuit and single receptacle used only for this air conditioner must be available.

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
13
• Do not touch the capacitor even if you have
disconnected the power or electric shock haz-
ard may occur. For your safety, you should start
repairing at least 5 minutes after the power is
disconnected.
• The power is supplied from the Outdoor Unit.
Up to four indoor units are connected with signal
wires or power cords.
Connect the cable to the outdoor unit
1. Remove the electrical control board cover from
the outdoor unit by loosening the screw as
shown in Fig.53.
2. Connect the connective cables to the terminals
as identied with their respective matched num-
bers on the terminal block of indoor and outdoor
units.
3. Secure the cable onto the control board with the
cord clamp.
4. To prevent rain water from running along the
connective cable to the inside of the buiding/
room where the unit is located, make a “U” bend
trap.
5. Insulate unused cords (conductors) with PVC-
tape. Ensure that they do not touch any electrical
or metal parts.
Electrical Work

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
14
Air Purging
Air and moisture in the refrigerant system have undesirable effects as indicated below:
• Pressure in the system rises.
• Operating current rises.
• Cooling or heating efciency drops.
• Moisture in the refrigerant circuit may freeze and block capillary tubing.
• Water may lead to corrosion of parts in the refrigeration system.
Therefore, the indoor unit and tubing between the indoor and outdoor unit must be leak tested and evacuated
to remove any noncondensables and moisture from the system.
Air purging with vacuum pump
Preparation
• Check that each tube(both liquid and gas side tubes) between the indoor and outdoor units have
been properly connected and all wiring for the test run has been completed. Remove the service
valve caps from both the gas and the liquid side on the outdoor unit. Note that both the liquid and the
gas side service valves on the outdoor unit are kept closed at this stage.
• Pipe length and refrigerant amount:
Connective Pipe Length Air Purging Method Additional amount of refrigerant to be charged
Less than 16.5 ft. (5m) Use vacuum pump ———————
More than 16.5 ft. (5m) Use vacuum pump (Pipe length-5m) 15g/m
(Pipe length-16.5 ft.) x 5 oz/ft.

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
15
When Using the Vacuum Pump
(For method of using a manifold valve, refer to its operation
manual.)
1. Completely tighten the are nuts, A, B, C, D, connect the mani-
fold valve charge hose to a charge port of the low-pressure
valve on the gas pipe side.
2. Connect the charge hose connection to the vacuum pump.
3. Fully open the Lo handle of the manifold valve.
4. Operate the vacuum pump to evacuate. After starting evacua-
tion, slightly loose theare nut of the Lo valve on the gas pipe
side and check that the air is entering(Operation noise of the
vacuum pump changes and a compound meter indicates 0
instead of minus)
5. After the evacuation is complete, fully close the Lo handle
of the manifold valve and stop the operation of the vacuum
pump. Evacuate for 15 minutes or more and check that the
compound meter indicates -29.92 inHg (-1x105Pa).
6. Turn the stem of the packed valve B about 45° counterclock-
wise for 6~7 seconds after the gas comes out, then tighten the
are nut again. Make sure the pressure display in the pressure
indicator is a little higher than the atmosphere pressure.
7. Remove the charge hose from the Low pressure charge hose.
8. Fully open the packed valve stems B and A.
9. Securely tighten the cap of the packed valve.
• When relocating the unit to another place, perform evacuation
using vacuum pump.
• Make sure the refrigerant added into the air conditioner is liquid
form.
Caution in handling the packed valve
• Open the valve stem until it hits against the stop. Do not try to
open it further.
• Securely tighten the valve stem cap with a spanner or the like.
• Valve stem cap tightening torque (see tightening torque table).
-29.92 inHg
Lo Handle Hi Handle
Air Purging

Heat Controller, Inc. INSTALLATION MANUAL VMH InverterFlex Mini-Split
16
Perform the electric safe check after
completing installation:
1. Insulated resistance
The insulated resistance must be more than
2M .
2. Grounding work
After finishing grounding work, measure the
grounding resistance by visual detection and
grounding resistance tester. Make sure the
grounding resistance is less than 4 .
3. Electrical leakage check (performing during
test running)
During test operation after finishing installation,
the serviceman can use the electroprobe and
multimeter to perform the electrical leakage
check. Turn off the unit immediately if leakage
happens. Check and find out the solution
ways till the unit operate properly.
A: Lo packed valve B: Hi packed valve
C and D are ends of indoor unit connection.
CAUTION
Electrical safety check
Gas leak check
1. Soap water method:
Apply a soap water or a liquid neutral
detergent on the indoor unit connection
or outdoor unit connections by a soft
brush to check for leakage of the
connecting points of th piping. If bubbles
come out, the pipes have leakage.
2. Leak detector
Use the leak detector to check for leakage.
Safety and leakage check
15
Indoor unit
check point
Outdoor unit
check point
nmkjih
A
B
C
a
c
b
d
e
f
a,b,c,d,h,i,j , k are points for one-two type.
a,b,c,d,e,f,,h,i,j,k,m,n are points for one-three type.
Indoor unit
check point
Outdoor unit
check point
One-four type
30
AIR PURGING
Fig.63
Fig.64
NOTE: The illustration is for explanation
purpose only. The actual order of A, B, C
and D on the machine may be slightly
different from the unit you purchased. The
actual shape shall prevail.
Air Purging
NOTE: The illustration is for explanation
purposes only. The actual order of A, B, C
and D on the machine may be slightly
different from the unit you purchased. The
actual shape shall prevail.
Apply a soap water or a liquid neutral
detergent on the indoor unit connection
or outdoor unit connections with a soft
brush to check for leakage of the
connecting points of th piping. If bubbles
come out, the pipes have leakage.
test run).
Refrigerant Leak Check
Safety and Leak Check

VMH InverterFlex Mini-Split INSTALLATION MANUAL Heat Controller, Inc.
17
Test running
Perform test operation after completing gas leak check at the flare nut connections and
electrical safety check.
Check that all tubing and wiring have been properly connected.
Check that the gas and liquid side service valves are fully open.
1. Connect the power, press the ON/OFF button on the remote controller to turn the unit on.
2. Use the MODE button to select COOL, HEAT, AUTO and FAN to check if all the functions
works well.
3. When the amient temperature is too low(lower than 17 C), the unit cannot be controlled by
the remote controller to run at cooling mode, manual operation can be taken. Manual
operation is used only when the remote controller is disable or maintenance necessary.
Press the Manual control button to select the AUTO or COOL, the unit will operate under
Forced AUTO or COOL mode(see User Manual for details).
4. The test operation should last about 30 minutes.
Hold the panel sides and lift the panel up to an angle until it remains fixed with a clicking
sound.
Manual control
Button
31
TEST RUNNING
Fig.65
Manual control
button
AUTO/COOL
Testing the System
2. Use the MODE button to select COOL, HEAT, AUTO and FAN to check if all the functions work
well.
3. When the ambient temperature is too low(lower than 62.2°F (17°C)), the unit cannot be controlled
by the remote controller to run in cooling mode, manual operation can be used. Manual opera-
tion is used only when the remote controller is disable or maintenance necessary.

04/2009
09/2010
